8800-C42

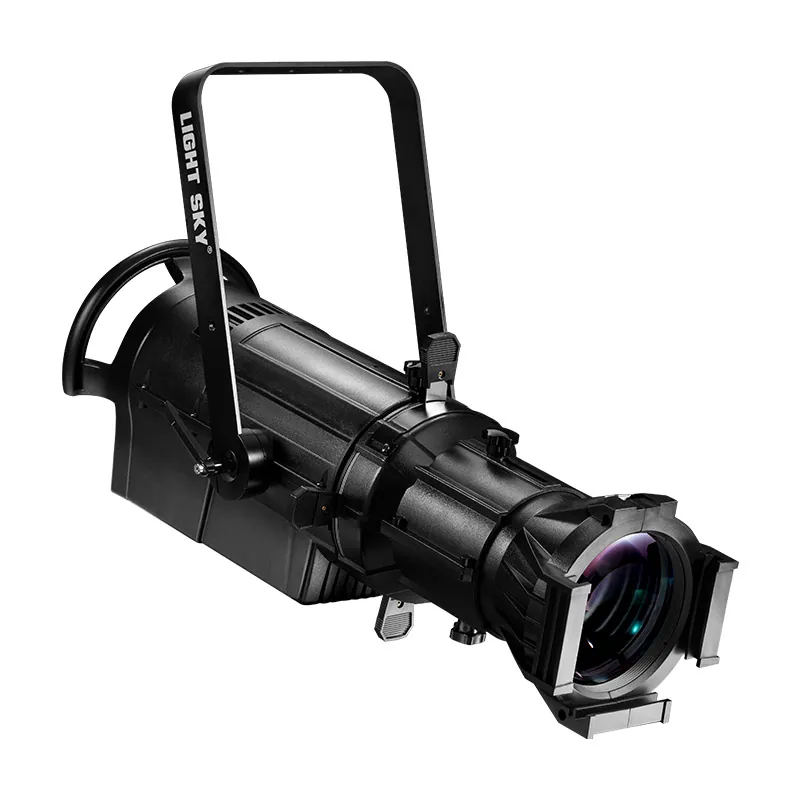

C42 is an LED profile light, it is energy-saving and environmentally friendly, has a long service life, and good mute effect.

Light source: OSRAM LEDs
Power consumption: 300W
Power supply: AC100-240V 50/60Hz
Protocols: DMX512
Net weight: 7.3 kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:39

LIGHT SKY 8800-C421:39

02SpecificationManufacturer's data · 2 groups · 30 values

What this product is, in numbers.

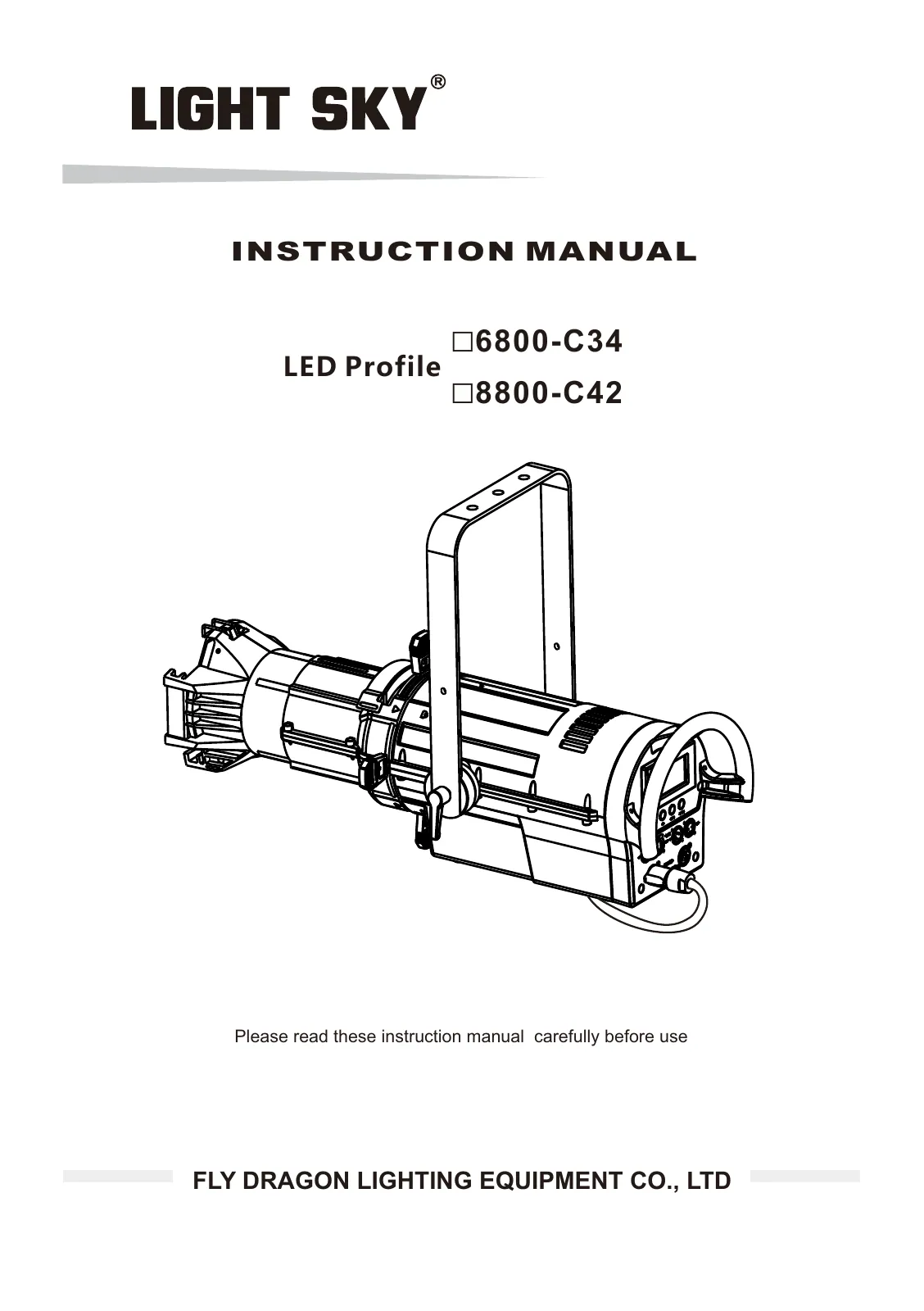

PDFUser manualEN · 28 pages · 1.4 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source / Power System15

Input Voltage: AC100-240V 50/60Hz
Total Power: 300W
LED Source: OSRAM LEDs
LED Quantity: 90 (including red, amber, light green, green, blue,; indigo – six colors in total)
LED Power: 200W
Light source average life span: 50,000 hours with less than 30% light decay
CRI (Color Rendering Index): 91-97
TLCI Index: 91-97
Adjustable Color Temperature: 2800K-10000K linear adjustment
Channels: 11CH
Dimming: 65,536 flicker-free dimming
Strobe: 1-30 times/second

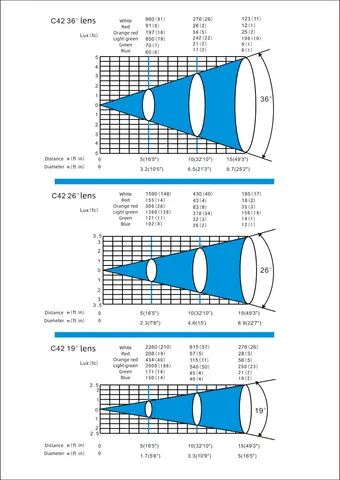

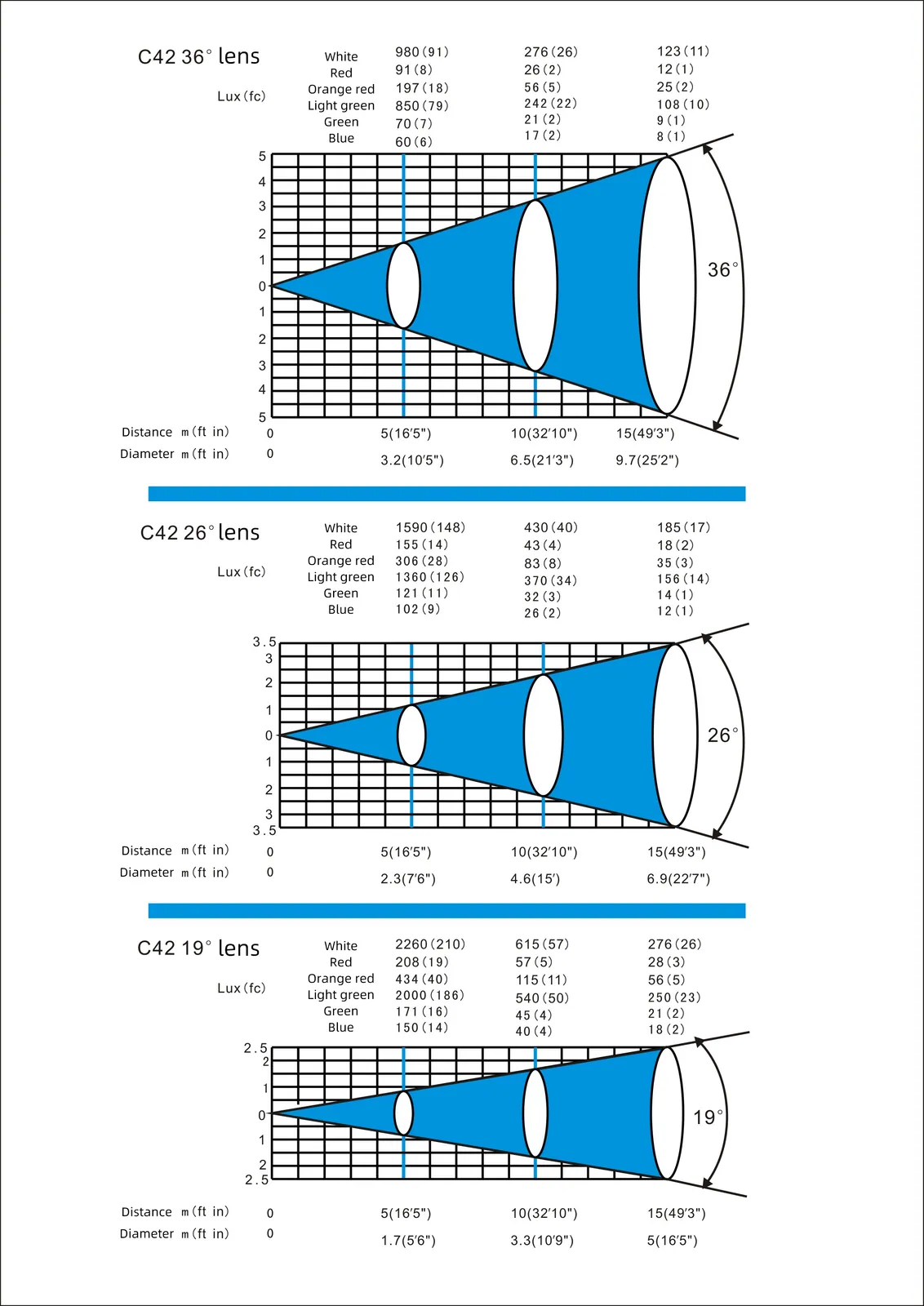

Lens Options: 19° (standard); optional 26°, 36°, and asymmetric (top-bottom) lenses
Protocols: DMX512

02Appearance Parameters15

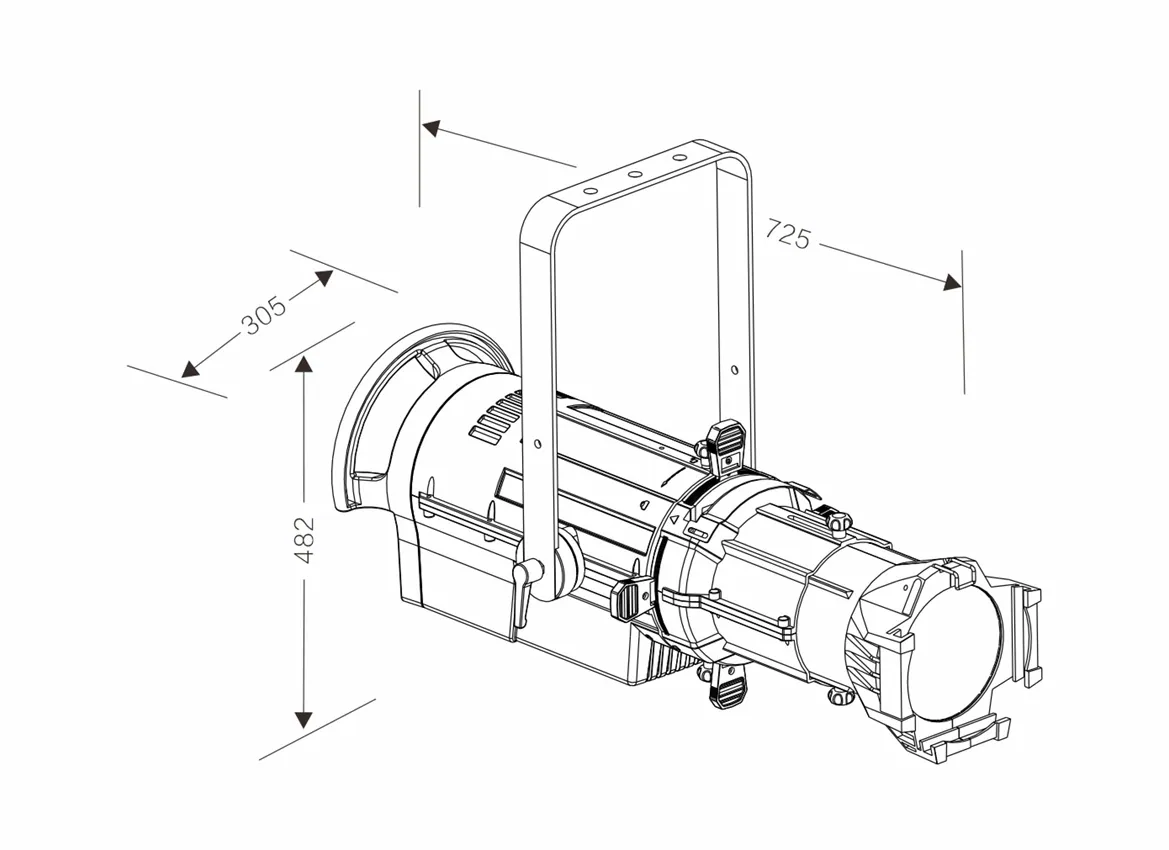

Product size: 725 × 305 × 482 mm
Carton Packaging (1 in 1): 340 x 290 x 745 mm
Net Weight: 7.3 kg
Gross Weight: 9.5 kg
Carton Packaging (4 in 1): 710 x 610 x 775 mm
Net Weight (4 in 1): 29.2 kg
Gross Weight (4 in 1): 40.7 kg
Lens Packaging size(1 in 1): 340 x 290 x 380 mm
Net Weight (1 in 1): 2.4 kg
Gross Weight (1 in 1): 3.5 kg
Lens Packaging size(4 in 1): 710 x 610 x 410 mm
Net Weight (4 in 1): 9.6 kg
Gross Weight (4 in 1): 16.2 kg
Packaging (Fly case 2 in 1): 1020 × 720 × 535 mm
Gross Weight: 57.2 kg

03DescriptionManufacturer's description

What it is.

C42 is an LED profile light, it is energy-saving and environmentally friendly, has a long service life, and good mute effect. Colorful, cutting-edge, clear positioning accuracy, high brightness, long range, professional for the theatre, television, large-scale performances, and entertainment venues to create services to provide the most professional stage film and television lighting solutions. If you need to purchase stage lighting, experts, teachers, and friends are welcome to LiGHT SKY for official access to information.

FEATURES

Original OSRAM LED Chips: Stable and long-lasting.
▪ Adjustable Color Temperature: 2800K-10000K, CRI and TLCI both reaching 91-97.
▪ Six Basic Color LEDs: Capable of mixing any color, ending the era of gels for imaging lights.
▪ 65,536 Level Dimming Technology: Accurately reproduces traditional tungsten imaging light dimming.
▪ Ultra-quiet Airflow Design: Entirely made of engineering plastic housing, lightweight.
