Sheet 05.605

ACME · Beam

BEAMONE PRO

ModelXP 300 BEAM IP

The ACME BEAMONE PRO moving beam is engineered for outdoor productions demanding extreme punch, long-throw performance, and uncompromising all-weather reliability.

Light source: PHILIPS MSD Infinity 12 X
Power consumption: 370W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66
Beam angle / zoom: 2°
DMX channels: 25
Protocols: DMX512,RDM,Art-Net,sACN,NFC
Colour temperature: 7,400K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 19 groups · 67 values

What this product is, in numbers.

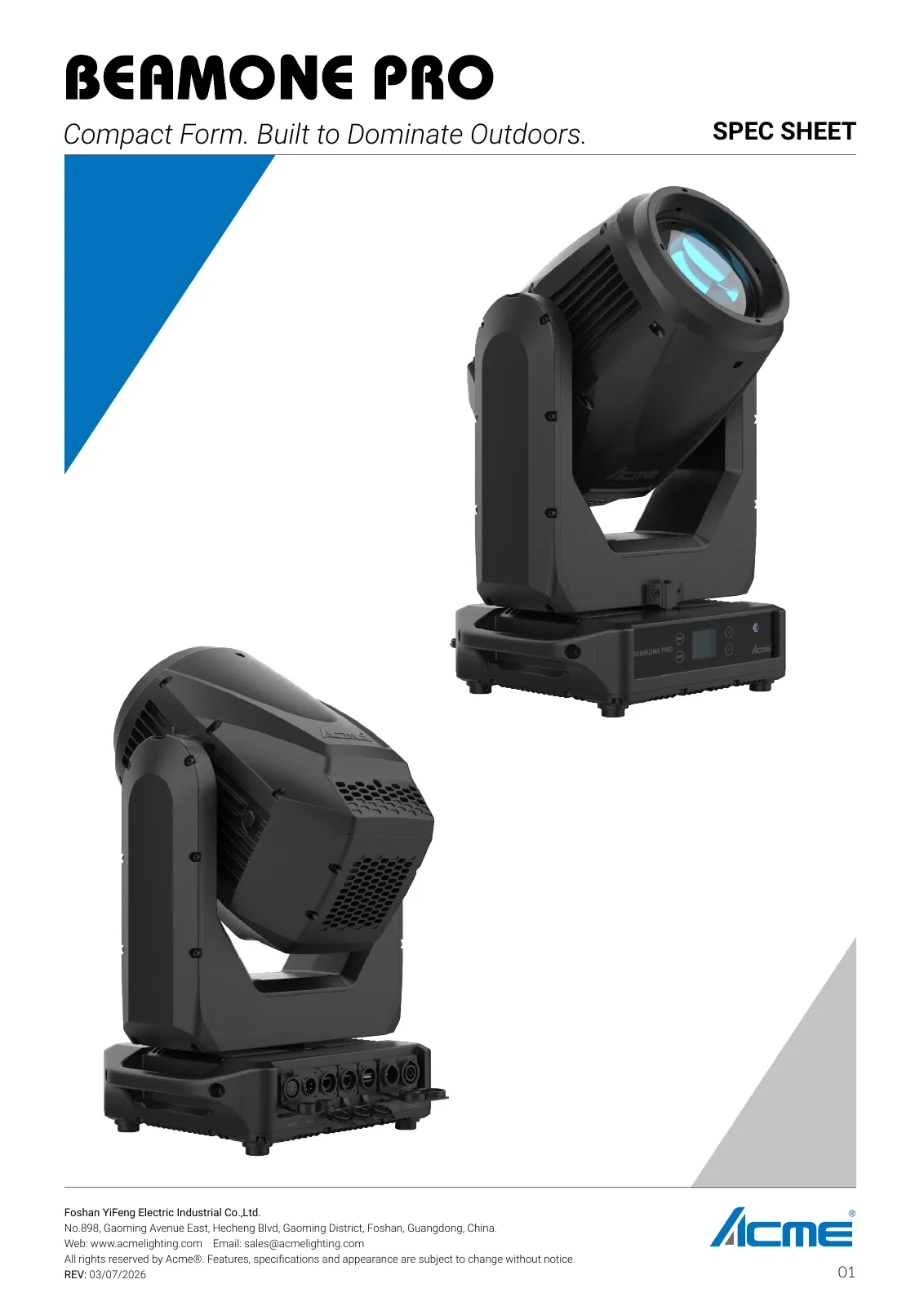

PDFDatasheetEN · 11 pages · 2.9 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: BEAMONE PRO
Model Code: XP 300 BEAM IP

02Light Source4

Light Source: PHILIPS MSD Infinity 12 X
Color Temperature Output of Fixture: 7,400K
Light Source Rated Life: 8,000 hours*; *Source manufacturer specification

03Photometric Data5

Total Lumen Output of Fixture: 9,000 lumens
Ra: 74
TM-30 Rf (IES TM-30-15 Fidelity Index): 73
TM-30 Rg (IES TM-30-15 Fidelity Index): 89
TLCI: 41

04Optical System2

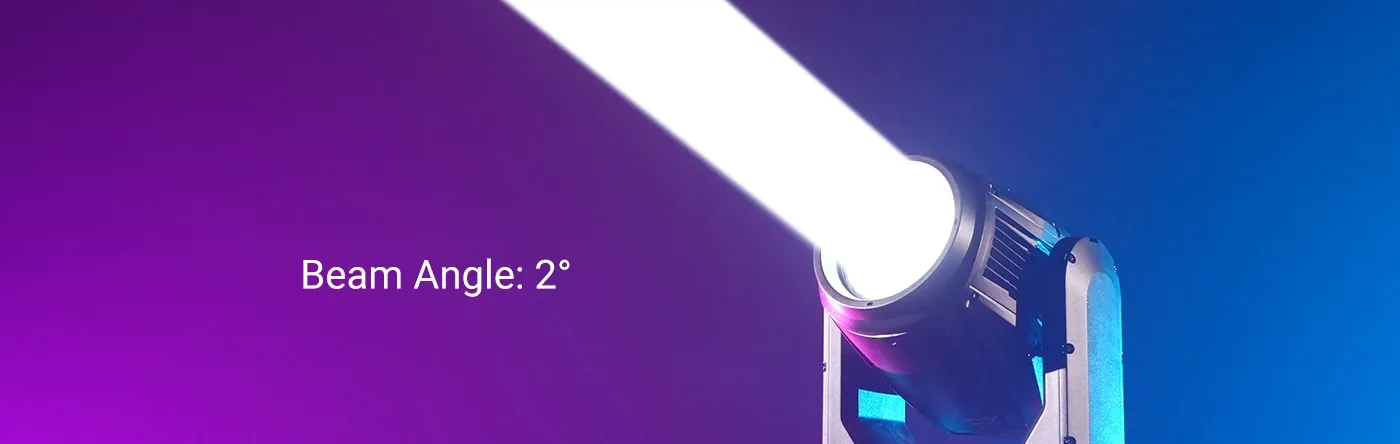

Beam Angle: 2°

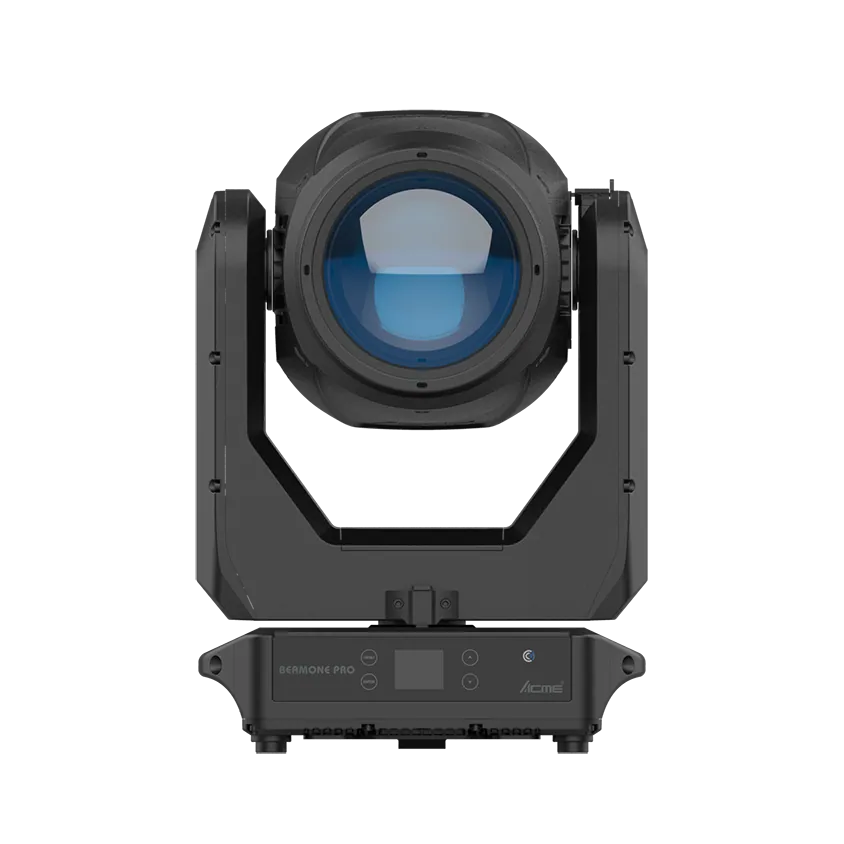

Diameter of Frontal Lens: 152 mm

05Control6

4 touch button control panel
Display: LCD display
Protocols: DMX512,RDM,Art-Net,sACN,NFC
DMX Protocol Modes: 1
Control Channels: 25
Firmware Upgrade: Upgrade via DMX link or USB stick

06Pan & Tilt5

Pan Movement: 540°
Tilt Movement: 270°; Automatic Pan/Tilt position correction
Resolution: 16 bit; Pan/Tilt lock

Show the full specificationHide the rest of the specification13 more groups · 43 values

07Colors3

Linear CMY color mixing
Linear CTO Color Correction: 2,800K-6,800K
1 Color Wheel: 14 colors, plus open

08Static Gobos2

1 Static Gobo Wheel: 10 static gobos and 3 effect gobos, plus open
Gobo: Ø110 mm

09Prism1

2 Combinable Rotating and Indexable Prisms: 1 x 8-facet circular prism, 1 x 6-facet linear prism, rotatable in both directions

10Frost Filter1

1 frost filter

11Other Effects3

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Motorized focus system

12Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 370W
Power In/Out: Waterproof power connector in/out

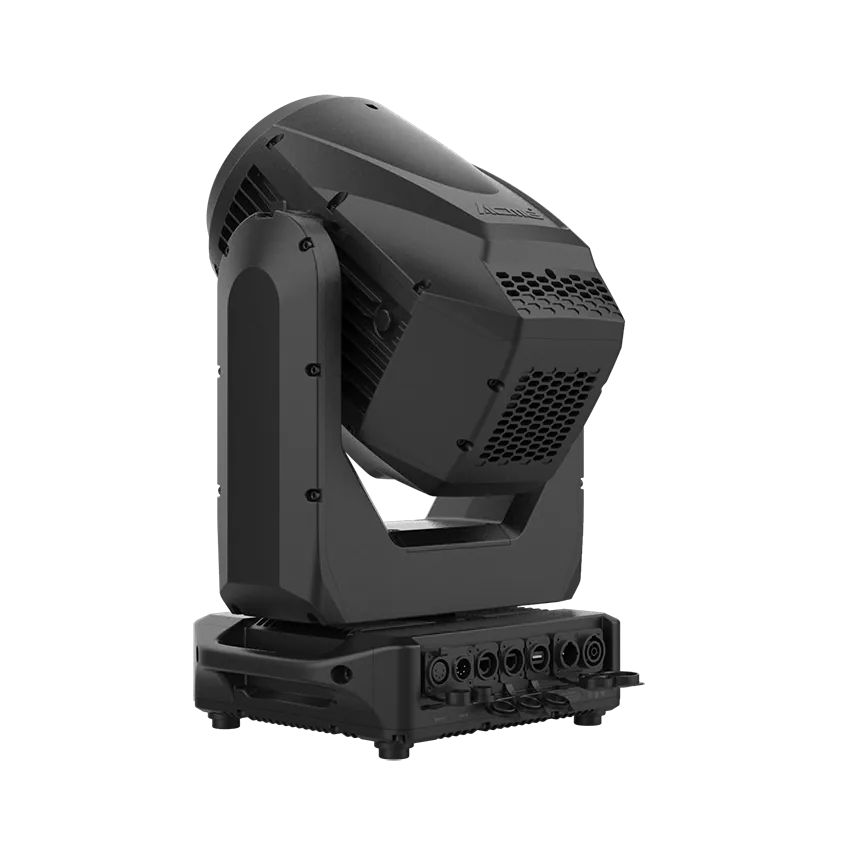

Data In/Out: 3-pin or 5-pin waterproof XLR,waterproof RJ45 connector

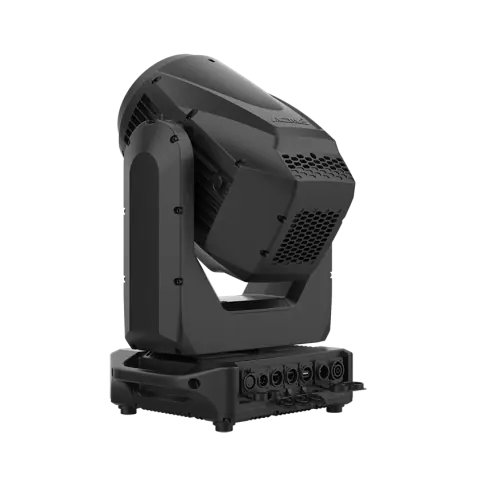

13Physical Information5

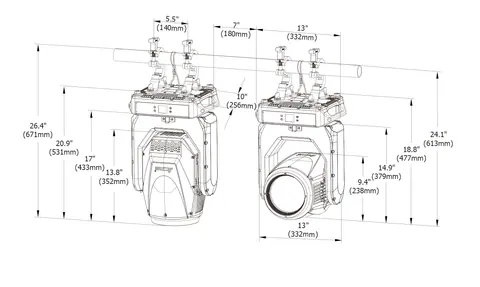

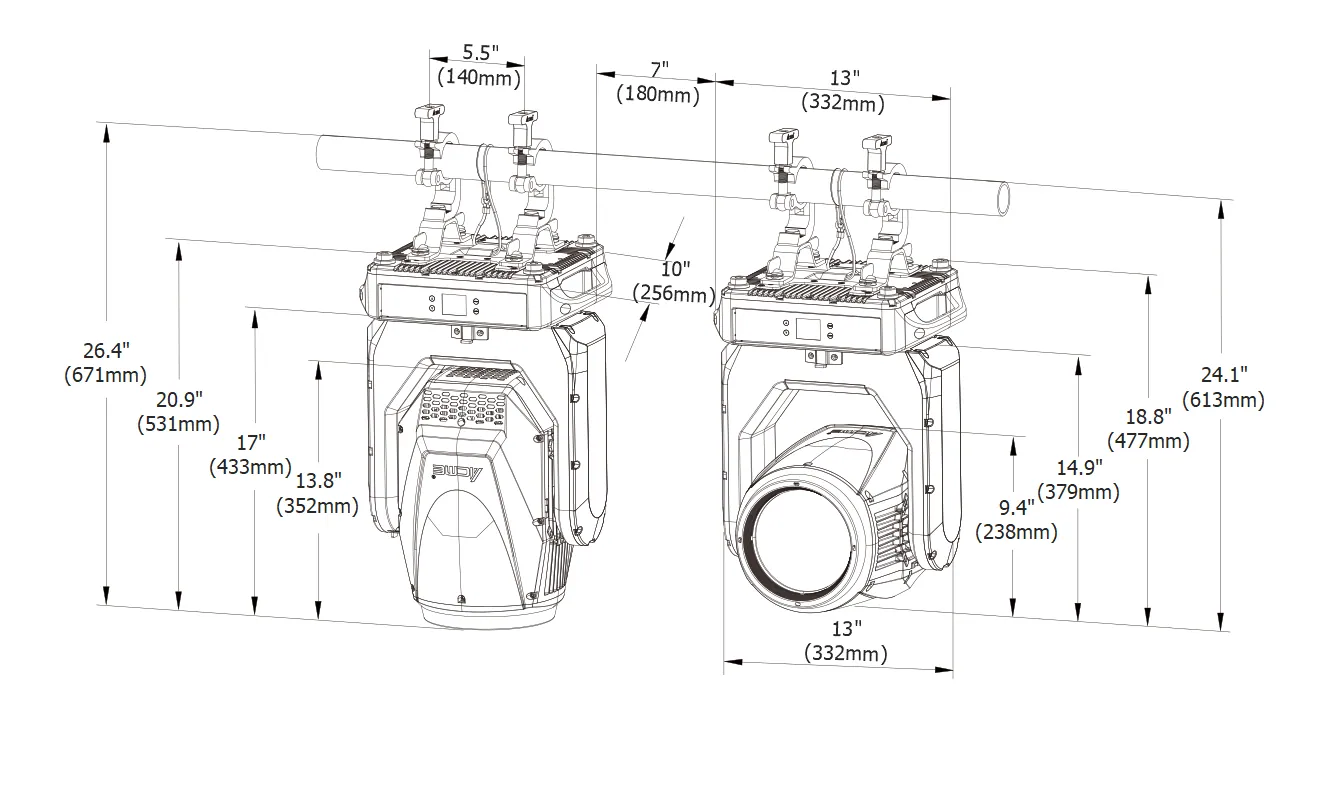

Fixture Dimensions
Weight: 22.5 kg (49.6 lbs)
Length (Head): 352 mm (13.9")
Length (Base): 332 mm (13.1")
Width (Across Yoke): 332 mm (13.1")
Height (Head Up): 531 mm (20.9")

14Packing Information8

Flight Case Dimensions
Width: 930 mm (36.6")
Depth: 580 mm (22.8")
Height: 810 mm (31.9")
Weight
Standard: G.W.: 100 kg (220.5 lbs) (two-pack loader case)
Carton Dimensions
Width: 470 mm (18.5")
Depth: 450 mm (17.7")
Height: 645 mm (25.4")
Weight
G.W.: 26.5 kg (58.4 lbs) (one-pack loader carton)

15Work Environment4

Maximum Ambient Temperature: 45°C
Minimum Operating Temperature: -20°C
Maximum Surface Temperature: 80°C
Protection Rating: IP66

16Approvals2

CE compliant

UKCA compliant

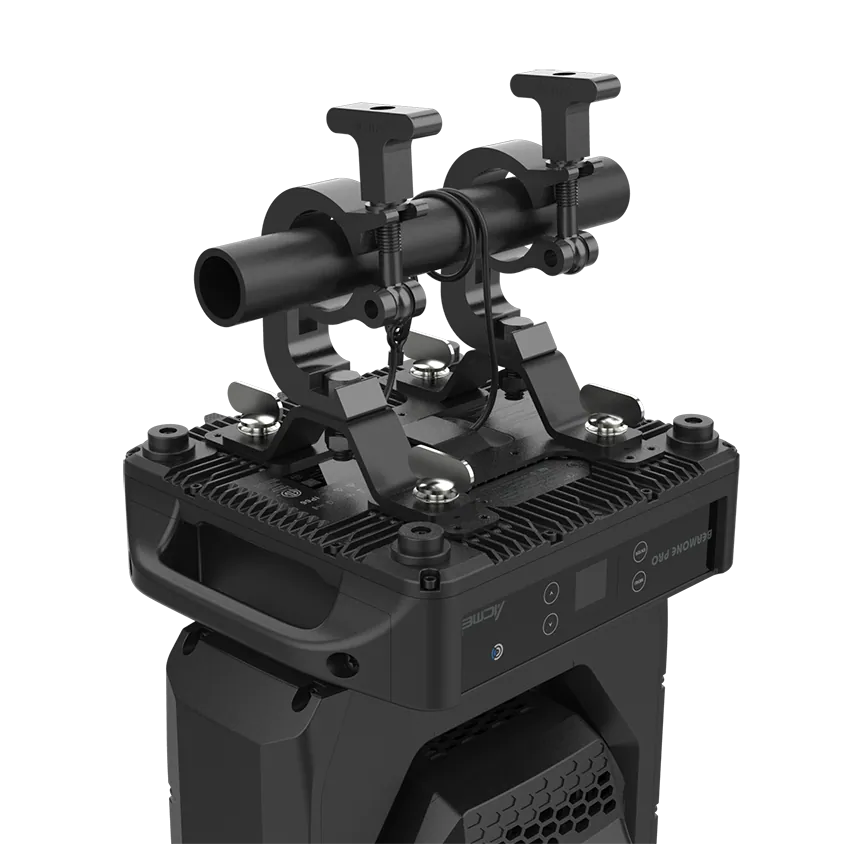

17Installation3

Horizontal or vertical mounting

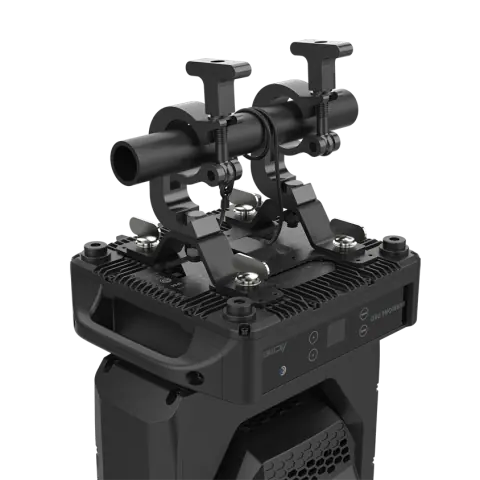

2 omega brackets

Safety cable attachment point

18Included Items3

QR code on fixture to receive digital user manual

Power cable

2 omega brackets (3002003003)

19Optional Accessories (With Order Code)4

Flight Case
Standard: Two-pack loader case (63584485)
Clamp: C-250B (2060001632-B)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)

02DescriptionManufacturer's description

What it is.

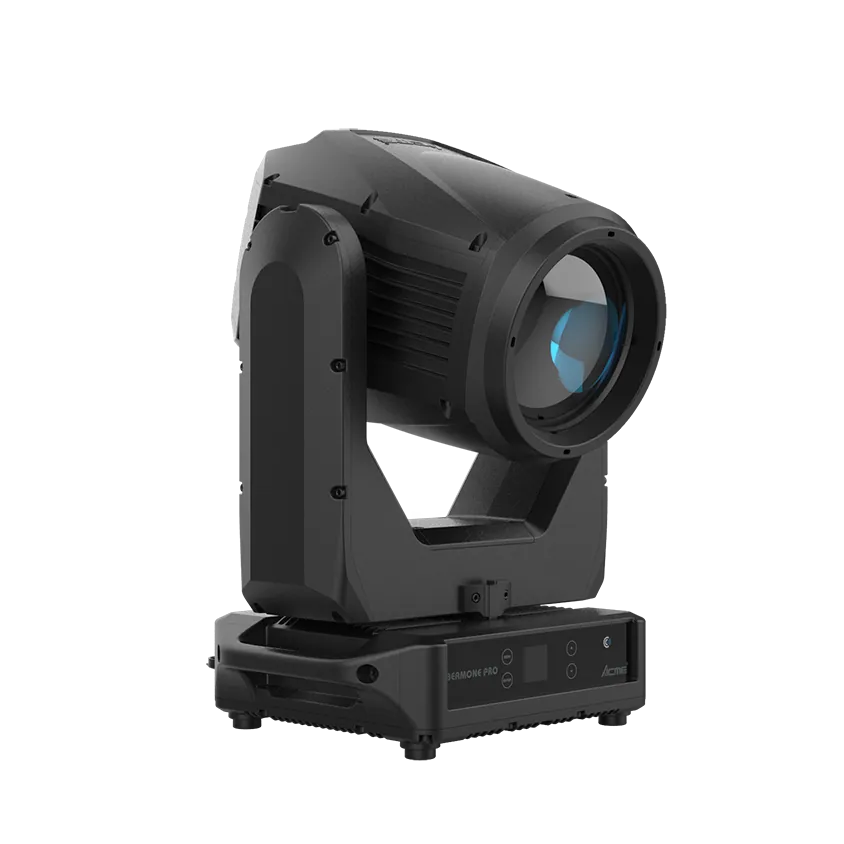

The ACME BEAMONE PRO moving beam is engineered for outdoor productions demanding extreme punch, long-throw performance, and uncompromising all-weather reliability. Combining the raw aerial intensity of a discharge lamp with low-maintenance performance, it delivers striking visual presence for concerts, festivals, and outdoor events.

Fitted with a PHILIPS MSD Infinity 12X light source, the fixture delivers highly stable output and a crisp 7,400K color temperature. Designed for long-term operation, it offers an 8,000-hour lamp life expectancy, significantly reducing maintenance demands. Paired with a 152 mm frontal lens, the fixture produces an ultra-narrow 2° beam capable of reaching an outstanding 1,952,000 lux at 5 meters, creating razor-sharp aerial effects across large-scale stages.

Creative flexibility is expanded through a CMY mixing system and variable CTO, enabling smooth transitions and refined tonal control. The fixture also features a 14-color wheel, a static gobo wheel with 10 gobos and 3 effect gobos, and a frost filter for softened edges.

For layered aerial looks, the fixture boasts a 6-linear prism and an 8-facet circular prism, delivering richer textures and enhanced visual depth beyond what a single prism can achieve.

Built within a rugged IP66-rated housing, the fixture keeps the show going through rain, humidity, and dust. Despite its compact form factor, the BEAMONE PRO delivers maximum visual impact with minimizing maintenance demands.
