Sheet 05.603

ACME · Beam

ARES IP

ModelXP 500 BEAM IP

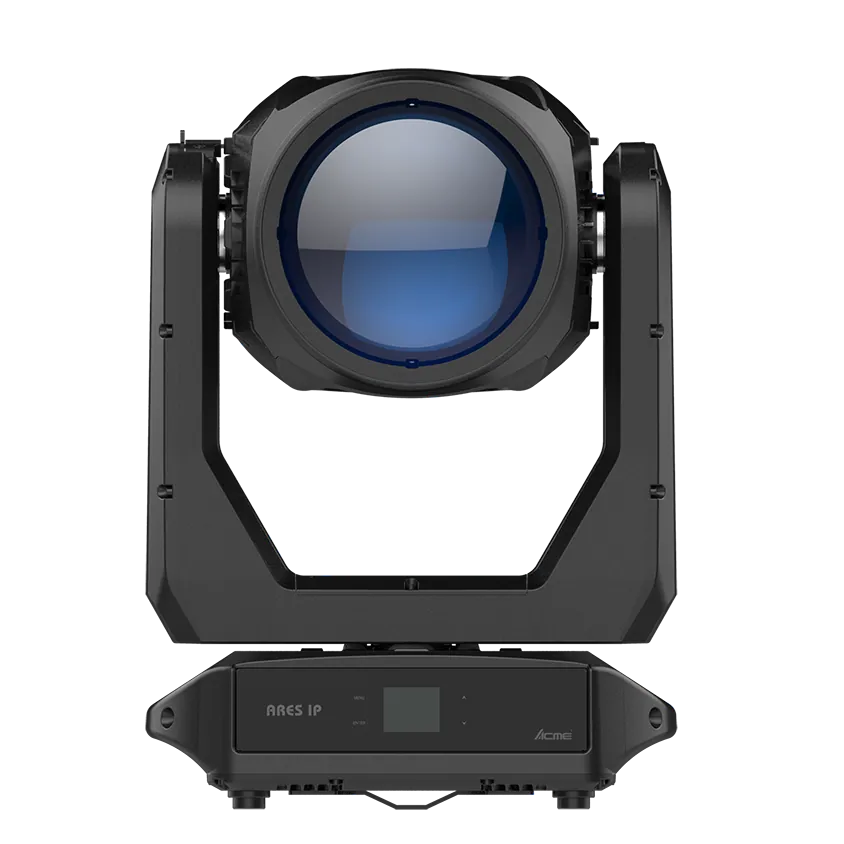

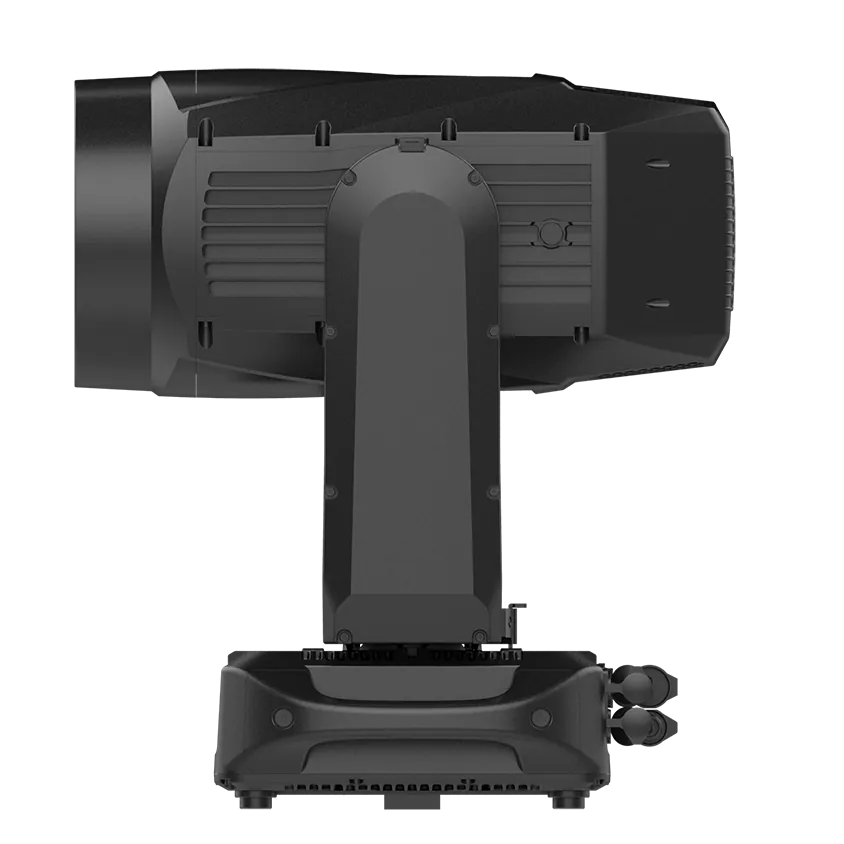

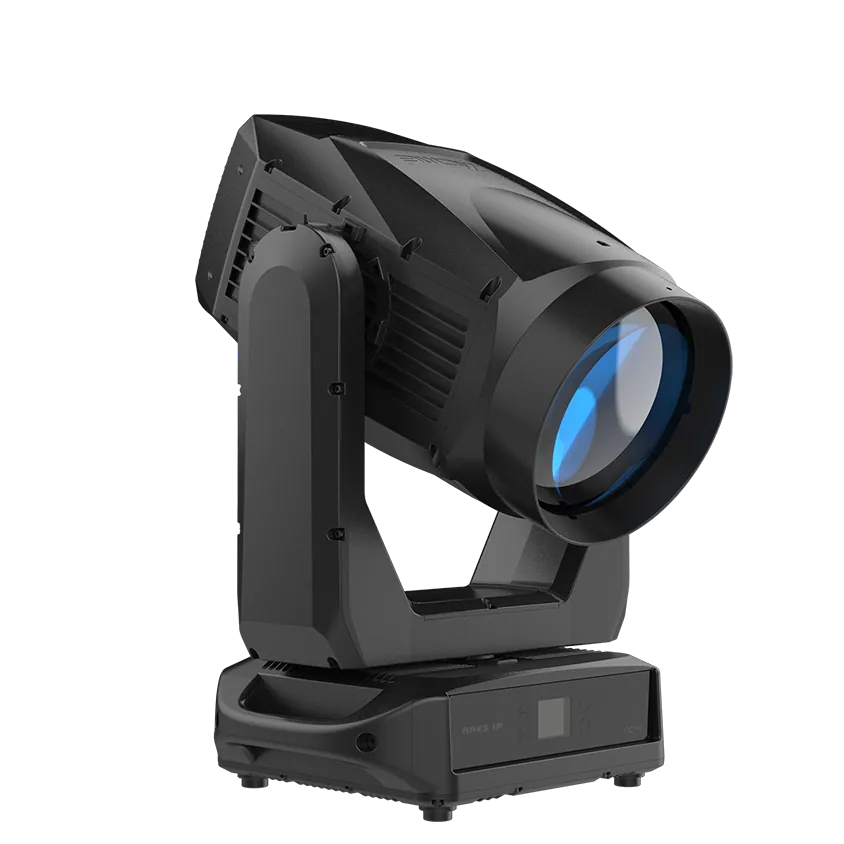

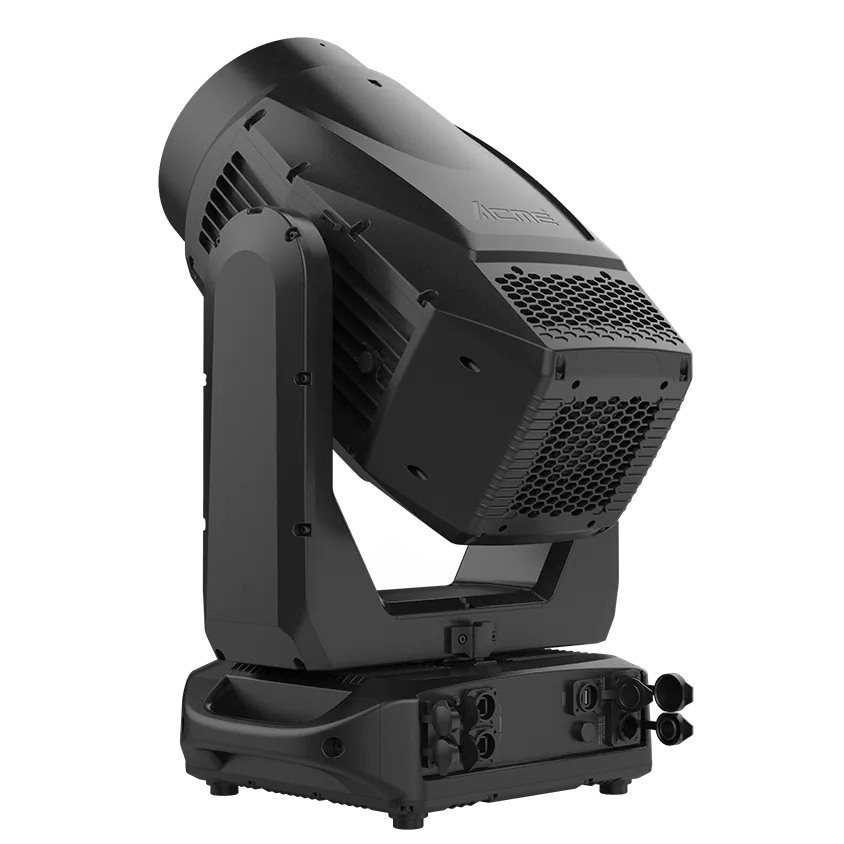

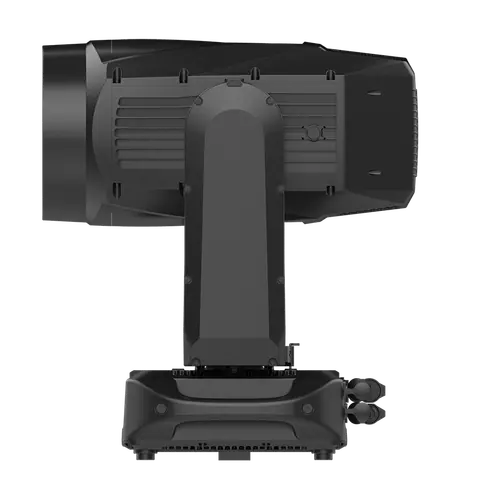

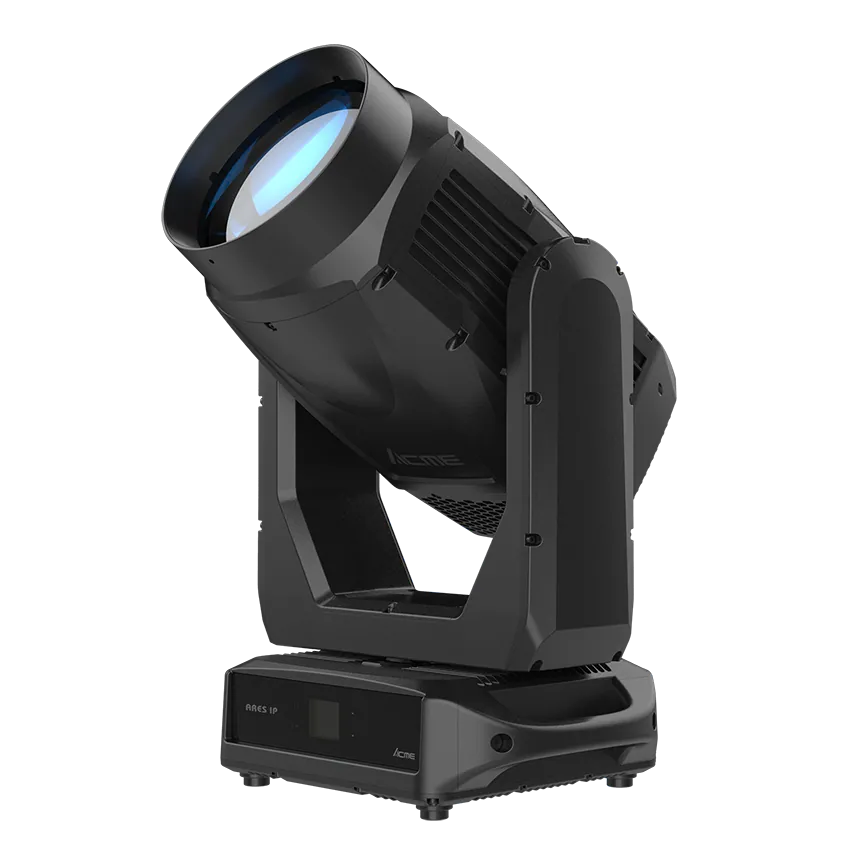

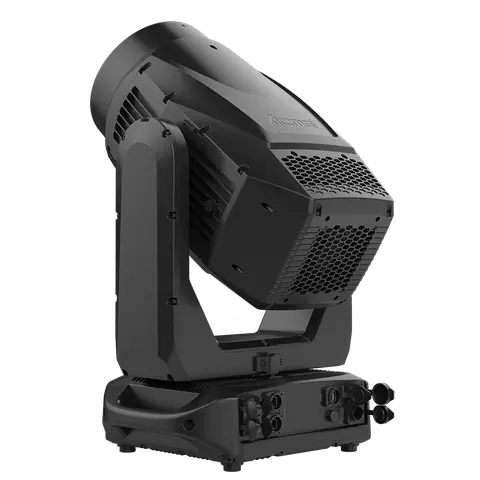

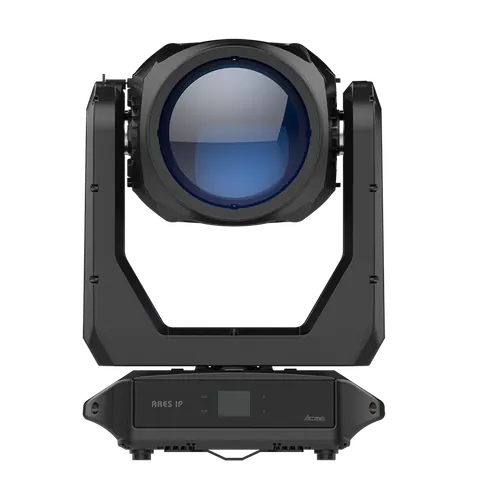

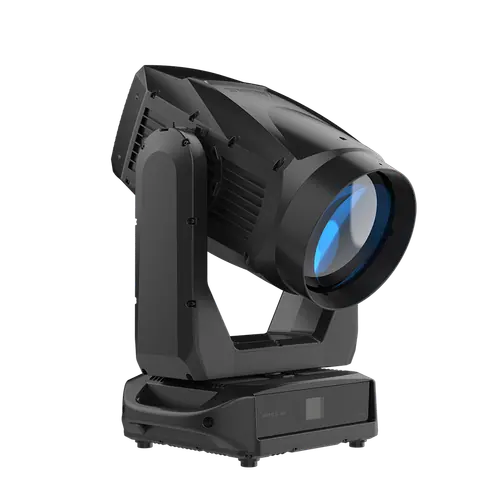

The ACME ARES IP is an outdoor moving beam light, perfect for landscape projects, large-scale performances, and architectural lighting.

Light source: PHILIPS MSD Platinum 19R LL
Power consumption: 615W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66
Beam angle / zoom: 1.3°
DMX channels: 24
Protocols: DMX512,RDM,Art-Net,sACN
Colour temperature: 6,700K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:17

ACME ARES IP2:17

02SpecificationManufacturer's data · 19 groups · 65 values

What this product is, in numbers.

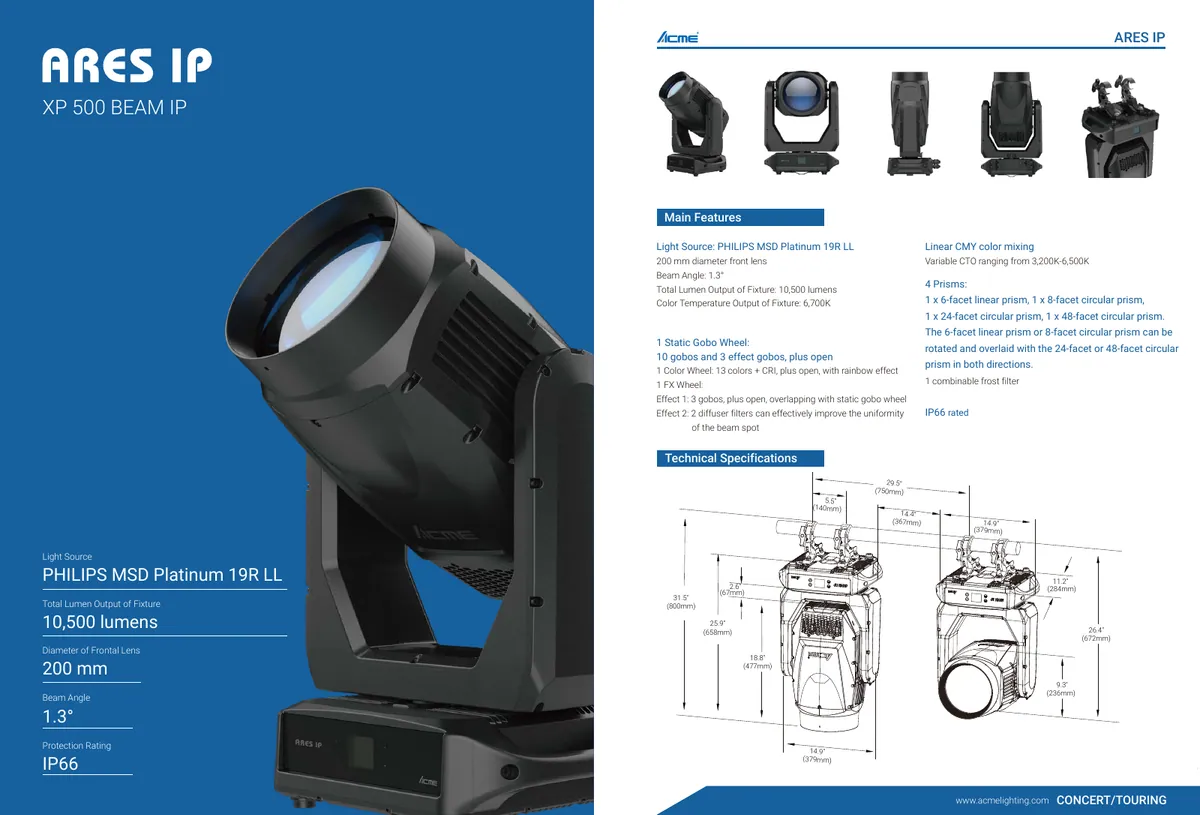

PDFDatasheetEN · 2 pages · 852 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: ARES IP
Model Code: XP 500 BEAM IP

02Light Source4

Light Source: PHILIPS MSD Platinum 19R LL
Color Temperature Output of Fixture: 6,700K
Light Source Rated Life: 5,000 hours*; *Source manufacturer specification

03Photometric Data1

Total Lumen Output of Fixture: 10,500 lumens

04Optical System2

Beam Angle: 1.3°
Diameter of Frontal Lens: 200 mm

05Control6

4 touch button control panel
Display: LCD display
Protocols: DMX512,RDM,Art-Net,sACN
DMX Protocol Modes: 1
Control Channels: 24
Firmware Upgrade: Upgrade via DMX link or USB stick

06Pan & Tilt4

Pan Movement: 540°
Tilt Movement: 260°; Automatic Pan/Tilt position correction
Resolution: 16 bit

Show the full specificationHide the rest of the specification13 more groups · 46 values

07Colors3

Linear CMY color mixing
Linear CTO Color Correction: 3,200K-6,500K
1 Color Wheel: 13 colors + CRI, plus open

08Static Gobos2

1 Static Gobo Wheel: 10 gobos and 3 effect gobos, plus open
Gobo: Ø110 mm

09FX Wheel3

1 FX Wheel
Effect 1: 3 gobos, plus open, overlapping with static gobo wheel
Effect 2: 2 diffuser filters can effectively improve the uniformity of the beam spot
Gobo: Ø110 mm

10Prism1

4 Combinable Rotating and Indexable Prisms: 1x 8-facet circular prism,1 x 24-facet circular prism, 1 x 48-facet circular prism, 1 x 6-facet linear prism, rotatable in both directions

11Frost Filter1

1 frost filter

12Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 615W
Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR,RJ45 connector

13Physical Information4

Fixture Dimensions
Width: 380 mm (15.0")
Depth: 284 mm (11.2")
Height: 659 mm (25.9")
Weight: 31 kg (68.3 lbs)

14Packing Information9

Flight Case Dimensions
Width: 1,220 mm (48.0")
Depth: 610 mm (24.0")
Height: 805 mm (31.7")
Weight
Standard: G.W.: 125.0 kg (275.6 lbs) (Two-pack loader case)
North American Standard: G.W.: 131.4 kg (289.7 lbs) (Two-pack loader case)
Carton Dimensions
Width: 610 mm (24.0")
Depth: 490 mm (19.3")
Height: 675 mm (26.6")
Weight
G.W.: 36.5 kg (80.5 lbs) (one-pack loader carton)

15Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 75°C
Protection Rating: IP66

16Approvals3

CE compliant

UKCA compliant

cETLus compliant

17Installation4

Horizontal or vertical mounting

Universal working position

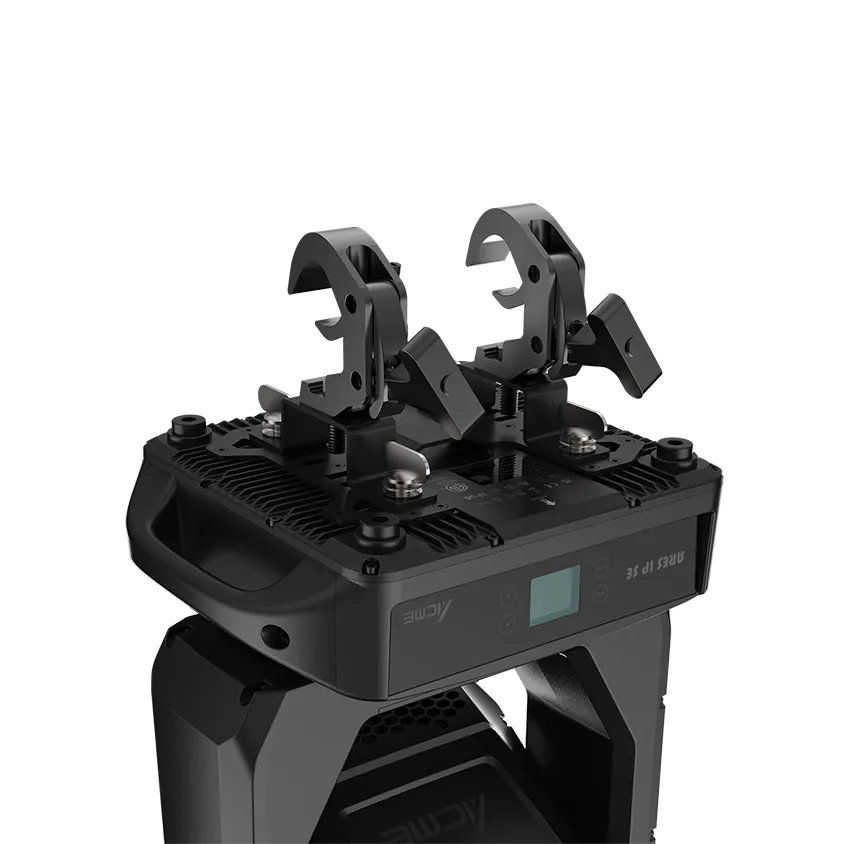

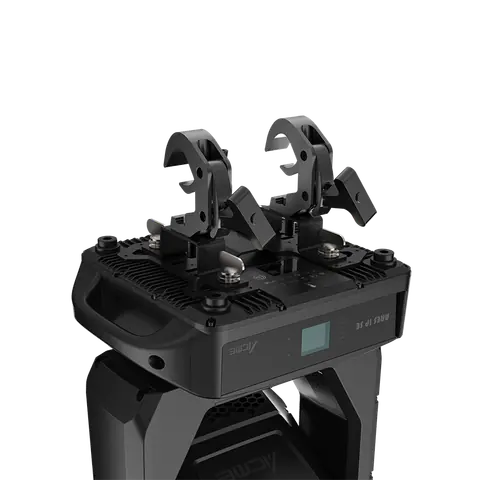

2 omega brackets

Safety cable attachment point

18Included Items3

Digital user manual

Power cable

2 omega brackets (3002003003)

19Optional Accessories (With Order Code)5

Flight Case
Standard: Two-pack loader case (63583575)
North American Standard: Two-pack loader case (63583567)
Clamp: C-250B (2060001632-B),C-150B (2060001625-C)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)

03DescriptionManufacturer's description

What it is.

The ACME ARES IP is an outdoor moving beam light, perfect for landscape projects, large-scale performances, and architectural lighting. Featuring a PHILIPS MSD Platinum 19R LL light source, it delivers an impressive intensity of 990,000 lux at a distance of 10 meters, providing exceptionally high output. With its built-in 200mm diameter frontal lens and a remarkable beam angle of 1.3°, the fixture produces sharp beams and dynamic lighting effects.

Equipped with a color wheel, static gobo wheel, and 4 prisms, the ARES IP offers lighting designers enhanced creative flexibility. The fixture offers CTO color correction from 3,200K to 6,500K, creating captivating beams of light from warm to cool. With an IP66 rating, this fixture ensures reliable outdoor performance, suitable for various applications.

The ARES IP stands out for its long-distance beam projection, penetrating power, and stable high-quality light output, making it the ultimate choice for outdoor landscape projects.
