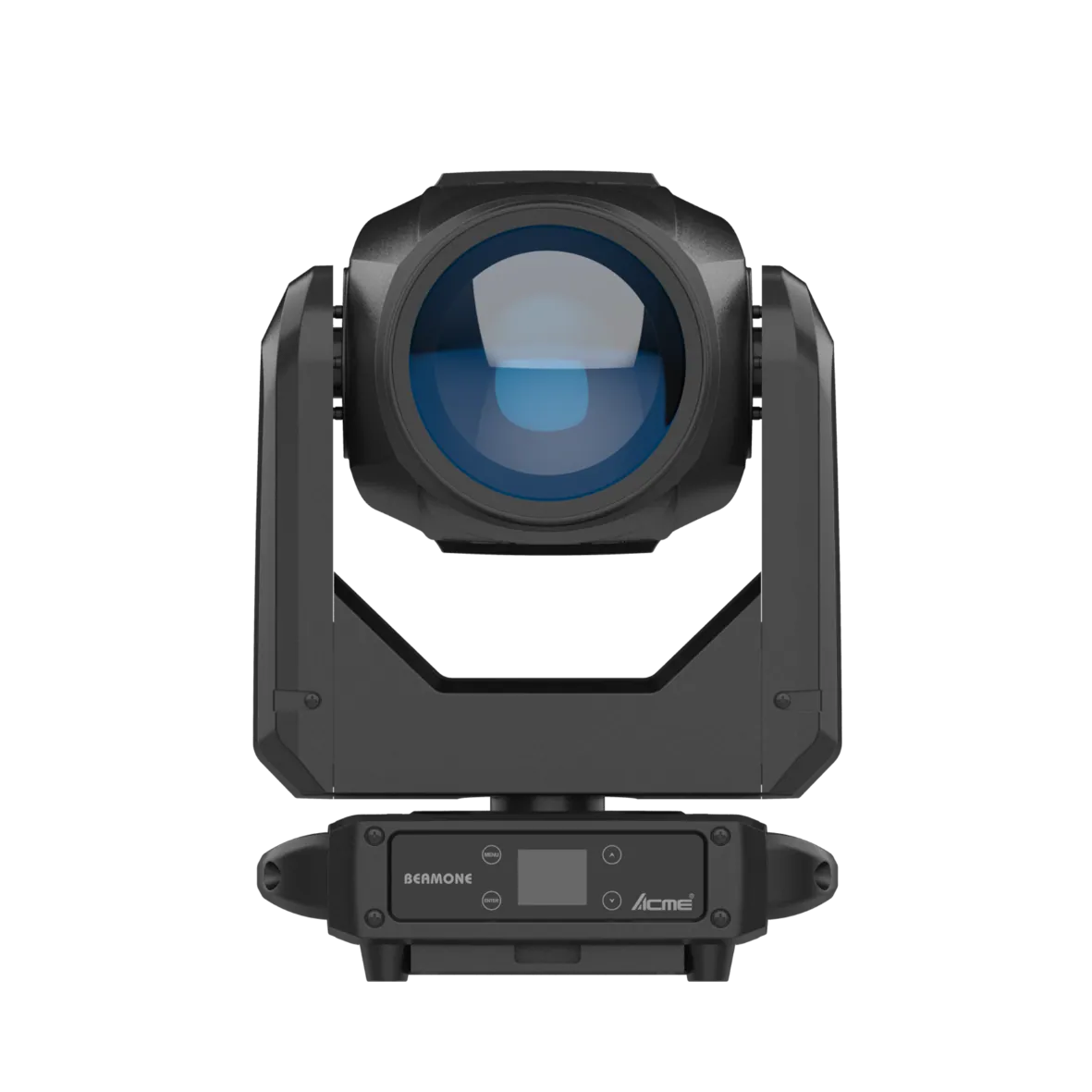

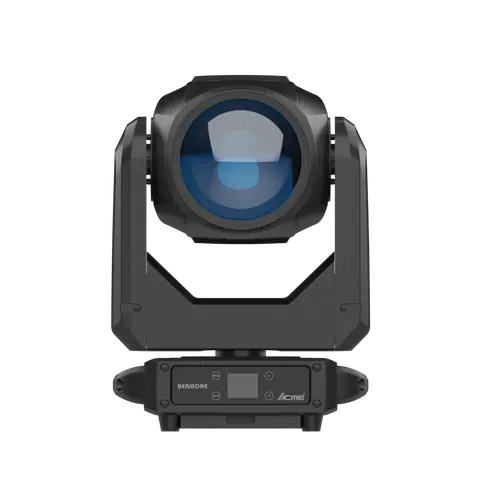

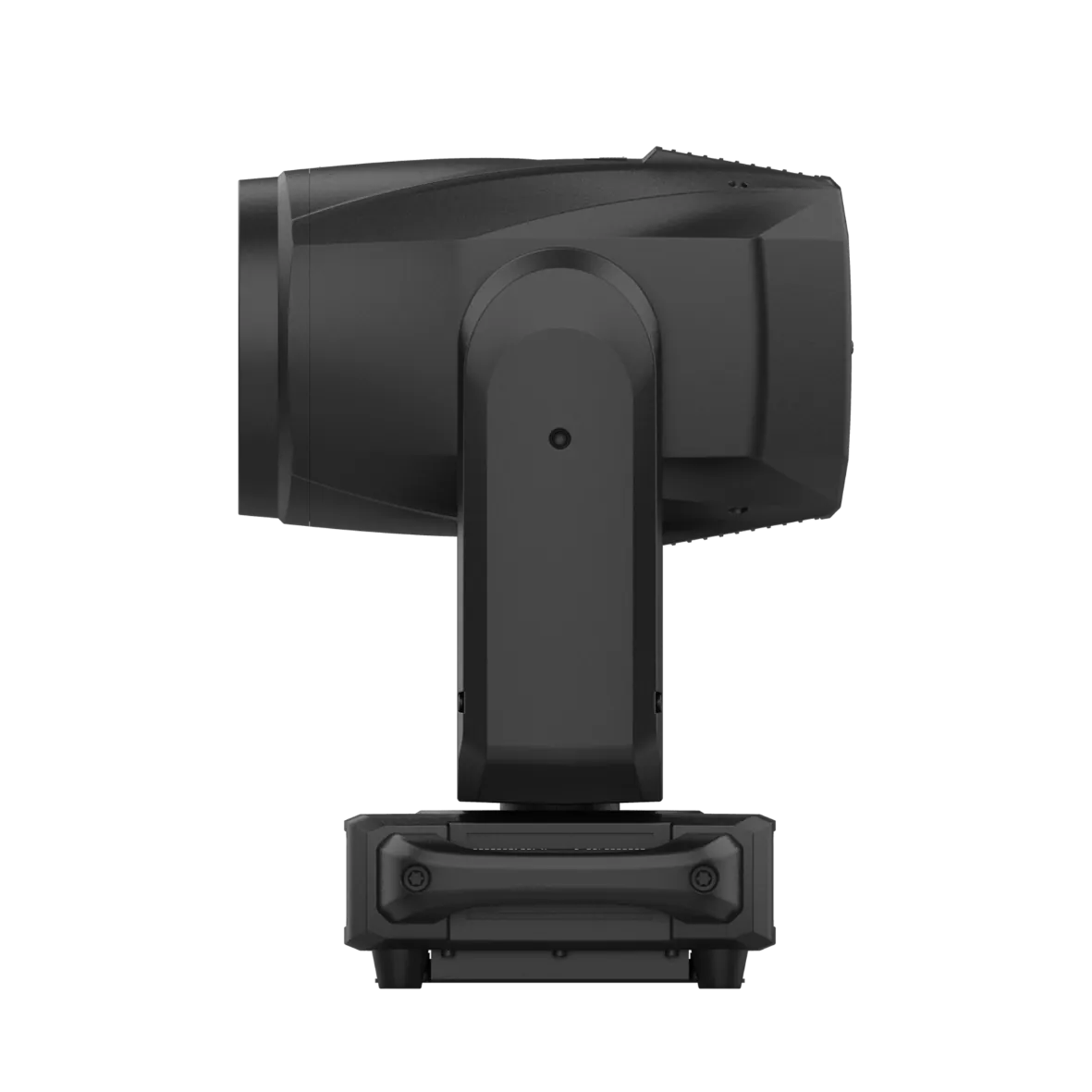

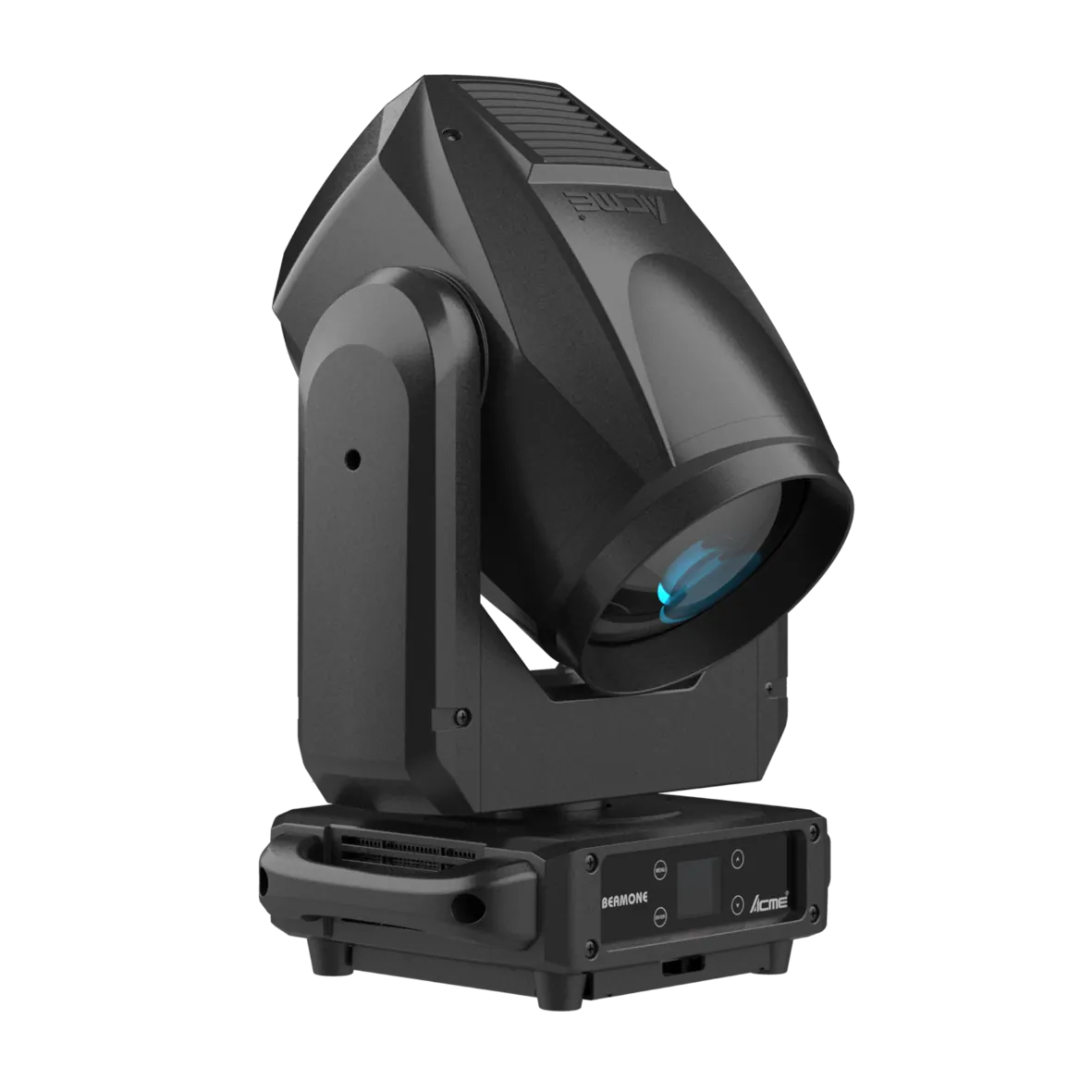

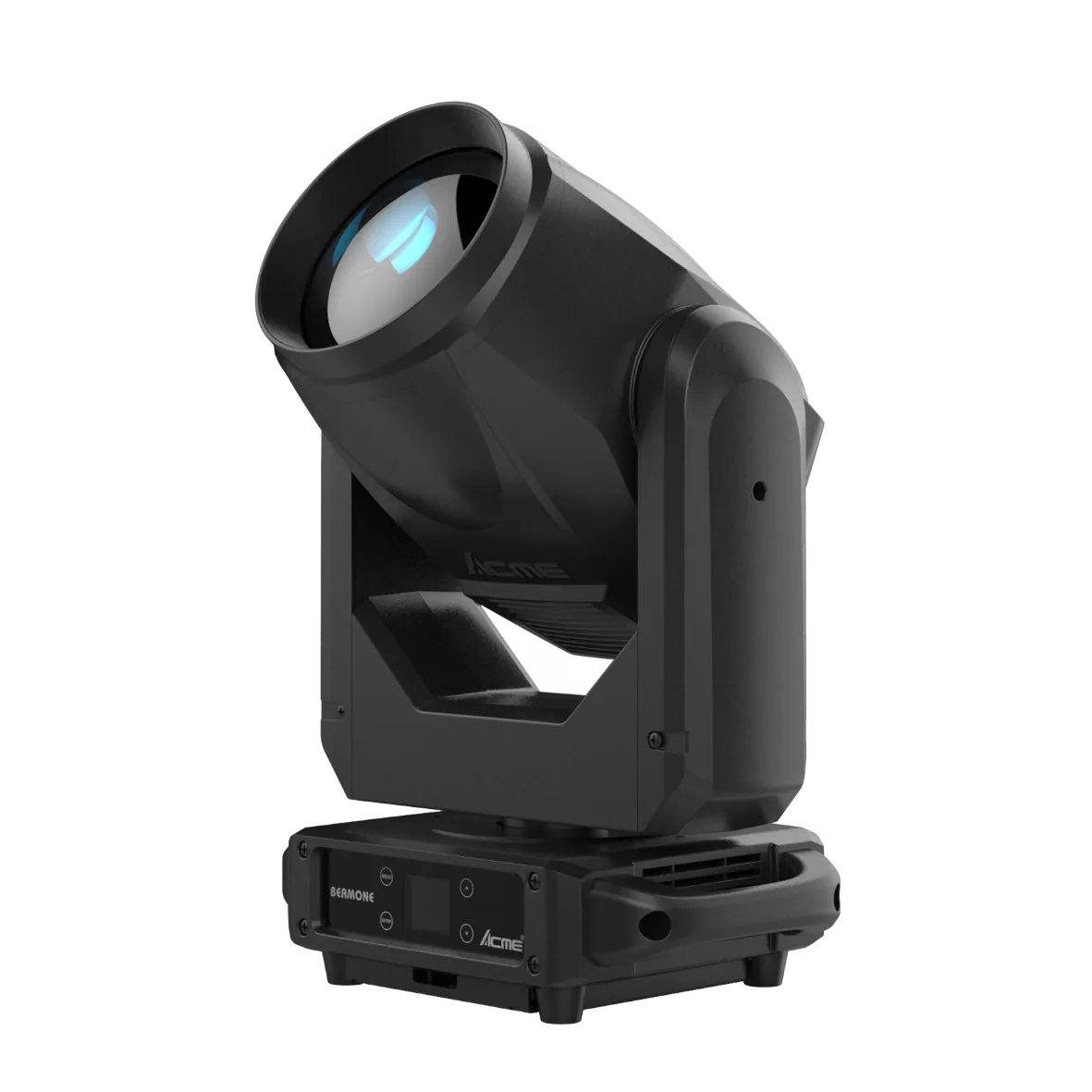

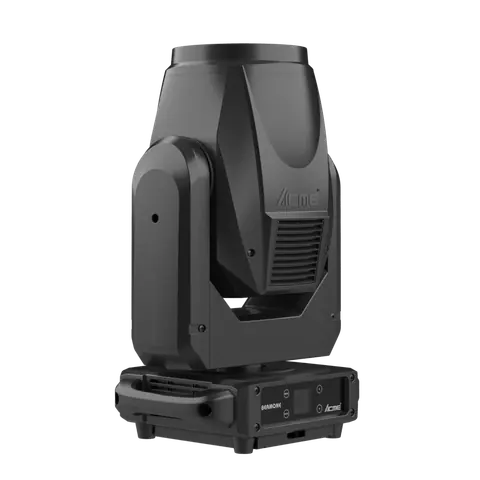

BEAMONE
ModelBEAM 1
The BEAMONE is a compact indoor beam light, ideal for various entertainment applications such as theaters, wedding halls and party rooms.
- Light source
- Osram SIRIUS HRI Galaxy 20D
- Power consumption
- 365W
- Power supply
- 100-240Vac; 50/60Hz
- Ingress protection
- IP20
- Beam angle / zoom
- 2°
- DMX channels
- 16
- Protocols
- DMX512,RDM
- Colour temperature
- 7,300K
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Model2
- Model Name
- BEAMONE
- Model Code
- BEAM 1
02Light Source4
- Light Source
- Osram SIRIUS HRI Galaxy 20D
- Color Temperature Output of Fixture
- 7,300K
- Light Source Rated Life
- 8,000 hours*
- *Source manufacturer specification
03Photometric Data2
- Total Lumen Output of Fixture
- 8,400 lumens
- Color Rendering
- Ra>70
04Optical System2

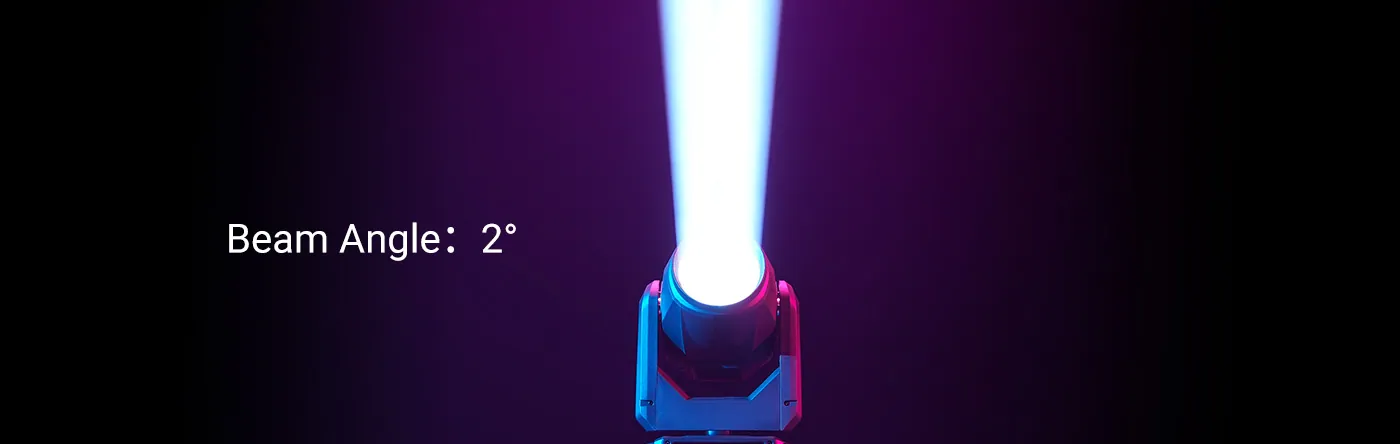

- Beam Angle
- 2°
- Diameter of Frontal Lens
- 152 mm
05Control6
- 4 touch button control panel
- Display
- LCD display
- Protocols
- DMX512,RDM
- DMX Protocol Modes
- 1
- Control Channels
- 16
- Firmware Upgrade
- Upgrade via DMX link or USB stick
06Pan & Tilt4
- Pan Movement
- 540°
- Tilt Movement
- 260°
- Automatic Pan/Tilt position correction
- Resolution
- 16 bit
Show the full specificationHide the rest of the specification12 more groups · 33 values
07Colors1
- 1 Color Wheel
- 14 colors, plus open
08Static Gobos2
- 1 Static Gobo Wheel
- 10 gobos and 3 effect gobos, plus open
- Gobo
- Ø110 mm
09Prism1
- 1 Rotating and Indexable Prism
- 1 x 8-facet circular prism, rotatable in both directions
10Frost Filter1
- 1 frost filter
11Other Effects3
- Outstanding strobe effect with variable speed
- Smooth dimming 0-100% (4 user selectable dimming curves)
- Motorized focus system

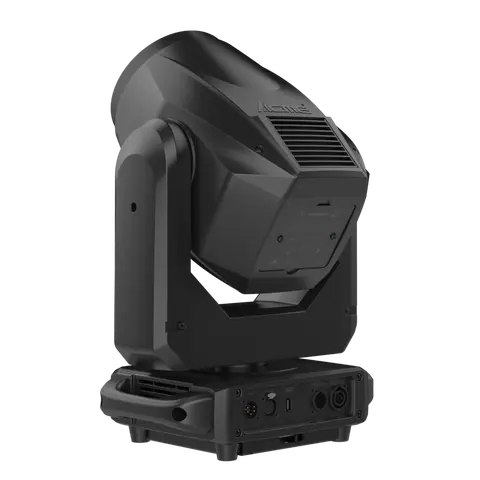

12Electrical and Connectors4
- Input Voltage Range
- 100-240Vac; 50/60Hz
- Power Consumption
- 365W
- Power In/Out
- Power connector in/out
- Data In/Out
- 3-pin or 5-pin XLR
13Physical Information4
- Fixture Dimensions
- Width
- 308 mm (12.1")
- Depth
- 216 mm (8.5")
- Height
- 485 mm (19.1")
- Weight
- 15.5 kg (34.2 lbs)
14Packing Information4
- Carton Dimensions
- Width
- 405 mm (15.9")
- Depth
- 405 mm (15.9")
- Height
- 570 mm (22.4")
- Weight
- G.W.
- 18.6 kg (41 lbs) (one-pack loader carton)
15Work Environment4
- Maximum Ambient Temperature
- 45°C
- Minimum Operating Temperature
- -10°C
- Maximum Surface Temperature
- 80°C
- Protection Rating
- IP20

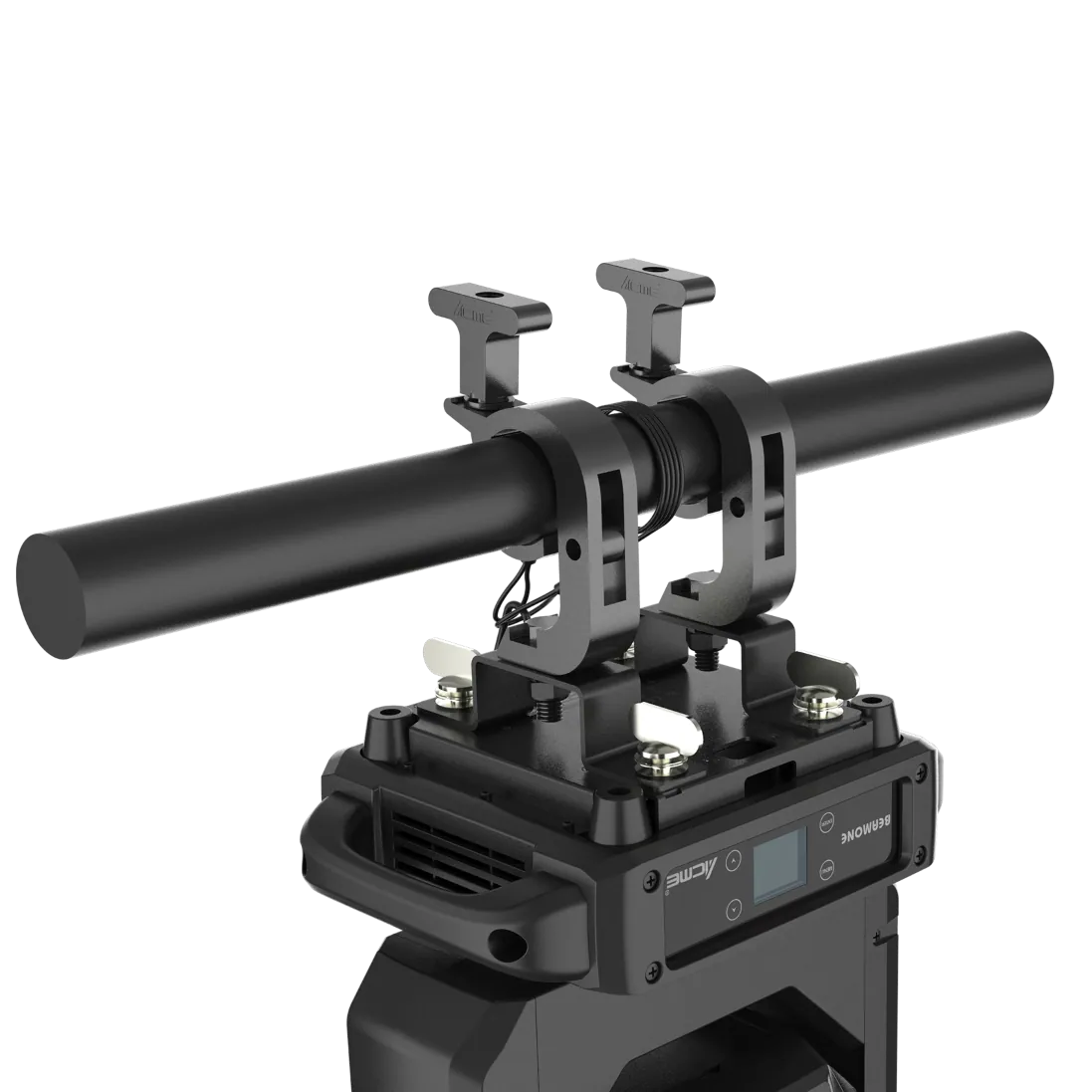

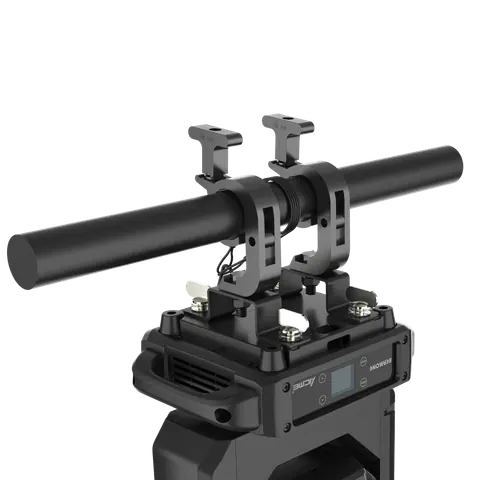

16Installation3
- Horizontal or vertical mounting
- 2 omega brackets
- Safety cable attachment point
17Included Items3
- QR code on fixture to receive digital user manual
- Power cable
- 2 omega brackets (3002000288-B)
18Optional Accessories (With Order Code)3
- Clamp
- C-250B (2060001632-B)
- Safety Cable
- SW-02 (2060000200-B)
- Signal Cable
- 3-pin or 5-pin signal cable
What it is.
The BEAMONE is a compact indoor beam light, ideal for various entertainment applications such as theaters, wedding halls and party rooms. Powered by the premium Osram SIRIUS HRI Galaxy 20D lamp with a long 8,000-hour life, the fixture produces a razor-sharp 2° beam through a 152 mm frontal lens, cutting through any stage with stunning clarity. It reaches an impressive 8,400 lumens of output at a crisp 7,300K color temperature.
Creative flexibility is built in: a color wheel with 14 vibrant colors, and a static gobo wheel with 10 gobos and 3 effect gobos, and a rotating 8-facet circular prism all work together to deliver layered, multidimensional looks. A frost filter can also be engaged to soften the beam and shift the mood with ease.
All this power and versatility comes in a lightweight 15.5 kg (34.2 lbs) body—making the BEAMONE the perfect choice when you need big impact in a compact frame.
