Sheet 05.606

ACME · Beam

NOVA BEAM

ModelXA 300 BEAM

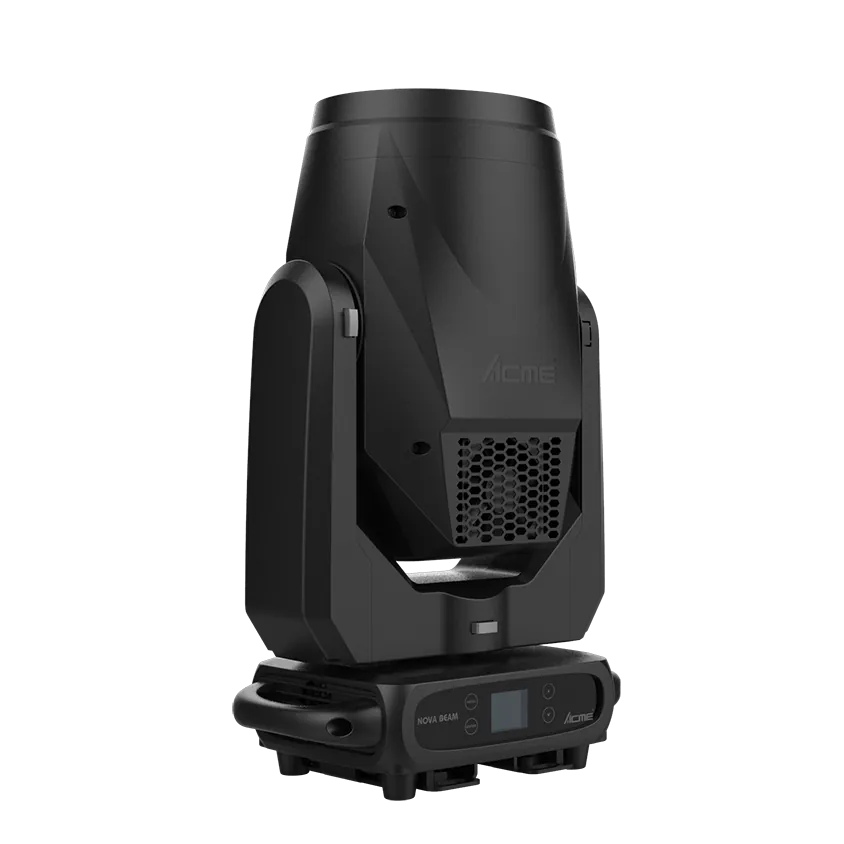

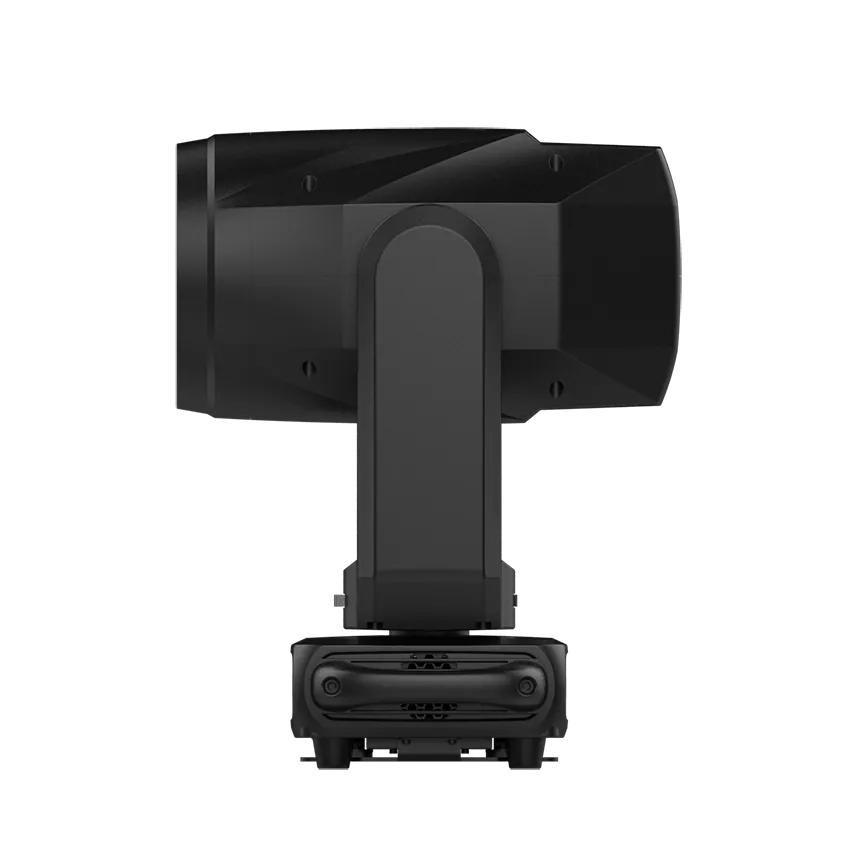

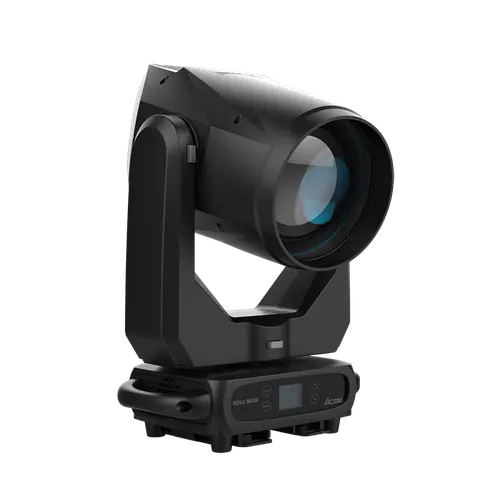

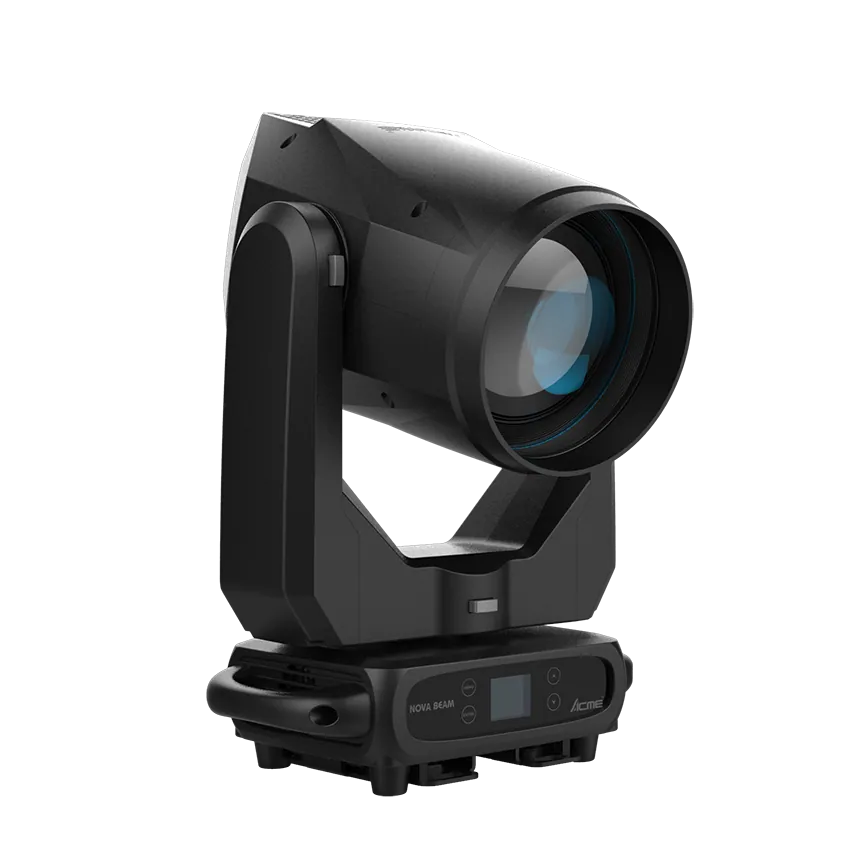

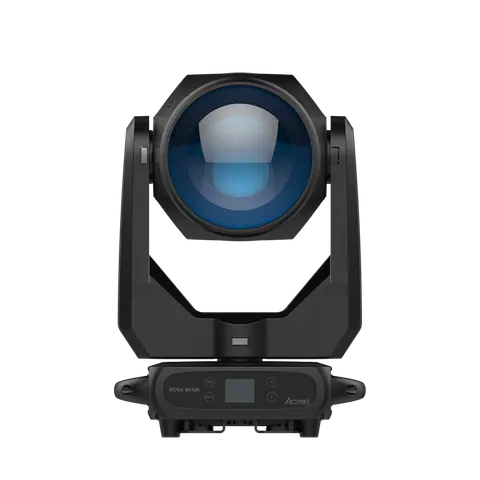

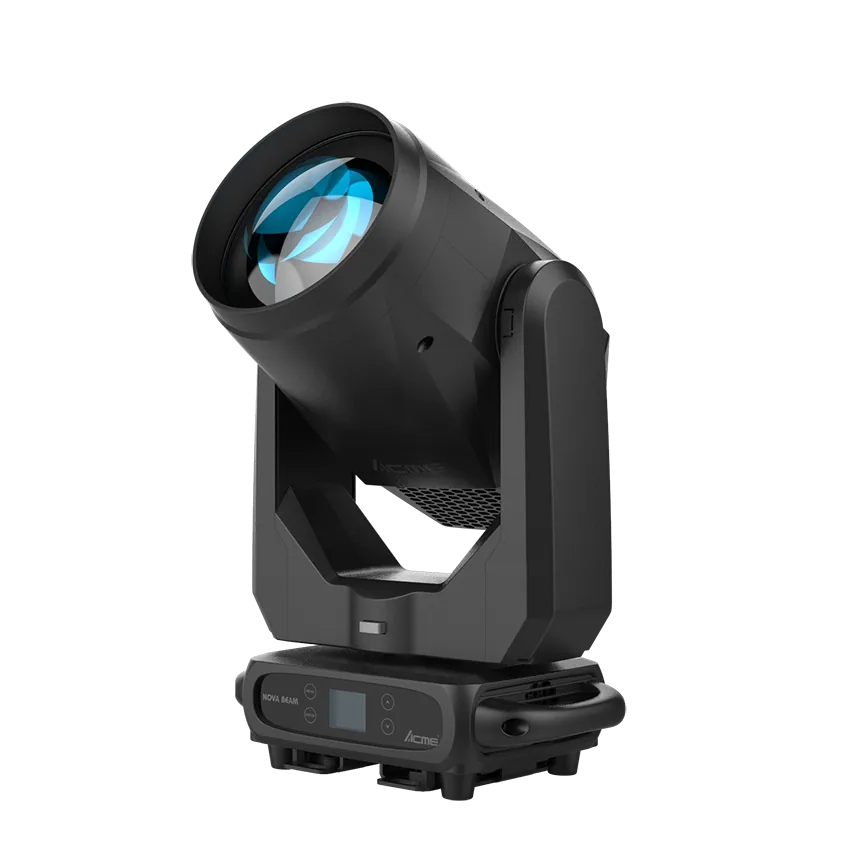

The ACME NOVA BEAM is a compact 300W LED moving beam fixture, engineered for crisp and sharp projection in indoor applications. Delivering 5,700 lumens through a large 180 mm frontal lens, the fixture produces an ultra-tight 2° beam with stunning clarity.

Light source: 300W LED engine
Power consumption: 425W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP20
Beam angle / zoom: 2°
DMX channels: 19
Protocols: DMX512,RDM,Art-Net,sACN
Colour temperature: 8,000K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 19 groups · 56 values

What this product is, in numbers.

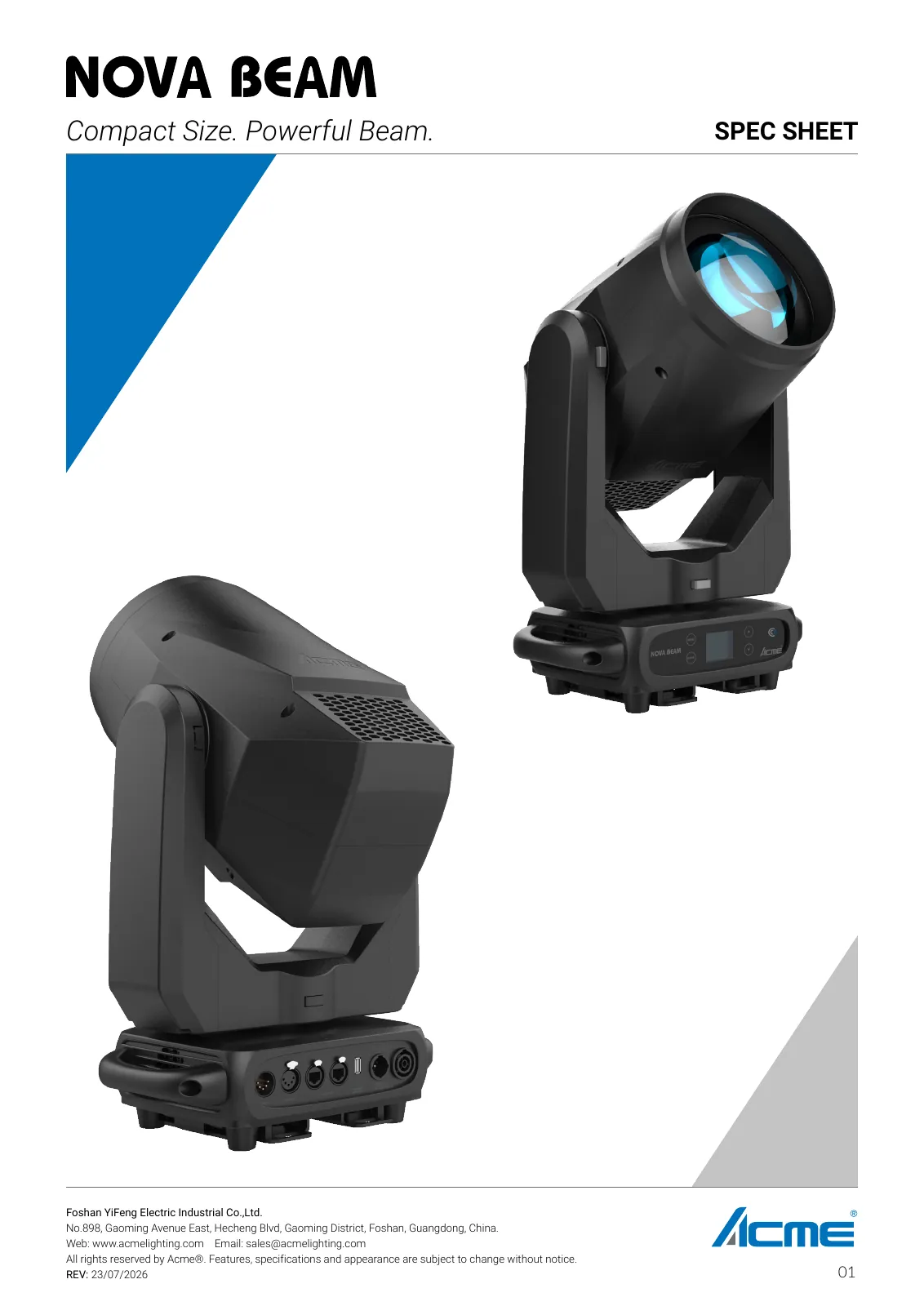

PDFDatasheetEN · 10 pages · 1.5 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: NOVA BEAM
Model Code: XA 300 BEAM

02Light Source4

Light Source: 300W LED engine
Color Temperature Output of Fixture: 8,000K
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data1

Total Lumen Output of Fixture: 5,700 lumens

04Optical System2

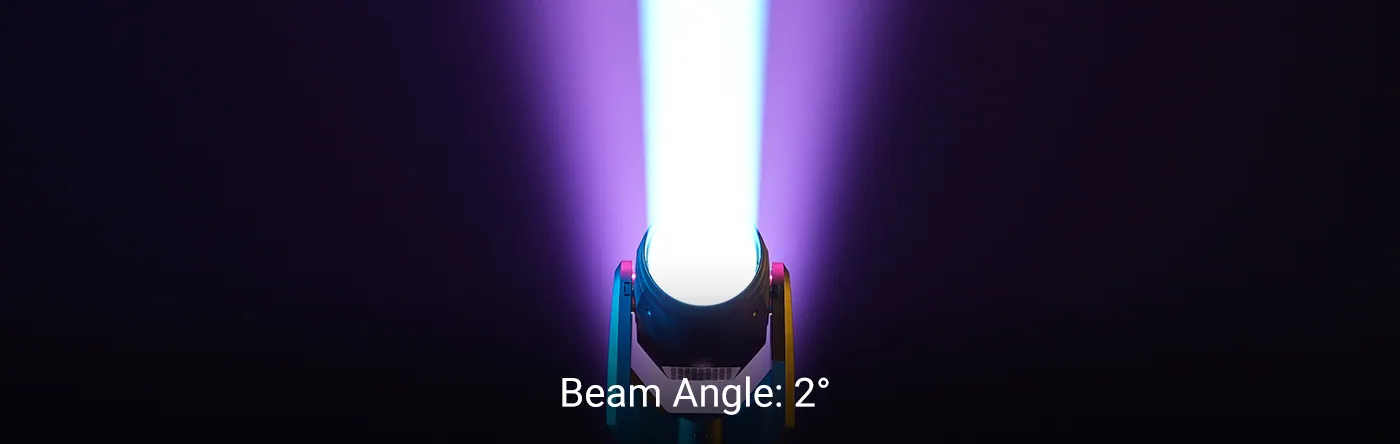

Beam Angle: 2°

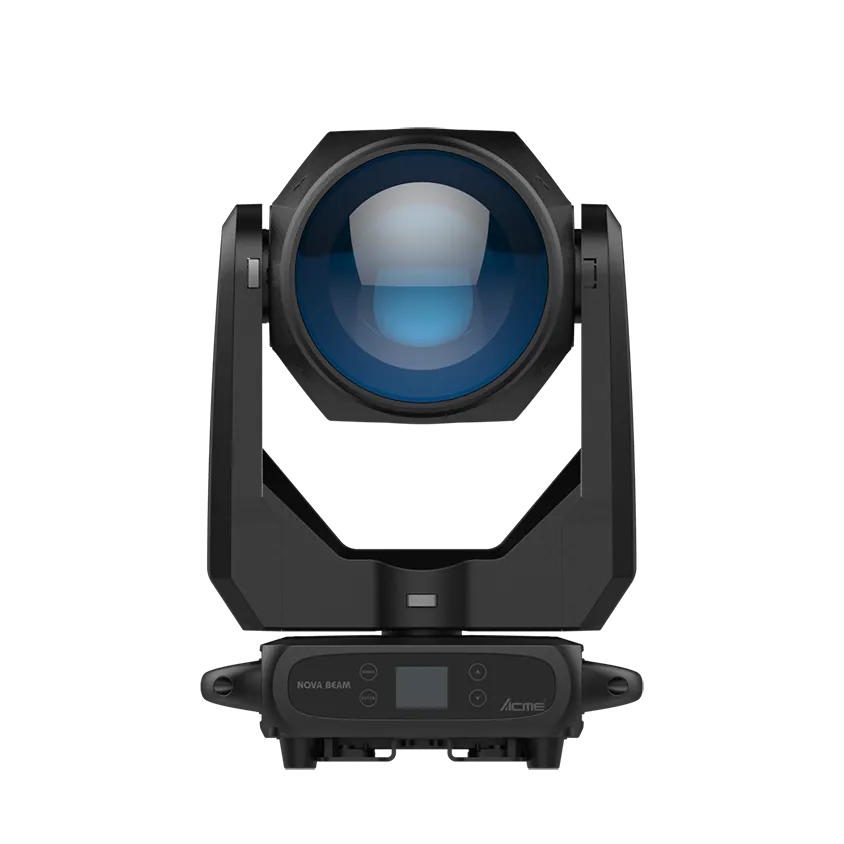

Diameter of Frontal Lens: 180 mm

05Control6

4 touch button control panel
Display: LCD display
Protocols: DMX512,RDM,Art-Net,sACN
DMX Protocol Modes: 1
Control Channels: 19
Firmware Upgrade: Upgrade via DMX link or USB stick

06Pan & Tilt5

Pan Movement: 540°
Tilt Movement: 270°; Automatic Pan/Tilt position correction
Resolution: 16 bit; Pan/Tilt lock

Show the full specificationHide the rest of the specification13 more groups · 36 values

07Colors1

1 Color Wheel: 12 colors, plus open

08Static Gobos2

1 Static Gobo Wheel: 7 gobos and 3 effect gobos, plus open
Gobo: Ø108 mm

09Prism1

2 Combinable Rotating and Indexable Prisms: 1 x 6-facet circular prism, 1 x 12-facet circular prism, rotatable in both directions

10Frost Filter1

1 frost filter

11Other Effects3

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Motorized focus system

12Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 425W

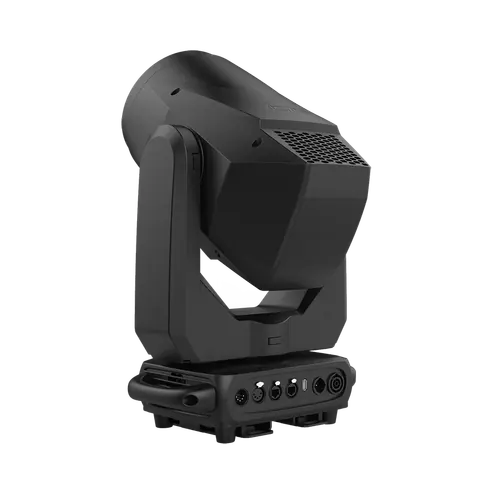

Power In/Out: Power connector in/out

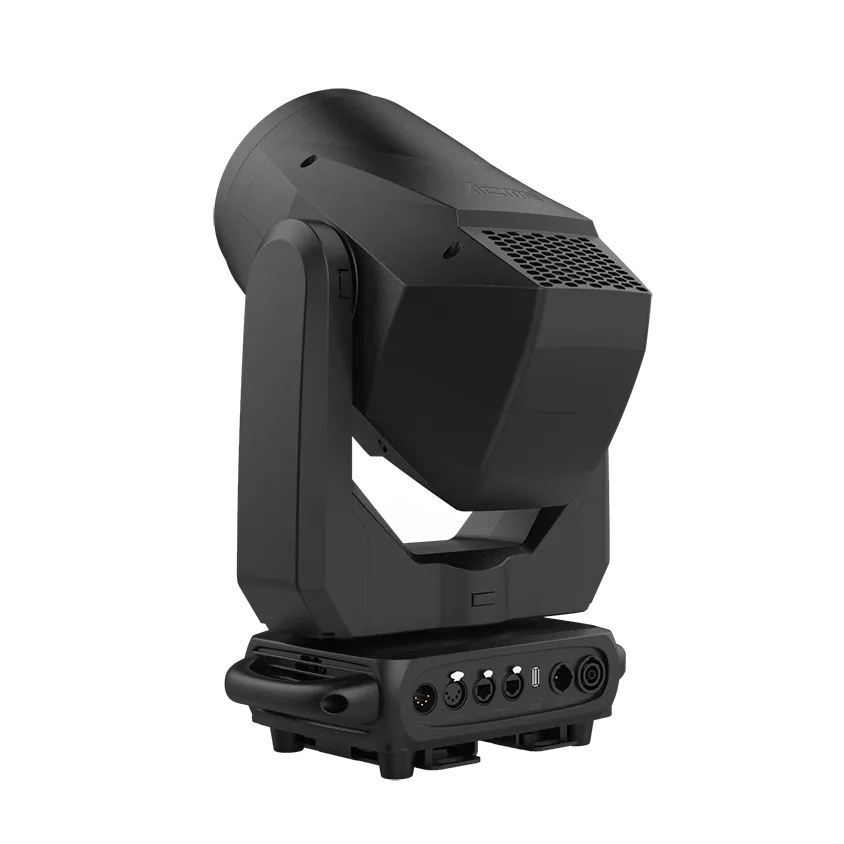

Data In/Out: 3-pin or 5-pin XLR,RJ45 connector

13Physical Information4

Fixture Dimensions
Width: 309 mm (12.2")
Depth: 206 mm (8.1")
Height: 520 mm (20.5")
Weight: 17.2 kg (37.8 lbs)

14Packing Information4

Carton Dimensions
Width: 460 mm (18.1")
Depth: 400 mm (15.8")
Height: 600 mm (23.6")
Weight
G.W.: 22 kg (48.5 lbs) (one-pack loader carton)

15Work Environment4

Maximum Ambient Temperature: 45°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 65°C
Protection Rating: IP20

16Approvals3

CE compliant

UKCA compliant

cETLus compliant

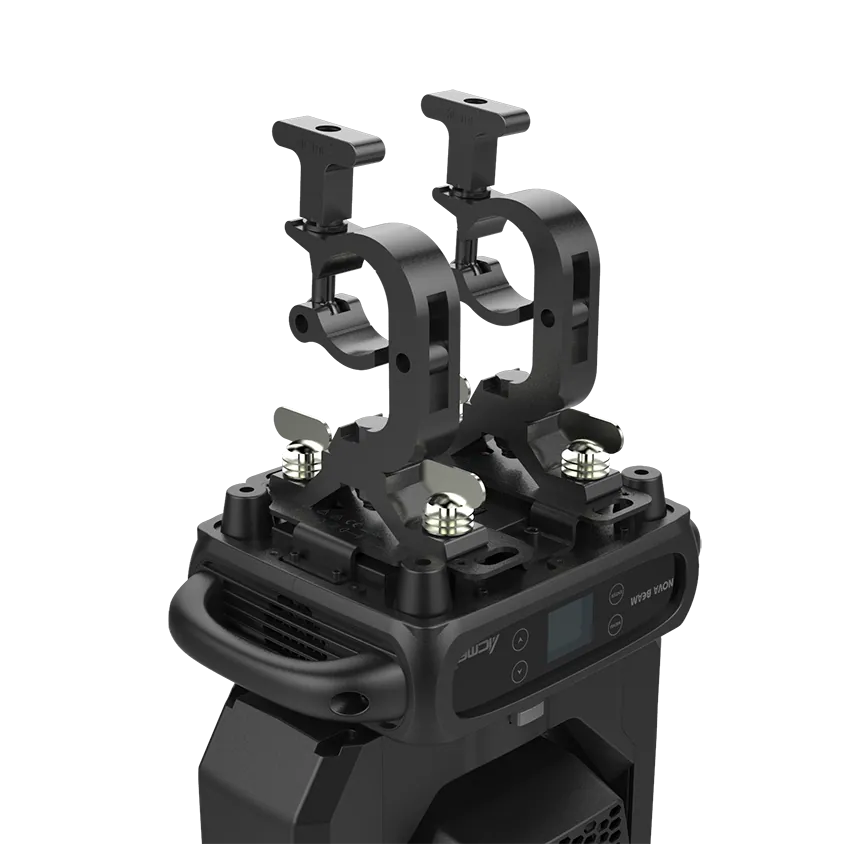

17Installation3

Horizontal or vertical mounting

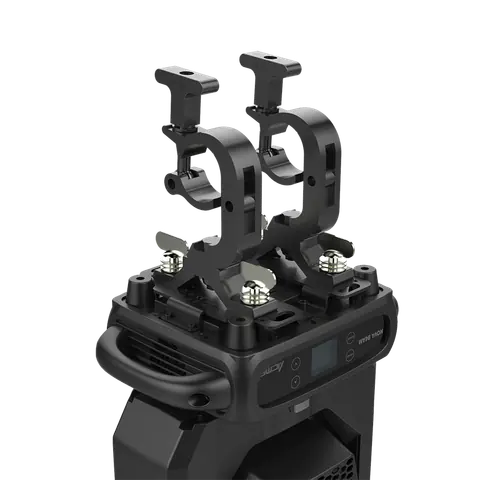

2 omega brackets

Safety cable attachment point

18Included Items3

QR code on fixture to receive digital user manual

Power cable

2 omega brackets (3002003002)

19Optional Accessories (With Order Code)3

Clamp: C-250B (2060001632-B)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin or 5-pin signal cable

02DescriptionManufacturer's description

What it is.

Weighing just 17.2 kg (37.8 lbs), the NOVA BEAM is packed with all the creative design functions you need: a color wheel with 12 colors, a static gobo wheel with 7 static gobos and 3 effect gobos, and dual rotating prisms (1 x 6-facet and 1 x 12-facet circular prism).

To enhance its flexibility, the fixture features a motorized linear iris and motorized focus system for precise beam control, along with a frost filter that softens edges to create smooth transitions between beam and wash effects.

With its versatile features and compact design, the NOVA BEAM is an ideal choice for theaters, clubs, and any indoor production requiring high-impact visuals.
