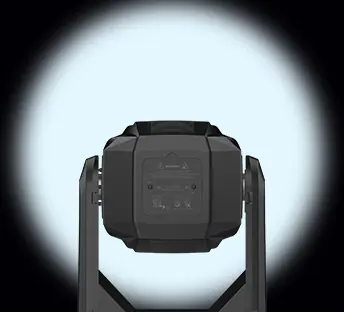

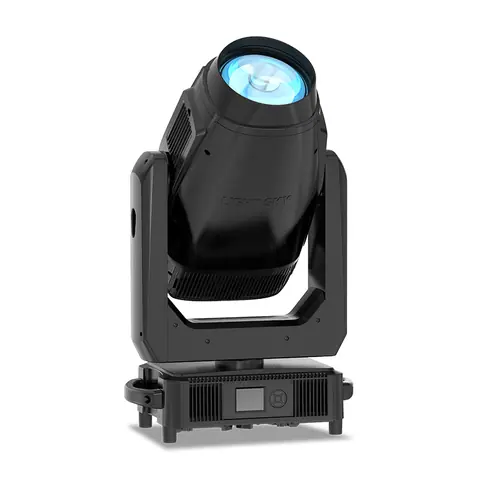

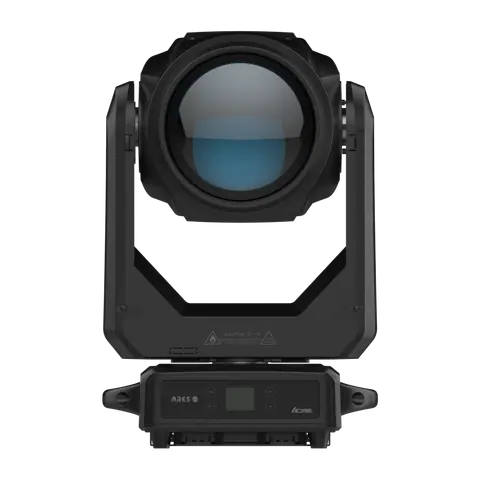

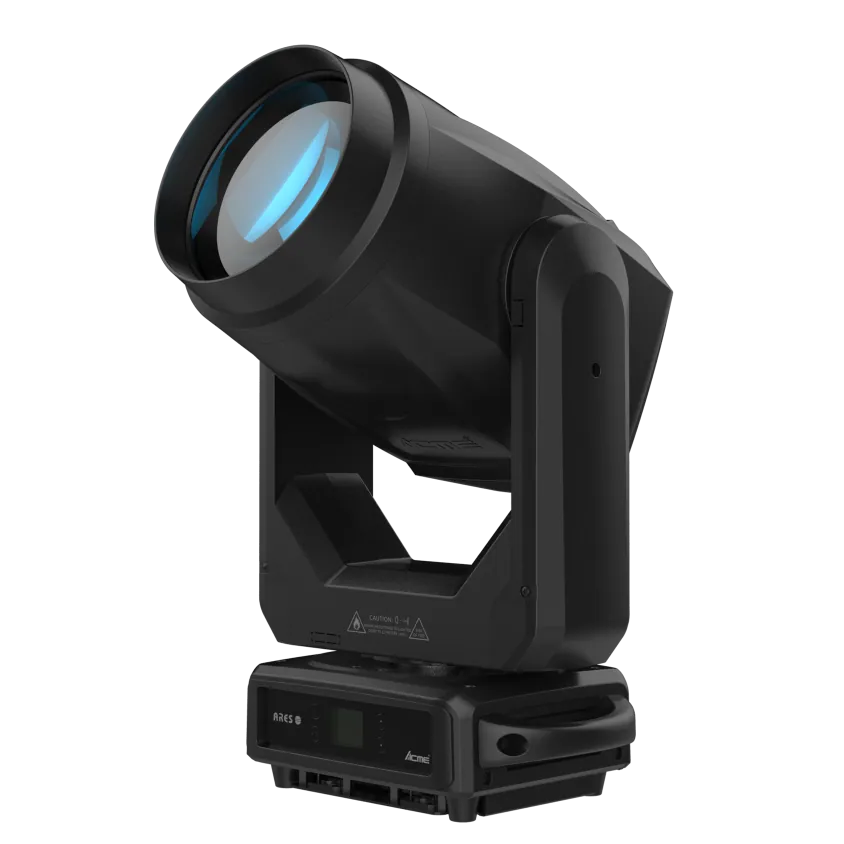

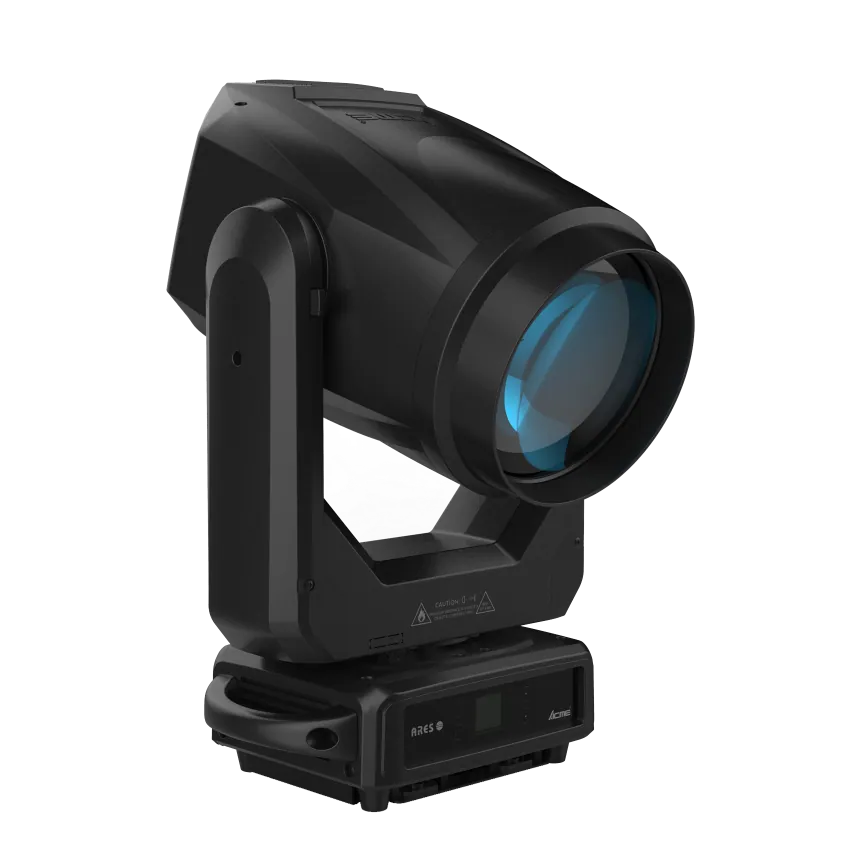

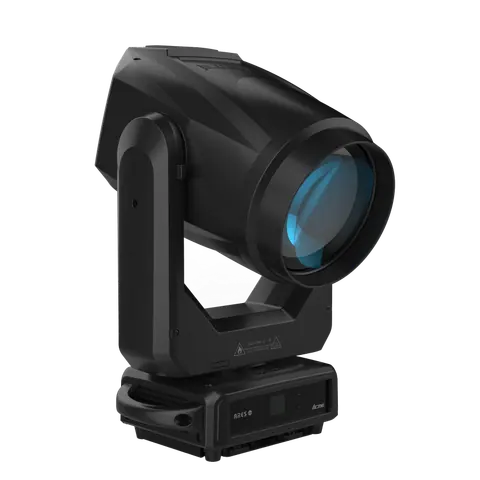

ModelXP 500 BEAM

ACME professional solutions and innovative products ARES Moving Beam are tailor-made for stage design and rental companies.

Light source: Philips MSD Platinum 19R LL engine
Power consumption: 570W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP20
Beam angle / zoom: 1.3°
DMX channels: 21/17
Protocols: DMX512,RDM
Colour temperature: 6,700K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:15

ACME ARES2:15

02SpecificationManufacturer's data · 20 groups · 61 values

What this product is, in numbers.

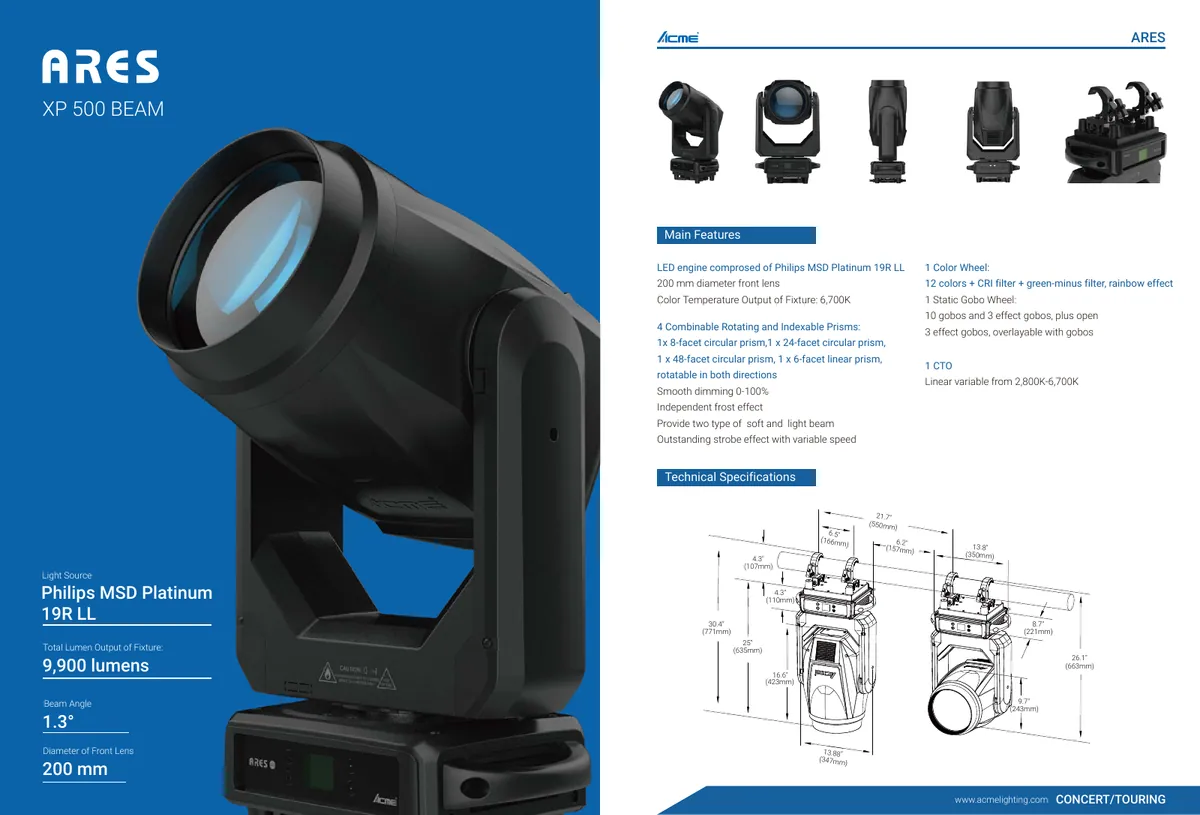

PDFDatasheetEN · 2 pages · 592 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: ARES
Model Code: XP 500 BEAM

02Light Source4

Light Source: Philips MSD Platinum 19R LL engine
Color Temperature Output of Fixture: 6,700K
Light Source Rated Life: 5,000 hours*; *Source manufacturer specification

03Photometric Data1

Total Lumen Output of Fixture: 9,900 lumens

04Optical System2

Beam Angle: 1.3°
Diameter of Frontal Lens: 200 mm

05Control6

4 touch button control panel
Display: LCD display
Protocols: DMX512,RDM
DMX Protocol Modes: 2
Control Channels: 21/17
Firmware Upgrade: Upgrade via DMX link or USB stick

06Pan & Tilt5

Pan Movement: 540°
Tilt Movement: 260°; Automatic Pan/Tilt position correction
Resolution: 16 bit; Pan/Tilt lock

Show the full specificationHide the rest of the specification14 more groups · 41 values

07Colors2

Linear CTO Color Correction: 2,800K-6,700K
1 Color Wheel: 12 colors, plus open

08Static Gobos2

1 Static Gobo Wheel: 10 gobos and 3 effect gobos, plus open
Gobo: Ø110 mm

09Prism1

4 Combinable Rotating and Indexable Prisms: 1x 8-facet circular prism,1 x 24-facet circular prism, 1 x 48-facet circular prism, 1 x 6-facet linear prism, rotatable in both directions

10Frost Filter1

soften beam edge in-air effects

11Diffuser Filter1

provide double homogenization effect light-heavy

12Other Effects3

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Motorized focus system

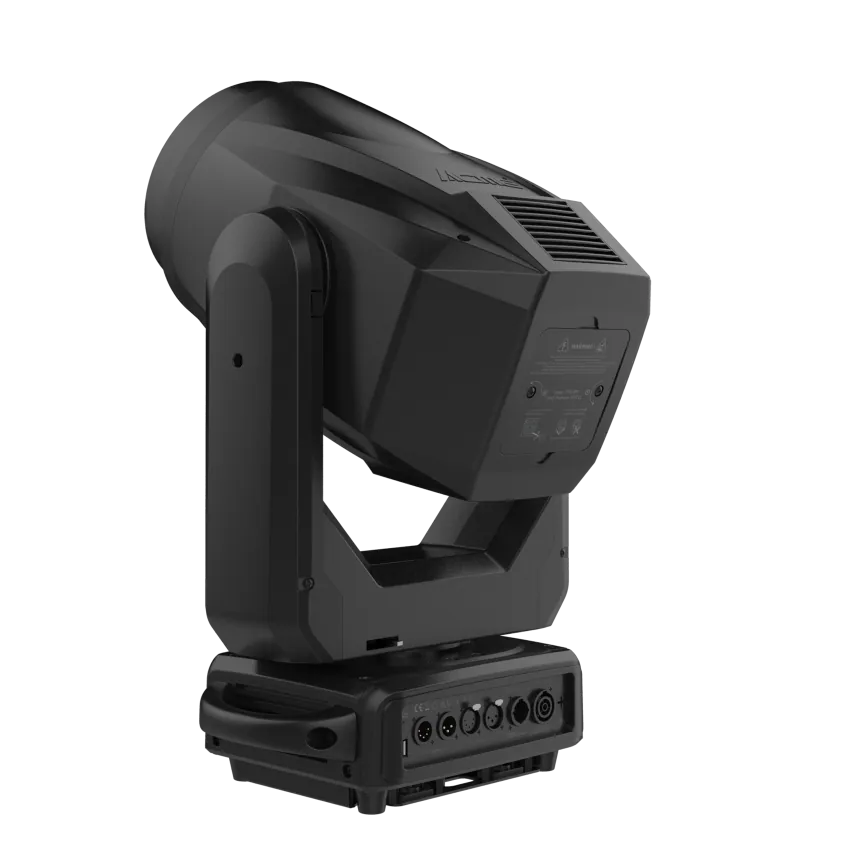

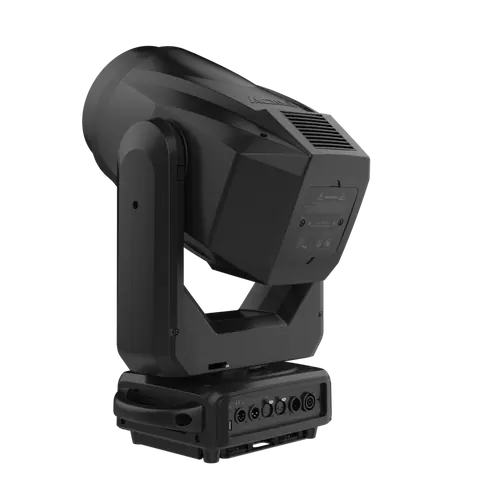

13Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 570W
Power In/Out: Power connector in/out
Data In/Out: 3-pin or 5-pin XLR

14Physical Information4

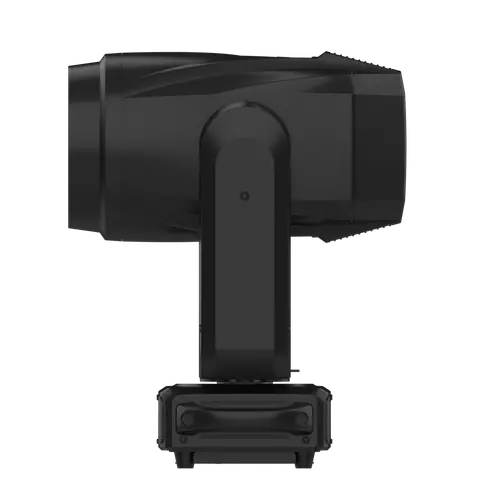

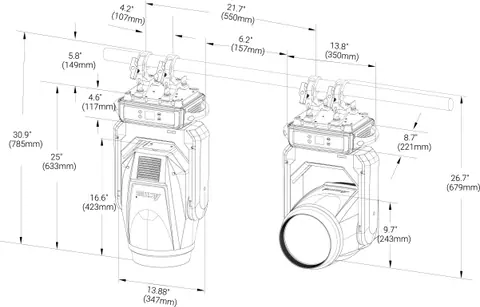

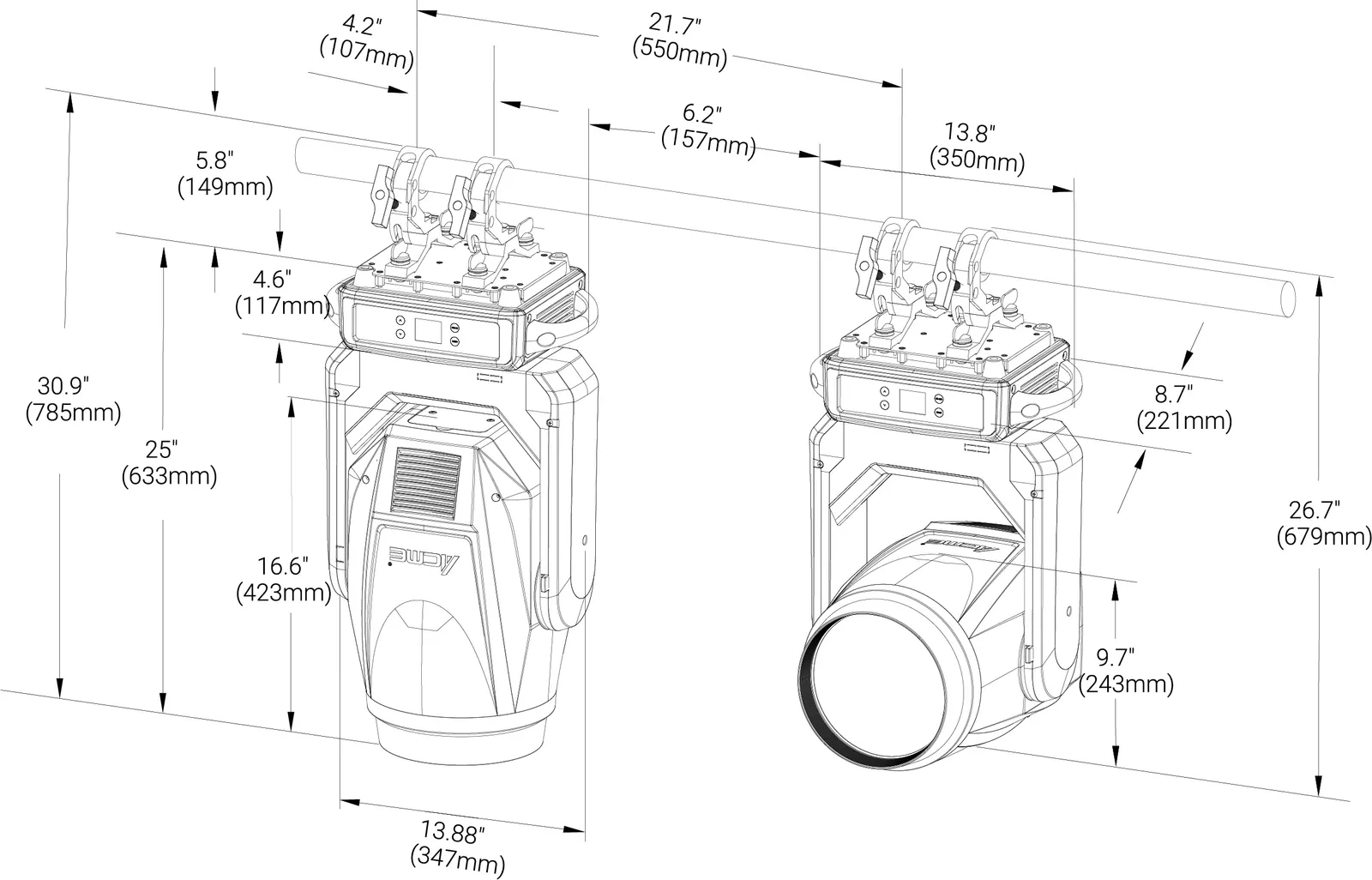

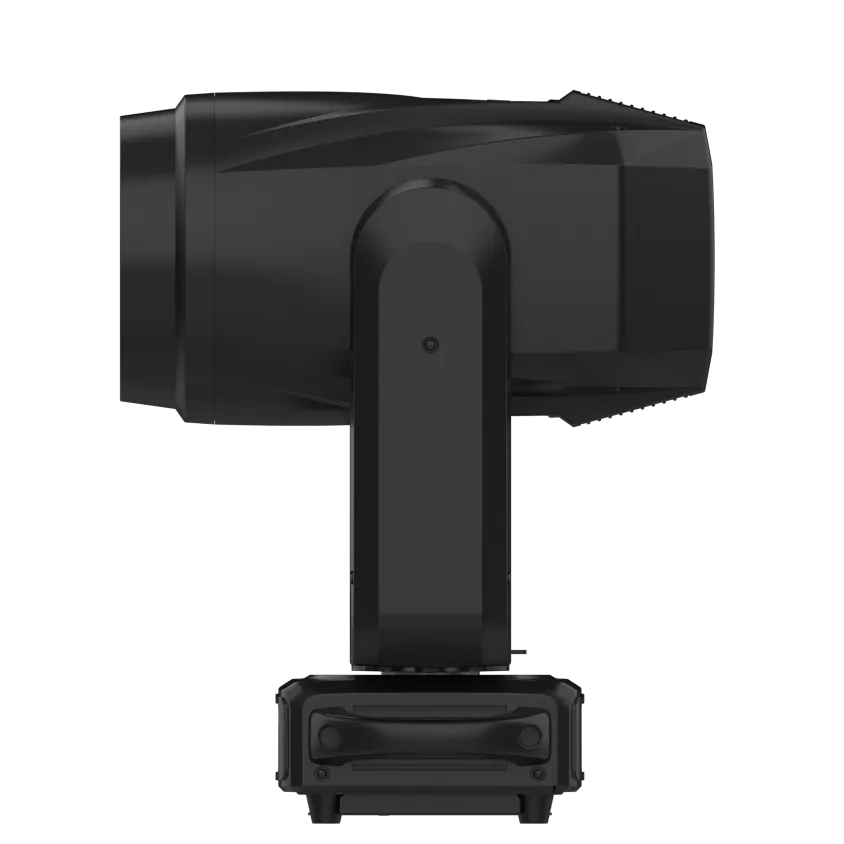

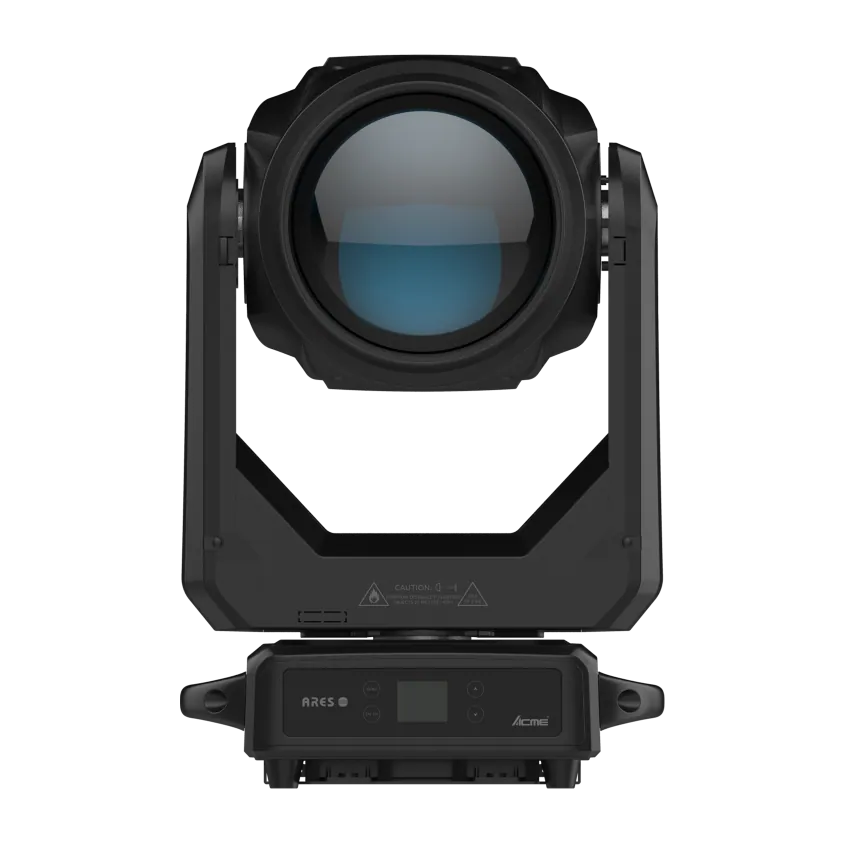

Fixture Dimensions
Width: 350 mm (13.8")
Depth: 223 mm (8.8")
Height: 668 mm (26.3")
Weight: 28.0 kg (62.0 lbs)

15Packing Information4

Flight Case Dimensions
Width: 915 mm (36.0")
Depth: 580 mm (22.8")
Height: 910 mm (35.8")
Weight
Standard: G.W.: 108 kg (397 lbs) (Two-pack loader case)

16Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: 0°C
Maximum Surface Temperature: 90°C
Protection Rating: IP20

17Approvals3

CE compliant

UKCA compliant

cETLus compliant

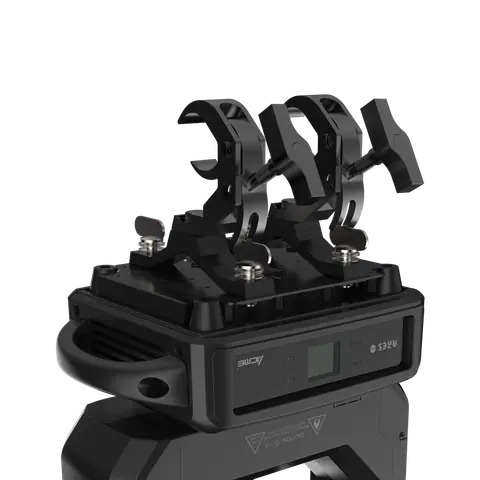

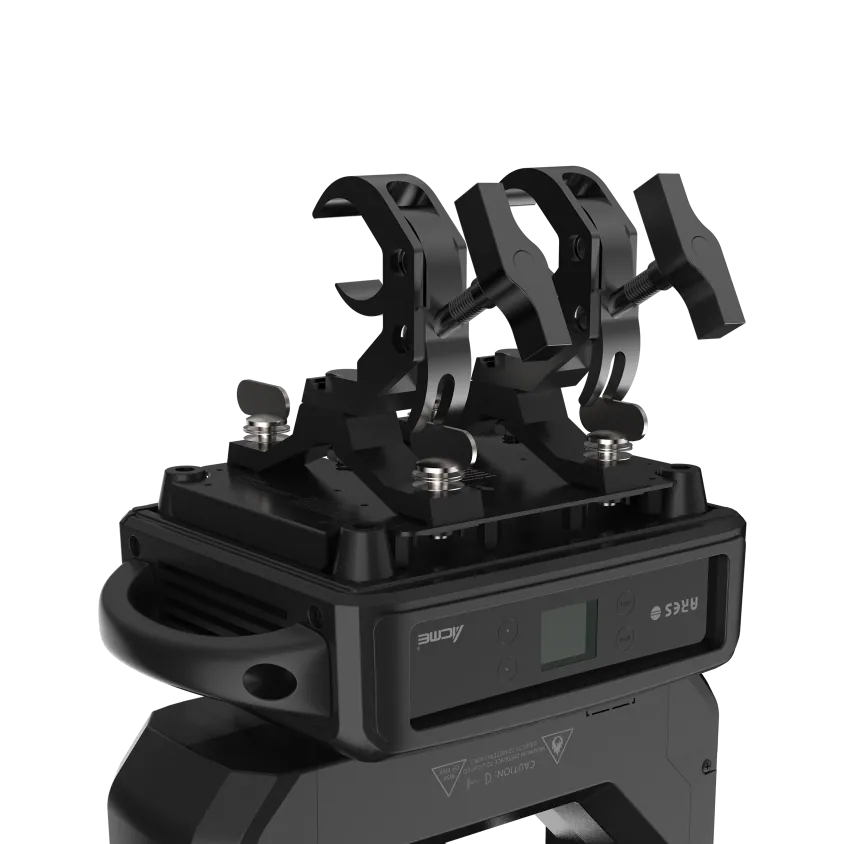

18Installation4

Horizontal or vertical mounting

Universal working position

2 omega brackets

Safety cable attachment point

19Included Items3

Digital user manual

Power cable

2 omega brackets

20Optional Accessories (With Order Code)5

Flight Case
Standard: Two-pack loader case (63583583)
Clamp: C-150B (2060001625-C)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin or 5-pin signal cable
Raincover: 3033001749

03DescriptionManufacturer's description

What it is.

ACME professional solutions and innovative products ARES Moving Beam are tailor-made for stage design and rental companies. The extremely effective Philips MSD Platinum 19R 5,000 Hours Long Lifespan(*Test lab conditions) discharge lamp with a great intensity of 882,000 lux at 10 meters offers extremely high output and fascinating prism/gobo combination effects.

The high-quality optics with a 200mm frontal lens and a remarkable beam angle at 1.3° offer almost inexhaustible possibilities. By ingeniously merging the independent frost wheel and two soft filters blending with an additional colour wheel offering 12 complementary colours plus a Minus-Green filter & High CRI option, it is possible to spark genuine emotions. Designer appreciates the powerful output and the wide range of dynamic effects that allow them to develop their creativity to the full. Fascinating lighting effects are created with the several animation gobos with indexable metal gobos on the wheel. A total of 4 prisms at two levels open up unheard-of possibilities in terms of creating diverse mid-air effects. The linear 3,200-6,500K CTO wheel and hotspot soft filters are enhanced by the high CRI filter for increased colour rendition and adaptation to TV and filming applications.

The attractive design of the compact housing with foldable clamps (Optional for Omega Bracket Base) for better handling in everyday use. 16-bit resolution enables smooth, uniform dimming and fast-moving pan/tilt speed. Designed to fulfill all scale stage applications, the new ACME ARES is a perfect beam light for all functional purposes.
