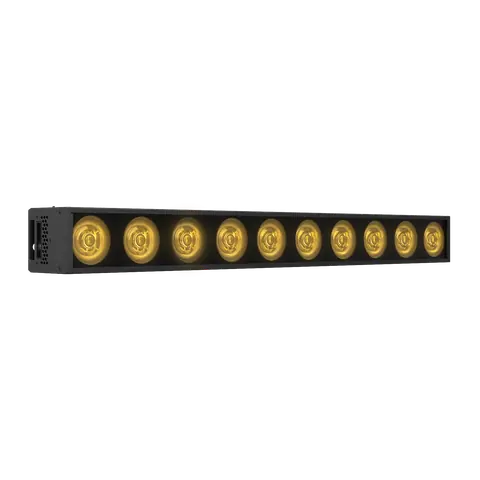

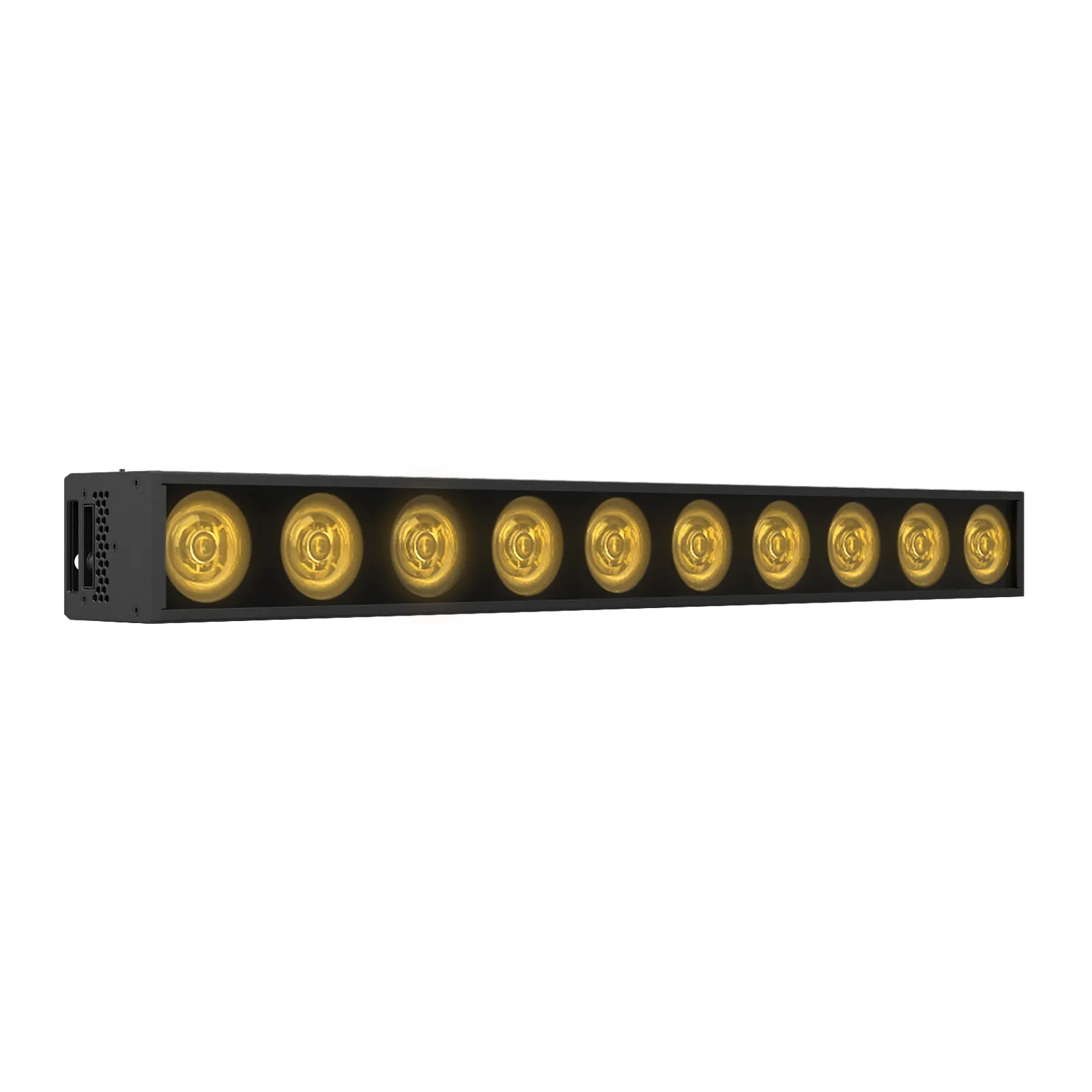

BLINDER LINE 10 IP

ModelBLB 10 IP

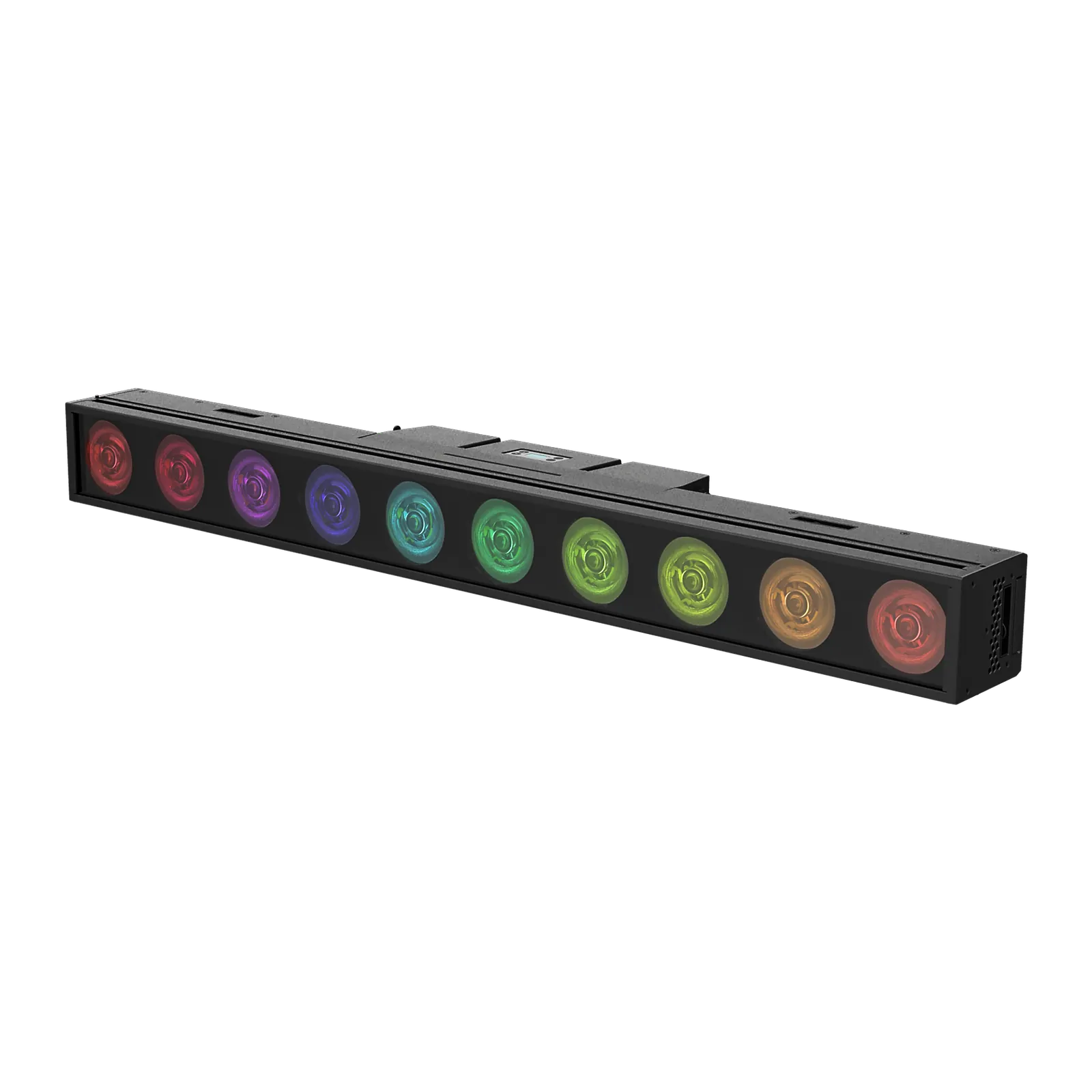

Introducing ACME's great innovation—the BLINDER LINE 10 IP: a highly versatile linear blinder light designed to elevate your lighting experience. This exceptional fixture showcases 10 high-powered 150W RGBAW LED sources, delivering mesmerizing color effects.

Light source: 10 x 150W RGBAW LEDs
Power consumption: 600W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66
DMX channels: 14/55
Protocols: DMX512,RDM,Art-Net,sACN
Net weight: 13.6 kg (30 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 14 groups · 72 values

What this product is, in numbers.

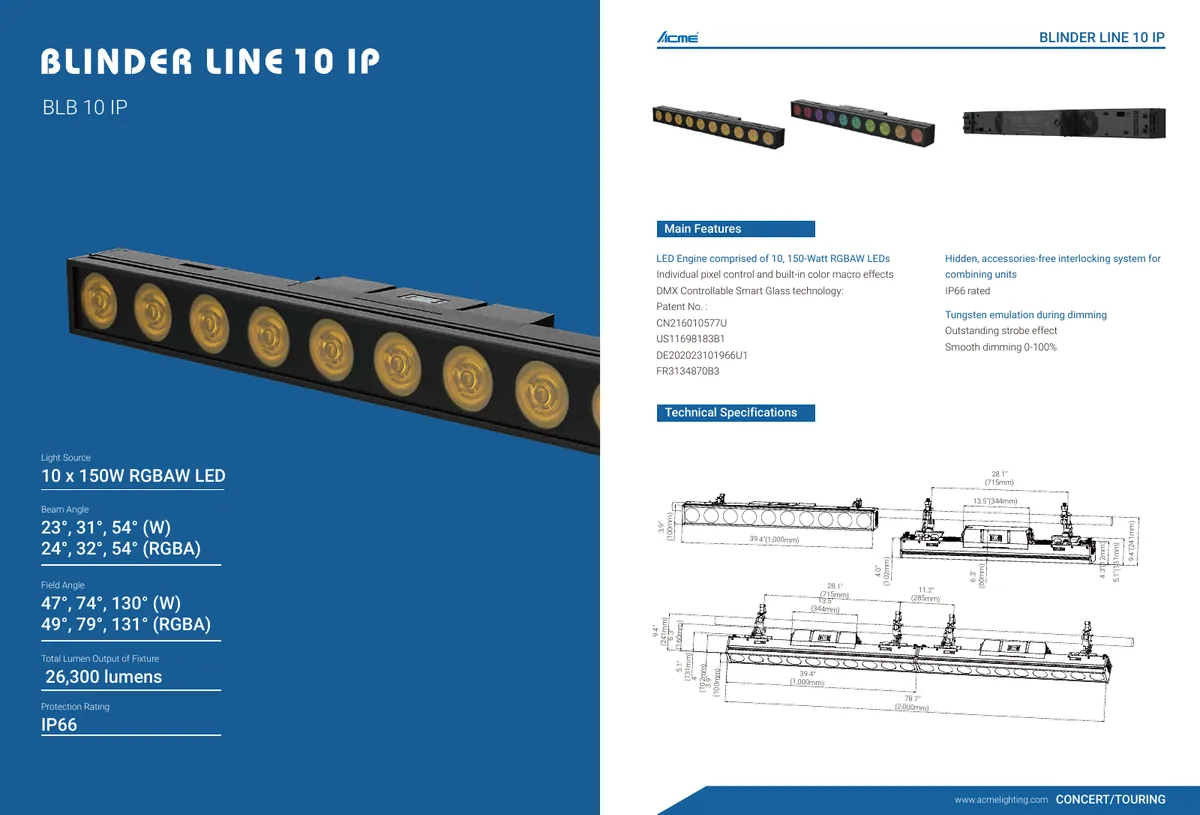

PDFDatasheetEN · 2 pages · 586 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: BLINDER LINE 10 IP
Model Code: BLB 10 IP

02Light Source3

Light Source: 10 x 150W RGBAW LEDs
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data1

Total Lumen Output of Fixture: 26,300 lumens

04Optical System8

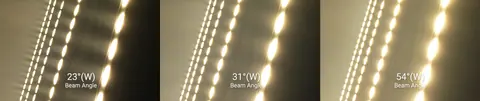

Beam Angle
W: 23°, 31°, 54°

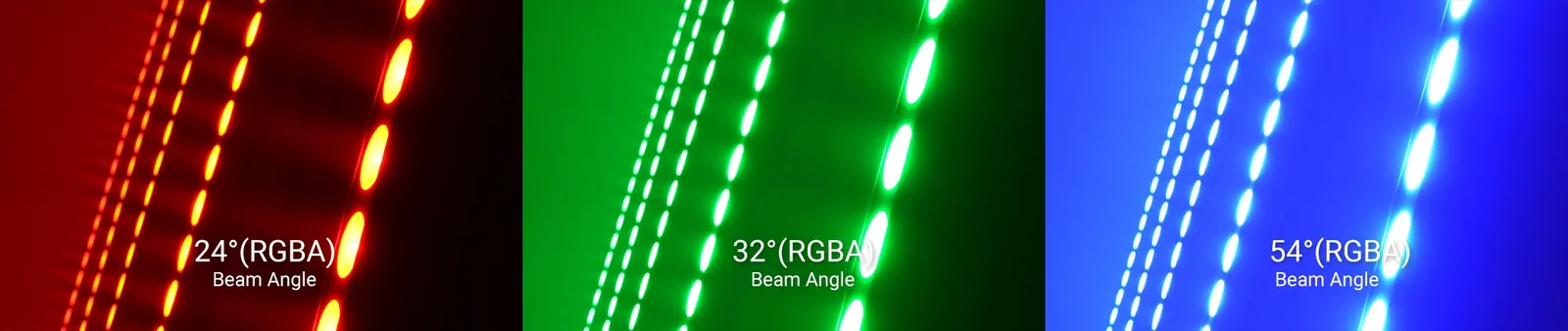

RGBA: 24°, 32°, 54°

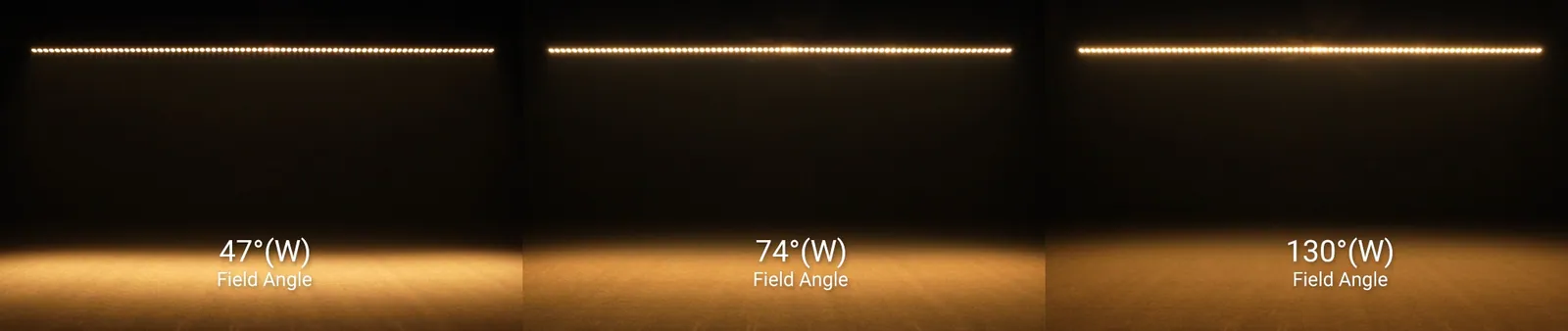

Field Angle
W: 47°, 74°, 130°
RGBA: 49°, 79°, 131°
DMX Controllable Smart Glass technology
Patent No.: CN216010577U; US11698183B1; DE202023101966U1; FR3134870B3

05Control6

4 touch button control panel
Display: OLED display
Protocols: DMX512,RDM,Art-Net,sACN
DMX Protocol Modes: 2
Control Channels: 14/55
Firmware Upgrade: Upgrade via DMX link

06Other Effects4

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Tungsten emulation during dimming

Individual pixel control and built-in color macro effects

Show the full specificationHide the rest of the specification8 more groups · 48 values

07Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 600W

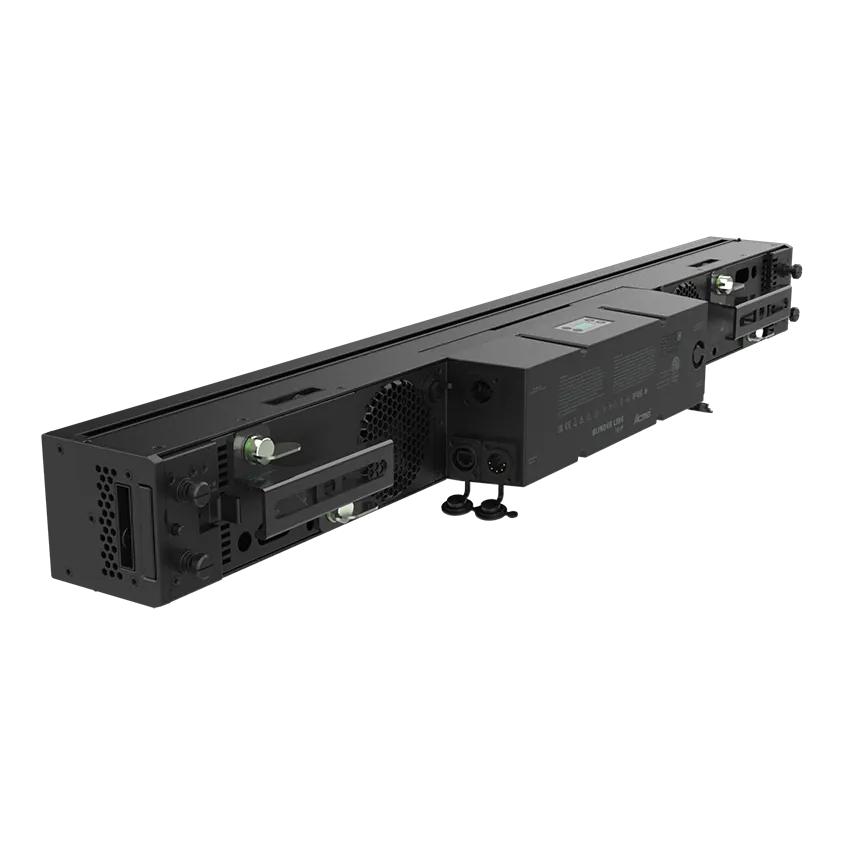

Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR,RJ45 connector

08Physical Information4

Fixture Dimensions
Width: 1,000 mm (39.4")
Depth: 103 mm (4.0")
Height: 158.5 mm (6.2")
Weight: 13.6 kg (30 lbs)

09Packing Information13

Flight Case Dimensions 1
Width: 1,220 mm (48.0")
Depth: 610 mm (24.0")
Height: 555 mm (21.9")
Weight
Standard: G.W.: 107 kg (235.9 lbs) (four-pack loader case)
Flight Case Dimensions 2
Width: 1,220 mm (48.0")
Depth: 610 mm (24.0")
Height: 850 mm (33.5")
Weight
Standard: G.W.: 184 kg (405.7 lbs) (eight-pack loader case)
North American Standard: G.W.: 209 kg (460.8 lbs) (eight-pack loader case)
Carton Dimensions
Width: 1,105 mm (43.5")
Depth: 285 mm (11.2")
Height: 200 mm (7.9")
Weight
G.W.: 16 kg (35.3 lbs) (one-pack loader carton)

10Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 70°C
Protection Rating: IP66

11Approvals3

CE compliant

UKCA compliant

cETLus compliant

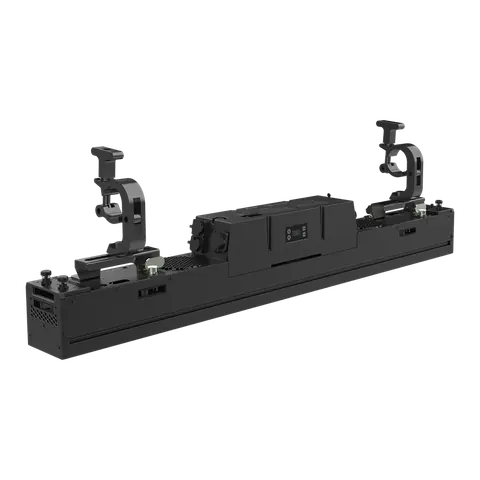

12Installation7

Horizontal or vertical mounting; Universal working position

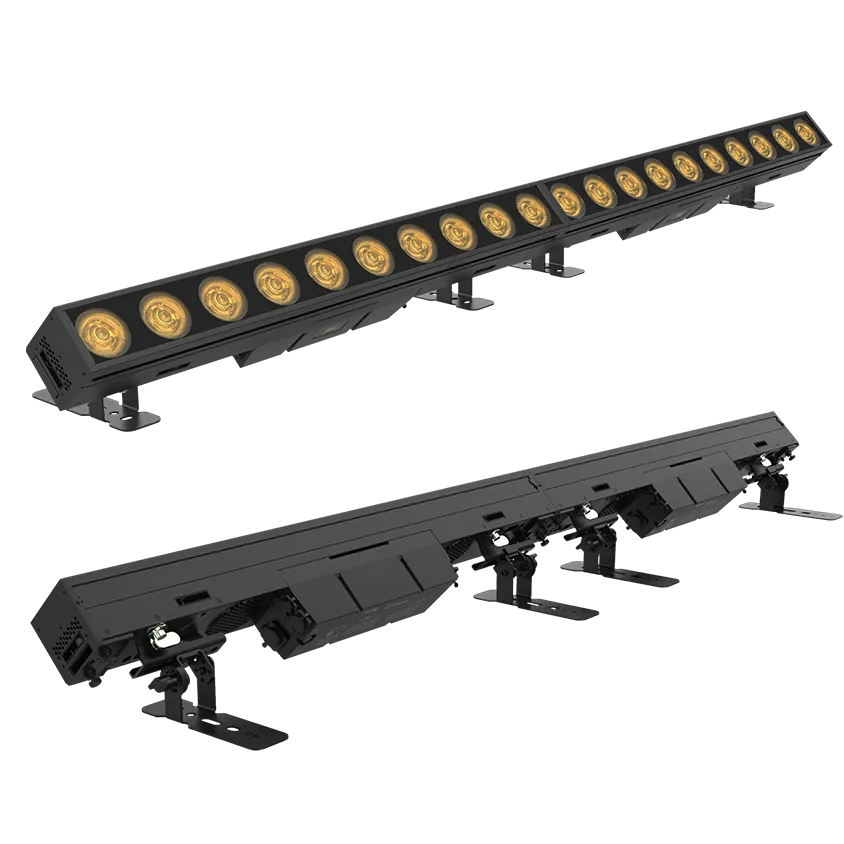

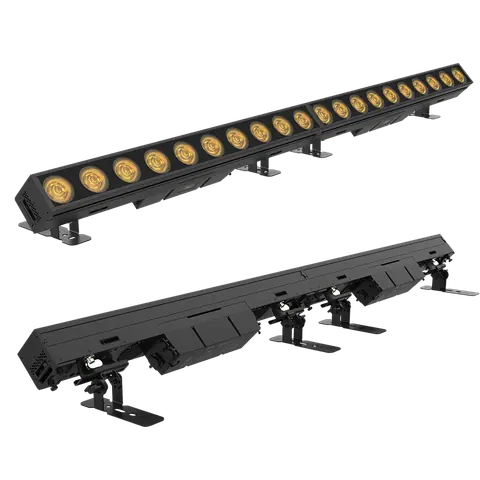

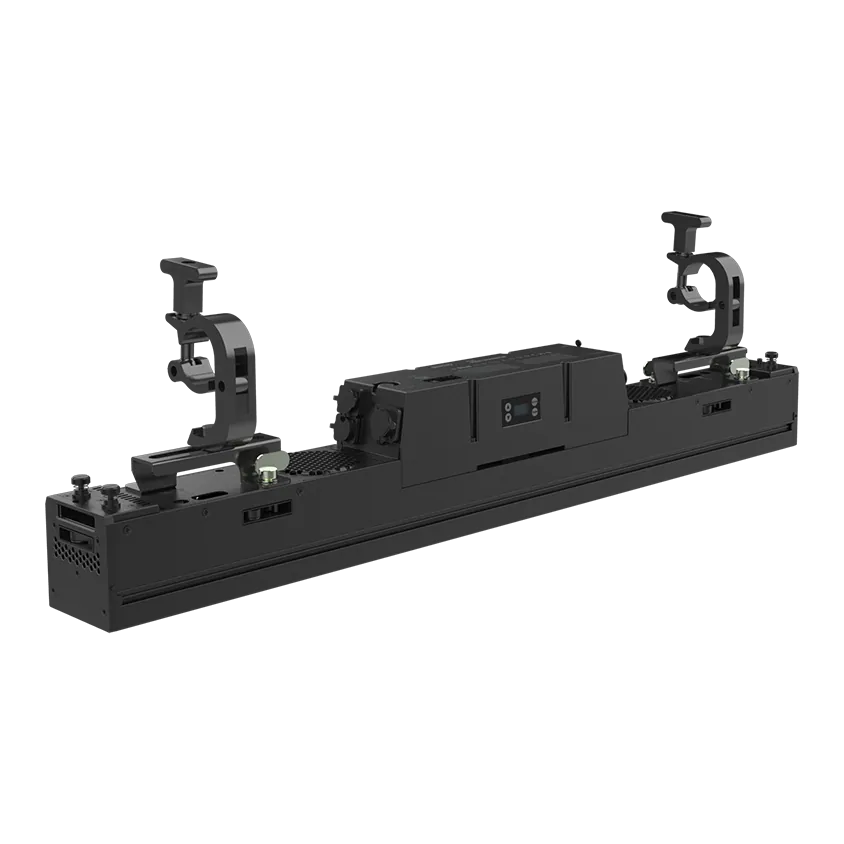

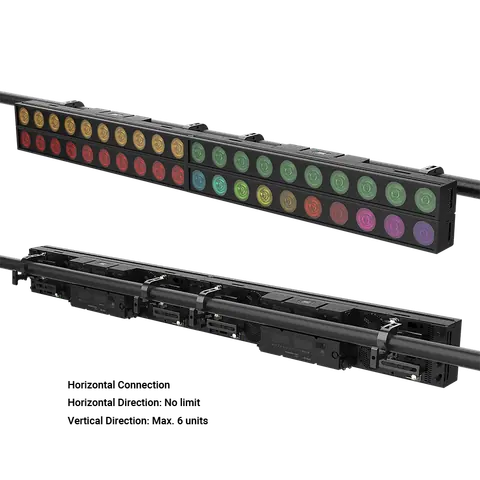

Horizontal: Utilizing two omega brackets (supplied) and two clamps (by others), there is no limit to the number of fixtures in the horizontal direction, and a maximum of 5 fixtures may be connected in the vertical direction

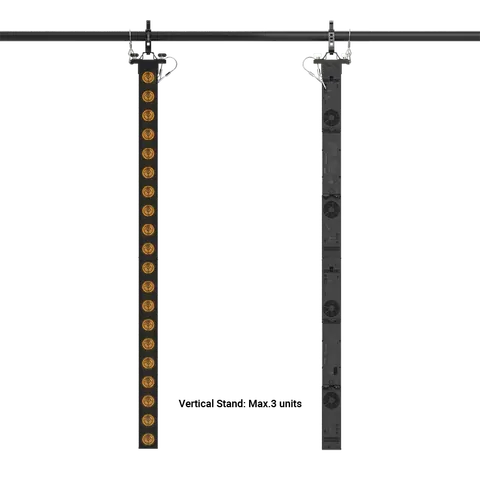

Vertical: Using one hanging bracket (sold separately) with one clamp (by others), a maximum of 3 fixtures may be connected

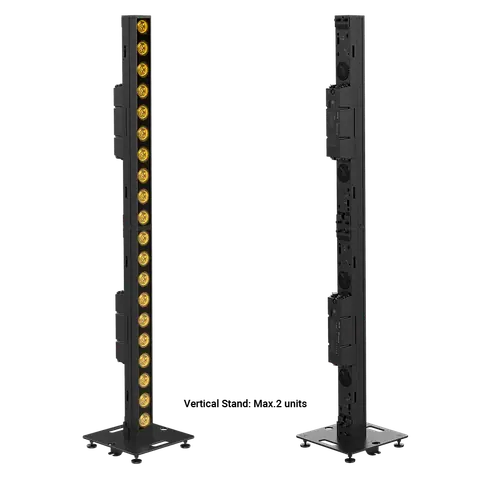

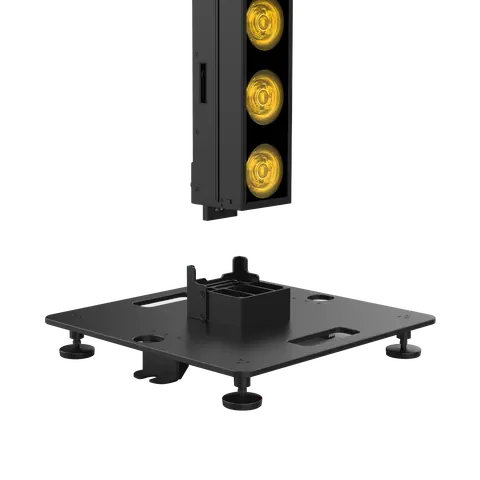

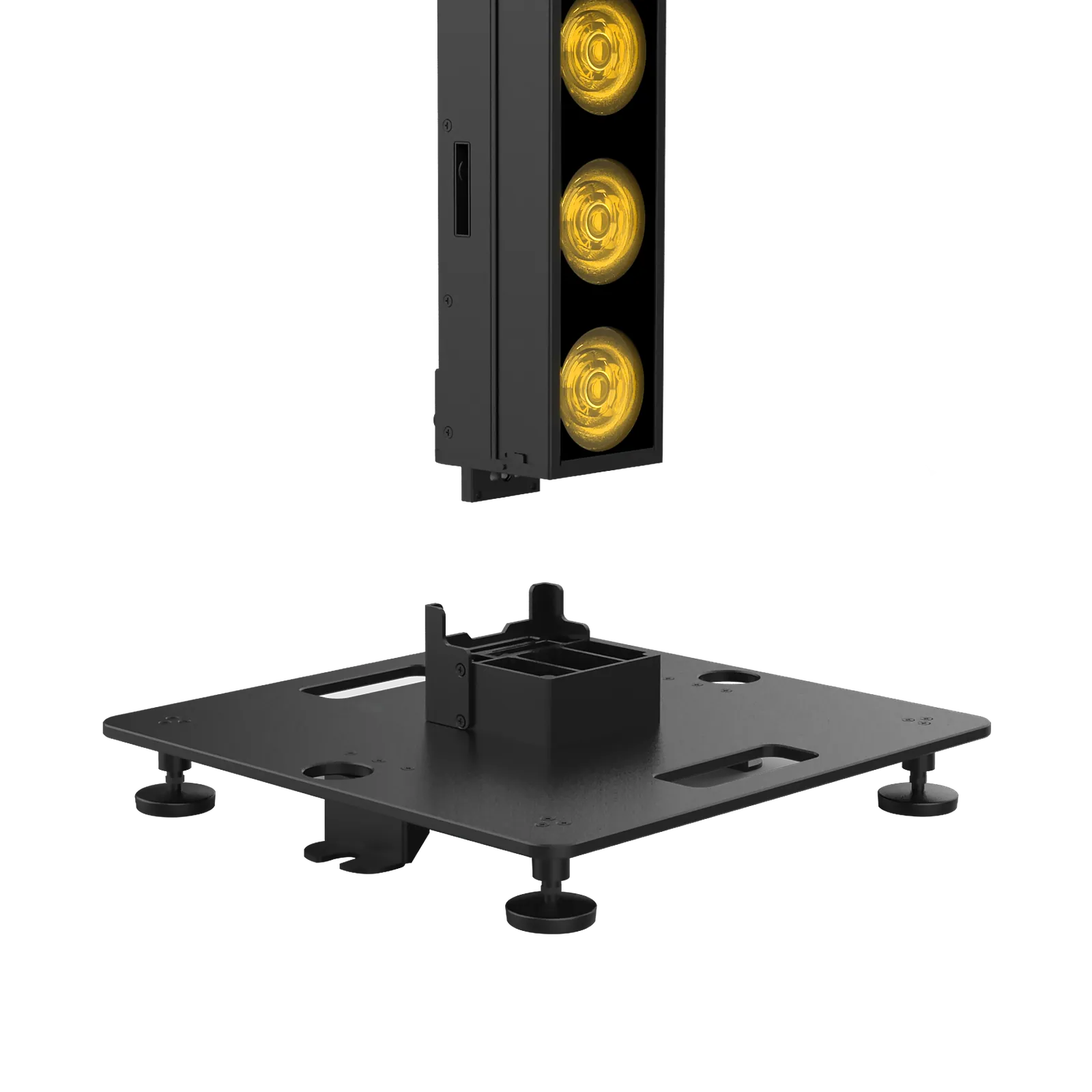

Vertical Stand: Mounted to one base stand (sold separately). When installed at a tilt, stand single unit only, no other fixtures may be connected. When stand vertically, a maximum of 2 fixtures may be connected.
Floor: Utilizing two omega brackets (supplied) and two floor stands (sold separately); Safety cable attachment point

13Included Items3

Digital user manual

Power cable

2 omega brackets

14Optional Accessories (With Order Code)10

Flight Case 1
Standard: Four-pack loader case (63583274)
Flight Case 2
Standard: Eight-pack loader case (63583576)
North American Standard: Eight-pack loader case (63583041)
Clamp: C-250B (2060001632-B)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)
Hanging Bracket: 63582969
Base Stand: 63582785
Customized Floor Stand w/ Omega Bracket: 63583898 (in pair)
Customized Floor Stand w/o Omega Bracket: 63583843 (in pair)

02DescriptionManufacturer's description

What it is.

What sets this fixture apart is its dynamic features, including a powerful strobe effect and a distinctive filament lamp effect, ensuring that your lighting outcomes are nothing short of captivating. The BLINDER LINE 10 IP unit features tremendous output with selectable, smooth dimming curves, convenient color temperature presets and an extraordinary reach with a native 23° beam angle. The integrated interlocking connectors streamline the setup process, making it quick and effortless.

With an all-weather IP66 protection rating, this fixture is designed to withstand the element. Its comprehensive suite of advanced features ensures exceptional effects, allowing you to unleash your creativity without limitations. Elevate your lighting game with the BLINDER LINE 10 IP from ACME.
