Sheet 05.757

ACME · Effects and lasers

CYCLONE

ModelCM 150 IP

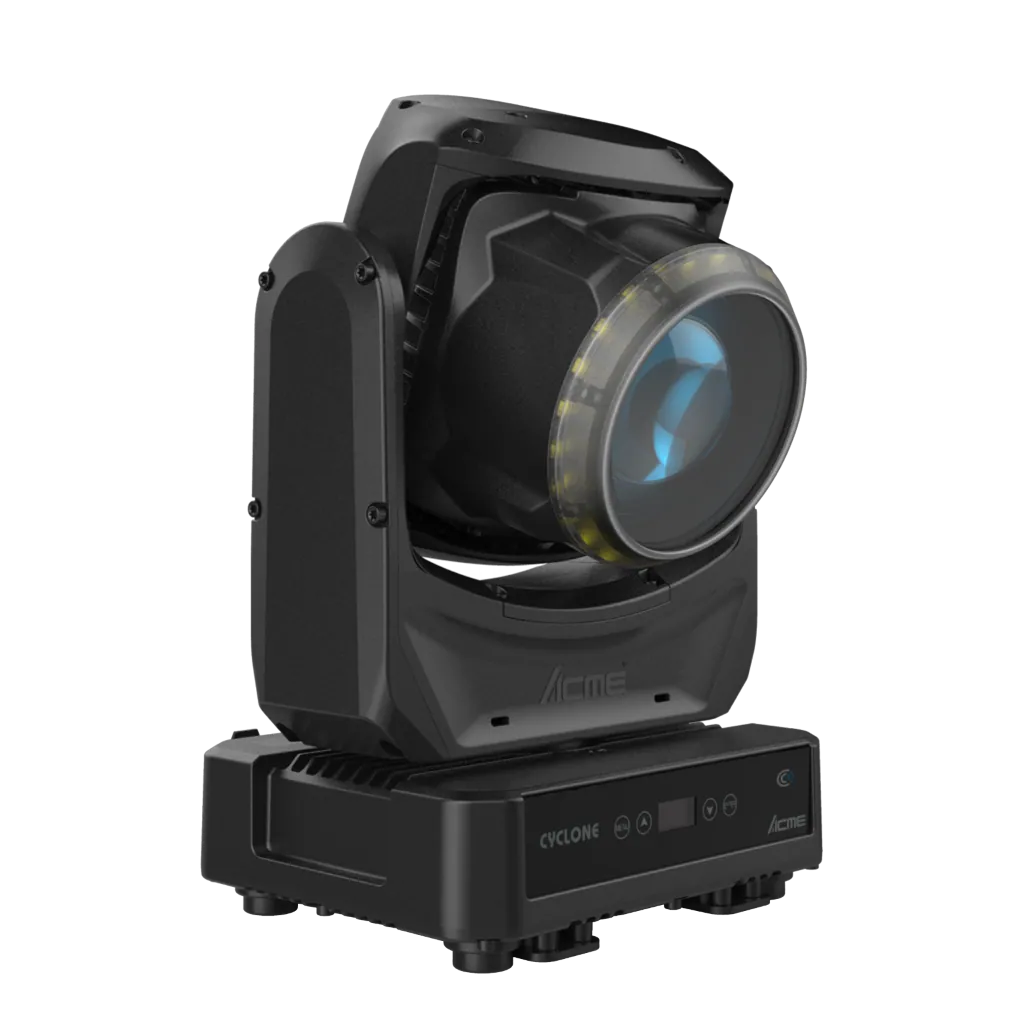

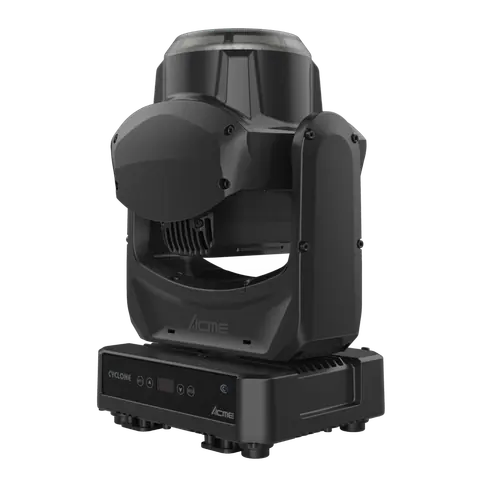

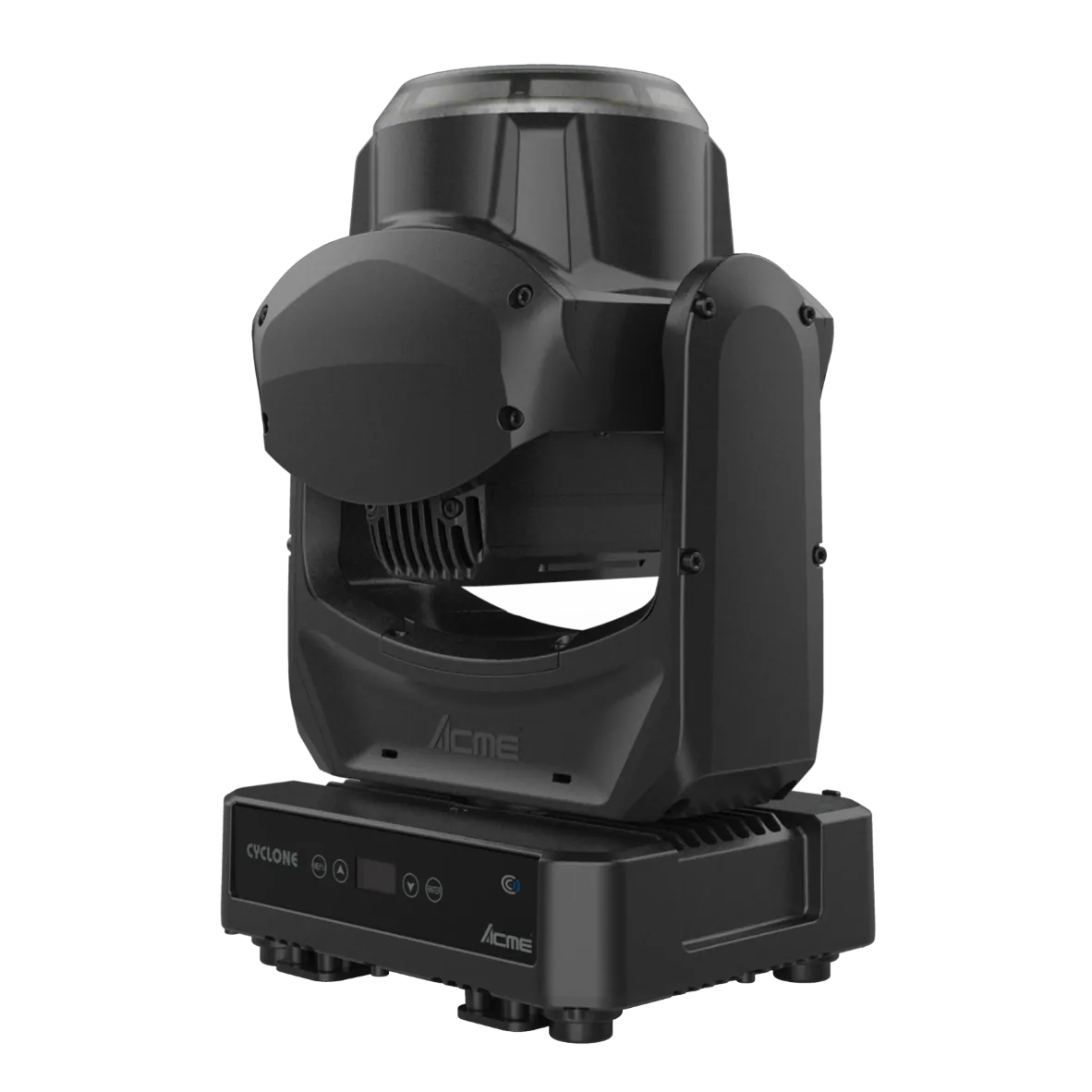

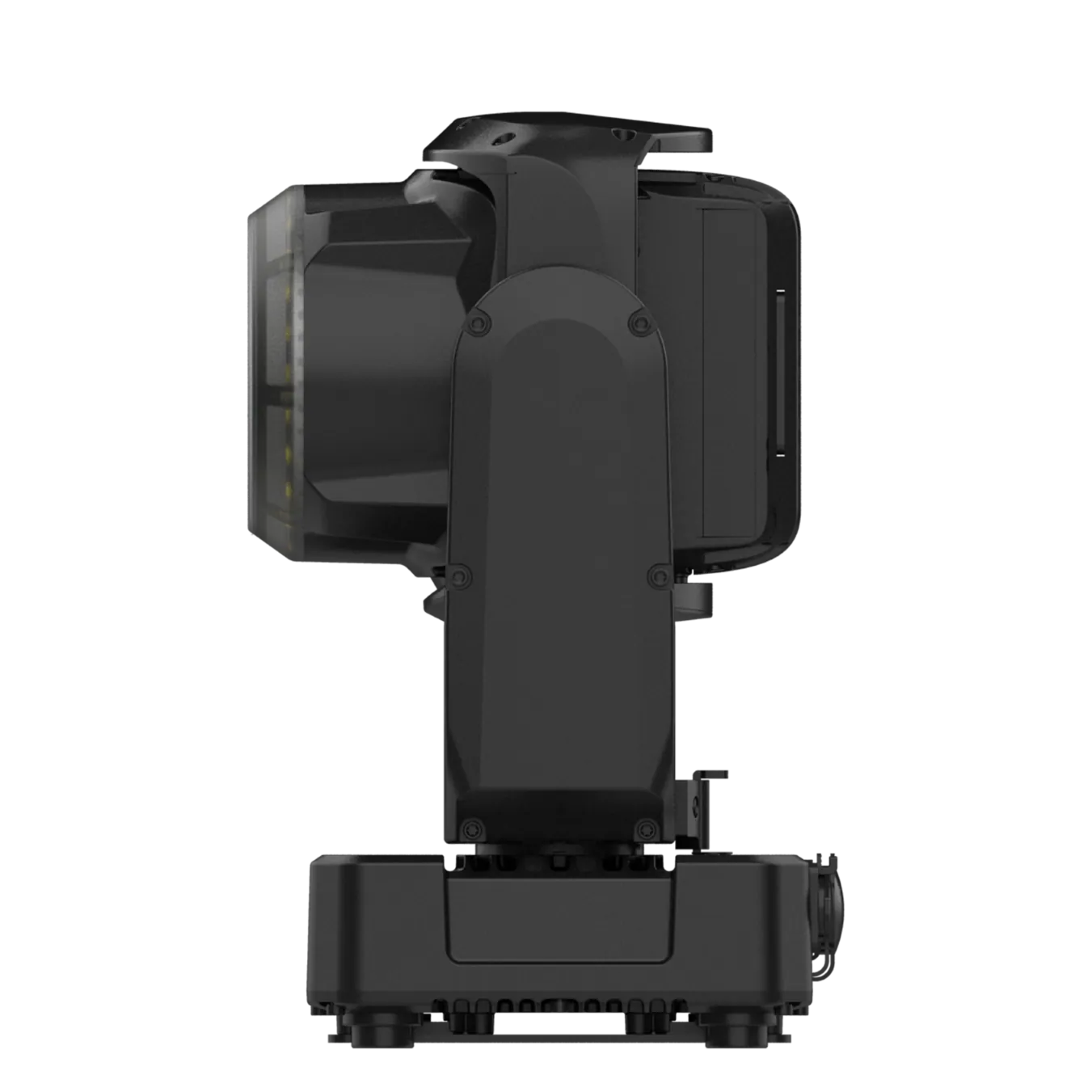

Unleash a storm of visual energy with the ACME CYCLONE. Inspired by the success of the top-selling TORNADO, the fixture delivers a powerful central beam, a pixel ring, vibrant washes, and infinite motion — all from a single head.

Light source: 1 x 150W RGBL LED (main light)
Power consumption: 260W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66
Beam angle / zoom: 4°-30°
DMX channels: 27/50/58
Protocols: DMX512,RDM,Art-Net,sACN,NFC
Colour temperature: 8,000K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:21

ACME CYCLONE2:21

02SpecificationManufacturer's data · 17 groups · 82 values

What this product is, in numbers.

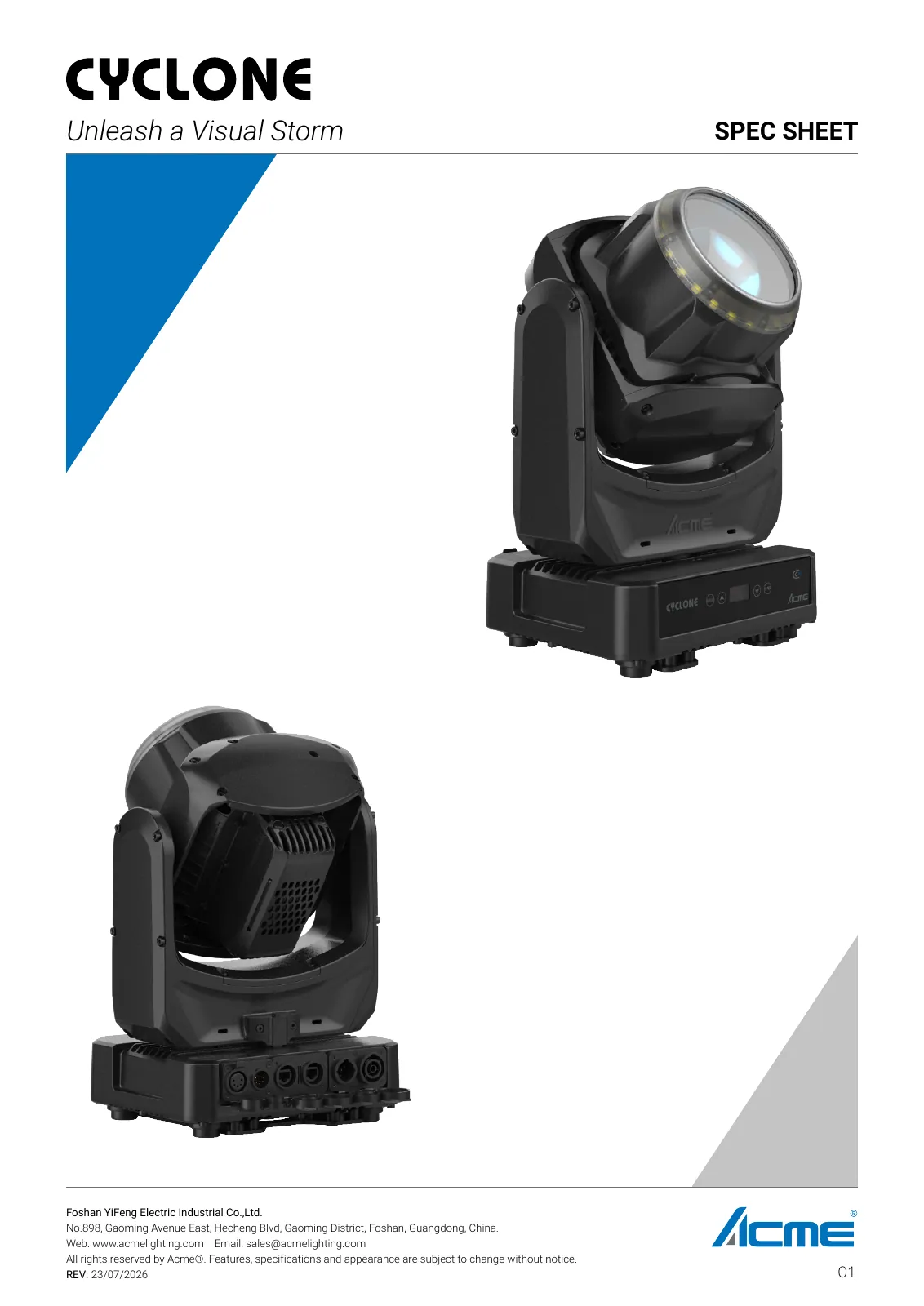

PDFDatasheetEN · 14 pages · 3.0 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: CYCLONE
Model Code: CM 150 IP

02Light Source5

Light Source
Beam/Wash: 1 x 150W RGBL LED (main light)
Pixel/Strobe: 24 x 0.5W RGB LEDs (outer circle)
Color Temperature Output of Fixture: 8,000K
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data12

Total Lumen Output of Fixture
Beam/Wash: 3,600 lumens
Kaleidoscope Effect: 4,000 lumens
Total Lumen Output of Fixture
Auto Mode
Beam/Wash: 3,600 lumens
Kaleidoscope Effect: 4,000 lumens
Quiet Mode
Beam/Wash: 2,800 lumens
Kaleidoscope Effect: 3,000 lumens
Super Quiet Mode
Beam/Wash: 2,500 lumens
Kaleidoscope Effect: 2,600 lumens
Color Rendering: 82
TM-30 Rf (IES TM-30-15 Fidelity Index): 87
TM-30 Rg (IES TM-30-15 Fidelity Index): 100
TLCI: 90

04Optical System4

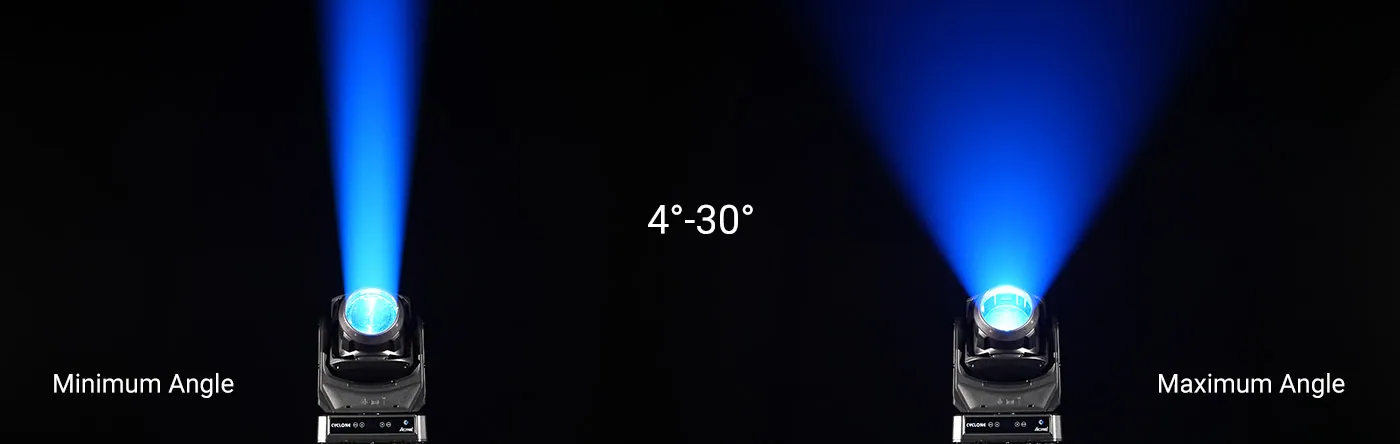

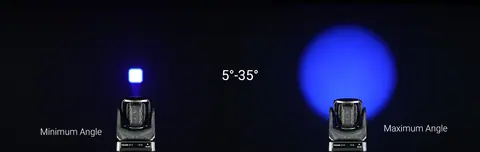

Beam Angle: 4°-30°

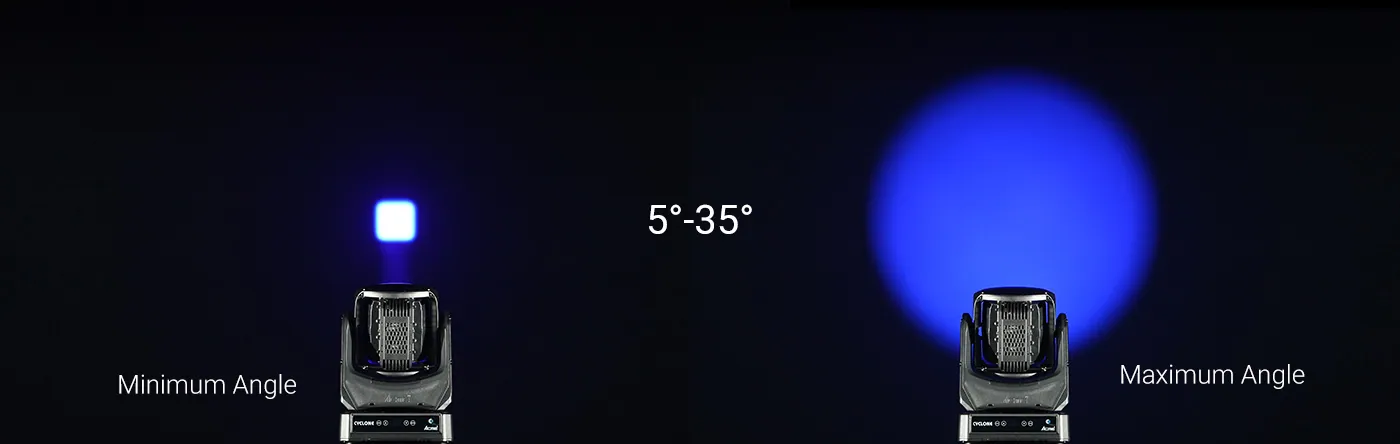

Field Angle: 5°-35°

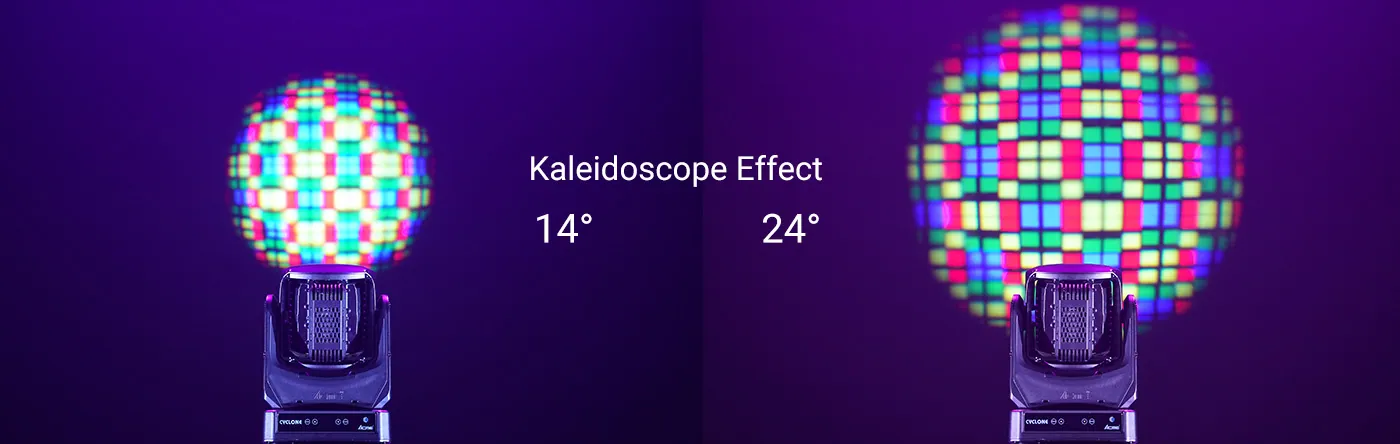

Kaleidoscope Effect: 14°, 24°
Diameter of Frontal Lens: 110 mm

Show the full specificationHide the rest of the specification13 more groups · 59 values

05Control6

4 touch button control panel
Display: OLED display
Protocols: DMX512,RDM,Art-Net,sACN,NFC
DMX Protocol Modes: 3
Control Channels: 27/50/58
Firmware Upgrade: Upgrade via DMX link

06Pan & Tilt6

Pan Movement: Infinity
Tilt Movement: 220°
Roll: 60°; Automatic Pan/Tilt position correction
Resolution: 16 bit; Pan/Tilt lock

07Colors1

Linear CTO Color Correction: 2,500K-8,000K

08Other Effects5

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Outstanding color macro effects

Outstanding color mixing

Linear focus system

09Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 260W
Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR,waterproof RJ45 connector

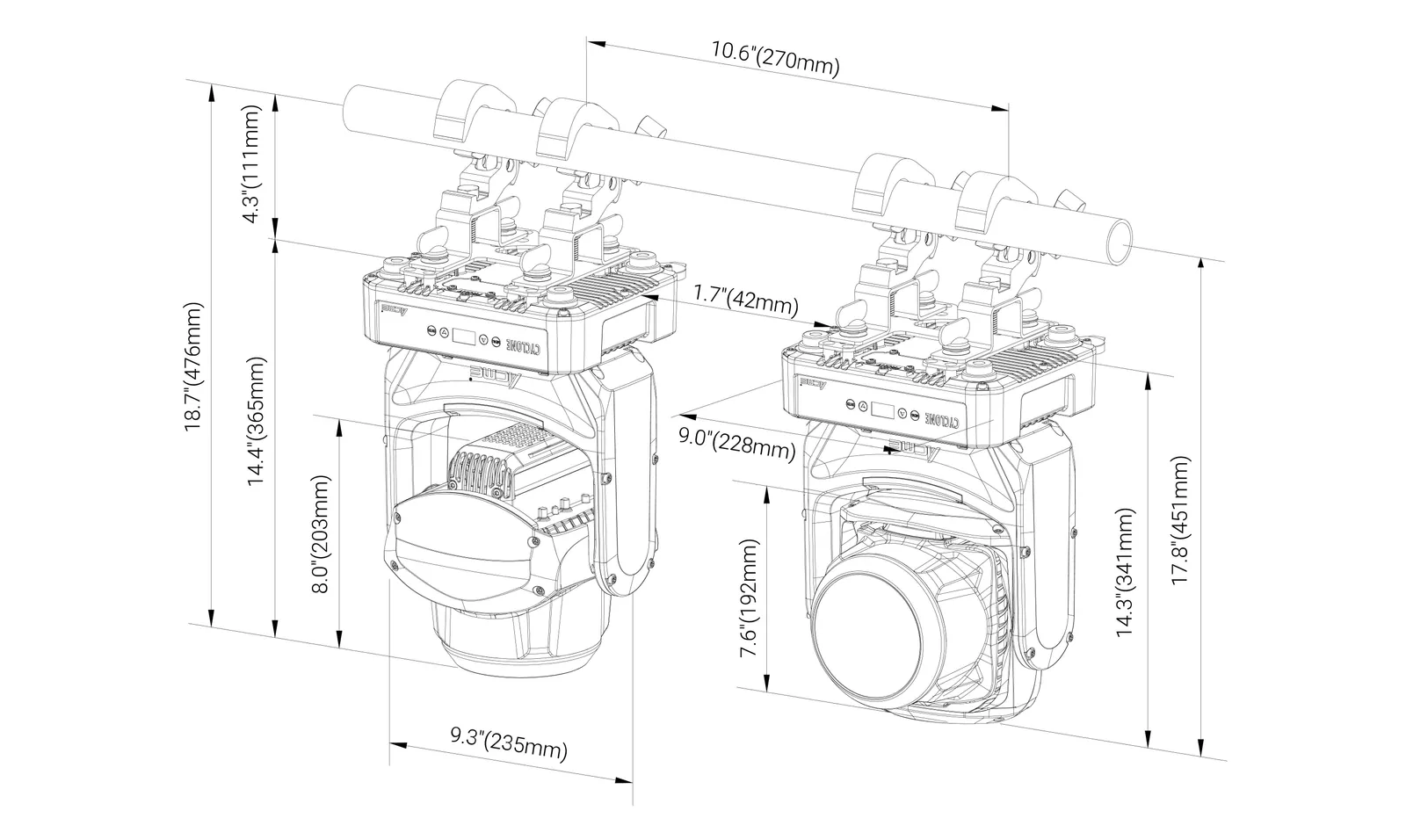

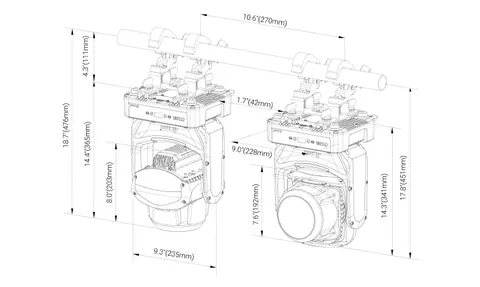

10Physical Information4

Fixture Dimensions
Width: 235 mm (9.3")
Depth: 192 mm (7.6")
Height: 363 mm (14.3")
Weight: 8.5 kg (18.7 lbs)

11Packing Information12

Flight Case Dimensions 1
Width: 1,170 mm (46.1")
Depth: 580 mm (22.8")
Height: 640 mm (25.2")
Weight
Standard: G.W.: 119 kg (262.4 lbs) (six-pack loader case)
Flight Case Dimensions 2
Width: 1,220 mm (48")
Depth: 810 mm (31.9")
Height: 635 mm (25")
Weight
North American Standard: G.W.: 159.5 kg (351.6 lbs) (eight-pack loader case)
Carton Dimensions
Width: 330 mm (13")
Depth: 315 mm (12.4")
Height: 520 mm (20.5")
Weight
G.W.: 11 kg (24.3 lbs) (one-pack loader carton)

12Work Environment4

Maximum Ambient Temperature: 45°C
Minimum Operating Temperature: -20°C
Maximum Surface Temperature: 75°C
Protection Rating: IP66

13Approvals3

CE compliant

UKCA compliant

cETLus compliant

14Acoustic Data3

Noise Level
Auto Mode: 50 dB(A) @ 1 m
Quiet Mode: 36 dB(A) @ 1 m
Super Quiet Mode: 35 dB(A) @ 1 m

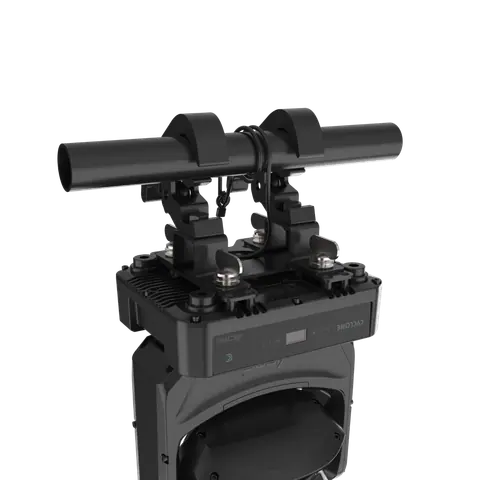

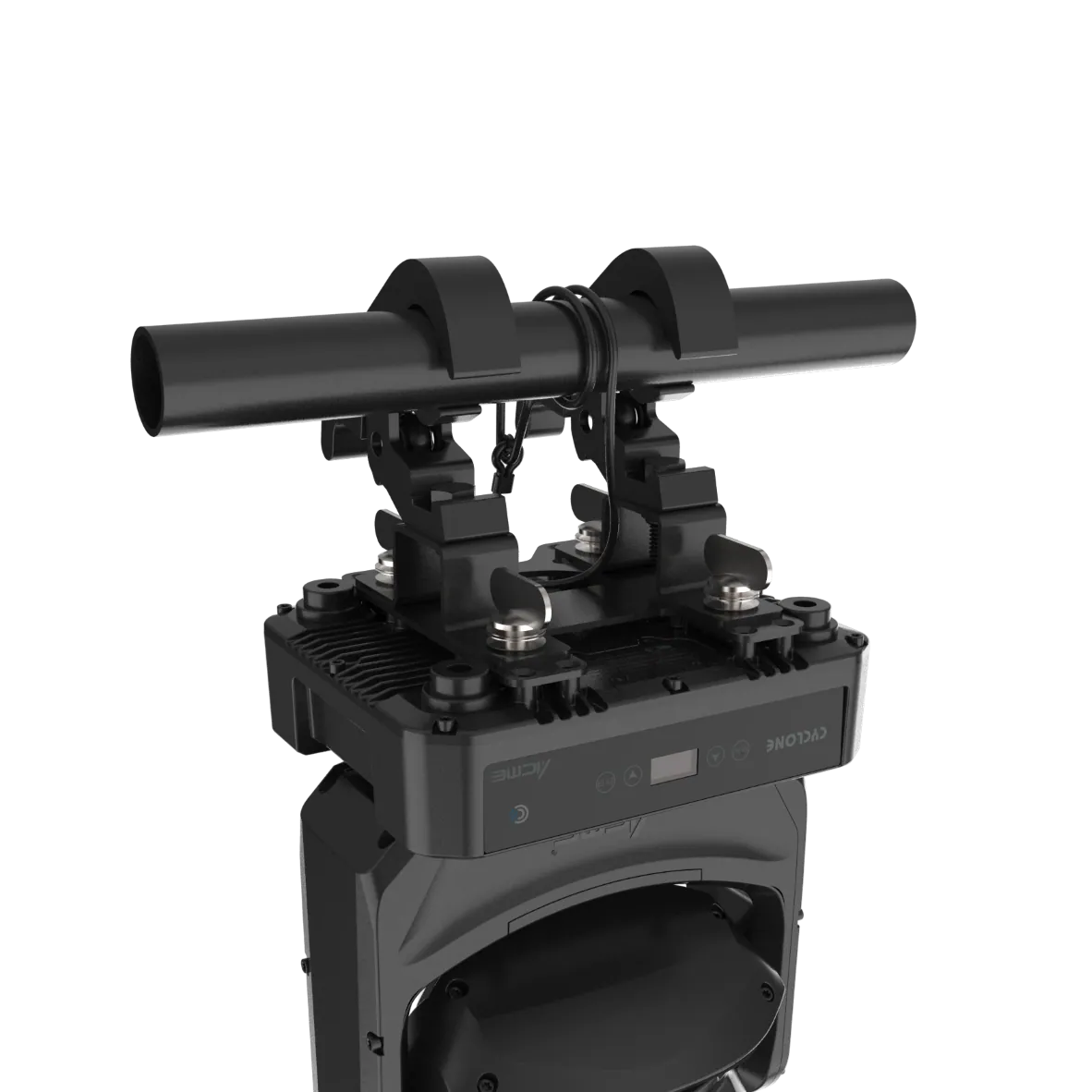

15Installation3

Universal working position

2 omega brackets

Safety cable attachment point

16Included Items3

QR code on fixture to receive digital user manual

Power cable

2 omega brackets (3002003002)

17Optional Accessories (With Order Code)5

Flight Case 1
Standard: Six-pack loader case (63584349)
Flight Case 2
North American Standard: Eight-pack loader case (63584377)
Clamp: C-150B (2060001625-C)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)

03DescriptionManufacturer's description

What it is.

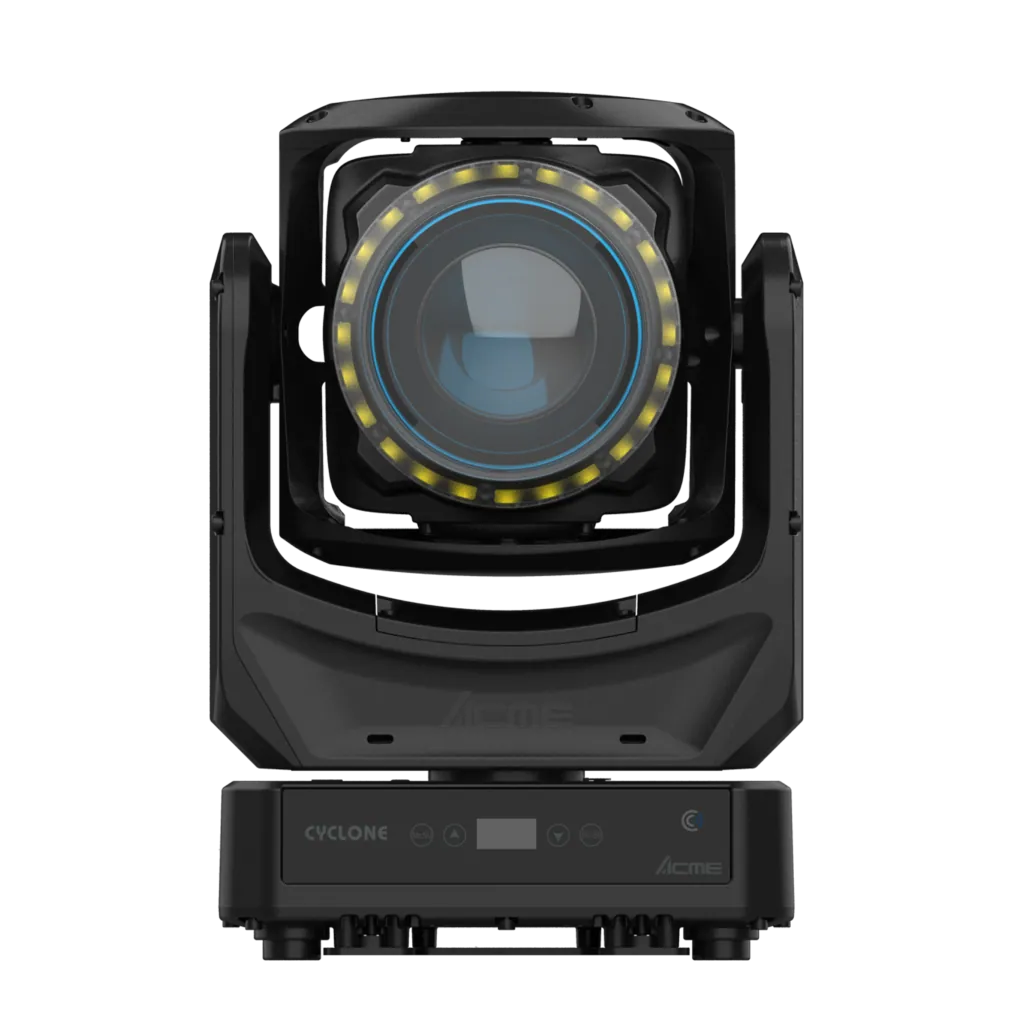

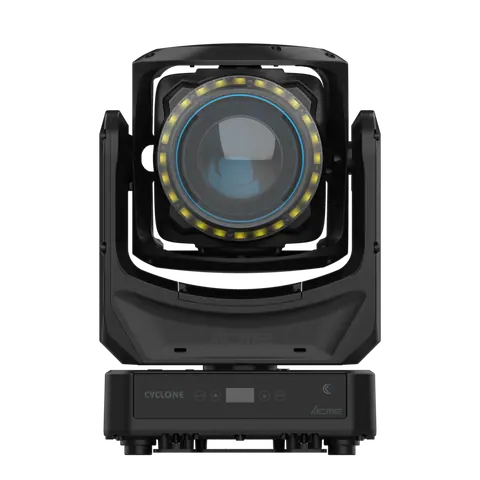

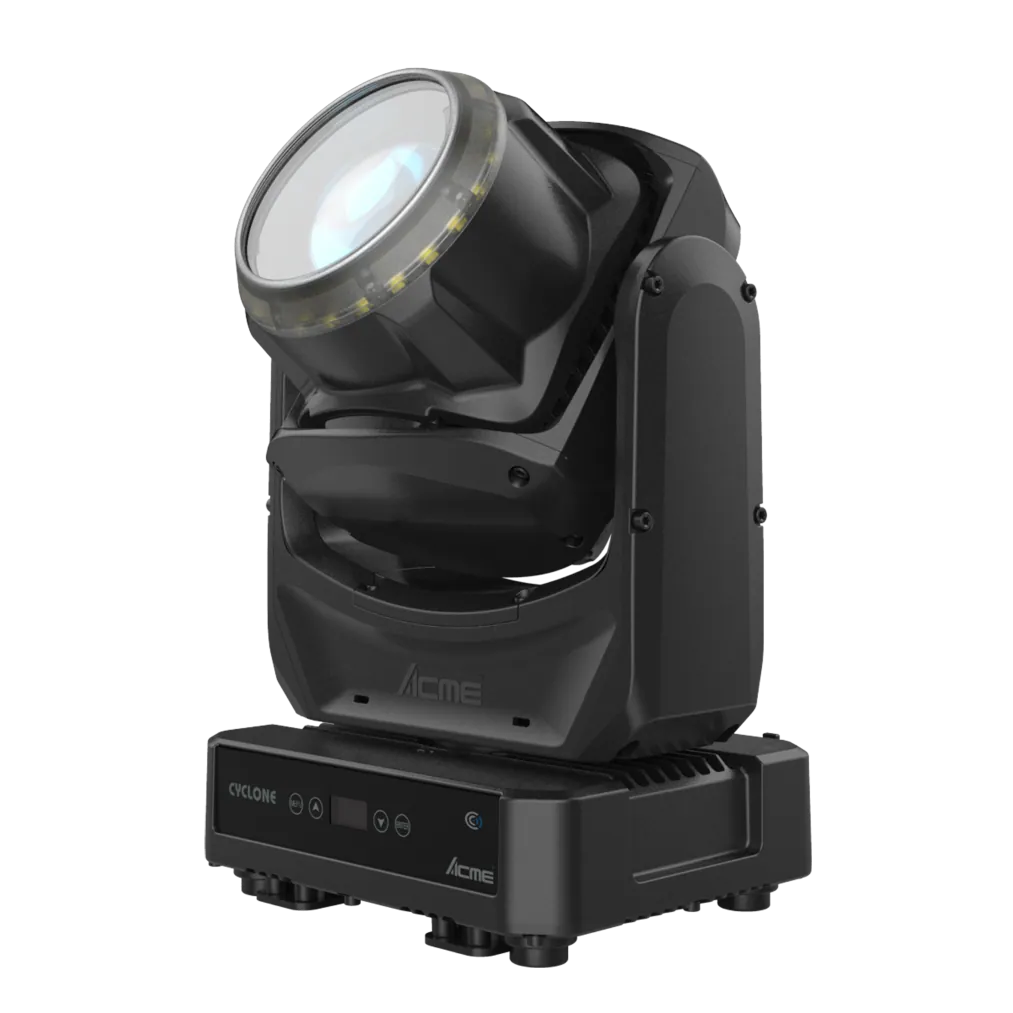

At its core is a 150W RGBL LED engine, delivering 3,600 lumens of bright output and rich, saturated colors. The kaleidoscope effect brings vivid, grid-like textures to the stage, creating layered, dreamlike visuals. Surrounding the center lens is an outer ring of 24, 0.5W RGB LEDs, offering dazzling pixel and high-impact strobe effects.

The fixture provides a fast, smooth zoom for instant transitions from sharp 4° beams to wide, even 30° washes. With three-axis movement, the CYCLONE delivers highly kinetic motion. Its infinite pan enables fast, fluid movement, unlocking even more dynamic effects and greater creative freedom.

Designed to expand your creative palette, the CYCLONE delivers exceptional color mixing and striking macro effects. A variable CTO enables seamless transitions from warm to cool tones, shaping the perfect atmosphere for every scene.

With an IP66 rating, it performs reliably anywhere — from tours and live events to outdoor festivals. Lightweight, powerful, and relentlessly dynamic, the CYCLONE delivers uncompromising performance and high-impact visual effects in a compact package.
