Sheet 05.758

ACME · Effects and lasers

FLANDINA 12 IP

ModelBAR 12 IP II

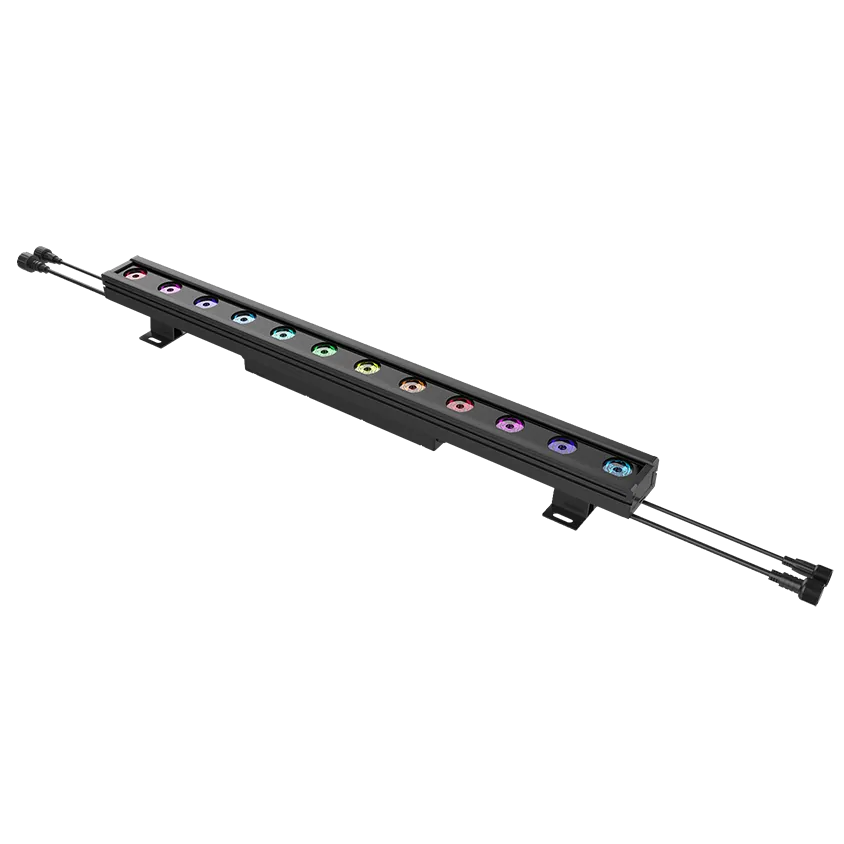

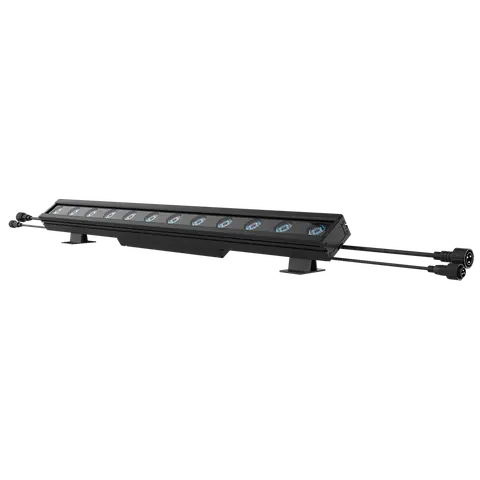

FLANDINA 12 IP is an outdoor LED bar light with pixel control, featuring 12 x 15-Watt quad-color RGBW LEDs, it is 1 meter bar with light weight design.

Light source: 12 x 15W RGBW LED (12 pcs LED pixel control)
Power consumption: 135W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66
Beam angle / zoom: 6° / 32°
DMX channels: 4/5/6/8/12/48/50
Protocols: DMX512,RDM
Net weight: 7.2 kg (15.9 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 13 groups · 43 values

What this product is, in numbers.

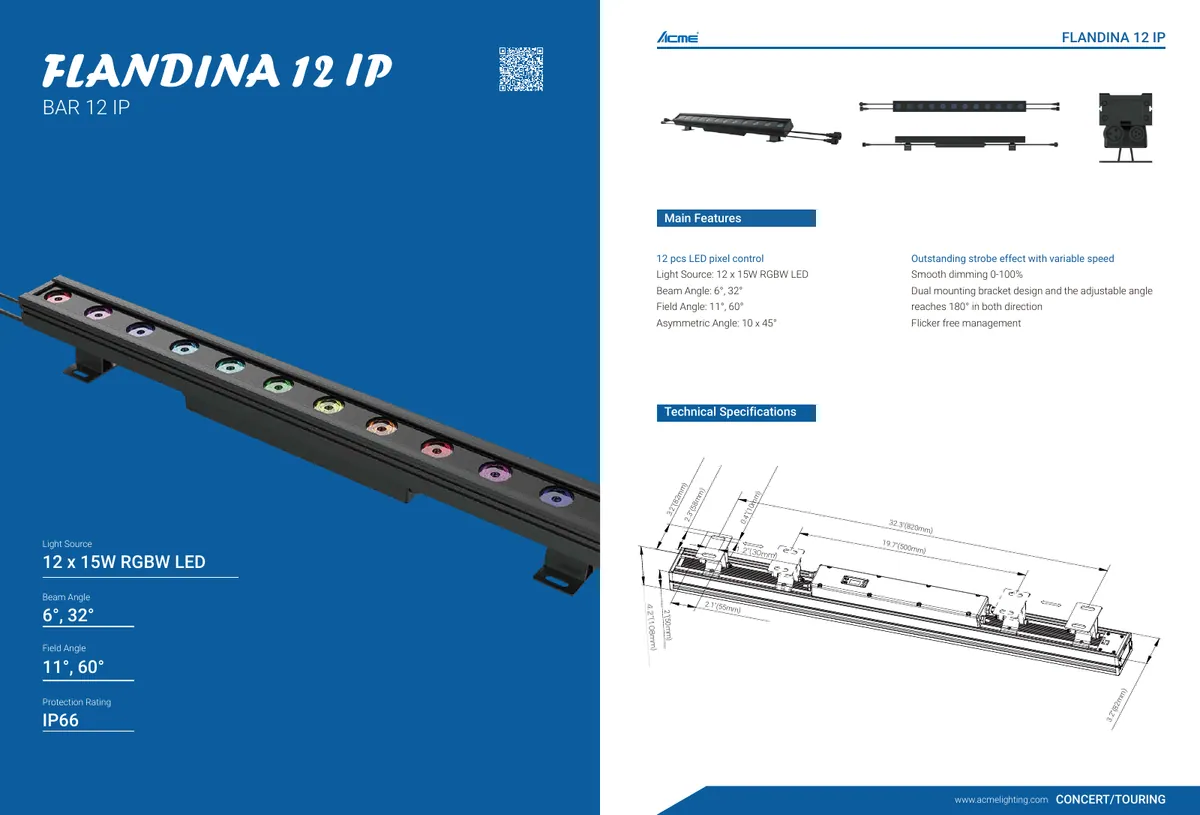

PDFDatasheetEN · 2 pages · 278 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: FLANDINA 12 IP
Model Code: BAR 12 IP II

02Light Source3

Light Source: 12 x 15W RGBW LED (12 pcs LED pixel control)
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Optical System3

Beam Angle: 6° / 32°
Field Angle: 11° / 60°
Asymmetric Angle: 10° X 45°

04Control6

4 touch button control panel
Display: OLED display
Protocols: DMX512,RDM
DMX Protocol Modes: 7
Control Channels: 4/5/6/8/12/48/50
Firmware Upgrade: Upgrade via DMX link

05Other Effects4

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Flicker-free management

Dual mounting brackets design

06Electrical and Connectors5

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 135W
Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR; Power supply with electronic auto-ranging

Show the full specificationHide the rest of the specification7 more groups · 20 values

07Physical Information4

Fixture Dimensions
Width: 1,000 mm (39.4")
Depth: 108 mm (4.3")
Height: 82 mm (3.2")
Weight: 7.2 kg (15.9 lbs)

08Packing Information4

Carton Dimensions
Width: 1,070 mm (42.1")
Depth: 190 mm (7.5")
Height: 150 mm (5.9")
Weight
G.W.: 7.5 kg (17 lbs) (One-pack loader carton)

09Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 65°C
Protection Rating: IP66

10Approvals1

CE compliant

11Installation2

Horizontal or vertical mounting

Universal working position

12Included Items2

Digital user manual

Power cable

13Optional Accessories (With Order Code)3

Safety Cable: SW-02 (2060000200-B)
Signal Cable: 3-pin or 5-pin signal cable

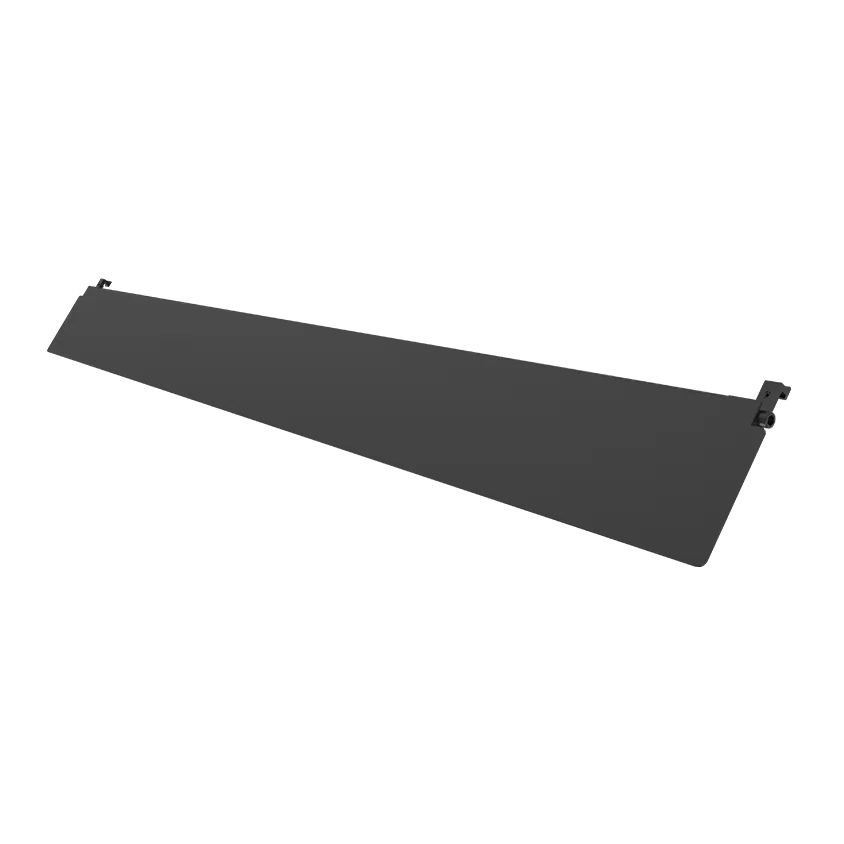

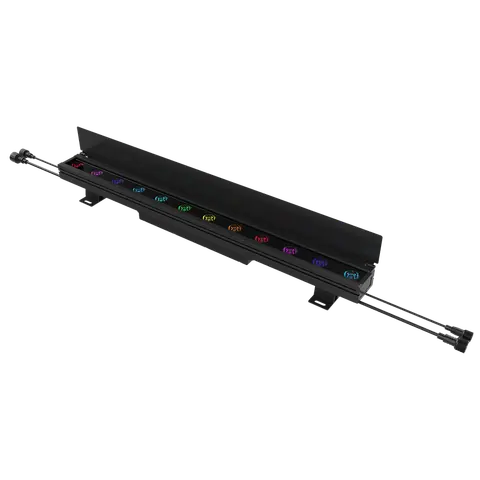

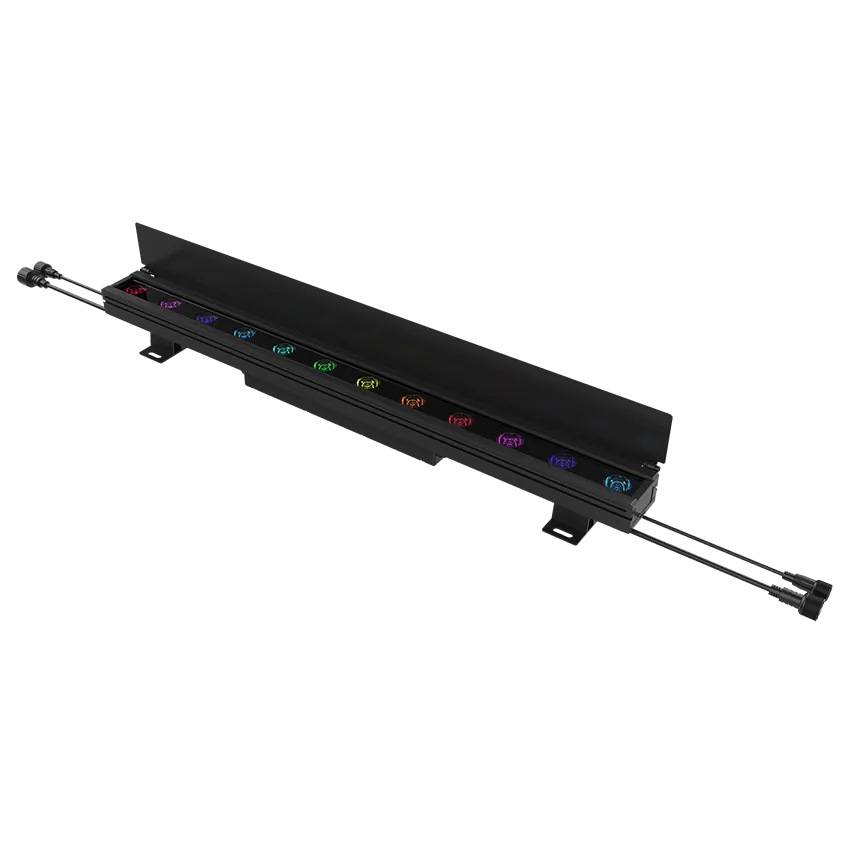

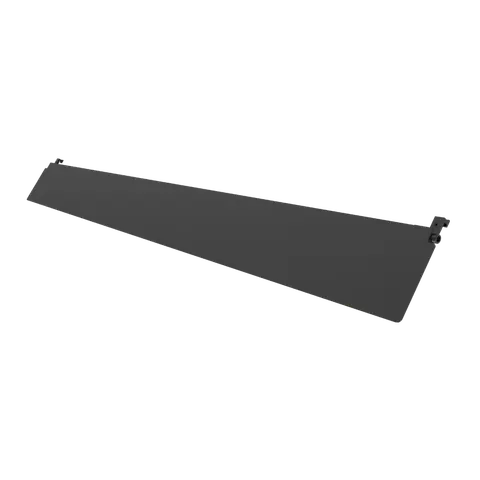

Barndoor: Barn door: 63582538

02DescriptionManufacturer's description

What it is.

The equidistant LED design ensures uniform output and 2 kinds of LED angles could meet different applications. A narrow beam angle at 6°, delivers sharp beam and strong light output. When choose the lens at 32°, FLANDINA 12 IP is able to cover a larger area with superior color mixing and spread wash.

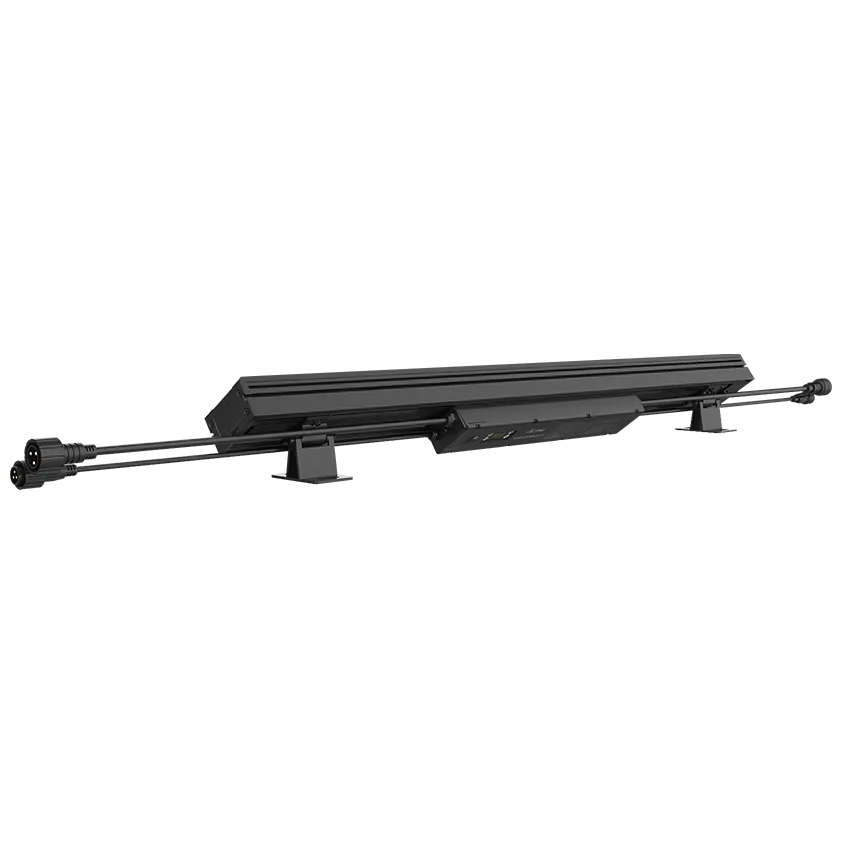

FLANDINA 12 IP makes installation faster and easier, thanks to the dual mounting bracket design, with adjustable angle up to 180° in both directions.

IP66 Protection rate, the exterior bar fixture, is suitable for indoor and outdoor applications.
