BLINDER LINE 5 IP

ModelBLB 5 IP

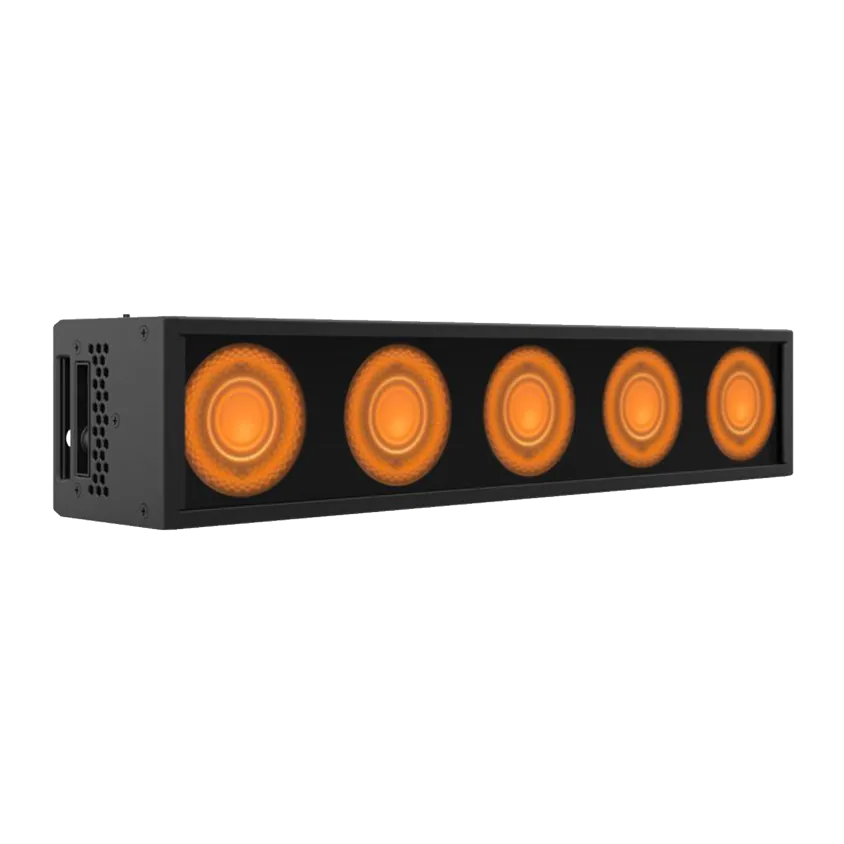

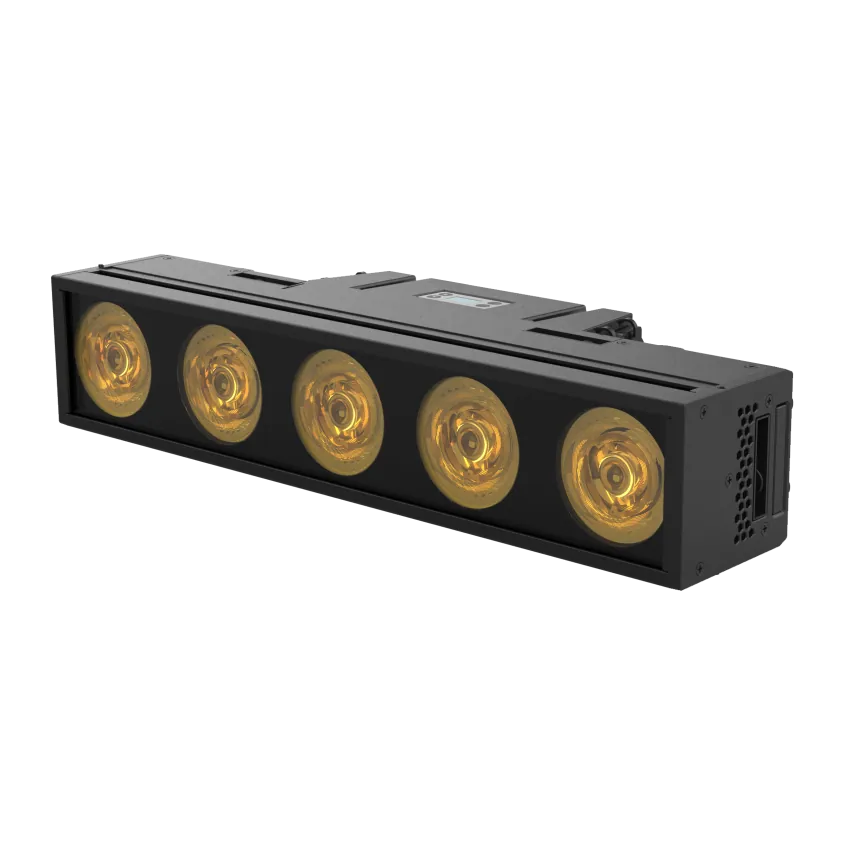

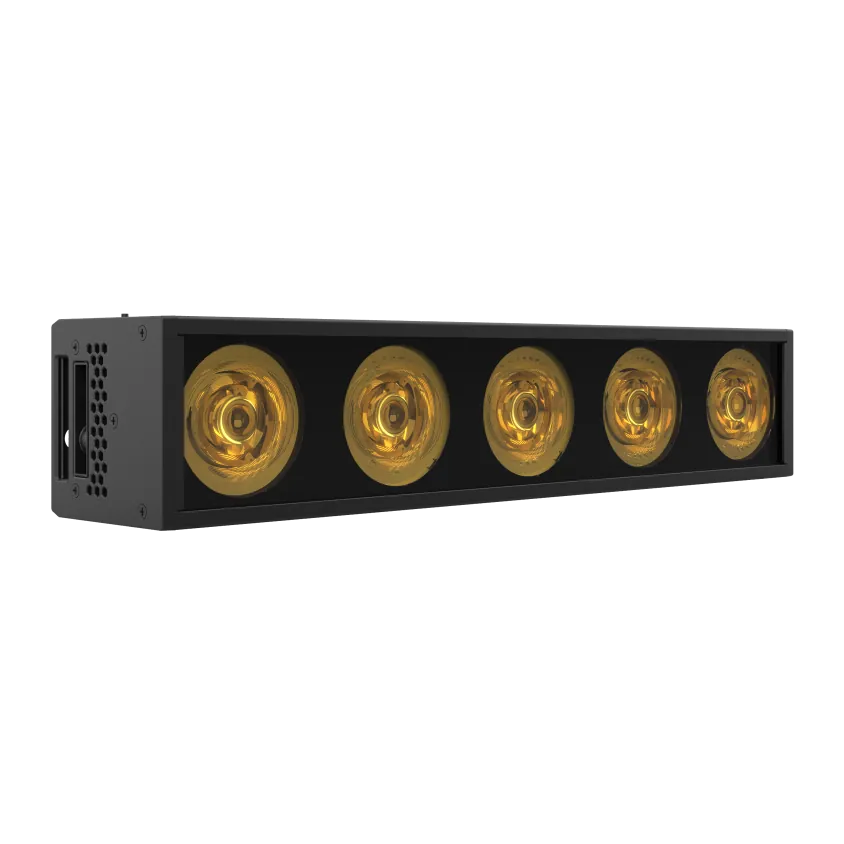

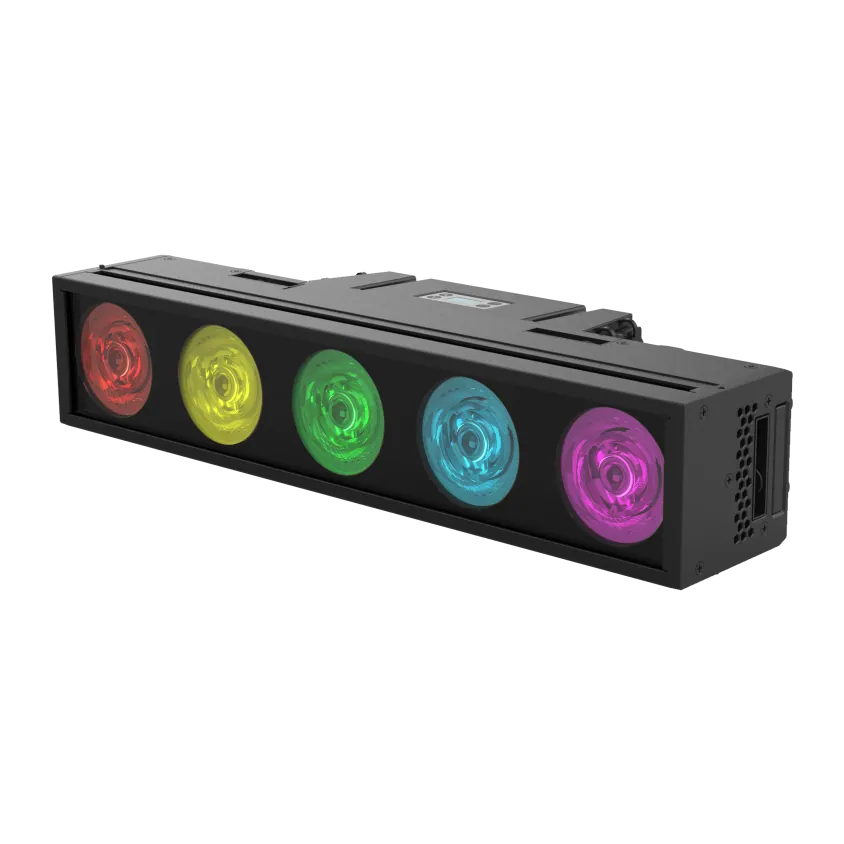

The BLINDER LINE 5 IP, the complementary shorter version of the BLINDER LINE 10 IP, is a half-meter length blinder fixture with the same features and functionalities as the longer version.

Light source: 5 x150W RGBAW LEDs
Power consumption: 350W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66
DMX channels: 14/30
Protocols: DMX512,RDM,Art-Net,sACN
Net weight: 7.7 kg (17.0 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 14 groups · 69 values

What this product is, in numbers.

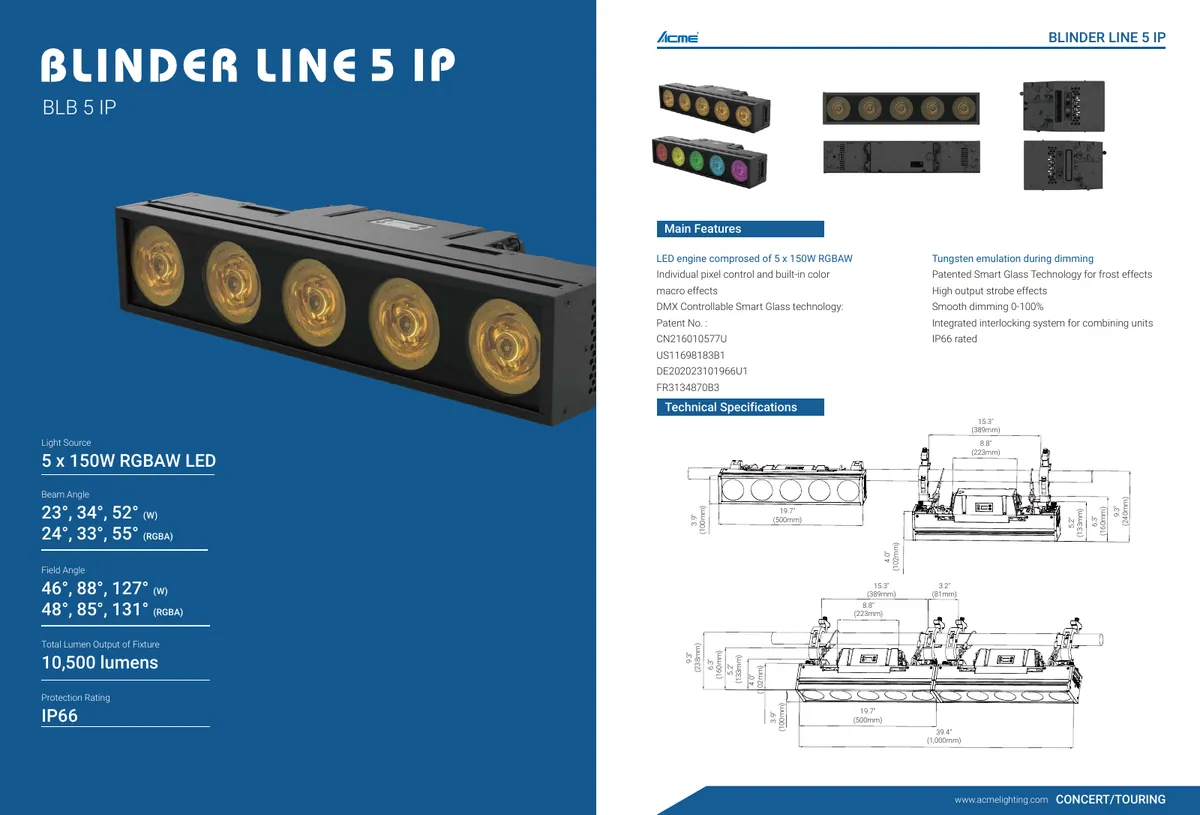

PDFDatasheetEN · 2 pages · 613 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: BLINDER LINE 5 IP
Model Code: BLB 5 IP

02Light Source3

Light Source: 5 x150W RGBAW LEDs
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data1

Total Lumen Output of Fixture: 10,500 lumens

04Optical System8

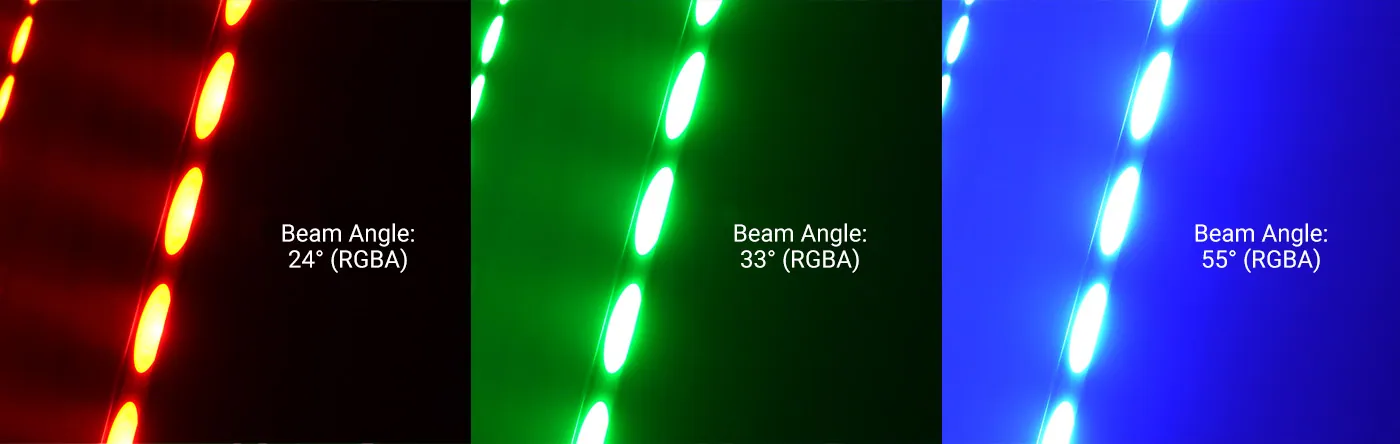

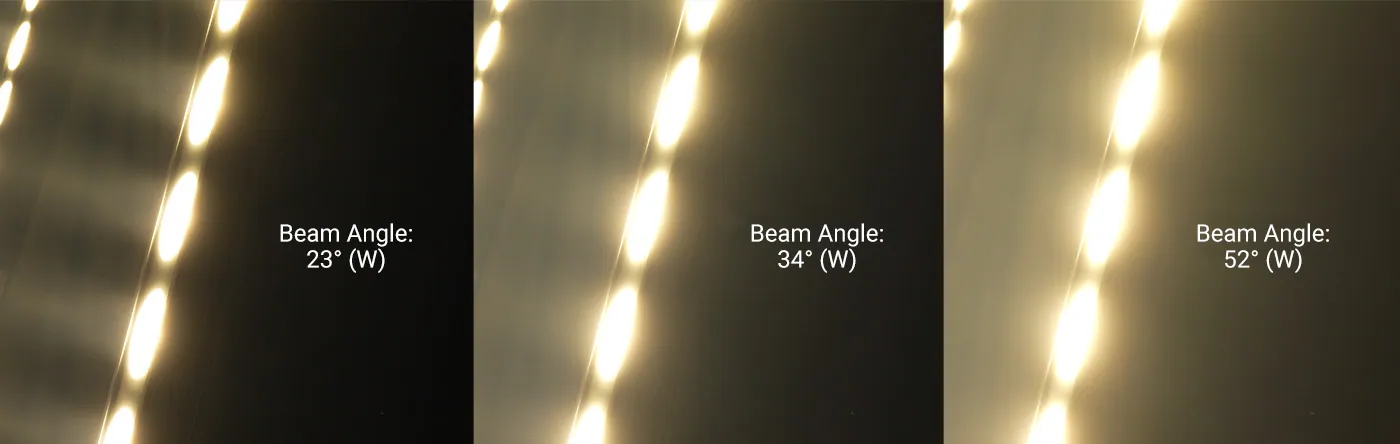

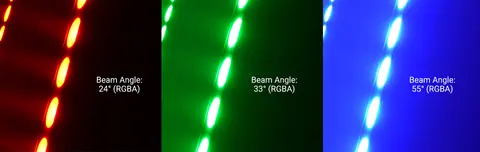

Beam Angle
W: 23°, 34°, 52°
RGBA: 24°, 33°, 55°

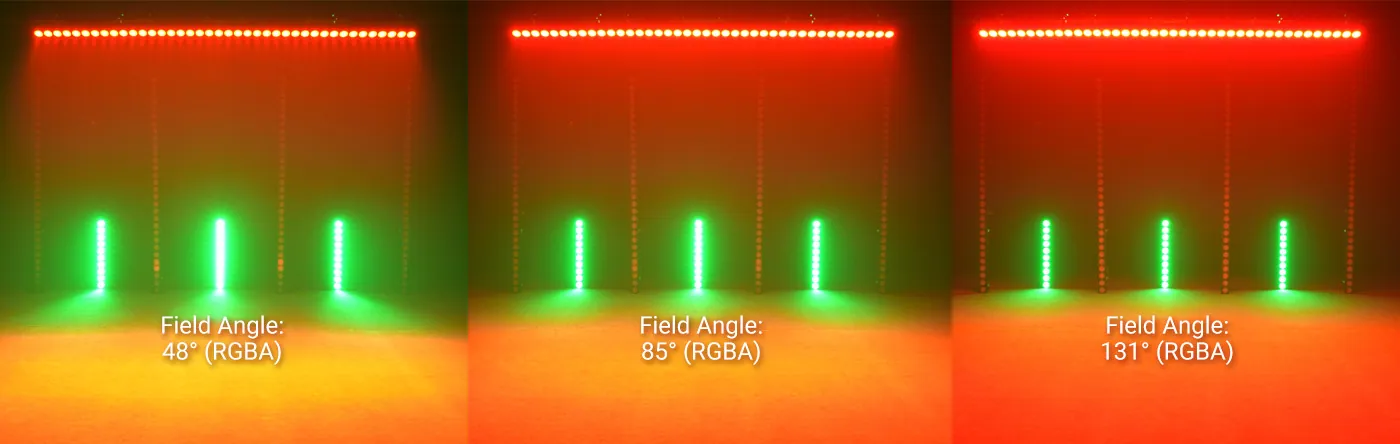

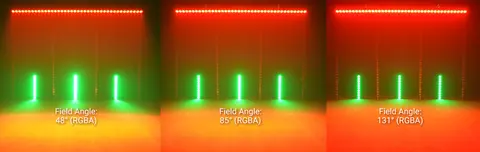

Field Angle
W: 46°, 88°, 127°
RGBA: 48°, 85°, 131°
DMX Controllable Smart Glass technology
Patent No.: CN216010577U; US11698183B1; DE202023101966U1; FR3134870B3

05Control6

4 touch button control panel
Display: OLED display
Protocols: DMX512,RDM,Art-Net,sACN
DMX Protocol Modes: 2
Control Channels: 14/30
Firmware Upgrade: Upgrade via DMX link

06Other Effects4

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Tungsten emulation during dimming

Individual pixel control and built-in color macro effects

Show the full specificationHide the rest of the specification8 more groups · 45 values

07Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 350W

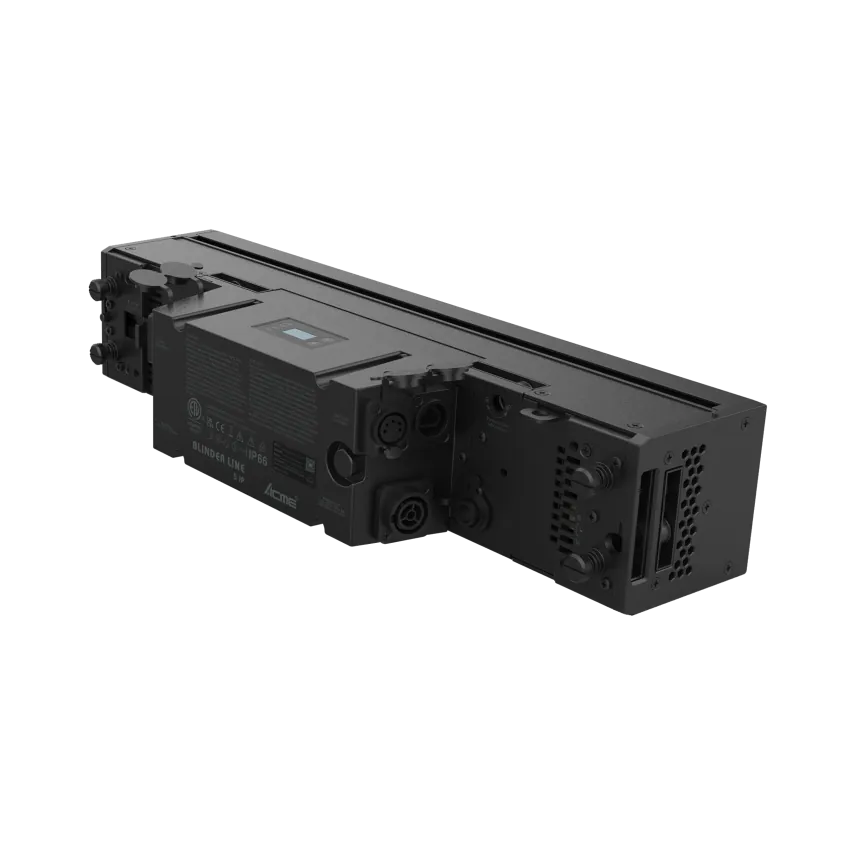

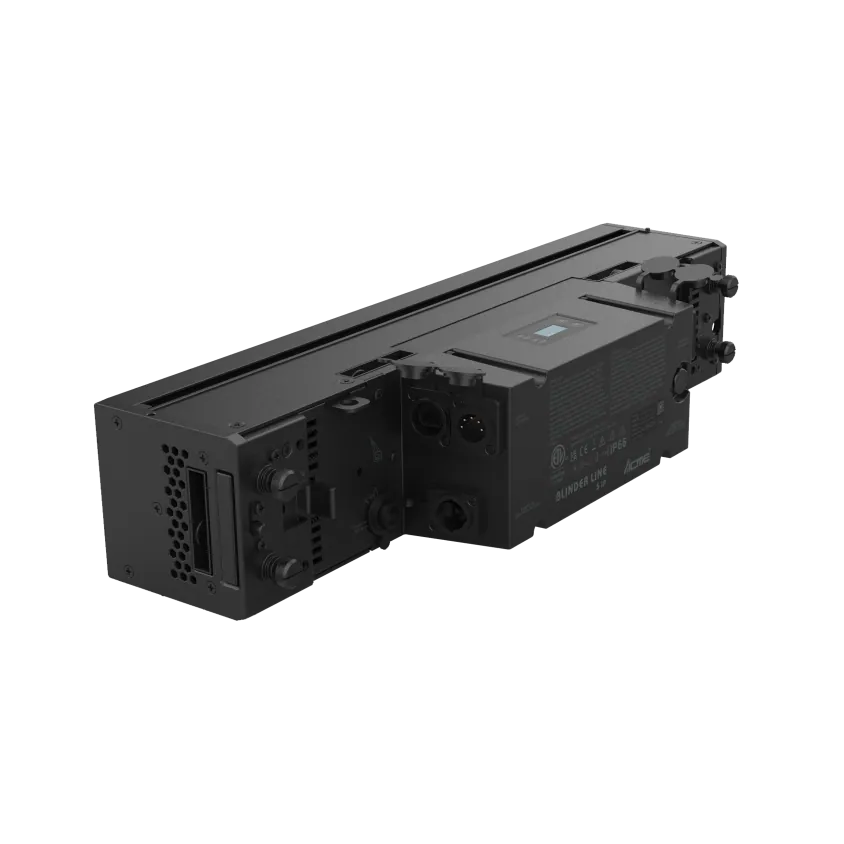

Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR,RJ45 connector

08Physical Information4

Fixture Dimensions
Width: 500 mm (19.7")
Depth: 103.3 mm (4.1")
Height: 160.3 mm (6.3")
Weight: 7.7 kg (17.0 lbs)

09Packing Information12

Flight Case Dimensions 1
Width: 880 mm (34.6")
Depth: 580 mm (22.8")
Height: 890 mm (35.0")
Weight
Standard: G.W.: 115 kg (253.5 lbs) (eight-pack loader case)
Flight Case Dimensions 2
Width: 1,220 mm (48.0")
Depth: 610 mm (24.0")
Height: 850 mm (33.5")
Weight
North American Standard: G.W.: 179 kg (394.6 lbs) (twelve-pack loader case)
Carton Dimensions
Width: 630 mm (24.8")
Depth: 245 mm (9.6")
Height: 210 mm (8.3")
Weight
G.W.: 9.0 kg (19.8 lbs) (one-pack loader carton)

10Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 70°C
Protection Rating: IP66

11Approvals3

CE compliant

UKCA compliant

cETLus compliant

12Installation7

Horizontal or vertical mounting; Universal working position

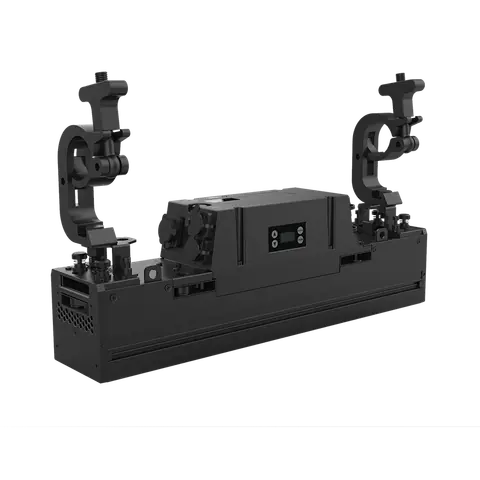

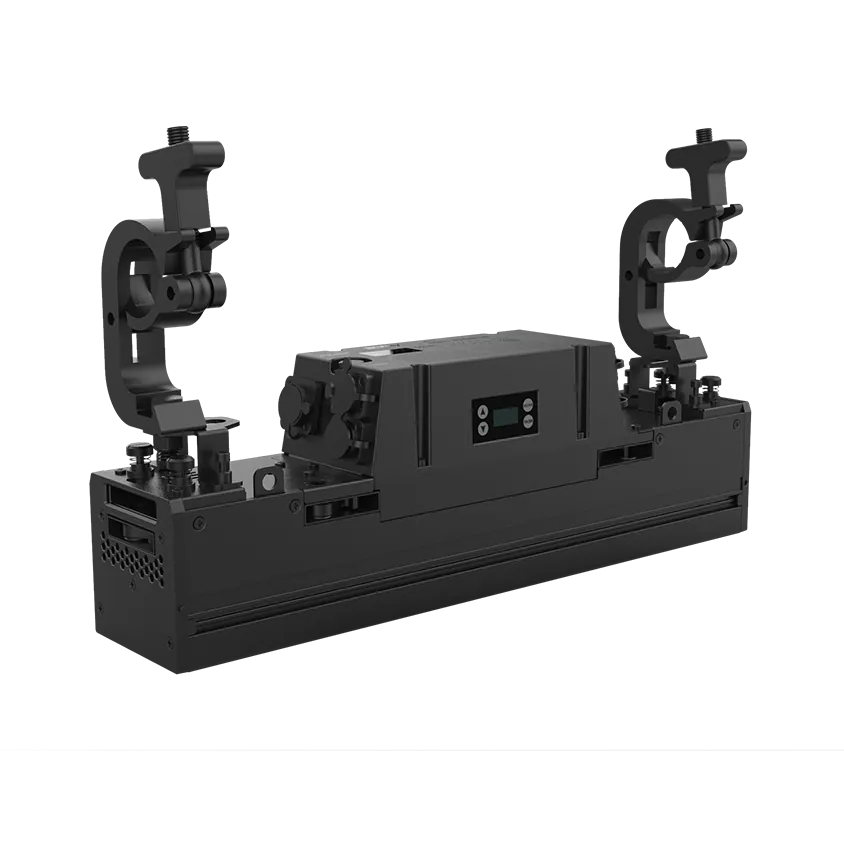

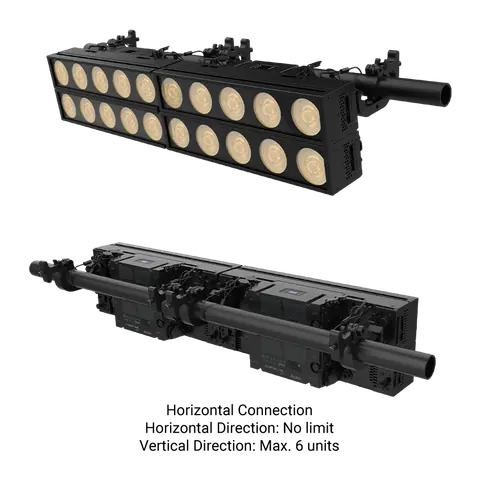

Horizontal: Utilizing two brackets (supplied) and two clamps (by others), there is no limit to the number of fixtures in the horizontal direction, and a maximum of 6 fixtures may be connected in the vertical direction

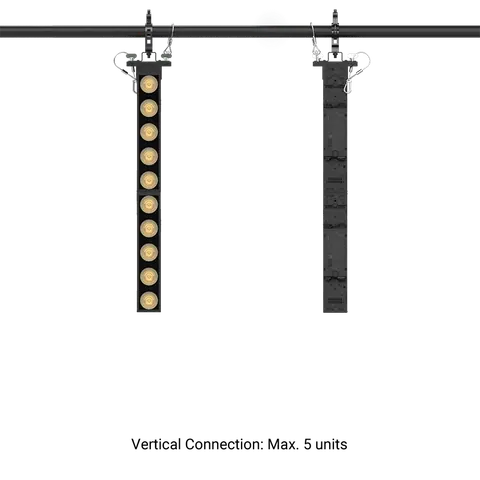

Vertical: Using one hanging bracket (sold separately) with one clamp (by others), a maximum of 5 fixtures may be connected

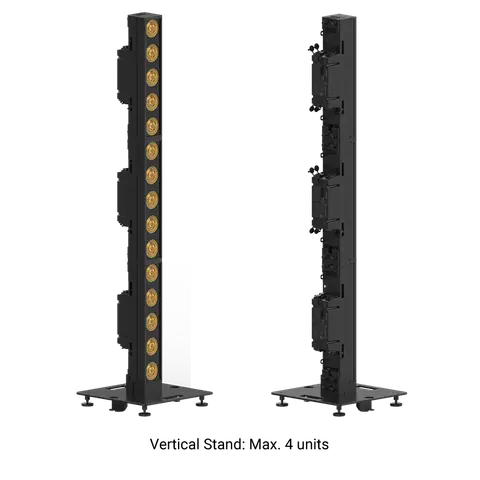

Vertical Stand: Mounted to one base stand (sold separately). When installed at a tilt, a maximum of 2 fixtures may be connected. When stand vertically, a maximum of 4 fixtures may be connected

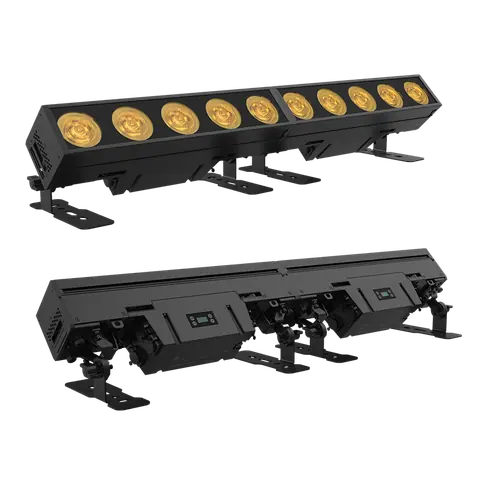

Floor: Two floor stands (sold separately) may be attached to base of unit; Safety cable attachment point

13Included Items3

Digital user manual

Power cable

2 brackets

14Optional Accessories (With Order Code)8

Flight Case 1
Standard: Eight-pack loader case (63583465)
Flight Case 2
North American Standard: Twelve-pack loader case (63583456)
Clamp: C-250B (2060001632-B)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)
Hanging Bracket: 63582969
Base Stand: 63582785
Customized Floor Stand w/o Omega Bracket: 63583897 (in pair)

02DescriptionManufacturer's description

What it is.

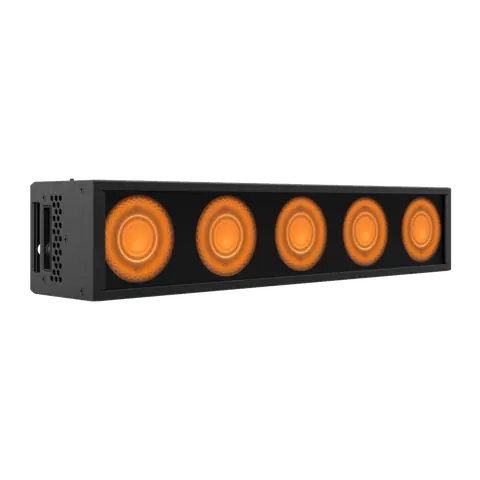

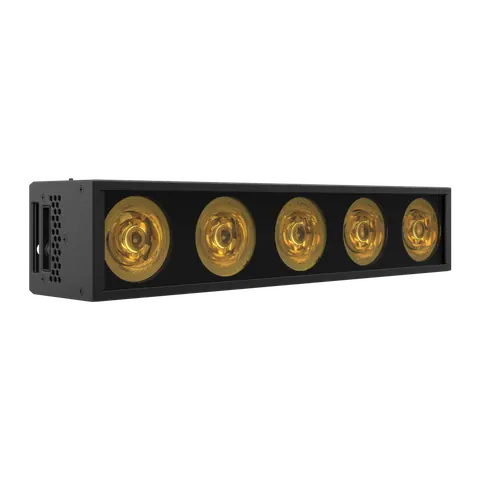

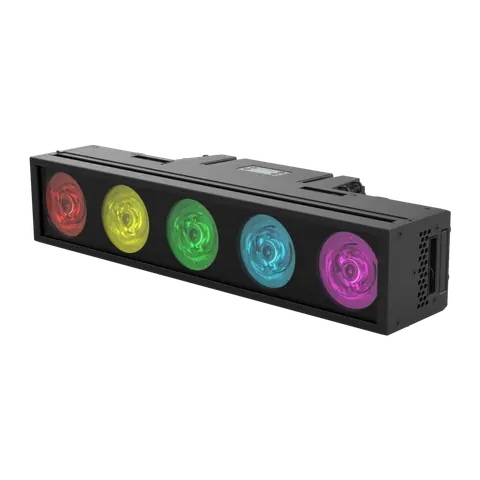

The BLINDER LINE 5 IP, the complementary shorter version of the BLINDER LINE 10 IP, is a half-meter length blinder fixture with the same features and functionalities as the longer version. This luminaire is powered with five, 150-Watt RGBAW LEDs that produce vivid colors and captivating visual effects.

The BLINDER LINE 5 IP features ACME's patented Smart Glass technology for soft light effects and has extremely bright strobe effects, four different dimming curves, and individual pixel control for unlimited looks and effects. Multiple units can be connected end-to-end using their integrated interlocking connectors.

The BLINDER LINE 5 IP has an IP66 protection rating, making this fixture perfect for any application, indoors or outdoors, in any weather conditions.
