Sheet 05.754

ACME · Effects and lasers

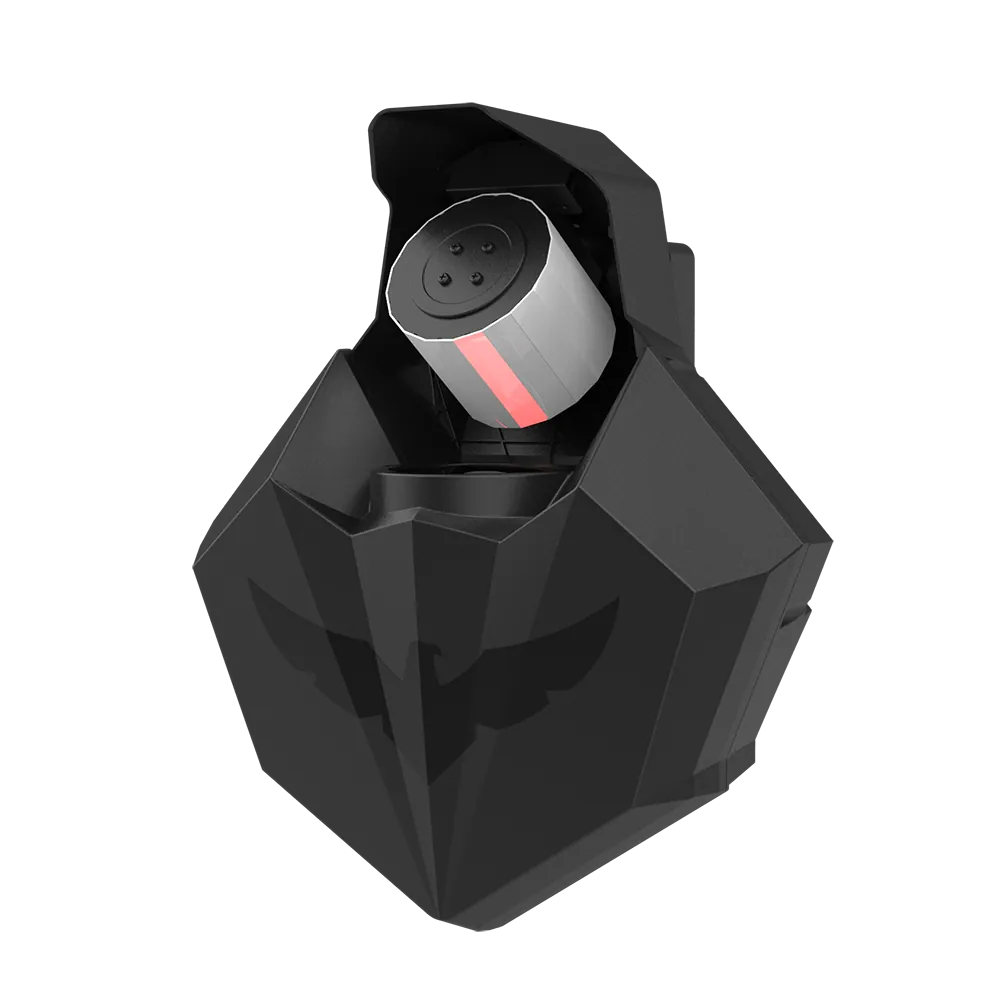

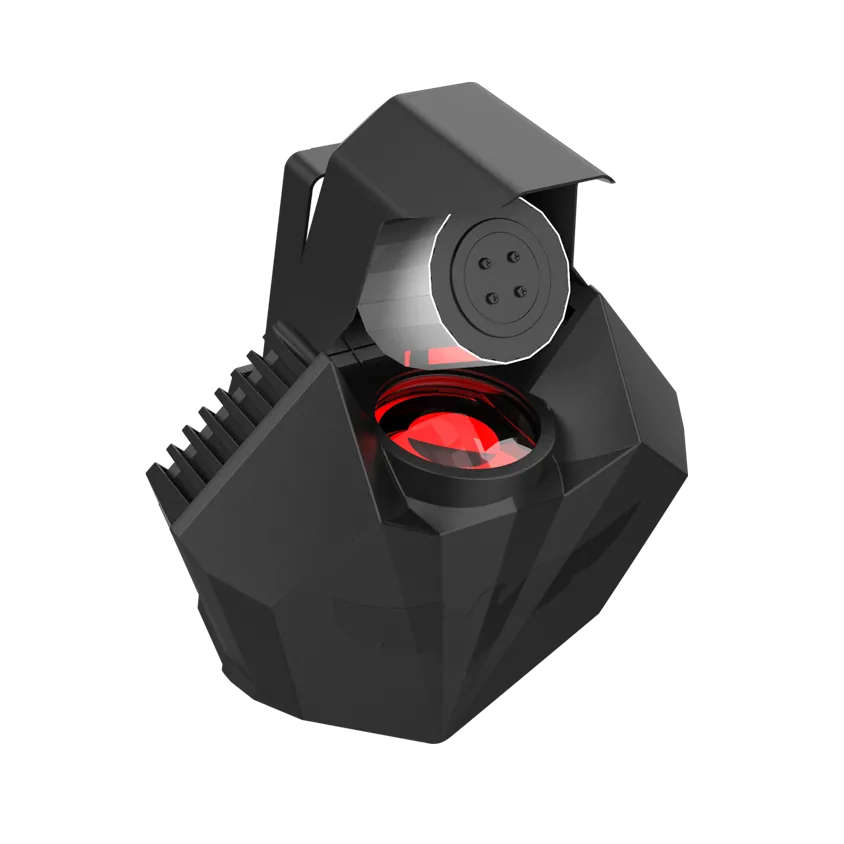

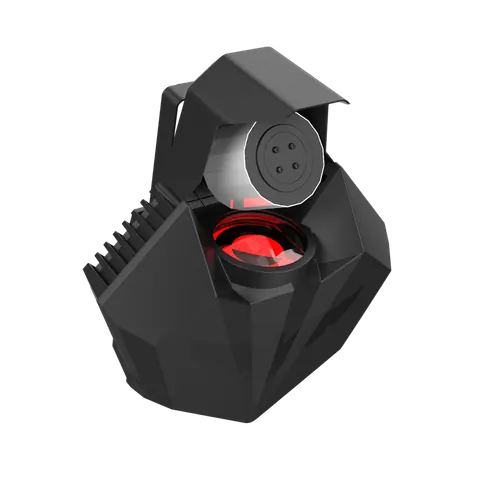

ALCHEMIST

ModelWZ 200

Building on the foundation of the MAGICIAN, the ACME ALCHEMIST elevates performance with more power and greater precision—all packed into the same bold, faceted design.

Light source: 1 x 130W LED
Power consumption: 135W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP20
Beam angle / zoom: 2.5°
DMX channels: 13
Protocols: DMX512,RDM
Colour temperature: 11,000K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 16 groups · 51 values

What this product is, in numbers.

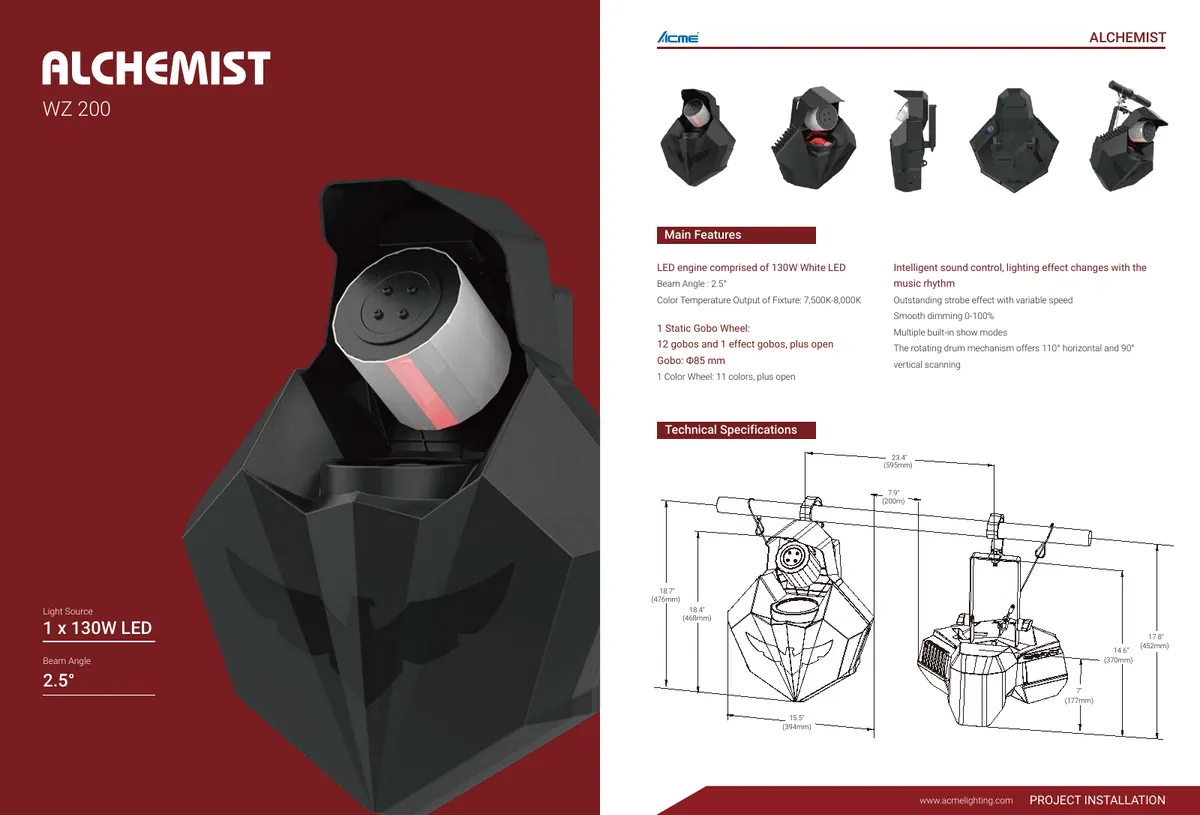

PDFDatasheetEN · 2 pages · 426 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: ALCHEMIST
Model Code: WZ 200

02Light Source4

Light Source: 1 x 130W LED
Color Temperature Output of Fixture: 11,000K
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Optical System1

Beam Angle: 2.5°

04Control7

4 touch button control panel
Display: LCD display
Operational Modes: DMX Control,Show Mode,Sound Active
Protocols: DMX512,RDM
DMX Protocol Modes: 1
Control Channels: 13
Firmware Upgrade: Upgrade via DMX link

05Pan & Tilt2

Pan Movement: 180°
Tilt Movement: Infinite

06Colors1

1 Color Wheel: 11 colors, plus open

Show the full specificationHide the rest of the specification10 more groups · 34 values

07Static Gobos2

1 Static Gobo Wheel: 12 gobos and 1 effect gobos, plus open
Gobo: Ø85 mm

08Other Effects5

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Intelligent sound control, lighting effect changes with the music rhythm

Multiple built-in show modes

The rotating drum mechanism offers 110° horizontal and 90° vertical scanning

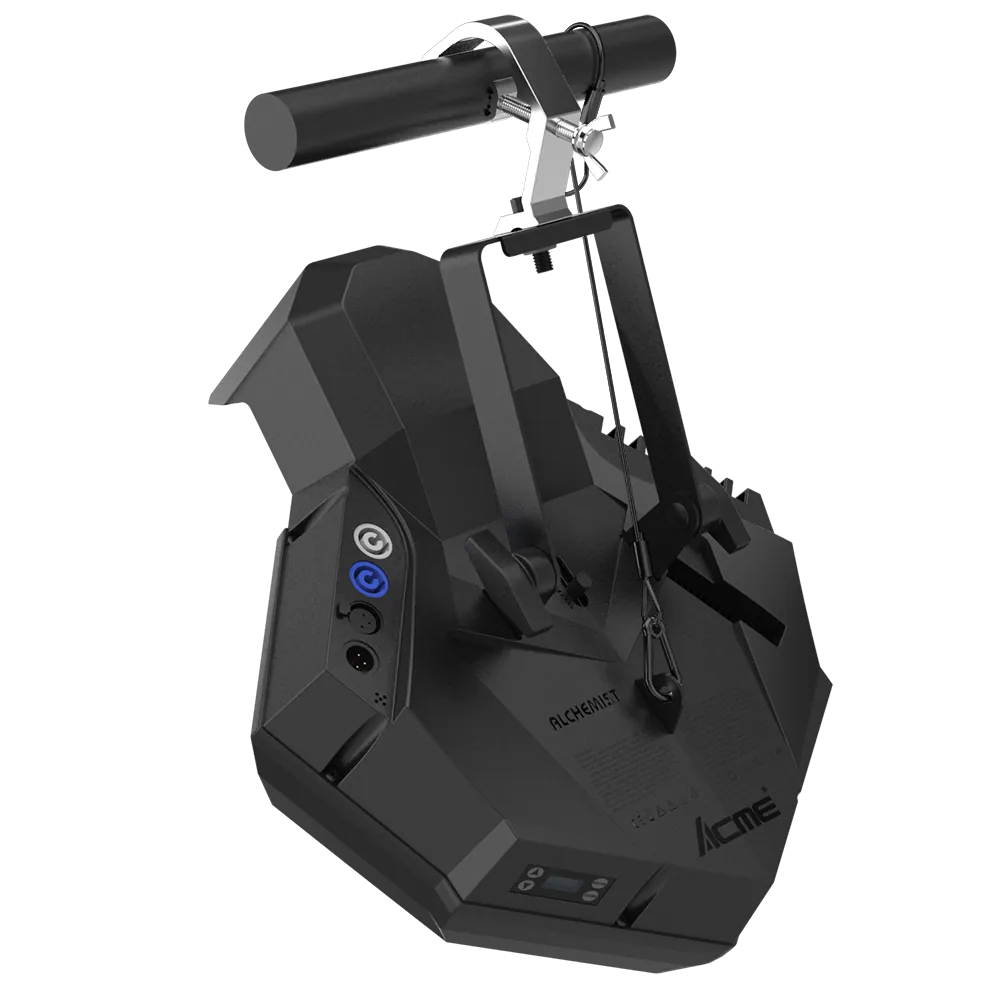

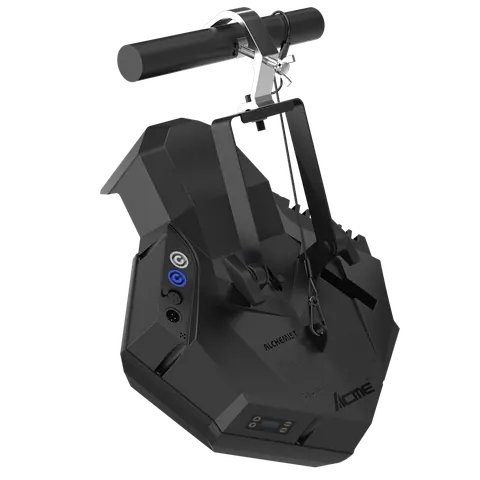

09Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 135W
Power In/Out: Power connector in/out
Data In/Out: 3-pin or 5-pin XLR

10Physical Information4

Fixture Dimensions
Width: 394 mm (15.5")
Depth: 218 mm (8.6")
Height: 468 mm (18.4")
Weight: 6.8 kg (15 lbs)

11Packing Information4

Carton Dimensions
Width: 395 mm (15.6")
Depth: 365 mm (14.4")
Height: 255 mm (10")
Weight
G.W.: 9.5 kg (20.9 lbs) (one-pack loader carton)

12Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: 0°C
Maximum Surface Temperature: 55°C
Protection Rating: IP20

13Approvals2

CE compliant

UKCA compliant

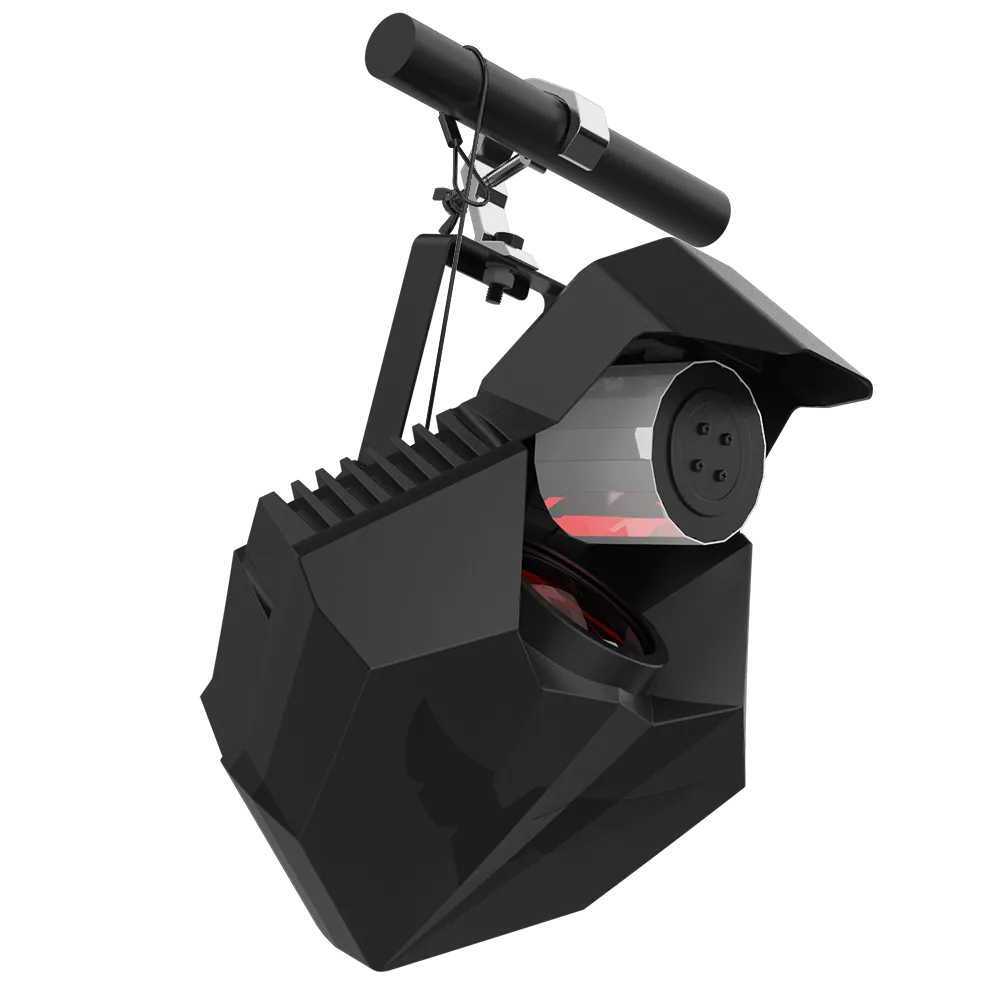

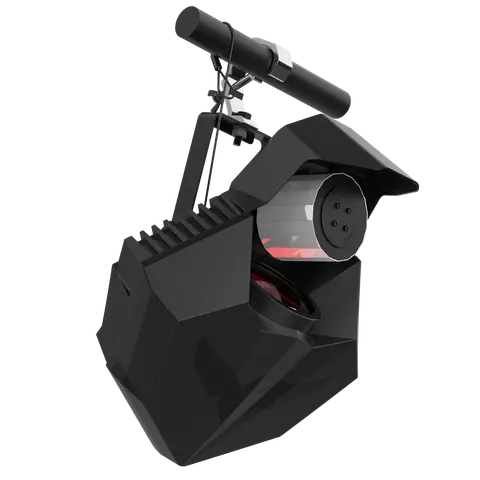

14Installation4

Horizontal or vertical mounting

Universal working position

1 clamp for 50 mm truss

Safety cable attachment point

15Included Items2

Digital user manual

Power cable

16Optional Accessories (With Order Code)3

Clamp: C-100A (2060001635)
Safety Cable: SW-02 (2060000200-B)
Signal Cable: 3-pin or 5-pin signal cable

02DescriptionManufacturer's description

What it is.

Equipped with a robust 130W LED module and a narrow 2.5° beam angle, the ALCHEMIST delivers brighter effects with enhanced visual precision. Featuring a color wheel with 11 colors, a static gobo wheel with 12 static gobos and 1 effect gobos, the fixture unlocks even more creative possibilities.

At its core is an advanced rotating drum mechanism, enabling smooth 110° horizontal and 90° vertical scanning for wide, immersive coverage. Compact, lightweight, and easy to install, the ALCHEMIST is perfect for party rooms, bars, clubs, and more.
