Sheet 05.663

ACME · Wash

COOLIE 186

ModelBW 186

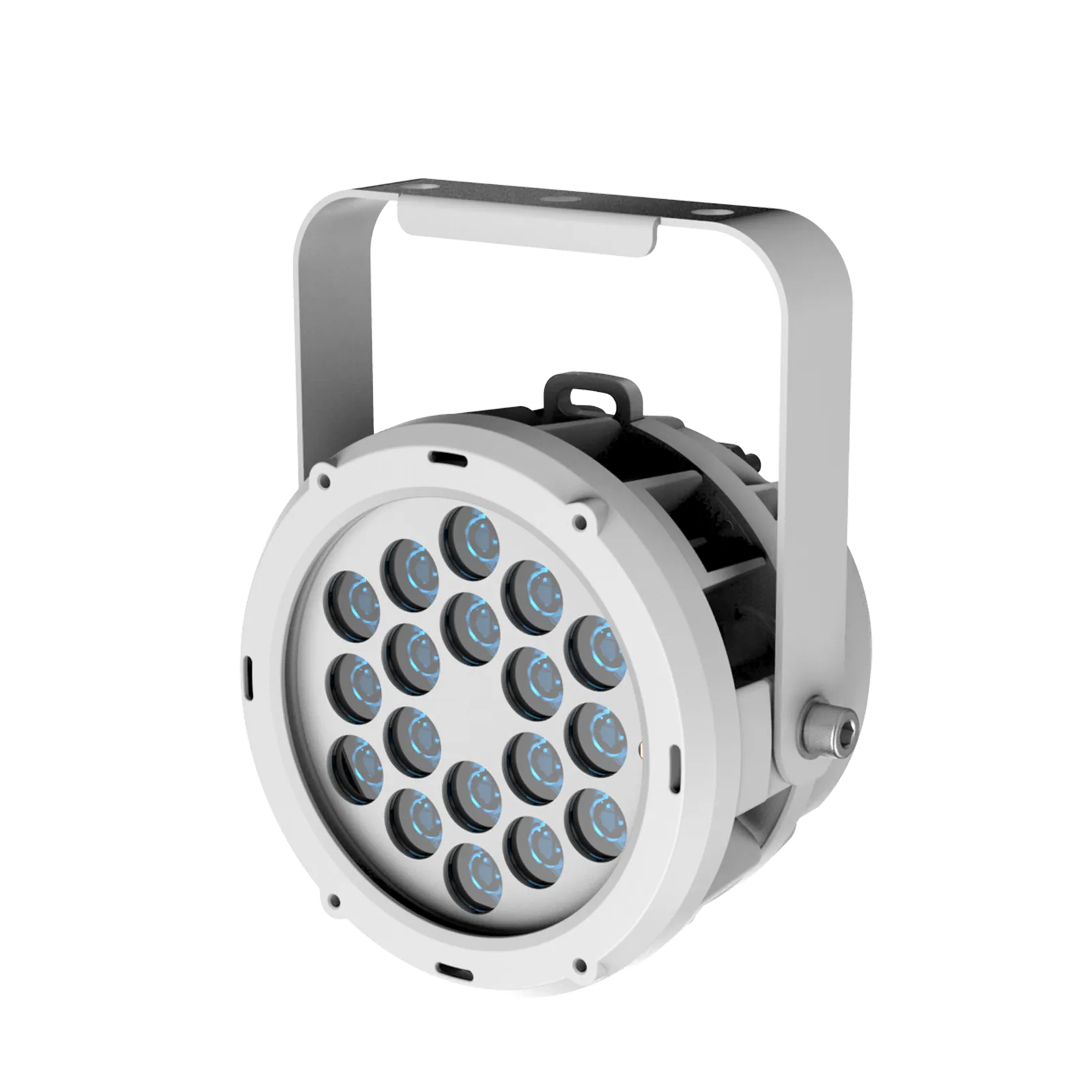

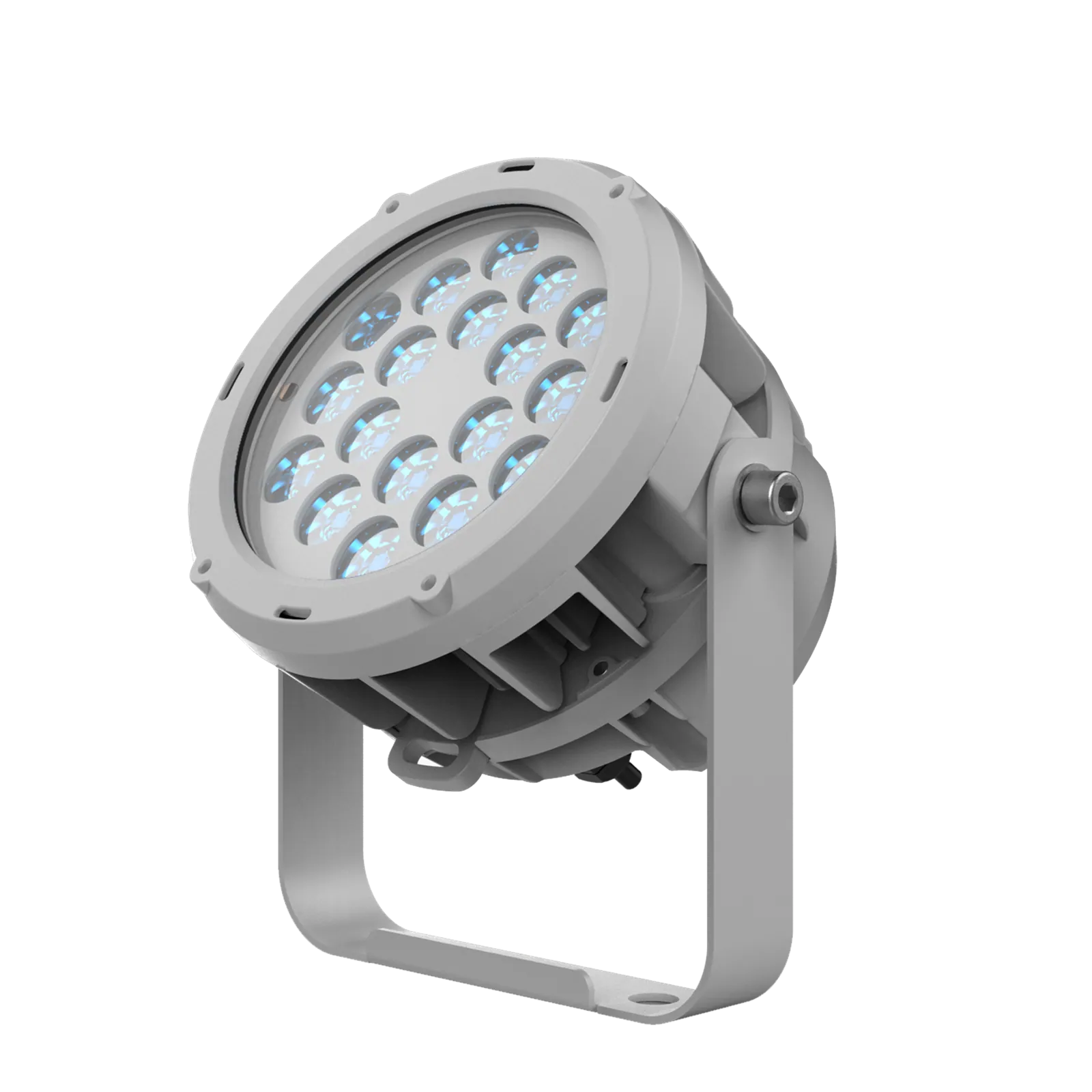

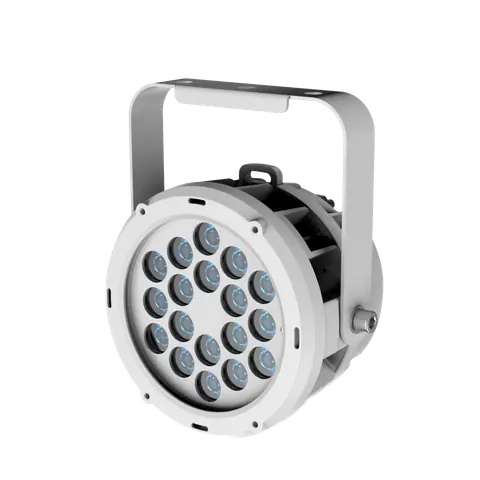

COOLIE 186, an excellent outdoor lighting unit with 18pcs 6W RGBW LEDs, delivers big power from a rugged flat and compact metal IP66 housing.

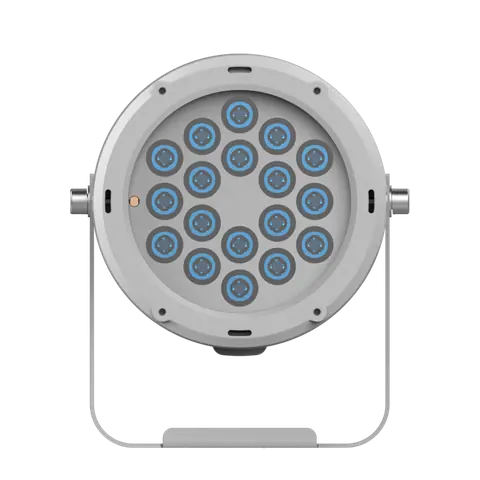

Light source: 18 x 6W RGBW LED
Power consumption: 55W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66
Beam angle / zoom: 18°, 22°,24°,43°, 58°
DMX channels: 4/5/8/10
Protocols: DMX512,RDM
Net weight: 2.2 kg (4.9 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 14 groups · 46 values

What this product is, in numbers.

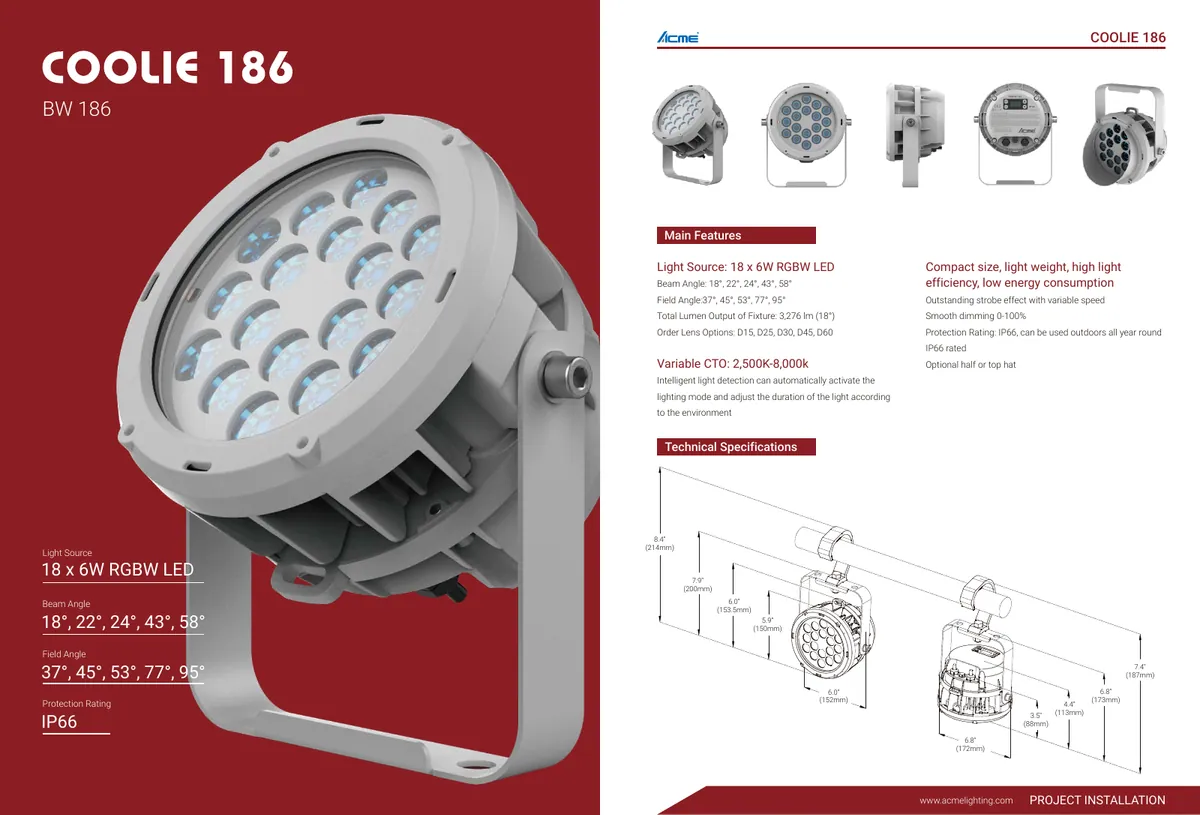

PDFDatasheetEN · 2 pages · 543 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: COOLIE 186
Model Code: BW 186

02Light Source3

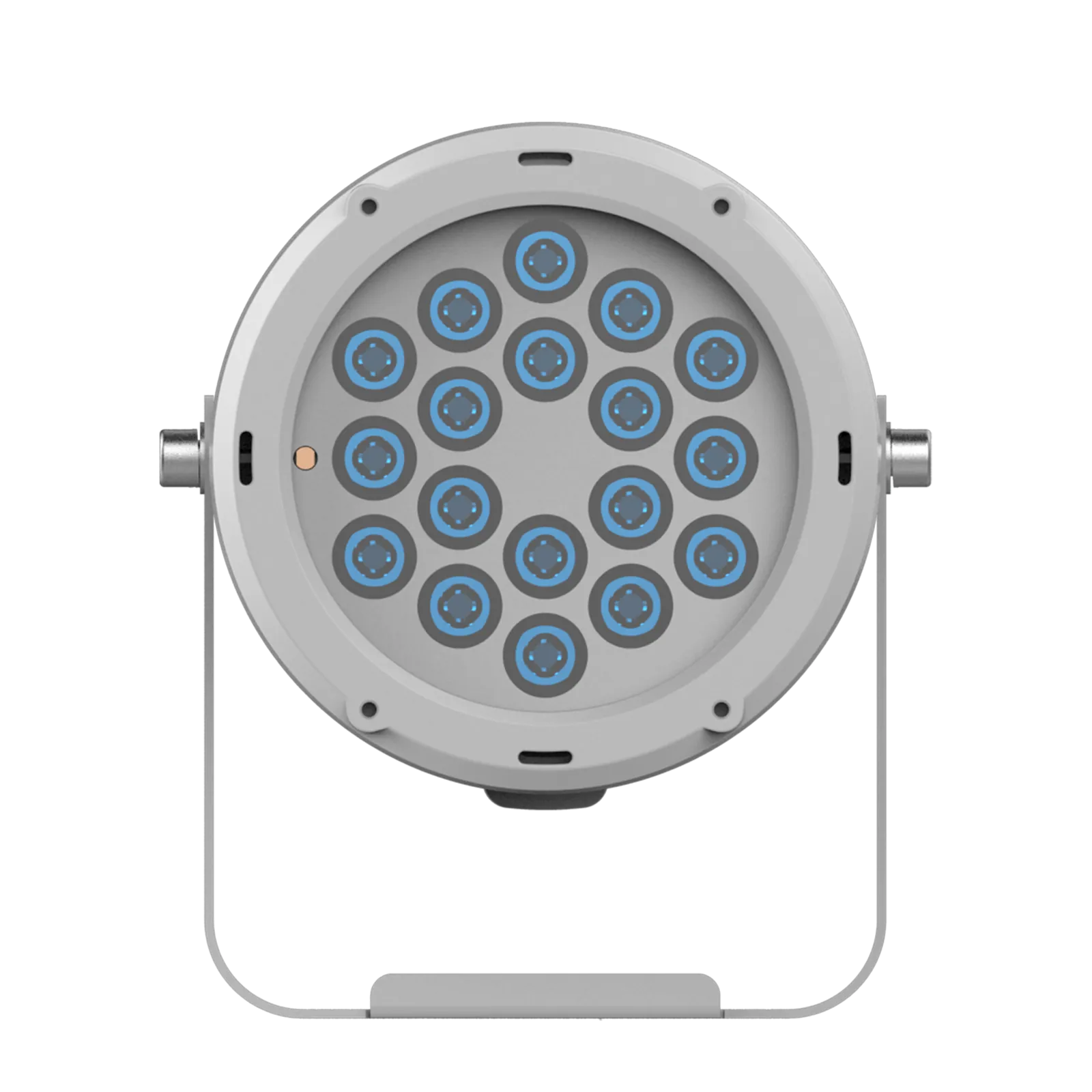

Light Source: 18 x 6W RGBW LED
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data1

Total Lumen Output of Fixture: 3,280 lumens

04Optical System3

Beam Angle: 18°, 22°,24°,43°, 58°
Field Angle: 37°, 45°,53°, 77°, 95°
Order Lens Options: D15,D25,D30,D45,D60

05Control6

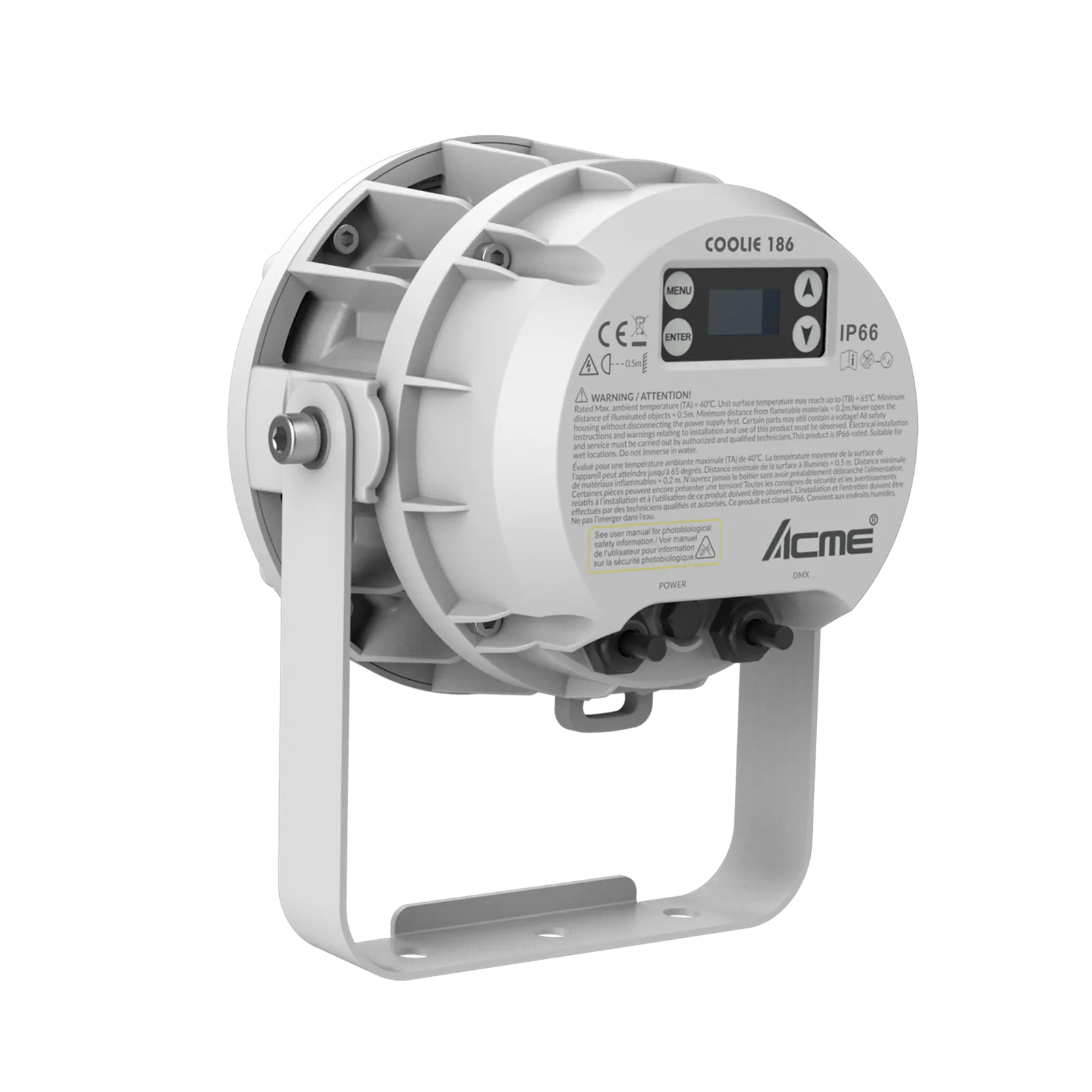

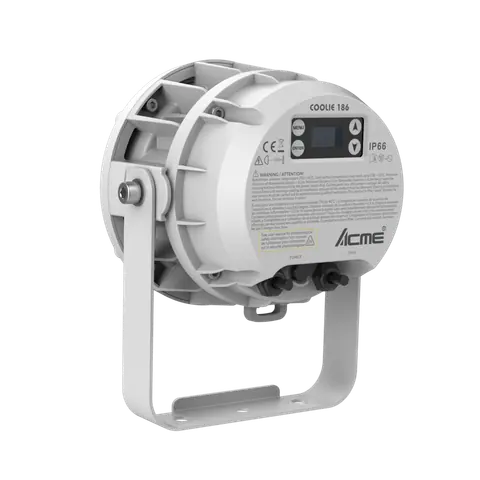

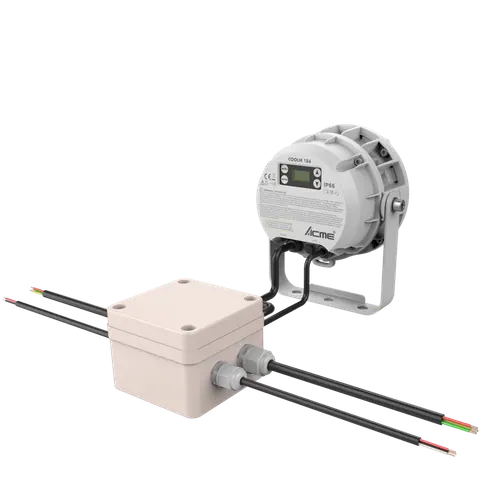

4 touch button control panel
Display: OLED display
Protocols: DMX512,RDM
DMX Protocol Modes: 4
Control Channels: 4/5/8/10
Firmware Upgrade: Upgrade via DMX link

06Other Effects5

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Compact size, light weight, light efficiency, low energy consumption

Intelligent light sense can automatically activate the light and set the light duration according to the environment

Optional half or full size anti-glare shield

Show the full specificationHide the rest of the specification8 more groups · 26 values

07Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 55W

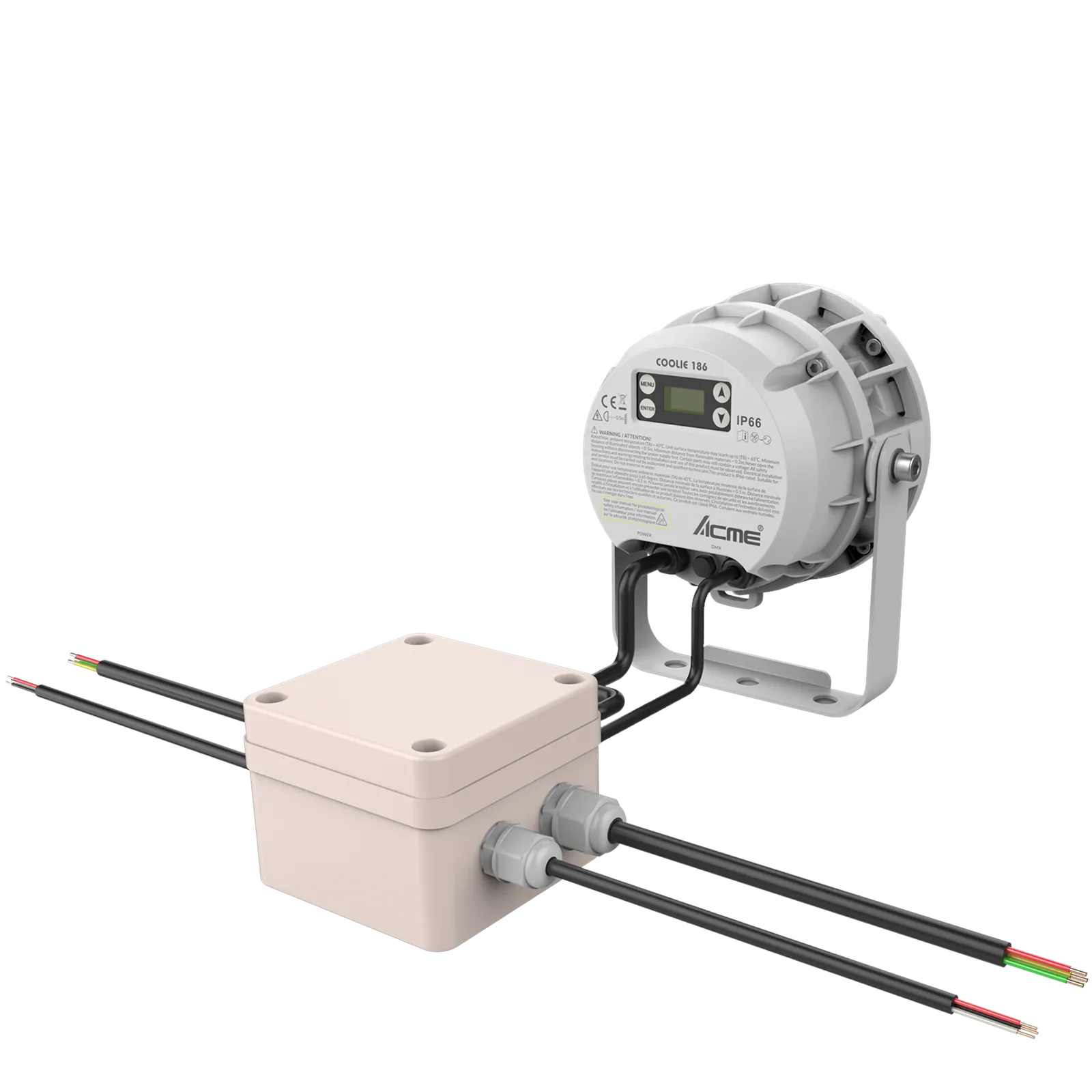

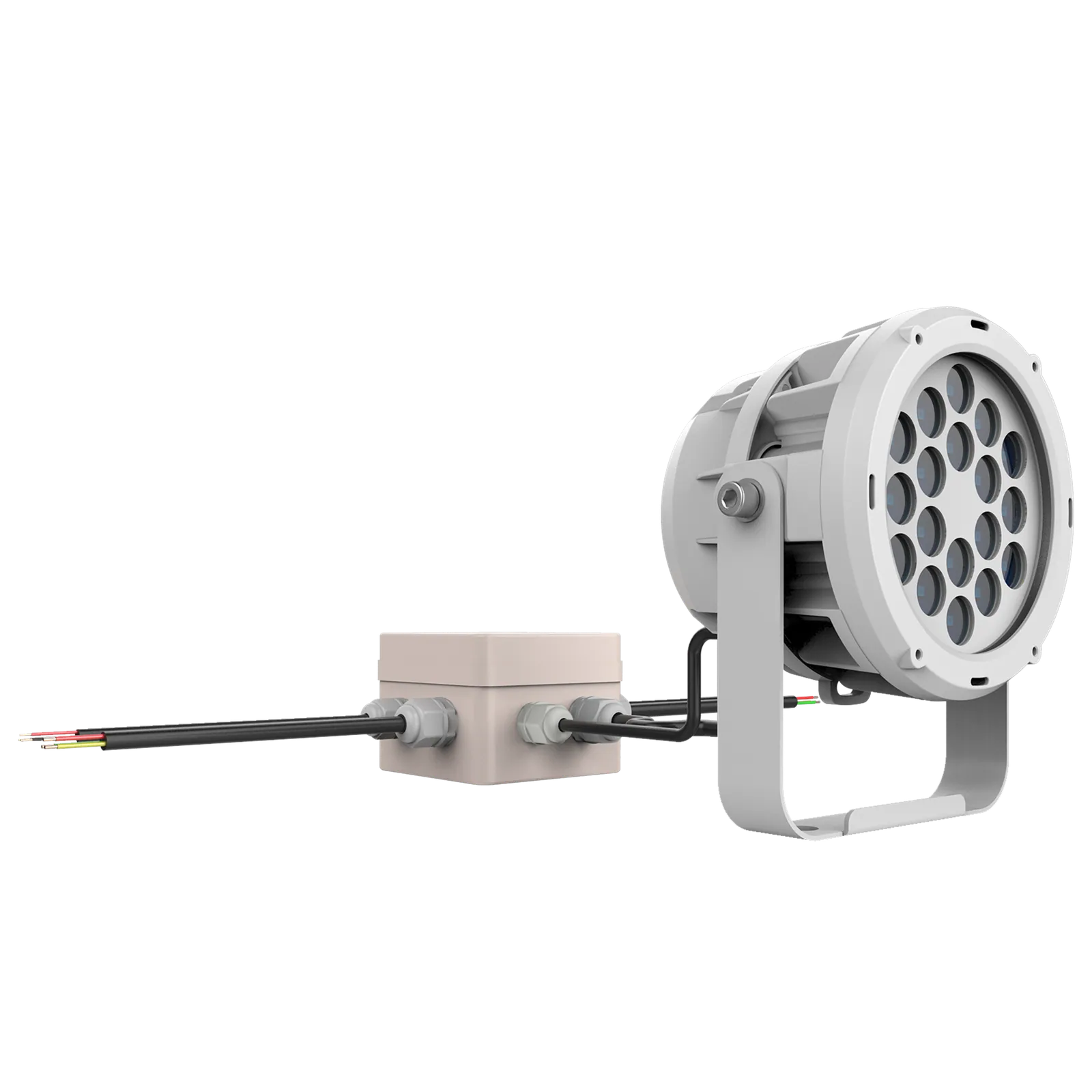

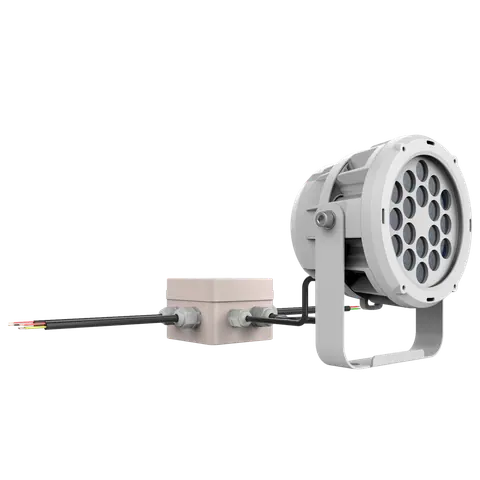

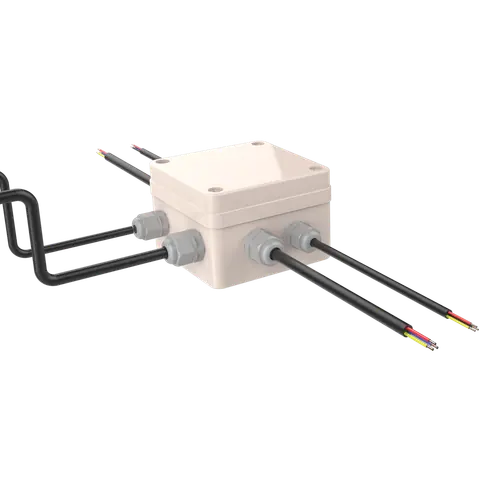

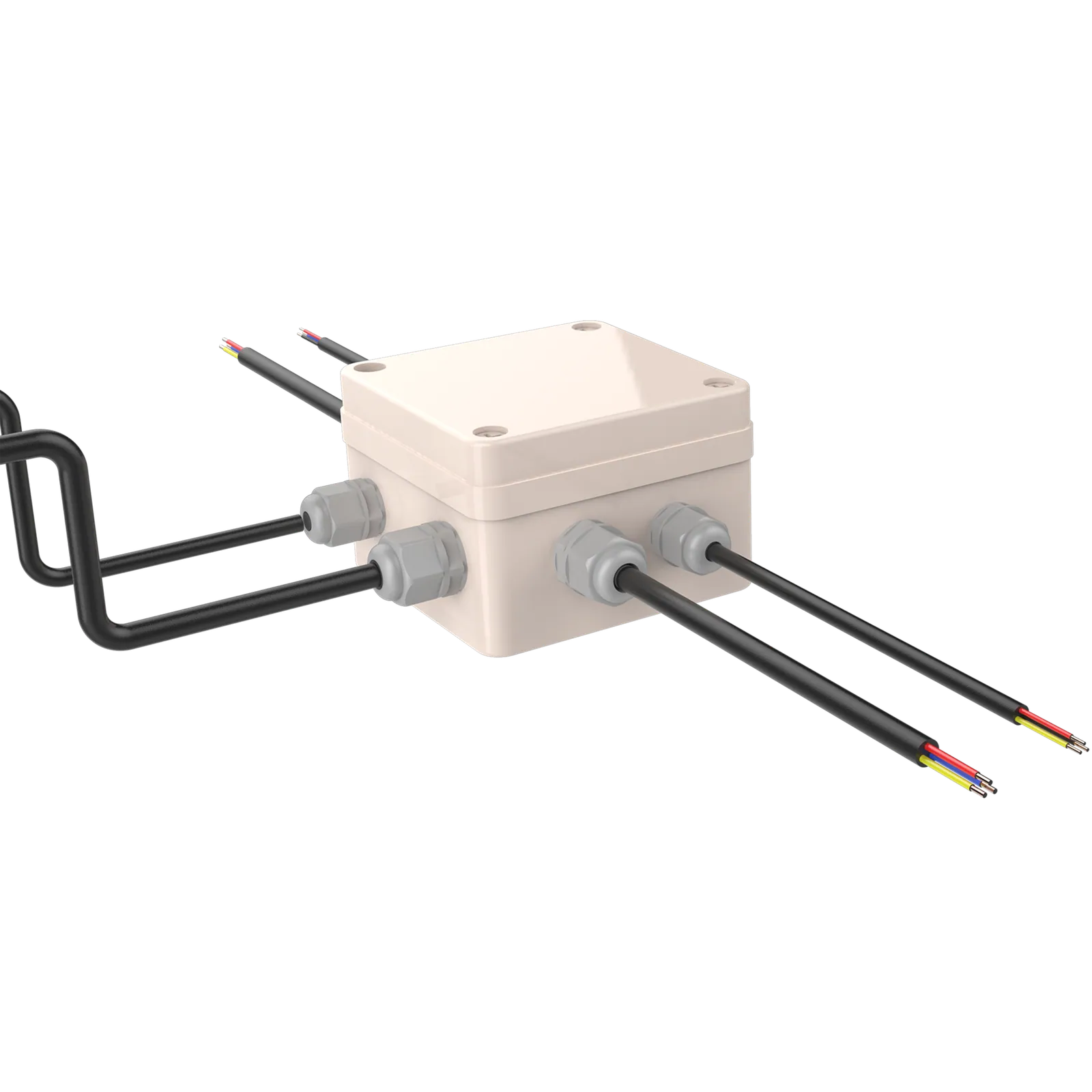

Power In/Out: Bare wire out
Data In/Out: Bare wire output

08Physical Information4

Fixture Dimensions
Width: 172 mm (6.8")
Depth: 113 mm (4.4")
Height: 200 mm (7.9")
Weight: 2.2 kg (4.9 lbs)

09Packing Information4

Carton Dimensions
Width: 260 mm (10.2")
Depth: 230 mm (9.1")
Height: 185 mm (7.3")
Weight
G.W.: 2.3 kg (5.1 lbs) (One-pack loader carton)

10Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 75°C
Protection Rating: IP66

11Approvals1

CE compliant

12Installation4

Horizontal or vertical mounting

Universal working position

The feet support with 3 locking points

Safety cable attachment point

13Included Items2

Digital user manual

Factory certificate and warranty card

14Optional Accessories (With Order Code)3

Safety Cable: SW-02 (2060000200-B)

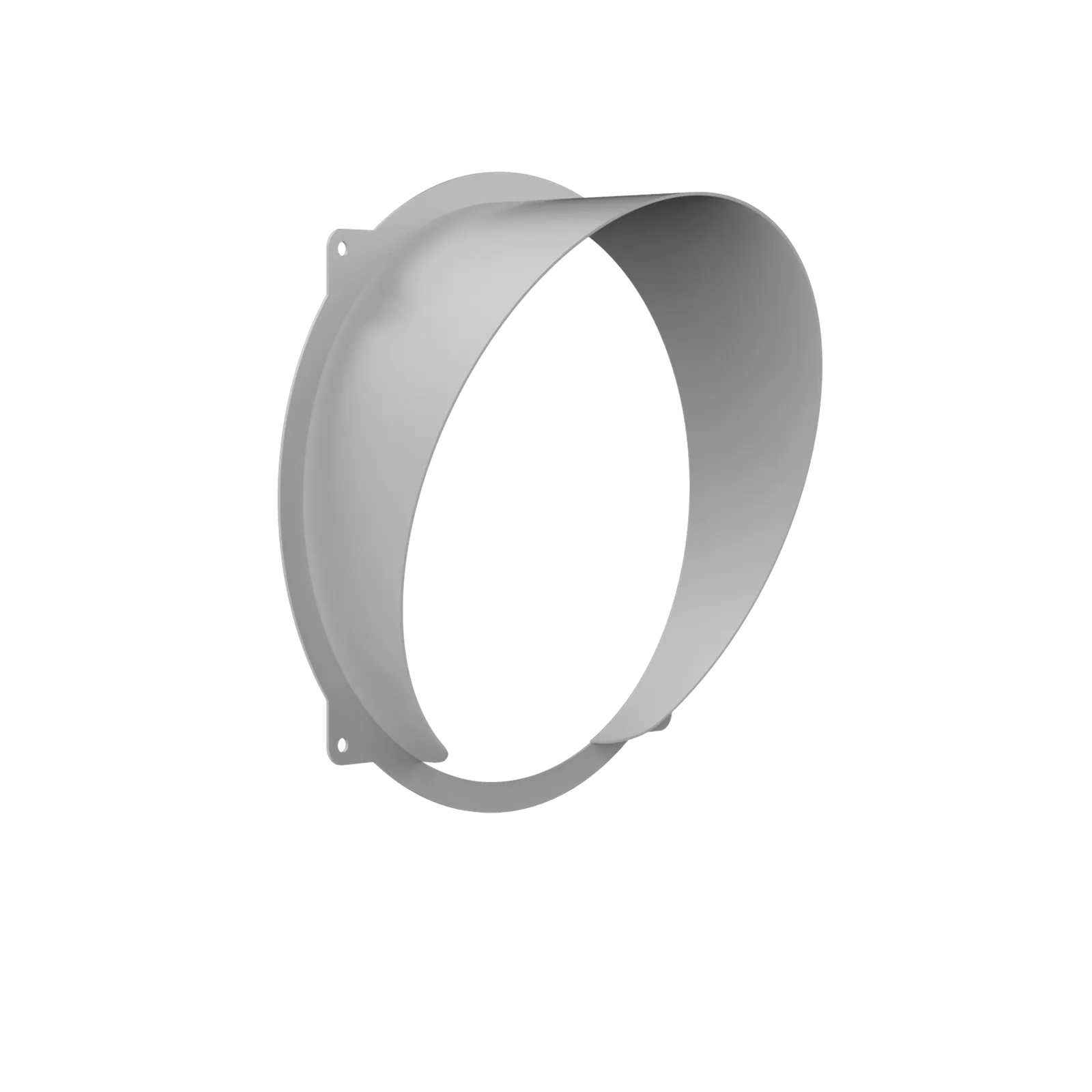

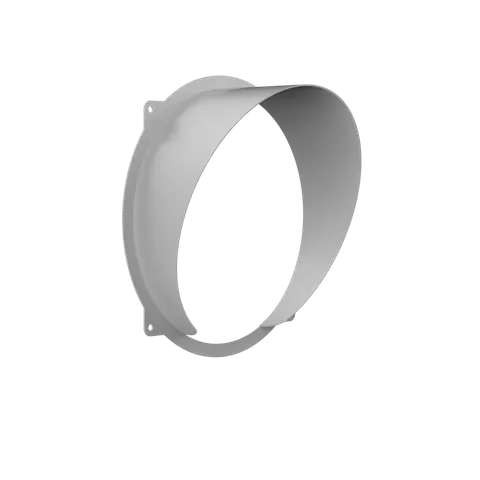

Half Hat: 4100010010

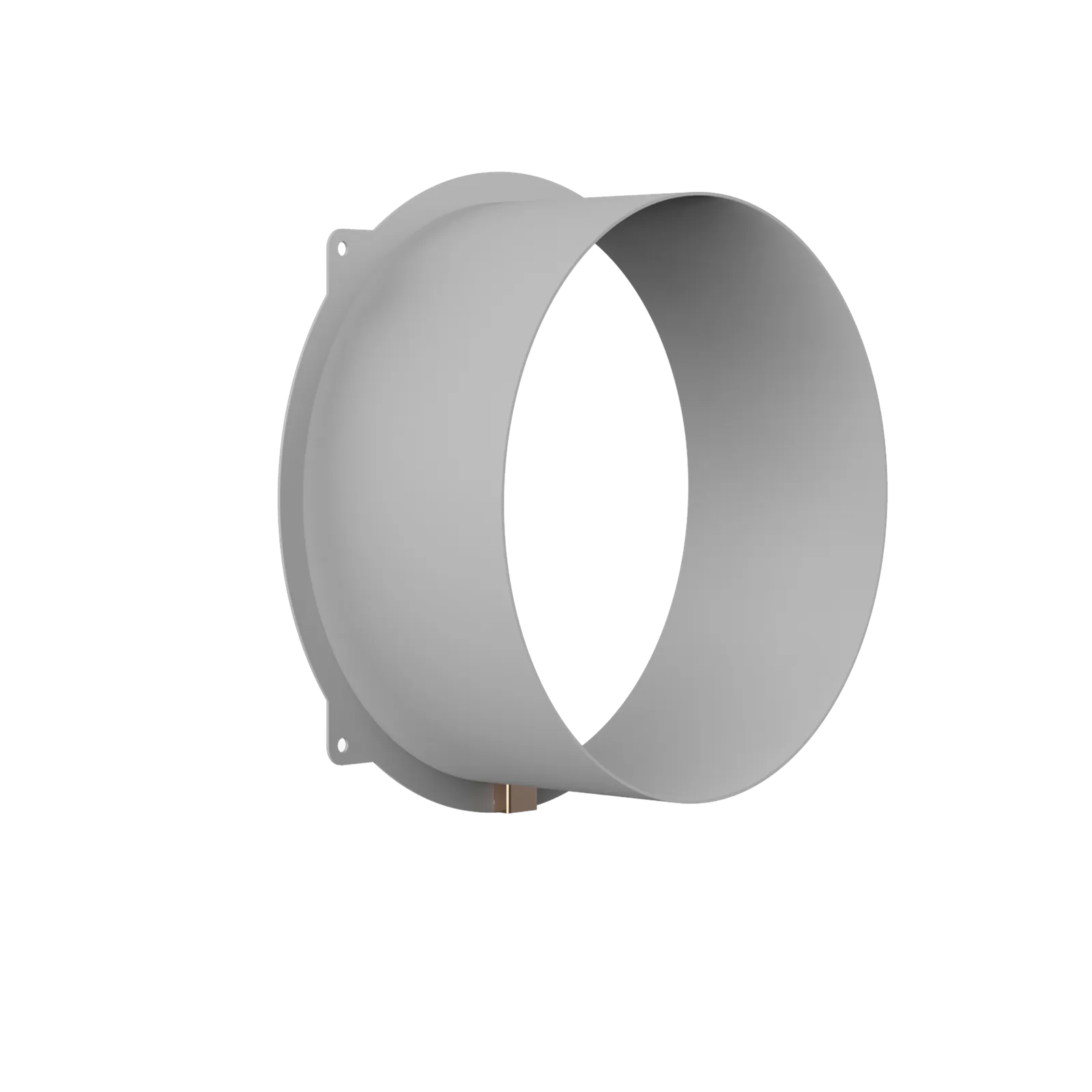

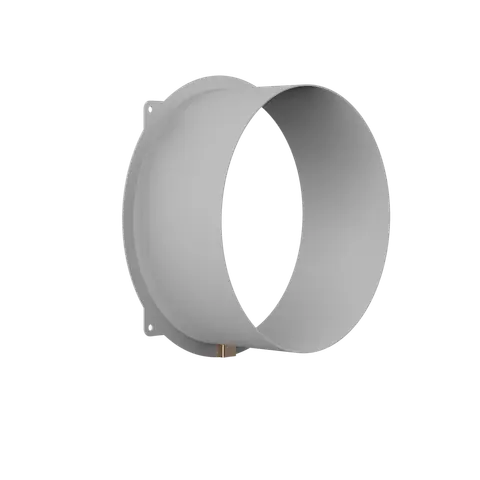

Top Hat: 4100010100

02DescriptionManufacturer's description

What it is.

COOLIE 186, an excellent outdoor lighting unit with 18pcs 6W RGBW LEDs, delivers big power from a rugged flat and compact metal IP66 housing. Multiple angle lens are ready for you to pick and give you ample control over the flexible color mixing reaching from warm, rich to solid, and pastel washing colors. And outdoor rated power and signal connectors allow for easy connections without mazy cabling. Fitted with an intelligent light sensor that can automatically activate the light and allow the user to set the light duration according to the environment. Suitable for multiple indoor and outdoor par light applications.
