Sheet 05.665
ACME · Wash

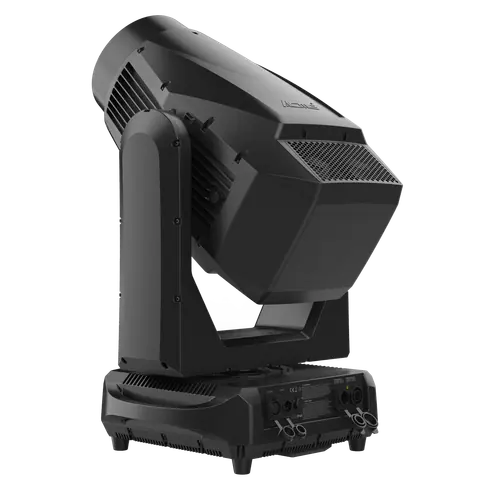

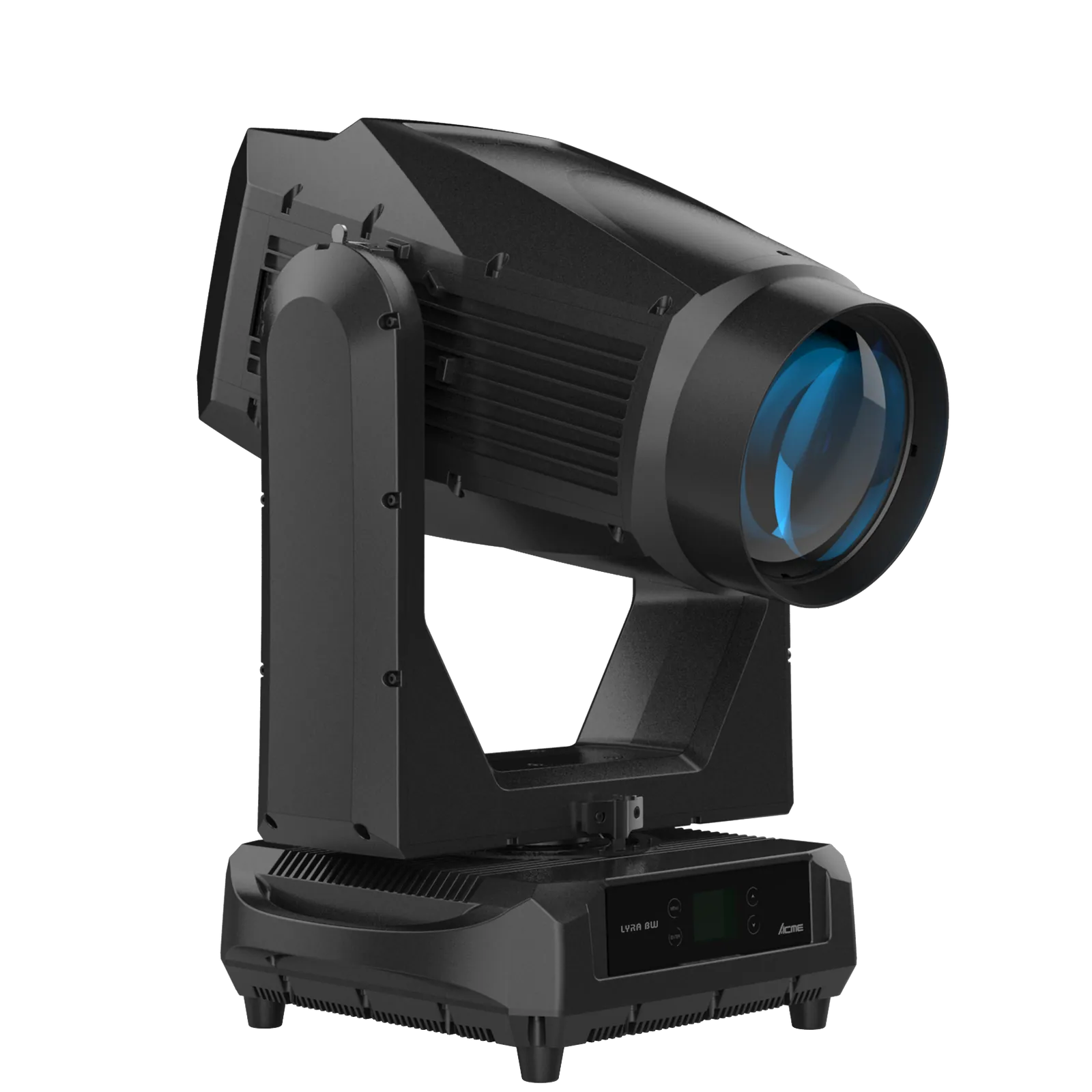

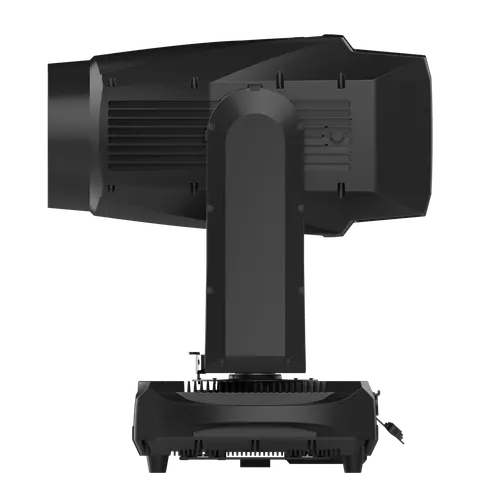

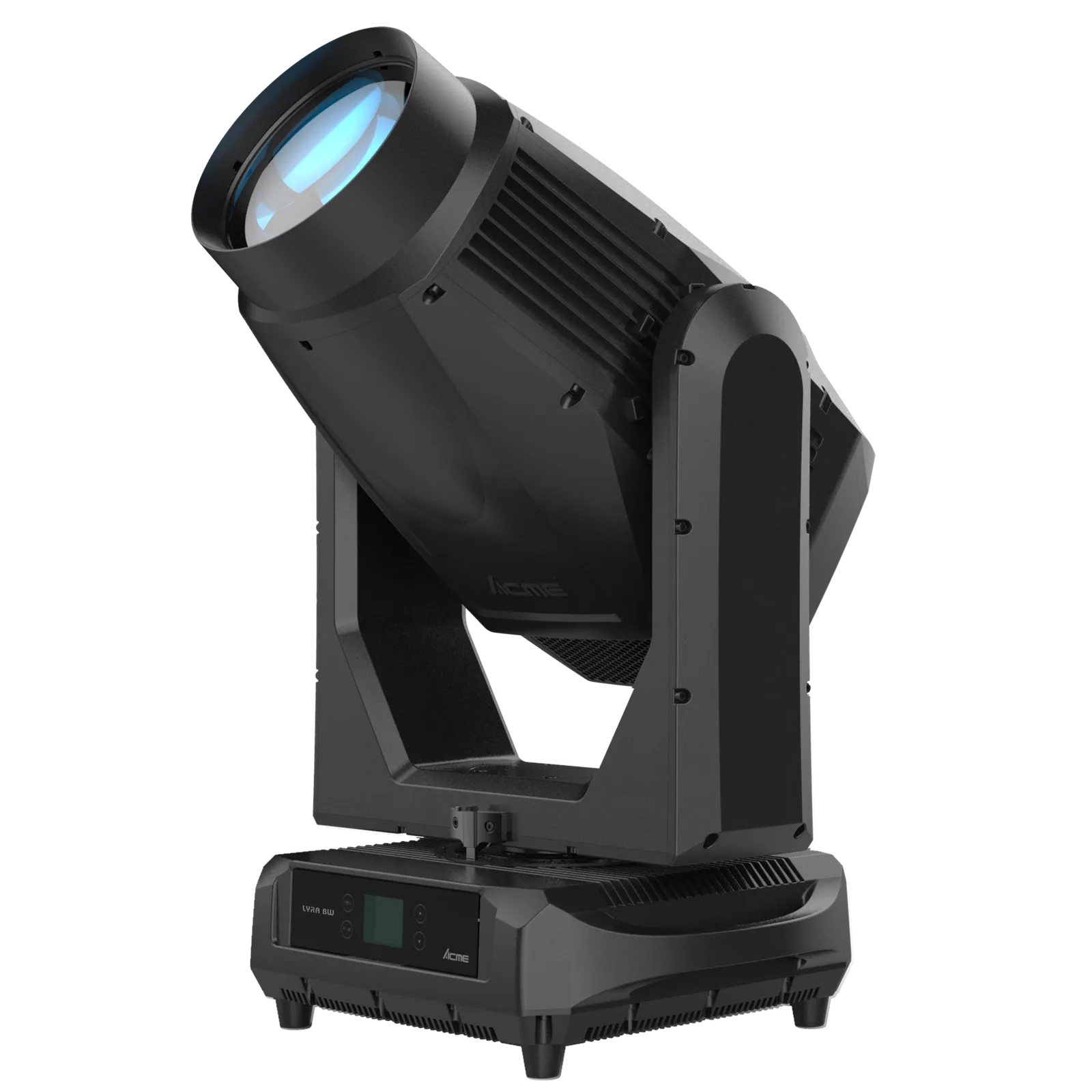

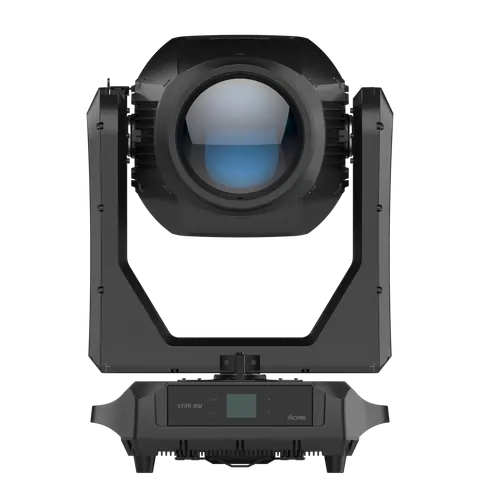

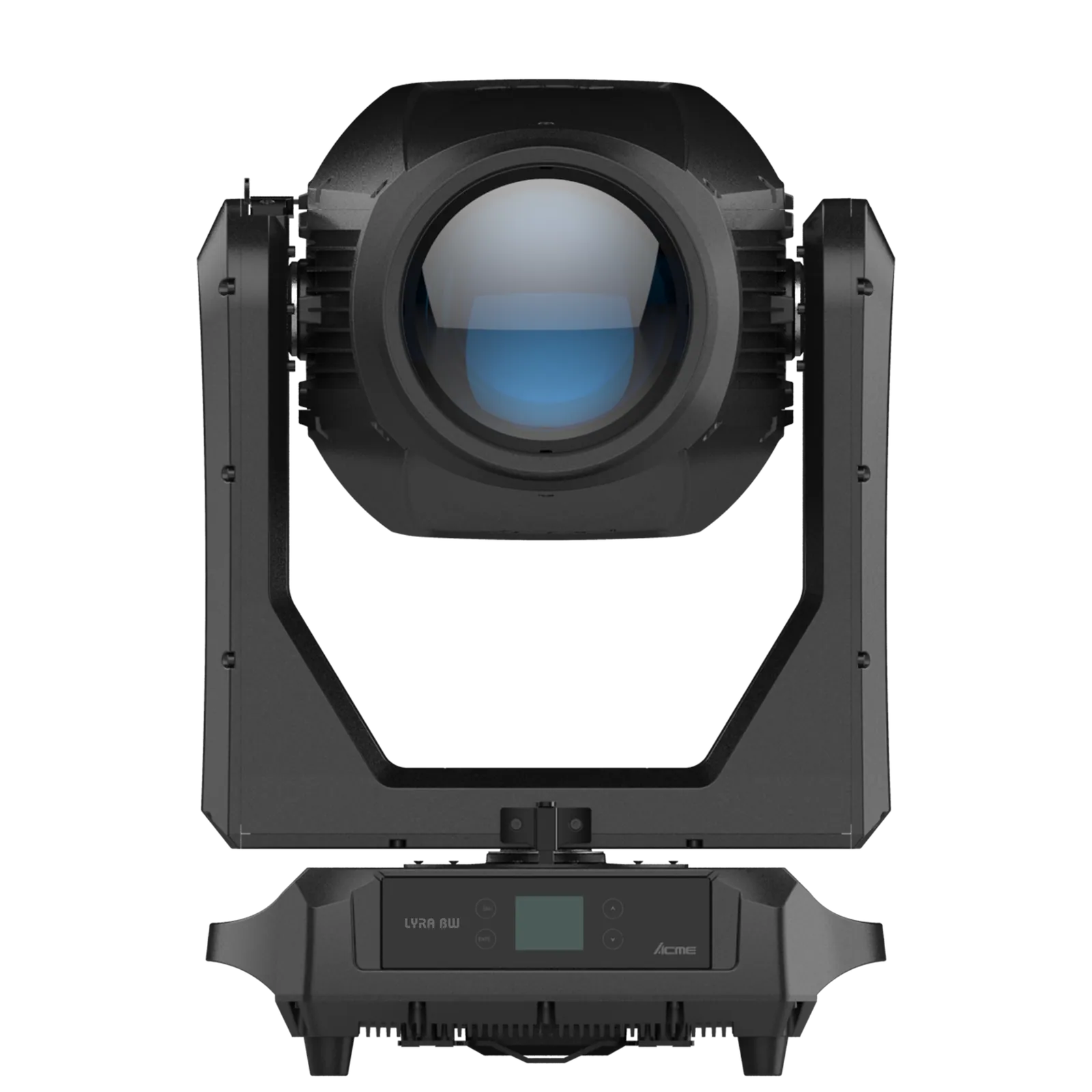

LYRA BW
ModelXA 1000 BW IP

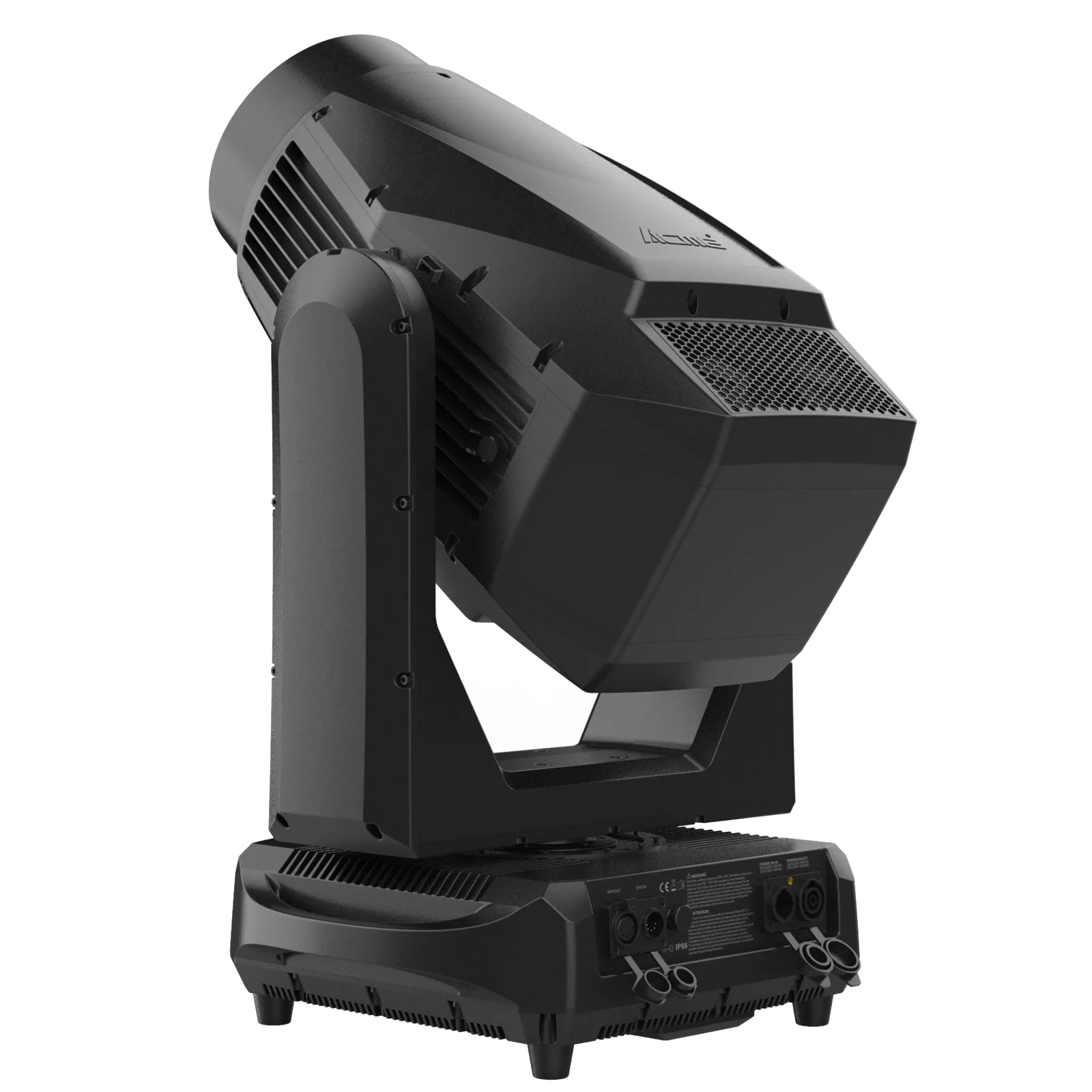

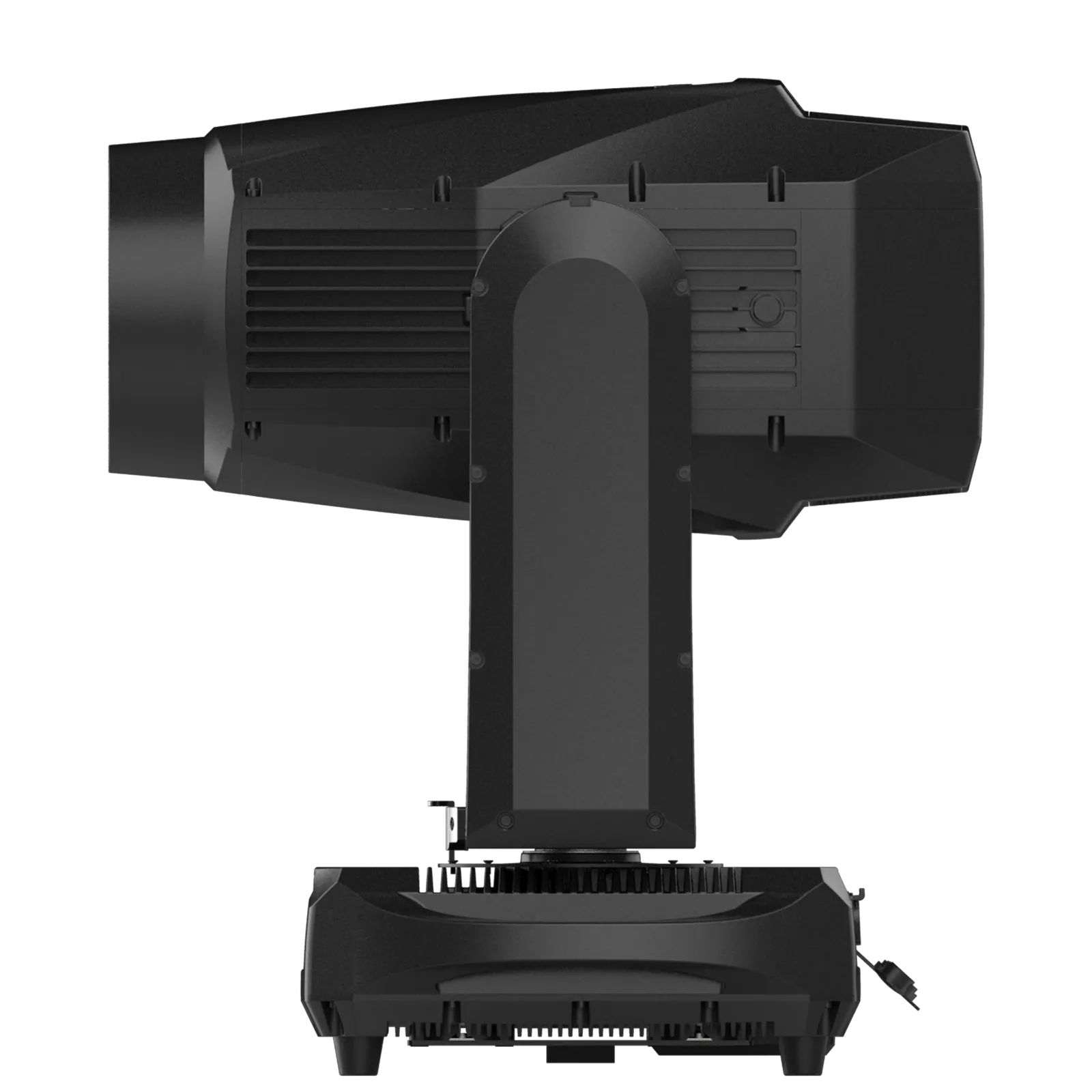

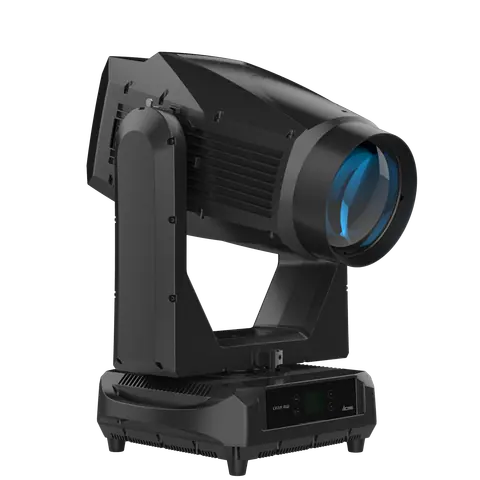

The LYRA BW is more than your ordinary moving head wash light, like the LYRA, it’s with a multifaceted LED fixture that ACME designed and manufactured to deliver the performance you need and take on the outdoors in all weather conditions.
- Light source
- 1,000W LED engine
- Power consumption
- 1,455W
- Power supply
- 100-240Vac; 50/60Hz
- Ingress protection
- IP66
- Beam angle / zoom
- 4.5°-40°
- DMX channels
- 30/18
- Protocols
- DMX512,RDM
- Colour temperature
- 6,700K
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
LYRA BWPrice on requestRequest a quotation
01VideoManufacturer's video · 2:18
ACME LYRA BW: the manufacturer's video
02SpecificationManufacturer's data · 18 groups · 67 values
What this product is, in numbers.

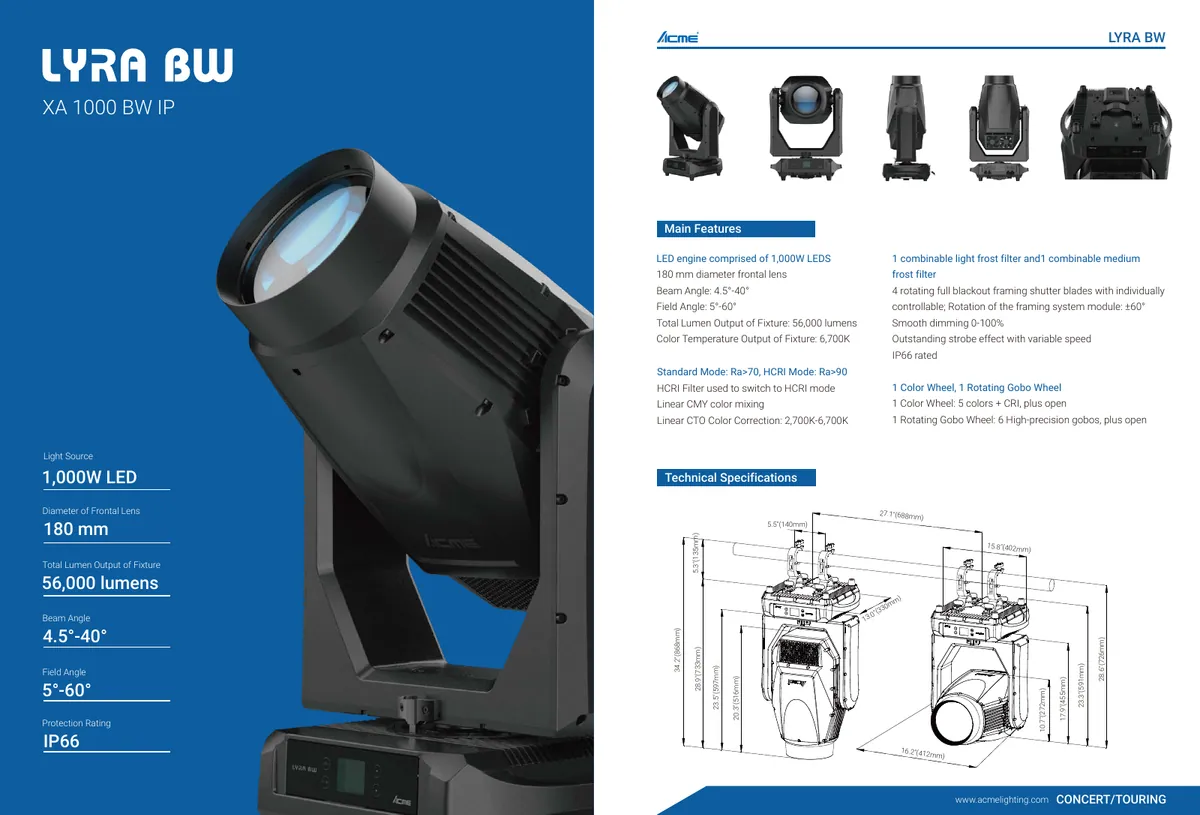

PDFDatasheetEN · 2 pages · 830 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Model2
- Model Name
- LYRA BW
- Model Code
- XA 1000 BW IP
02Light Source4
- Light Source
- 1,000W LED engine
- Color Temperature Output of Fixture
- 6,700K
- Light Source Rated Life
- 20,000 hours*
- *Source manufacturer specification
03Photometric Data3
- Total Lumen Output of Fixture
- 56,000 lumens
- Standard Mode
- Ra>70
- HCRI Mode
- Ra>90
04Optical System3

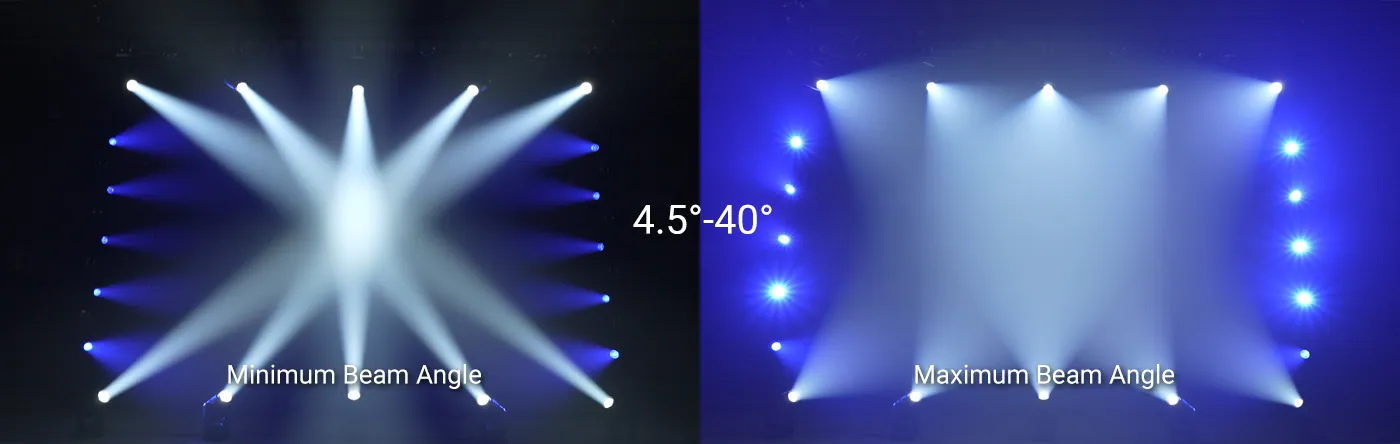

- Beam Angle
- 4.5°-40°
- Field Angle
- 5°-60°
- Diameter of Frontal Lens
- 180 mm
05Control6
- 4 touch button control panel
- Display
- LCD display
- Protocols
- DMX512,RDM
- DMX Protocol Modes
- 2
- Control Channels
- 30/18
- Firmware Upgrade
- Upgrade via DMX link or USB stick
06Pan & Tilt5
- Pan Movement
- 540°
- Tilt Movement
- 260°
- Automatic Pan/Tilt position correction
- Resolution
- 16 bit
- Pan/Tilt lock
Show the full specificationHide the rest of the specification12 more groups · 44 values
07Colors3
- Linear CMY color mixing
- Linear CTO Color Correction
- 2,700K-6,700K
- 1 Color Wheel
- 5 colors, 1 HCRI filter, plus open
08Rotating Gobos2
- 1 Rotating Gobo Wheel
- 6 High-precision gobos, plus open
- Gobo
- Ø32 mm, lmage: Ø28 mm
09Framing System2
- Shutter Blades
- 4 blades, each with separate movement and full blackout
- Rotation
- ±60° of the complete framing system
10Other Effects3
- Outstanding strobe effect with variable speed
- Smooth dimming 0-100% (4 user selectable dimming curves)
- The diffusion filter can achieve 0~100% linear softening effects and center beam more uniform
11Electrical and Connectors4
- Input Voltage Range
- 100-240Vac; 50/60Hz
- Power Consumption
- 1,455W
- Power In/Out
- Waterproof power connector in/out
- Data In/Out
- 3-pin or 5-pin waterproof XLR
12Physical Information4
- Fixture Dimensions
- Width
- 412 mm (16.2")
- Depth
- 330 mm (13.0")
- Height
- 743 mm (29.3")
- Weight
- 42.5 kg (93.7 lbs)
13Packing Information8
- Flight Case Dimensions
- Width
- 1,143 mm (45.0")
- Depth
- 812 mm (32.0")
- Height
- 840 mm (33.1")
- Weight
- Standard
- G.W.: 184.5 kg (406.8 lbs) (Two-pack loader case)
- Carton Dimensions
- Width
- 630 mm (24.8")
- Depth
- 520 mm (20.5")
- Height
- 715 mm (28.1")
- Weight
- G.W.
- 50.5 kg (111.3 lbs) (One-pack loader carton)
14Work Environment4
- Maximum Ambient Temperature
- 40°C
- Minimum Operating Temperature
- -10°C
- Maximum Surface Temperature
- 65°C
- Protection Rating
- IP66
15Approvals3
- CE compliant
- UKCA compliant
- cETLus compliant

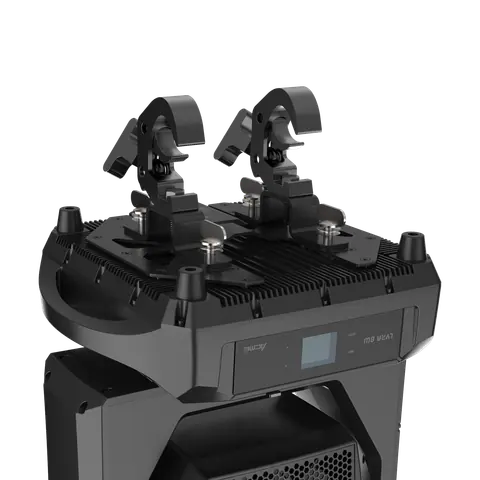

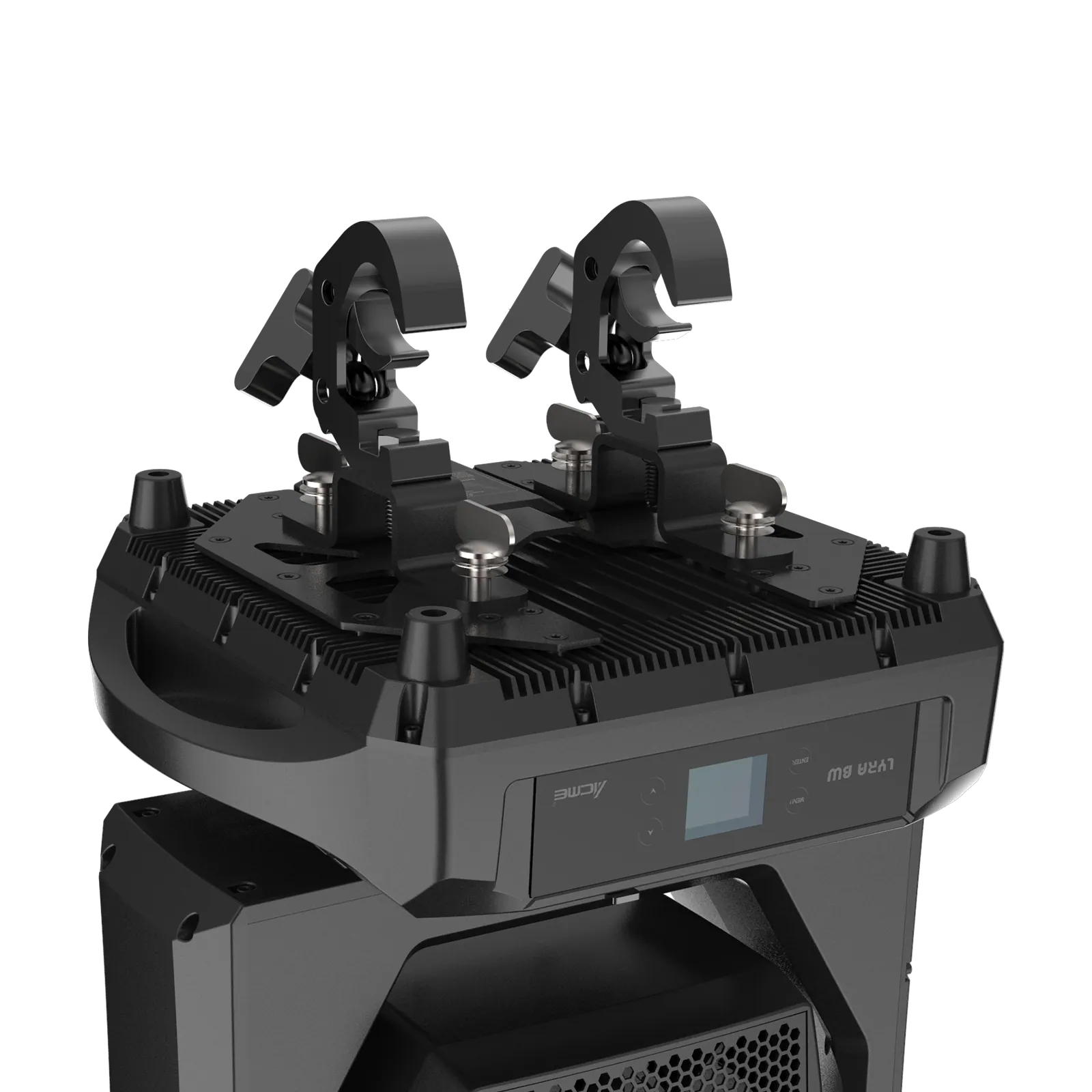

16Installation4
- Horizontal or vertical mounting
- Universal working position
- 2 omega brackets
- Safety cable attachment point
17Included Items3
- Digital user manual
- Power cable
- 2 omega brackets (3002003003)
18Optional Accessories (With Order Code)4
- Flight Case
- Standard
- Two-pack loader case (3205110026)
- Clamp
- C-250B (2060001632-B)
- Safety Cable
- SW-05 (2060001603-E)
- Signal Cable
- 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)
03DescriptionManufacturer's description
What it is.
The LYRA BW is more than your ordinary moving head wash light, like the LYRA, it’s with a multifaceted LED fixture that ACME designed and manufactured to deliver the performance you need and take on the outdoors in all weather conditions. Rated IP66, the LYRA BW fixture's powerful 1000-Watt white LED engine delivers 56,000 lumens at a native 6700K color temperature.
The fixture comes with a CMY color mixing system, one fixed color wheel with five colors plus one high CRI filter and offers a linear CTO color correction from 2700K to 6700K. For effects, the LYRA BW has one rotating gobo wheel with six precision gobos, a 4-blade shutter system that provides full blackout and rotates in both directions, and a diffusion frost filter that is variable from 0 to 100% for softening beam edges. The fixture boasts a large 180 mm frontal lens and has a zoom range from a narrow 5° to a wide 60° with uniform light beams throughout the range.
Whether your needs are outdoor concerts, indoor theatre, festivals, themed events, or whatever your production is, the LYRA BW is one of the most powerful and versatile wash fixtures available.
04Documents14 files · 22 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals02
Drawings05
Software and data files01
