Sheet 05.664

ACME · Wash

HYPERZONE

ModelCM 7 IP

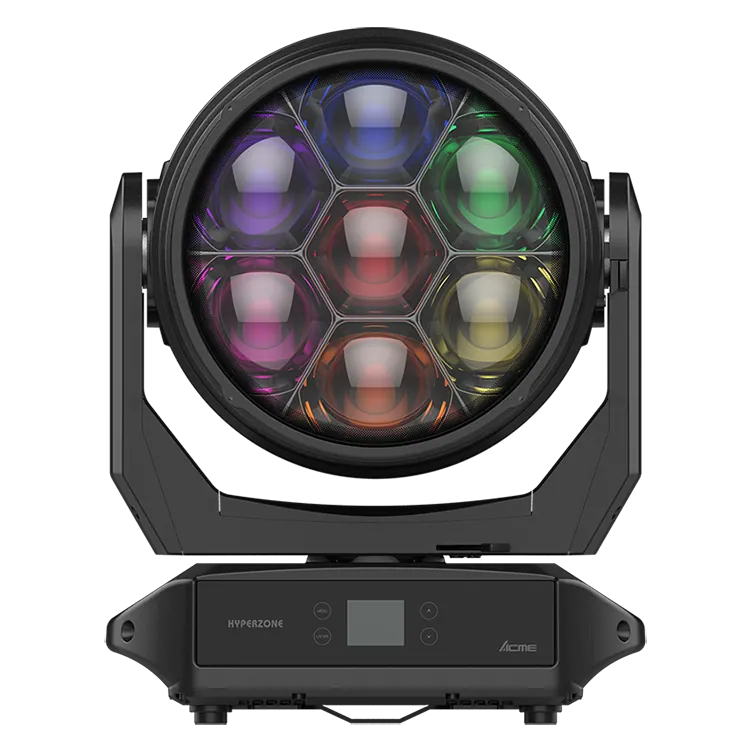

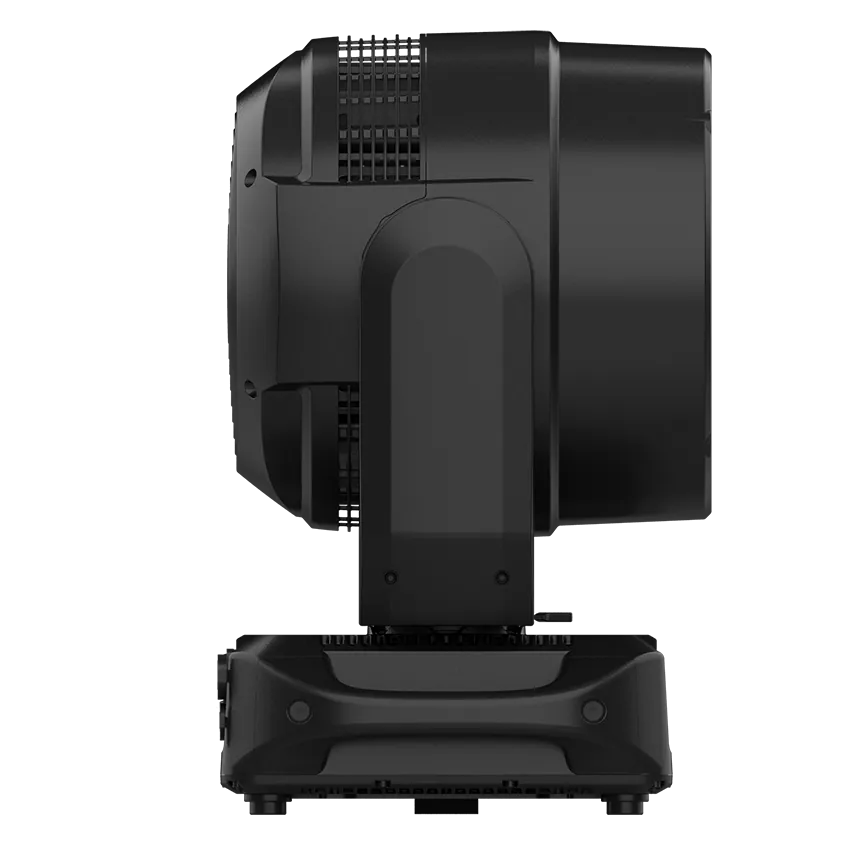

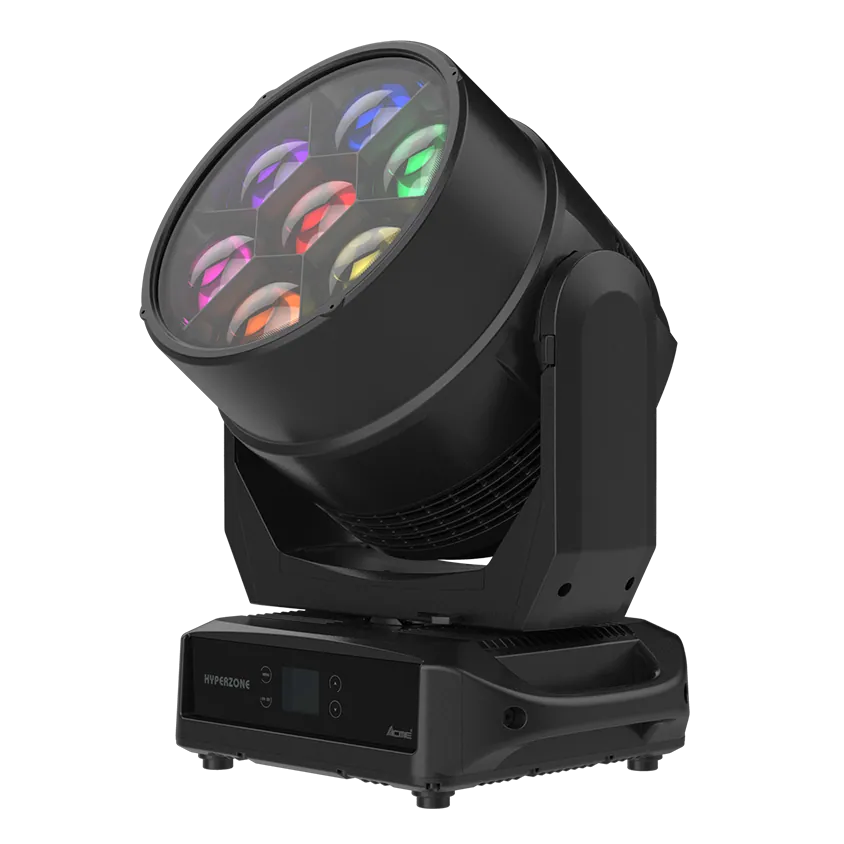

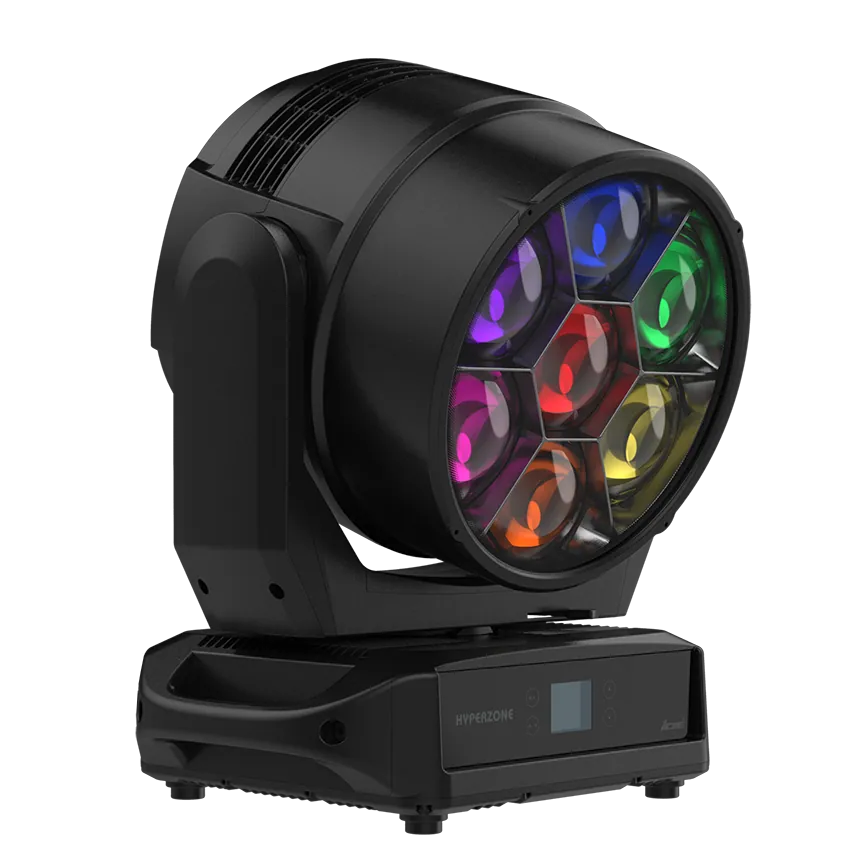

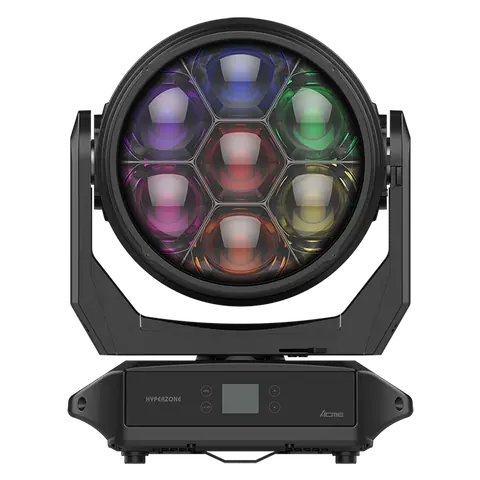

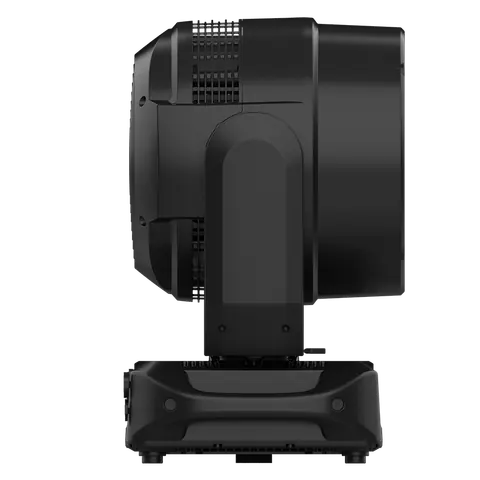

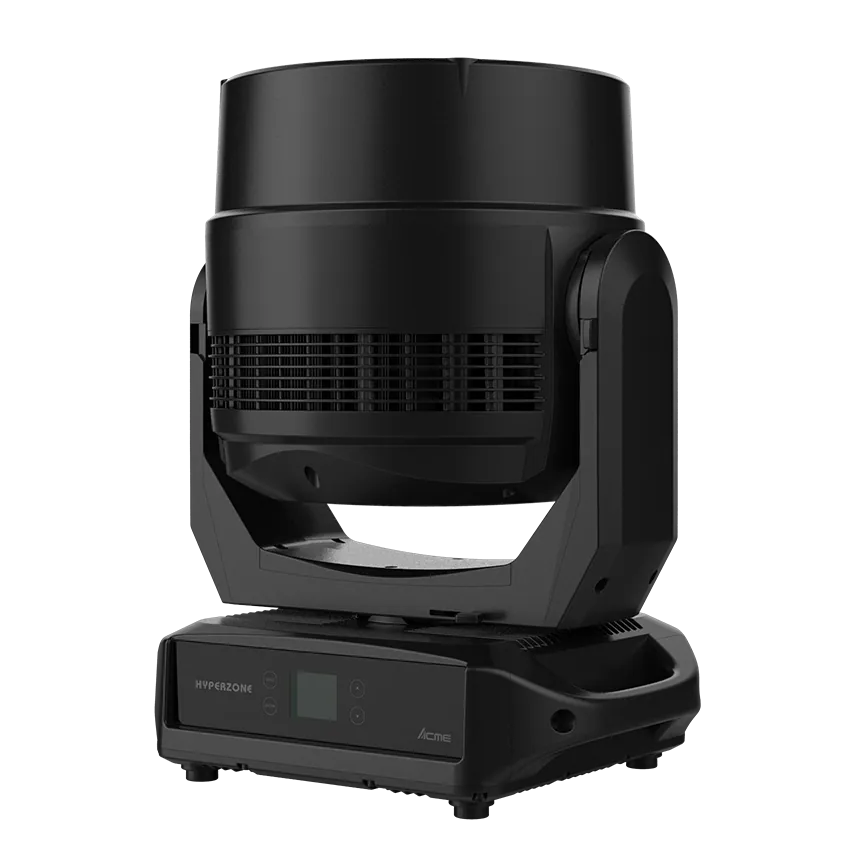

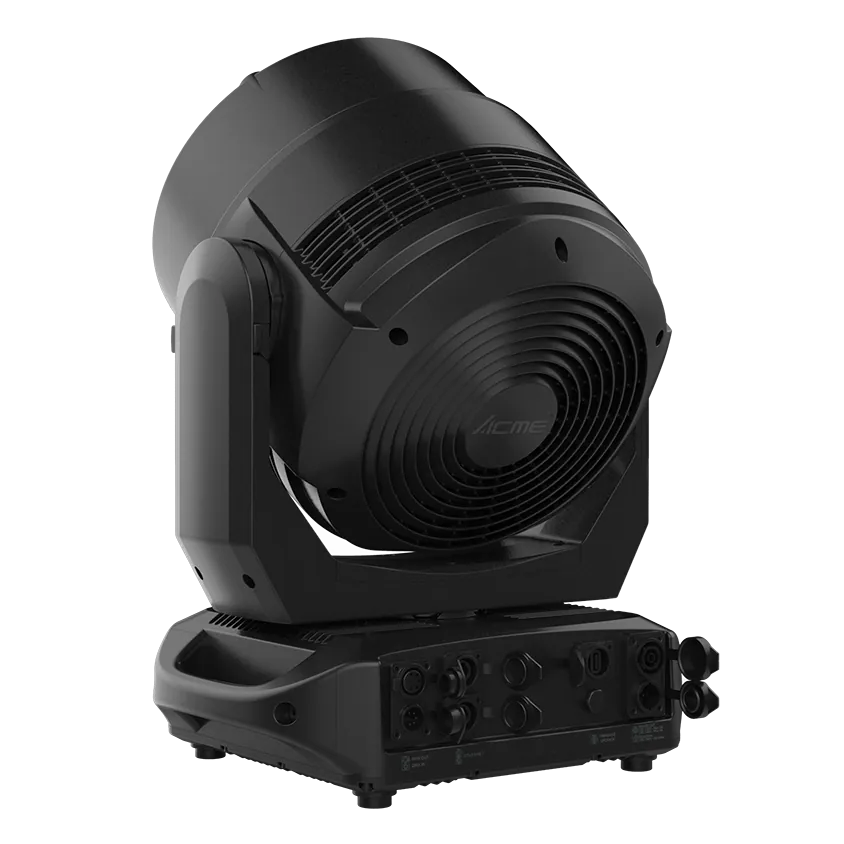

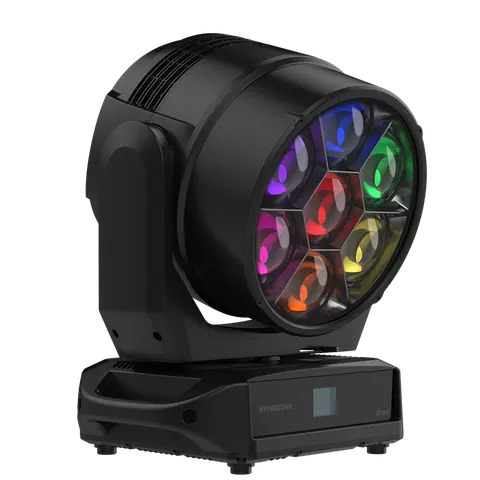

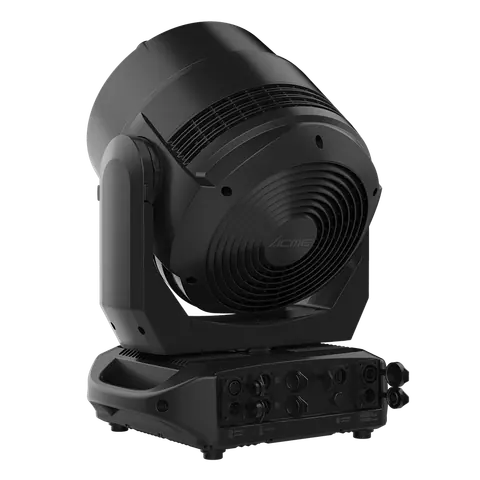

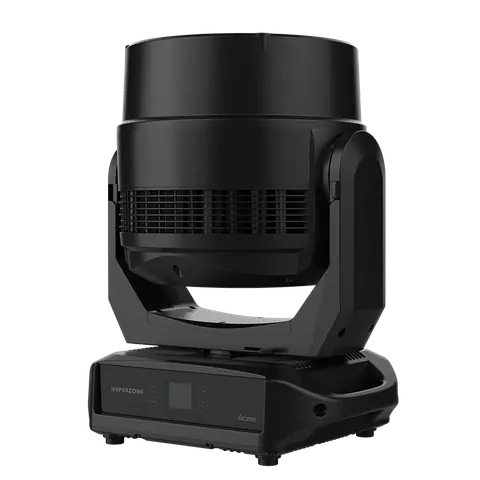

The ACME HYPERZONE is a next-generation moving LED wash-beam light, driven by 7 x 150W RGBL LEDs, delivering vibrant, saturated colors that stand out on any stage.

Light source: 7 x 150W RGBL LEDs
Power consumption: 1,370W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66
Beam angle / zoom: 3°-32°
DMX channels: 19/20/21/41/42/43
Protocols: DMX512,RDM,Art-Net,sACN
Colour temperature: 8,000K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:27

ACME HYPERZONE2:27

02SpecificationManufacturer's data · 17 groups · 75 values

What this product is, in numbers.

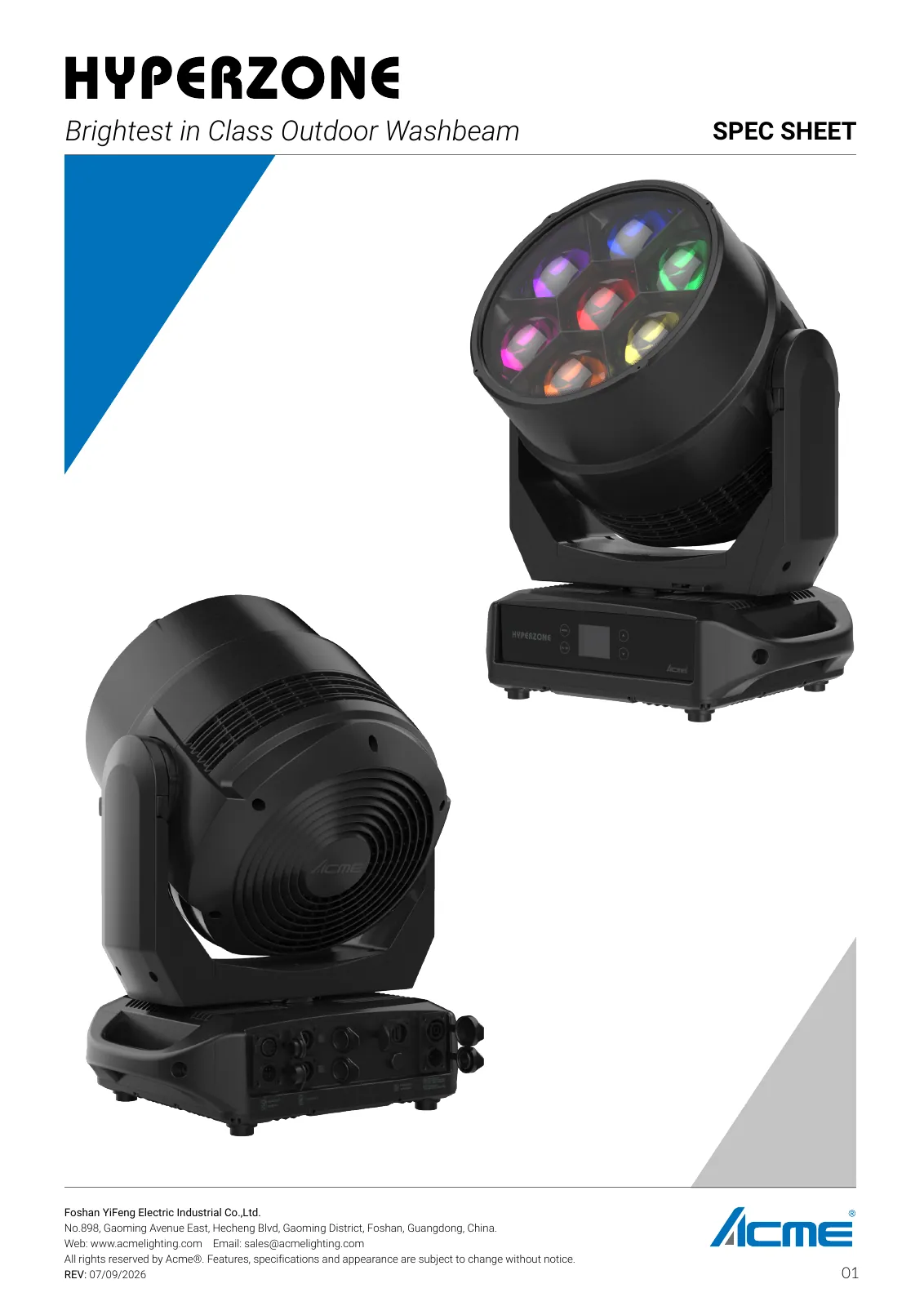

PDFDatasheetEN · 13 pages · 3.3 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: HYPERZONE
Model Code: CM 7 IP

02Light Source4

Light Source: 7 x 150W RGBL LEDs
Color Temperature Output of Fixture: 8,000K
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data5

Total Lumen Output of Fixture: 19,500 lumens
Total Lumen Output of Fixture
Auto Mode: 19,500 lumens
Quiet Mode: 10,000 lumens
Theatre Mode: 9,500 lumens
Color Rendering: Ra≥86

04Optical System2

Beam Angle: 3°-32°
Field Angle: 4.8°-45°

05Control6

4 touch button control panel
Display: LCD display
Protocols: DMX512,RDM,Art-Net,sACN
DMX Protocol Modes: 6
Control Channels: 19/20/21/41/42/43
Firmware Upgrade: Upgrade via DMX link or USB stick

06Pan & Tilt5

Pan Movement: 540°
Tilt Movement: 210°; Automatic Pan/Tilt position correction
Resolution: 16 bit; Pan/Tilt lock

Show the full specificationHide the rest of the specification11 more groups · 51 values

07Colors1

Linear CTO Color Correction: 2,500K-8,000K

08Other Effects8

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Outstanding color macro effects

Outstanding color mixing

Individual pixel control

Sharp and saturated beam effects

Dimming frequency from 900Hz to 25,000Hz

Motorized zoom

09Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 1,370W
Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR,waterproof RJ45 connector

10Physical Information4

Fixture Dimensions
Width: 380 mm (15.0")
Depth: 318 mm (12.5")
Height: 500 mm (19.7")
Weight: 26.4 kg (58.2 lbs)

11Packing Information12

Flight Case Dimensions 1
Width: 980 mm (38.6")
Depth: 580 mm (22.6")
Height: 825 mm (32.5")
Weight
Standard: G.W.: 104 kg (229.3 lbs) (two-pack loader case)
Flight Case Dimensions 2
Width: 1,220 mm (48")
Depth: 812 mm (32")
Height: 805 mm (31.7")
Weight
North American Standard: G.W.: 173.1 kg (381.6 lbs) (three-pack loader case)
Carton Dimensions
Width: 490 mm (19.3")
Depth: 450 mm (17.7")
Height: 675 mm (26.6")
Weight
G.W.: 32 kg (70.6 lbs) (one-pack loader carton)

12Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 75°C
Protection Rating: IP66

13Approvals3

CE compliant

UKCA compliant

cETLus compliant

14Acoustic Data3

Noise Level
Auto Mode: 50 dB(A) @ 1 m
Quiet Mode: 36 dB(A) @ 1 m
Theatre Mode: 29 dB(A) @ 1 m

15Installation4

Horizontal or vertical mounting

Universal working position

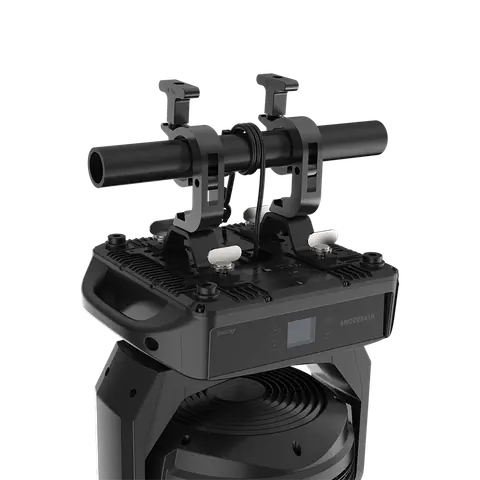

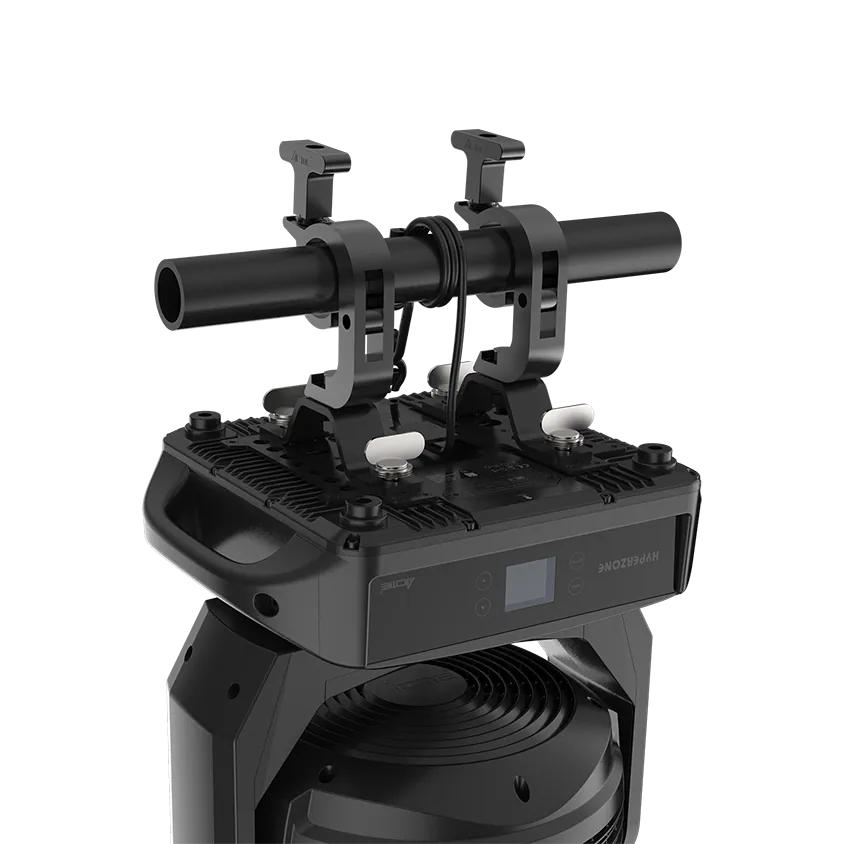

2 omega brackets

Safety cable attachment point

16Included Items3

Digital user manual

Power cable

2 omega brackets (3002003003)

17Optional Accessories (With Order Code)5

Flight Case 1
Standard: Two-pack loader case (63584070)
Flight Case 2
North American Standard: Three-pack loader case (63584124)
Clamp: C-250B (2060001632-B)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)

03DescriptionManufacturer's description

What it is.

Equipped with individual pixel control and built-in color macros, it lets you effortlessly build multi-layered light compositions. Designed for ultimate flexibility, the HYPERZONE features a variable beam angle of 3° to 32° and a field angle of 4.8° to 45°, offering both tight, punchy beams and wide, soft washes.

A variable CTO enables seamless transitions from cool to warm temperatures for natural color rendering. Fast and precise pan/tilt movement adds dynamic energy to your show. Boasting an IP66 ingress protection rating, it maintains stable performance in all weather and requires minimal upkeep.

Redefining what a wash light can be, the ACME HYPERZONE delivers high performance and vibrant visuals—wherever your vision takes you.
