Sheet 05.666

ACME · Wash

NEOZONE

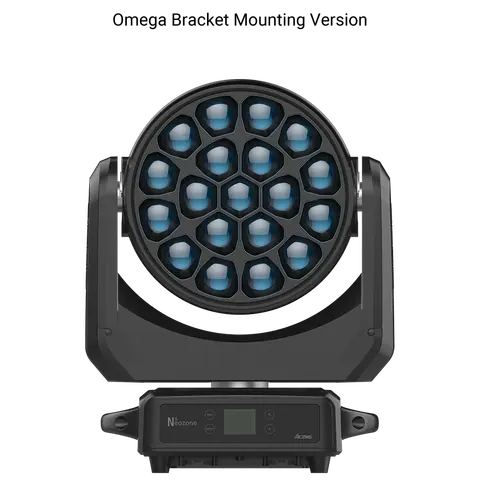

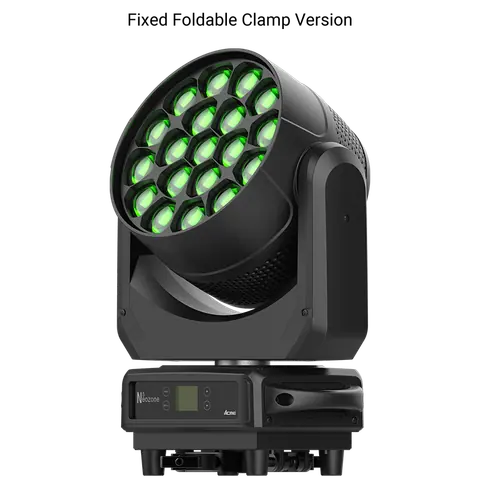

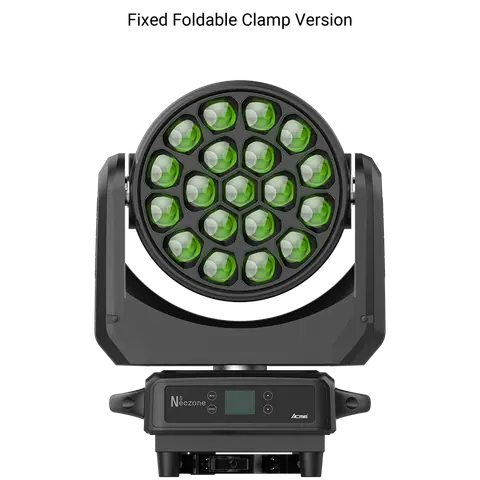

ModelCM 800Z

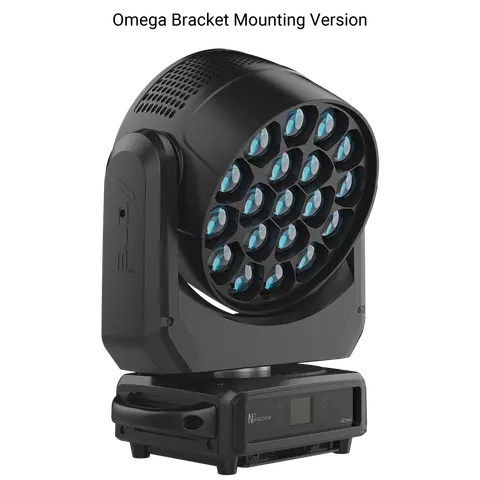

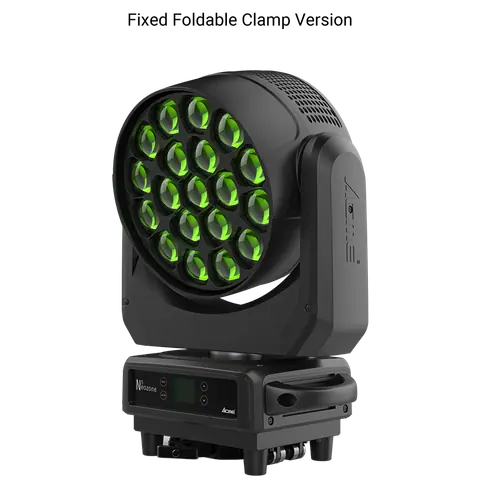

ACME NEOZONE , building on the historical ACME GLAMOUR series, delivering more punch and dynamic wash beam.

Light source: Osram 19 x 40W RGBW LED
Power consumption: 960W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP20

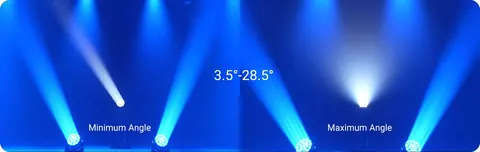

Beam angle / zoom: 3.5°-28.5°
DMX channels: 17/21/86/10+
Protocols: DMX512,RDM,Art-Net,sACN
Net weight: 20.0 kg (44.1 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

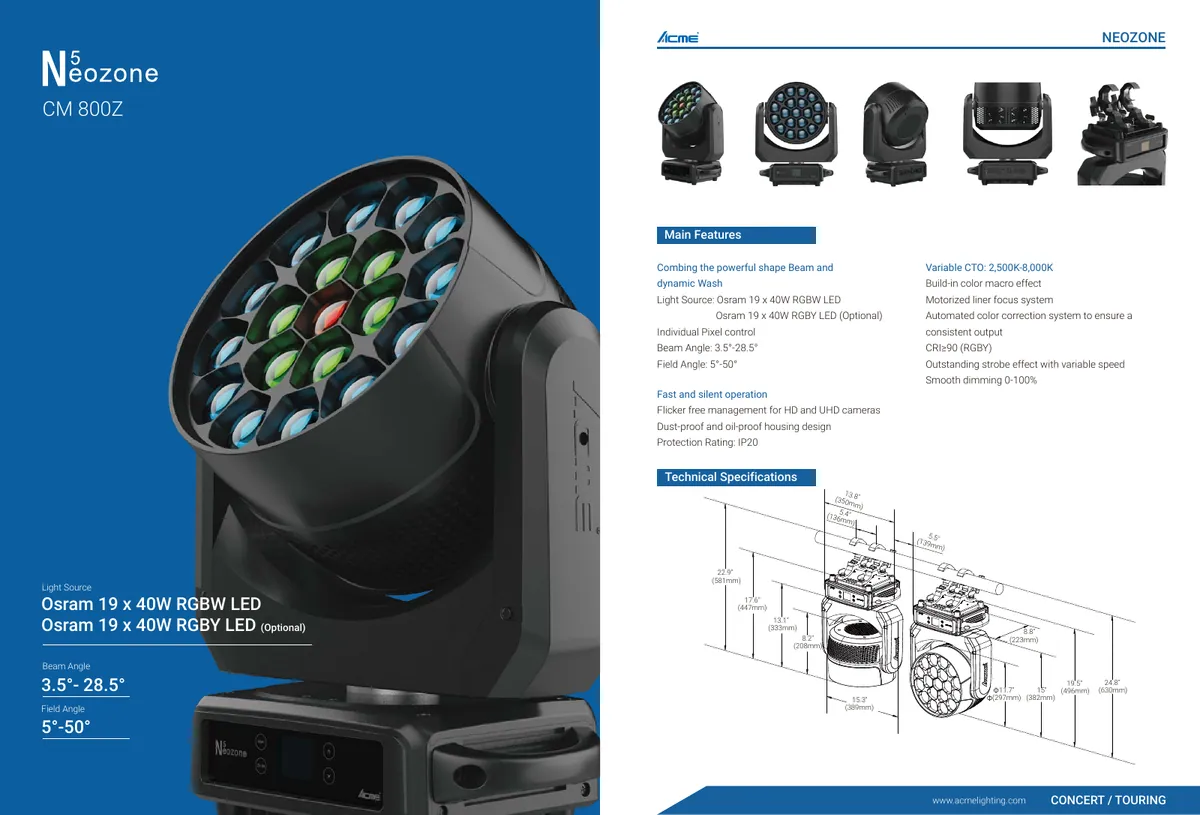

01SpecificationManufacturer's data · 17 groups · 66 values

What this product is, in numbers.

PDFDatasheetEN · 2 pages · 627 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: NEOZONE
Model Code: CM 800Z

02Version2

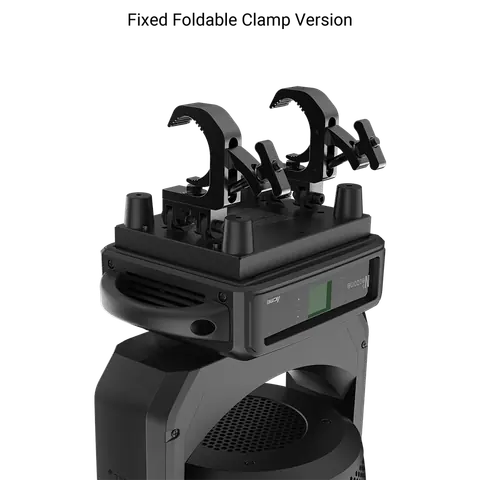

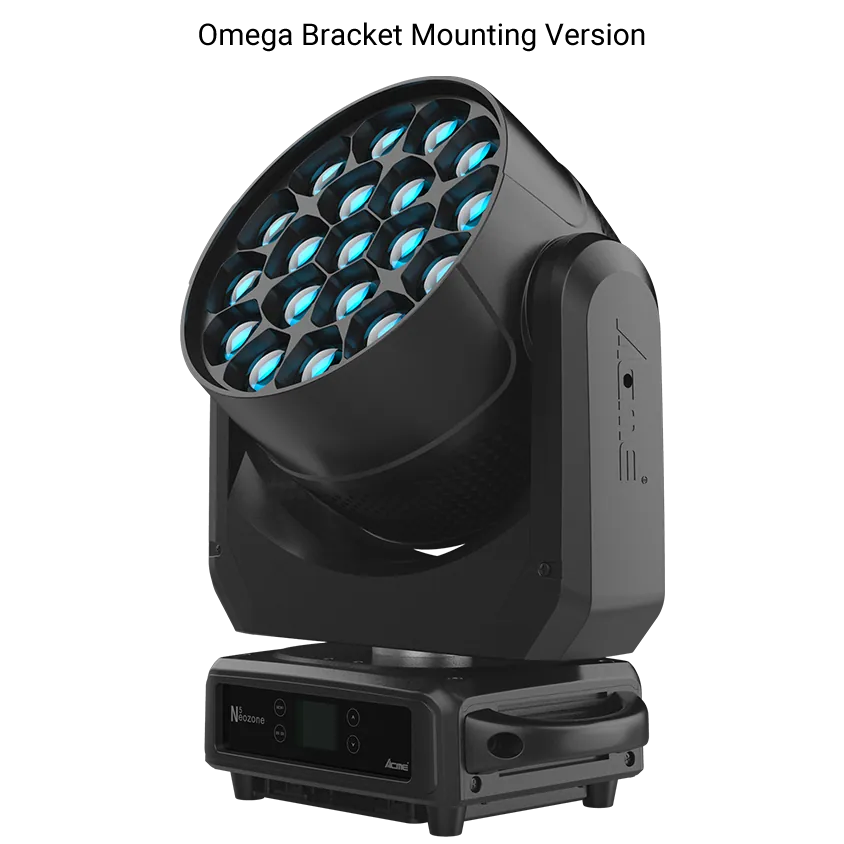

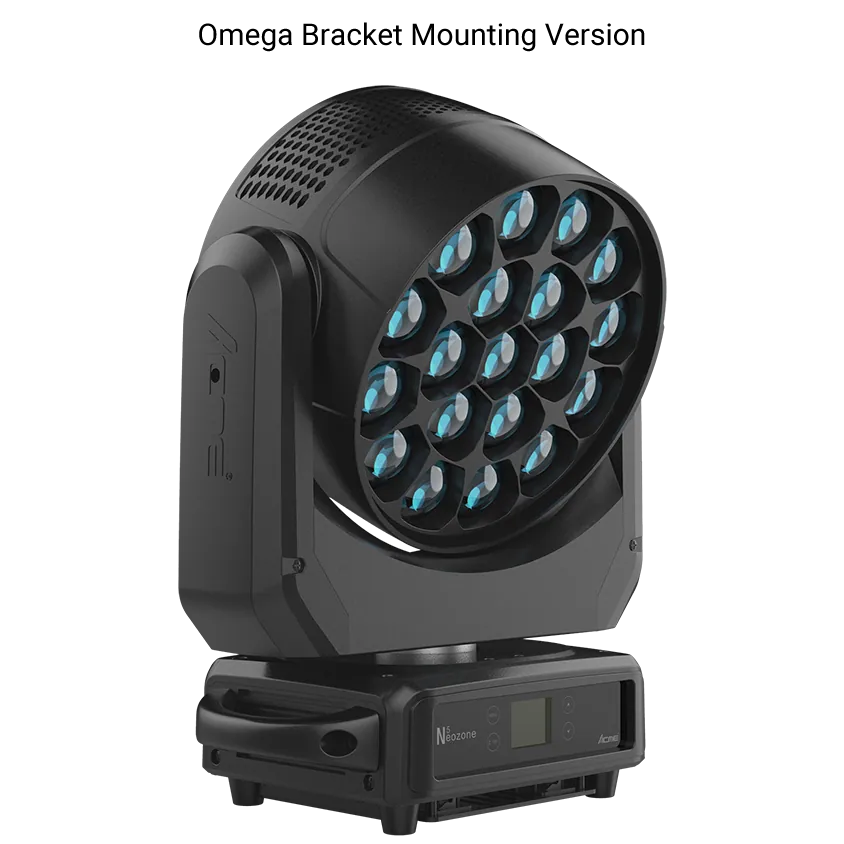

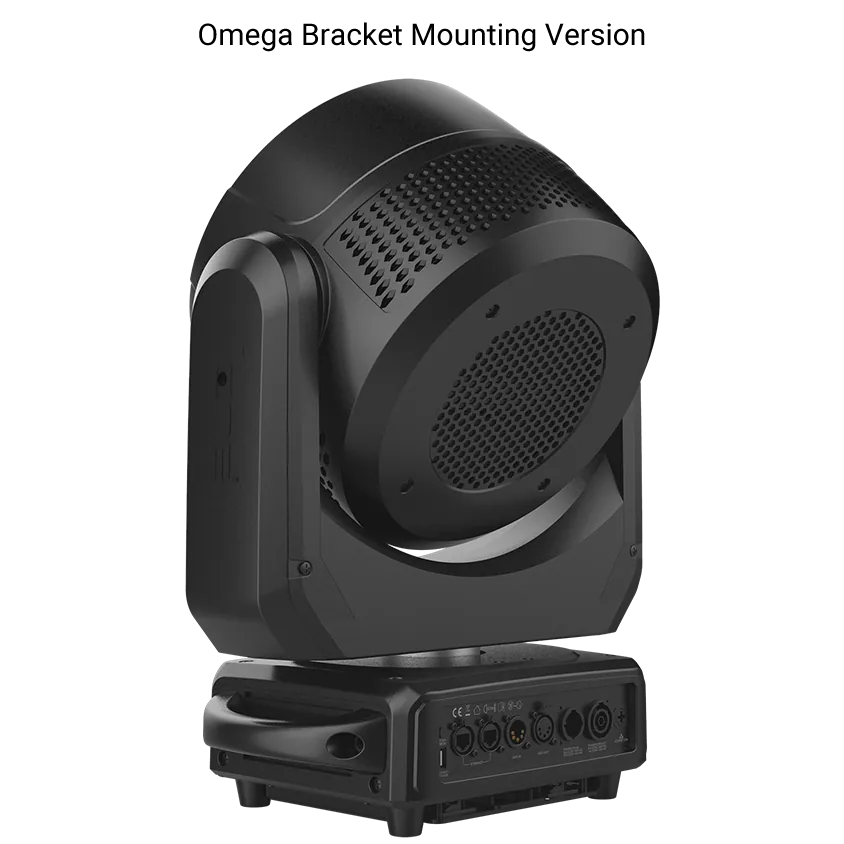

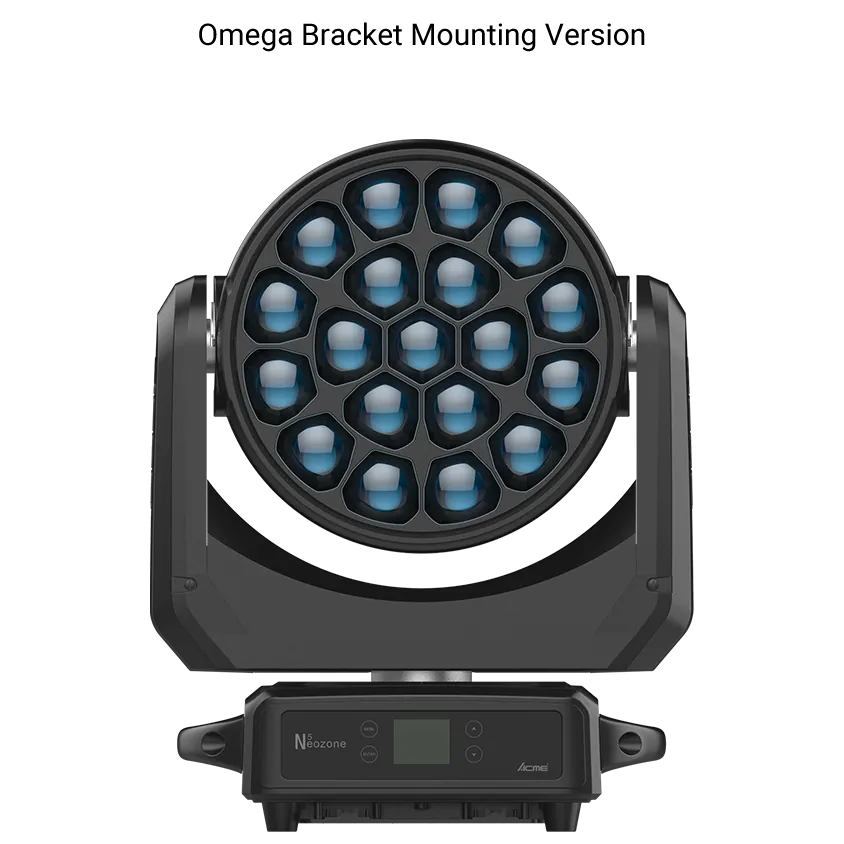

Version 1: CM 800Z (Omega Bracket Mounting)

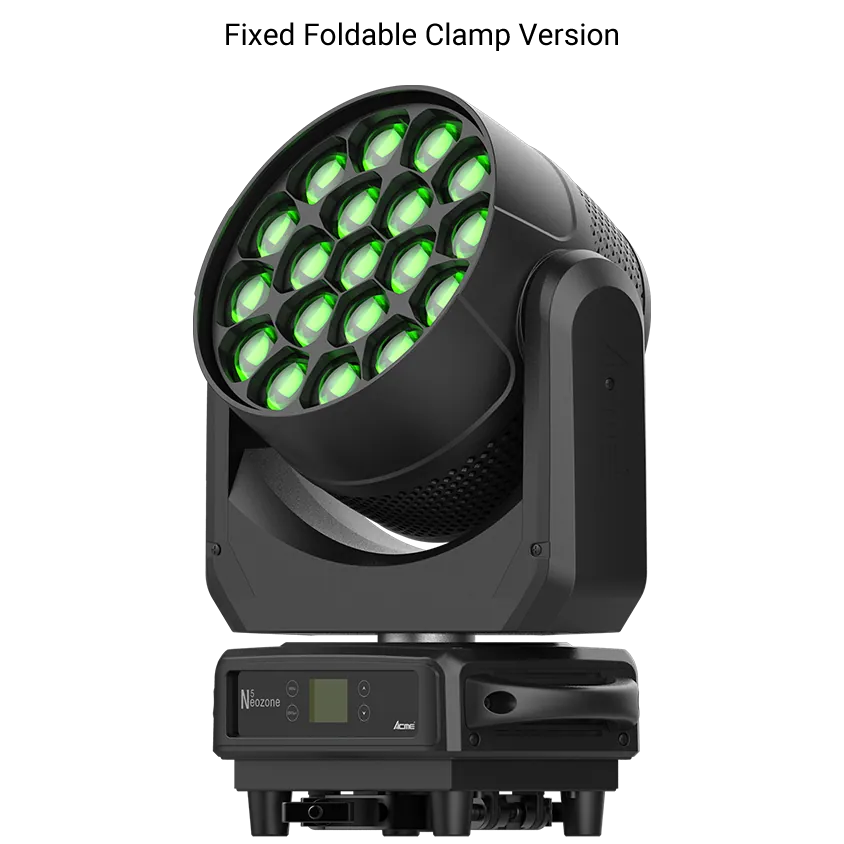

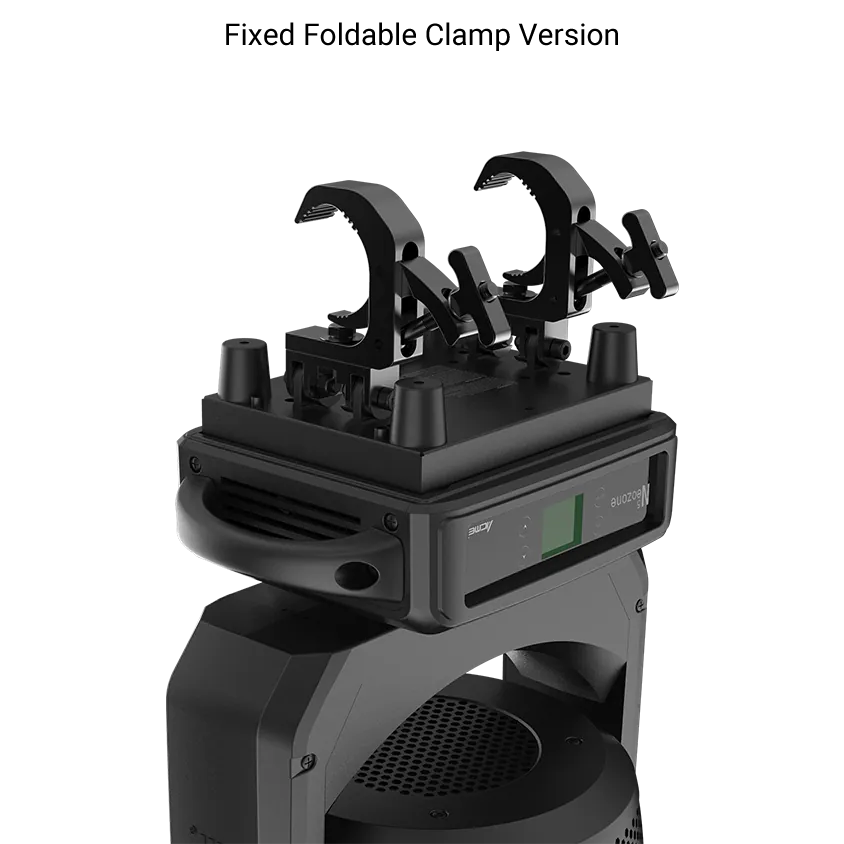

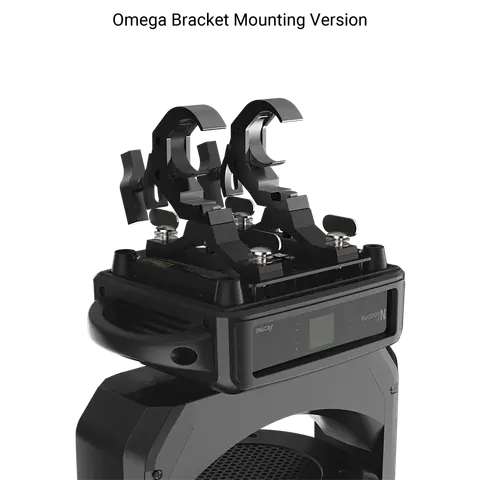

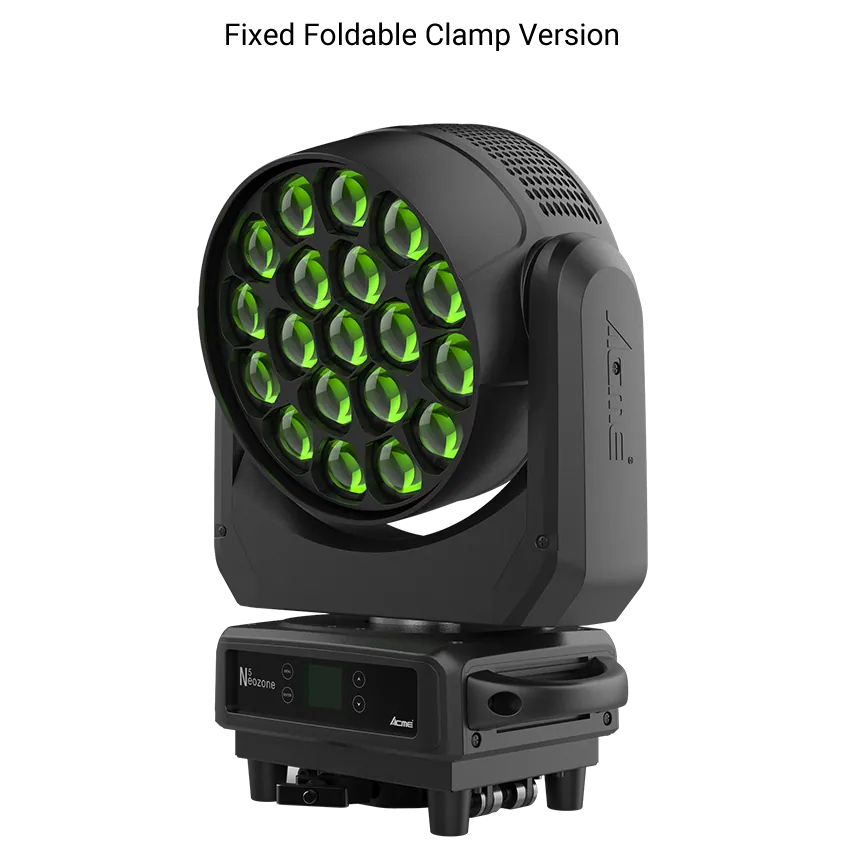

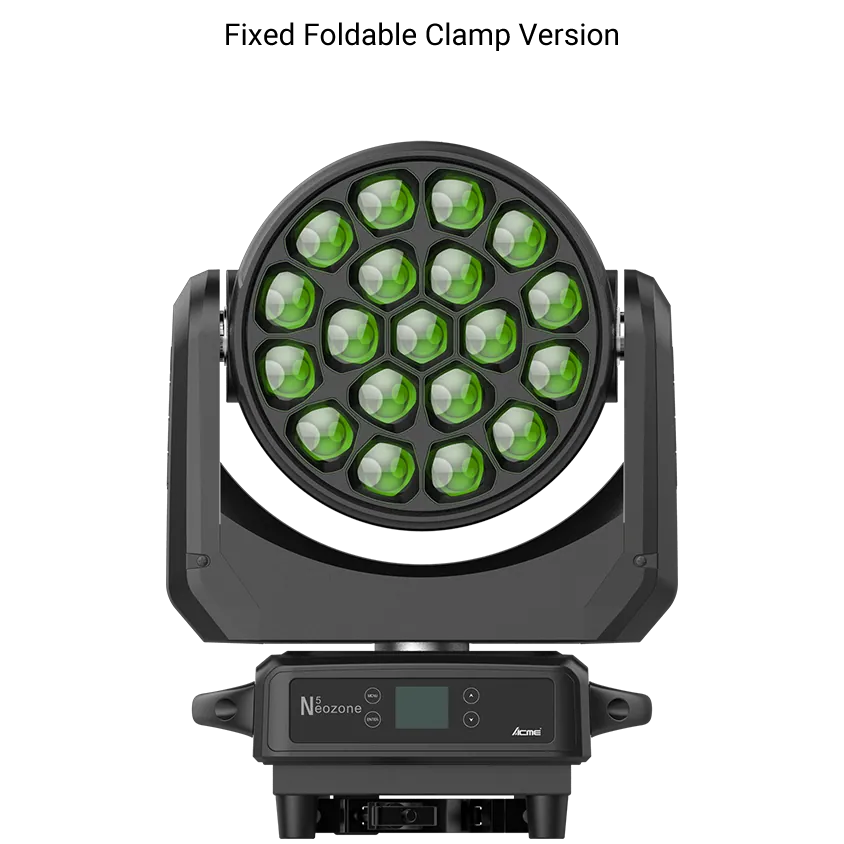

Version 2: CM 800Z (Fixed Foldable Clamp)

03Light Source3

Light Source: Osram 19 x 40W RGBW LED
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

04Photometric Data1

Total Lumen Output of Fixture: 11,200 lumens

05Optical System2

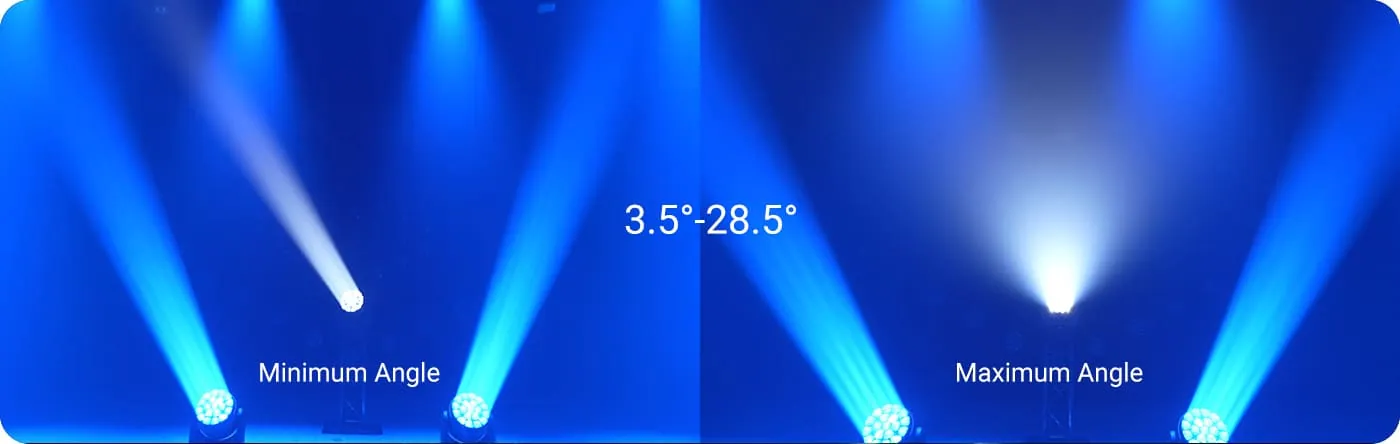

Beam Angle: 3.5°-28.5°

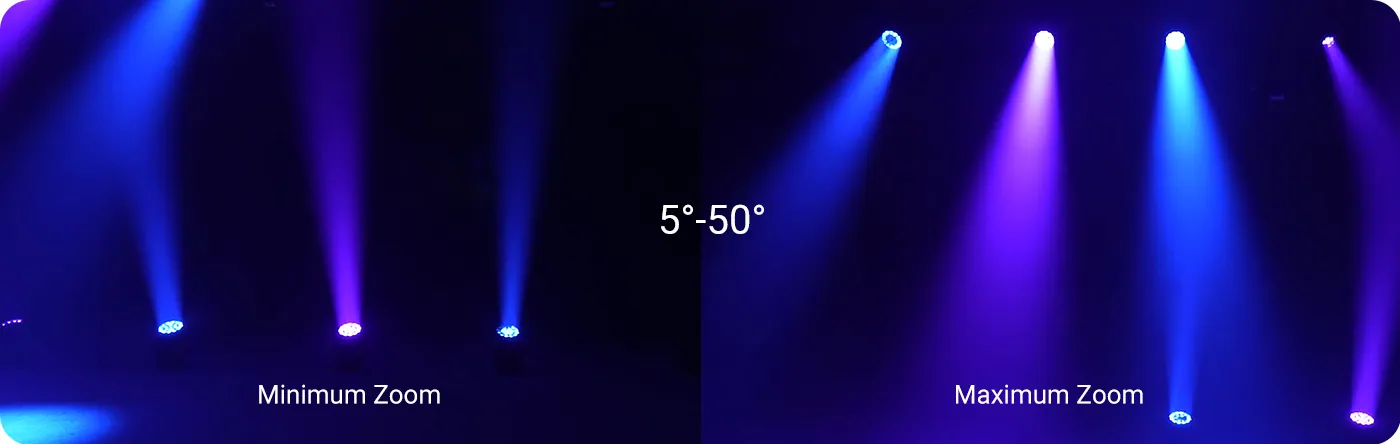

Field Angle: 5°-50°

06Control6

4 touch button control panel
Display: LCD display
Protocols: DMX512,RDM,Art-Net,sACN
DMX Protocol Modes: 4
Control Channels: 17/21/86/10+
Firmware Upgrade: Upgrade via DMX link or USB stick

Show the full specificationHide the rest of the specification11 more groups · 50 values

07Pan & Tilt5

Pan Movement: 540°
Tilt Movement: 220°; Automatic Pan/Tilt position correction
Resolution: 16 bit; Pan/Tilt lock

08Colors1

Linear CTO Color Correction: 2,500K-8,000K

09Other Effects5

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Motorized zoom

Combine beam and wash in one fixture

Individual pixel control and built-in color macro effect

10Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 960W
Power In/Out: Power connector in/out

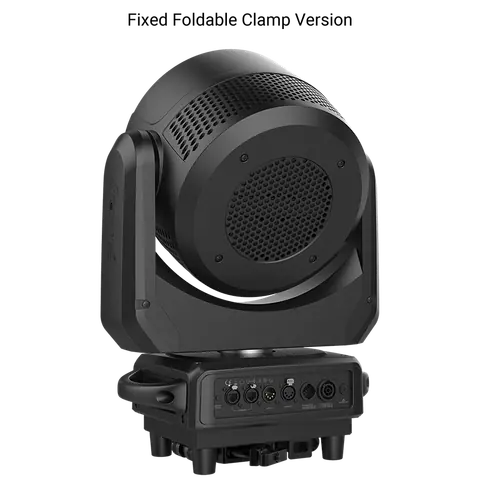

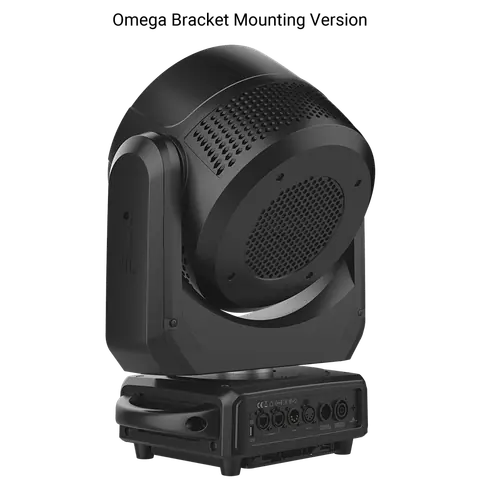

Data In/Out: 3-pin or 5-pin XLR,RJ45 connector

11Physical Information8

Fixture Dimension
Omega Bracket Mounting Version
Width: 390 mm (15.4")
Depth: 223 mm (8.8")
Height: 496 mm (19.5")
Weight: 20.0 kg (44.1 lbs)
Fixed Foldable Clamp Version
Width: 390 mm (15.3")
Depth: 223 mm (8.8")
Height: 531 mm (20.9")
Weight: 21.3 kg (47.0 lbs)

12Packing Information8

Flight Case Dimensions 1
Width: 910 mm (35.8")
Depth: 580 mm (22.8")
Height: 765 mm (30.1")
Weight
Standard: G.W.: 89.5 kg (197.3 lbs) (Two-pack loader case)
Flight Case Dimensions 2
Width: 1,220 mm (48.0")
Depth: 610 mm (24.0")
Height: 762 mm (30.0")
Weight
North American Standard: G.W.: 111.9 kg (246.7 lbs) (Two-pack loader case)

13Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: 0°C
Maximum Surface Temperature: 75°C
Protection Rating: IP20

14Approvals2

CE compliant

cETLus compliant

15Installation4

Horizontal or vertical mounting

Universal working position

2 omega brackets

Safety cable attachment point

16Included Items3

Digital user manual

Power cable

2 omega brackets (3002000288-B)

17Optional Accessories (With Order Code)6

Flight Case 1
Standard: Two-pack loader case (63583581)
Flight Case 2
North American Standard: Two-pack loader case (63583201)
Clamp: C-250B (2060001632-B)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin or 5-pin signal cable
Raincover: 3033001749

02DescriptionManufacturer's description

What it is.

ACME NEOZONE , building on the historical ACME GLAMOUR series, delivering more punch and dynamic wash beam. Driven by 19, independently pixel controlled, 40W RGBW LEDs, variable CTO from 2,500K to 8,000K, delivering over 11,200 lumens of full-on output to provides a gorgeous wash beam that stands out on any stage. With a zoom range ratio of 1:8, it provides intense and well-defined mid-air beams as an exceptionally wide and even wash coverage, making it a perfect fixture for any application , even in outdoor stadium conditions. We have added more advanced correction of color uniformity technology which keeps NEOZONE at uniform color performance to solve the mixture of batch problems. Being exceptionally quiet moving with the new smooth step motors, and advanced cooling in house design, flicker-free adjustable management design for HD cameras, the fixture is ideal for live Stage, TV shows, art performing, etc.
