Sheet 05.662

ACME · Wash

AUTOLUX

ModelAUTO 600

Designed for powerful white washes across large areas, the ACME AUTOLUX sets a new standard in performance and control, offering outstanding motion stabilization and creative flexibility.

Light source: 600W LED engine
Power consumption: 865W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP20
Beam angle / zoom: 11°-42°
DMX channels: 25
Protocols: DMX512,RDM
Colour temperature: 6,200K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:49

ACME AUTOLUX1:49

02SpecificationManufacturer's data · 19 groups · 64 values

What this product is, in numbers.

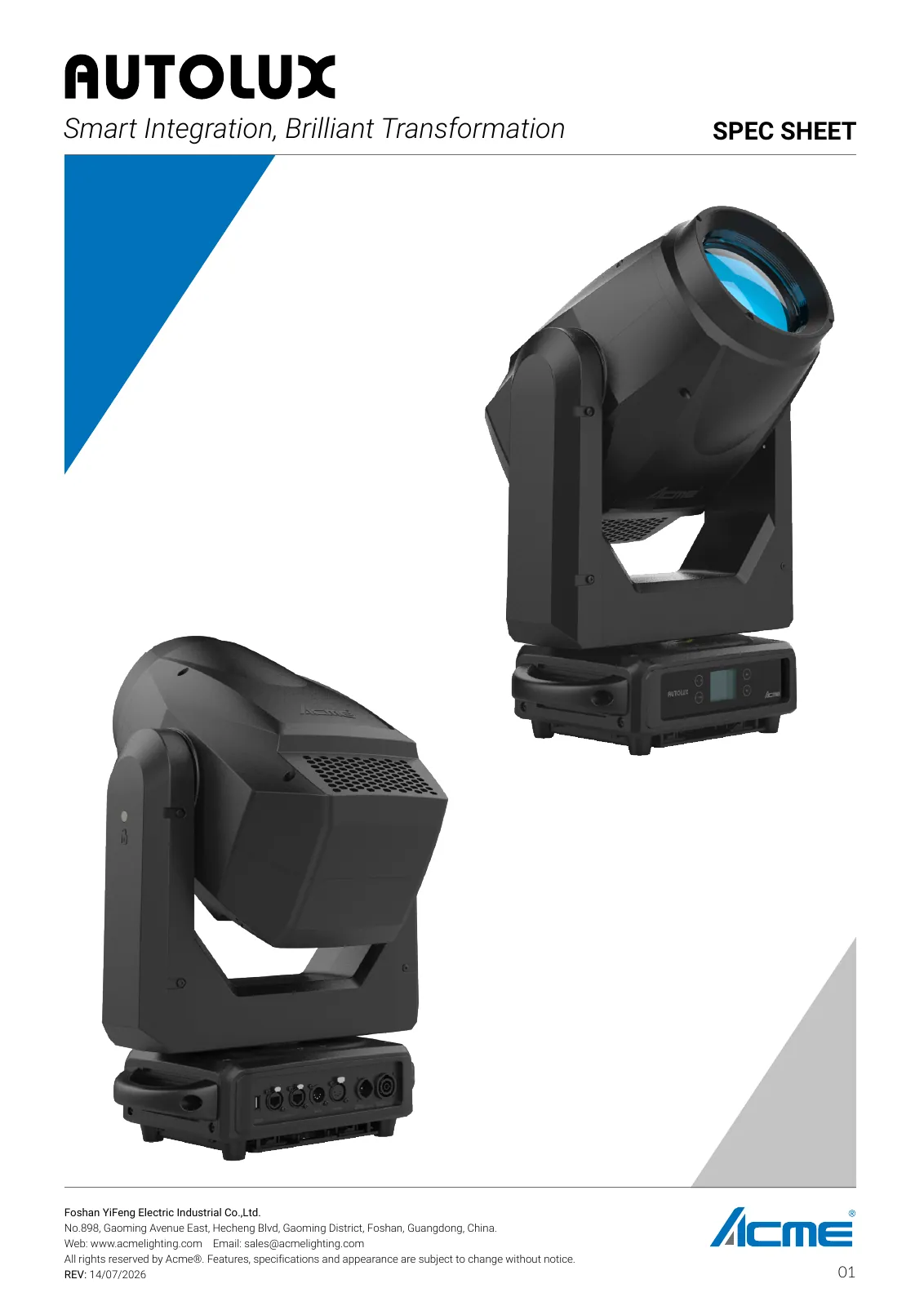

PDFDatasheetEN · 12 pages · 1.7 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: AUTOLUX
Model Code: AUTO 600

02Light Source4

Light Source: 600W LED engine
Color Temperature Output of Fixture: 6,200K
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data4

Total Lumen Output of Fixture
Super Power Mode: 22,000 lumens
Auto Mode: 18,100 lumens
Quiet Mode: 14,000 lumens
Color Rendering: Ra≥90

04Optical System2

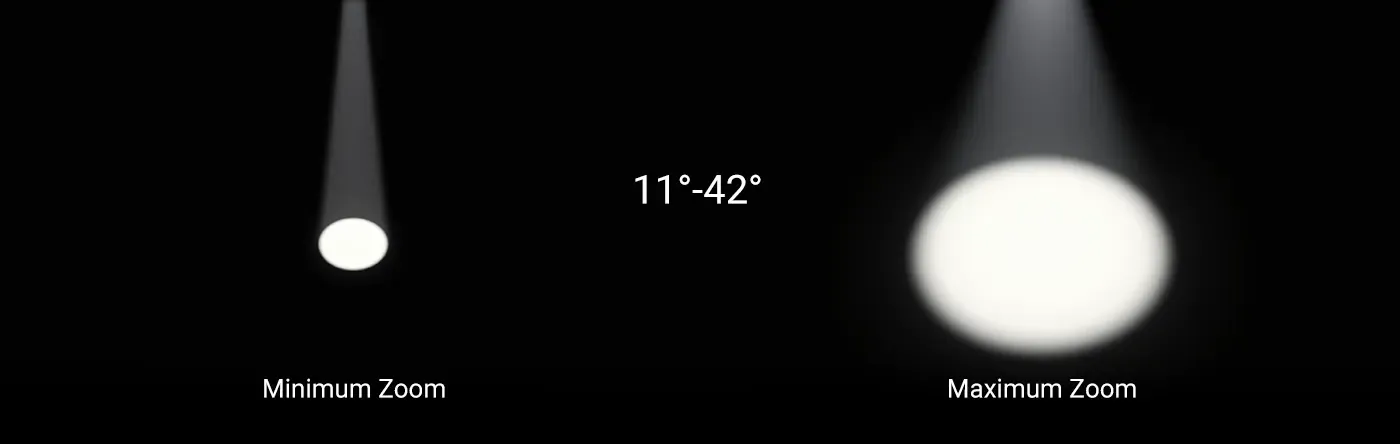

Zoom Range: 11°-42°
Diameter of Frontal Lens: 150 mm

05Control6

4 touch button control panel
Display: LCD display
Protocols: DMX512,RDM
DMX Protocol Modes: 1
Control Channels: 25
Firmware Upgrade: Upgrade via DMX link or USB stick

06Pan & Tilt3

Pan Movement: 540°
Tilt Movement: 270°
Resolution: 16 bit

Show the full specificationHide the rest of the specification13 more groups · 43 values

07Colors2

Linear CTO Color Correction: 2,700K-6,200K
1 Color Wheel: 6 colors, plus open

08Frost Filter1

1 frost filter

09Framing System2

Shutter Blades: 4 blades, each with separate movement and full blackout
Rotation: ±60° of the complete framing system

10Other Effects4

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Power cycle position holding function

Free moving mode for outstanding motion stabilization

11Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 865W
Power In/Out: Power connector in/out

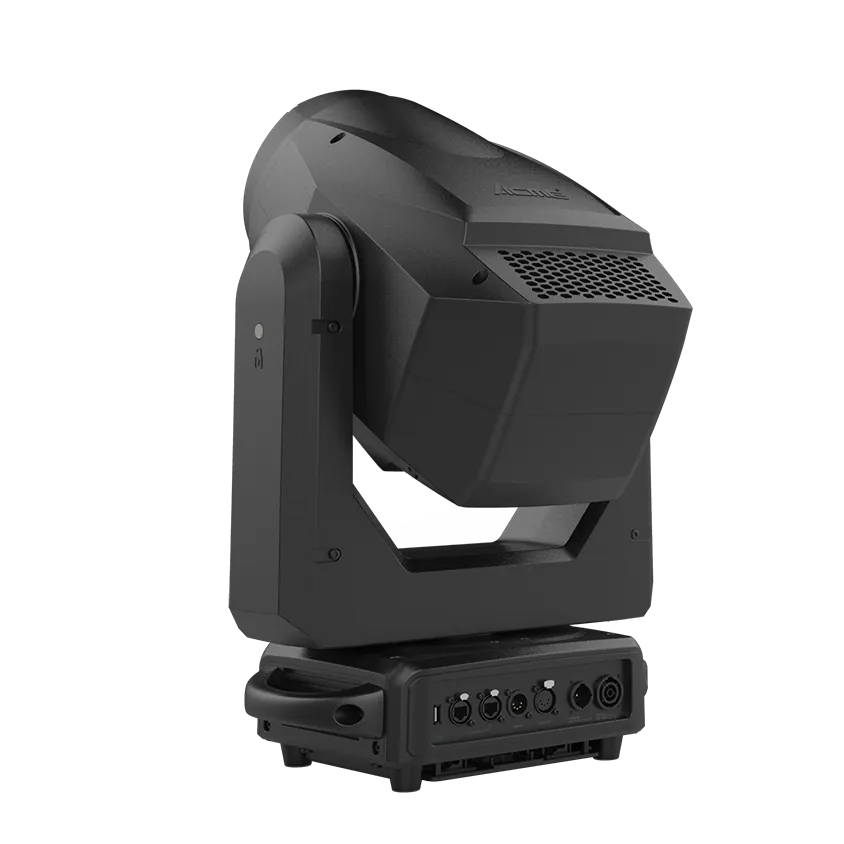

Data In/Out: 3-pin or 5-pin XLR,RJ45 connector

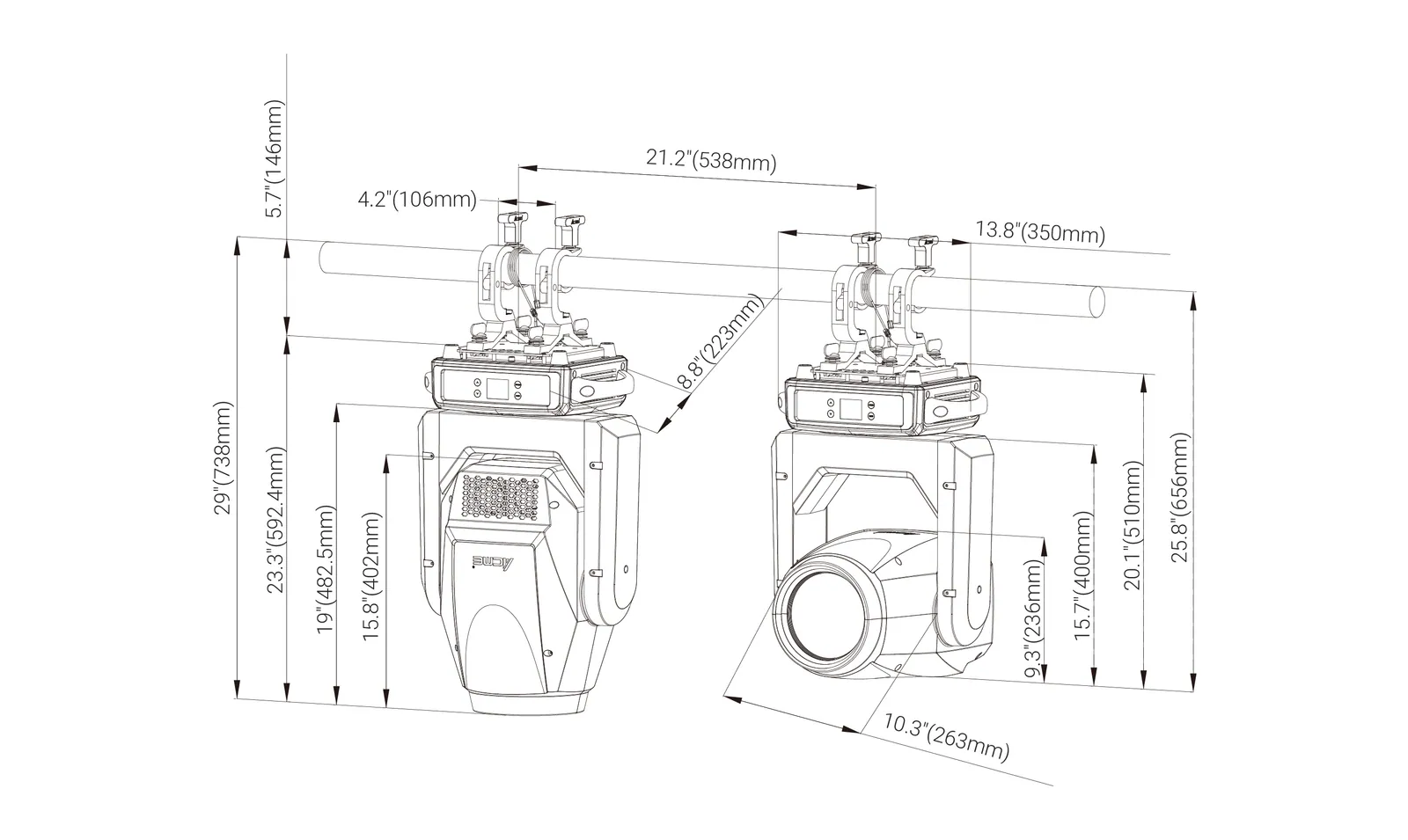

12Physical Information4

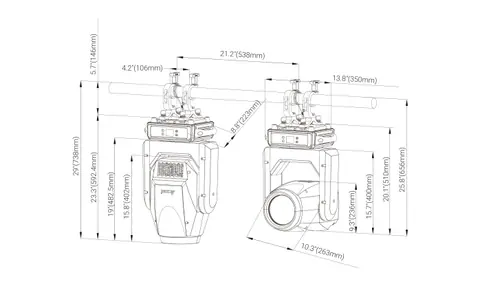

Fixture Dimensions
Width: 376 mm (14.8")
Depth: 236 mm (9.3")
Height: 592 mm (23.3")
Weight: 22 kg (48.5 lbs)

13Packing Information7

Flight Case Dimensions
Width: 940 mm (37")
Depth: 580 mm (22.8")
Height: 775 mm (30.5")
Carton Dimensions
Width: 510 mm (20.1")
Depth: 485 mm (19.1")
Height: 675 mm (26.6")
Weight
G.W.: 28 kg (61.7 lbs) (one-pack loader carton)

14Work Environment4

Maximum Ambient Temperature: 45°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 70°C
Protection Rating: IP20

15Approvals2

CE compliant

UKCA compliant

16Acoustic Data3

Noise Level
Super Power Mode: 50 dB(A) @ 1 m
Auto Mode: 41 dB(A) @ 1 m
Quiet Mode: 35 dB(A) @ 1 m

17Installation3

Universal working position

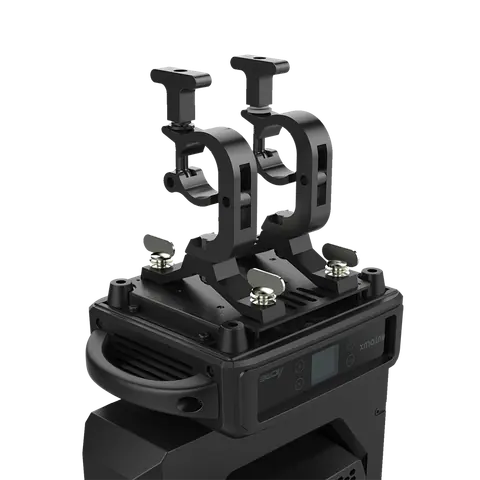

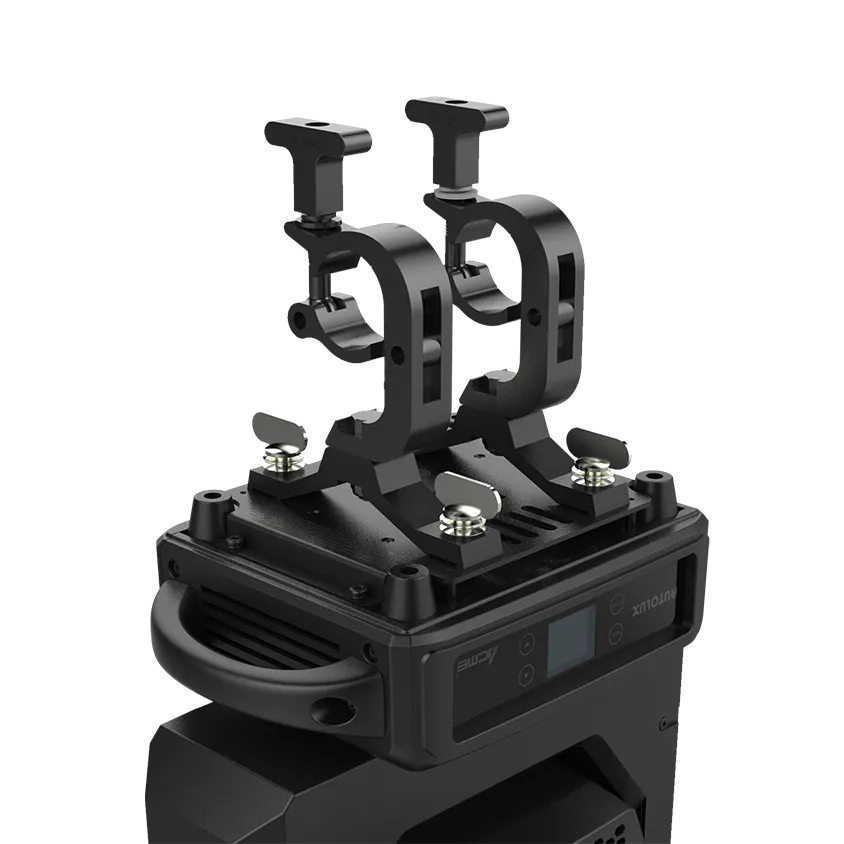

2 omega brackets

Safety cable attachment point

18Included Items3

Digital user manual

Power cable

2 omega brackets (3002000288-B)

19Optional Accessories (With Order Code)4

Flight Case
Standard: Two-pack loader case (63584443)
Clamp: C-250B (2060001632-B)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin or 5-pin signal cable

03DescriptionManufacturer's description

What it is.

Equipped with a 600W LED engine and a 150 mm frontal lens, the fixture delivers exceptional brightness to any stage. With a wide zoom range from 11° to 42°, it offers seamless transitions from sharp beams and uniform washes. A crisp 6,200K color temperature delivers stunning clarity, while high CRI ensures accurate and vivid color rendering.

For creative flexibility, the AUTOLUX features a color wheel, a frost filter, and a variable CTO for smooth transitions from warm to cool tones. Four individually controllable shutter blades enable precise beam shaping with soft, smooth edge.

Engineered for precise pan and tilt movements, the AUTOLUX guarantees exceptional accuracy in positioning for dynamic performances. What sets the fixture apart is its power cycle position holding function – a standout innovation that allows the fixture to automatically restore the previous settings upon power-up, even without signal control. In addition, a dedicated repositioning button prevents unintentional movement during transport and storage.

With its breakthrough positioning technology and no need for console data recall, the AUTOLUX is the ultimate “set-and-forget” solution—perfect for auto shows, fashion runways, and other roadshows.
