Sheet 05.759

ACME · Effects and lasers

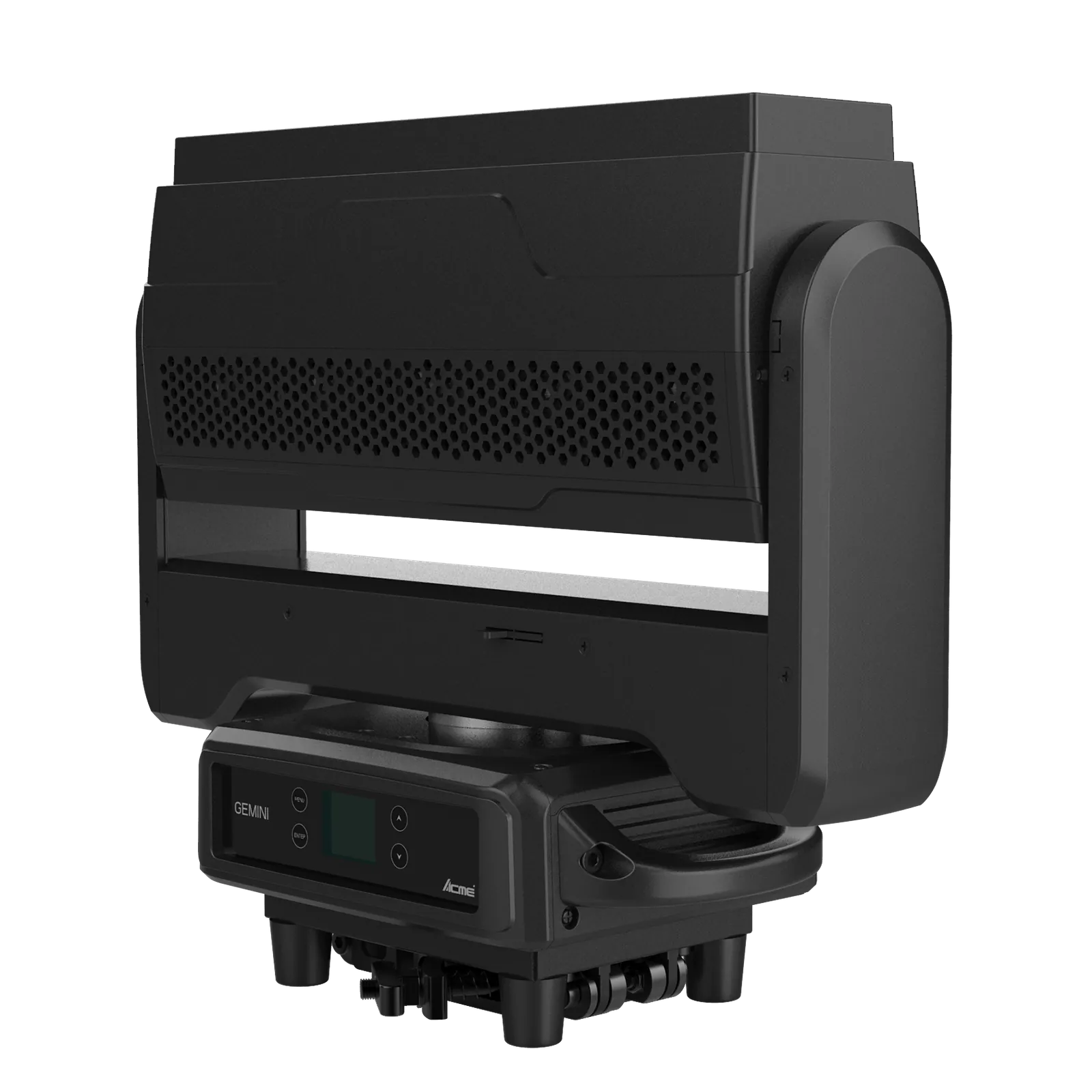

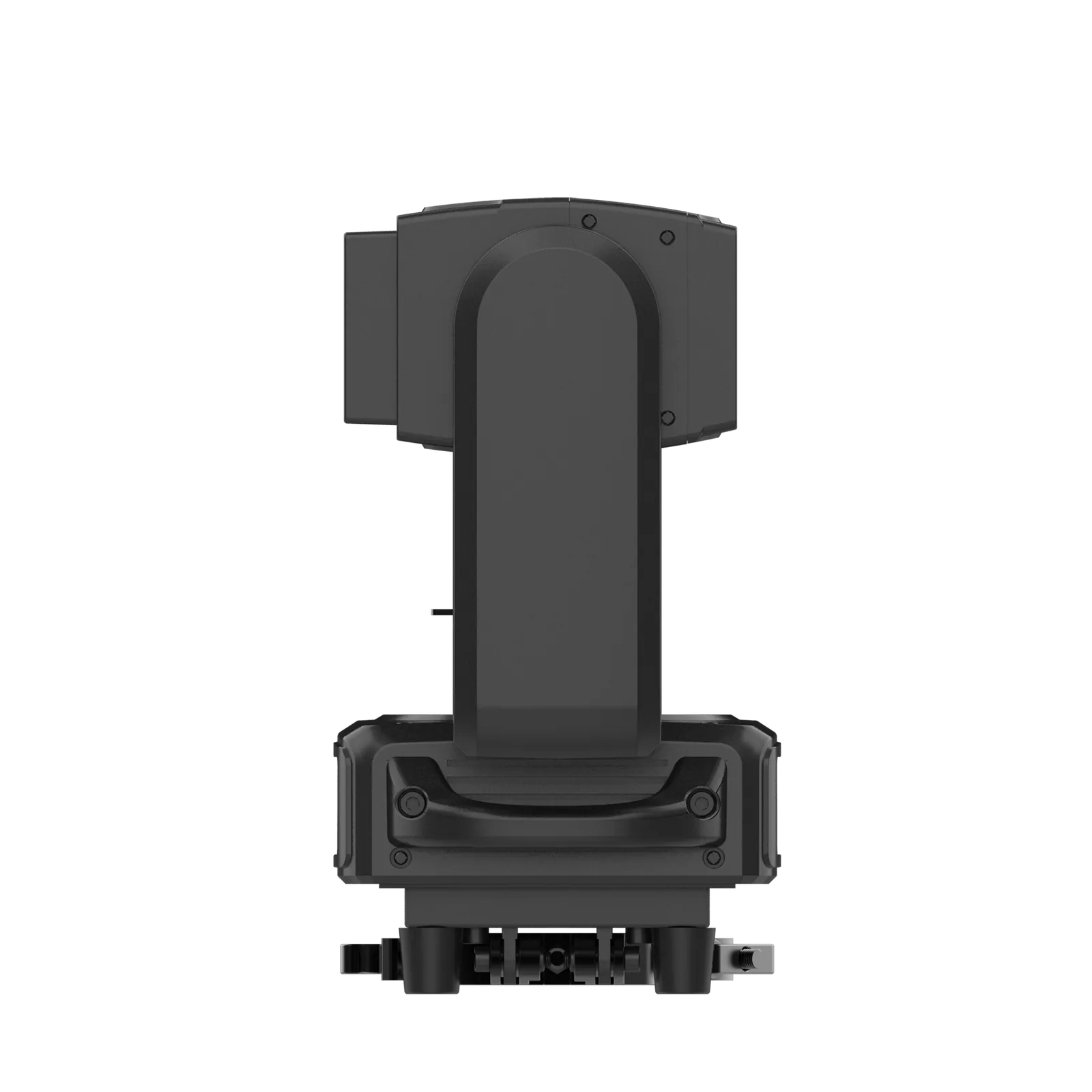

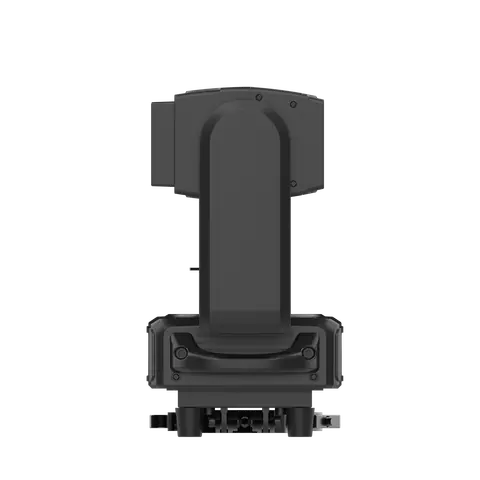

GEMINI

ModelCM 560Z

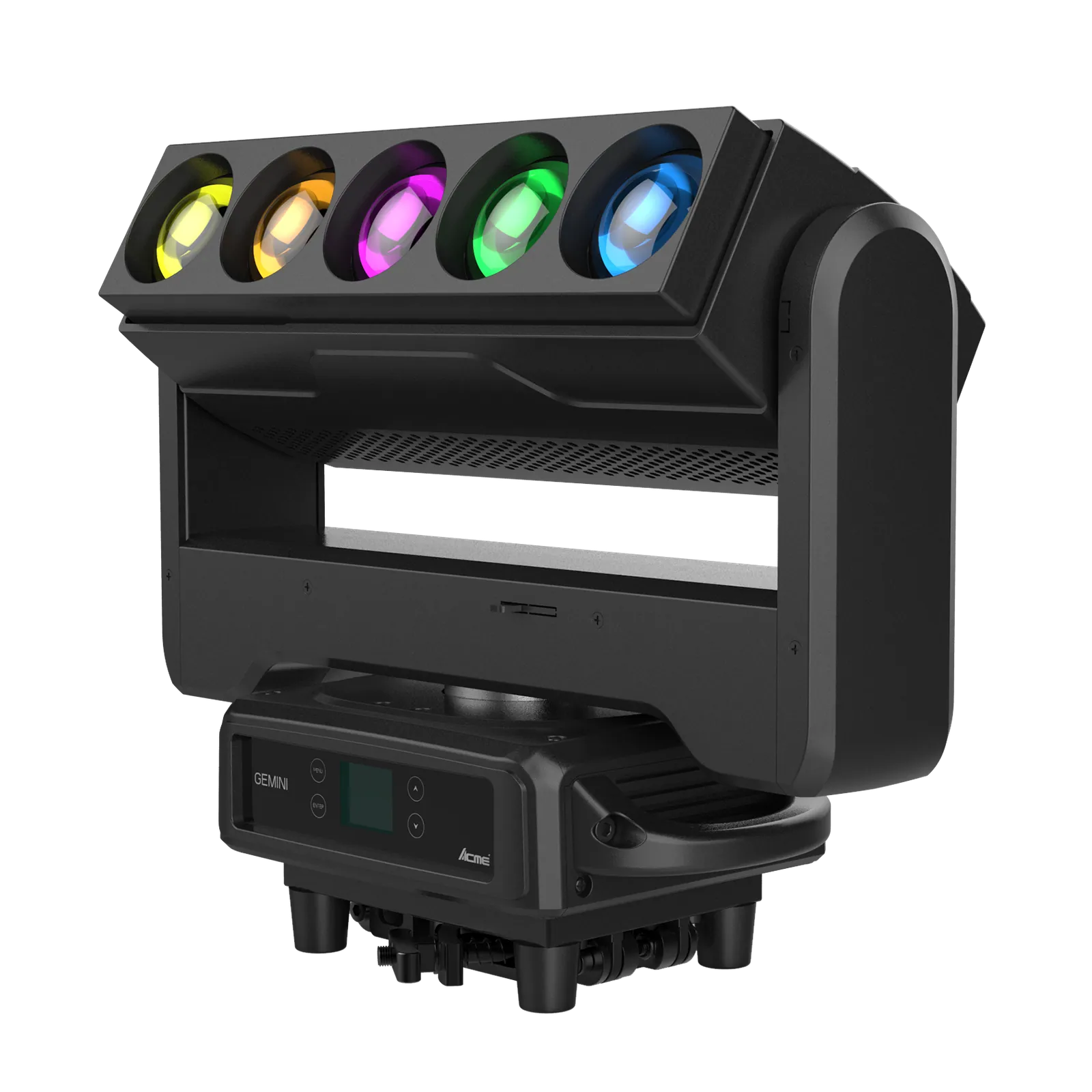

The ACME GEMINI fixture is a dual-functional, bar and strobe fixture with no limits. Whether your needs are a pan and tilt zoomable color light bar or bright strobe fixture the GEMINI provides both in a compact, form-factor luminaire.

Light source: 5 x 60W RGBW LED
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP20
DMX channels: 58/25/23/35+/27/70/55
Protocols: DMX512,RDM,Art-Net,sACN
Net weight: 19.5 kg (43.0 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:27

ACME GEMINI2:27

02SpecificationManufacturer's data · 15 groups · 60 values

What this product is, in numbers.

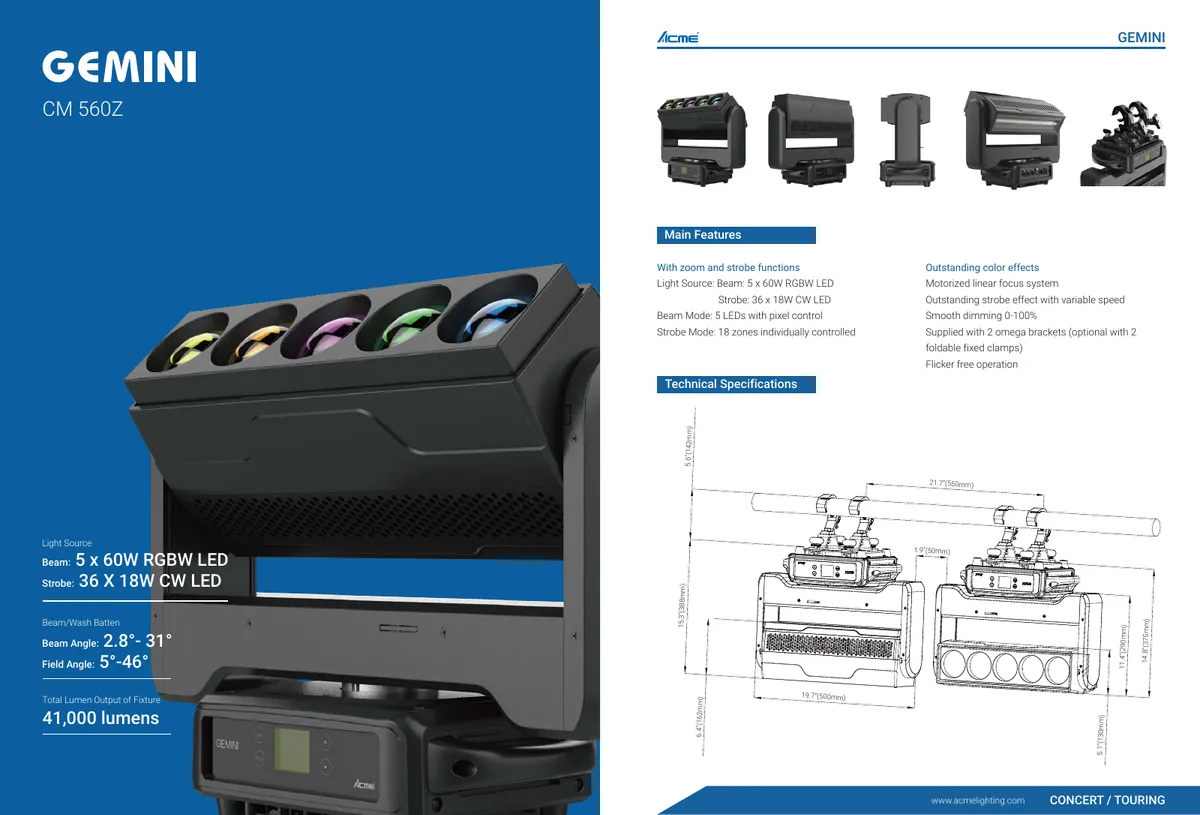

PDFDatasheetEN · 2 pages · 511 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: GEMINI
Model Code: CM 560Z

02Light Source4

Light Source
Beam: 5 x 60W RGBW LED
Strobe: 36 x 18W CW LED
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data1

Total Lumen Output of Fixture: 41,000 lumens

04Optical System4

Beam Angle
Beam/Wash Batten: 2.8°- 31°
Strobe: 96°
Field Angle
Beam/Wash Batten: 5°-46°
Strobe: 116°

05Control6

4 touch button control panel
Display: LCD display
Protocols: DMX512,RDM,Art-Net,sACN
DMX Protocol Modes: 7
Control Channels: 58/25/23/35+/27/70/55
Firmware Upgrade: Upgrade via DMX link

06Pan & Tilt4

Pan & Tilt Movement: Infinite; Automatic Pan/Tilt position correction
Resolution: 16 bit; Pan/Tilt lock

Show the full specificationHide the rest of the specification9 more groups · 39 values

07Other Effects4

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Motorized linear iris

Motorized zoom

08Electrical and Connectors6

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption
Total power consumption: 1,240W
Beam power consumption: 460W
Strobe power consumption: 820W
Power In/Out: Power connector in/out
Data In/Out: 3-pin or 5-pin XLR,RJ45 connector

09Physical Information4

Fixture Dimensions
Width: 130 mm (5.1")
Depth: 500 mm (19.7")
Height: 420 mm (16.5")
Weight: 19.5 kg (43.0 lbs)

10Packing Information8

Flight Case Dimensions 1
Width: 1,250 mm (49.2")
Depth: 585 mm (23.0")
Height: 620 mm (24.4")
Weight
Standard: G.W.: 132 kg (291.0 lbs) (Four-pack loader case)
Flight Case Dimensions 2
Width: 1,220 mm (48.0")
Depth: 610 mm (24.0")
Height: 775 mm (30.5")
Weight
North American Standard: G.W.: 162.0 kg (357 lbs) (Four-pack loader case)

11Work Environment4

Maximum Ambient Temperature: 45°C
Minimum Operating Temperature: 0°C
Maximum Surface Temperature: 65°C
Protection Rating: IP20

12Approvals2

CE compliant

cETLus compliant

13Installation4

Horizontal or vertical mounting

Universal working position

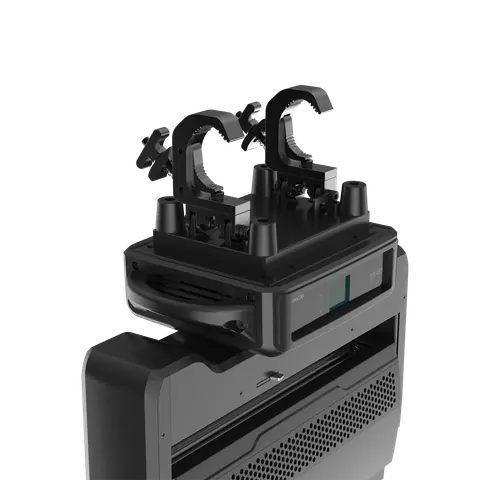

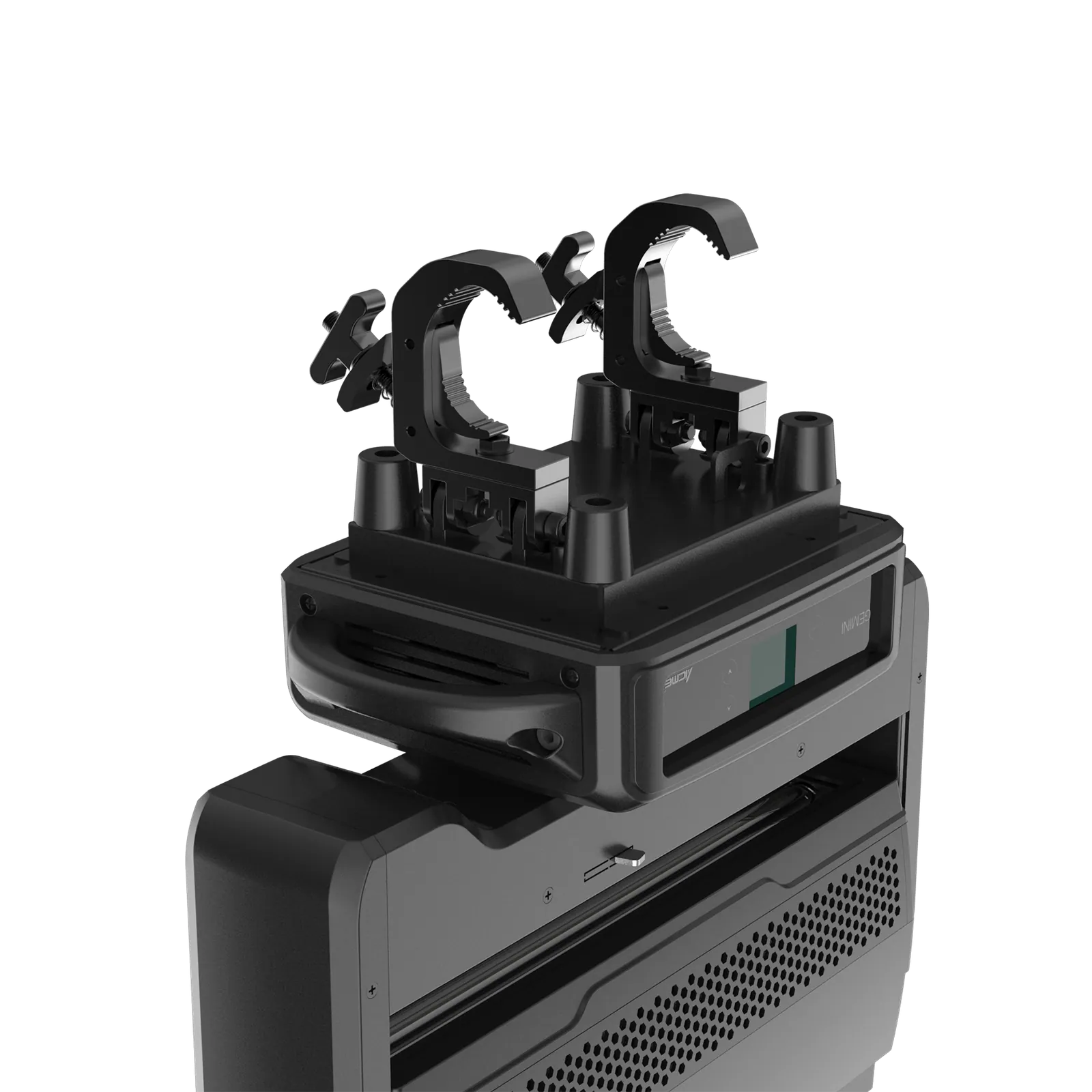

2 omega brackets

Safety cable attachment point

14Included Items3

Digital user manual

Power cable

2 omega brackets (3002000288-B)

15Optional Accessories (With Order Code)4

Flight Case 1
Standard: Four-pack loader case (63582647)
Flight Case 2
North American Standard: Four-pack loader case (63582906)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin or 5-pin signal cable

03DescriptionManufacturer's description

What it is.

GEMINI. A dual-purpose effects fixture.

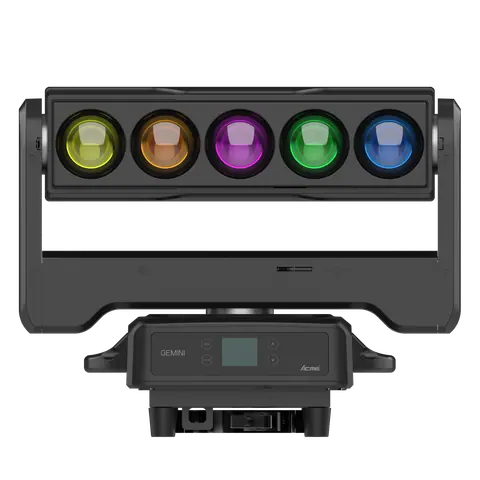

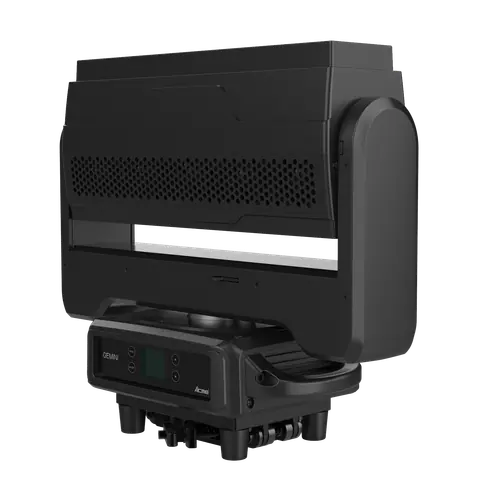

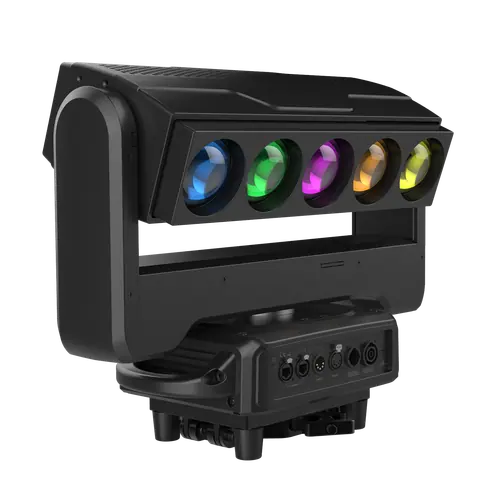

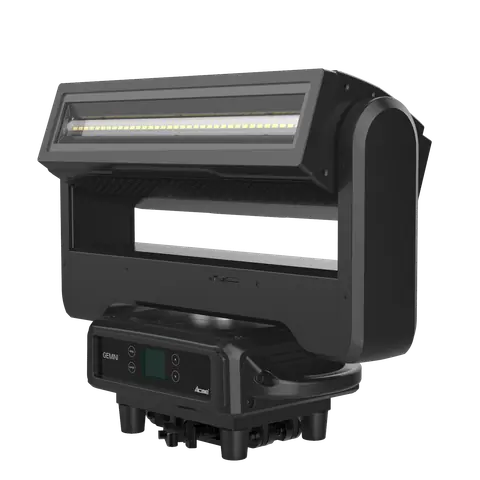

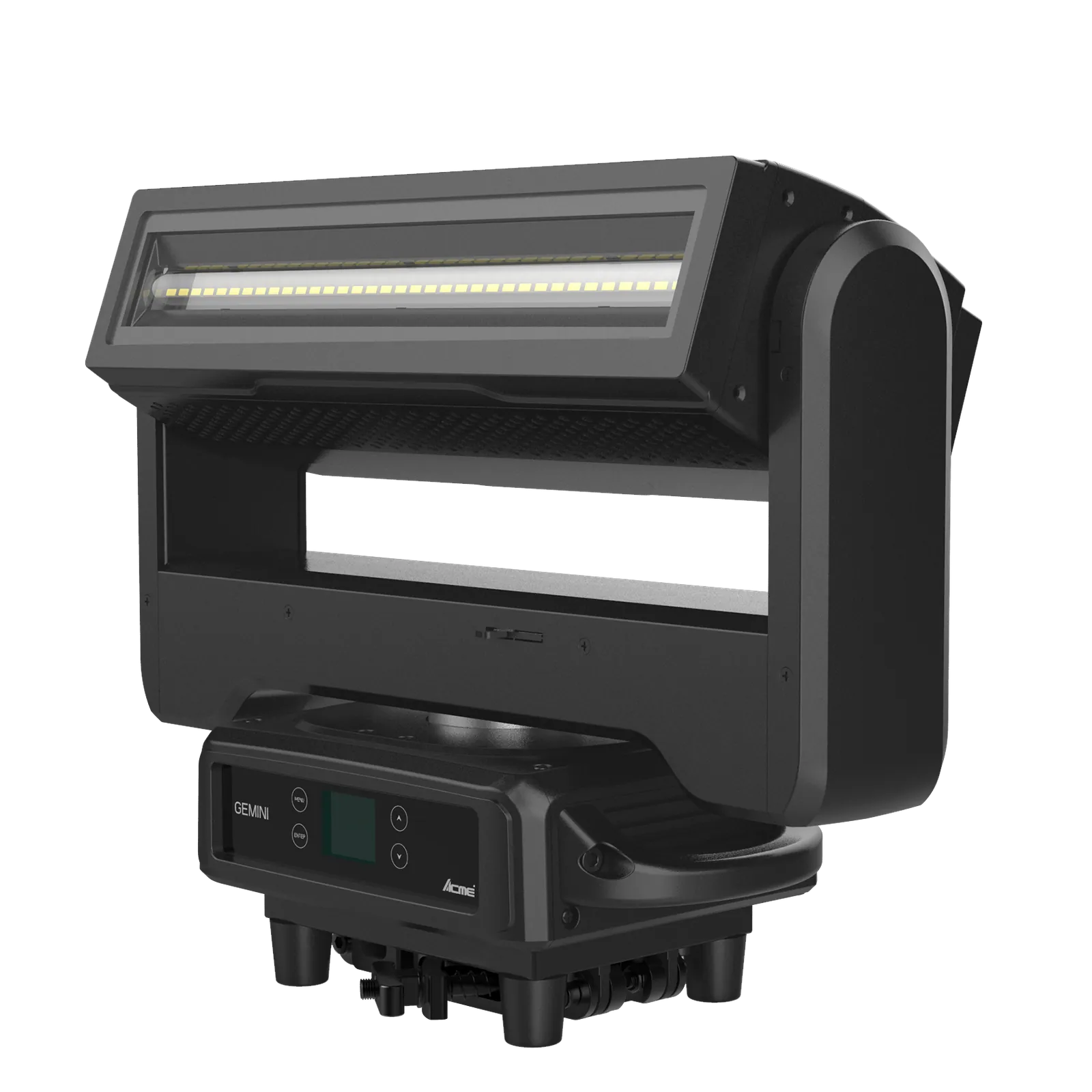

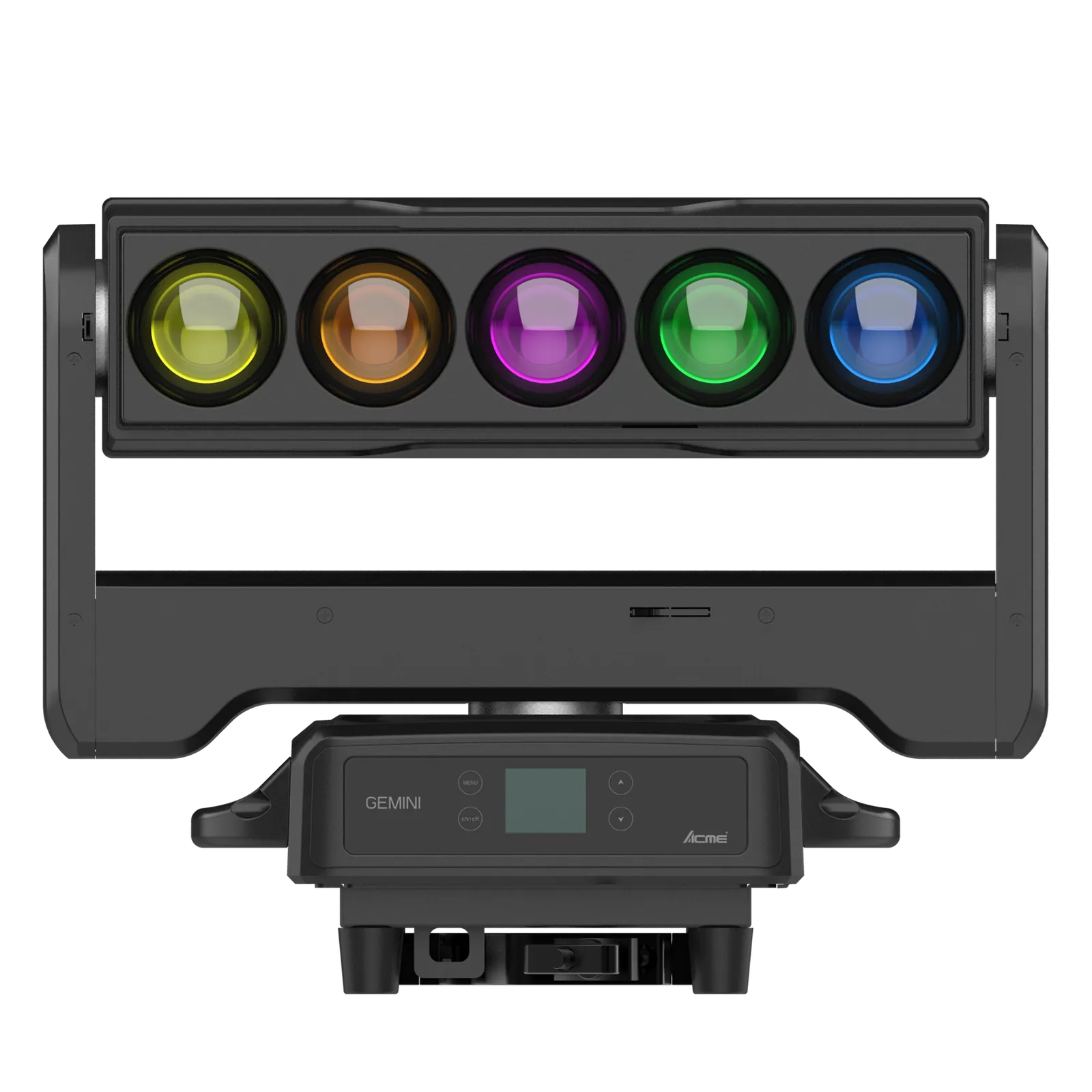

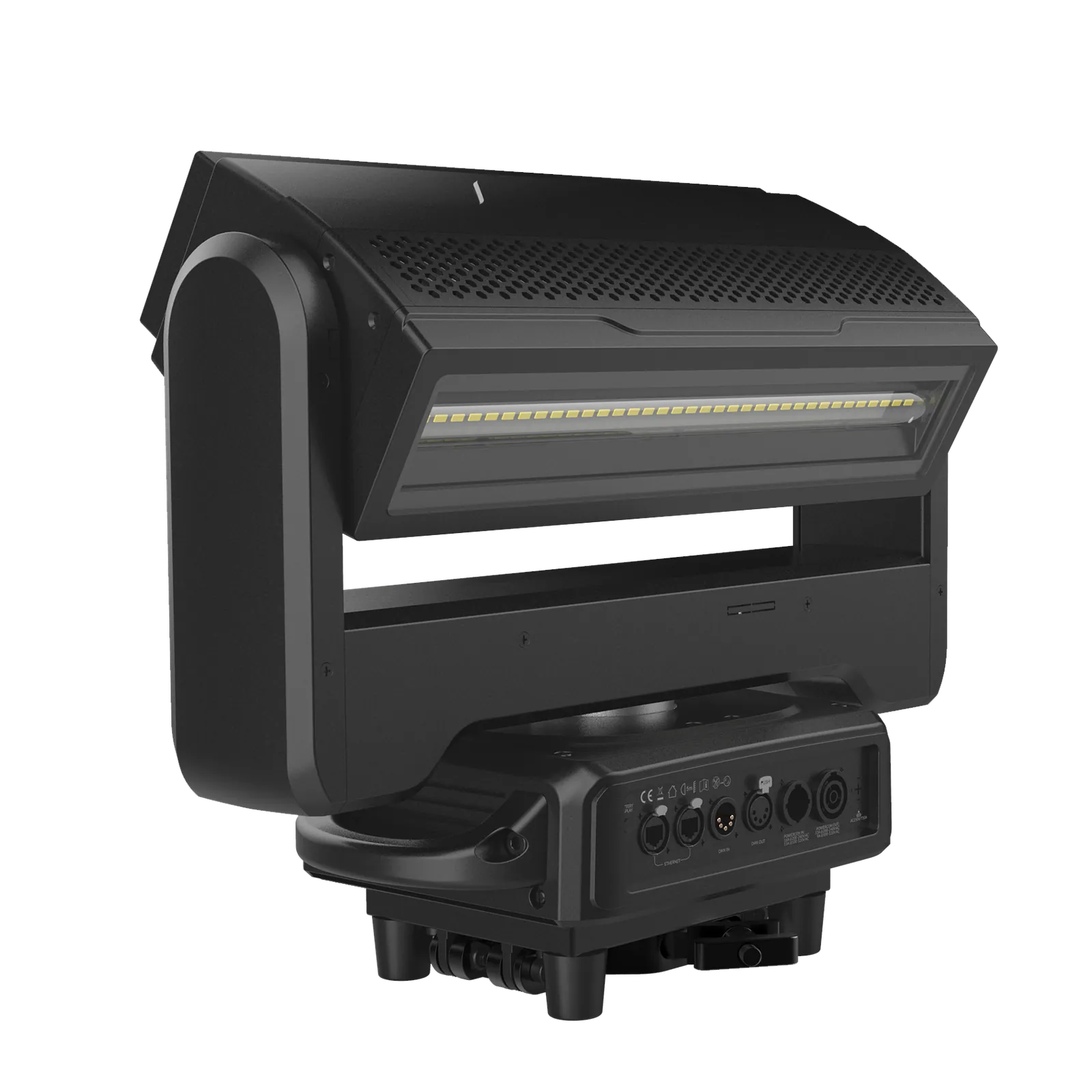

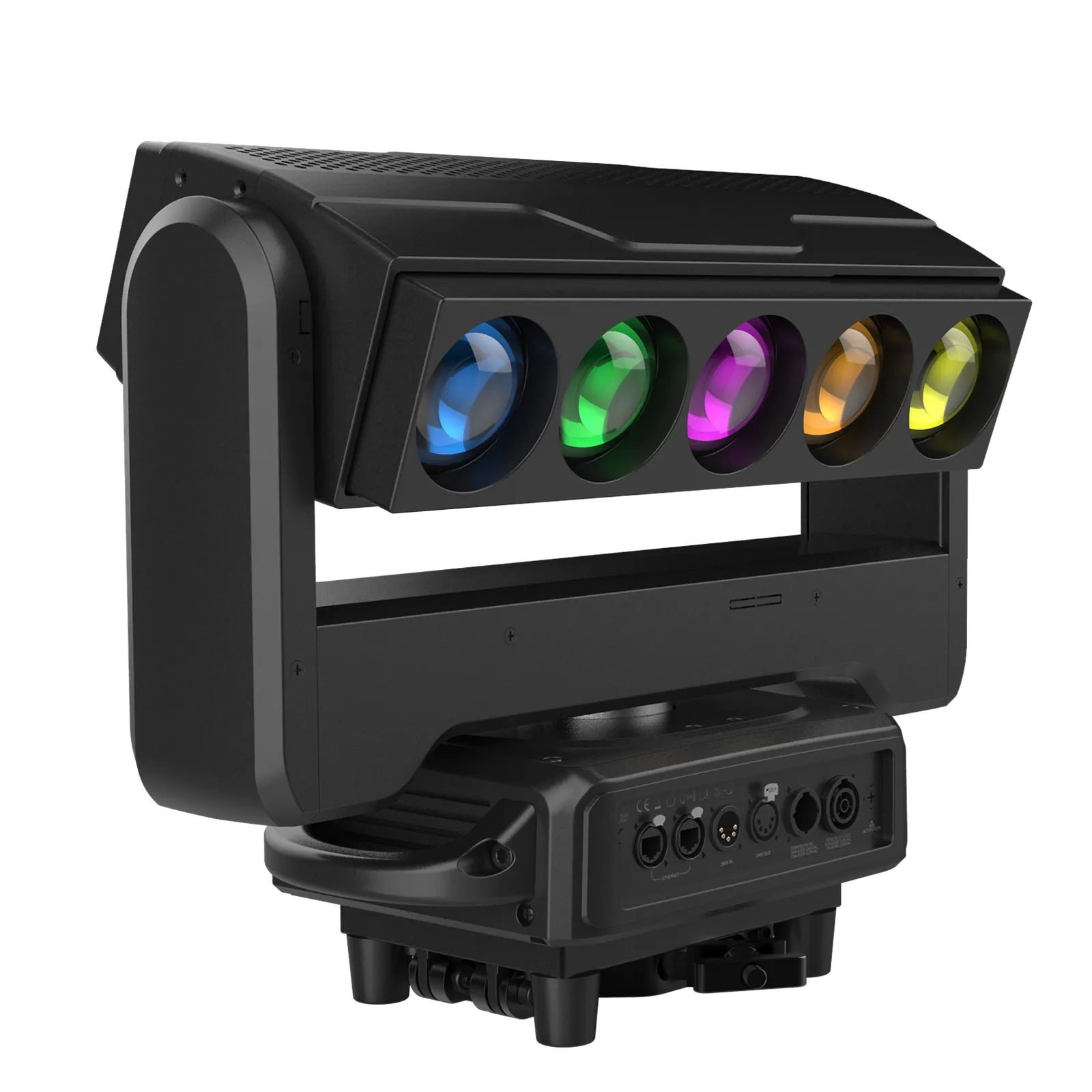

The fixture's front five cells are each equipped with a powerful 60-Watt RGBW LED. The rear of the head, the strobe section, has 36, cool white LEDs for strobes up to 41,000 lumens. The unit's zoom range for the color section goes from a narrow 2.8 o to a wide 46 o for even fields of light and deep, homogeneous colors. The strobe section offers 18 individually controllable zones for unparalleled effects.

The GEMINI fixture offers seven different DMX control modes from basic operation to sophisticated individual pixel-control effects. For users wanting simpler control, the unit has preprogrammed colors and macros with popular colors and eye-catching effects saving you programming time.

In addition to its powerful effects and strobes, the unit has infinite pan and tilt operation making it like no other light bar or strobe on the market. The unit is lightweight and compact and is perfect for any application from touring to fixed installations and everything in between.

The GEMINI LED fixture – because two is better than one.
