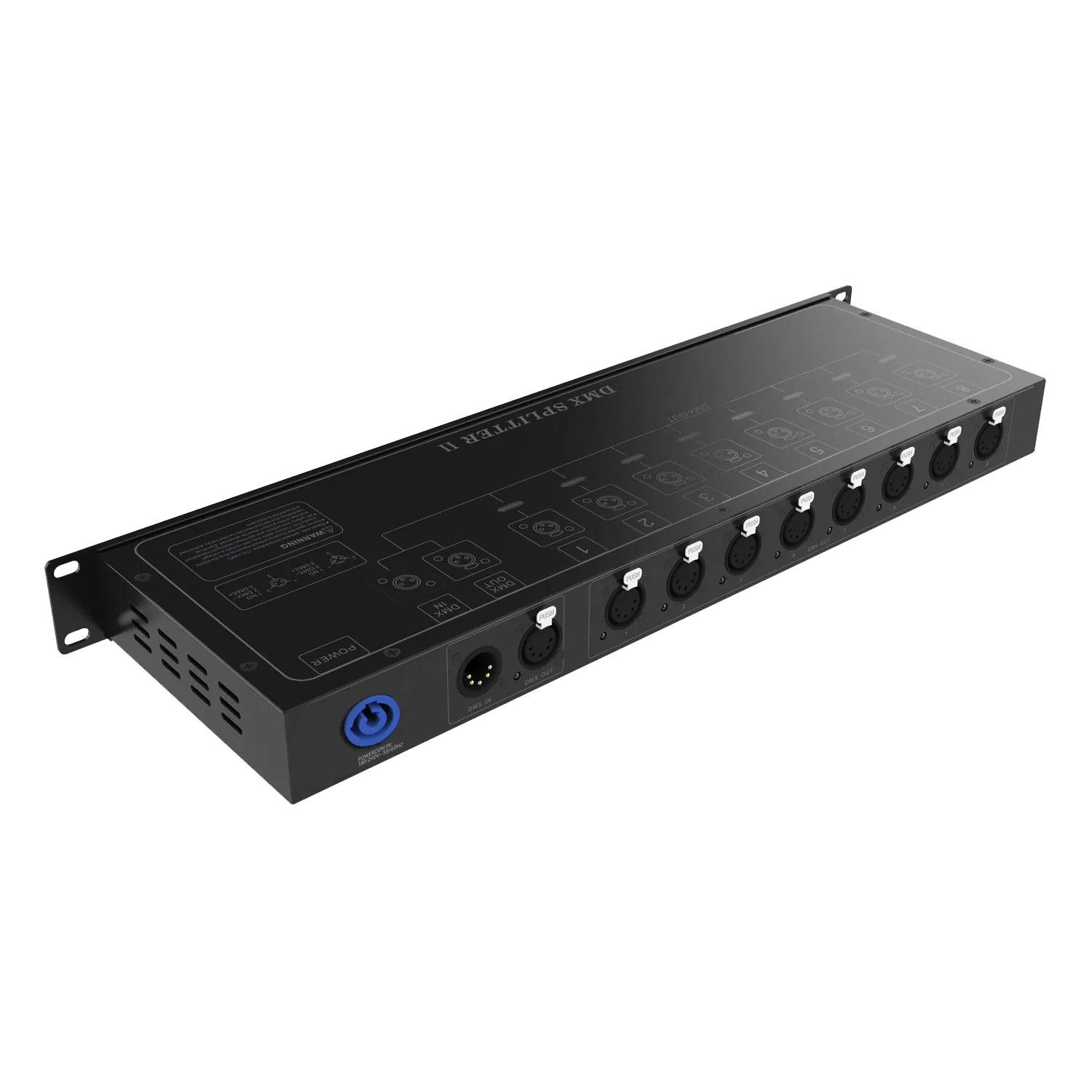

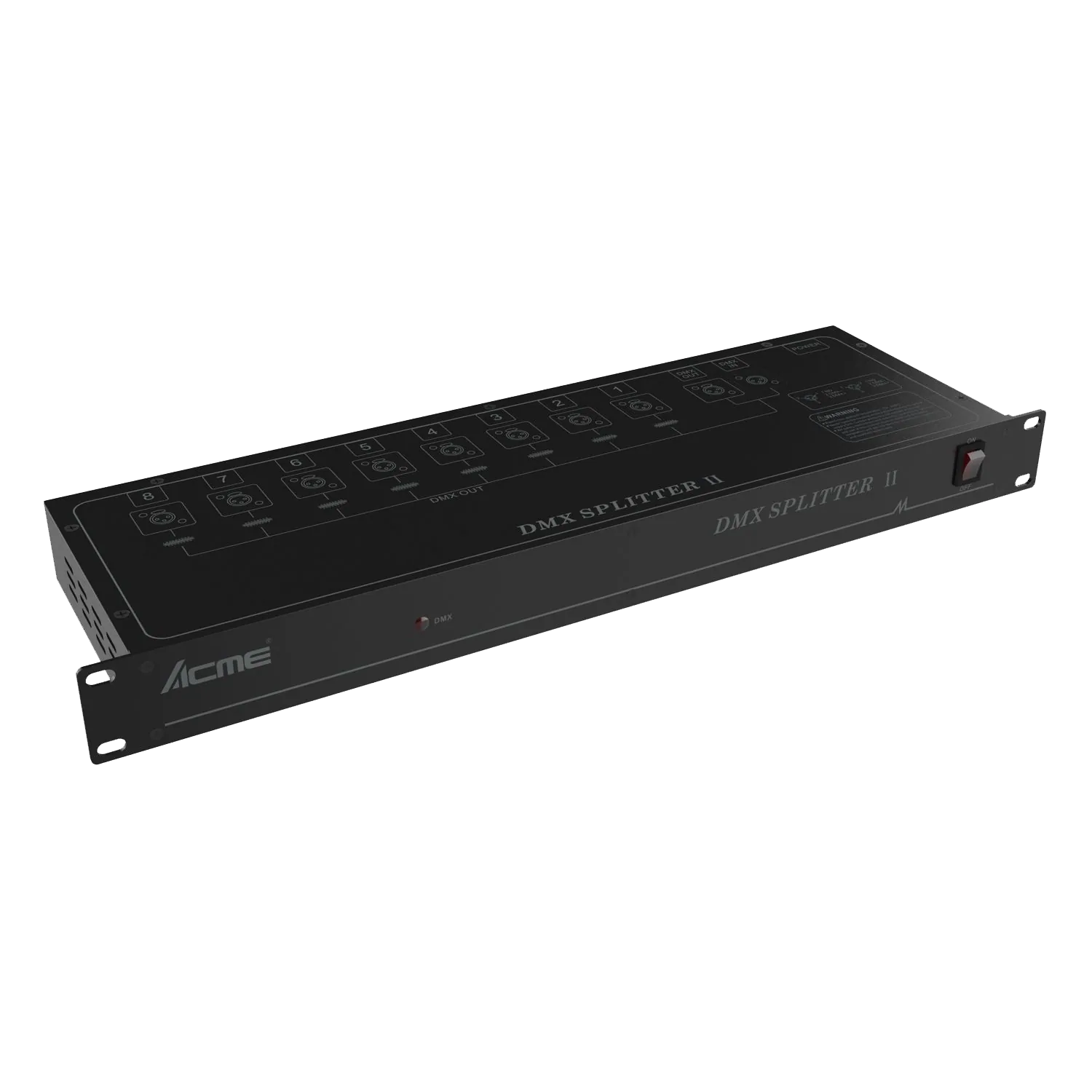

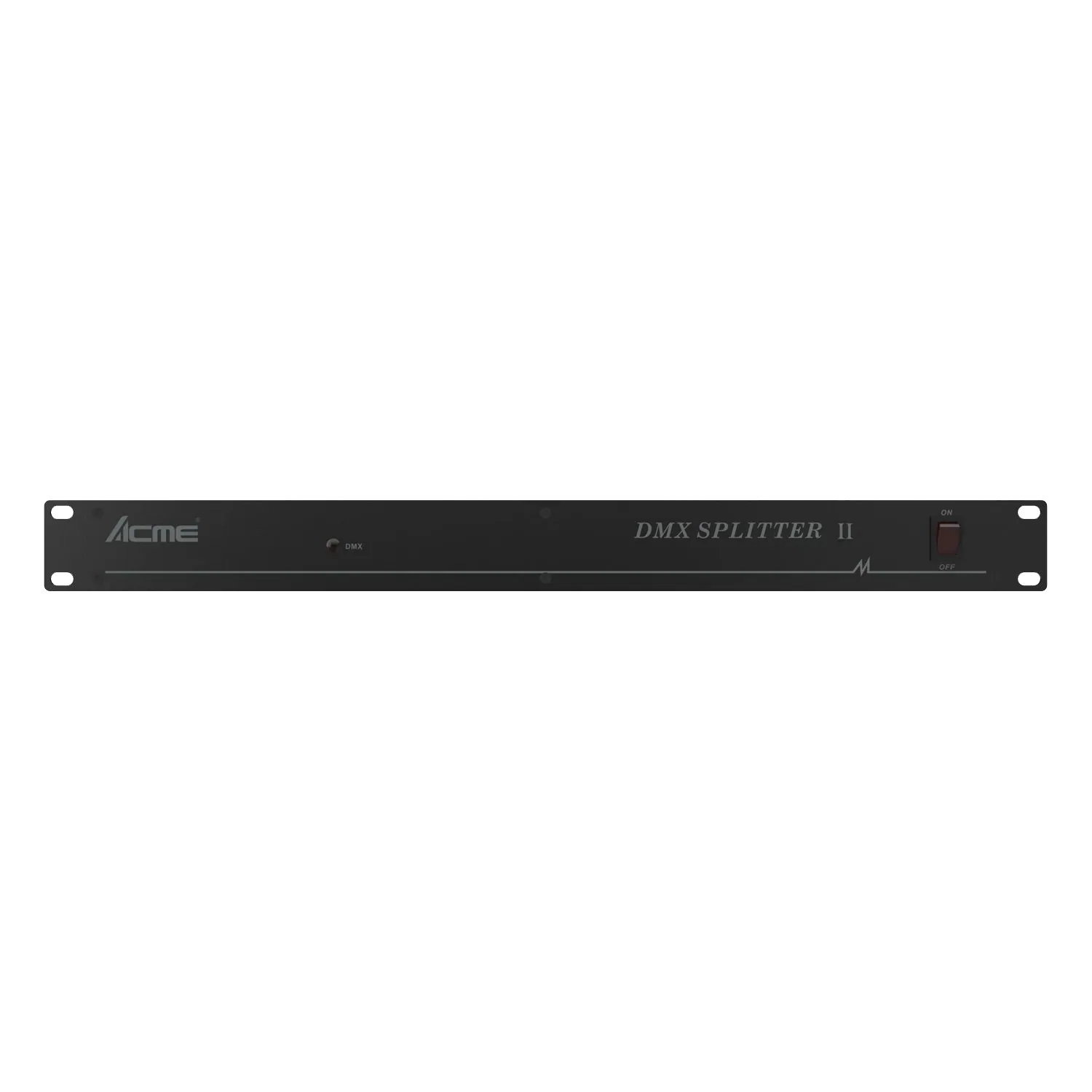

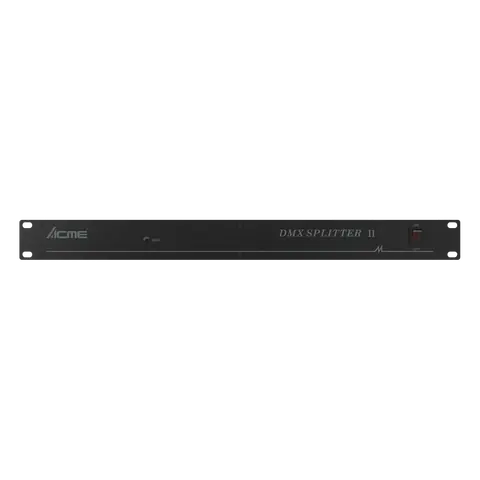

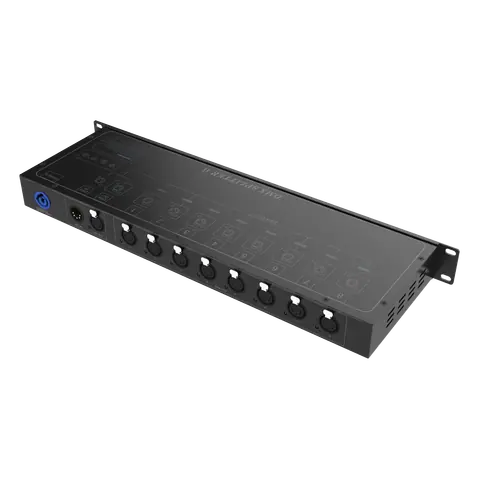

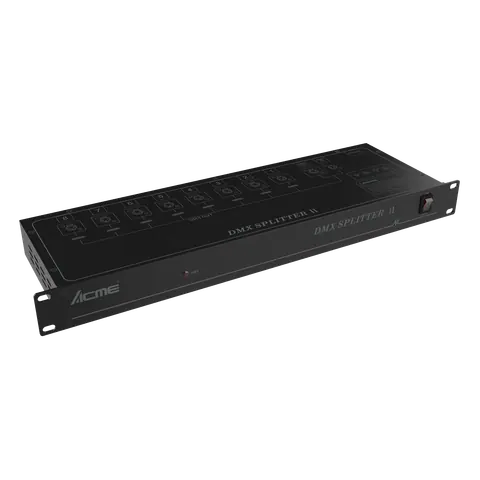

DMX SPLITTER 18 II

ModelCA-DS18 II

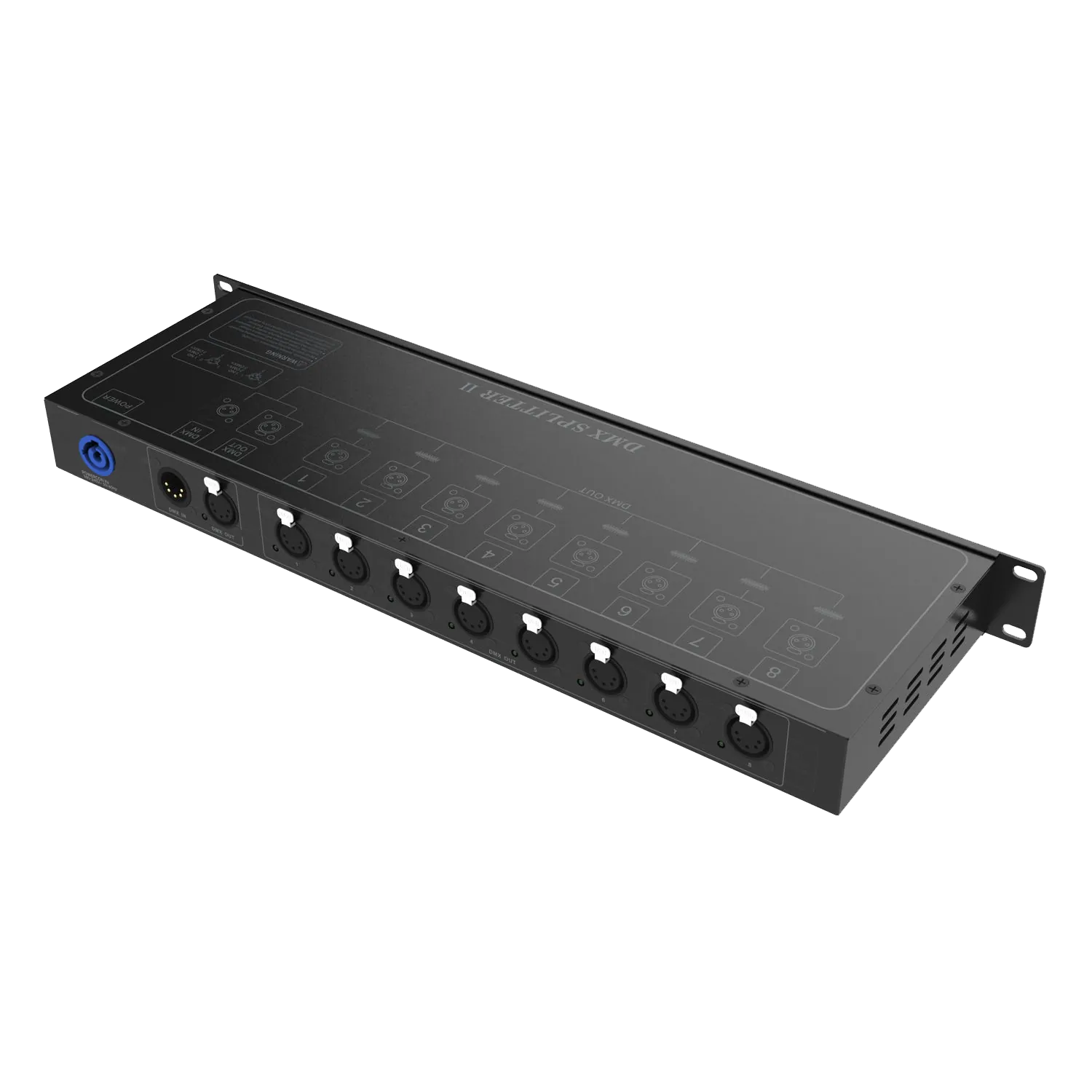

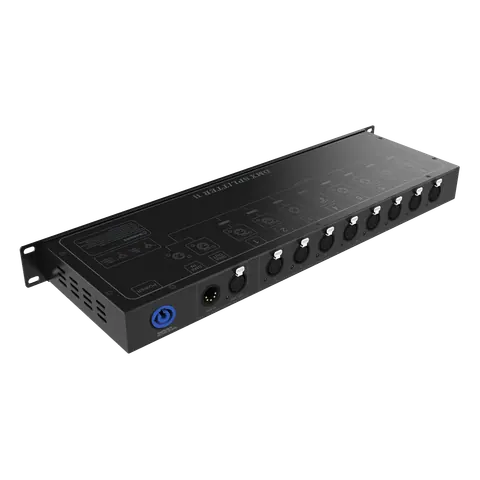

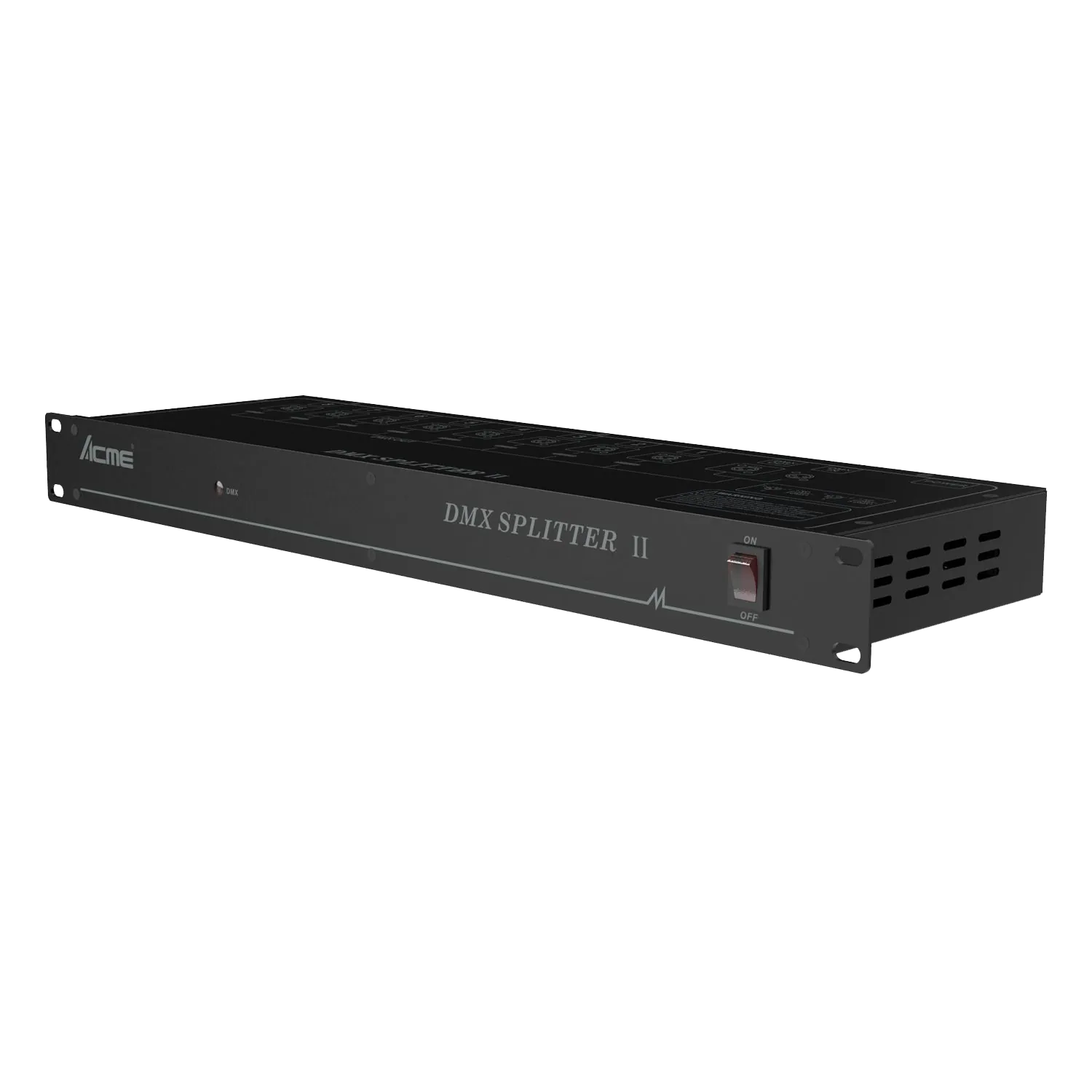

DMX SPLITTER 18 II is a compact and lightweight DMX-512 signal amplifier designed to boost and split digital lighting control signals.

Power consumption: 10W
Power supply: 100-240Vac; 50/60Hz
Net weight: 2.0 kg (4.4 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 9 groups · 21 values

What this product is, in numbers.

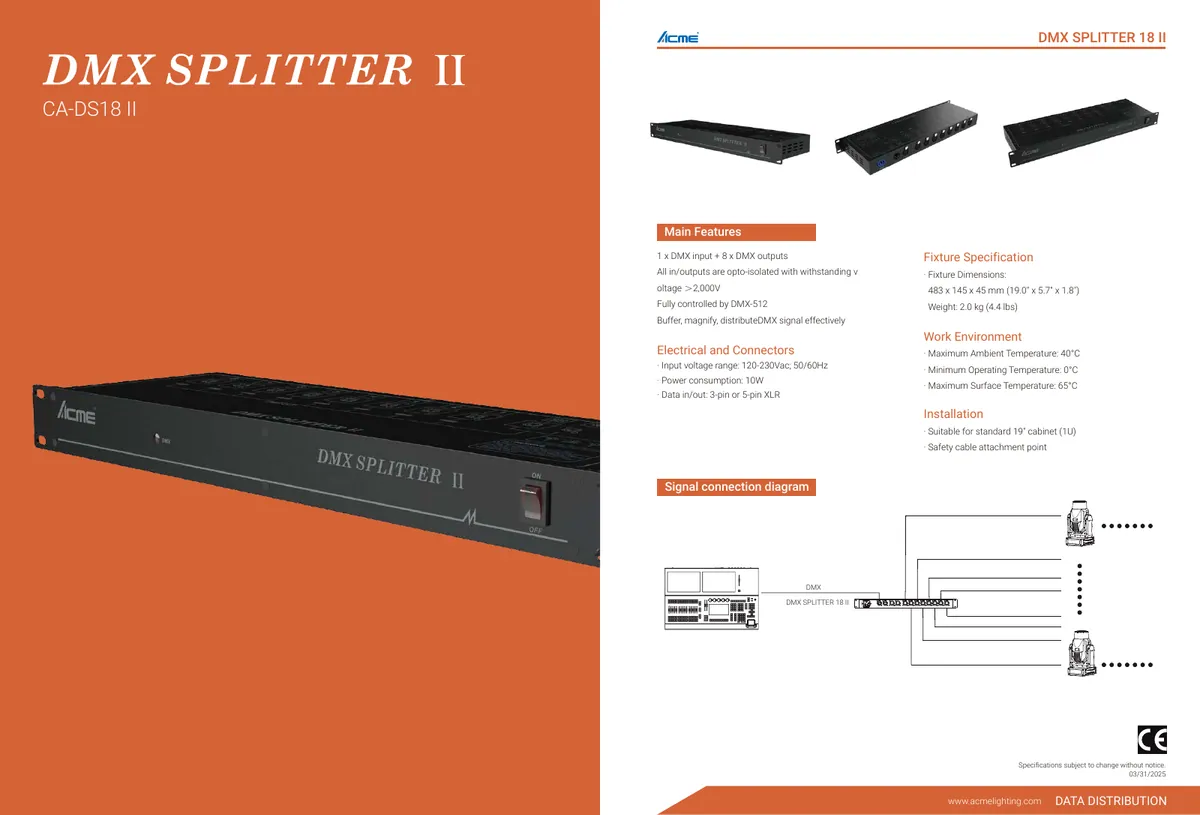

PDFDatasheetEN · 1 page · 527 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: DMX SPLITTER 18 II
Model Code: CA-DS18 II

02Other Effects2

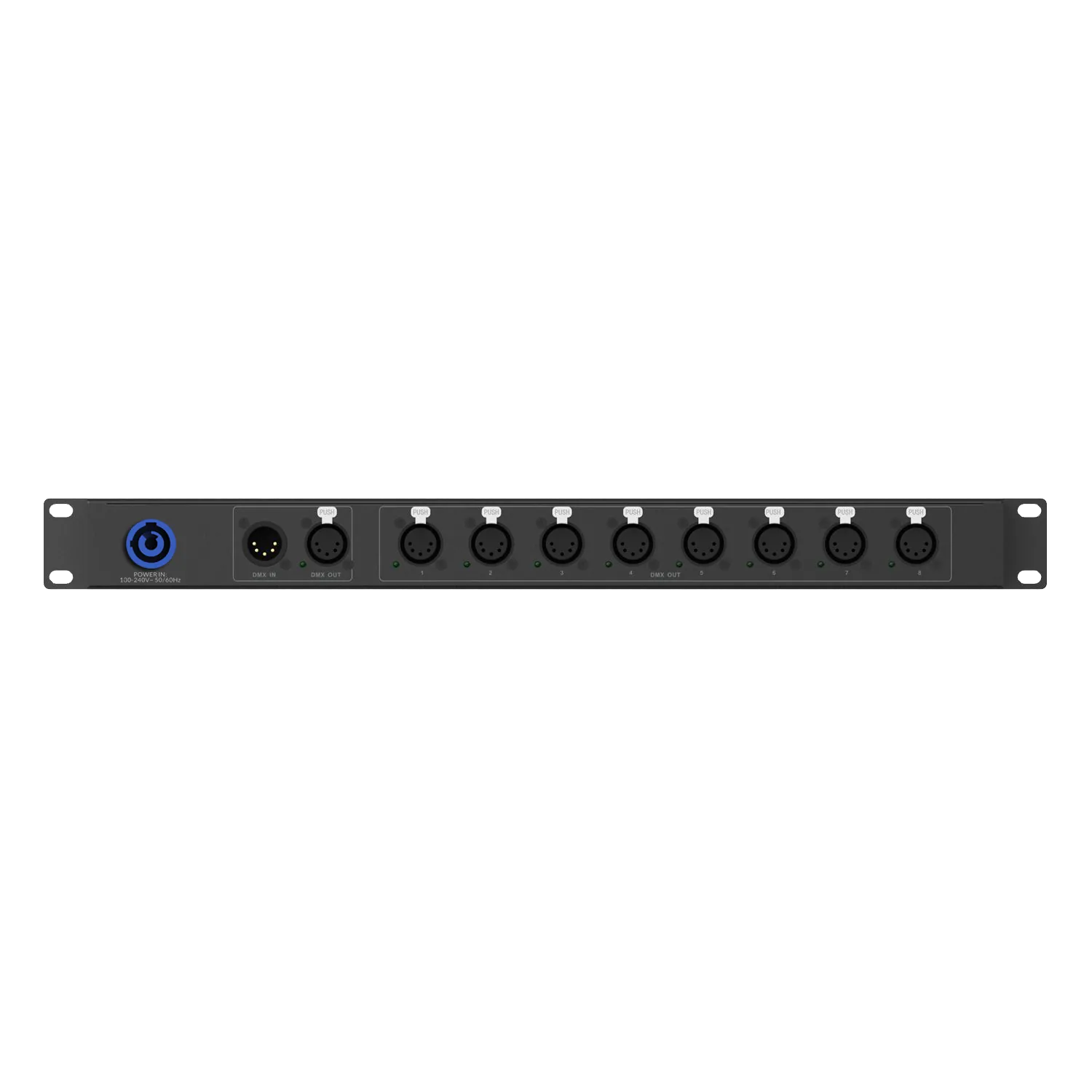

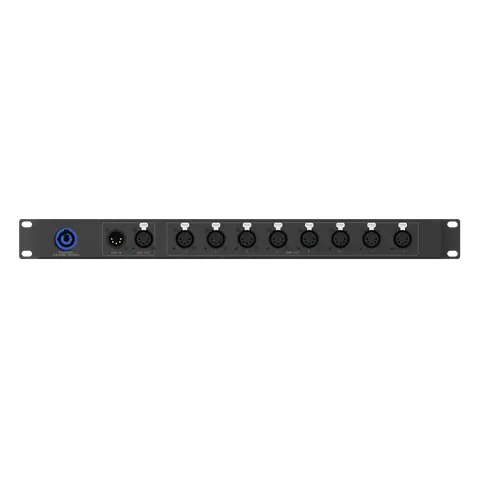

1 x DMX input + 8 x DMX outputs

All in/outputs are opto-isolated with withstanding voltage >2,000V

03Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 10W
Data In/Out: 3-pin or 5-pin waterproof XLR; Power supply with electronic auto-ranging

04Physical Information4

Fixture Dimensions
Width: 483 mm (19.0")
Depth: 145 mm (5.7")
Height: 44.5 mm (1.8")
Weight: 2.0 kg (4.4 lbs)

05Work Environment3

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: 0°C
Maximum Surface Temperature: 65°C

06Approvals1

CE compliant

07Installation2

Suitable for standard 19" cabinet (1U)

Safety cable attachment point

08Included Items2

Digital user manual

Power cable

09Optional Accessories (With Order Code)1

Signal Cable: 3-pin or 5-pin signal cable

02DescriptionManufacturer's description

What it is.

DMX SPLITTER 18 II is a compact and lightweight DMX-512 signal amplifier designed to boost and split digital lighting control signals. It's perfect for connecting DMX receivers (such as moving heads, color changers, and dimmers) in a daisy chain configuration, especially in applications where the DMX signal weakens over long distances. DMX SPLITTER 18 II will efficiently buffer. And magnify the DMX signal that makes the DMX data transmission more accurate and reliable.
