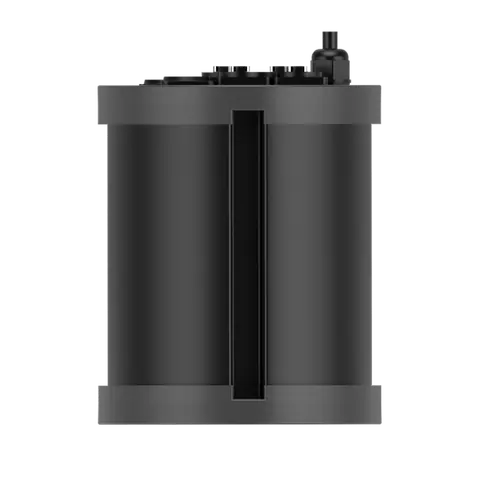

TRUSSHUB U

ModelAN04T

Power consumption: 5W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66
Protocols: DMX512,RDM,Art-Net,sACN
Net weight: 2.0 kg (4.3 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 11 groups · 33 values

What this product is, in numbers.

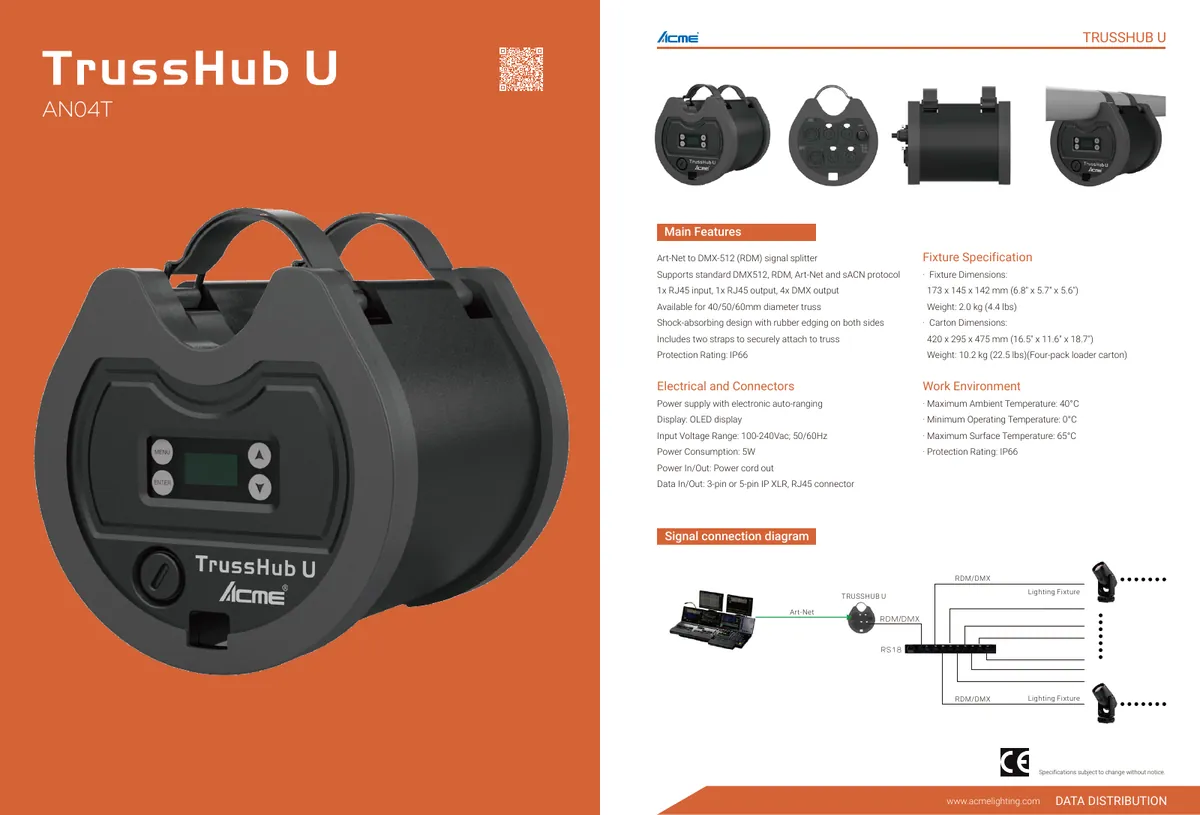

PDFDatasheetEN · 1 page · 1.3 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: TRUSSHUB U
Model Code: AN04T

02Control4

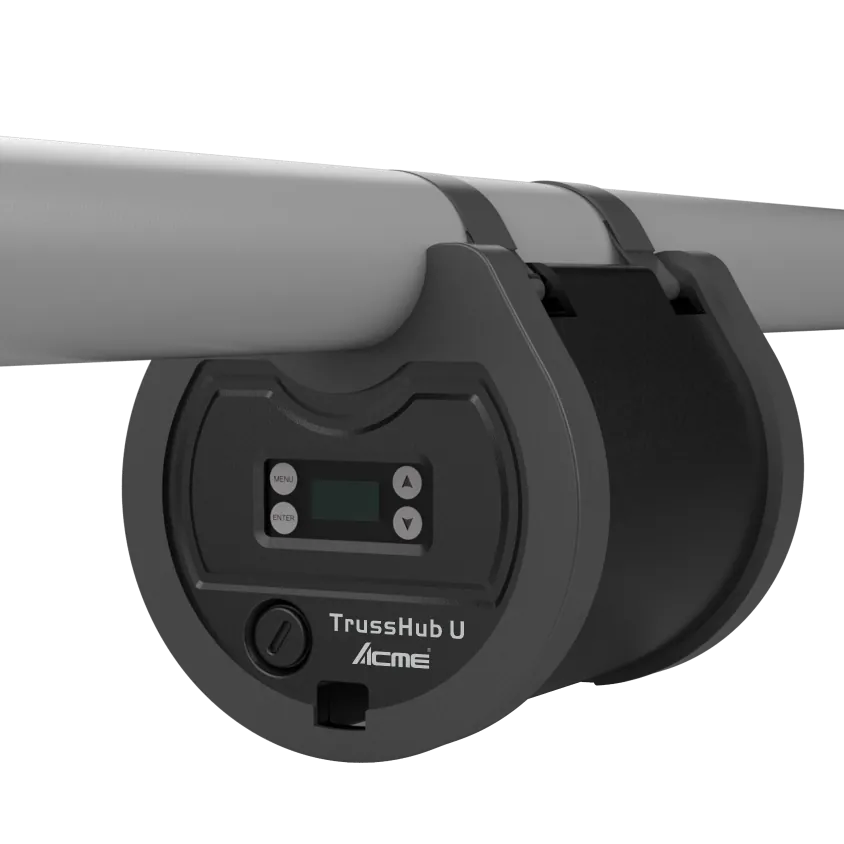

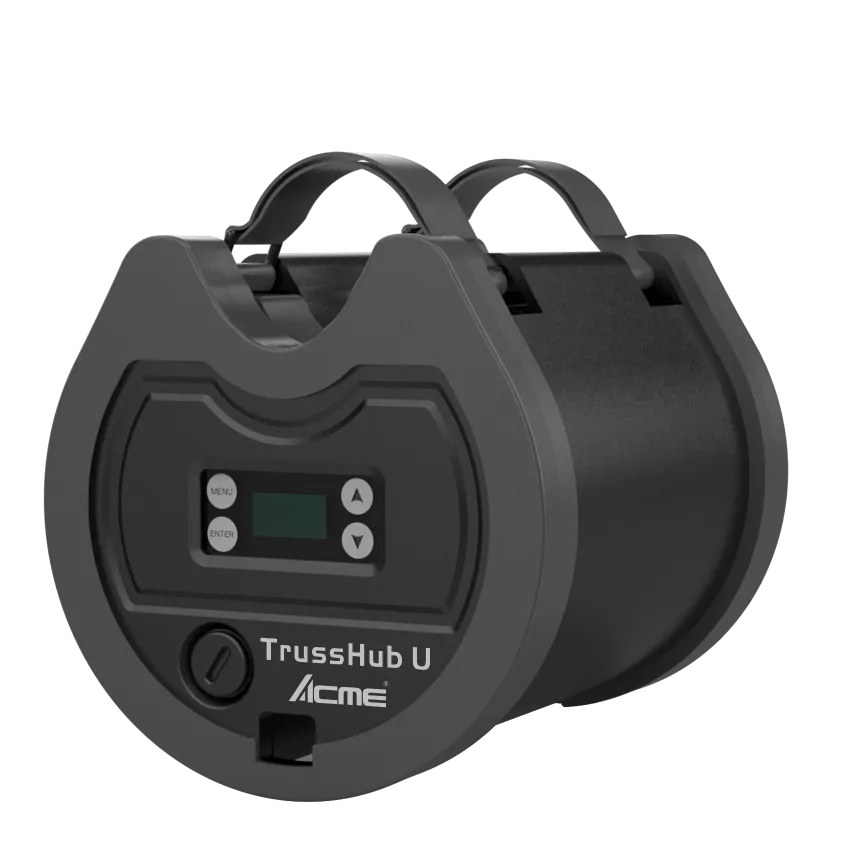

4 touch button control panel
Display: OLED display
Protocols: DMX512,RDM,Art-Net,sACN
Firmware Upgrade: Upgrade via DMX link

03Other Effects2

Art-Net to DMX-512 (RDM) signal splitter

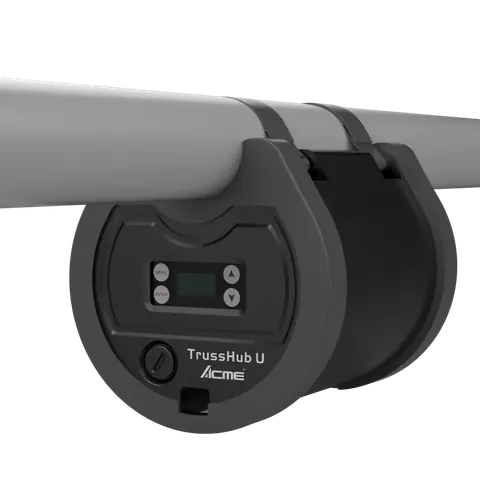

Available for 40/50/60mm diameter truss

04Electrical and Connectors5

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 5W
Power In/Out: Power Cord out
Data In/Out: 3-pin or 5-pin XLR,RJ45 connector; Power supply with electronic auto-ranging

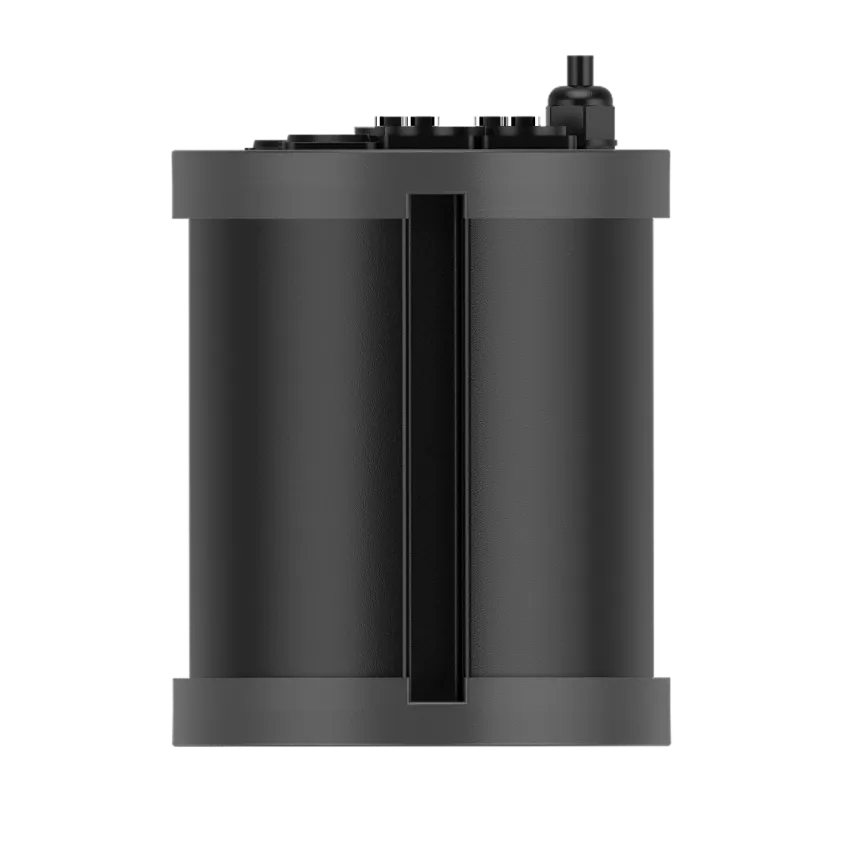

05Physical Information4

Fixture Dimensions
Width: 145 mm (5.7")
Depth: 173 mm (6.8")
Height: 142 mm (5.6")
Weight: 2.0 kg (4.3 lbs)

06Packing Information4

Carton Dimensions
Width: 295 mm (11.6")
Depth: 420 mm (16.5")
Height: 475 mm (18.7")
Weight
G.W.: 10.2 kg (22.5 lbs) (Four-pack loader carton)

07Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 65°C
Protection Rating: IP66

08Approvals1

CE compliant

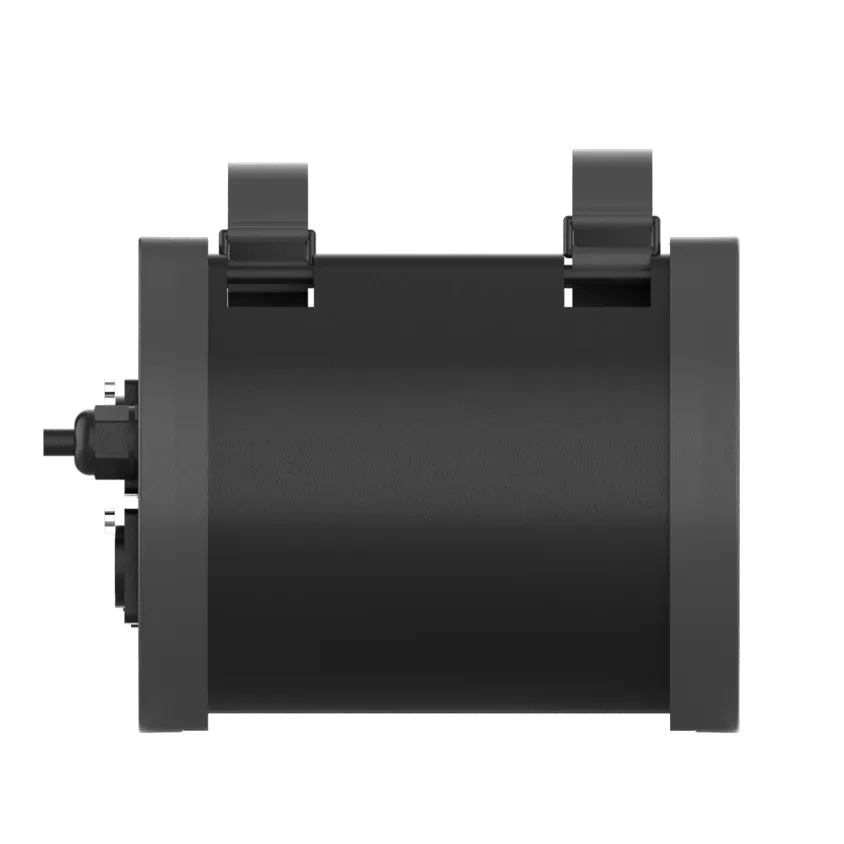

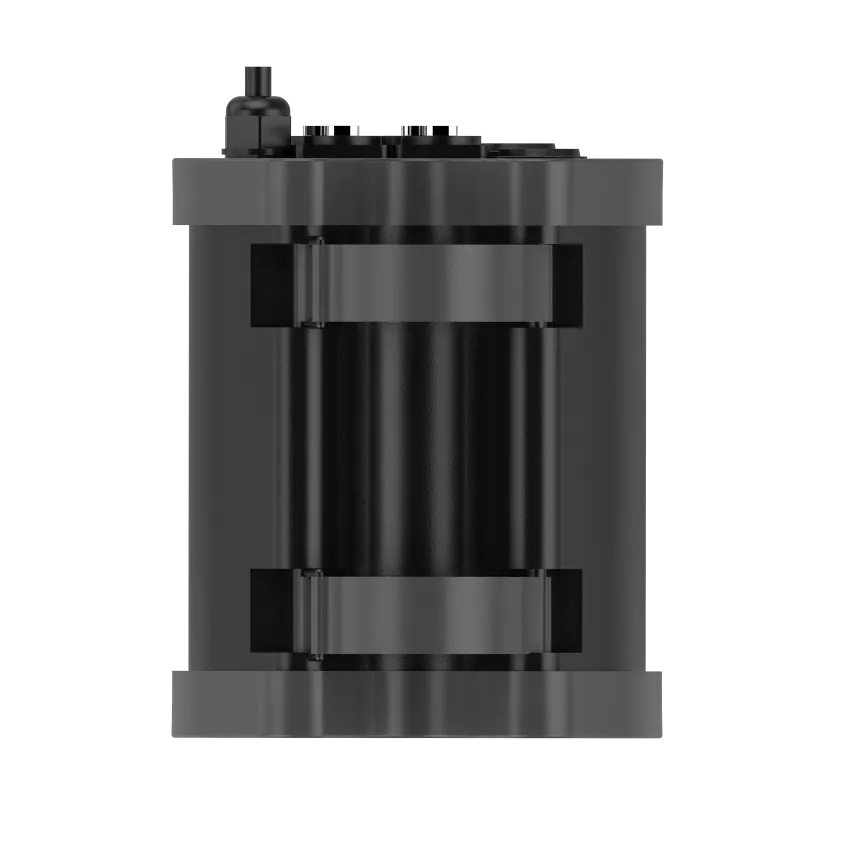

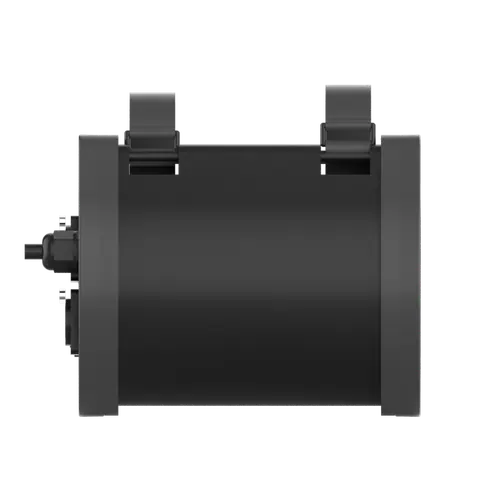

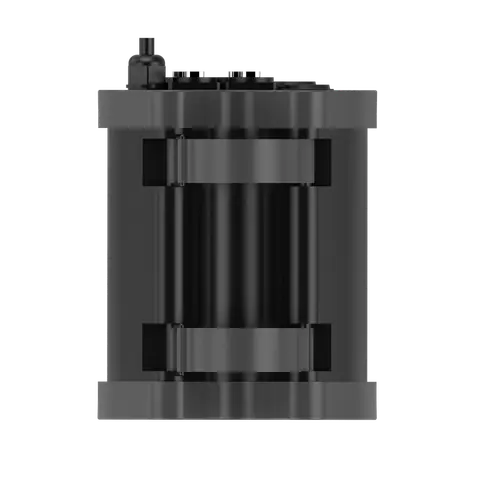

09Installation3

Shock-absorbing design with rubber edging on both sides

Includes two straps to attach securely to truss

Safety cable attachment point

10Included Items2

Digital user manual

Power cable

11Optional Accessories (With Order Code)2

Safety Cable: SW-02 (2060000200-B)
Signal Cable: 3-pin or 5-pin signal cable,RJ45

02DescriptionManufacturer's description

What it is.

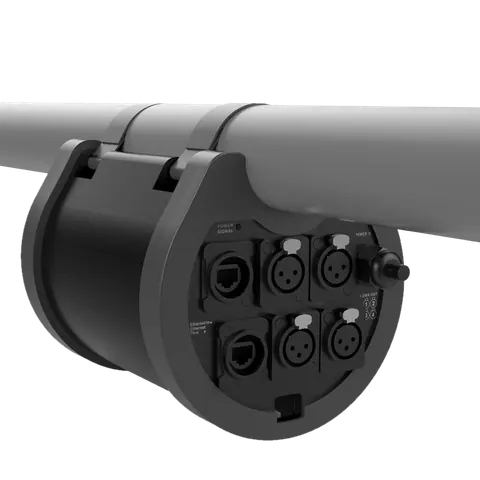

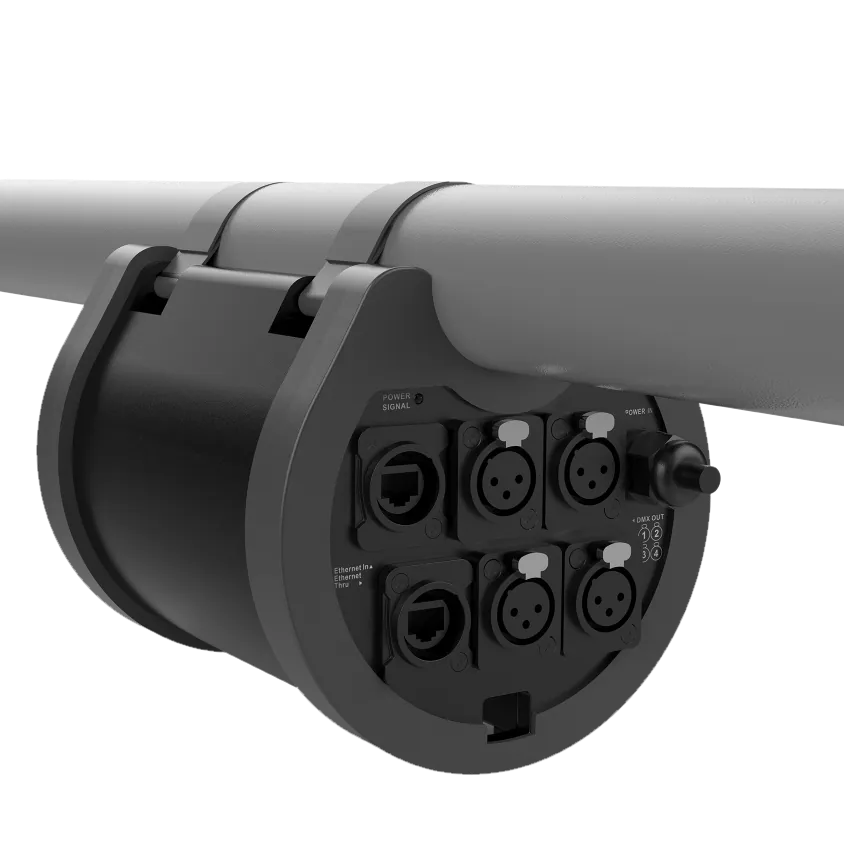

The TRUSSHUB U (AN04T) from ACME is an RDM/DMX splitter/booster dedicated to RDM/DMX signal amplification. The unit has 1x RJ45 input, 1x RJ45 output and 4x DMX outputs, and is protected by shock-absorbing rubber edging on both sides. Available for 40mm, 50mm or 60mm diameter truss, it is suitable for applications in which the DMX-512 signal is weakened over long-distance transmission. The TRUSSHUB U, with its IP66 waterproof protection, works perfectly indoors or out, efficiently buffering and magnifying the DMX signal, ensuring the DMX data transmission is accurate and reliable.
