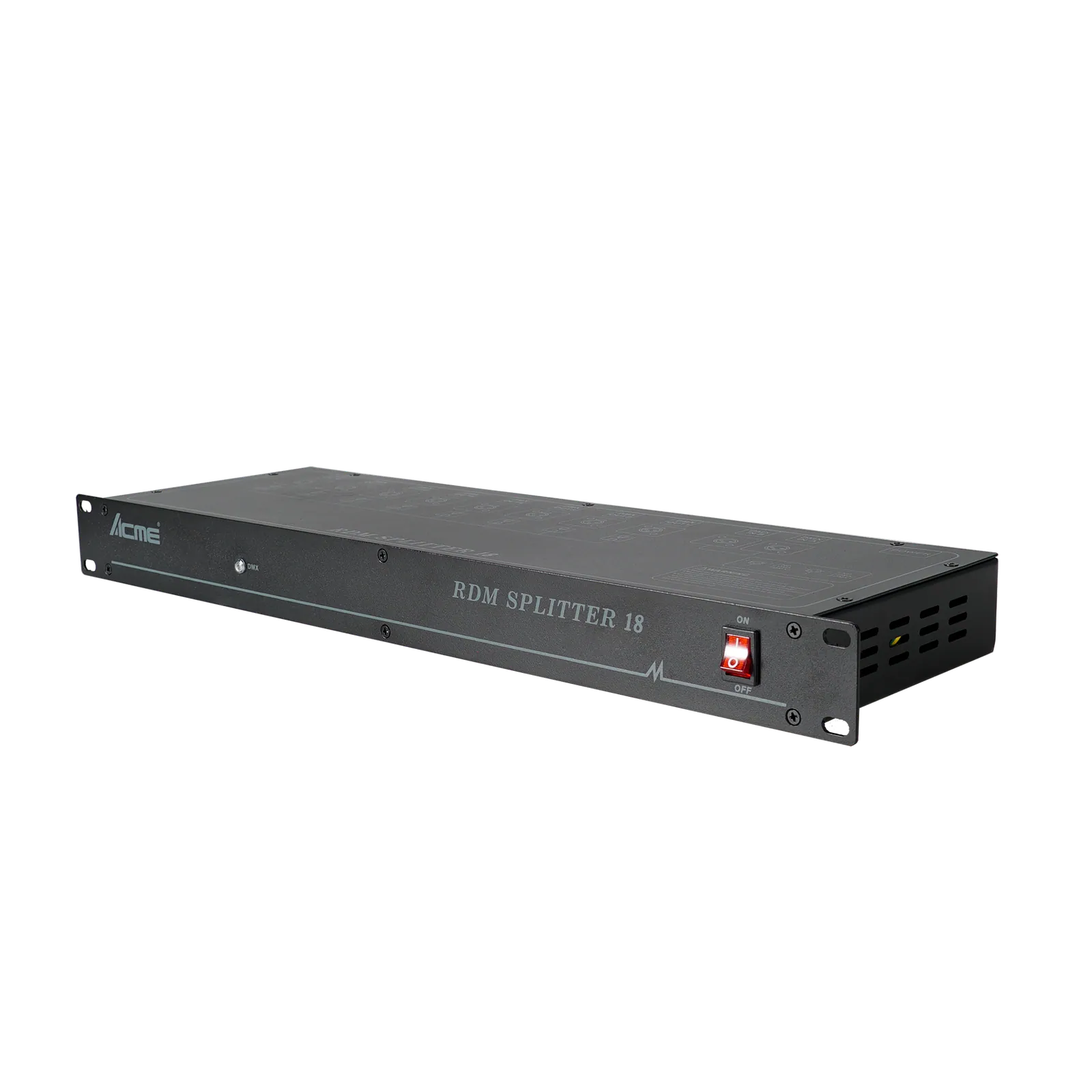

RDM SPLITTER 18
ModelRS18

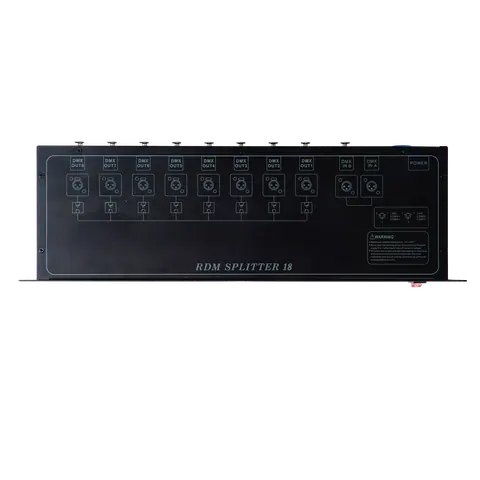

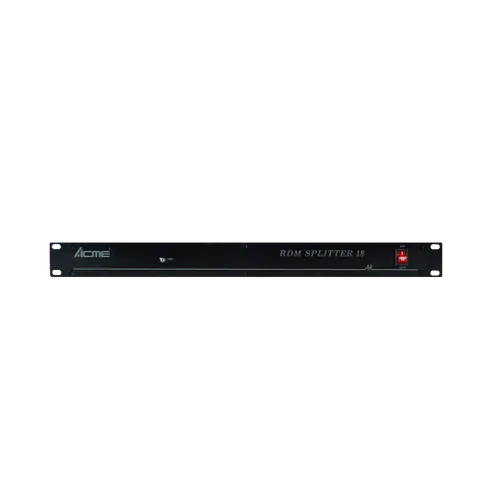

The RDM SPLITTER 18 from ACME is an RDM/DMX splitter/booster dedicated to RDM/DMX signal amplification. It has 1 signal input, 1 signal output, and 8 signal distribution output with independent electrical isolation.
- Power consumption
- 5W
- Power supply
- 100-240Vac; 50/60Hz
- Ingress protection
- IP20
- Net weight
- 2.3 kg (5.1 lbs)
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Model2
- Model Name
- RDM SPLITTER 18
- Model Code
- RS18
02Other Effects2
- 1x signal input, 1x signal output, 8 x signal distribution output with independent electrical isolation
- Outputs isolated over 2,000V
03Electrical and Connectors5
- Input Voltage Range
- 100-240Vac; 50/60Hz
- Power Consumption
- 5W

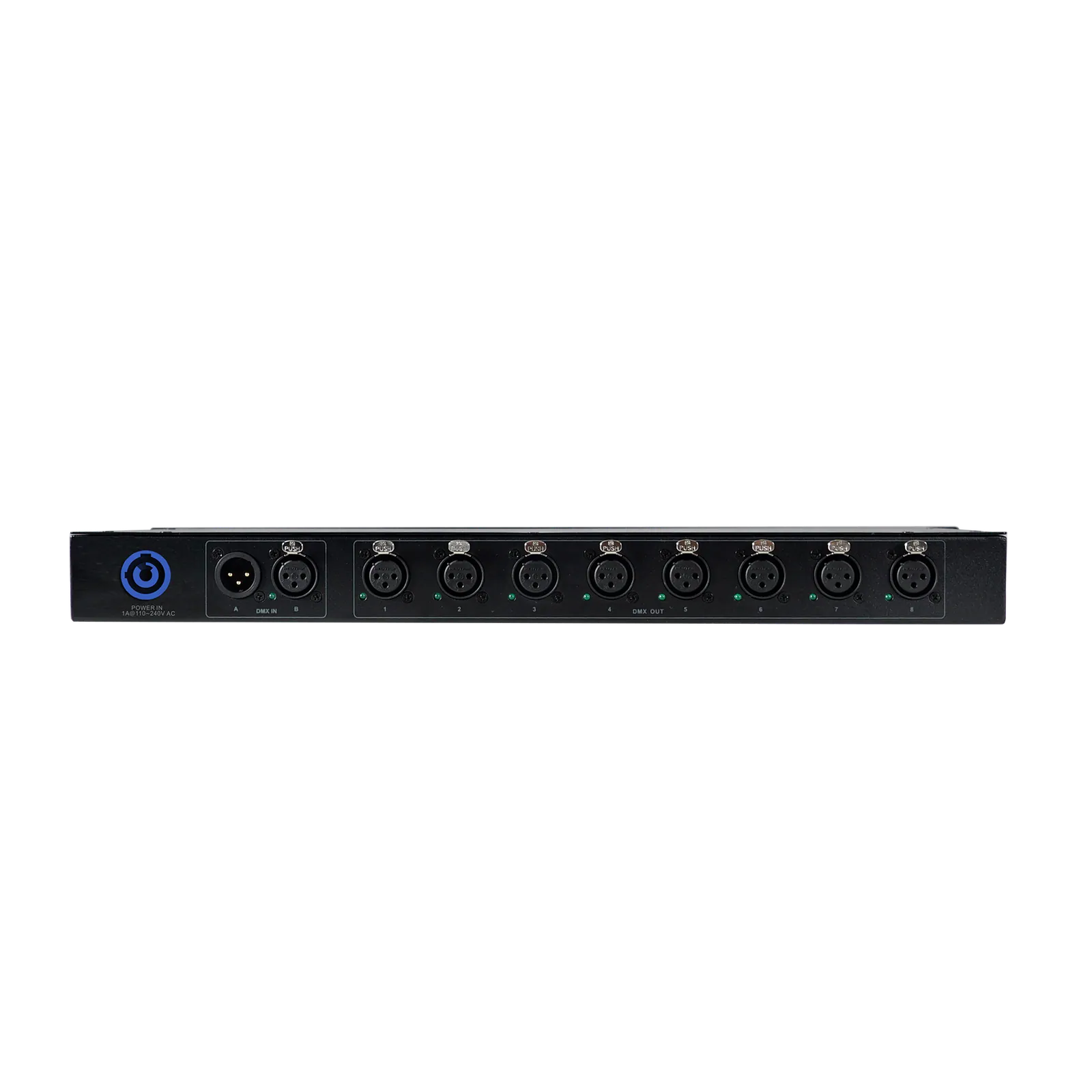

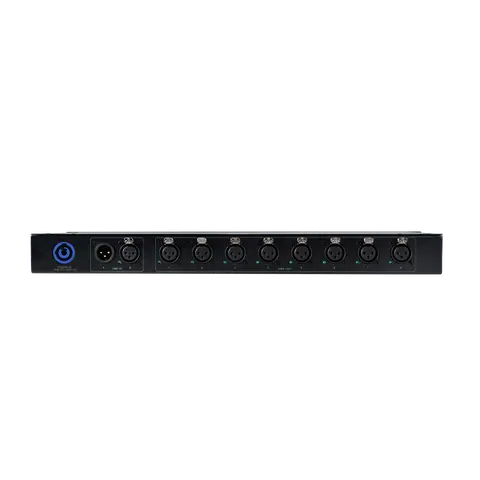

- Power In/Out
- IEC in
- Data In/Out
- 3-pin or 5-pin XLR
- Power supply with electronic auto-ranging
04Physical Information4
- Fixture Dimensions
- Width
- 482 mm (19.0")
- Depth
- 155 mm (6.1")
- Height
- 44 mm (1.7")
- Weight
- 2.3 kg (5.1 lbs)
05Packing Information4
- Carton Dimensions
- Width
- 560 mm (22.0")
- Depth
- 505 mm (19.9")
- Height
- 480 mm (18.9")
- Weight
- G.W.
- 16.8 kg (37.0 lbs) (Six-pack loader carton)
06Work Environment4
- Maximum Ambient Temperature
- 40°C
- Minimum Operating Temperature
- 0°C
- Maximum Surface Temperature
- 65°C
- Protection Rating
- IP20
07Approvals1
- CE compliant
08Included Items2
- Digital user manual
- Power cable
09Optional Accessories (With Order Code)1
- Signal Cable
- 3-pin or 5-pin signal cable
Show the full specificationHide the rest of the specification0 more groups · 0 values
What it is.
The RDM SPLITTER 18 from ACME is an RDM/DMX splitter/booster dedicated to RDM/DMX signal amplification. It has 1 signal input, 1 signal output, and 8 signal distribution output with independent electrical isolation. It receives standard DMX512/RDM control signals and will efficiently buffer/boost/split the signal.
