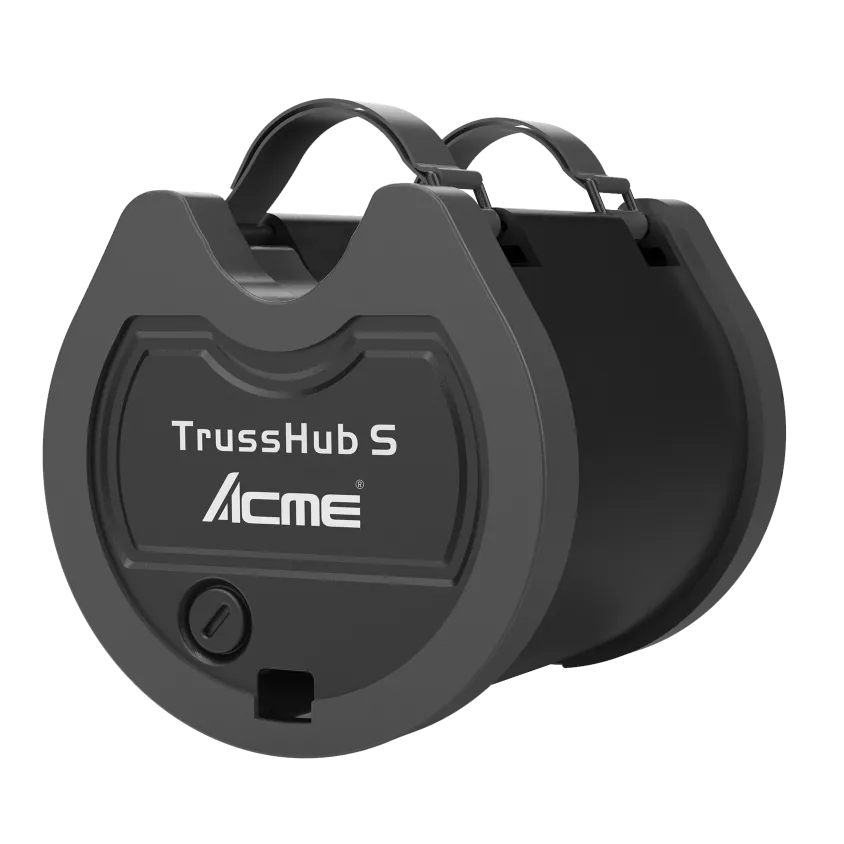

TRUSSHUB S

ModelRS14T

The TRUSSHUB S (RS14T) is a 4-way DMX-512 (RDM) signal amplifier and splitter, dedicated to DMX-512 signal amplification and splitting.

Power consumption: 5W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66
Net weight: 2.0 kg (4.4 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 11 groups · 30 values

What this product is, in numbers.

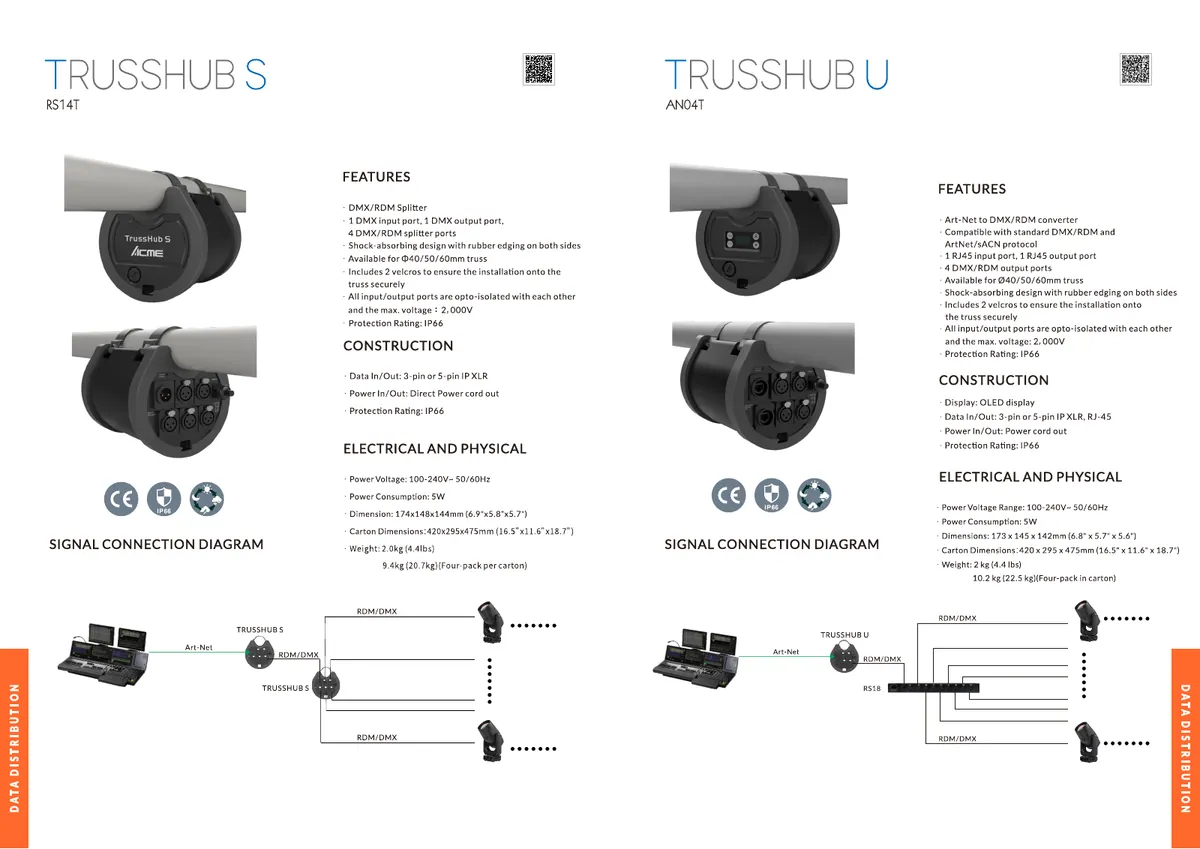

PDFDatasheet — TRUSSHUB S / UEN · 1 page · 1.3 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: TRUSSHUB S
Model Code: RS14T

02Control1

Display: OLED display

03Other Effects1

4-way DMX Splitter (RDM)

04Electrical and Connectors5

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 5W
Power In/Out: Power Cord out

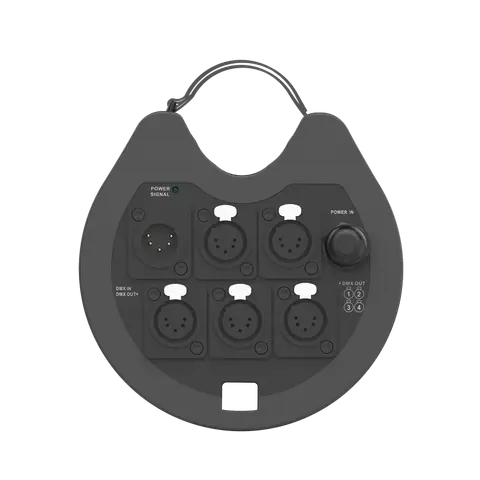

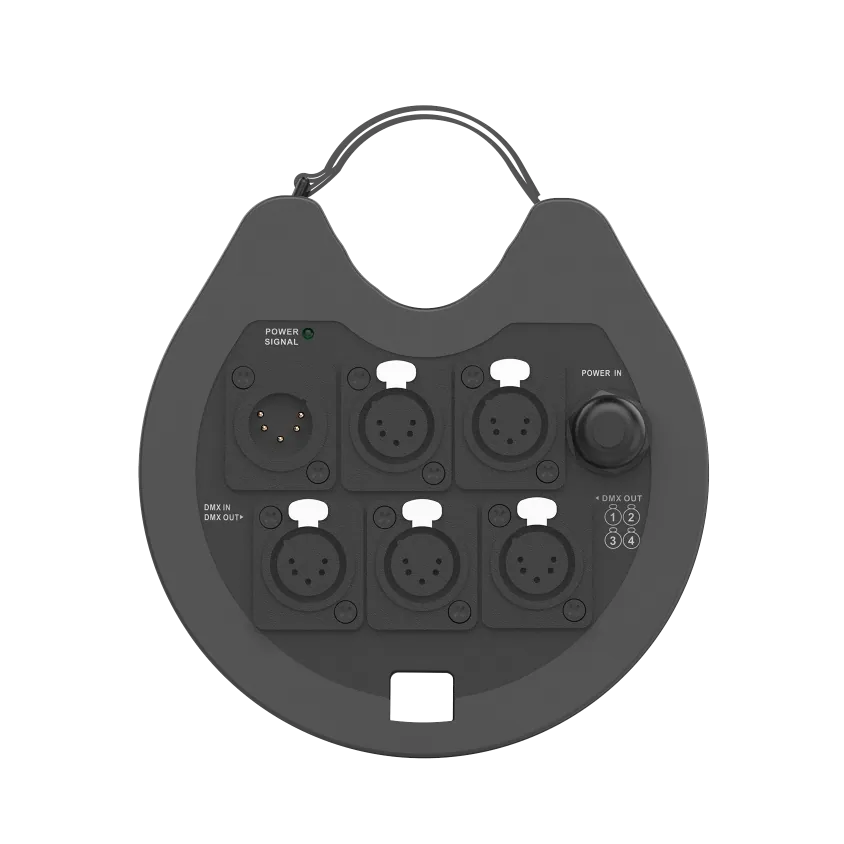

Data In/Out: 3-pin or 5-pin XLR; Power supply with electronic auto-ranging

05Physical Information4

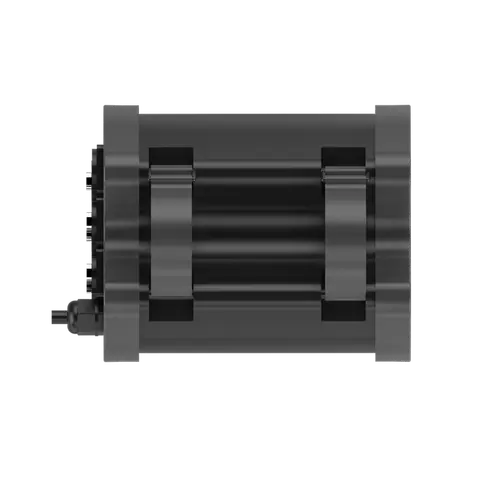

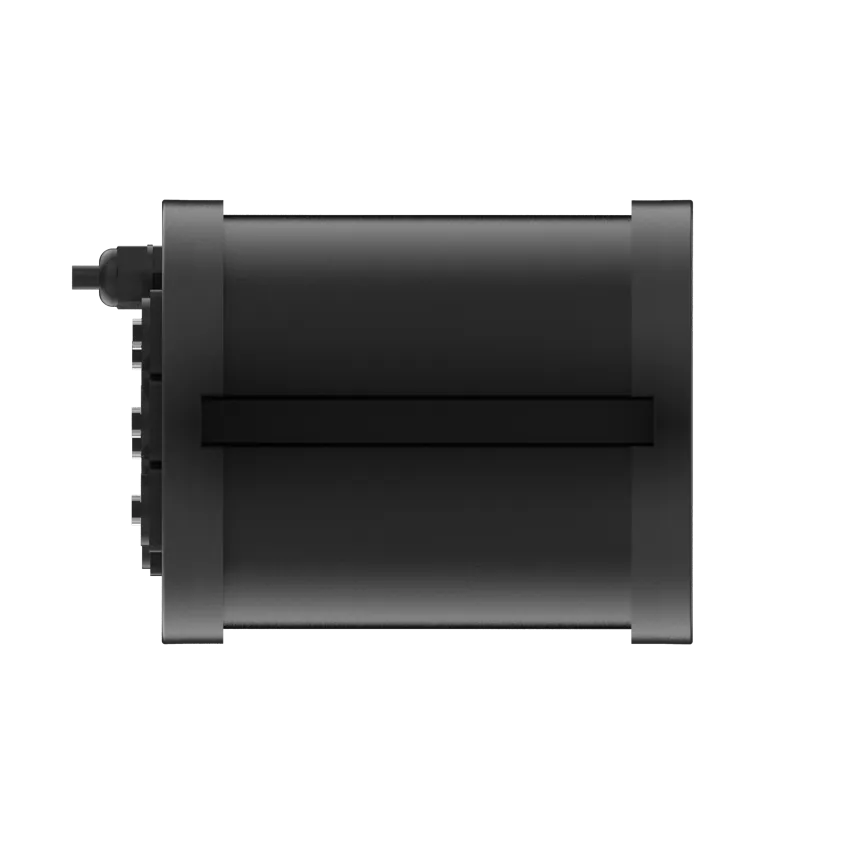

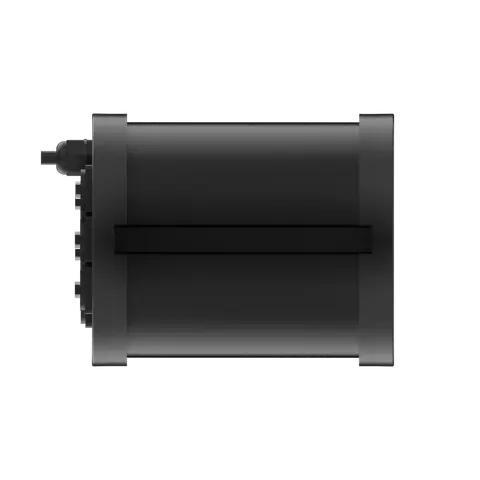

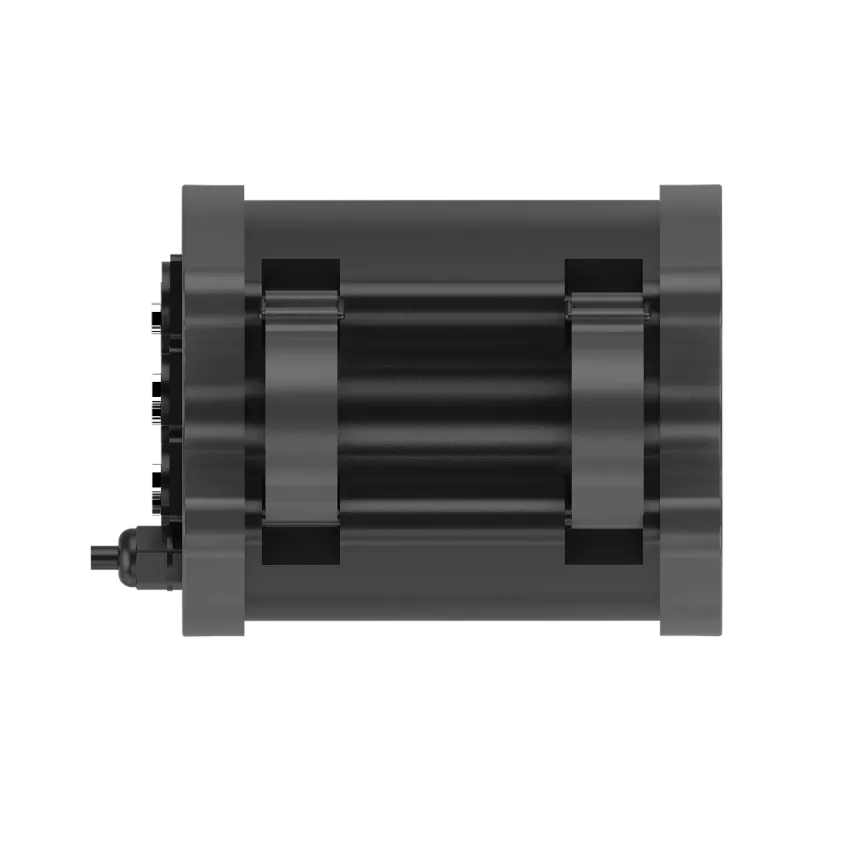

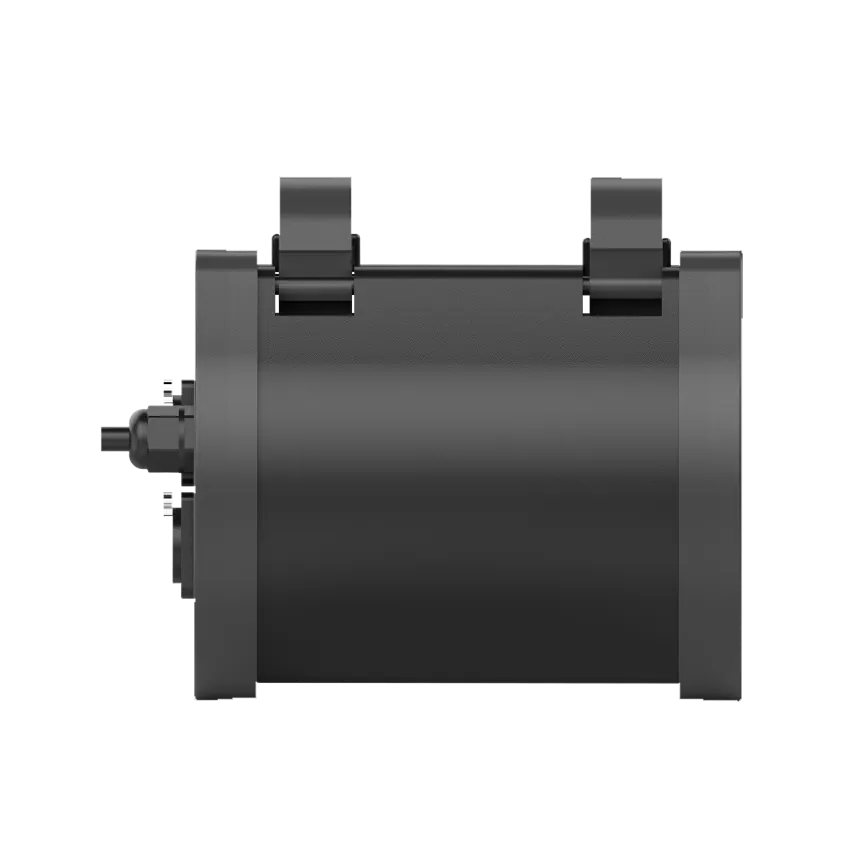

Fixture Dimensions
Width: 148 mm (5.8")
Depth: 174 mm (6.9")
Height: 144 mm (5.7")
Weight: 2.0 kg (4.4 lbs)

06Packing Information4

Carton Dimensions
Width: 295 mm (11.6")
Depth: 420 mm (11.6")
Height: 475 mm (18.7")
Weight
G.W.: 9.4 kg (20.7 lbs) (Four-pack loader carton)

07Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: 0°C
Maximum Surface Temperature: 65°C
Protection Rating: IP66

08Approvals1

CE compliant

09Installation4

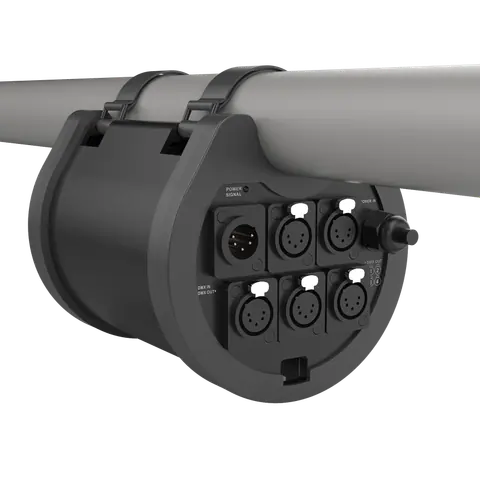

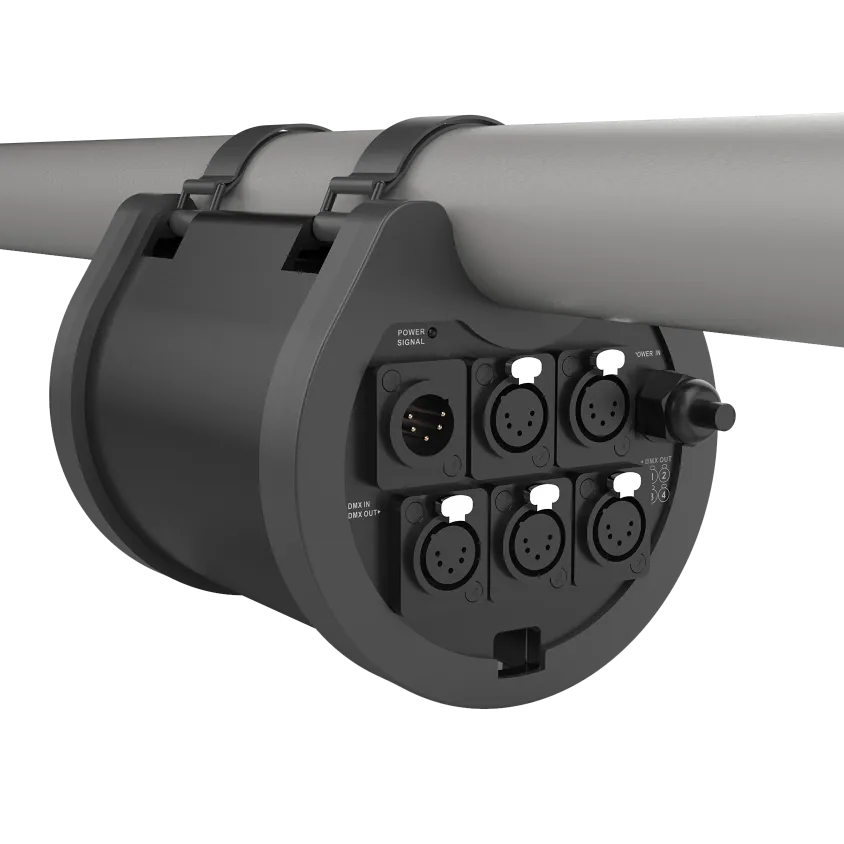

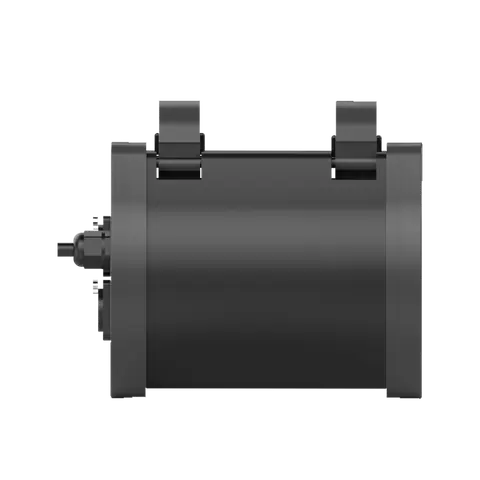

Shock-absorbing design with rubber edging on both sides

Includes two straps to attach securely to truss

Available for 40/50/60mm diameter truss

Safety cable attachment point

10Included Items2

Digital user manual

Power cable

11Optional Accessories (With Order Code)2

Safety Cable: SW-02 (2060000200-B)
Signal Cable: 3-pin or 5-pin signal cable

02DescriptionManufacturer's description

What it is.

The TRUSSHUB S (RS14T) is a 4-way DMX-512 (RDM) signal amplifier and splitter, dedicated to DMX-512 signal amplification and splitting. Designed for connecting DMX receivers (such as moving heads, color changers, and dimmers), the unit is protected by shock-absorbing rubber edging on both sides. Available for 40mm, 50mm or 60mm diameter truss, it is suitable for applications in which the DMX-512 signal is weakened over long-distance transmission. The TRUSSHUB S, with its IP66 waterproof protection, works perfectly indoors or out, efficiently buffering and magnifying the DMX signal, ensuring the DMX data transmission is accurate and reliable.
