ARTDMX A28

ModelCA-EN28

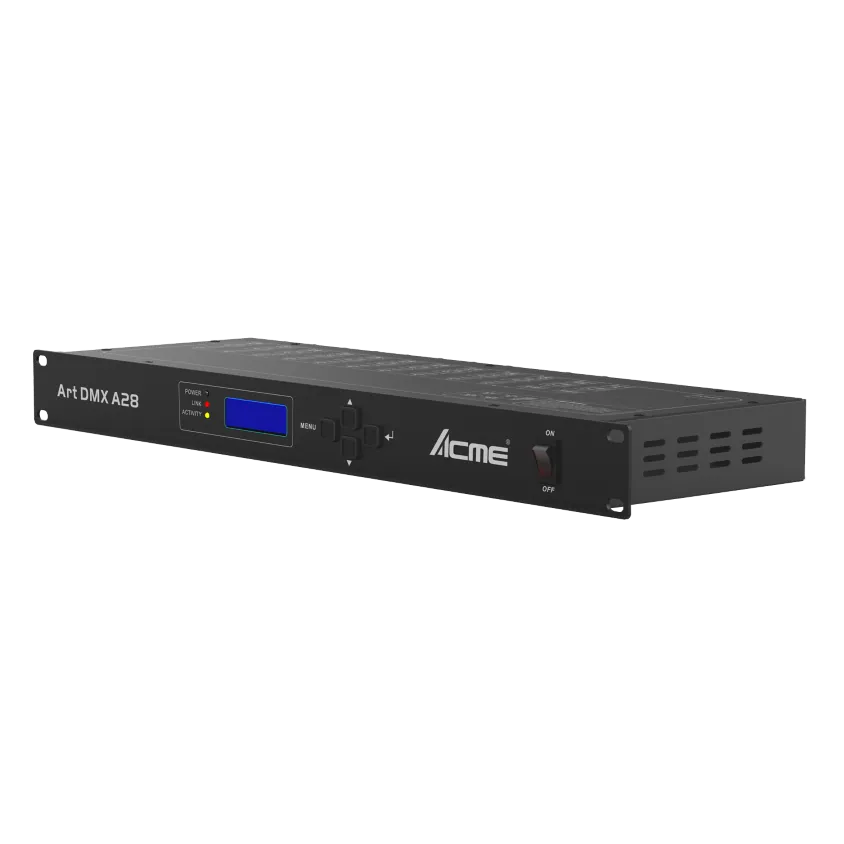

The ARTDMX A28 from ACME is an RDM/DMX splitter/booster dedicated to RDM/DMX signal amplification.

Power consumption: 11W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP20
Protocols: DMX512,RDM,Art-Net,sACN
Net weight: 2.0 kg (4.4 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 11 groups · 41 values

What this product is, in numbers.

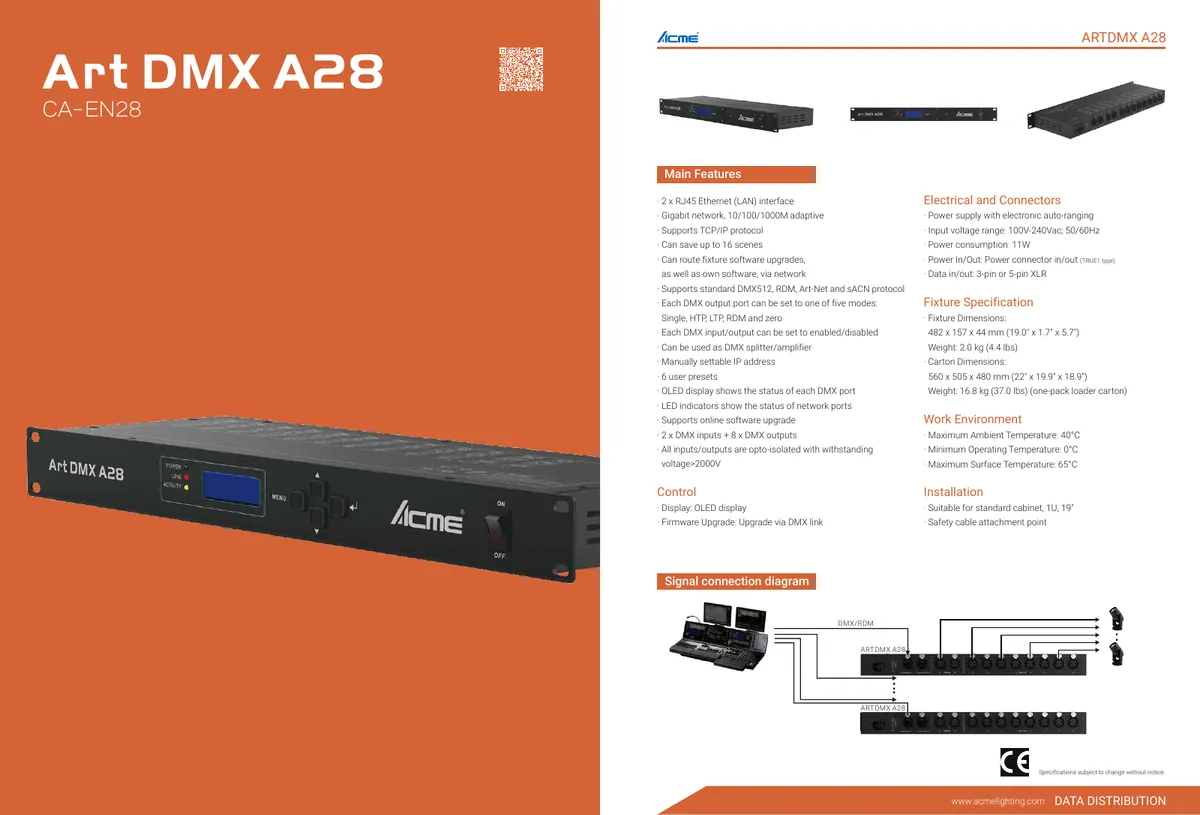

PDFDatasheetEN · 1 page · 210 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: ARTDMX A28
Model Code: CA-EN28

02Control2

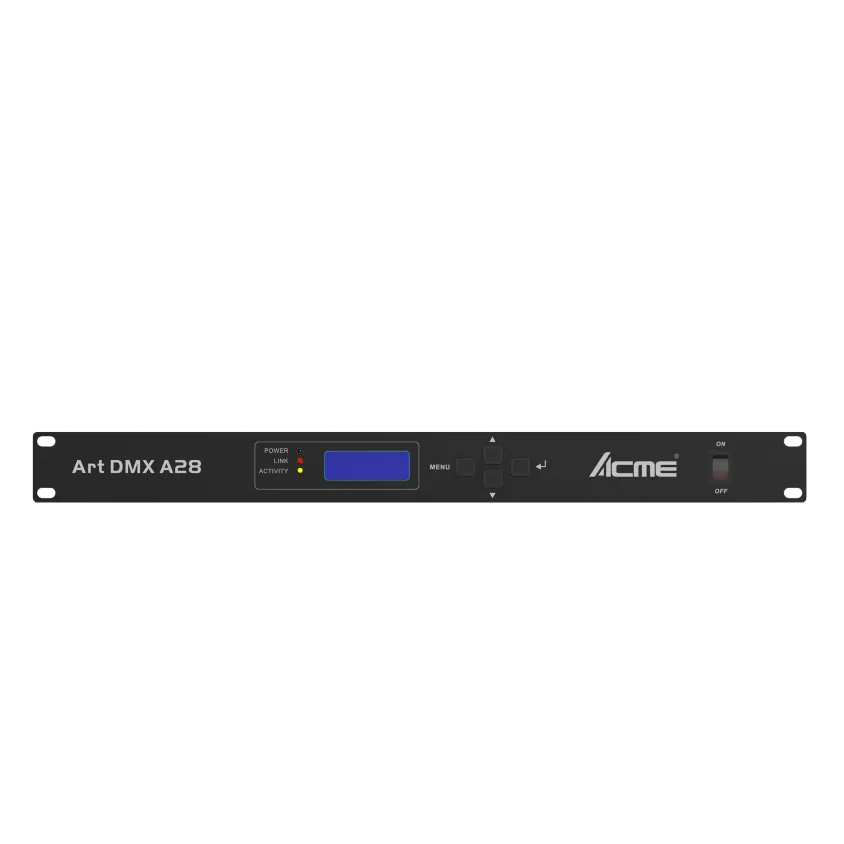

Display: OLED display
Protocols: DMX512,RDM,Art-Net,sACN

03Other Effects15

2 x RJ45 Ethernet (LAN) interface; Gigabit network, 10/100/1,000M adaptive; Supports TCP/IP protocol; Can save up to 16 scenes; Can route fixture software upgrades, as well as own software, via network

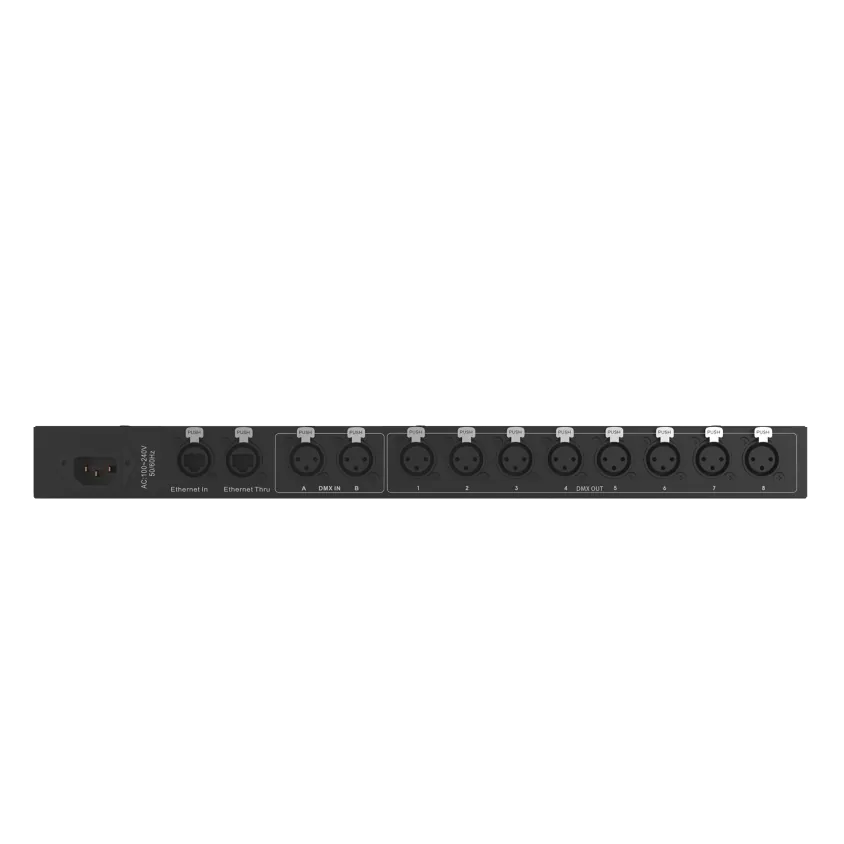

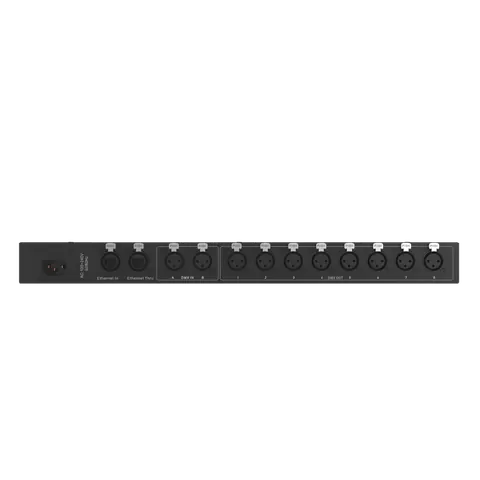

Each DMX output port can be set to one of five modes: Single, HTP, LTP, RDM and zero; Each DMX input/output can be set to enabled/disabled; Can be used as DMX splitter/amplifier; Manually settable IP address; 6 user presets; OLED display shows the status of each DMX port; LED indicators show the status of network ports; Supports online software upgrade; 2 x DMX inputs + 8 x DMX outputs; All inputs/outputs are opto-isolated with withstanding voltage>2,000V

04Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 11W
Data In/Out: 3-pin or 5-pin XLR; Power supply with electronic auto-ranging

05Physical Information4

Fixture Dimensions
Width: 482 mm (19.0")
Depth: 157 mm (6.2")
Height: 44 mm (1.7")
Weight: 2.0 kg (4.4 lbs)

Show the full specificationHide the rest of the specification6 more groups · 14 values

06Packing Information4

Carton Dimensions
Width: 560 mm (22.0")
Depth: 505 mm (19.9")
Height: 480 mm (18.9")
Weight
G.W.: 16.8 kg (37.0 lbs) (One-pack loader carton)

07Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: 0°C
Maximum Surface Temperature: 65°C
Protection Rating: IP20

08Approvals1

CE compliant

09Installation2

Suitable for standard cabinet, 1U, 19"

Safety cable attachment point

10Included Items2

Digital user manual

Power cable

11Optional Accessories (With Order Code)1

Signal Cable: 3-pin or 5-pin signal cable

02DescriptionManufacturer's description

What it is.

The ARTDMX A28 from ACME is an RDM/DMX splitter/booster dedicated to RDM/DMX signal amplification. It's especially designed for connections of DMX receivers (moving heads, color changers, dimmers, etc.) in a daisy-chain configuration, and is suitable for applications where the DMX-512 signal is weakened over long-distance transmission. The ARTDMX A28 will efficiently buffer and amplify the DMX signal, ensuring that the DMX data transmission is accurate and reliable.

03Documents7 files · 5.4 MB
