Sheet 05.760

ACME · Effects and lasers

GINAMP

ModelSTROBE 2

Light source: 800 x 0.3W 5,050RGB LED
Power consumption: 320W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP20
DMX channels: 6/13/18/36/126/131
Protocols: DMX512,RDM
Net weight: 5.3 kg (11.7 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 0:22

ACME GINAMP0:22

02SpecificationManufacturer's data · 13 groups · 48 values

What this product is, in numbers.

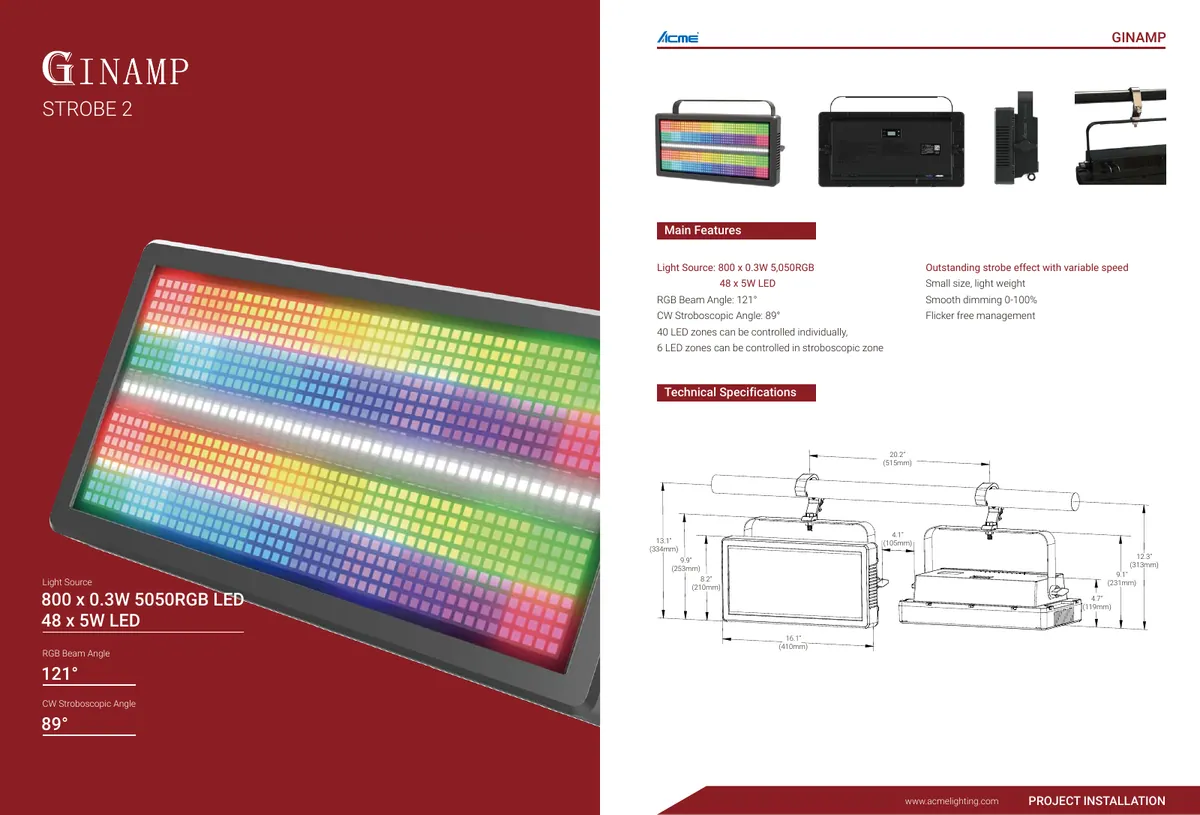

PDFDatasheetEN · 2 pages · 375 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: GINAMP
Model Code: STROBE 2

02Light Source4

Light Source: 800 x 0.3W 5,050RGB LED; 48 x 5W LED
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Optical System2

Beam Angle
RGB LED Zones: 121°
Strobe Tube: 89°

04Control7

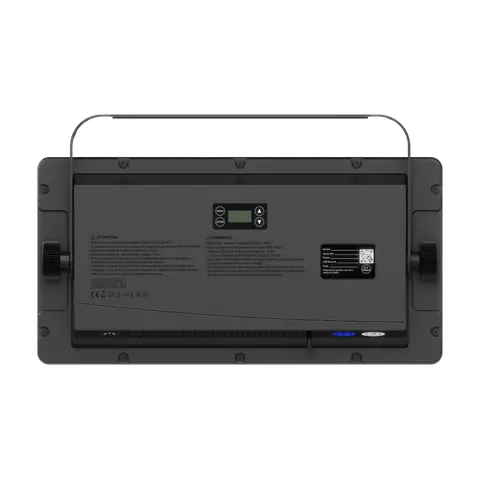

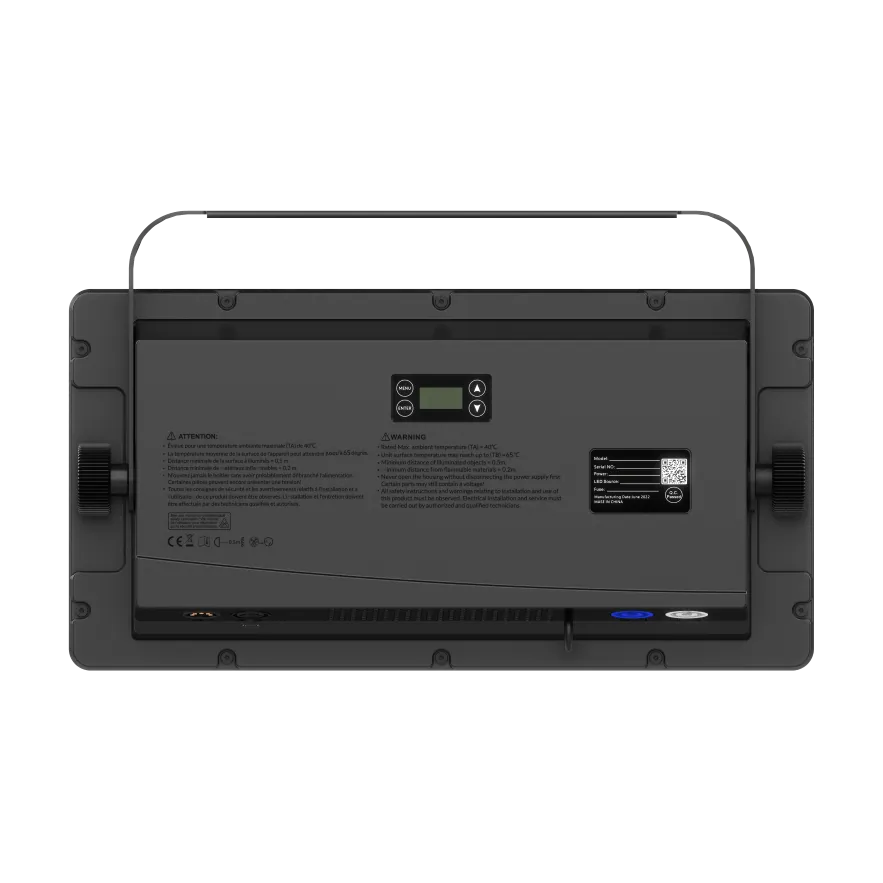

4 touch button control panel
Display: OLED display
Operational Modes: DMX Control,Show Mode
Protocols: DMX512,RDM
DMX Protocol Modes: 6
Control Channels: 6/13/18/36/126/131
Firmware Upgrade: Upgrade via DMX link

05Other Effects5

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

High brightness, outstanding washing effect

RGB colour mixing

40 x led zones can be controlled individually, 6 x led zones can be controlled in stroboscopic zone

06Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 320W

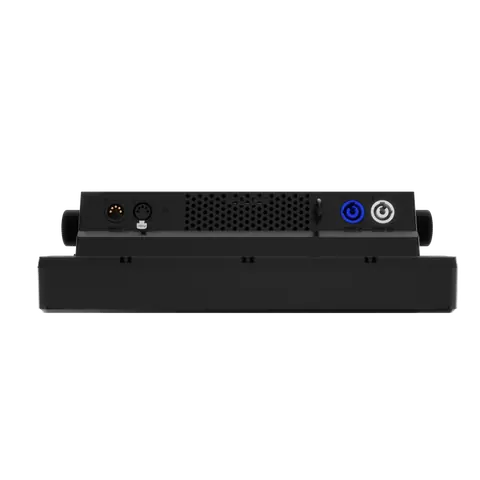

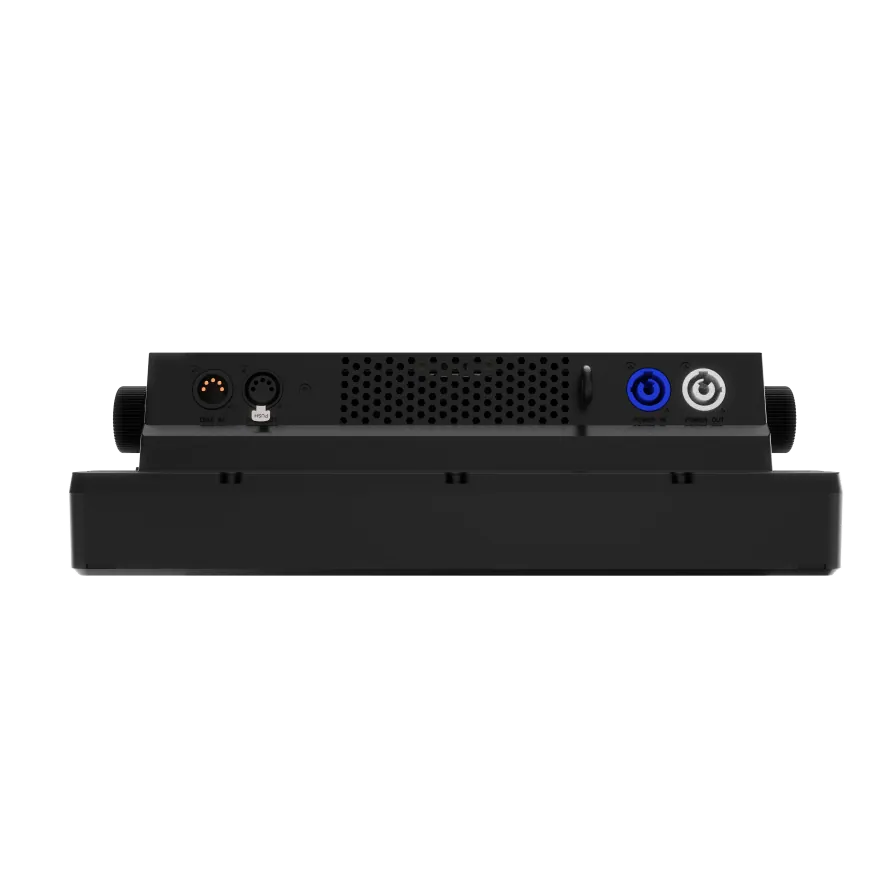

Power In/Out: Power connector in/out
Data In/Out: 3-pin or 5-pin XLR

Show the full specificationHide the rest of the specification7 more groups · 24 values

07Physical Information4

Fixture Dimensions
Width: 210 mm (8.3")
Depth: 410 mm (16.1")
Height: 120 mm (4.7")
Weight: 5.3 kg (11.7 lbs)

08Packing Information4

Carton Dimensions
Width: 285 mm (11.2")
Depth: 210 mm (8.3")
Height: 505 mm (19.9")
Weight
G.W.: 6.2 kg (13.7 lbs) (One-pack loader carton)

09Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: 0°C
Maximum Surface Temperature: 65°C
Protection Rating: IP20

10Approvals1

CE compliant

11Installation5

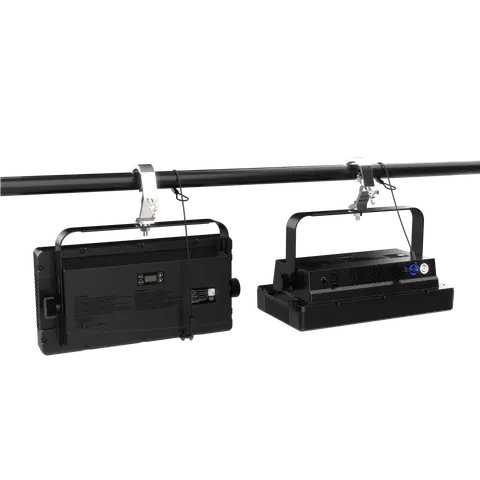

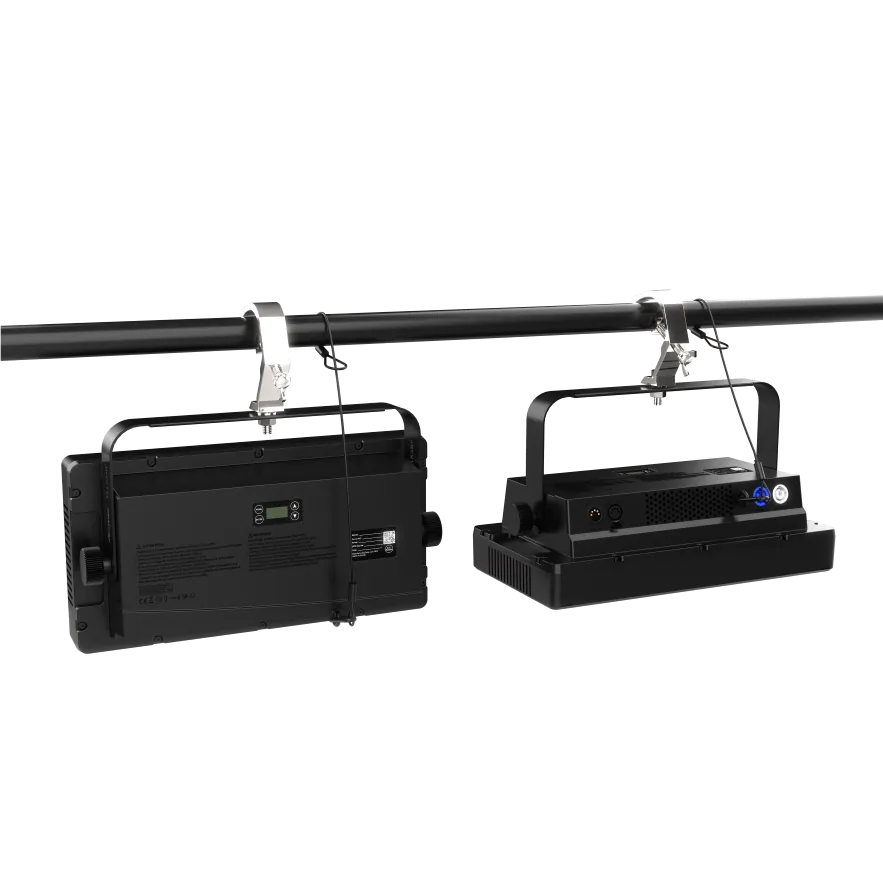

Horizontal or vertical mounting

Universal working position

1 clamp for 50 mm truss

1 x locked points in the handle

Safety cable attachment point

12Included Items3

Digital user manual

Power cable

Head with handle

13Optional Accessories (With Order Code)3

Clamp: C-100A (2060001635)
Safety Cable: SW-02 (2060000200-B)
Signal Cable: 3-pin or 5-pin signal cable

03DescriptionManufacturer's description

What it is.

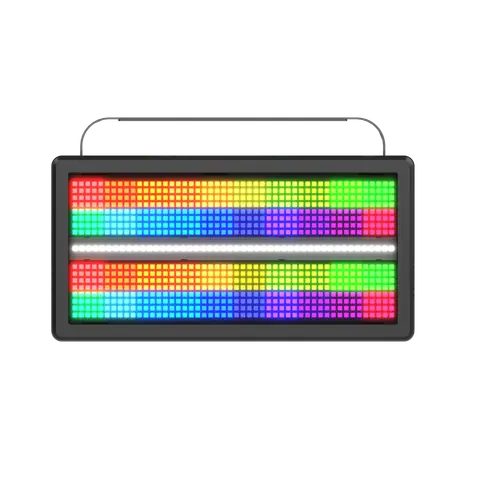

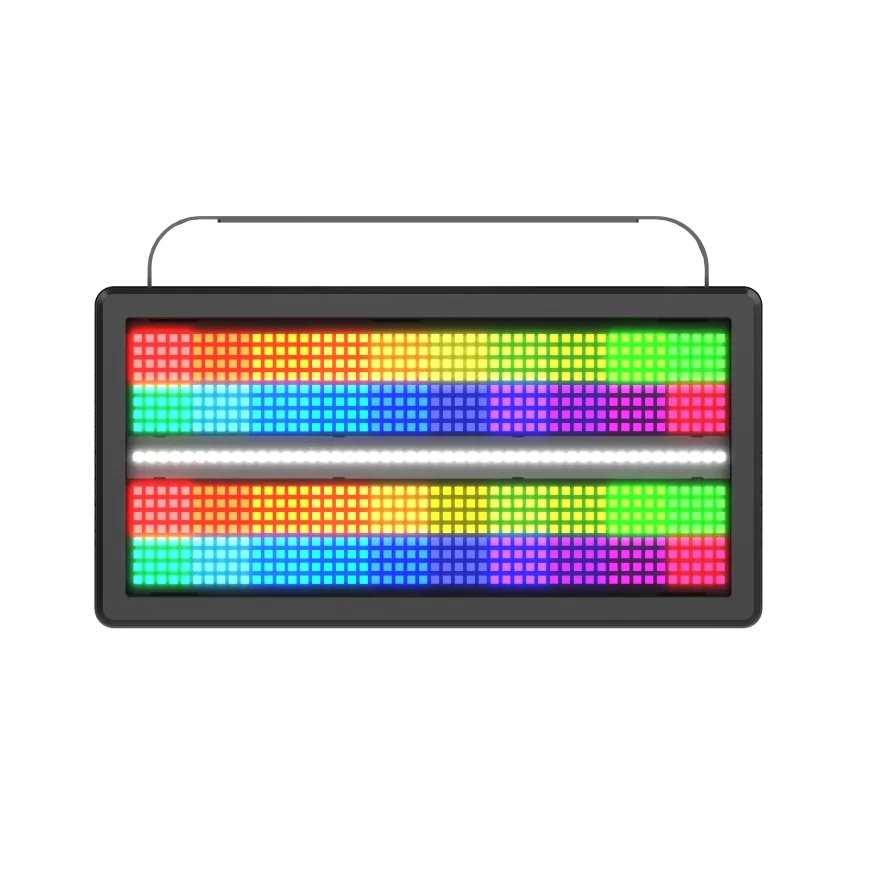

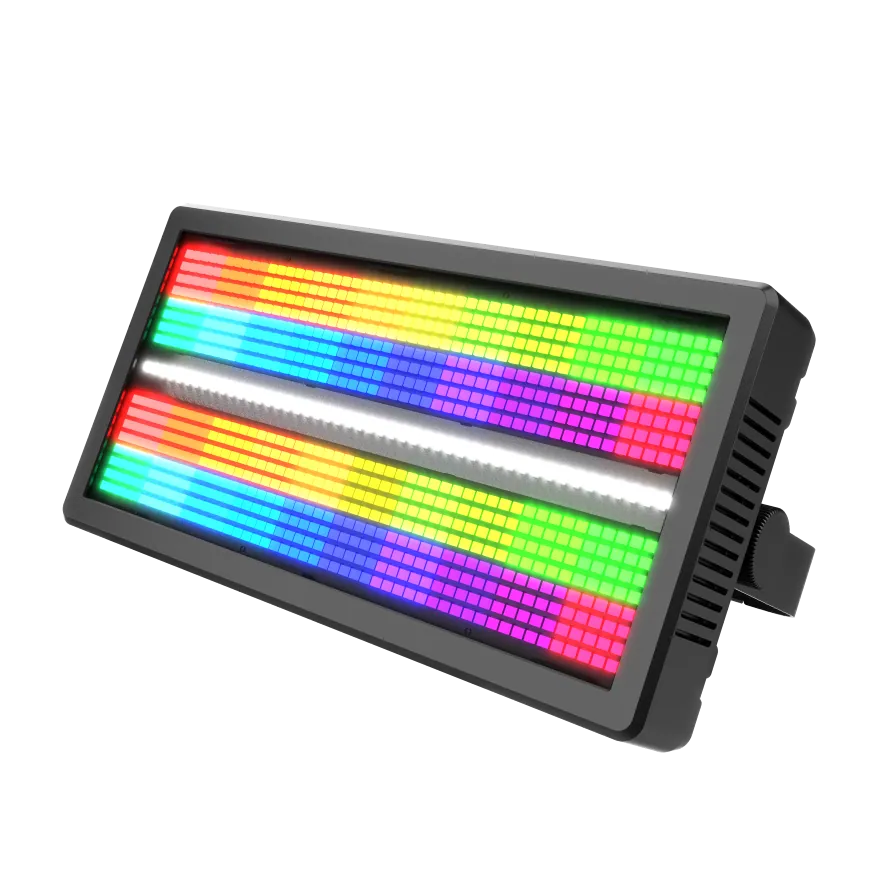

The GINAMP strobe light contains 800pcs 0.3w 5050 RGB LEDs divided into 40 individually controllable zones with 20 LEDs in each segment, plus the amazing 48pcs 5w cold white LEDs divided into 6 controllable segments in the center. Featuring a wide 121° viewing beam angle from the color zones and an 89°beam angle out of the white tube, GINAMP is ready to create outstanding color washing and dynamic strobing. Onboard features include 0-100% smooth dimming, pre-set color mixing, dynamic strobing wash, and auto chasing programs. Applicable to the nightclub, ballroom, or any other entertaining lighting application.
