HUELINE 16 IP

ModelHL 16 IP

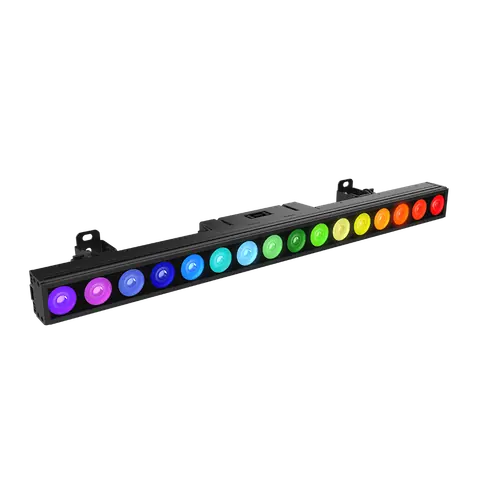

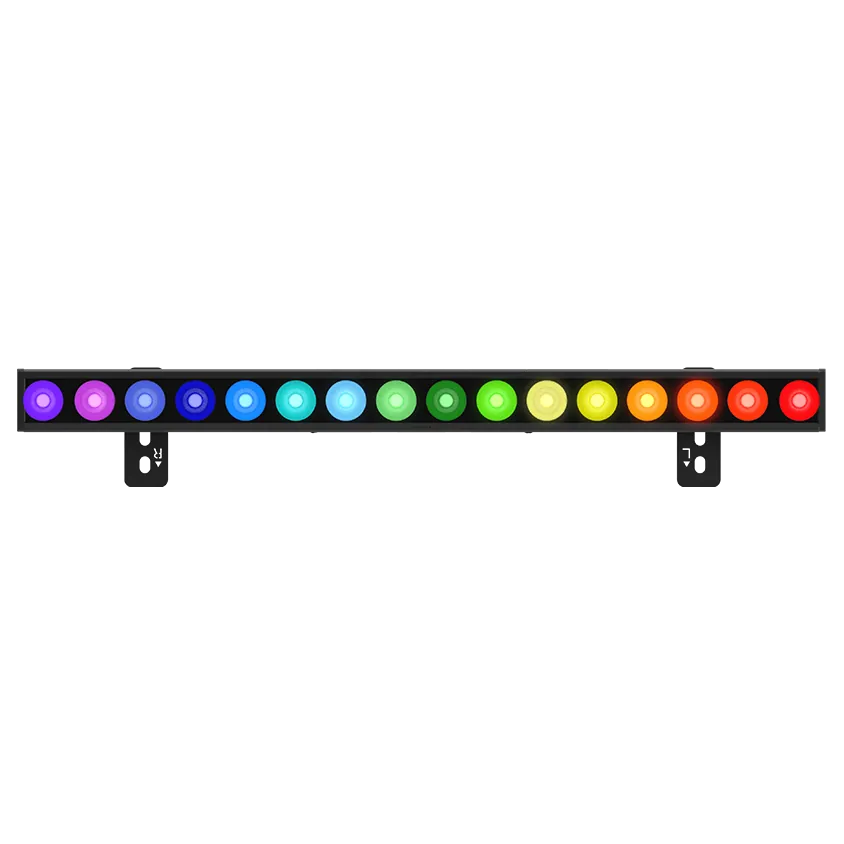

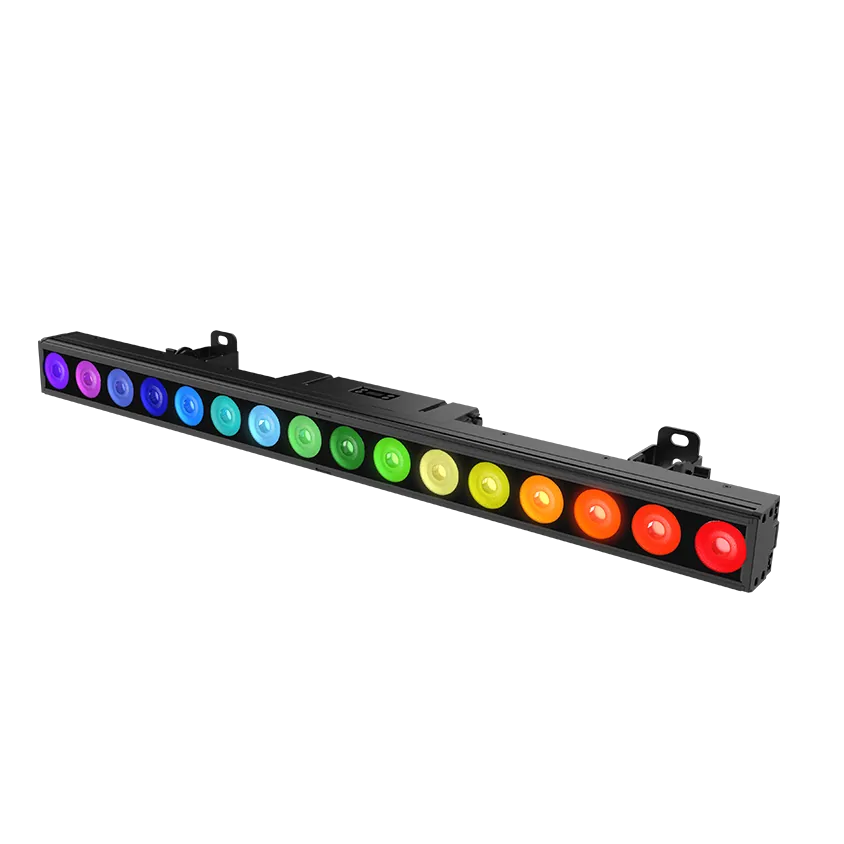

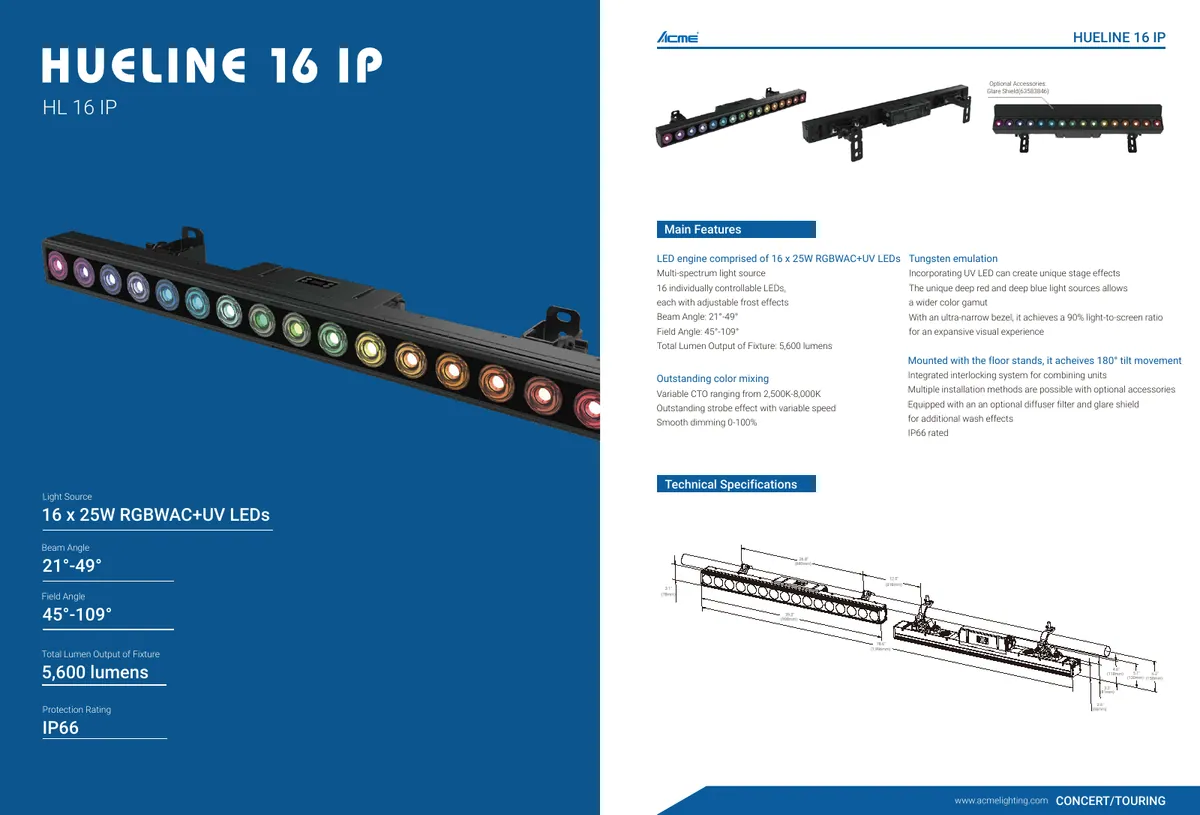

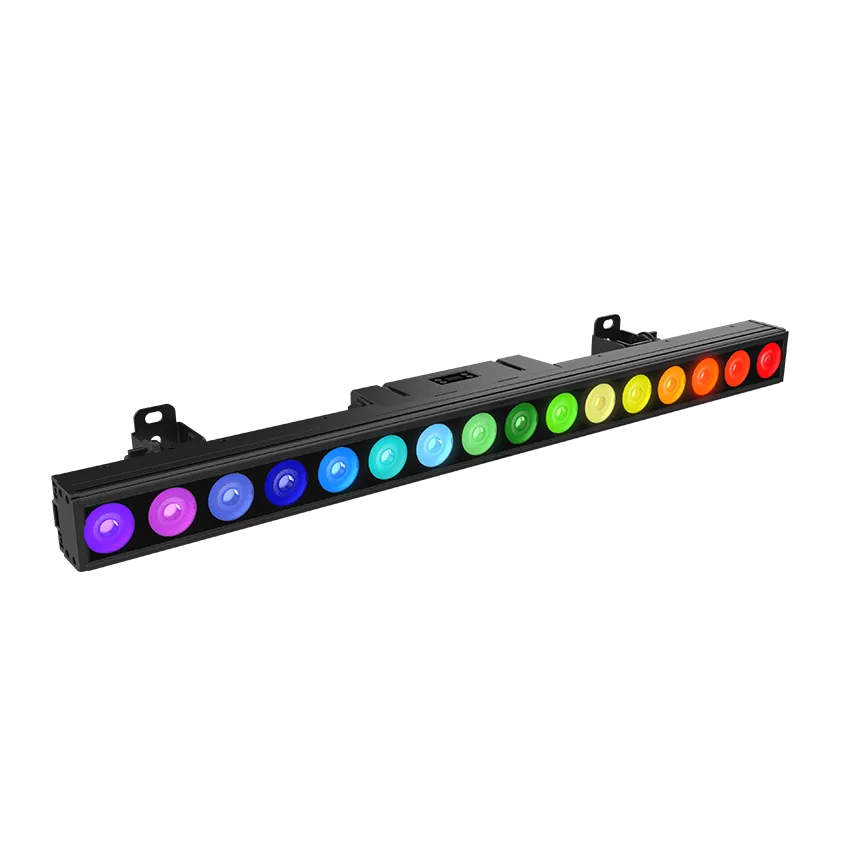

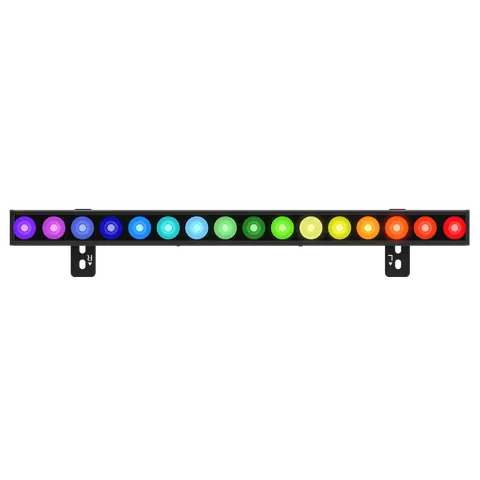

Meet the ACME HUELINE 16 IP, a versatile fixture that fulfills all your creative needs. Arranged seamlessly in a line, it offers a vibrant color spectrum, enhancing your visual experience.

Light source: 16 x 25W RGBWAC+UV LEDs
Power consumption: 190W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66
Beam angle / zoom: 21°-49°
DMX channels: 16/18/133/136
Protocols: DMX512,RDM,Art-Net,sACN
Net weight: 8 kg (17.6 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 3:04

ACME HUELINE 16 IP3:04

02SpecificationManufacturer's data · 16 groups · 73 values

What this product is, in numbers.

PDFDatasheetEN · 2 pages · 468 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: HUELINE 16 IP
Model Code: HL 16 IP

02Light Source3

Light Source: 16 x 25W RGBWAC+UV LEDs
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data2

Total Lumen Output of Fixture: 5,600 lumens
HCRI Mode: Ra≥92

04Optical System6

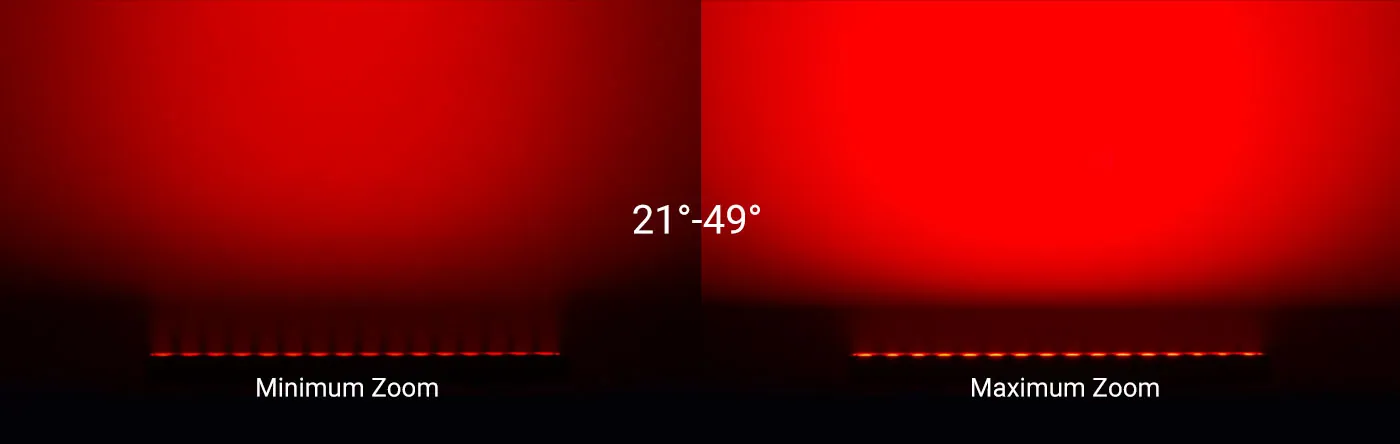

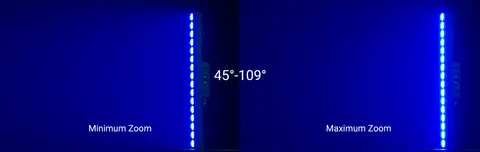

Beam Angle: 21°-49°

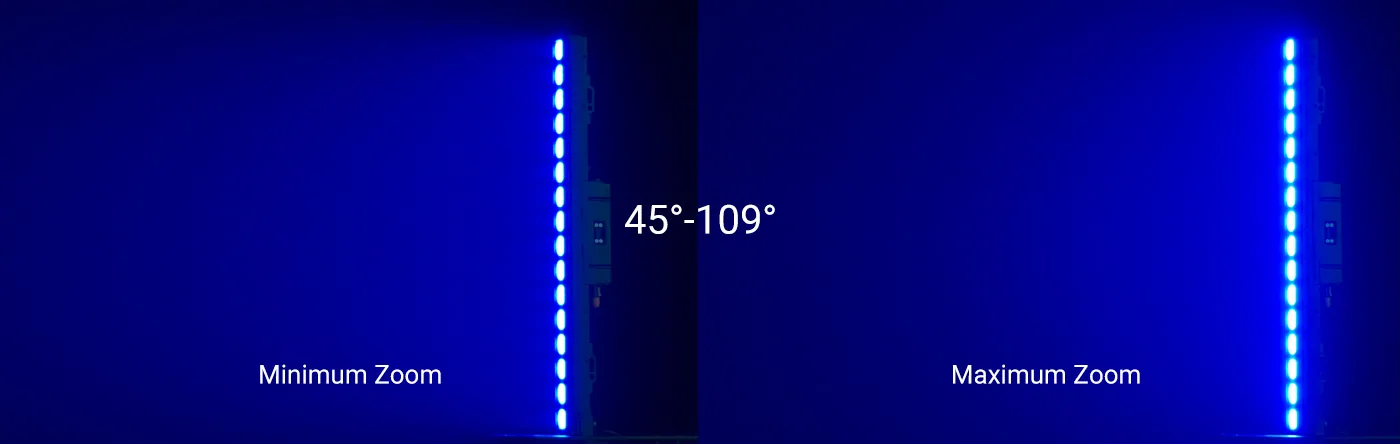

Field Angle: 45°-109°
DMX Controllable Smart Glass technology
Patent No.: CN216010577U; US11698183B1; DE202023101966U1; FR3134870B3

05Control6

4 touch button control panel
Display: OLED display
Protocols: DMX512,RDM,Art-Net,sACN
DMX Protocol Modes: 4
Control Channels: 16/18/133/136
Firmware Upgrade: Upgrade via DMX link

06Pan & Tilt1

Tilt Movement: 90° (mounted with floor stands)

Show the full specificationHide the rest of the specification10 more groups · 53 values

07Colors1

Linear CTO Color Correction: 2,500K-8,000K

08Other Effects8

Smooth dimming 0-100% (4 user selectable dimming curves); Tungsten emulation; Individual pixel control and built-in color macro effects; 16 individually controllable LEDs, each with frost effects; Outstanding color mixing
Dimming Frequency: 900Hz-25kHz; With an ultra-narrow bezel, it achieves a 90% light-to-screen ratio for an expansive visual experience.; Equipped with an inventive quick-release mechanism that allows you to quickly connect and align multiple fixtures

09Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 190W
Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR,waterproof RJ45 connector

10Physical Information8

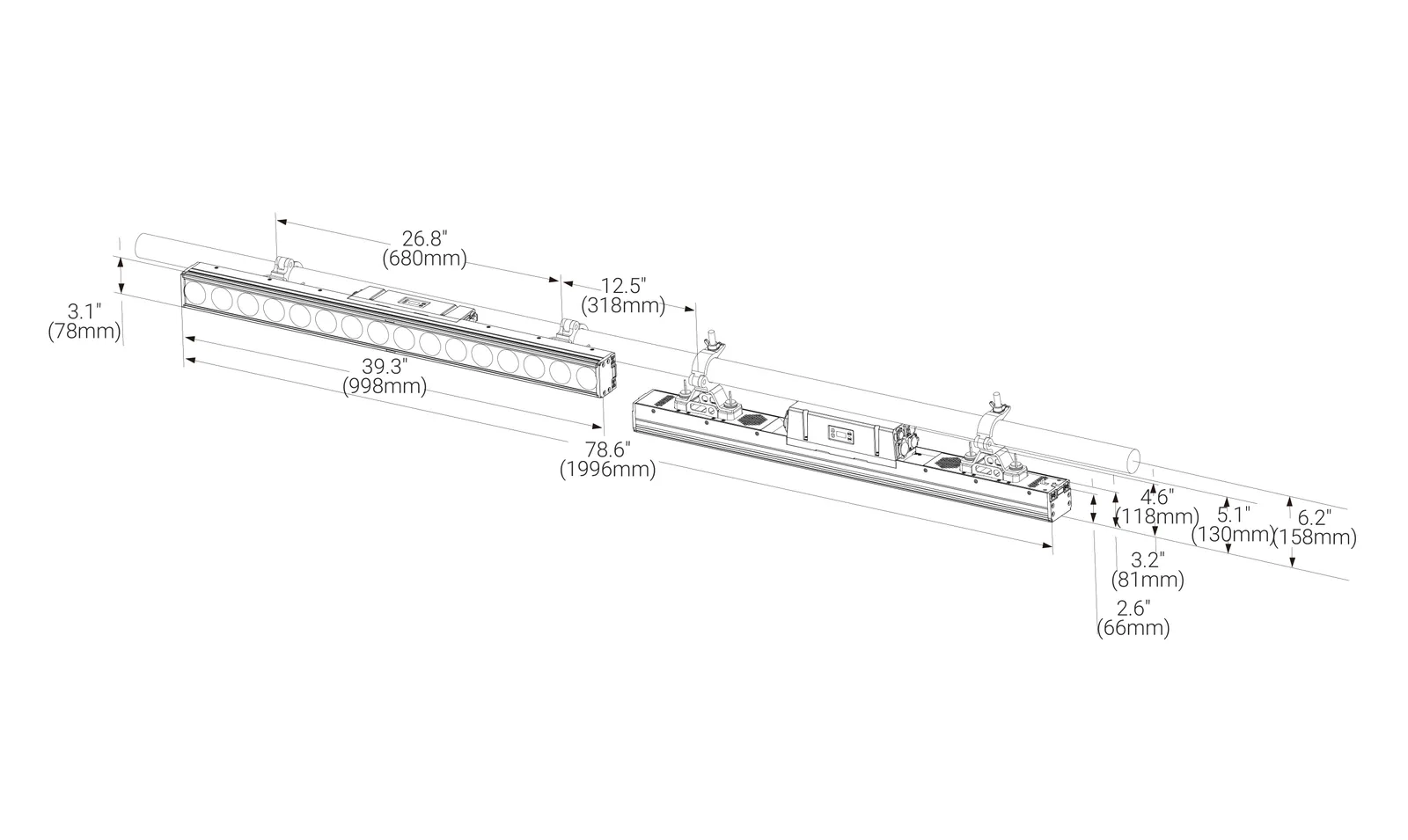

Fixture Dimensions
Without Floor Stands
Width: 998 mm (39.3")
Depth: 78 mm (3.1")
Height: 130 mm (5.1")
Weight: 8 kg (17.6 lbs)
With Floor Stands
Width: 998 mm (39.3")
Depth: 148 mm (5.8")
Height: 193 mm (7.6")
Weight: 9.6 kg (21.2 lbs)

11Packing Information9

Flight Case Dimensions
Width: 1,220 mm (48.0")
Depth: 610 mm (24.0")
Height: 845 mm (33.3")
Weight
Standard: G.W.: 159 kg (350.5 lbs) (ten-pack loader case)
North American Standard: G.W.: 170 kg (374.8 lbs) (ten-pack loader case)
Carton Dimensions
Width: 1,100 mm (43.5")
Depth: 265 mm (10.4")
Height: 185 mm (7.3")
Weight
G.W.: 11.5 kg (25.4 lbs) (one-pack loader carton)

12Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 65°C
Protection Rating: IP66

13Approvals3

CE compliant

UKCA compliant

cETLus compliant

14Installation5

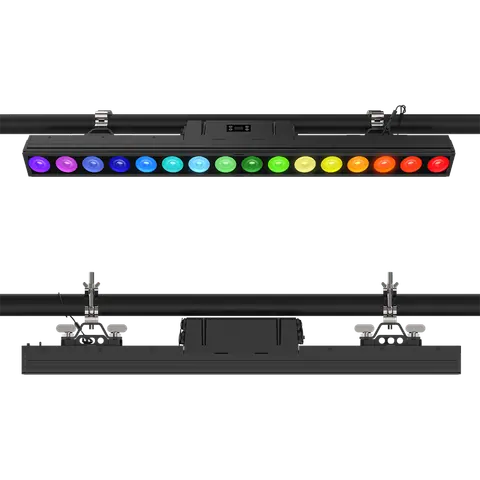

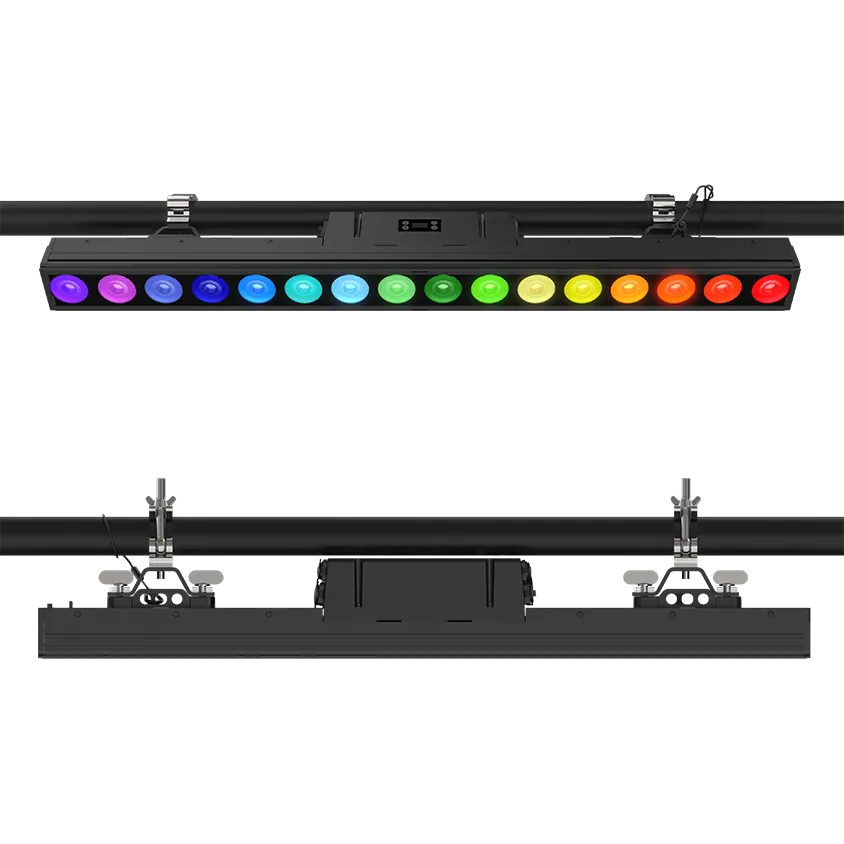

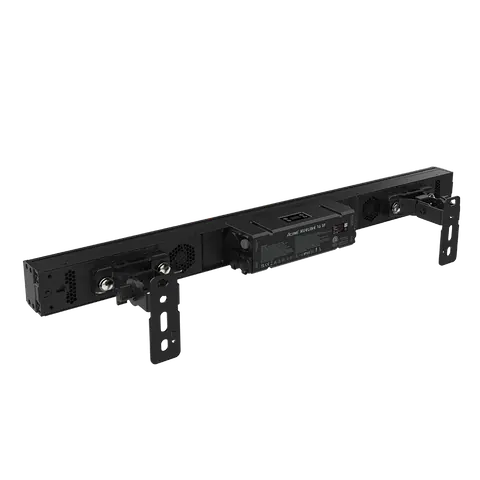

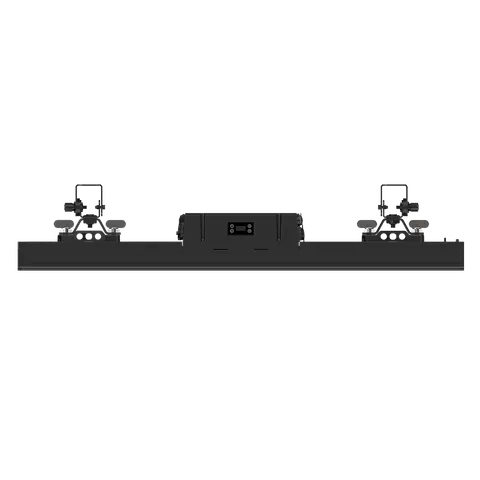

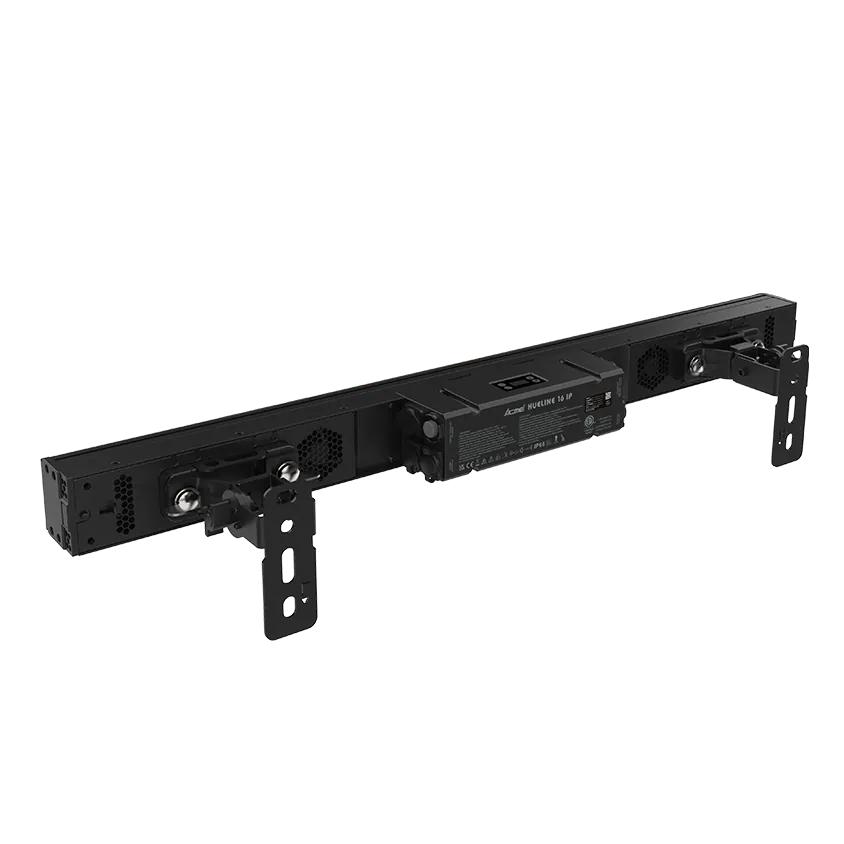

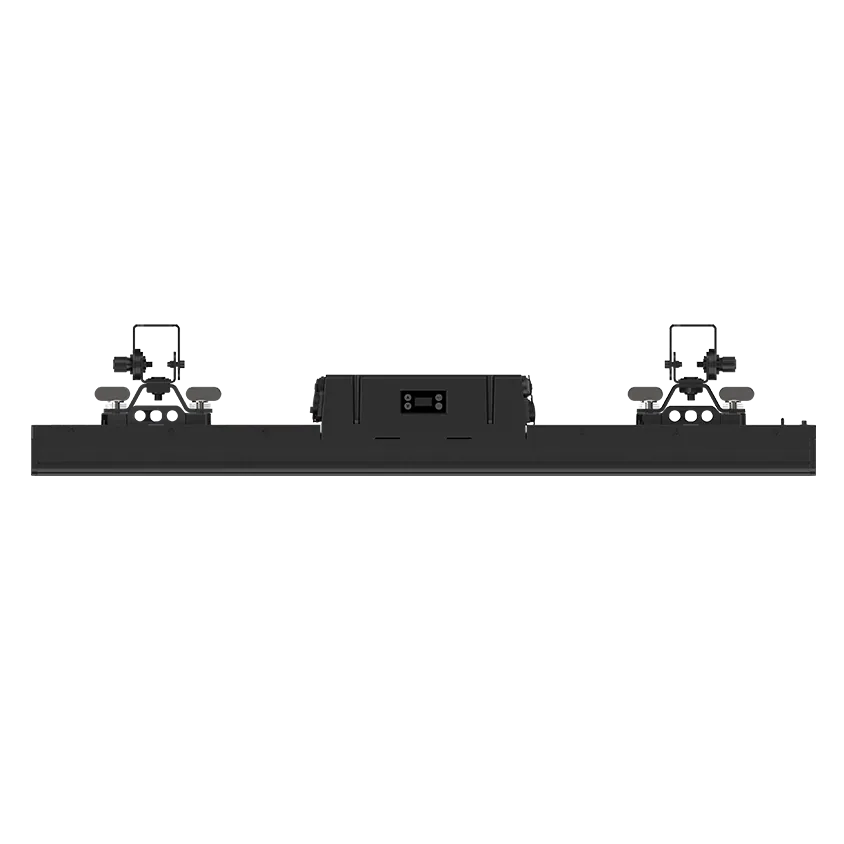

Horizontal or vertical mounting; 2 omega brackets

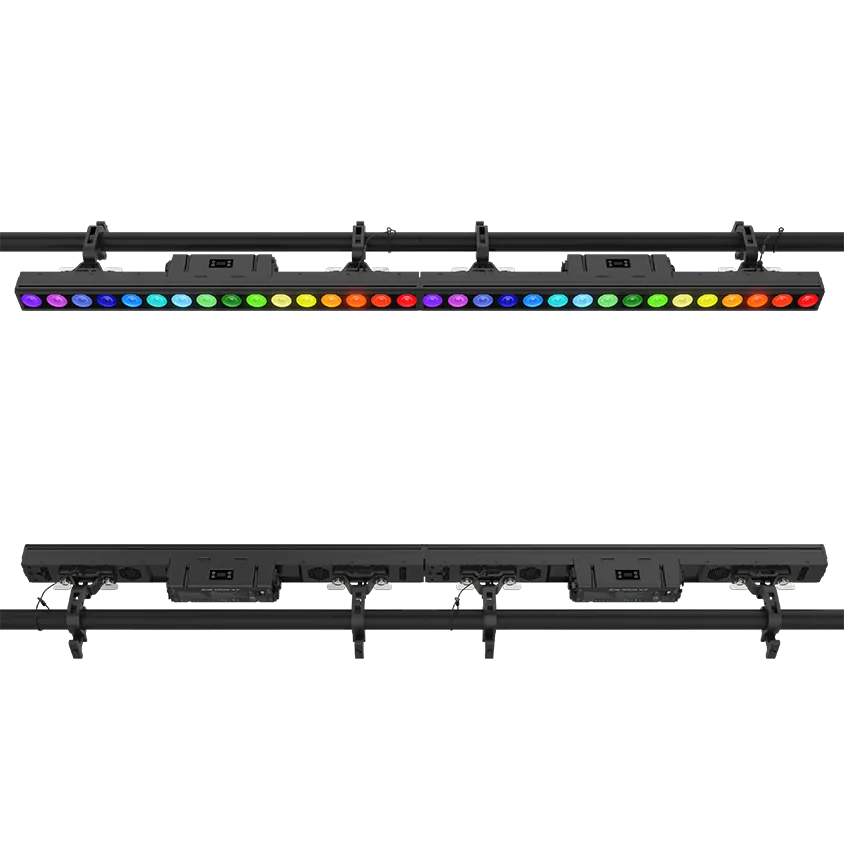

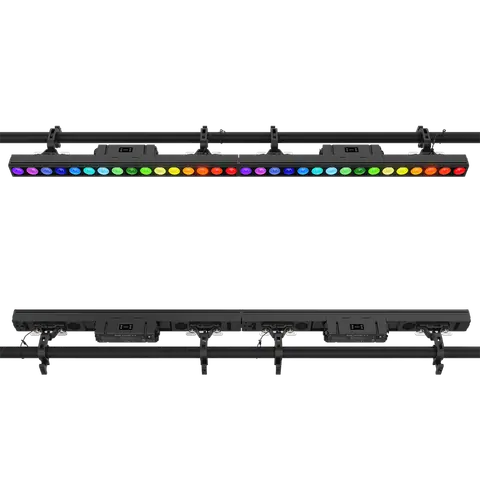

Horizontal: Utilizing two omega brackets (supplied) and clamps (by others), there is no limit to the number of fixtures in the horizontal direction, and a maximum of 5 fixtures may be connected in the vertical direction

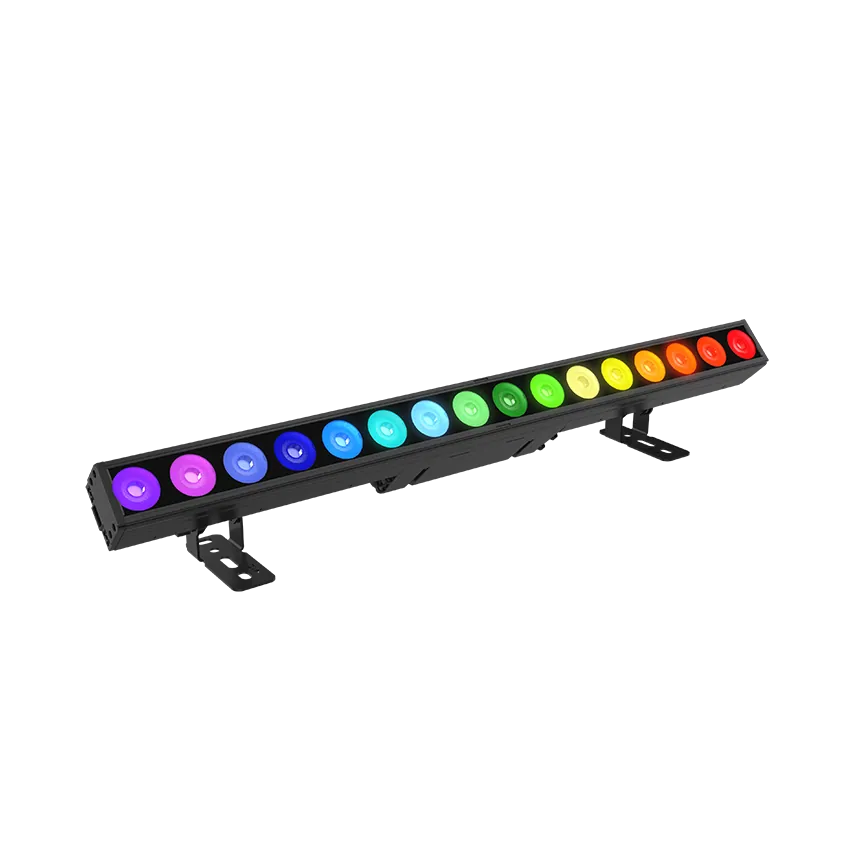

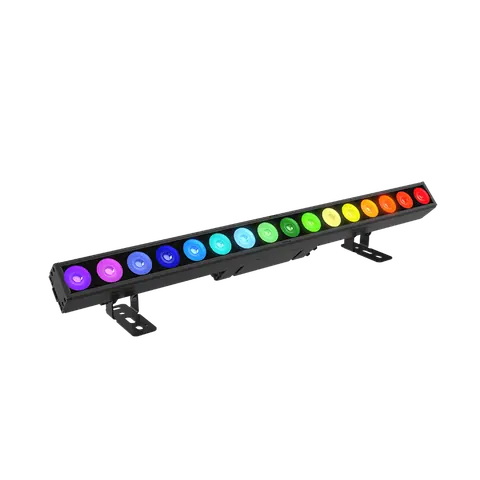

Floor: Utilizing two omega brackets (supplied) and two floor stands (supplied); Safety cable attachment point

15Included Items4

Digital user manual

Power cable

2 omega brackets (3002003002)

2 floor stands (63583845)

16Optional Accessories (With Order Code)7

Flight Case
Standard: Ten-pack loader case (63583828)
North American Standard: Ten-pack loader case (63583784)
Clamp: C-250B (2060001632-B),C-300 (2060001000)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)

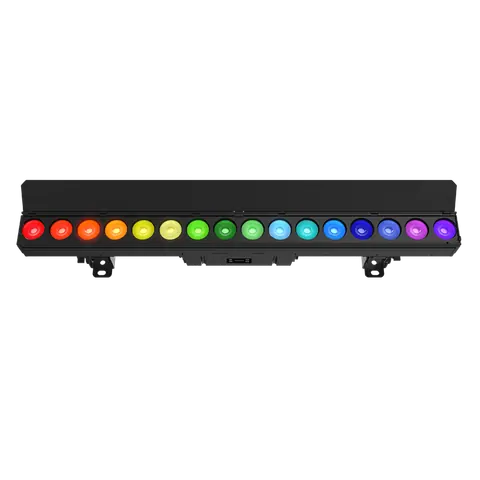

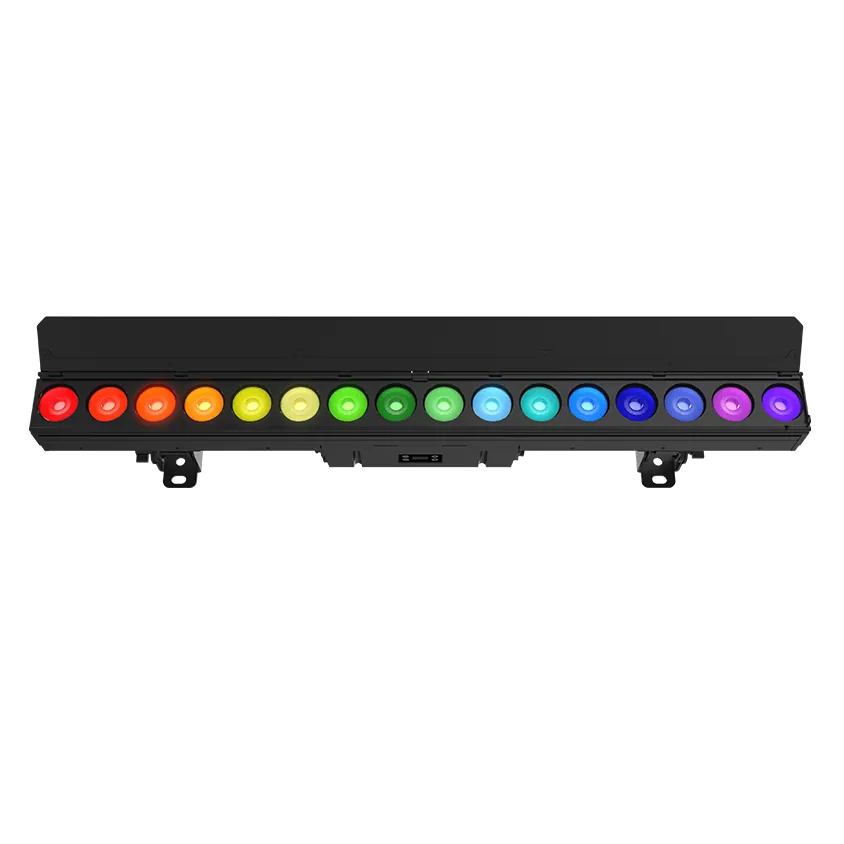

Glare Shield: 63583846
Diffuser Filter (40° x 20°): 3005006495

03DescriptionManufacturer's description

What it is.

Equipped with 16 individually controllable 25W RGBWAC+UV LEDs, each offering adjustable frost effects powered by ACME’s patented Smart Glass Technology, the fixture delivers soft looks and mysterious stage effects with the added UV LEDs. It uses unique deep red and deep blue light sources to provide a wider color gamut. With an ultra-narrow bezel design, the HUELINE 16 IP achieves a remarkable 90% light-to-screen ratio for an expansive visual experience.

When mounted with the floor stands, the fixture enables 90° tilt movement, ensuring dynamic coverage. Available accessories include an optional diffuser filter and glare shield, providing additional beam effects.

Lightweight and compact, the HUELINE 16 IP takes multispectral perfection to new heights.
