Sheet 05.762

ACME · Effects and lasers

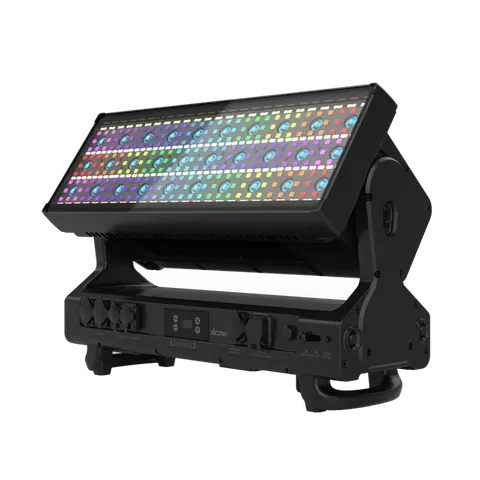

LIGHTNING

ModelSTROBE 6 IP

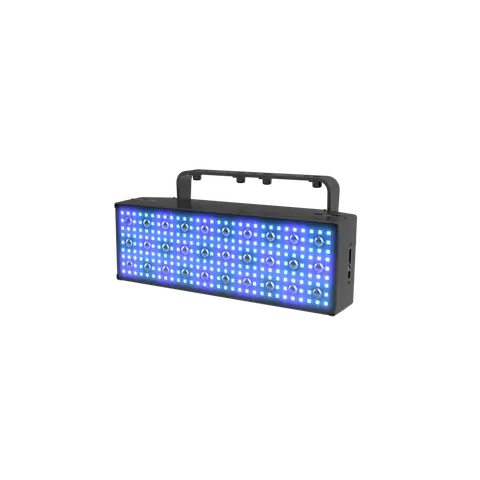

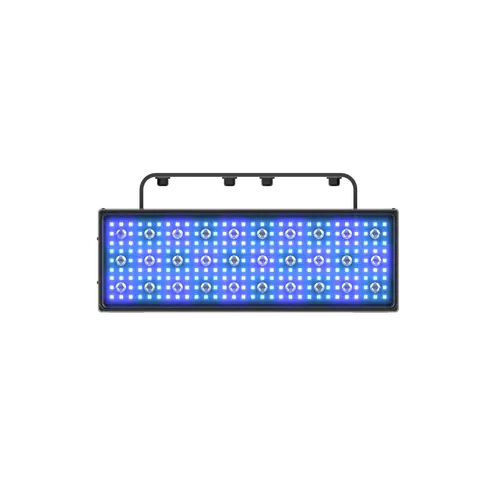

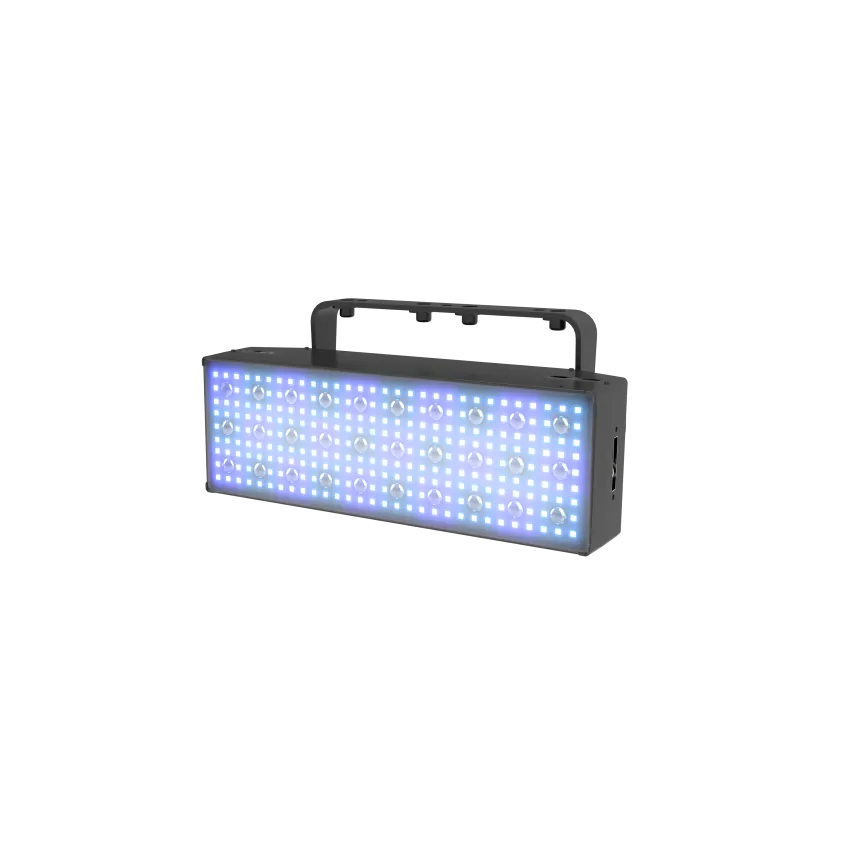

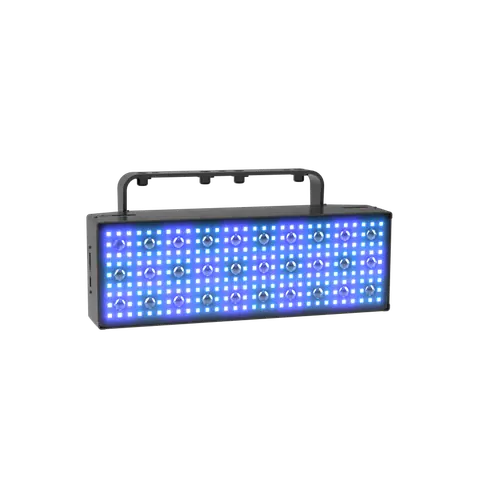

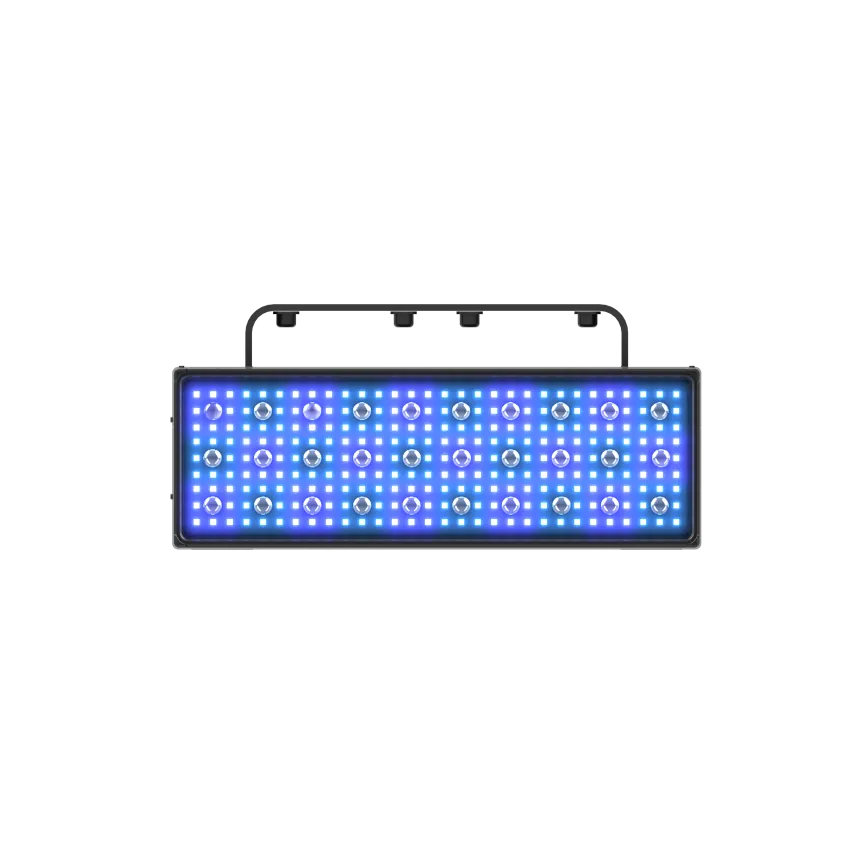

The ACME LIGHTNING fixture is inspired by the elements and is designed to perform in them as well. This IP66-rated provides dynamic strobes, powerful pointed beams, and soft flood wash.

Light source: 240 x 12W RGBW LED (30 controllable RGBW LED sections)
Power consumption: 1,610W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66
DMX channels: 10/17/24/21/26/36/41/61/150/158
Protocols: DMX512,RDM,Art-Net,sACN
Colour temperature: 6,300K
Net weight: 13.3 kg (29.3 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:35

ACME LIGHTNING2:35

02SpecificationManufacturer's data · 13 groups · 64 values

What this product is, in numbers.

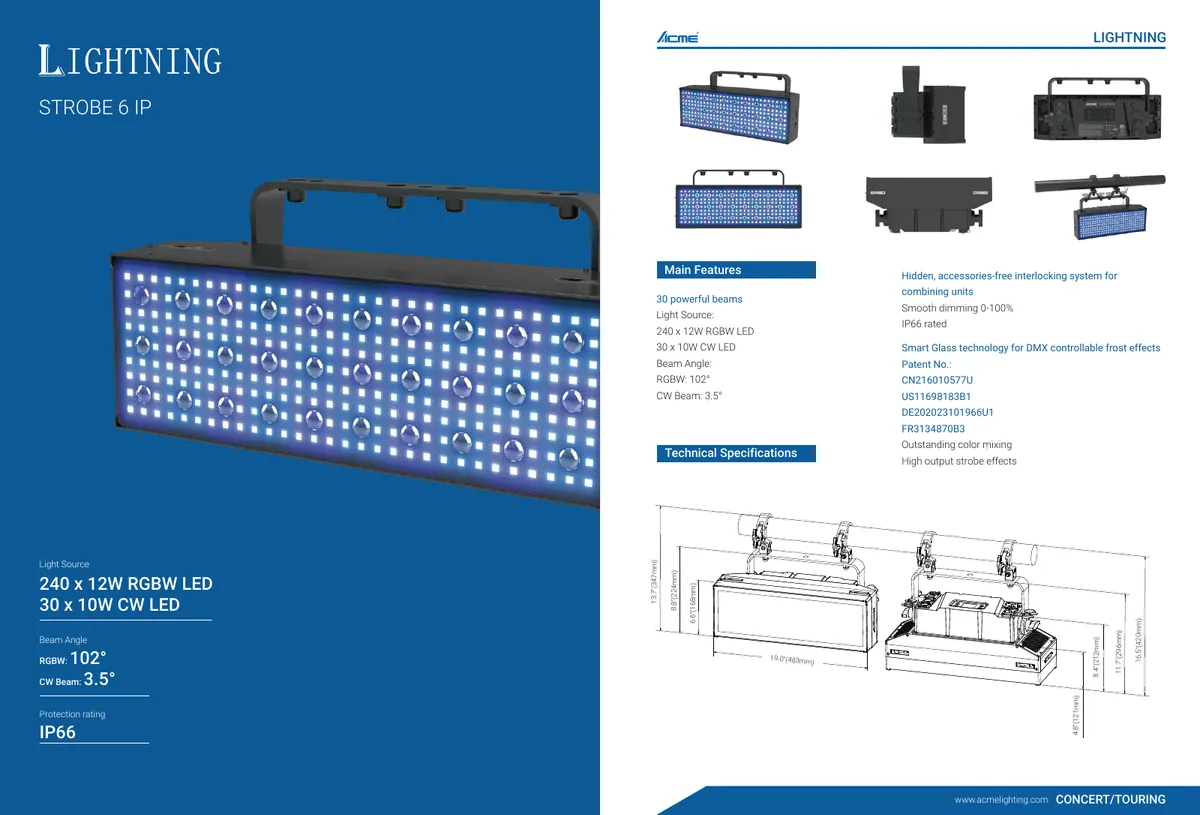

PDFDatasheetEN · 2 pages · 542 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: LIGHTNING
Model Code: STROBE 6 IP

02Light Source5

Light Source: 240 x 12W RGBW LED (30 controllable RGBW LED sections); 30 x 10W CW LED (30 CW LED sections)
Color Temperature Output of Fixture: 6,300K
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Optical System6

Beam Angle
RGBW: 102°
CW: 3.5°
DMX Controllable Smart Glass technology
Patent No.: CN216010577U; US11698183B1; DE202023101966U1; FR3134870B3

04Control6

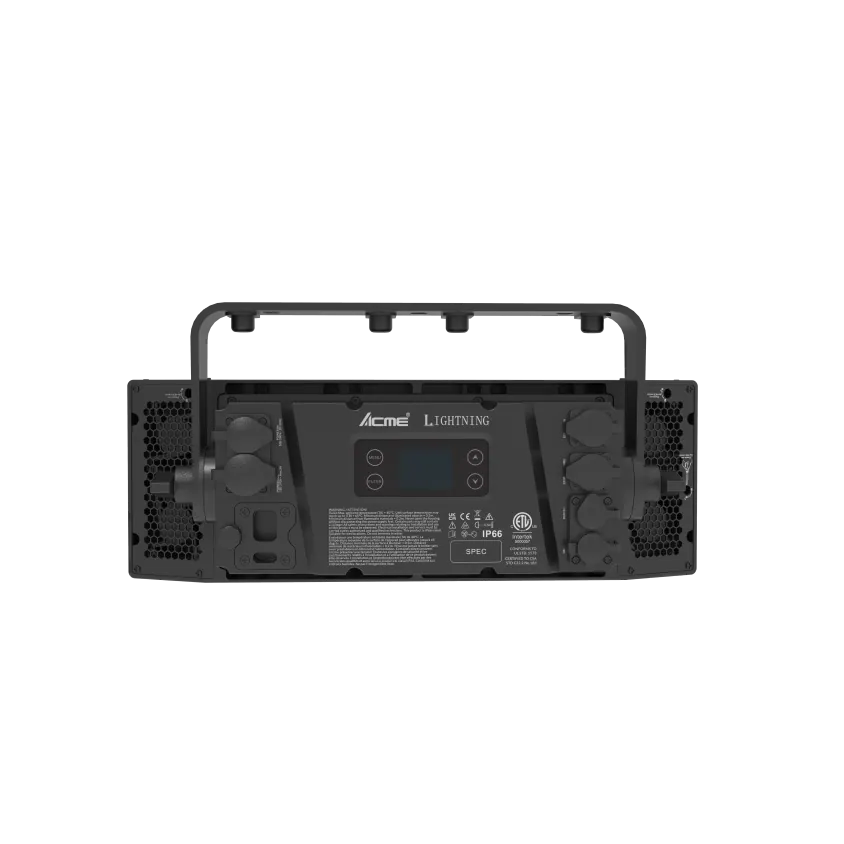

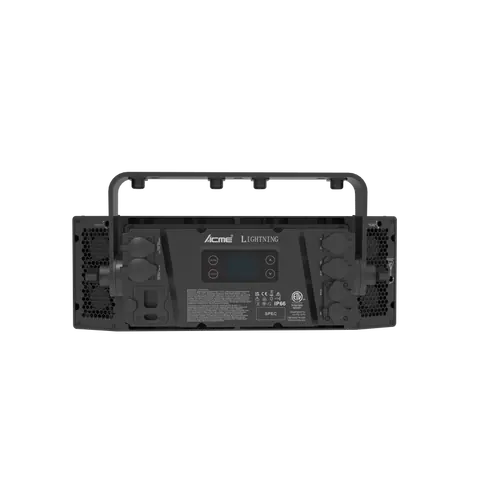

4 touch button control panel
Display: LCD display
Protocols: DMX512,RDM,Art-Net,sACN
DMX Protocol Modes: 10
Control Channels: 10/17/24/21/26/36/41/61/150/158
Firmware Upgrade: Upgrade via DMX link

05Other Effects8

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Excellent RGBW color mixing

Flicker free operation from 900 Hz to 25,000 Hz

30 powerful beams

Hiding twist-lock design for quickly accessories-free combining

Smart Glass technology for DMX controllable frost effects

Equipped with an inventive quick-release mechanism that allows you to quickly connect and align multiple fixtures

Show the full specificationHide the rest of the specification8 more groups · 37 values

06Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 1,610W
Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR,RJ45 connector

07Physical Information4

Fixture Dimensions
Width: 483 mm (19.0")
Depth: 212 mm (8.4")
Height: 224 mm (8.8")
Weight: 13.3 kg (29.3 lbs)

08Packing Information12

Flight Case Dimensions 1
Width: 1,220 mm (48.0")
Depth: 610 mm (24.0")
Height: 655 mm (25.7")
Weight
Standard: G.W.: 105 kg (231 lbs) (Four-pack loader case)
Flight Case Dimensions 2
Width: 480 mm (18.9")
Depth: 240 mm (9.4")
Height: 260 mm (10.2")
Weight
North American Standard: G.W.: 254 kg (560.0 lbs) (Four-pack loader case)
Carton Dimensions
Width: 590 mm (23.0")
Depth: 320 mm (13.0")
Height: 390 mm (15.0")
Weight
G.W.: 16.5 kg (37 lbs) (One-pack loader carton)

09Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 65°C
Protection Rating: IP66

10Approvals3

CE compliant

UKCA compliant

cETLus compliant

11Installation3

Horizontal or vertical mounting

Universal working position

Safety cable attachment point

12Included Items2

Digital user manual

Power cable

13Optional Accessories (With Order Code)5

Flight Case 1
Standard: Four-pack loader case (63582803)
Flight Case 2
North American Standard: Four-pack loader case (63583045)
Clamp: C-150B (2060001625-C)
Safety Cable: SW-02 (2060000200-B)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)

03DescriptionManufacturer's description

What it is.

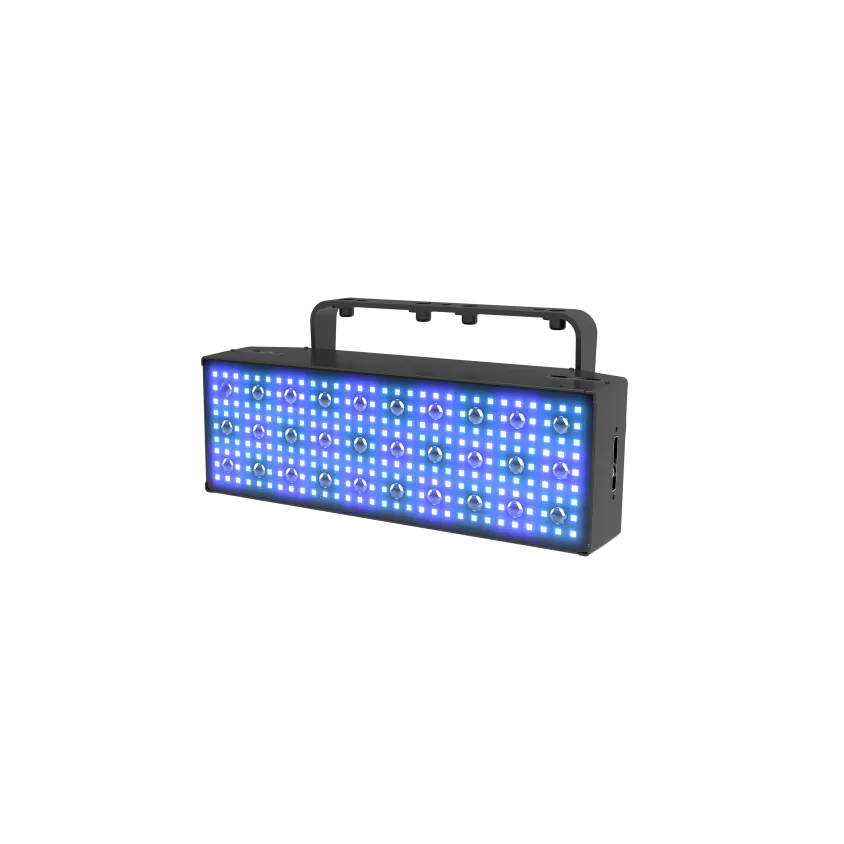

The ACME LIGHTNING fixture is inspired by the elements and is designed to perform in them as well. This IP66-rated provides dynamic strobes, powerful pointed beams, and soft flood wash. We have integrated our Smart Glass Technology – also available in the ACME Pixel Line IP fixture (patented) – extends the range and usefulness of the LIGHTNING, making it one of the most versatile strobe and wash fixtures on the market. Smart Glass Technology is a controllable electronic frost softens the fixture's light allowing additional effects.

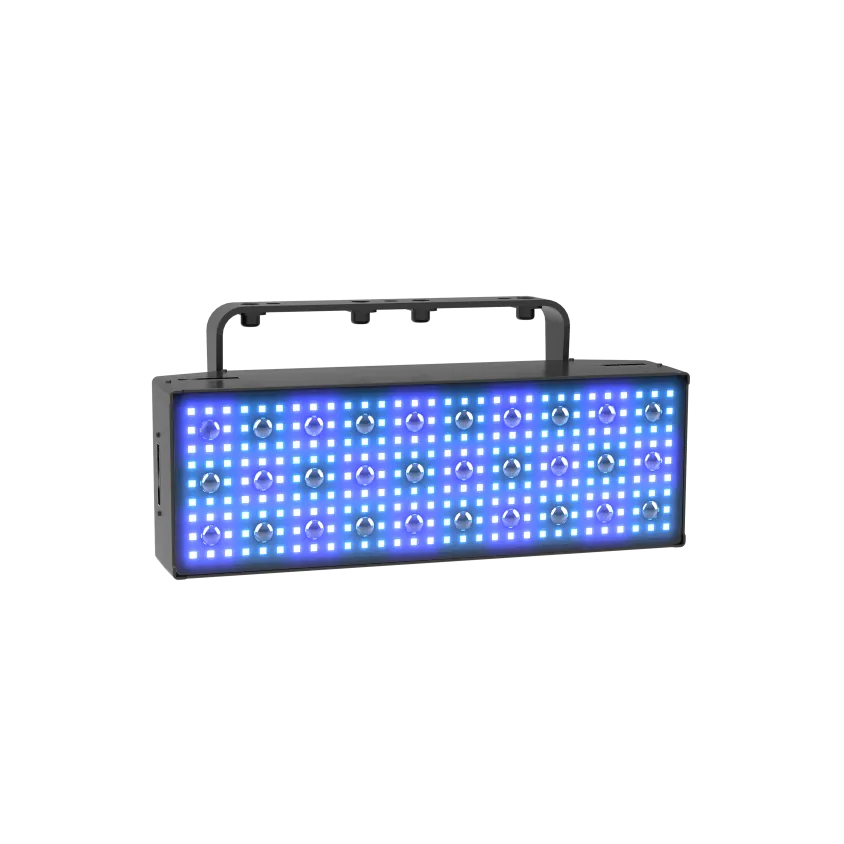

The LIGHTNING is powered by 240, 12-Watt RGBW LEDs and 30, 10-Watt cool white pixel beam LEDs and the RGBW LEDs are divided into 30 independent sections with a cool white LED centered in each color LED section. The RGBW LEDs have a 102° beam angle while the cool white LEDs are at 3.5° for unprecedented effects. Additionally, the unit offers ten different DMX control modes and built-in effects macros giving you unlimited ways to control the fixture for the looks and effects you want.

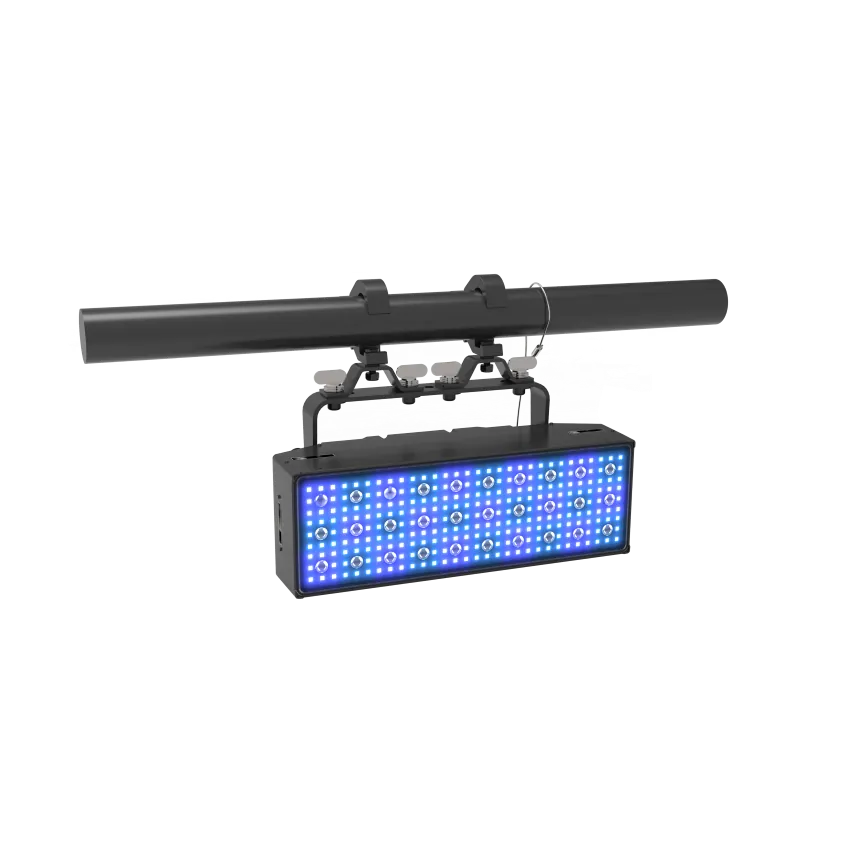

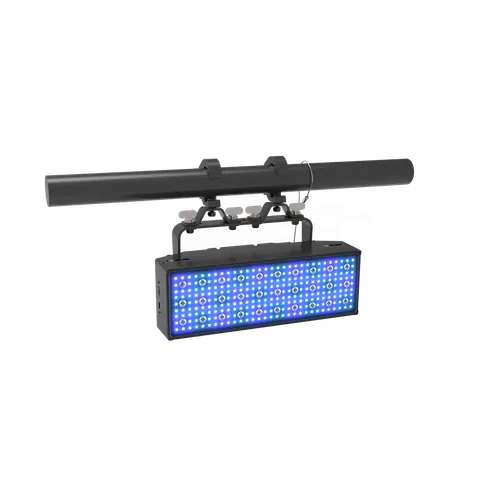

The LIGHTNING can be mounted in any orientation with its yoke. The yoke assembly has a center hole for clamps and two omega bracket attachment points. The unit also features camlocks on all sides to easily create a matrix grid of LIGHTNING fixtures side-to-side -and top-to-bottom and is perfect for any indoor and outdoor application..

The ACME LIGHTNING changes and elevates the standard of strobe and wash lighting.
