Sheet 05.763

ACME · Effects and lasers

LIGHTNING X

ModelSTROBE 7 IP

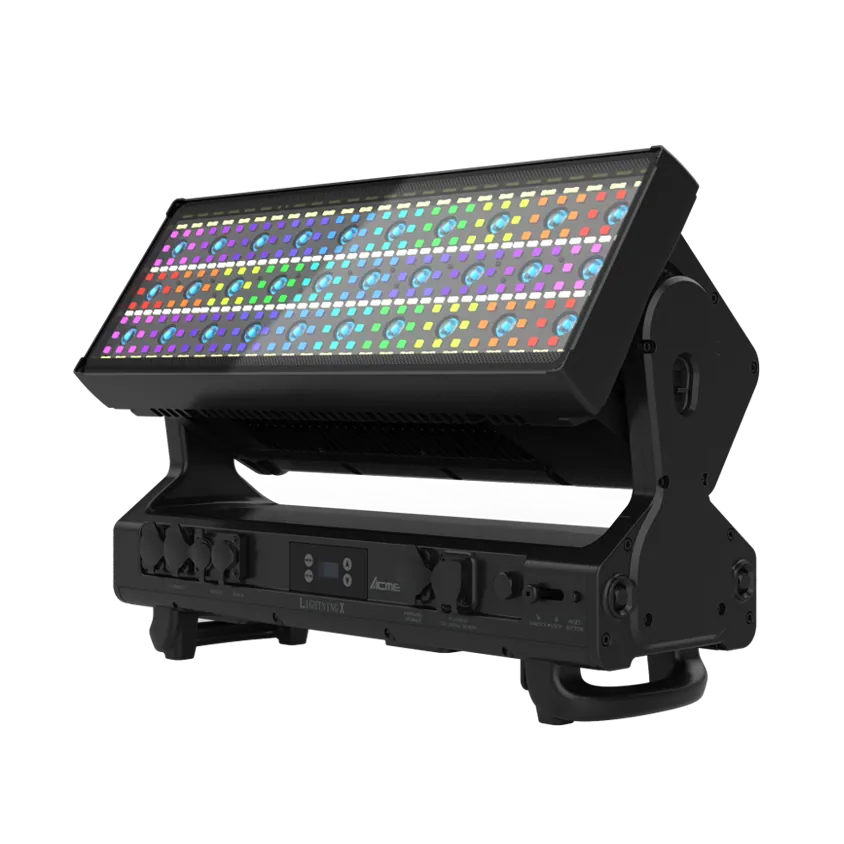

The ACME LIGHTNING X combines Beam, Wash, Strobe Line and Strip Line in one versatile fixture, offering endless creative possibilities for your lighting designs.

Light source: 240 x 12W RGBW LEDs
Power consumption: 1,135W (max. 2,900W during strobe peak)
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66
DMX channels: 31/43/100/230/20+80/20+210
Protocols: DMX512,RDM,Art-Net,sACN
Colour temperature: 6,300K
Net weight: 19 kg (41.9 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:11

ACME LIGHTNING X2:11

02SpecificationManufacturer's data · 15 groups · 70 values

What this product is, in numbers.

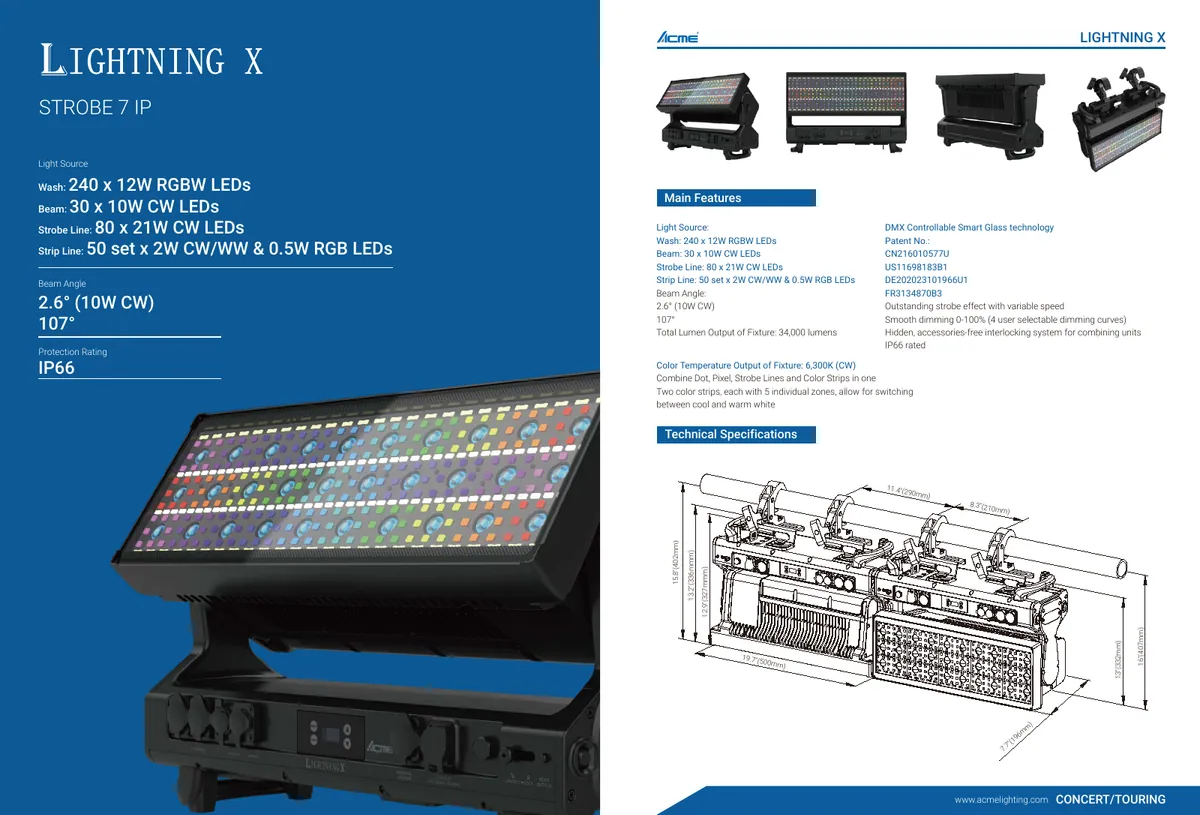

PDFDatasheetEN · 2 pages · 669 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: LIGHTNING X
Model Code: STROBE 7 IP

02Light Source7

Light Source
Wash: 240 x 12W RGBW LEDs
Beam: 30 x 10W CW LEDs
Strobe Line: 80 x 21W CW LEDs
Strip Line: 50 set x 2W CW/WW & 0.5W RGB LEDs
Color Temperature Output of Fixture: 6,300K
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data1

Total Lumen Output of Fixture: 34,000 lumens

04Optical System6

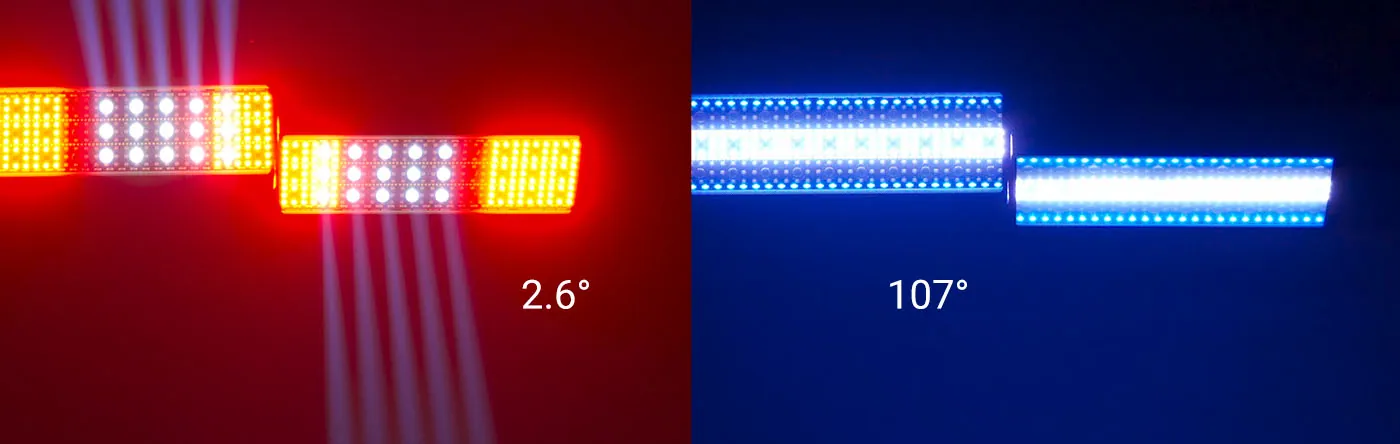

Beam Angle
10W CW: 2.6°
12W RGBW/21W CW/2W CW/2W WW/5W RGB: 107°
DMX Controllable Smart Glass technology
Patent No.: CN216010577U; US11698183B1; DE202023101966U1; FR3134870B3

05Control6

4 touch button control panel
Display: OLED display
Protocols: DMX512,RDM,Art-Net,sACN
DMX Protocol Modes: 6
Control Channels: 31/43/100/230/20+80/20+210
Firmware Upgrade: Upgrade via DMX link or USB stick

06Pan & Tilt3

Tilt Movement: 185° at 1.0 sec; Automatic Pan/Tilt position correction
Resolution: 16 bit

Show the full specificationHide the rest of the specification9 more groups · 45 values

07Other Effects5

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Outstanding color mixing

Combine Dot, Pixel, Strobe Lines and Color Strips in one

Two color strips, each with 5 individual zones, allow for switching between cool and warm white

08Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 1,135W (max. 2,900W during strobe peak)
Power In/Out: Waterproof power connector in
Data In/Out: 3-pin or 5-pin waterproof XLR,RJ45 connector

09Physical Information4

Fixture Dimensions
Width: 500 mm (19.7")
Depth: 180 mm (7.1")
Height: 327 mm (12.9")
Weight: 19 kg (41.9 lbs)

10Packing Information12

Flight Case Dimensions 1
Width: 1,220 mm (48.0")
Depth: 580 mm (22.8")
Height: 570 mm (22.4")
Weight
Standard: G.W.: 132 kg (291.0 lbs) (four-pack loader case)
Flight Case Dimensions 2
Width: 1,220 mm (48.0")
Depth: 610 mm (24.0")
Height: 570 mm (22.4")
Weight
North American Standard: G.W.: 141.4 kg (311.7 lbs) (four-pack loader case)
Carton Dimensions
Width: 640 mm (25.2")
Depth: 415 mm (16.4")
Height: 280 mm (11.0")
Weight
G.W.: 22 kg (48.5 lbs) (one-pack loader carton)

11Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 65°C
Protection Rating: IP66

12Approvals3

CE compliant

UKCA compliant

cETLus compliant

13Installation5

Horizontal or vertical mounting

Universal working position

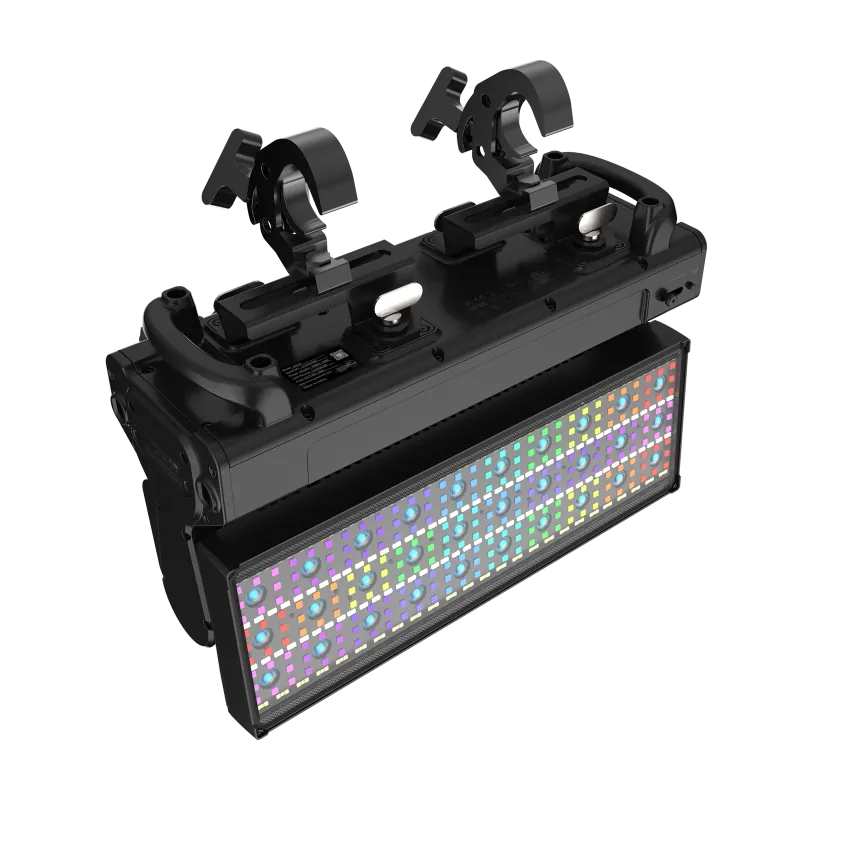

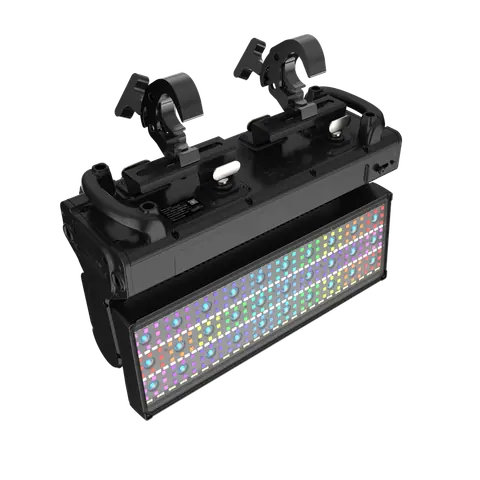

2 omega brackets

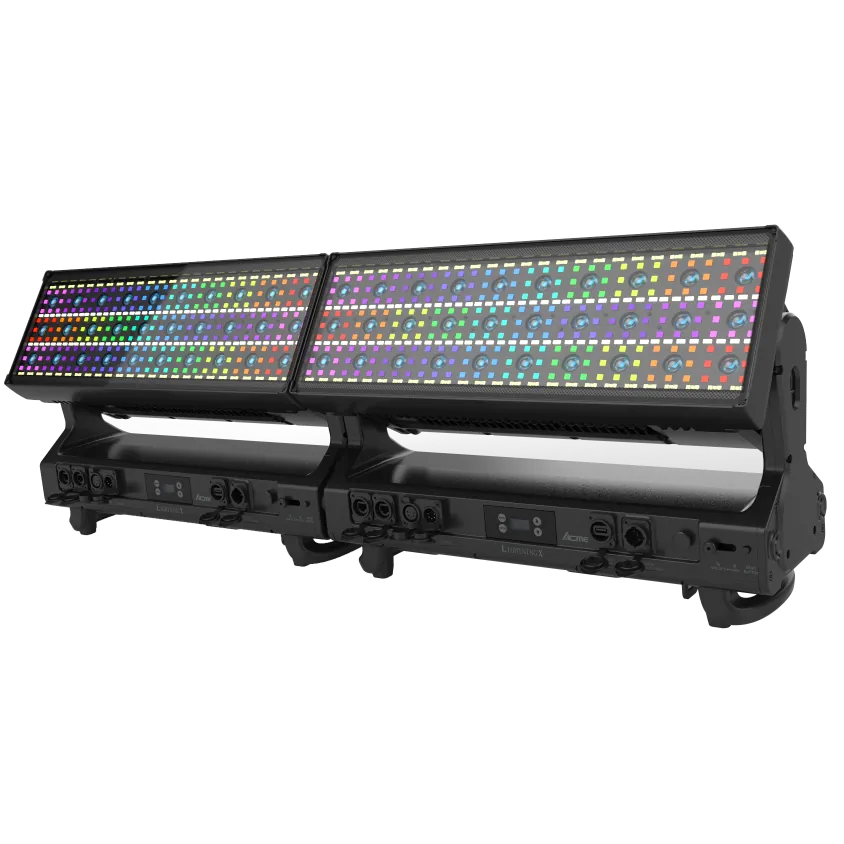

Hidden, accessories-free interlocking system for combining units

Safety cable attachment point

14Included Items3

Digital user manual

Power cable

2 omega brackets (63584127)

15Optional Accessories (With Order Code)5

Flight Case 1
Standard: Four-pack loader case (63584050)
Flight Case 2
North American Standard: Four-pack loader case (63583881)
Clamp: C-150B (2060001625-C)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)

03DescriptionManufacturer's description

What it is.

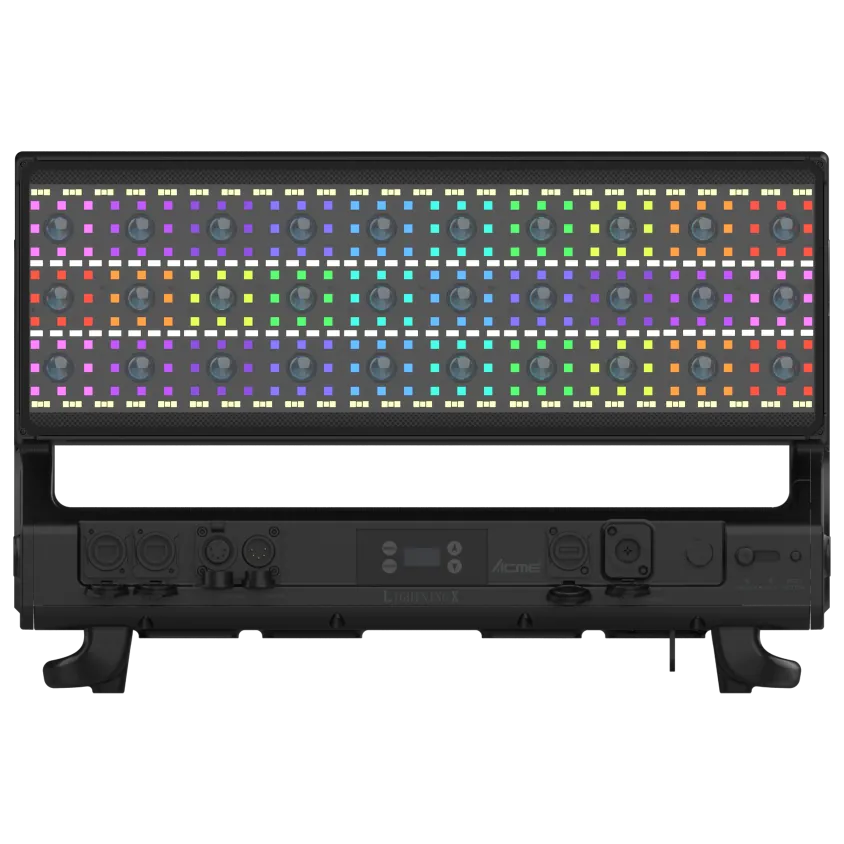

The main section of the LIGHTNING X features 30, 10W cool white beam LEDs, and 240, 12W RGBW LEDs divided into 30 individually controllable zones. In its center, two strobe lines boast 80, 21W cool white LEDs, each with 5 individual zones. At the top and bottom of the fixture's face, there are two strip lines comprised of 50, 2W cool white LEDs, 50, 0.5W RGB LEDs, and 50, 2W warm white LEDs, each with 5 individual zones, allowing for switching between cool and warm white. This combination ensures exceptional color mixing and stunning visual effects.

The LIGHTNING X features a fast 185° tilt in just one second, adding unmatched dynamism to any show. With ACME's patented electronic frost system, the fixture delivers smooth transitions. Its hidden twist-lock design enables quick horizontal or vertical connections for multiple fixtures.

The IP66 LIGHTNING X meets your diverse lighting needs and redefine what stage lighting can achieve!
