Sheet 05.765

ACME · Effects and lasers

LINEFORCE 10 IP

ModelCYC 10 IP

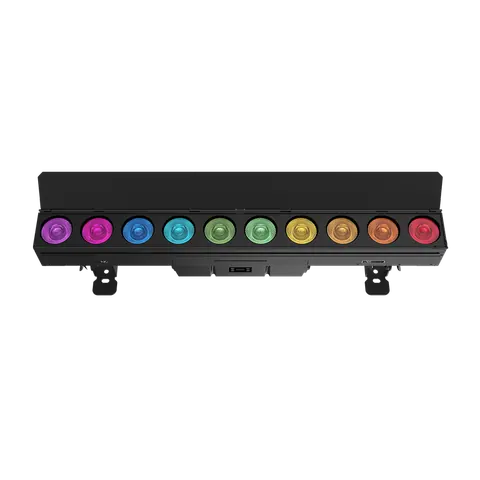

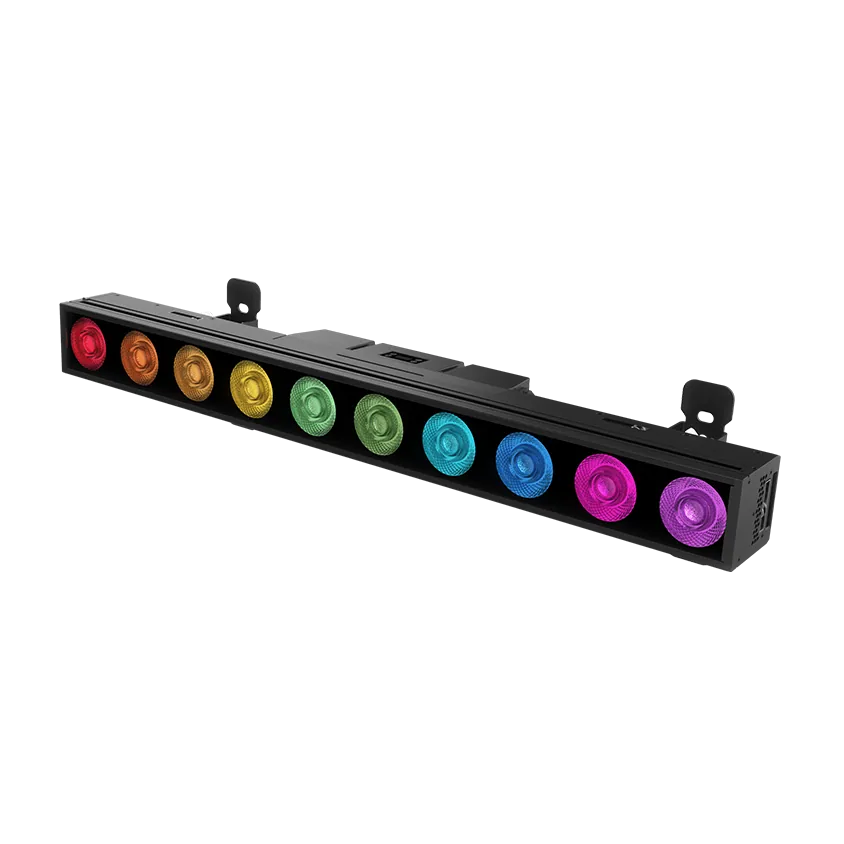

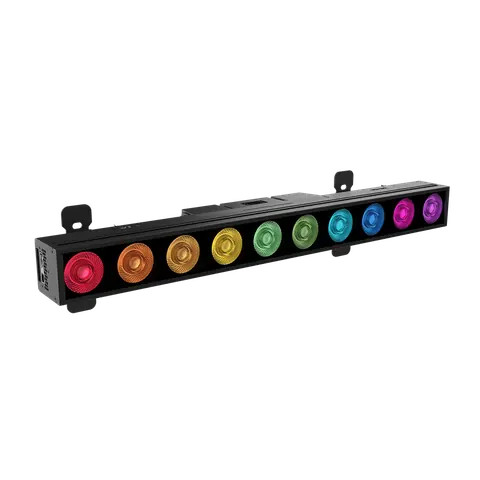

The ACME LINEFORCE 10 IP is a lightweight, multi-spectral linear wash light, designed to elevate creative lighting designs for many application.

Light source: 10 x 120W RGBWAC+UV LEDs
Power consumption: 625W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66
Beam angle / zoom: 14°-57°
DMX channels: 10/12/16/18/19/21/79/82
Protocols: DMX512,RDM,Art-Net,sACN
Net weight: 13.6 kg (30.0 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 4:07

ACME LINEFORCE 10 IP4:07

02SpecificationManufacturer's data · 17 groups · 89 values

What this product is, in numbers.

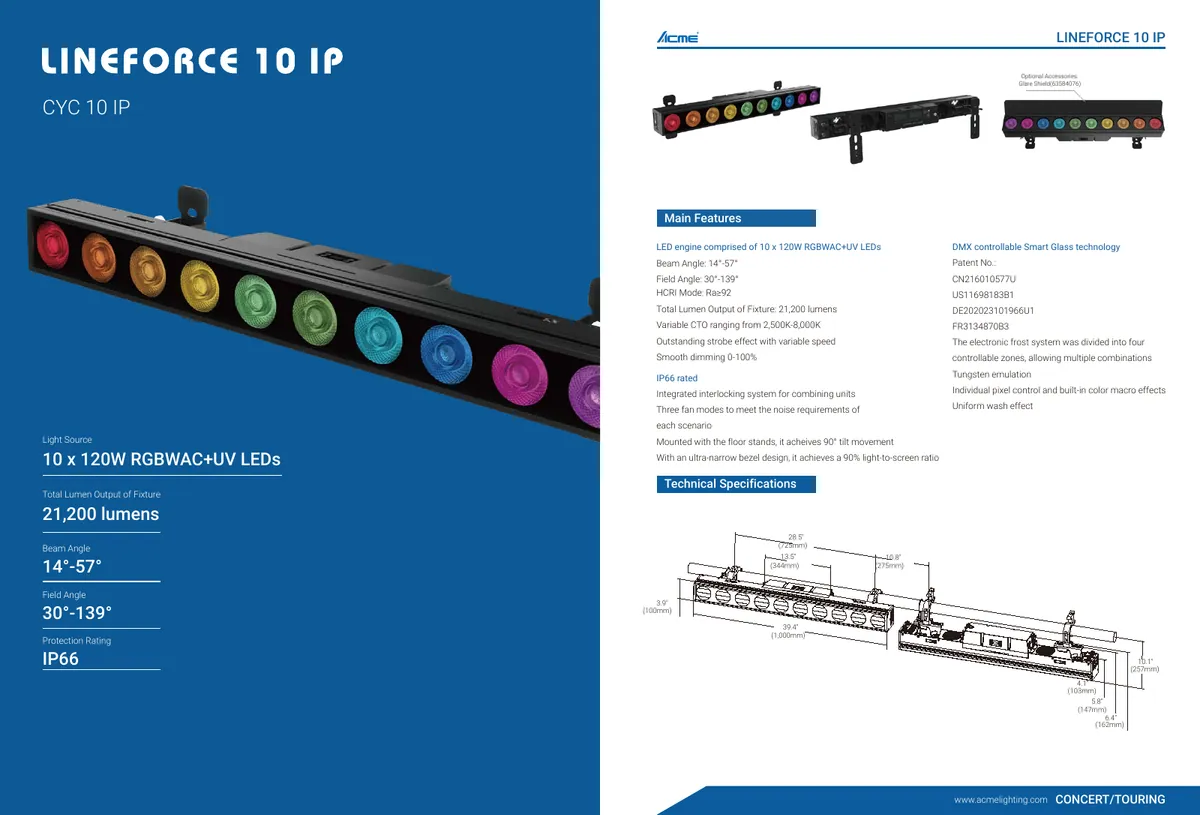

PDFDatasheetEN · 2 pages · 539 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: LINEFORCE 10 IP
Model Code: CYC 10 IP

02Light Source3

Light Source: 10 x 120W RGBWAC+UV LEDs
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data2

Total Lumen Output of Fixture: 21,200 lumens
HCRI Mode: Ra≥92

04Optical System6

Beam Angle: 14°-57°
Field Angle: 30°-139°
DMX Controllable Smart Glass technology
Patent No.: CN216010577U; US11698183B1; DE202023101966U1; FR3134870B3

05Control6

4 touch button control panel
Display: OLED display
Protocols: DMX512,RDM,Art-Net,sACN
DMX Protocol Modes: 8
Control Channels: 10/12/16/18/19/21/79/82
Firmware Upgrade: Upgrade via DMX link

06Pan & Tilt1

Tilt Movement: 90° (mounted with floor stands)

Show the full specificationHide the rest of the specification11 more groups · 69 values

07Colors1

Linear CTO Color Correction: 2,500K-8,000K

08Other Effects9

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Tungsten emulation

Individual pixel control and built-in color macro effects

The electronic frost system was divided into four controllable zones, allowing multiple combinations

Three fan modes to meet the noise requirements of each scenario

With an ultra-narrow bezel design, it achieves a 90% light-to-screen ratio

Uniform wash effect

Equipped with an inventive quick-release mechanism that allows you to quickly connect and align multiple fixtures

09Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 625W
Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR,waterproof RJ45 connector

10Physical Information8

Fixture Dimensions
Without Floor Stands
Width: 1,000 mm (39.4")
Depth: 100 mm (3.9")
Height: 162 mm (6.4")
Weight: 13.6 kg (30.0 lbs)
With Floor Stands
Width: 1,000 mm (39.4")
Depth: 226 mm (8.9")
Height: 229 mm (9.0")
Weight: 15.6 kg (34.4 lbs)

11Packing Information13

Flight Case Dimensions 1
Width: 1,220 mm (48.0")
Depth: 610 mm (24.0")
Height: 555 mm (21.9")
Weight
Standard: G.W.: 109 kg (240.3 lbs) (four-pack loader case)
Flight Case Dimensions 2
Width: 1,220 mm (48.0")
Depth: 610 mm (24.0")
Height: 850 mm (33.5")
Weight
Standard: G.W.: 188 kg (414.5 lbs) (eight-pack loader case)
North American Standard: G.W.: 197 kg (434.3 lbs) (eight-pack loader case)
Carton Dimensions
Width: 1,105 mm (43.5")
Depth: 335 mm (13.2")
Height: 200 mm (8.0")
Weight
G.W.: 17.5 kg (38.6 lbs) (one-pack loader carton)

12Work Environment4

Maximum Ambient Temperature: 45°C
Minimum Operating Temperature: -20°C
Maximum Surface Temperature: 70°C
Protection Rating: IP66

13Approvals3

CE compliant

UKCA compliant

cETLus compliant

14Acoustic Data3

Noise Level
Auto Mode: 45 dB(A) @ 1 m
Quiet Mode: 35 dB(A) @ 1 m
Super Quiet Mode: Fan-off operation with ambient noise only

15Installation8

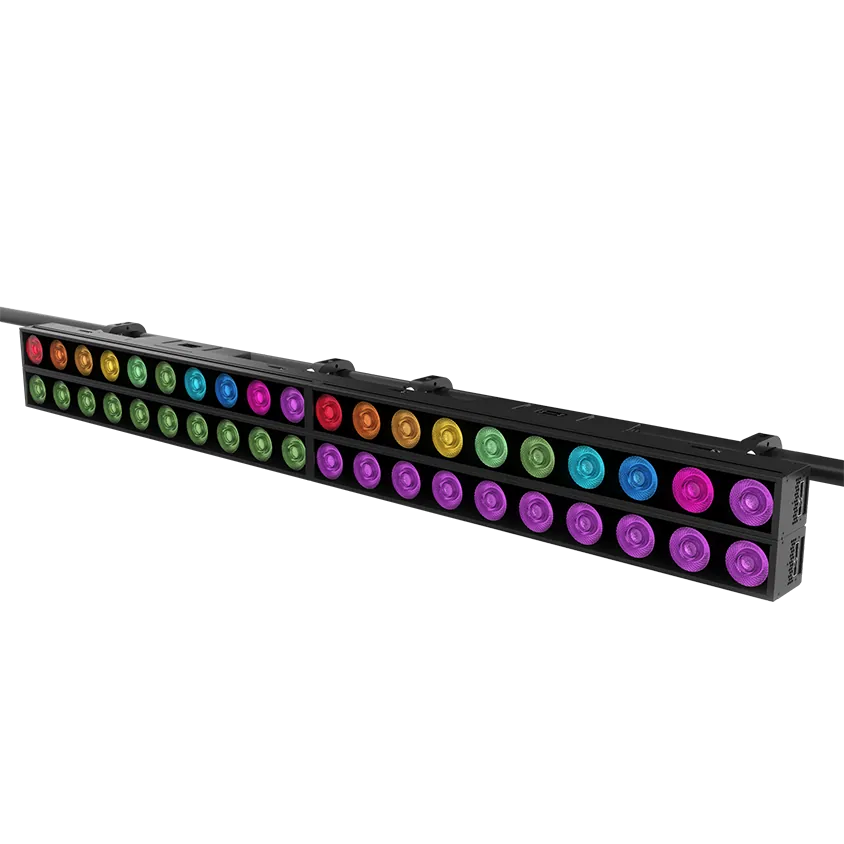

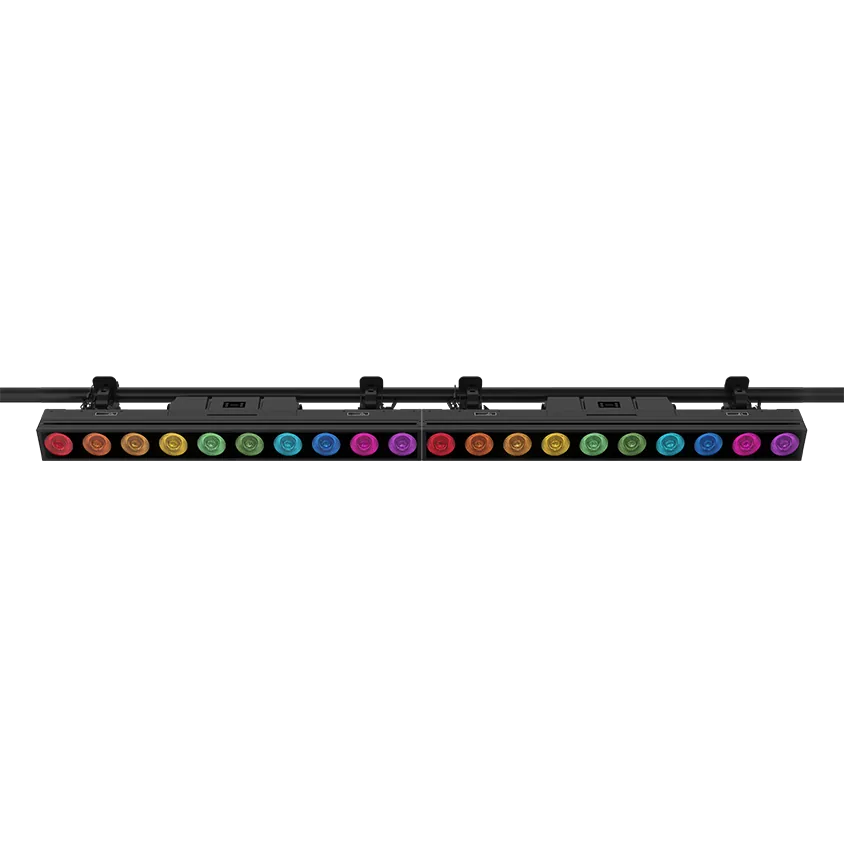

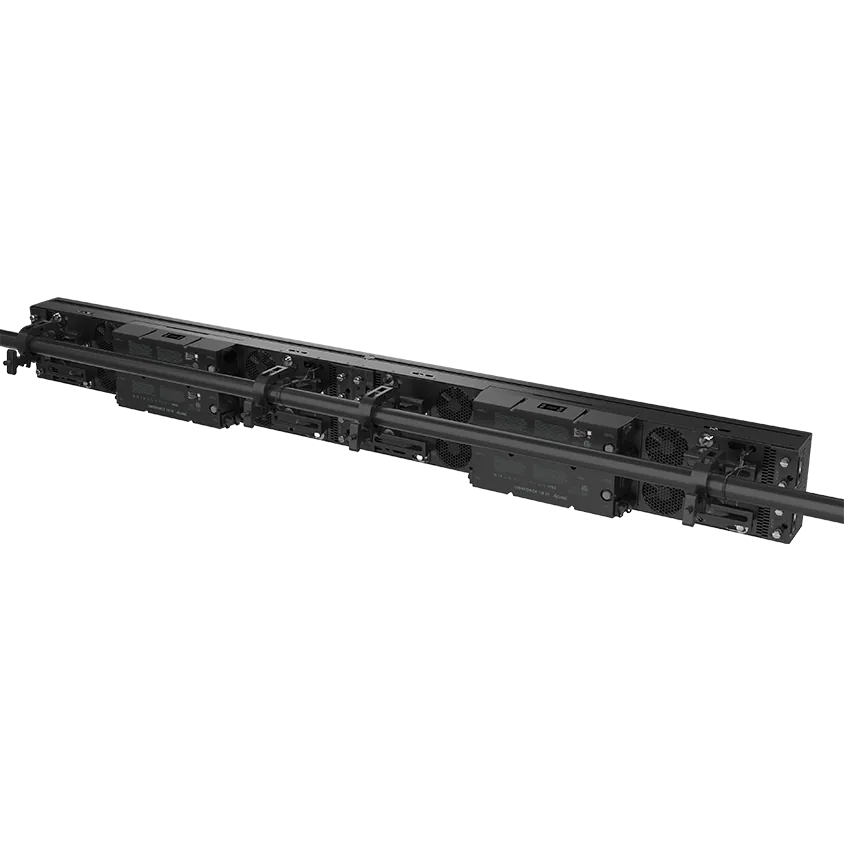

Horizontal or vertical mounting; Universal working position; Integrated interlocking system for combining units

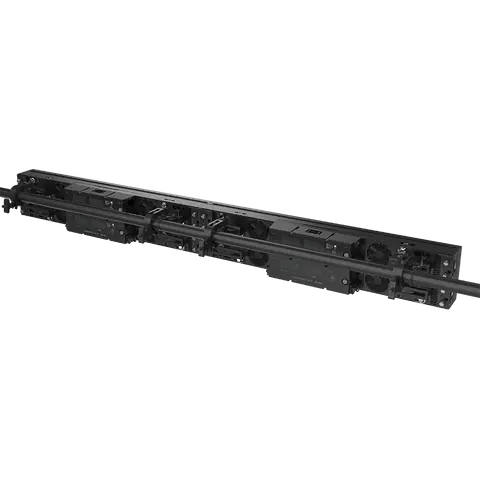

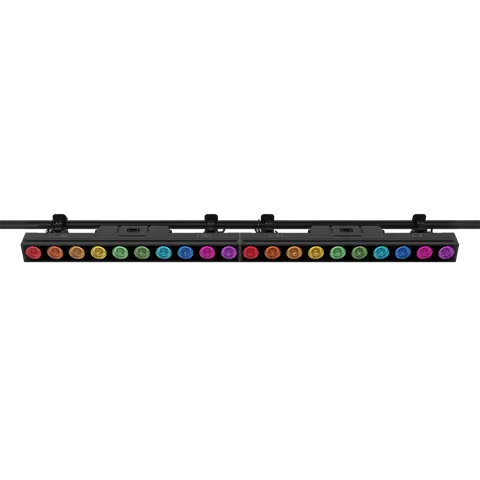

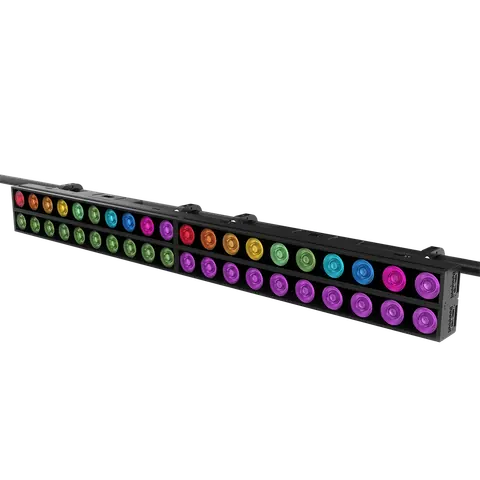

Horizontal: Utilizing two omega brackets (supplied) and clamps (by others), there is no limit to the number of fixtures in the horizontal direction, and a maximum of 5 fixtures may be connected in the vertical direction
Vertical: Using one hanging bracket (sold separately) with clamp (by others), a maximum of 3 fixtures may be connected
Vertical Stand: Mounted to one base stand (sold separately). When installed at a tilt, stand single unit only, no other fixtures may be connected. When stand vertically, a maximum of 2 fixtures may be connected.
Floor: Utilizing two omega brackets (supplied) and two floor stands (supplied); Safety cable attachment point

16Included Items4

Digital user manual

Power cable

2 omega brackets (63583930)

2 floor stands (63584073)

17Optional Accessories (With Order Code)12

Flight Case 1
Standard: Four-pack loader case (63583829)
Flight Case 2
Standard: Eight-pack loader case (63584178)
North American Standard: Eight-pack loader case (63583785)
Clamp: C-250B (2060001632-B)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)
Hanging Bracket: 63582969

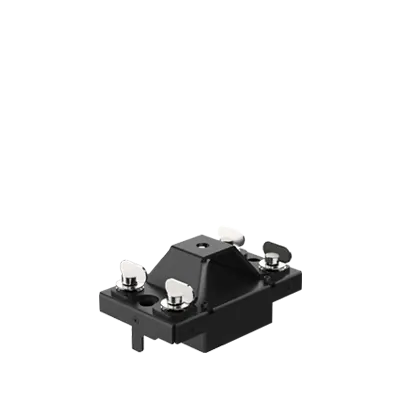

Base Stand: 63582785

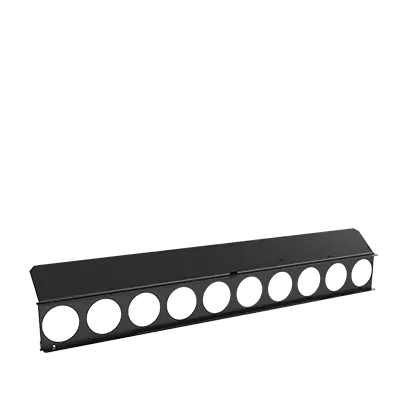

Glare Shield: 63584076
Diffuser Filter (10°): 3005006494
Diffuser Filter (40° x 20°): 3005006303
Floor Stand with Omega Bracket: 63584072

03DescriptionManufacturer's description

What it is.

The ACME LINEFORCE 10 IP is a lightweight, multi-spectral linear wash light, designed to elevate creative lighting designs for many application. Featuring 10 powerful 120W RGBWAC+UV LEDs, the fixture provides vibrant colors, remarkable output and high-intensity illumination. The patented electronic frost system, divided into four controllable zones, allows you to change to different angles to deliver soft looks.

When placed near a wall, the LINEFORCE 10 IP produces a uniform wash effect that covers large areas. Using the included floor stands, it can rotate from 0° to 90°, making it a versatile footlight. For even more versatility, available accessories include an optional diffuser filter and glare shield for additional wash effects. The ultra-narrow bezel maximizes the light-to-screen ratio for an expansive visual experience, and the integrated interlocking system enables easy connections between multiple fixtures.

Step into the future of lighting design with the ACME LINEFORCE 10 IP. An innovative linear light that creates unforgettable moments for your audience.
