LINEFORCE 5 IP

ModelCYC 5 IP

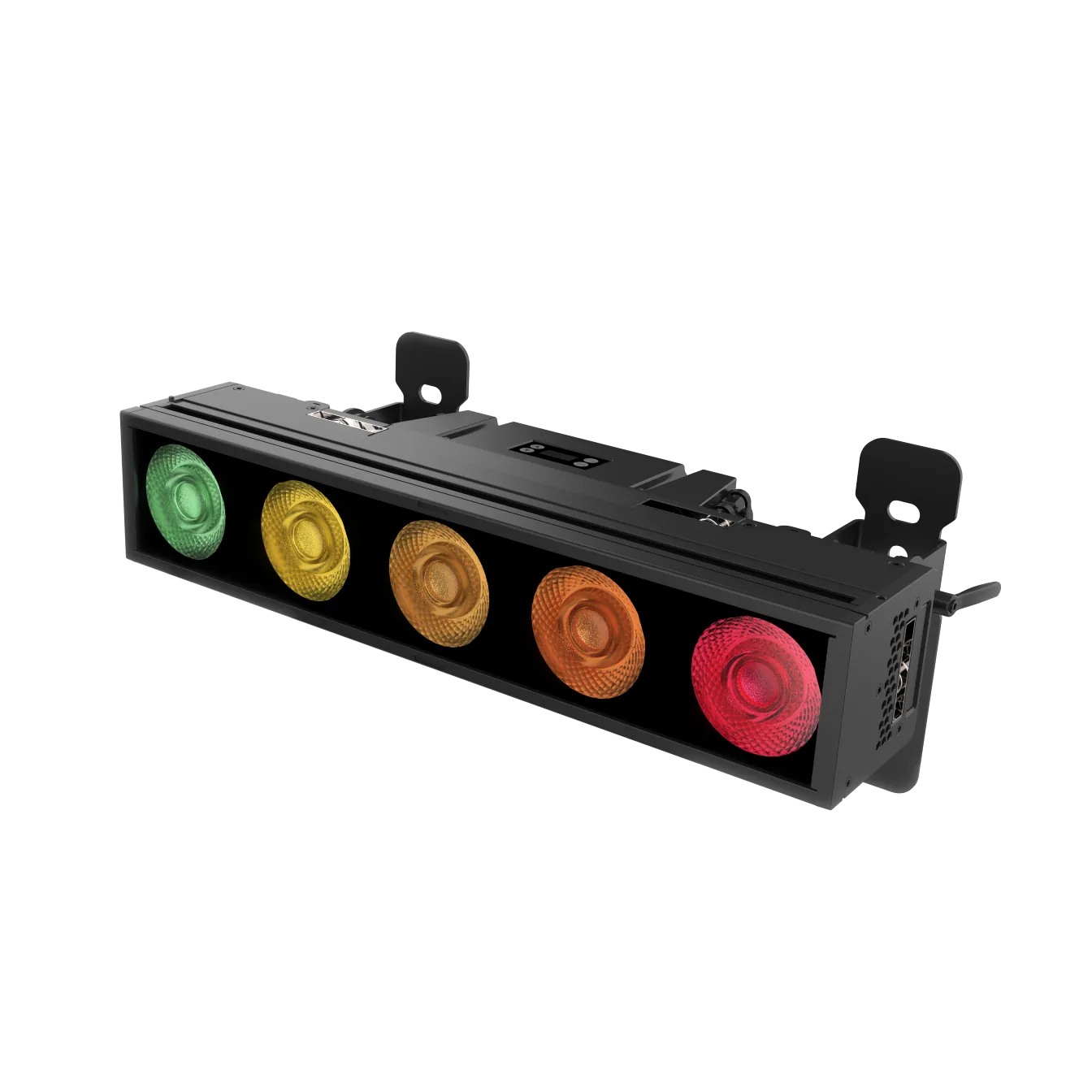

The ACME LINEFORCE 5 IP is a compact, half-meter linear effect light that packs the same outstanding performance as the LINEFORCE 10 IP in a smaller form.

Light source: 5 x 120W RGBWAC+UV LEDs
Power consumption: 325W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66
Beam angle / zoom: 14°-55°
DMX channels: 10/12/16/18/19/21/44/47
Protocols: DMX512,RDM,Art-Net,sACN
Net weight: 8.6 kg (19 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 4:07

ACME LINEFORCE 5 IP4:07

02SpecificationManufacturer's data · 17 groups · 85 values

What this product is, in numbers.

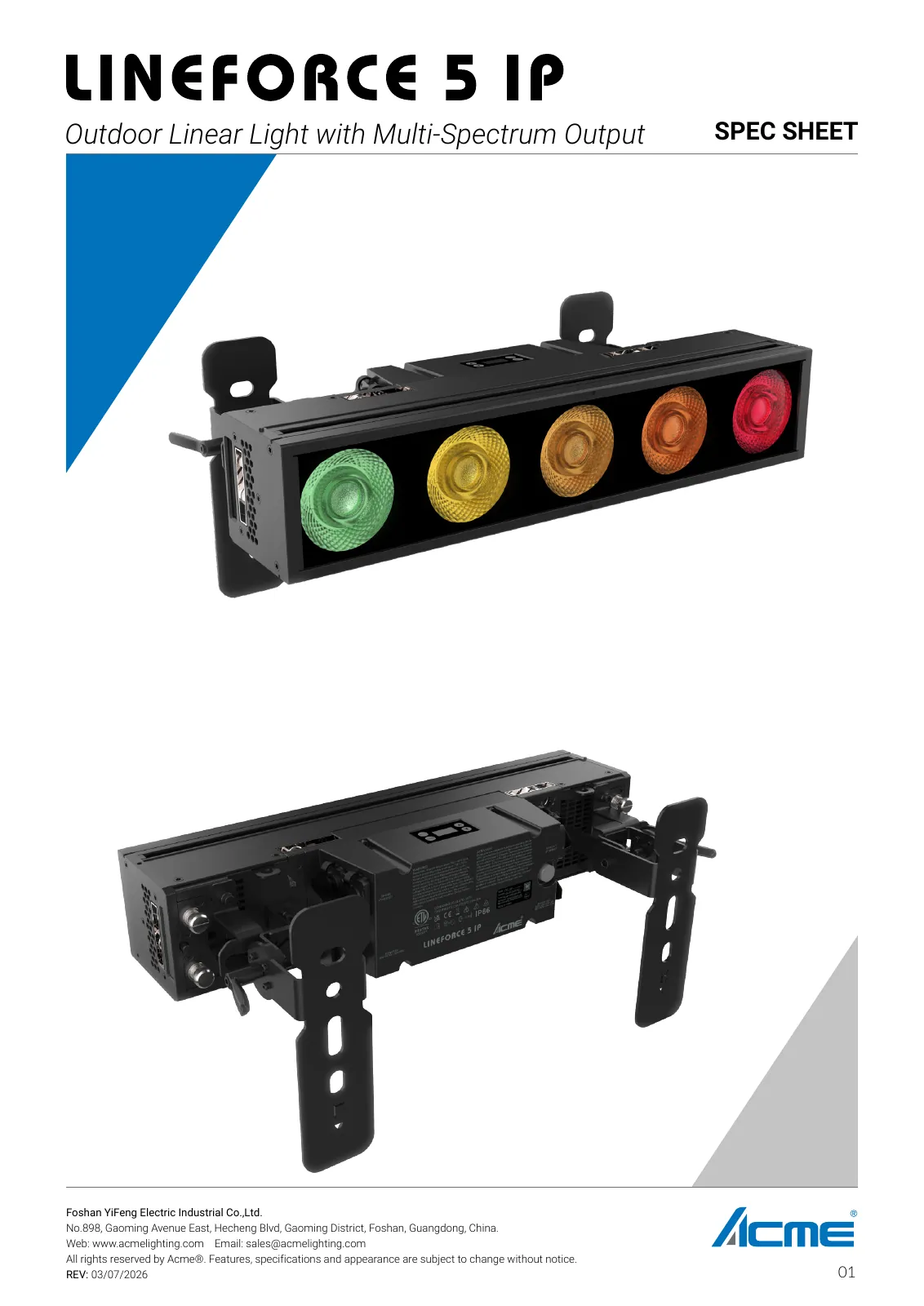

PDFDatasheetEN · 8 pages · 1.9 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: LINEFORCE 5 IP
Model Code: CYC 5 IP

02Light Source3

Light Source: 5 x 120W RGBWAC+UV LEDs
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data6

Total Lumen Output of Fixture: 8,470 lumens
CCT: 8,000K (+/- 200K)
Color Rendering: Ra≥92
TM-30 Rf (IES TM-30-15 Fidelity Index): 68
TM-30 Rg (IES TM-30-15 Fidelity Index): 128
TLCI: 77

04Optical System6

Beam Angle: 14°-55°
Field Angle: 29°-136°
DMX Controllable Smart Glass technology
Patent No.: CN216010577U; US11698183B1; DE202023101966U1; FR3134870B3

05Control6

4 touch button control panel
Display: OLED display
Protocols: DMX512,RDM,Art-Net,sACN
DMX Protocol Modes: 8
Control Channels: 10/12/16/18/19/21/44/47
Firmware Upgrade: Upgrade via DMX link

06Pan & Tilt1

Tilt Movement: 90° (mounted with floor stands)

Show the full specificationHide the rest of the specification11 more groups · 61 values

07Colors1

Linear CTO Color Correction: 2,500K-8,000K

08Other Effects7

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Tungsten emulation

Individual pixel control and built-in color macro effects

The electronic frost system was divided into four controllable zones, allowing multiple combinations

With an ultra-narrow bezel design, it achieves a 90% light-to-screen ratio

Uniform wash effect

09Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 325W
Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR,waterproof RJ45 connector

10Physical Information4

Fixture Dimensions
Without Floor Stands
Width: 500 mm (19.7")
Depth: 100 mm (3.9")
Height: 162 mm (6.4")
Weight: 8.6 kg (19 lbs)

11Packing Information12

Flight Case Dimensions 1
Width: 1,220 mm (48")
Depth: 610 mm (24")
Height: 900 mm (35.4")
Weight
Standard: G.W.: 189 kg (416.7 lbs) (twelve-pack loader case)
Flight Case Dimensions 2
Width: 1,220 mm (48")
Depth: 610 mm (24")
Height: 850 mm (33.5")
Weight
North American Standard: G.W.: 180.5 kg (397.3 lbs) (twelve-pack loader case)
Carton Dimensions
Width: 625 mm (24.6")
Depth: 335 mm (13.2")
Height: 230 mm (9.1")
Weight
G.W.: 10.5 kg (23.2 lbs) (one-pack loader carton)

12Work Environment4

Maximum Ambient Temperature: 45°C
Minimum Operating Temperature: -20°C
Maximum Surface Temperature: 70°C
Protection Rating: IP66

13Approvals3

CE compliant

UKCA compliant

cETLus compliant

14Acoustic Data3

Noise Level
Auto Mode: 45 dB(A) @ 1 m
Quiet Mode: 35 dB(A) @ 1 m
Super Quiet Mode: Fan-off operation with ambient noise only

15Installation8

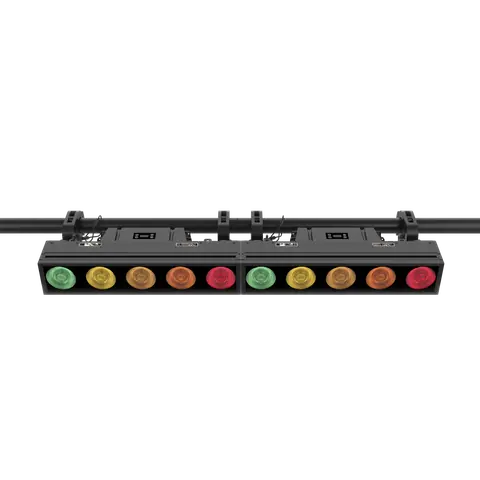

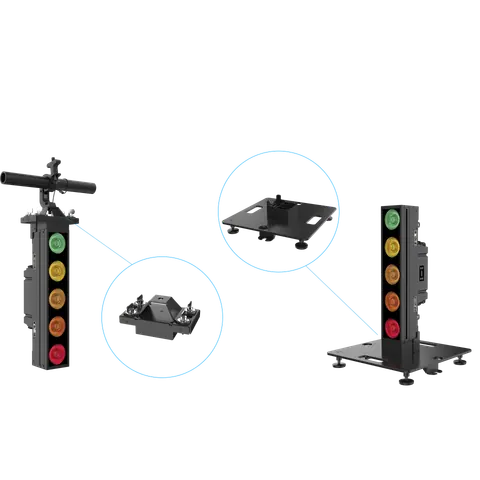

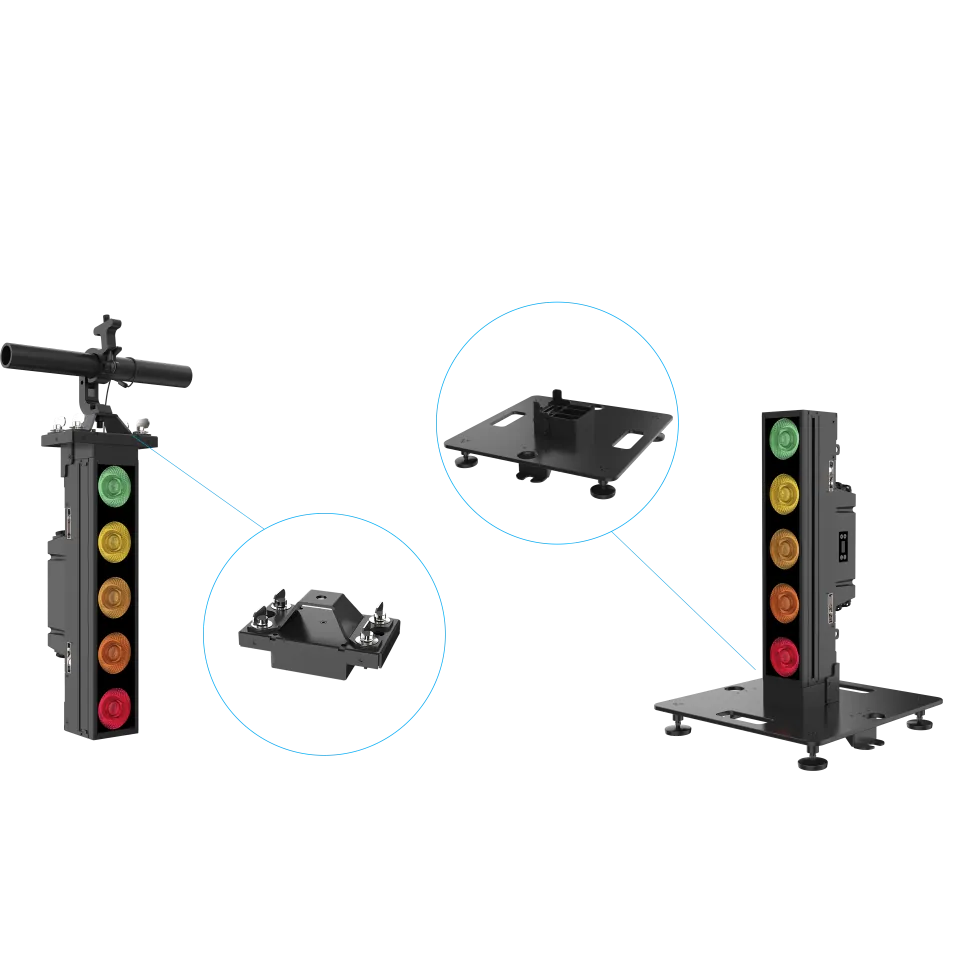

Horizontal or vertical mounting; Universal working position; Integrated interlocking system for combining units

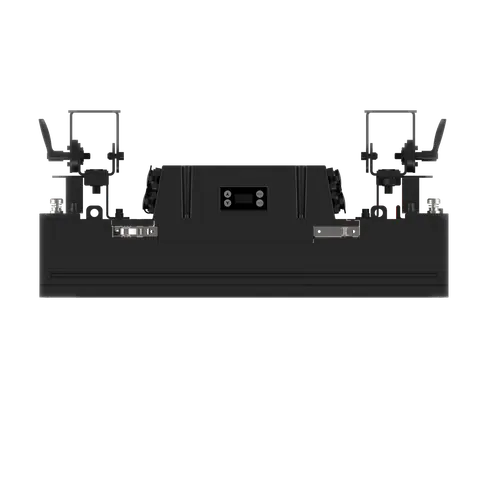

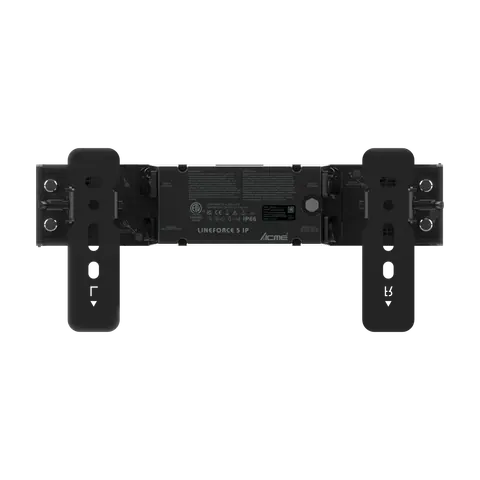

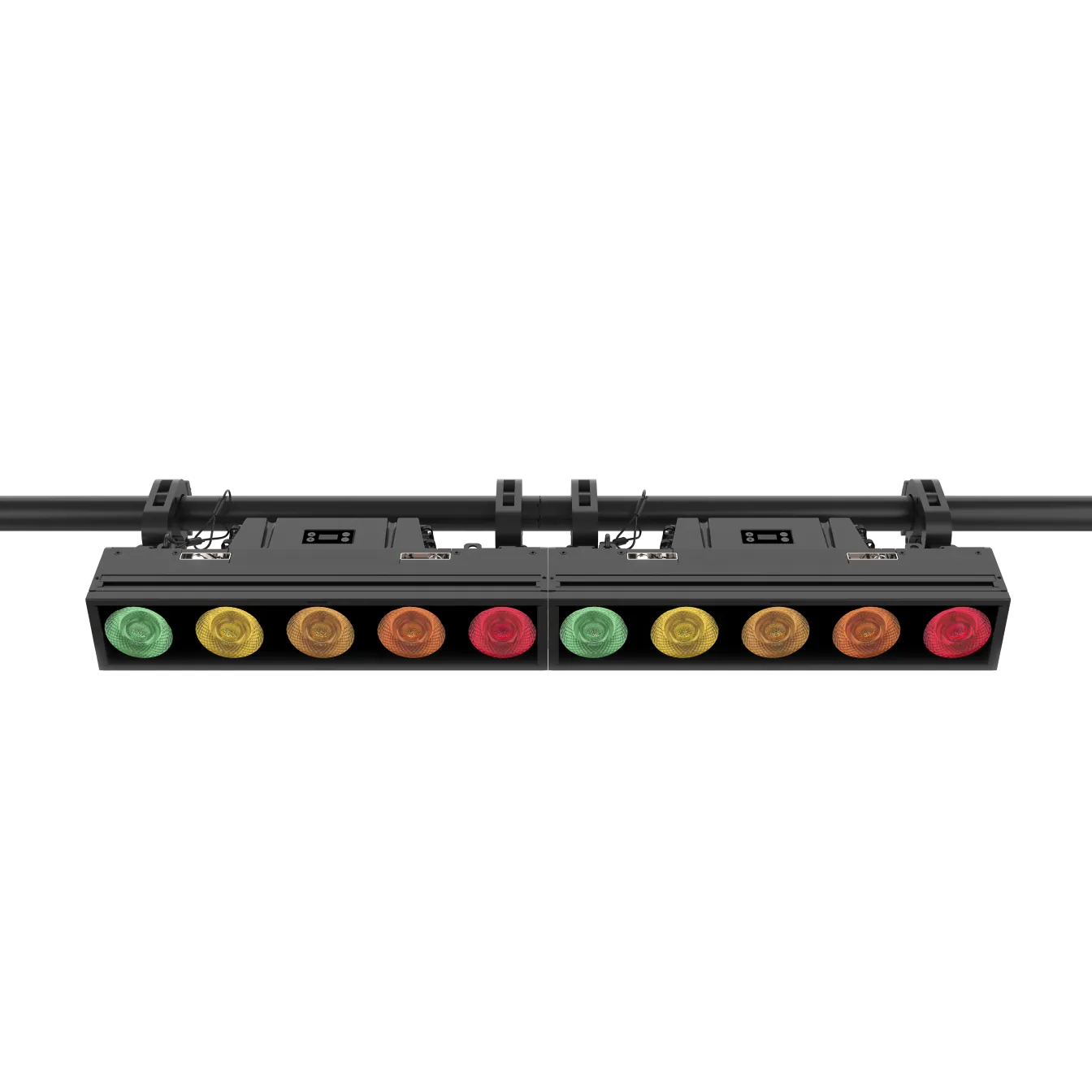

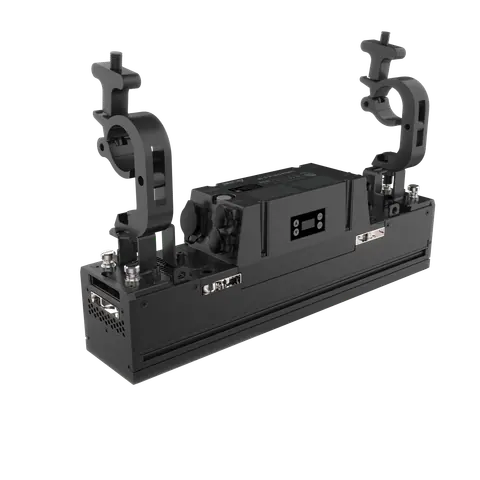

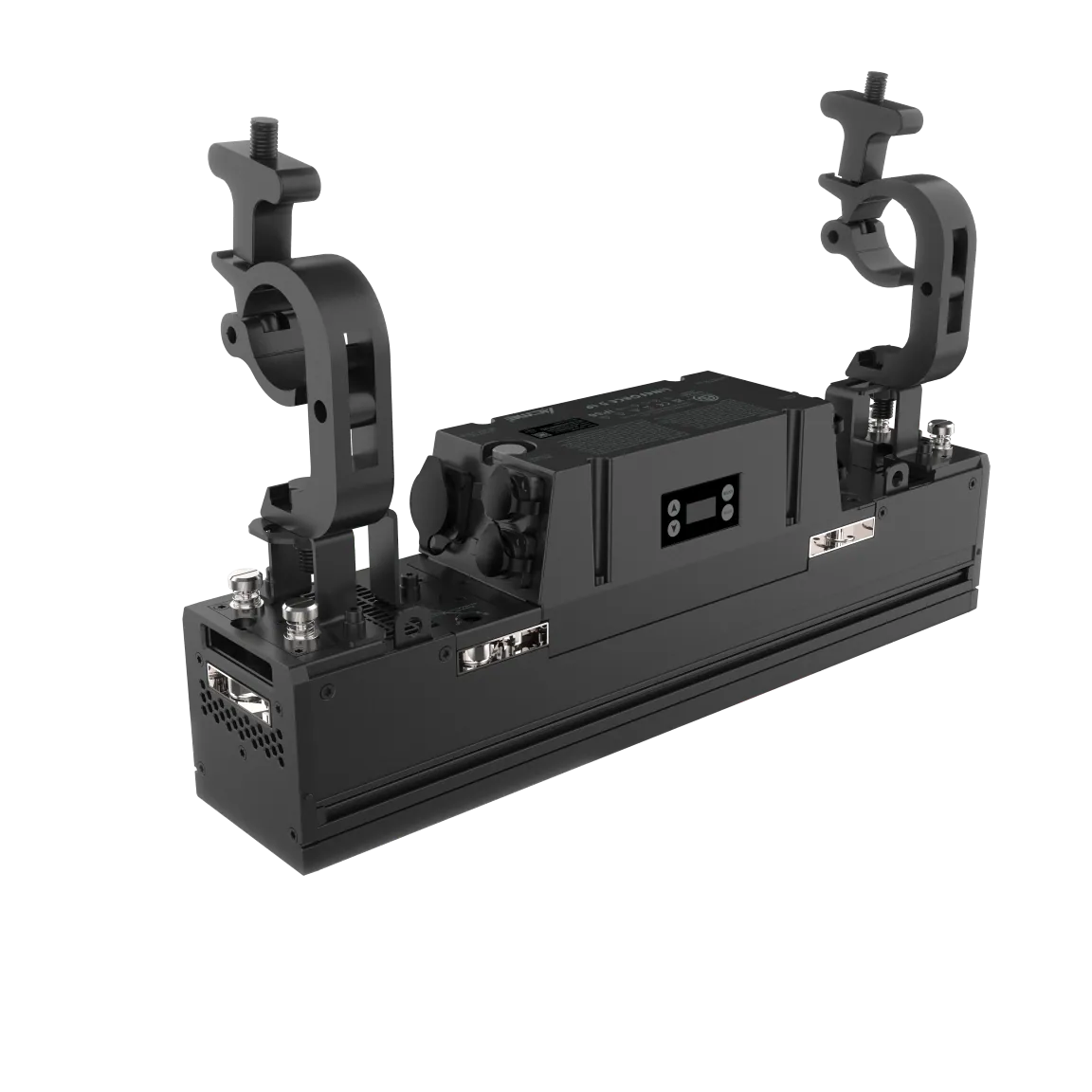

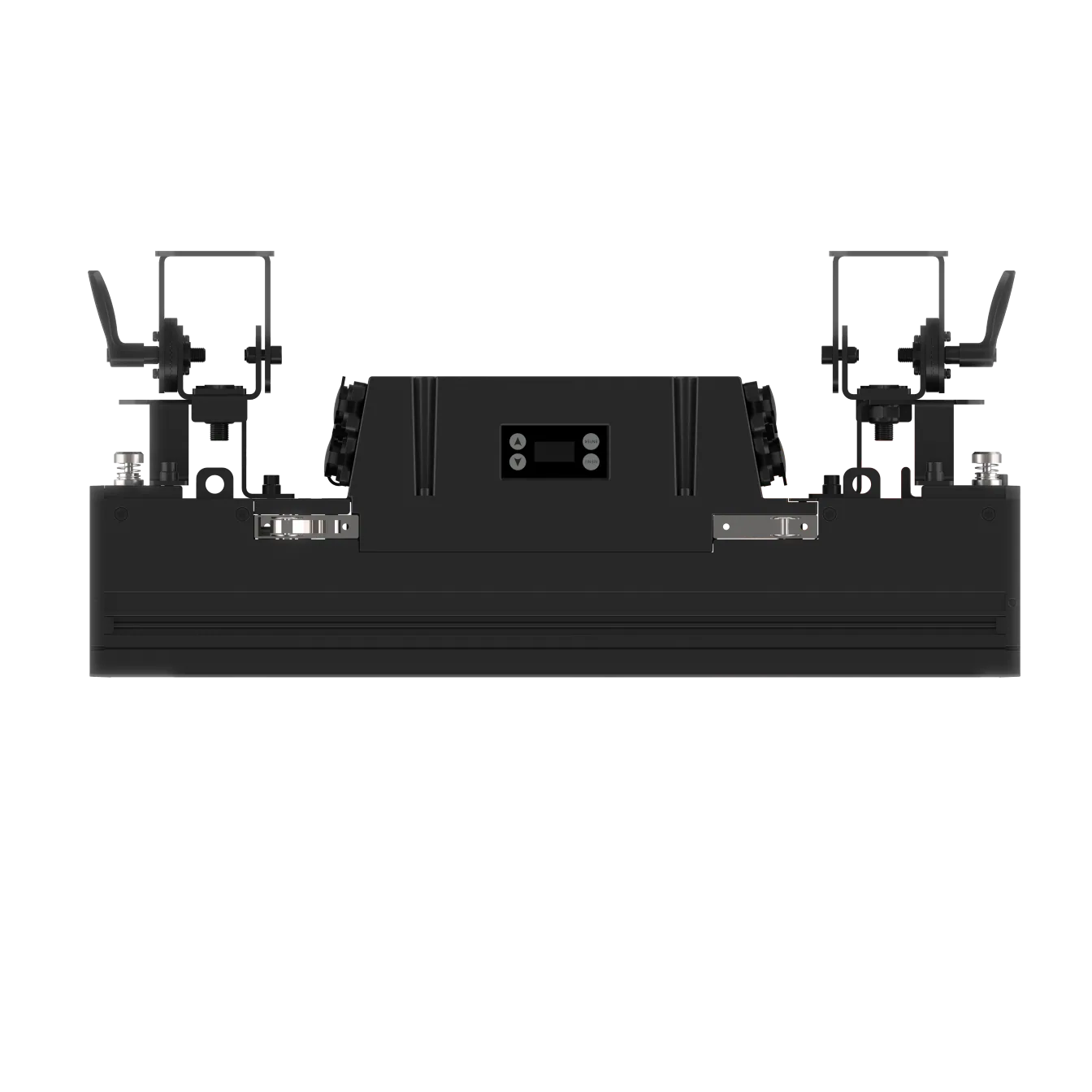

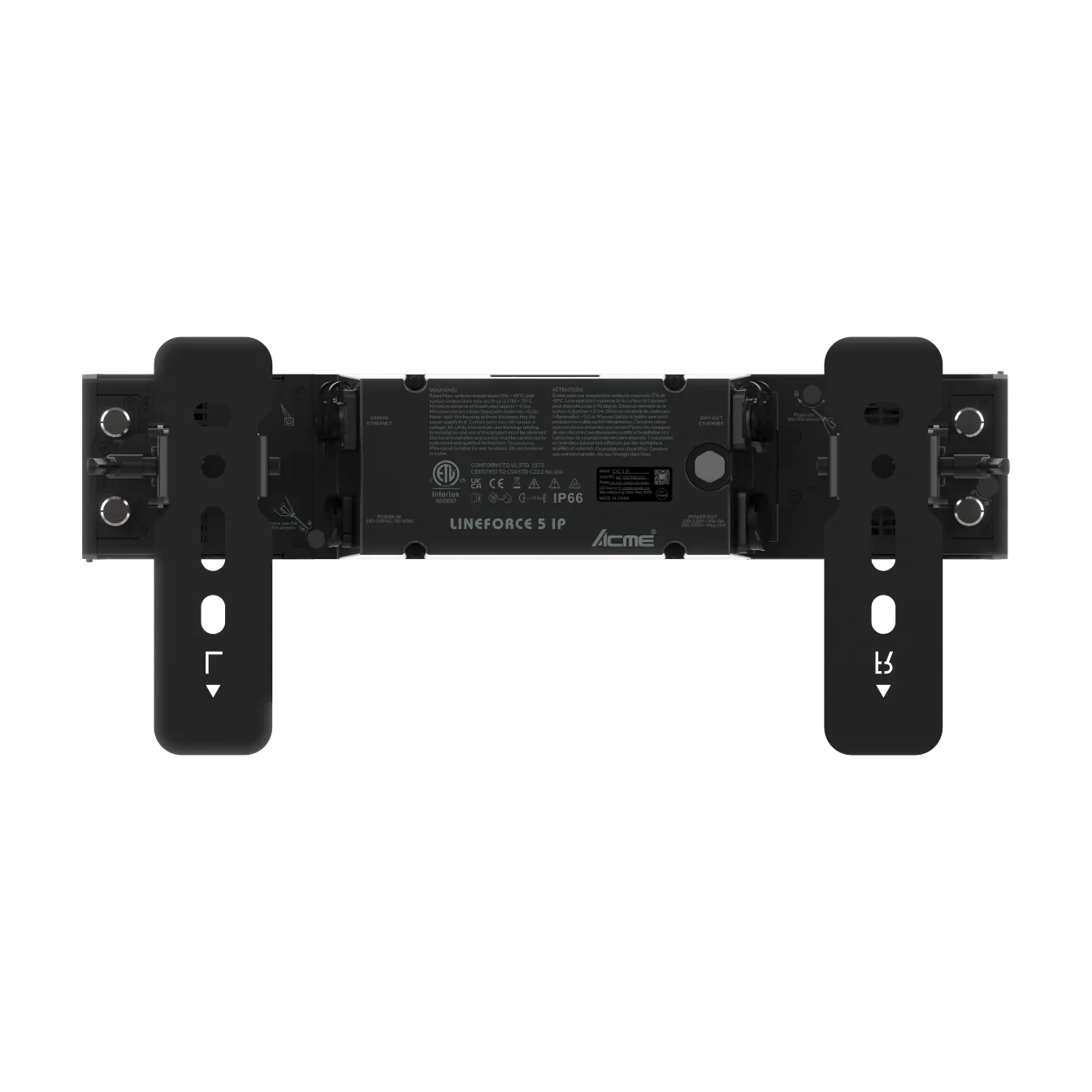

Horizontal: Utilizing two brackets (supplied) and two clamps (by others), there is no limit to the number of fixtures in the horizontal direction, and a maximum of 6 fixtures may be connected in the vertical direction

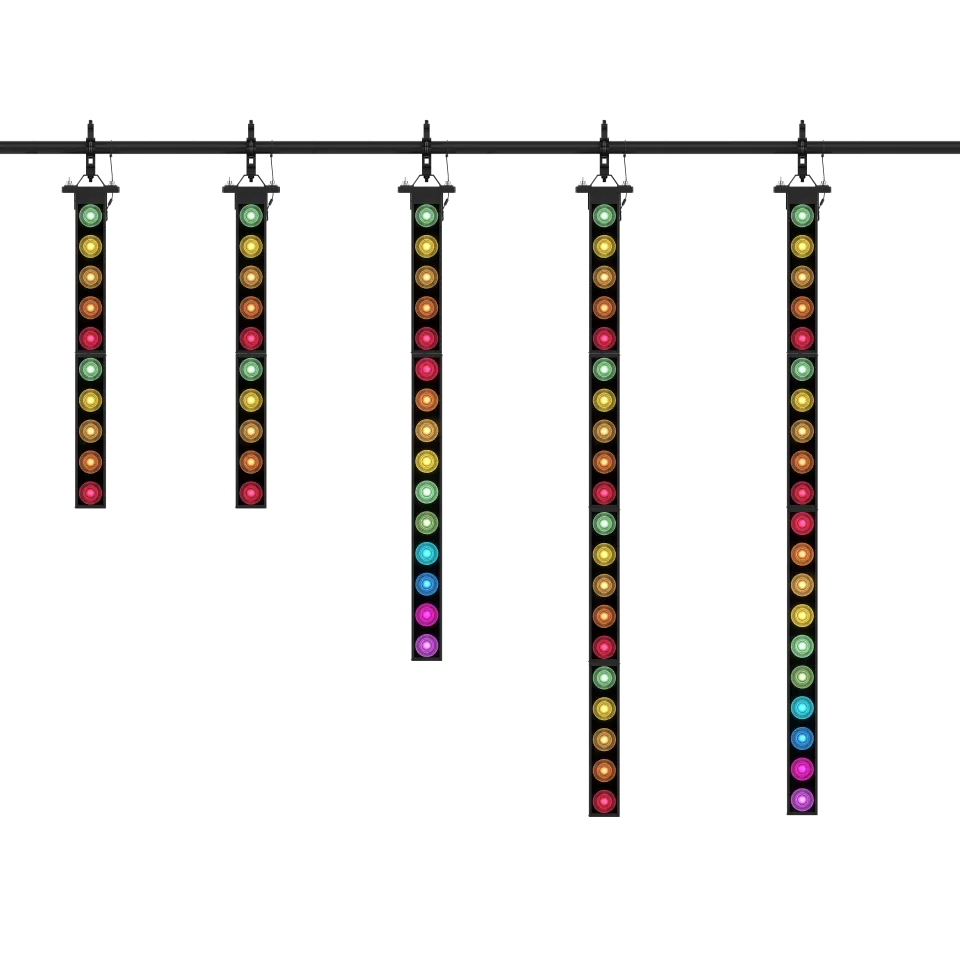

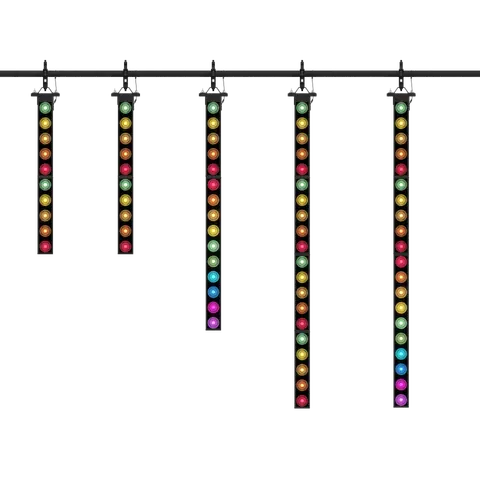

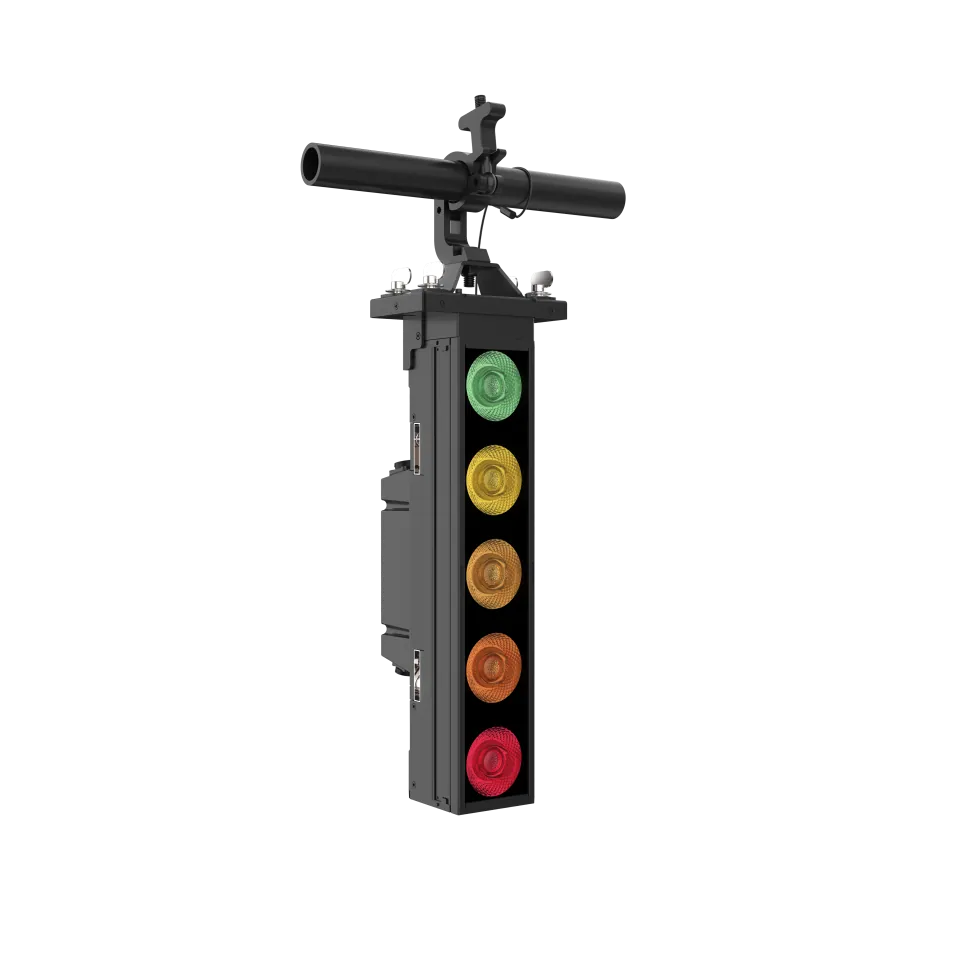

Vertical: Using one hanging bracket (sold separately) with one clamp (by others), a maximum of 5 fixtures may be connected

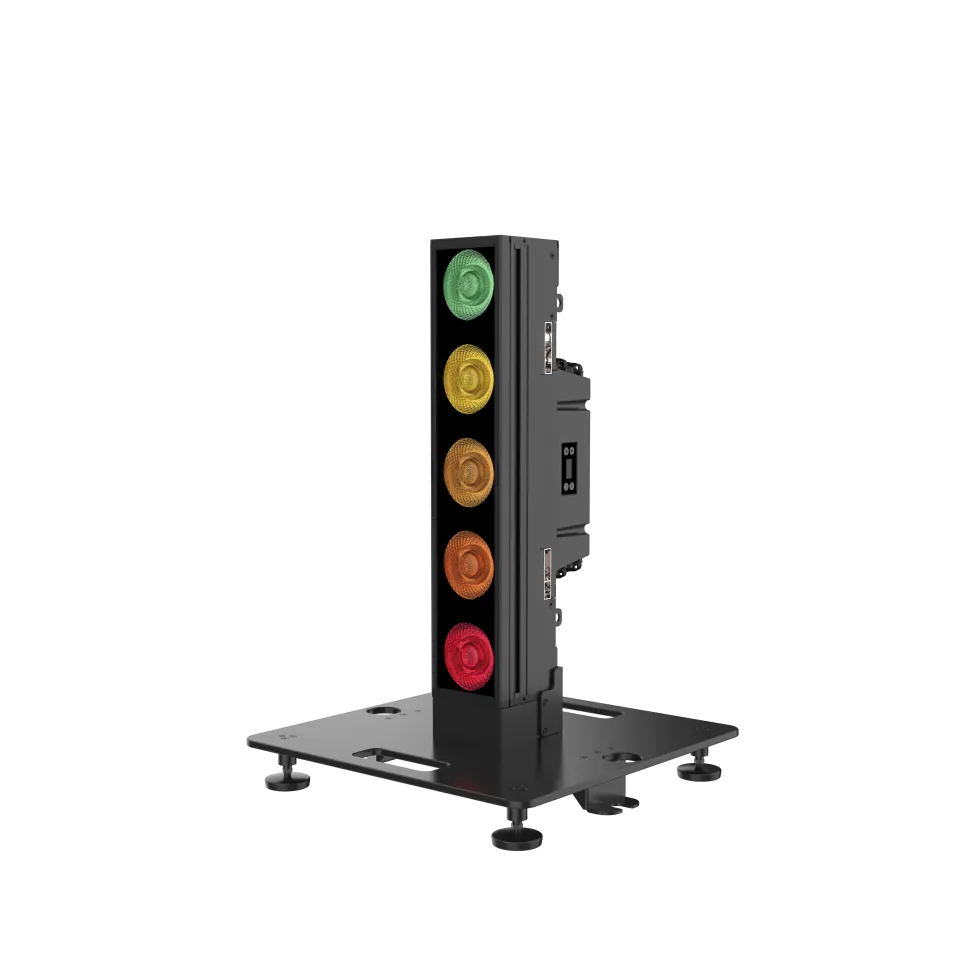

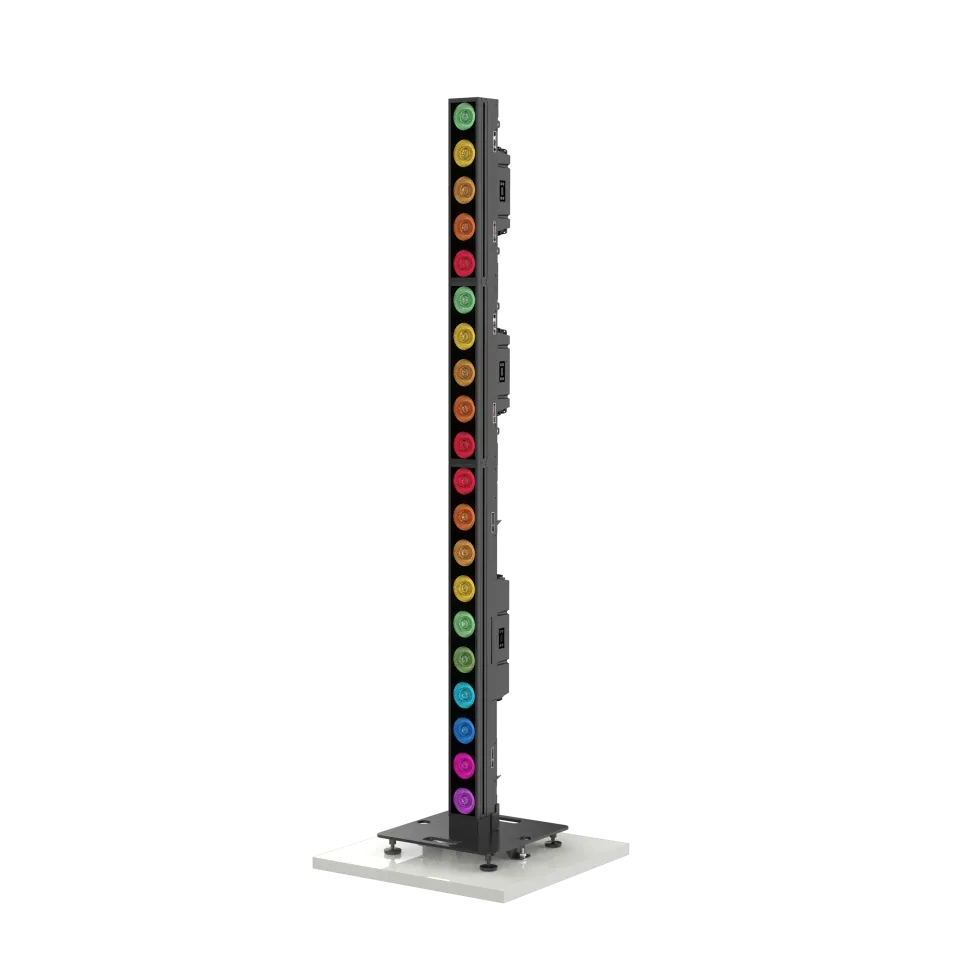

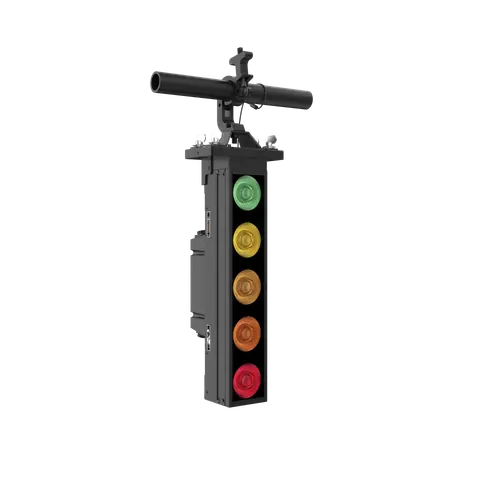

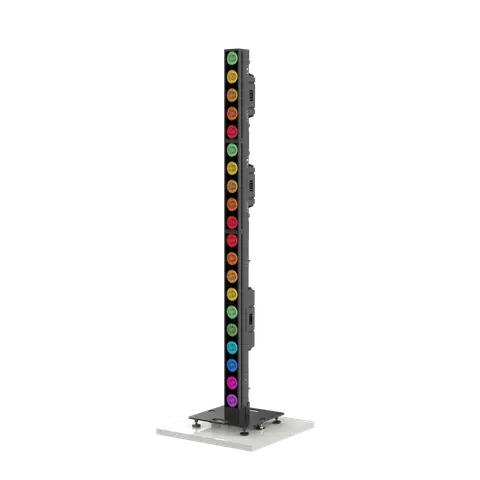

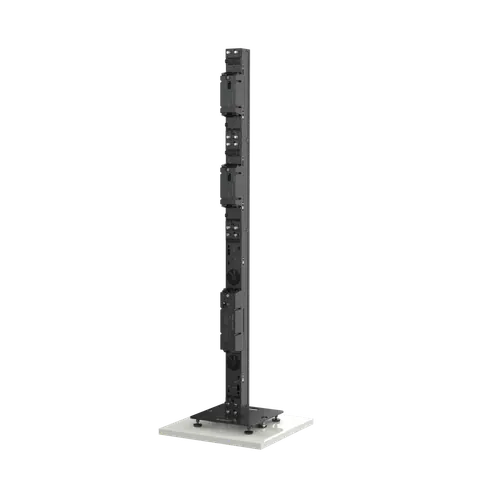

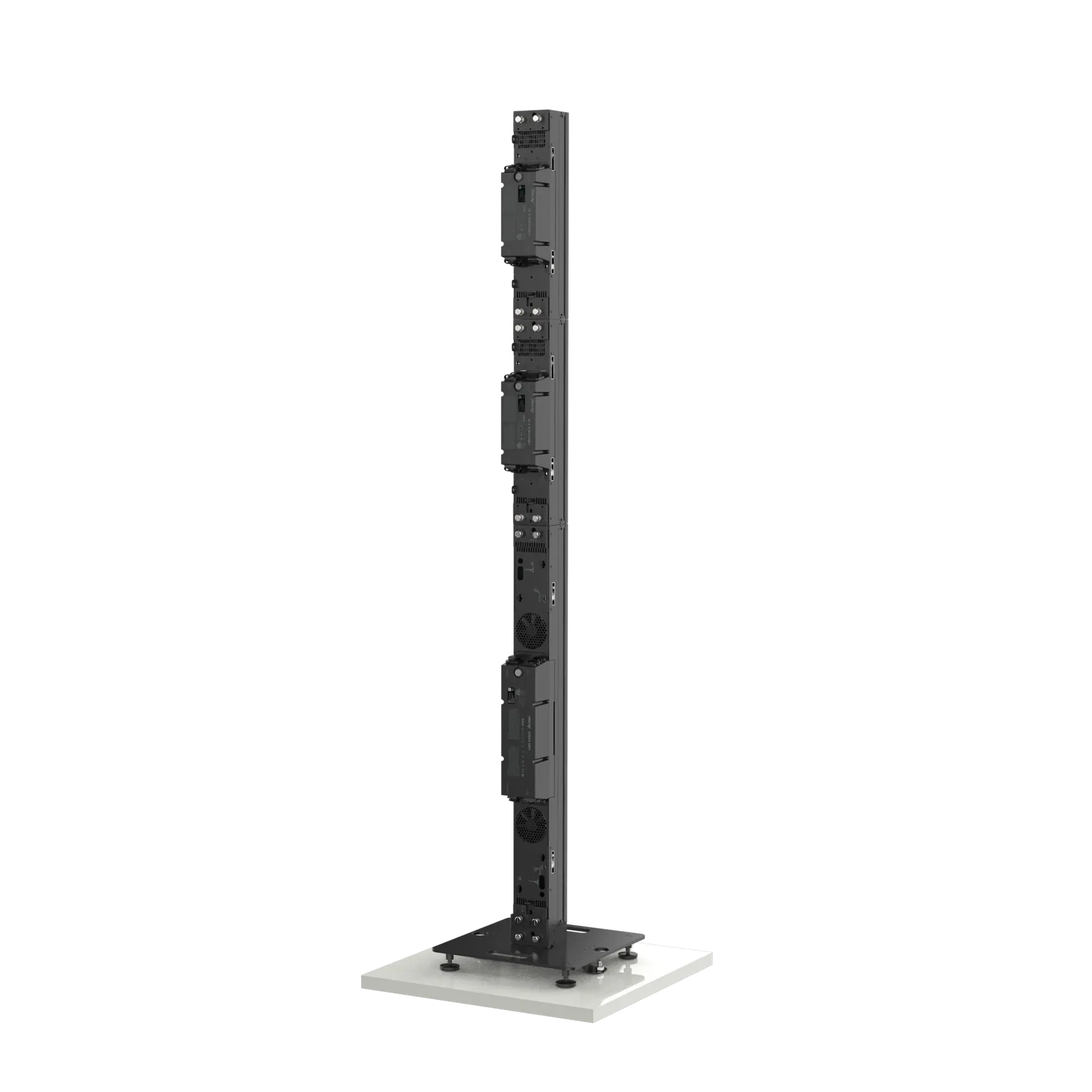

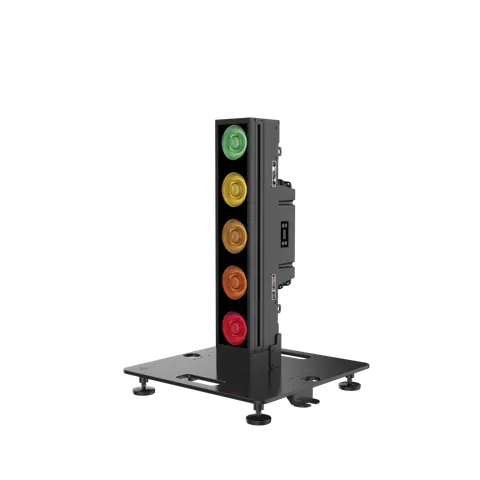

Vertical Stand: Mounted to one base stand (sold separately). When installed at a tilt, a maximum of 2 fixtures may be connected. When stand vertically, a maximum of 4 fixtures may be connected

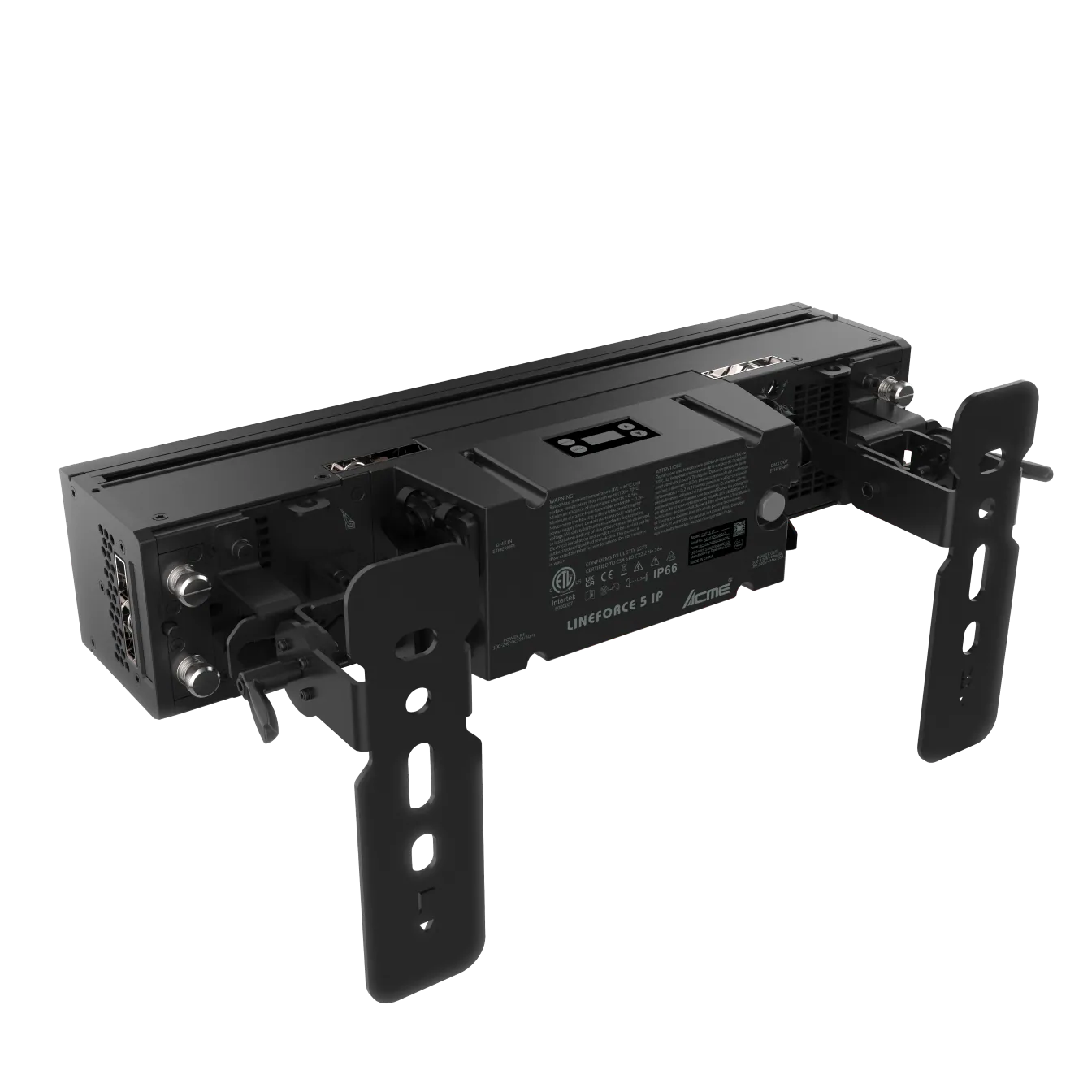

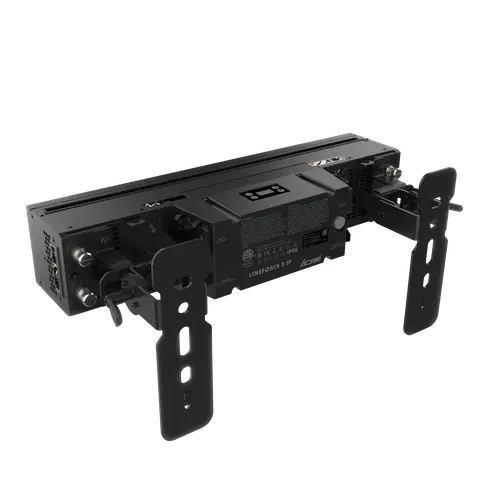

Floor: Utilizing two brackets (supplied) and two floor stands (supplied); Safety cable attachment point

16Included Items4

Digital user manual

Power cable

2 brackets (5020451430180000)

2 floor stands (63584073)

17Optional Accessories (With Order Code)11

Flight Case 1
Standard: Twelve-pack loader case (63584291)
Flight Case 2
North American Standard: Twelve-pack loader case (63584441)
Clamp: C-250B (2060001632-B)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)
Hanging Bracket: 63582969
Base Stand: 63582785
Glare Shield: 63584114
Diffuser Filter (10°): 3005006478
Diffuser Filter (40° x 20°): 3005006477
Floor Stand with Bracket: 63584103

03DescriptionManufacturer's description

What it is.

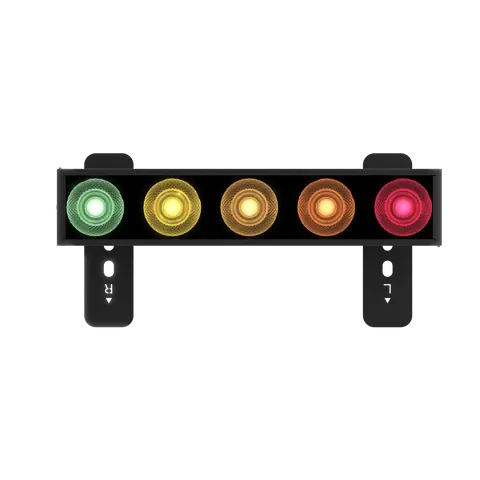

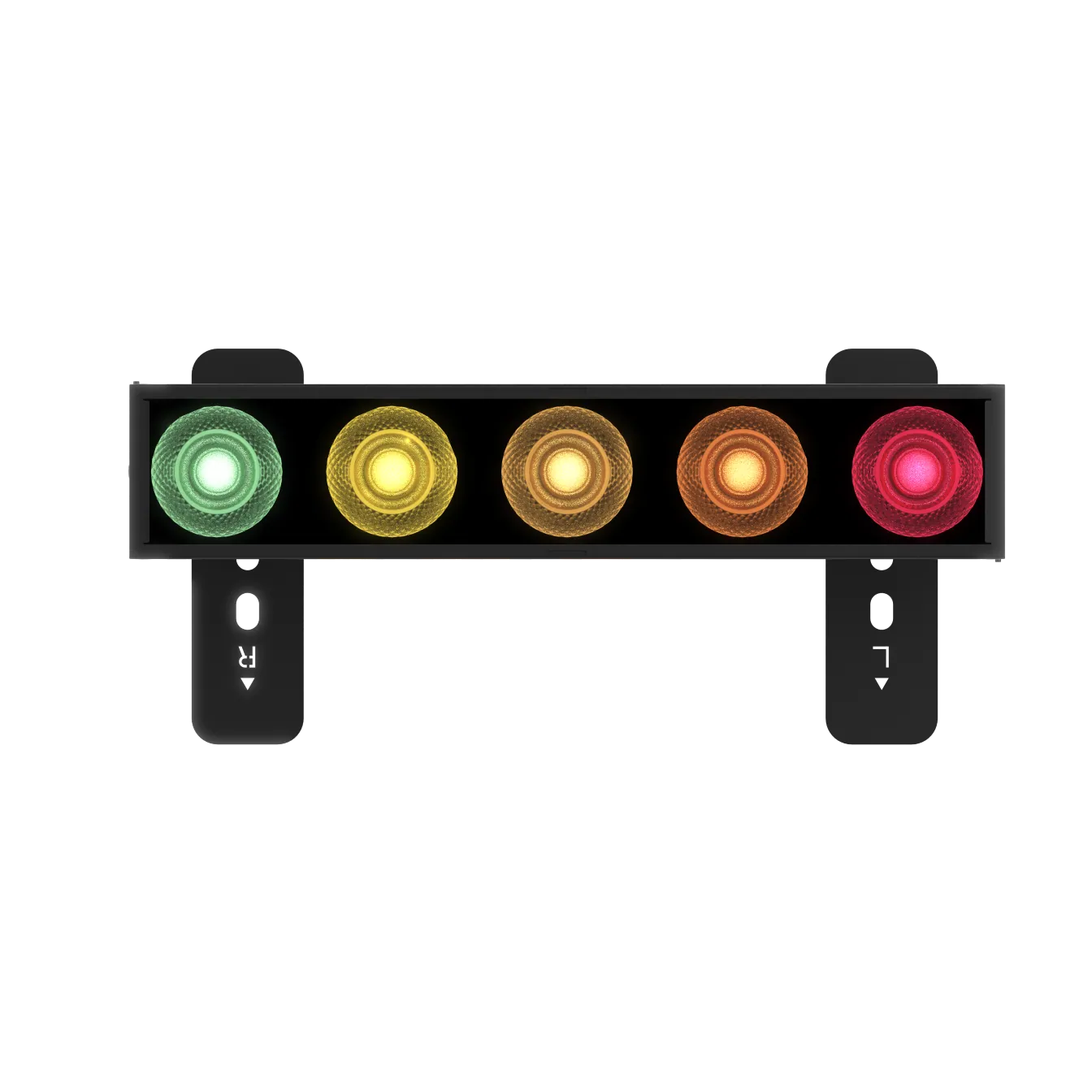

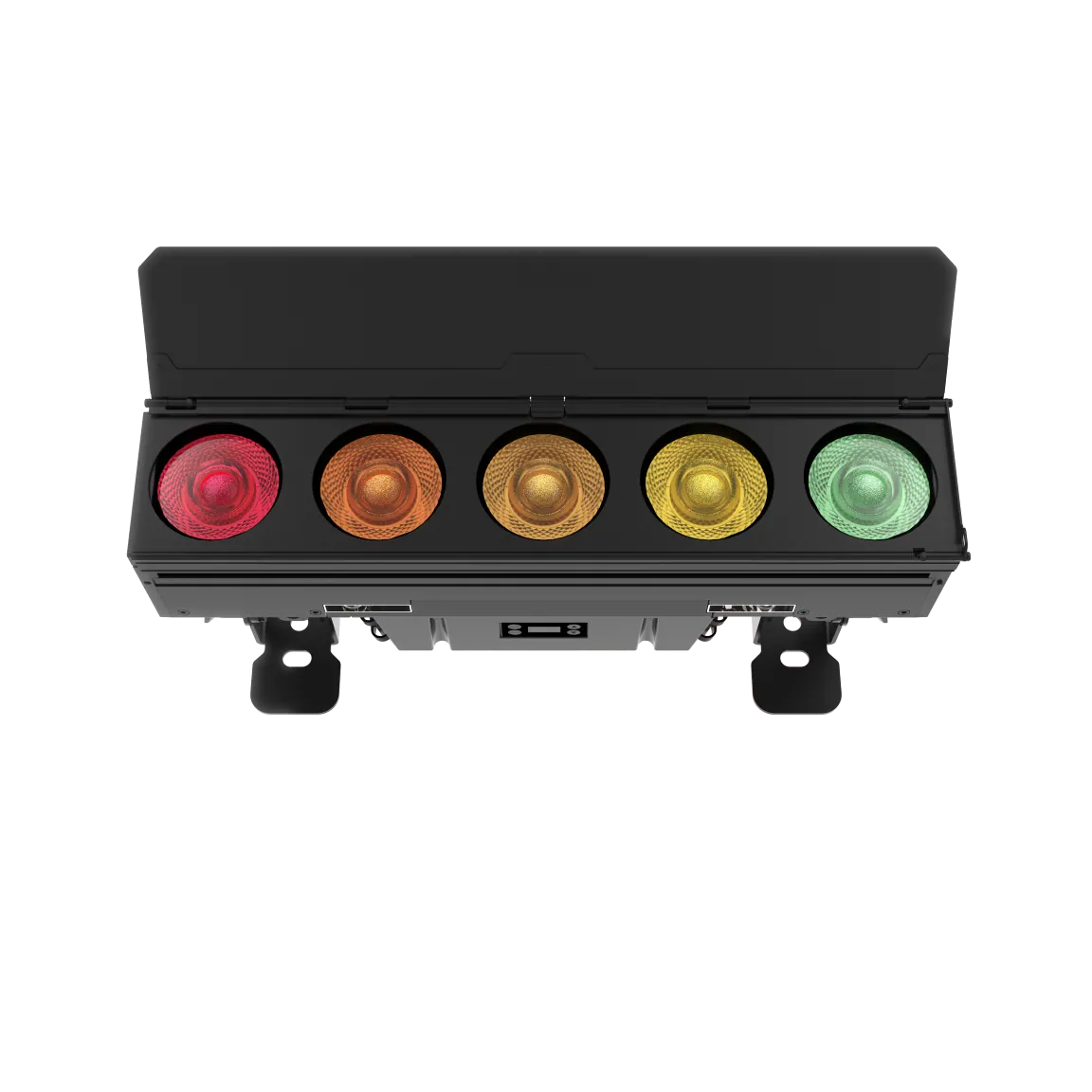

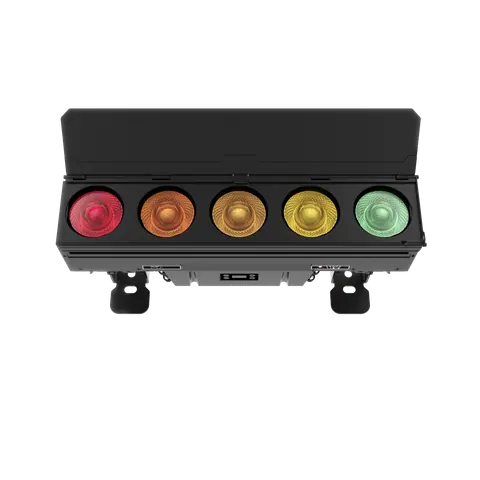

The ACME LINEFORCE 5 IP is a compact, half-meter linear effect light that packs the same outstanding performance as the LINEFORCE 10 IP in a smaller form. The LINEFORCE series is a game-changing innovation in the lighting market, ntegrating cyclorama light, blinder, bar light, and footlight all in one.

Equipped with five powerful 120W RGBWAC+UV LEDs, the LINEFORCE 5 IP offers a multi-spectrum output from vivid hues to mysterious UV effects. What sets it apart is ACME’s patented electronic frost system, divided into four linear individually controllable zones. The frost zones enable the user to create multiple combinations, allowing for seamless transitions between different beam angles to create soft looks. With all frost zones activated, you can achieve an ultra-wide wash that covers large areas.

Using the included floor stands, it can rotate from 0-90°, making it a versatile footlight. Whether delivering crisp beams or soft washes, the fixture adapts effortlessly to any creative setup.

Lightweight, highly versatile, and IP66-rated, the LINEFORCE 5 IP is designed to elevate creative lighting designs for any applications. Redefining the possibilities of linear lighting.
