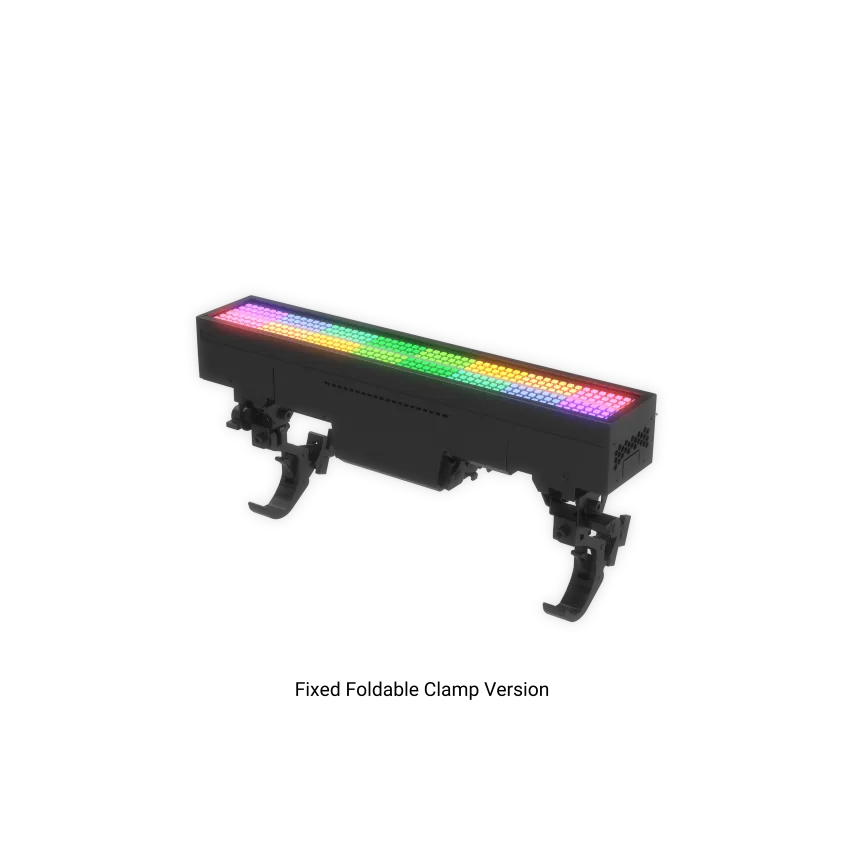

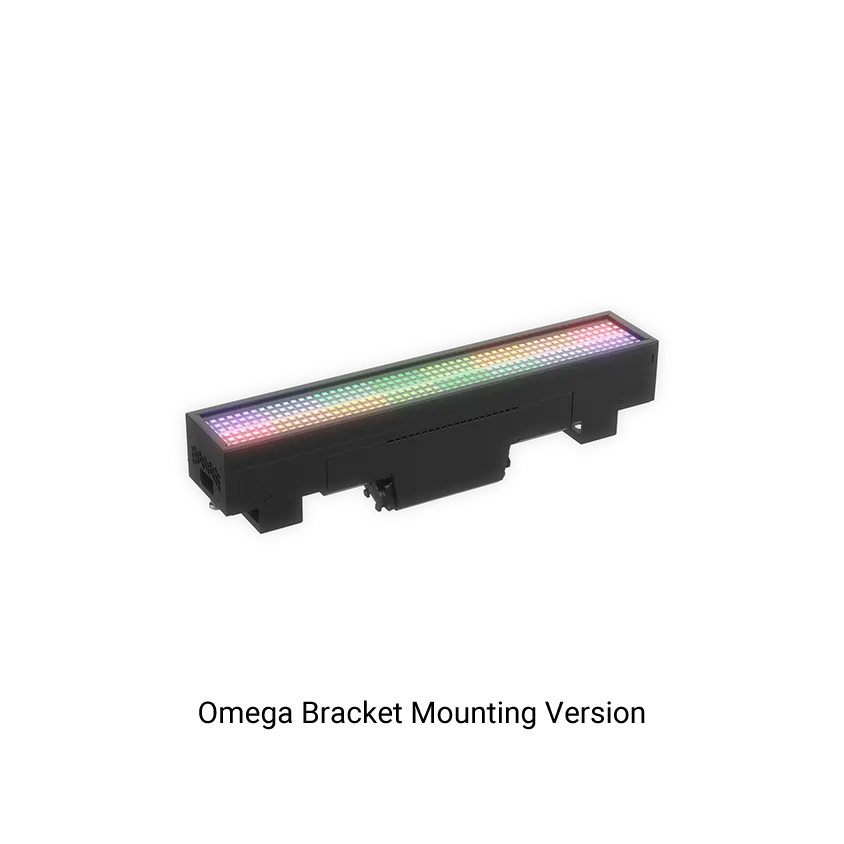

PIXEL LINE IP 500

ModelSTROBE 1 IP

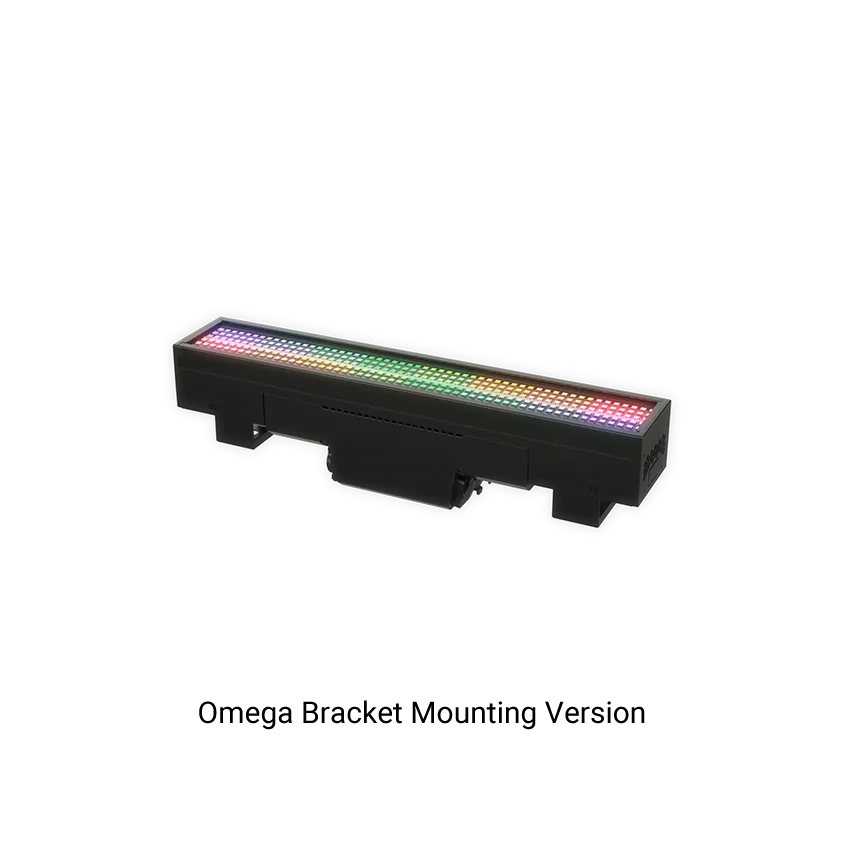

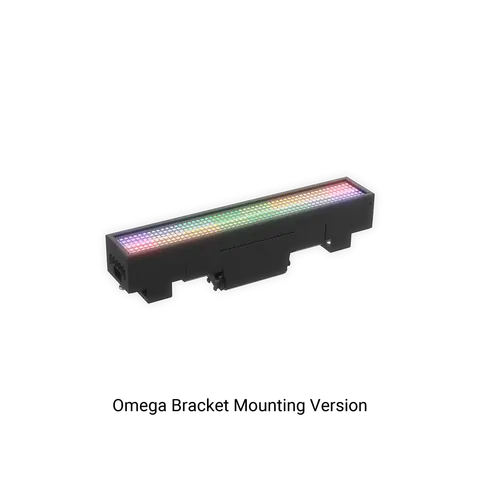

The ACME PIXEL LINE IP 500 is an remarkable fixture equipped with 336 0.5-Watt RGB LEDs and 112 6-Watt cool white LEDs, all divided into 16 controllable sections.

Light source: 336 x 0.5W RGB LEDs (divided into 16 controllable sections)
Power consumption: 875W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66
DMX channels: 8/10/16/18/22/26/34/37/38/39/56/62/63/68/69
Protocols: DMX512,RDM,Art-Net,sACN
Colour temperature: 7,000K-7,500K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

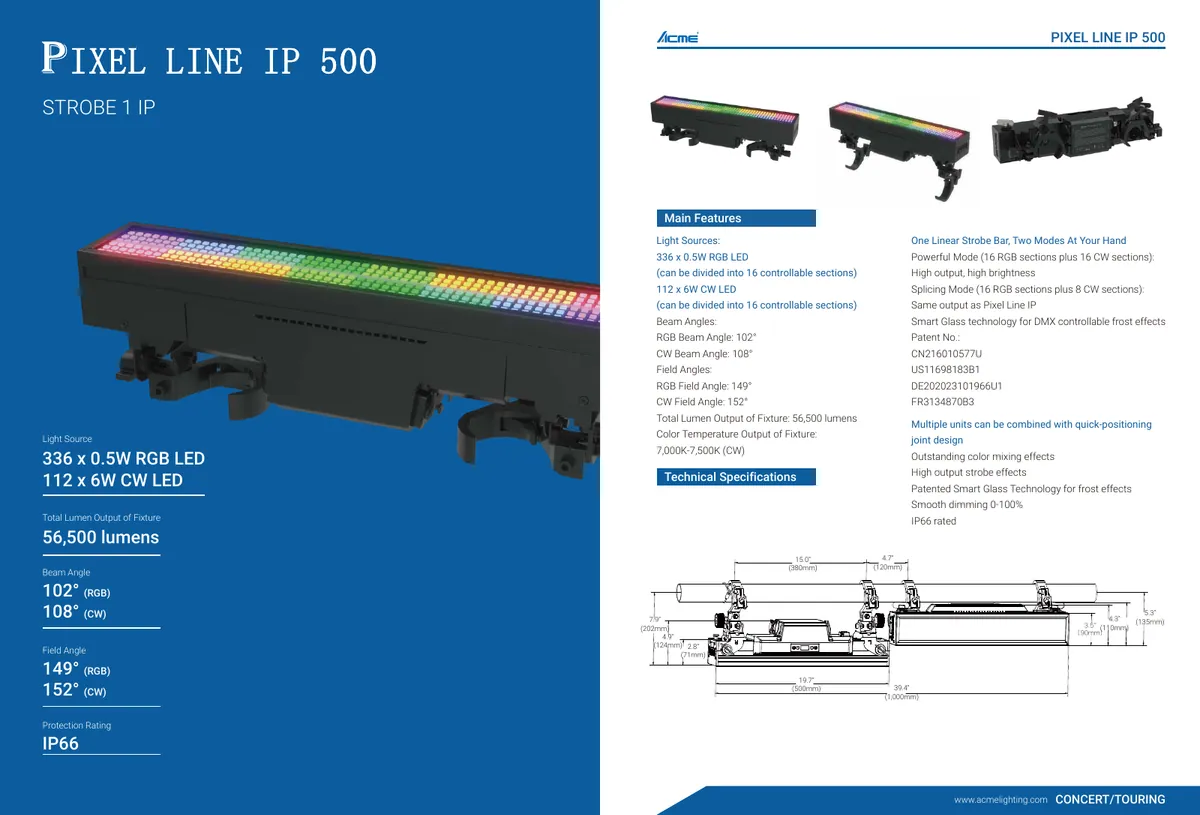

01SpecificationManufacturer's data · 15 groups · 76 values

What this product is, in numbers.

PDFDatasheetEN · 2 pages · 527 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: PIXEL LINE IP 500
Model Code: STROBE 1 IP

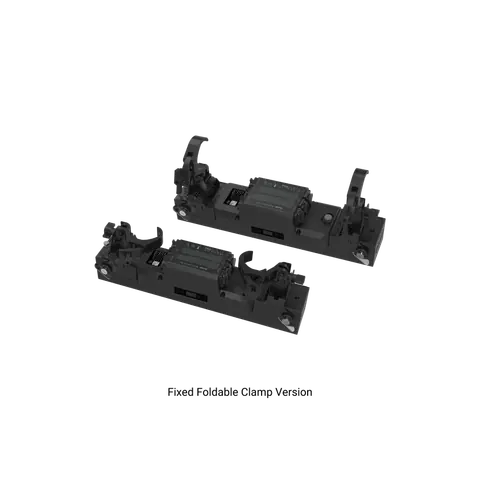

02Version3

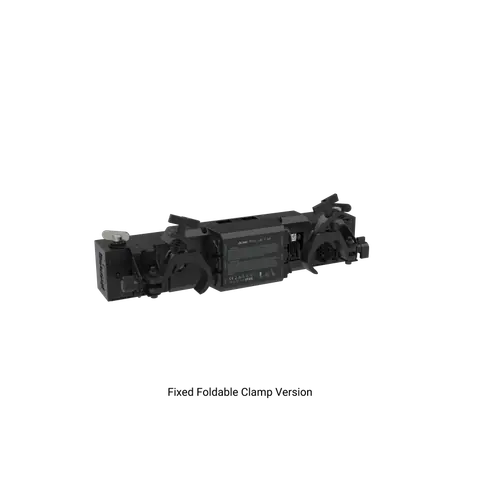

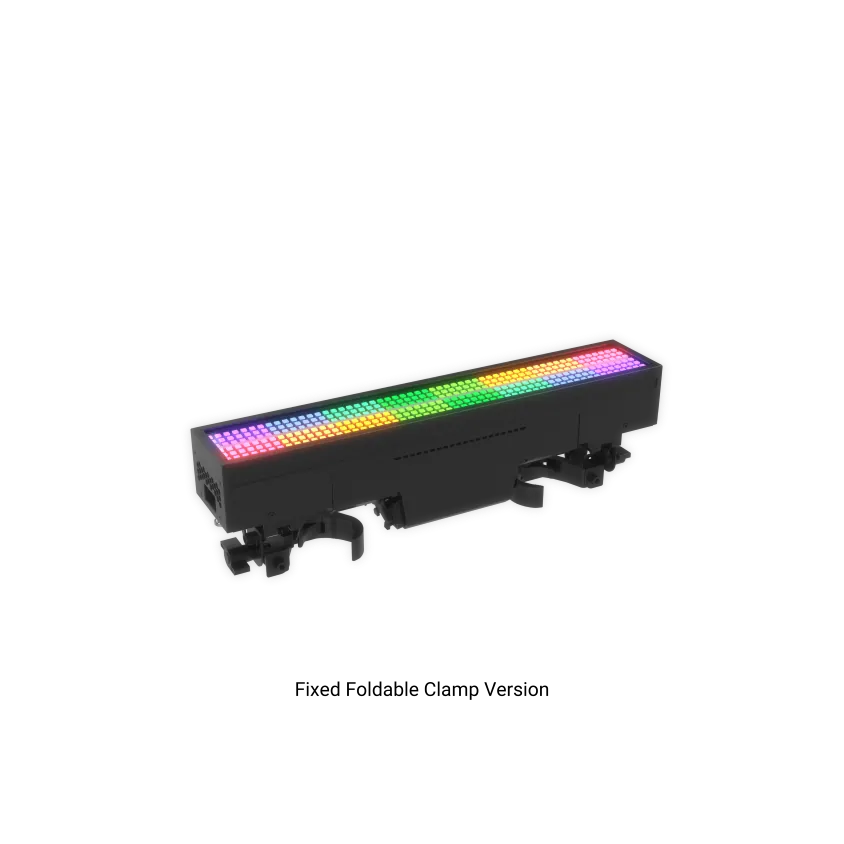

Version 1: STROBE 1 IP (Omega Bracket Mounting)

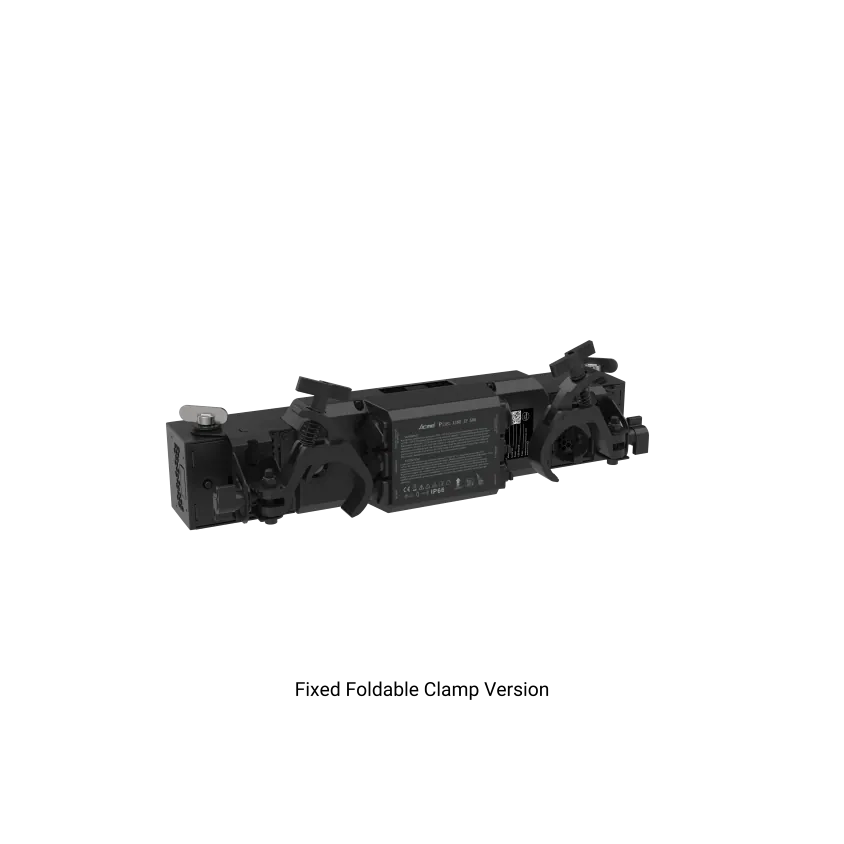

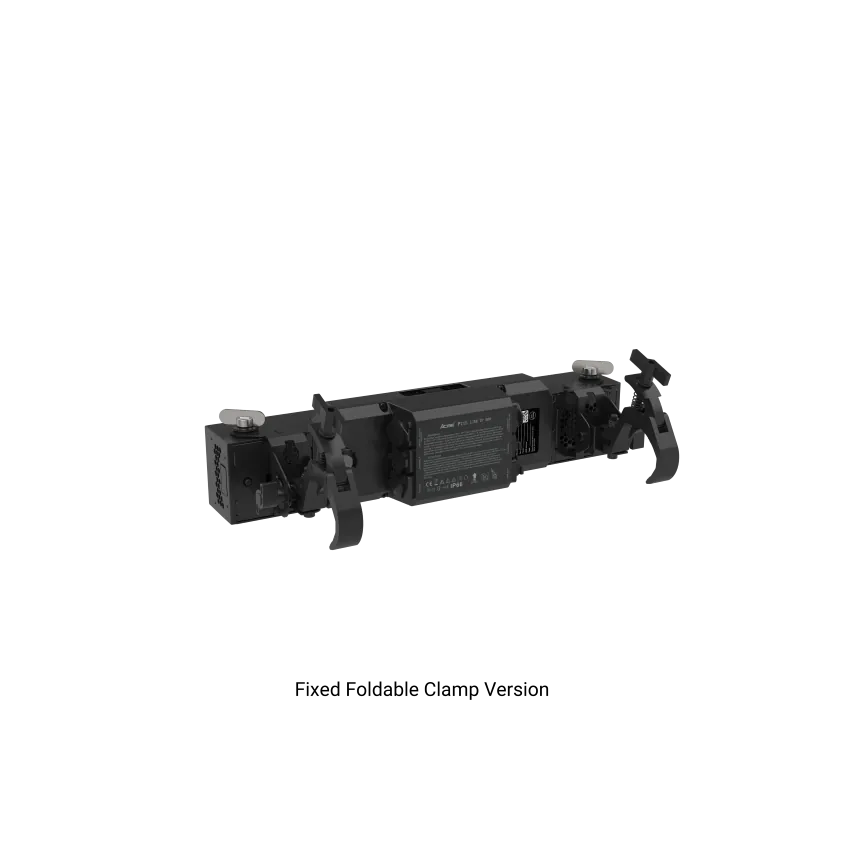

Version 2: STROBE 1 IP (Fixed Foldable Clamp)
Note: Different vesions cannot be connected together

03Light Source5

Light Source: 336 x 0.5W RGB LEDs (divided into 16 controllable sections); 112 x 6W CW LEDs (divided into 16 controllable sections)
Color Temperature Output of Fixture: 7,000K-7,500K
Light Source Rated Life: 30,000 hours*; *Source manufacturer specification

04Photometric Data1

Total Lumen Output of Fixture: 56,500 lumens

05Optical System8

Beam Angle
RGB: 102°
CW: 108°
Field Angle
RGB: 149°
CW: 152°
DMX Controllable Smart Glass technology
Patent No.: CN216010577U; US11698183B1; DE202023101966U1; FR3134870B3

06Control6

4 touch button control panel
Display: OLED display
Protocols: DMX512,RDM,Art-Net,sACN
DMX Protocol Modes: 15
Control Channels: 8/10/16/18/22/26/34/37/38/39/56/62/63/68/69
Firmware Upgrade: Upgrade via DMX link

Show the full specificationHide the rest of the specification9 more groups · 51 values

07Other Effects6

Outstanding strobe effect with variable speed; Smooth dimming 0-100% (4 user selectable dimming curves); Outstanding color mixing; One Linear Strobe Bar, Two Modes At Your Hand
Powerful Mode (16 RGB sections plus 16 CW sections): High output, high brightness
Splicing Mode (16 RGB sections plus 8 CW sections): Same output as Pixel Line IP

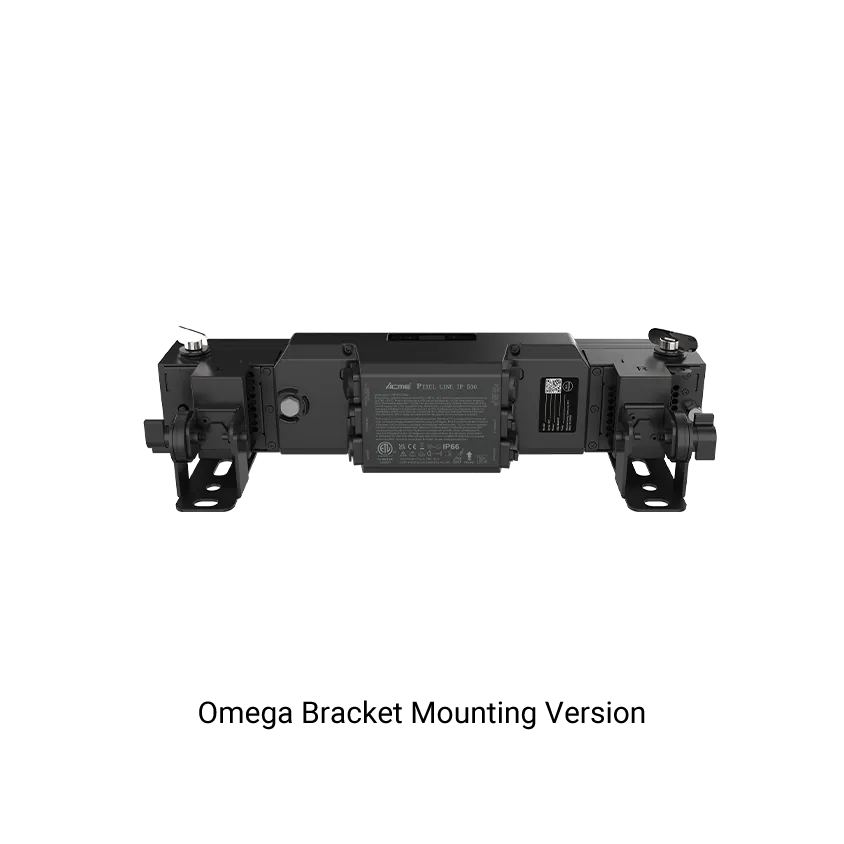

08Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 875W
Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR,RJ45 connector

09Physical Information5

Fixture Dimensions
Width: 500 mm (19.7")
Depth: 113 mm (4.5")
Height: 124 mm (4.9")
Weight: 5.1 kg (11.2 lbs) - Omega Bracket Mounting Version; 5.8 kg (12.8 lbs) - Fixed Foldable Clamp Version

10Packing Information12

Flight Case Dimensions 1
Width: 1,170 mm (46.1")
Depth: 580 mm (22.8")
Height: 580 mm (22.8")
Weight
Standard: G.W.: 100 kg (220.5 lbs) (eight-pack loader case)
Flight Case Dimensions 2
Width: 1,220 mm (48.0")
Depth: 610 mm (24.0")
Height: 810 mm (31.9")
Weight
North American Standard: G.W.: 125 kg (275.6 lbs) (ten-pack loader case)
Carton Dimensions
Width: 595 mm (23.4")
Depth: 215 mm (8.5")
Height: 220 mm (8.7")
Weight
G.W.: 6.5 kg (14.3 lbs) (one-pack loader carton)

11Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 65°C
Protection Rating: IP66

12Approvals4

CE compliant

UKCA compliant

cETLus compliant

IP Class Test Verification

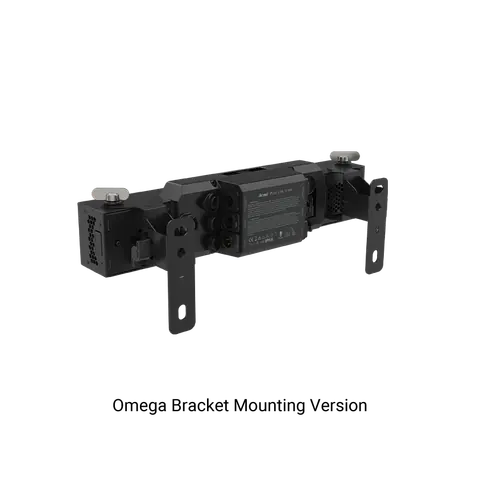

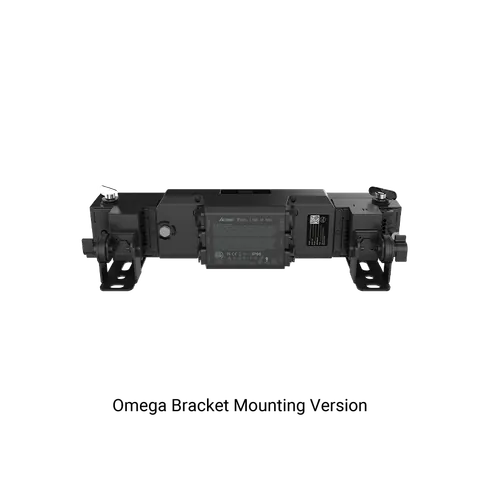

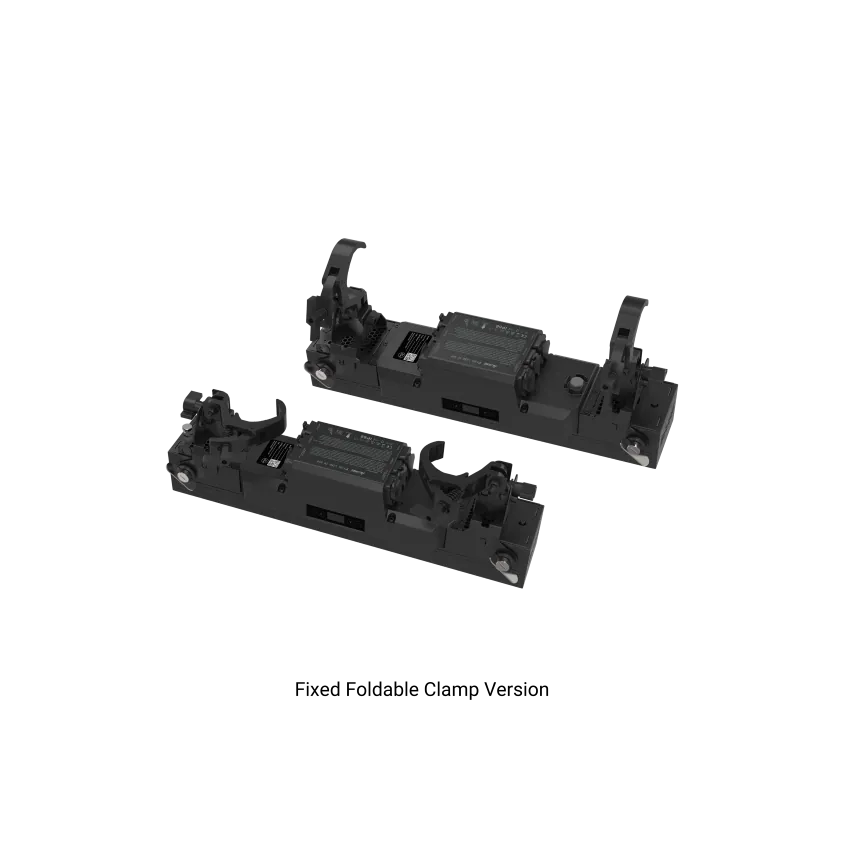

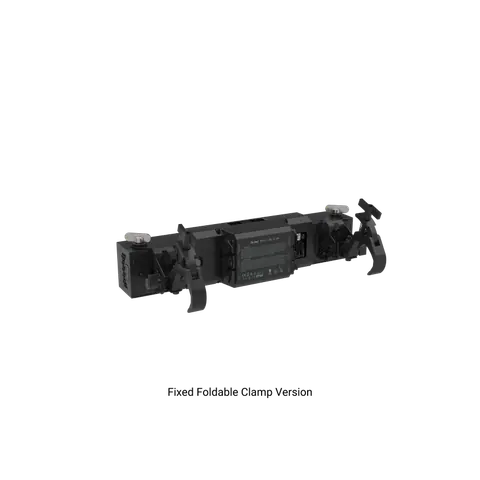

13Installation4

Horizontal or vertical mounting

Universal working position

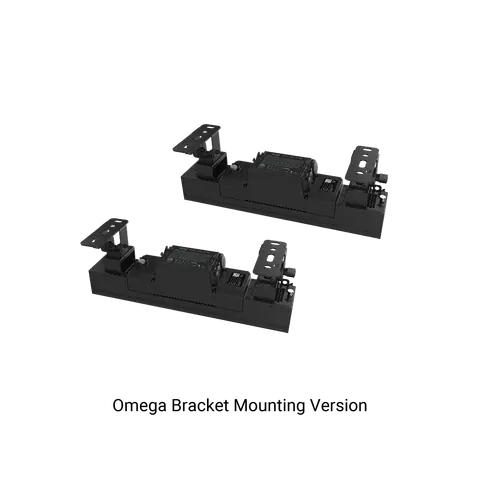

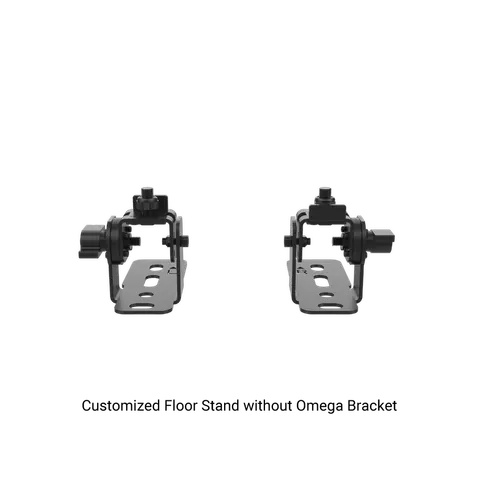

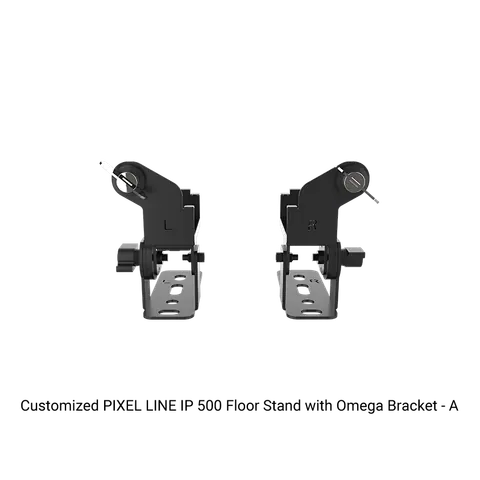

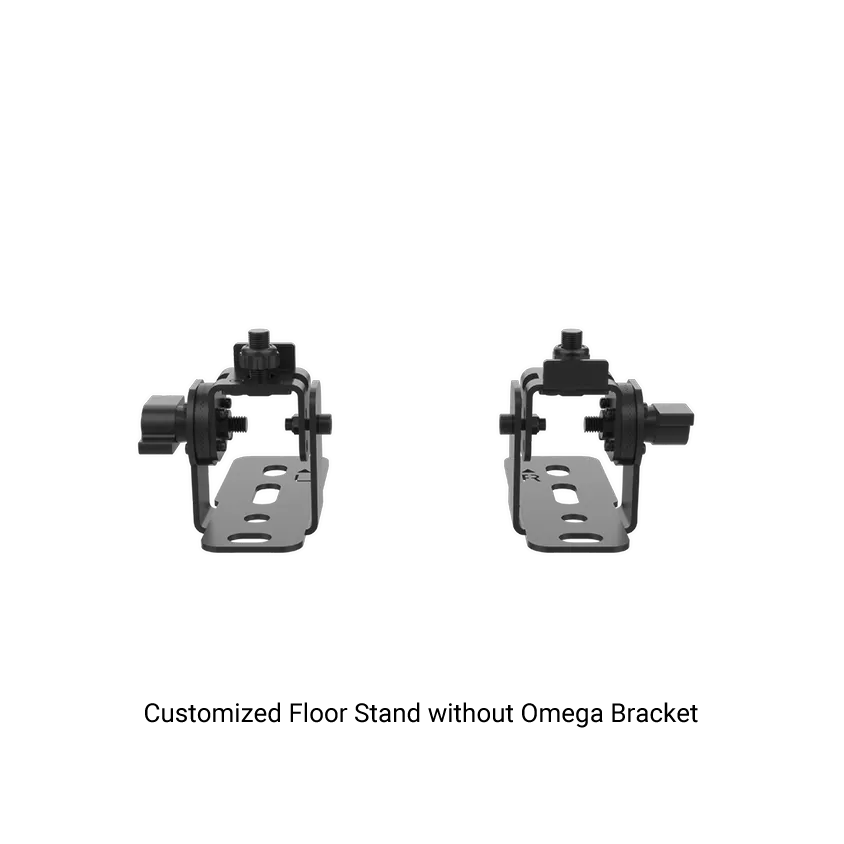

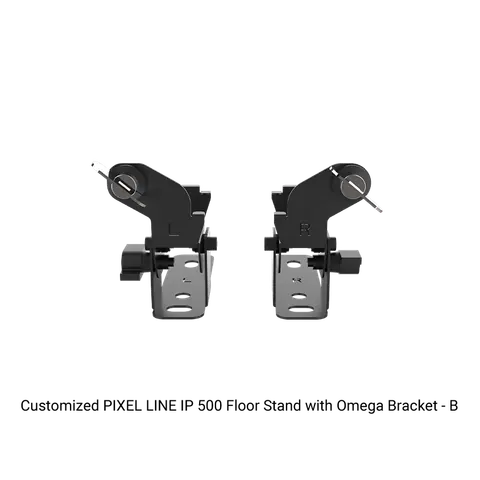

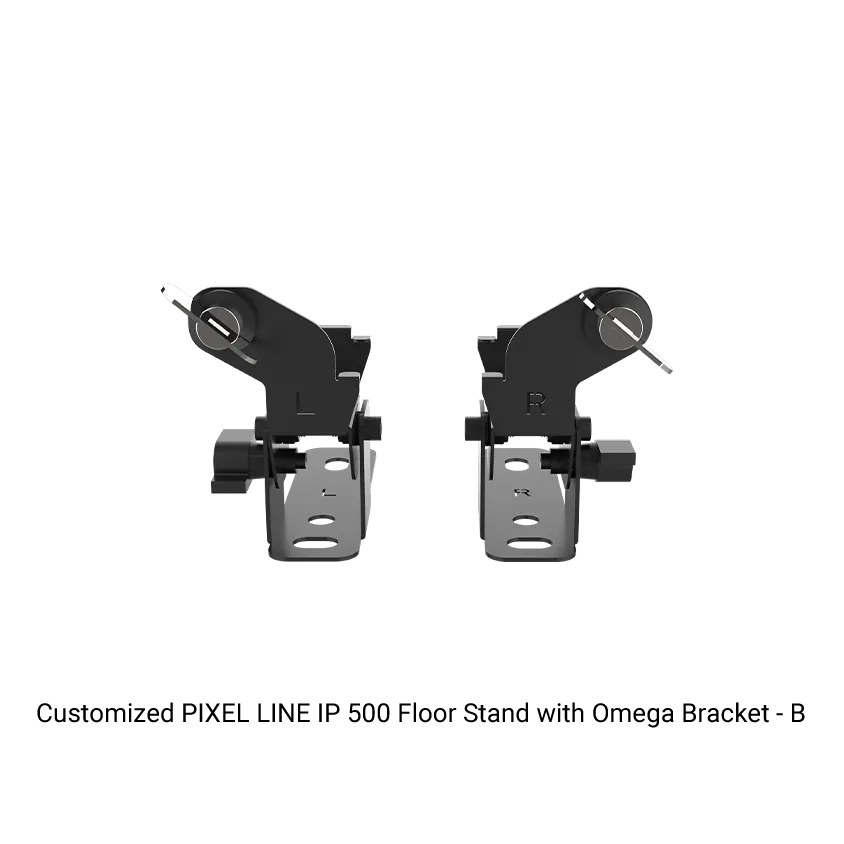

2 omega brackets

Safety cable attachment point

14Included Items3

Digital user manual

Power cable

2 omega brackets (63583242)

15Optional Accessories (With Order Code)9

Flight Case 1
Standard: Fixed Foldable Clamp Version: Eight-pack loader case (63583441)
Flight Case 2
North American Standard: Omega Bracket Mounting Version: Ten-pack loader case (63583205)

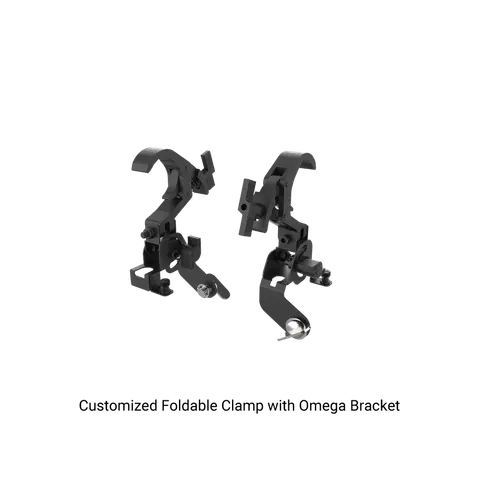

Clamp: C-150B (2060001625)
Safety Cable: SW-02 (2060000200-B)

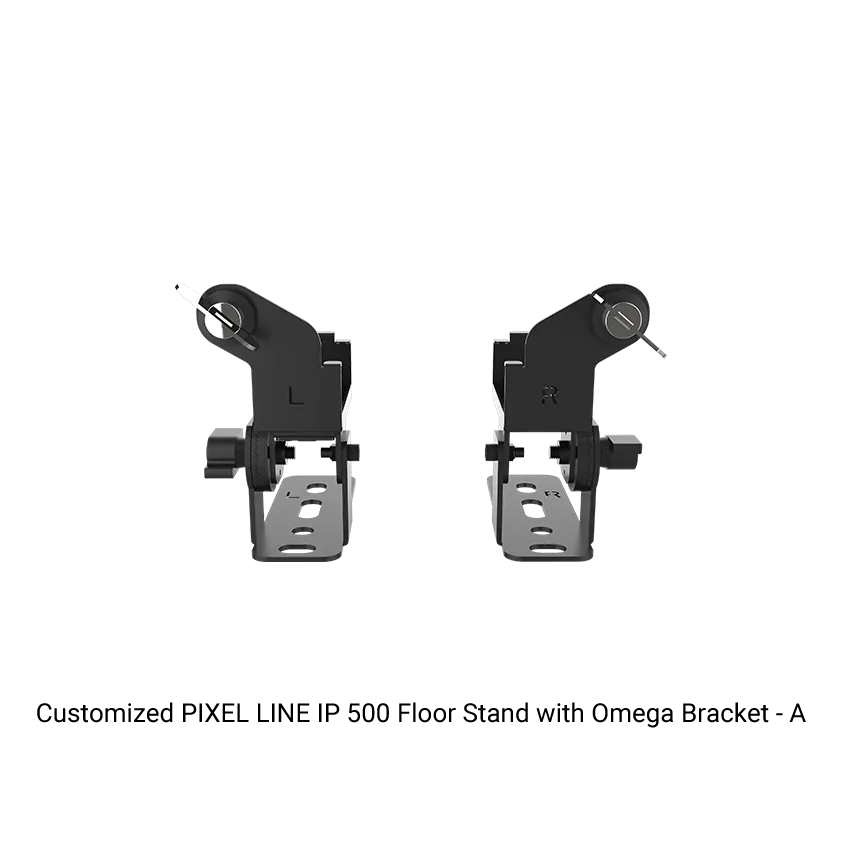

Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473); Customized Floor Stand without Omega Bracket (63583845); Customized PIXEL LINE IP 500 Floor Stand with Omega Bracket-A (63583891); Customized PIXEL LINE IP 500 Floor Stand with Omega Bracket-B (63583099); Customized Foldable Clamp with Omega Bracket (63583100)

02DescriptionManufacturer's description

What it is.

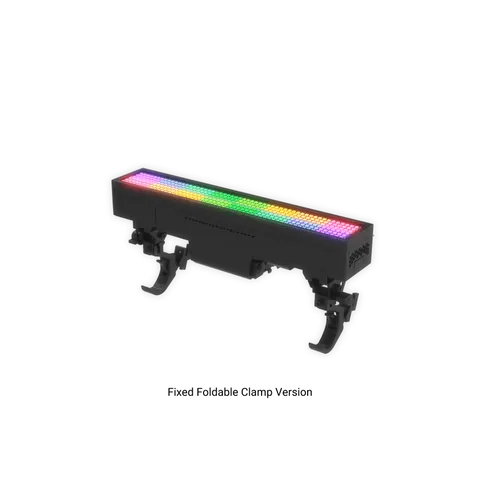

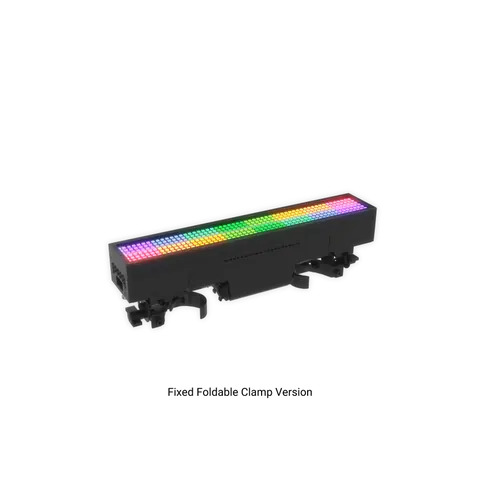

The ACME PIXEL LINE IP 500 is an remarkable fixture equipped with 336 0.5-Watt RGB LEDs and 112 6-Watt cool white LEDs, all divided into 16 controllable sections. The RGB LEDs boast a beam angle of 102° and a field angle of 149°, while the cool white LEDs boast a beam angle of 108° and a field angle of 150°.
