Sheet 05.766

ACME · Effects and lasers

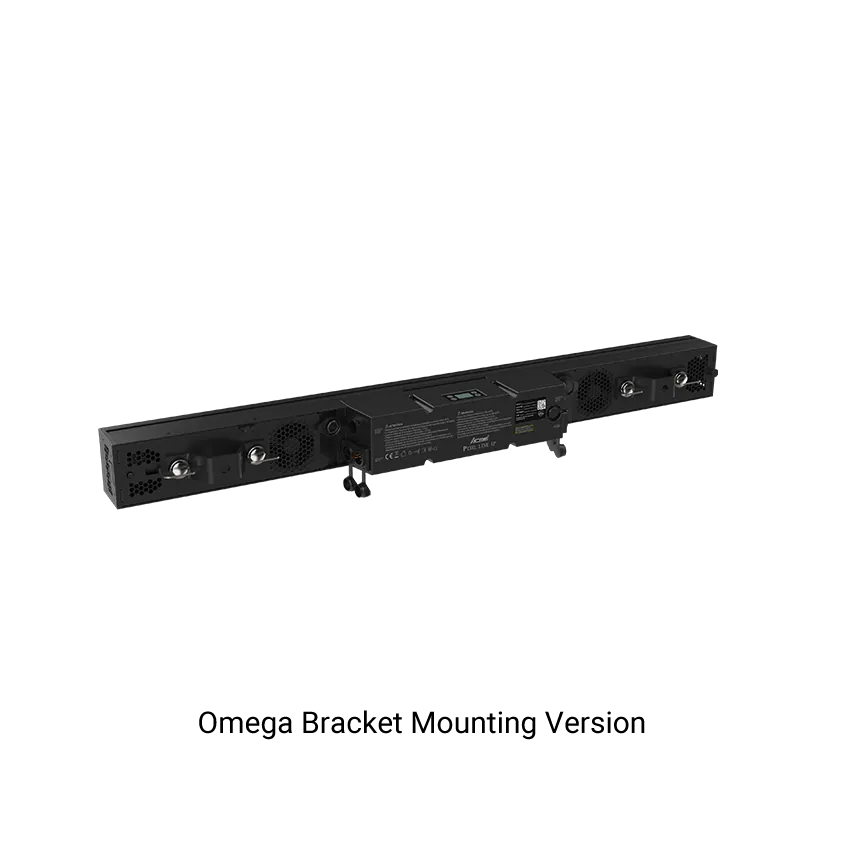

PIXEL LINE IP

ModelSTROBE 3 IP

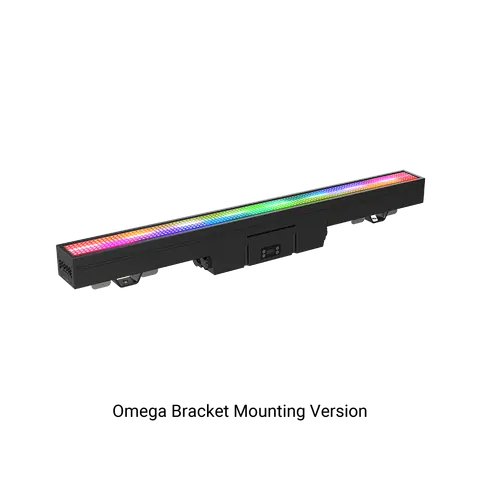

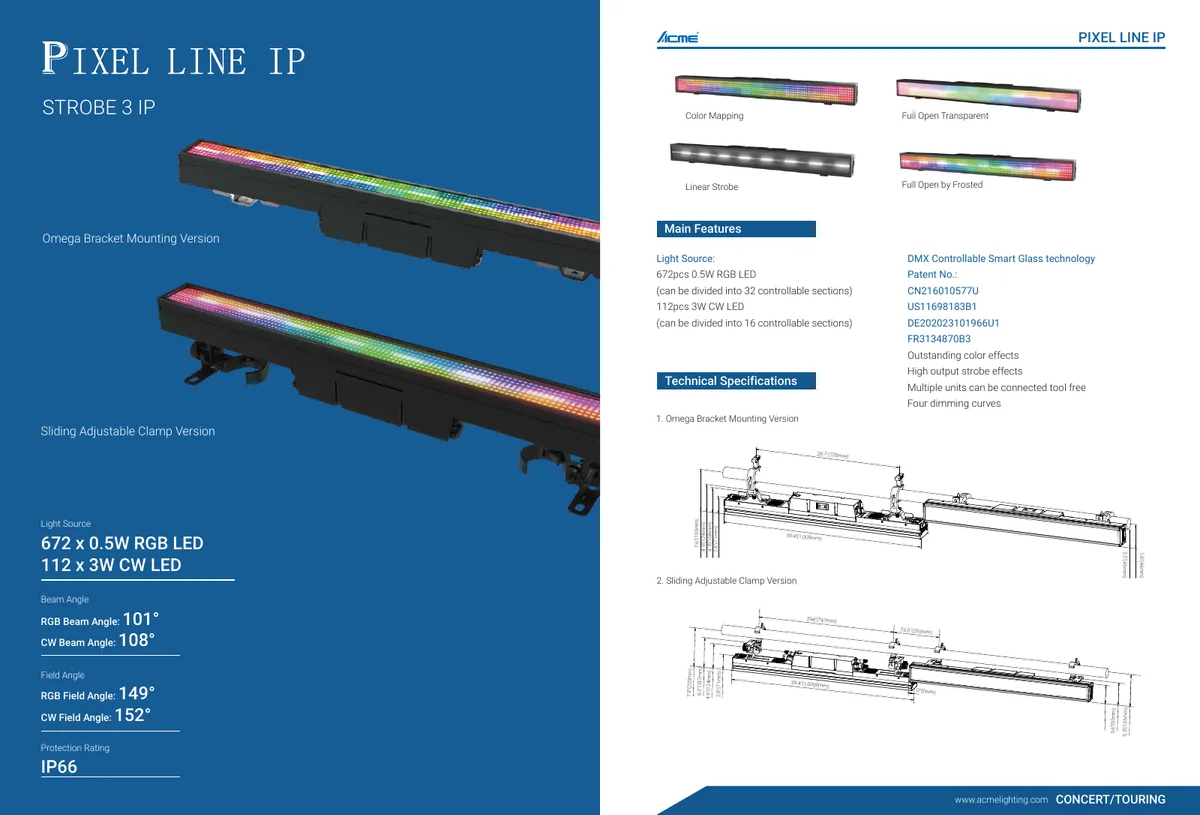

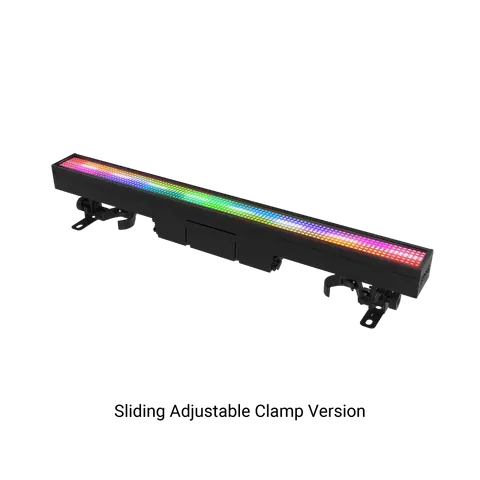

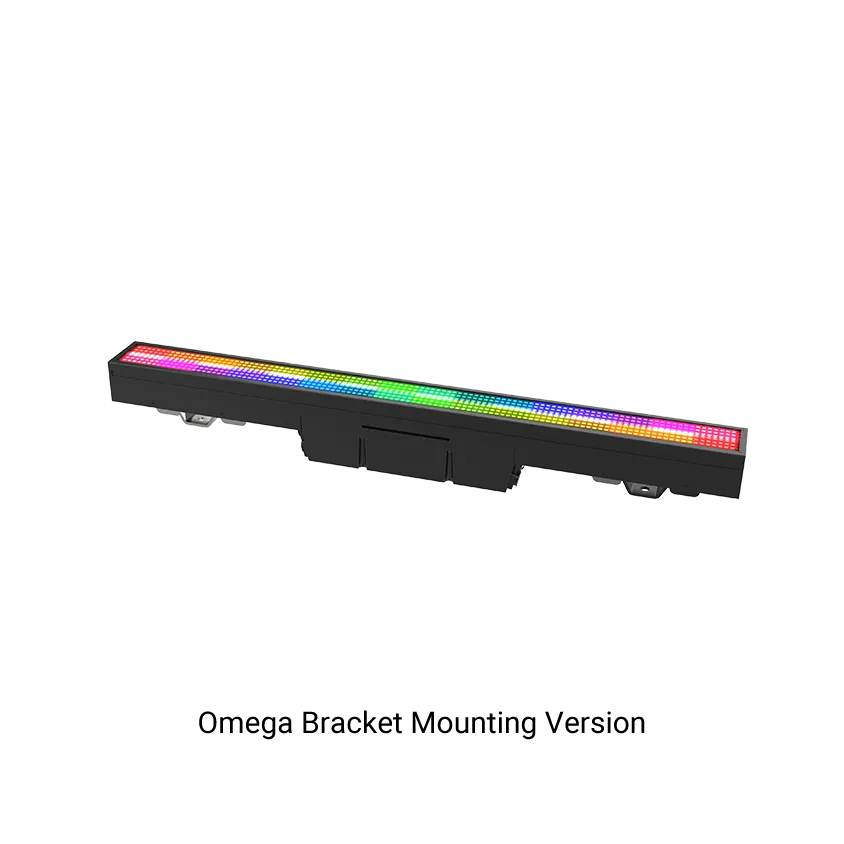

The ACME PIXEL LINE IP strip light is like no other. Its small size and weight, IP66 rating for indoor and outdoor use, and uniform colors and effects make this fixture extremely versatile for any application.

Light source: 672 x 0.5W RGB LEDs (can be divided into 32 controllable sections)
Power consumption: 420W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66
DMX channels: 7/15/17/21/33/39/65/68/70/70N/112/117/119/125
Protocols: DMX512,RDM,Art-Net,sACN
Colour temperature: 7,000K-7,500K
Net weight: 7.3 kg (16.1 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:47

ACME PIXEL LINE IP1:47

02SpecificationManufacturer's data · 15 groups · 78 values

What this product is, in numbers.

PDFDatasheetEN · 2 pages · 638 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: PIXEL LINE IP
Model Code: STROBE 3 IP

02Version3

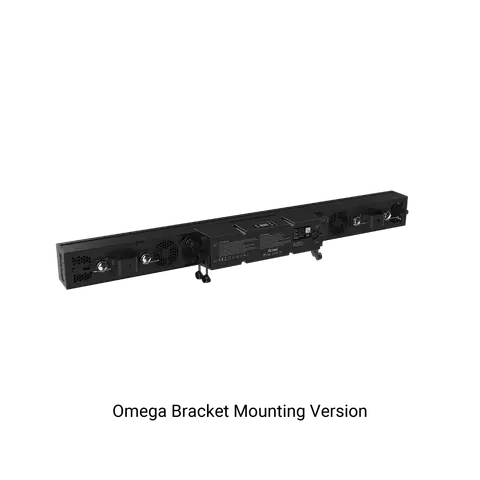

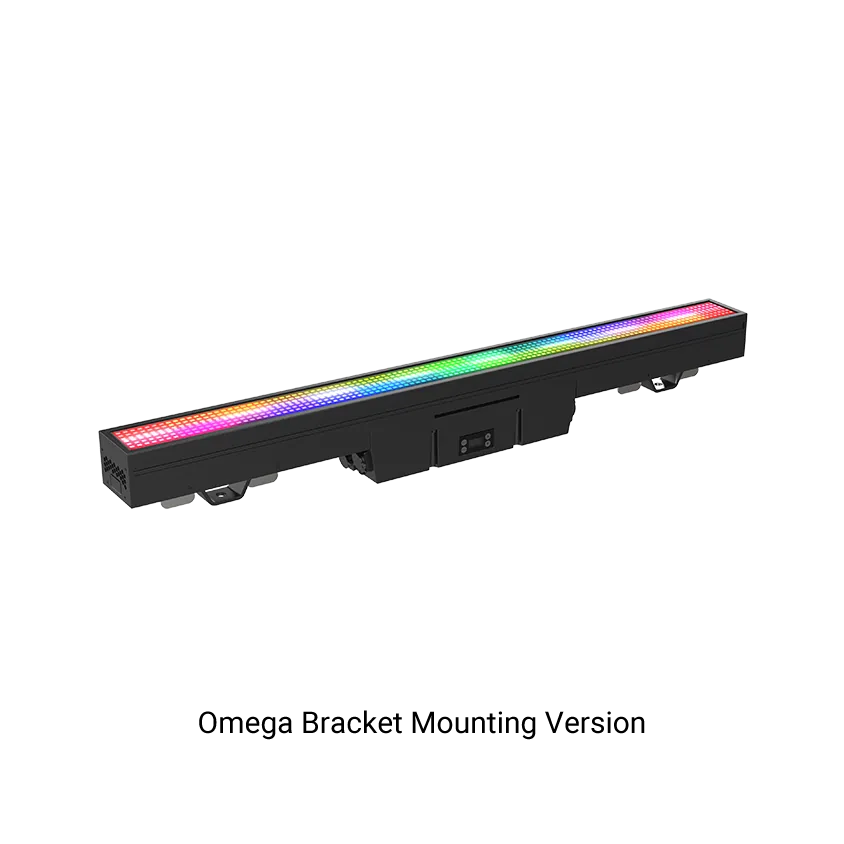

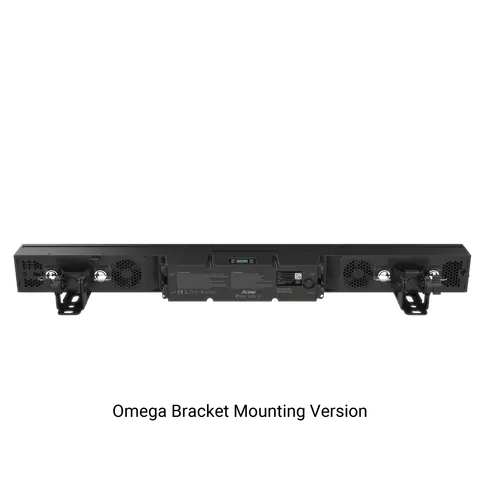

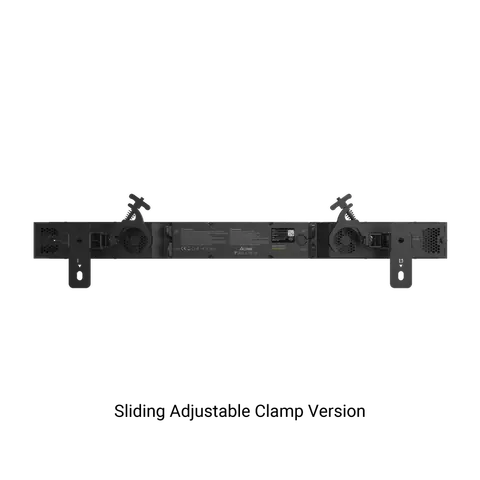

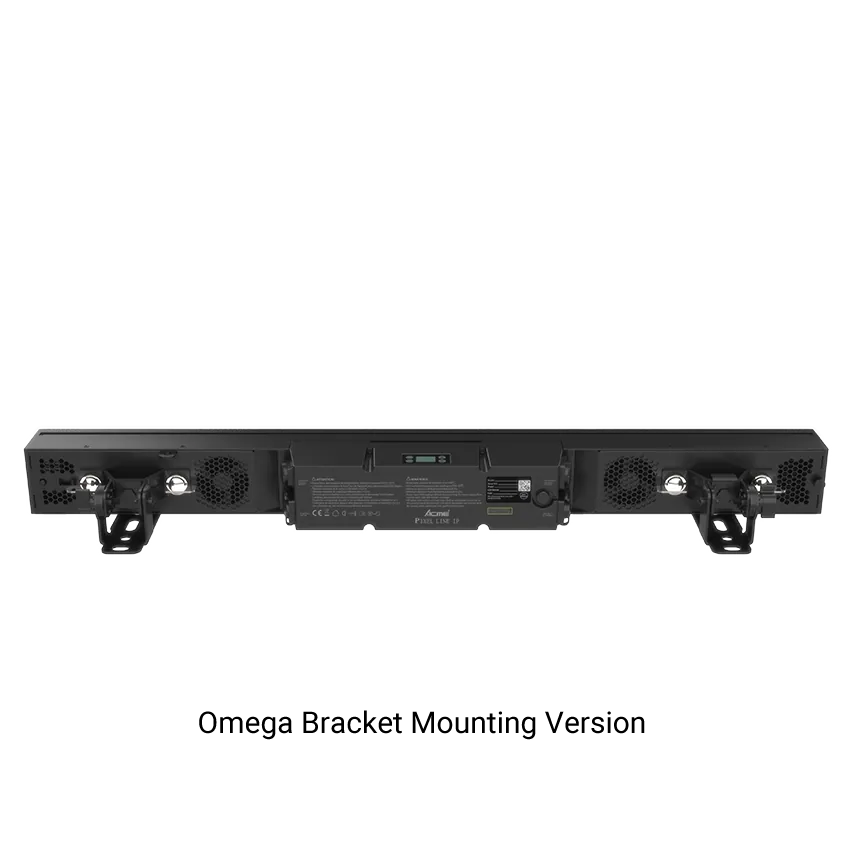

Version 1: STROBE 3 IP (Omega Bracket Mounting)

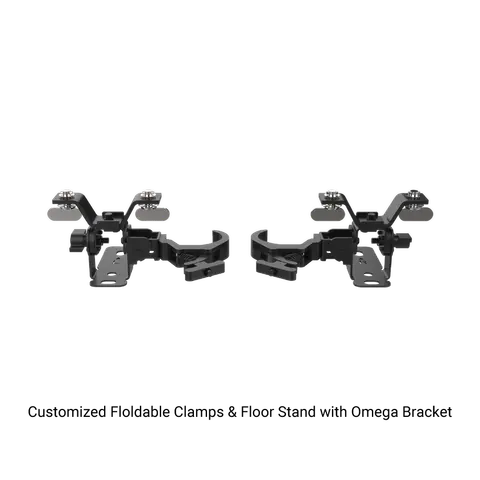

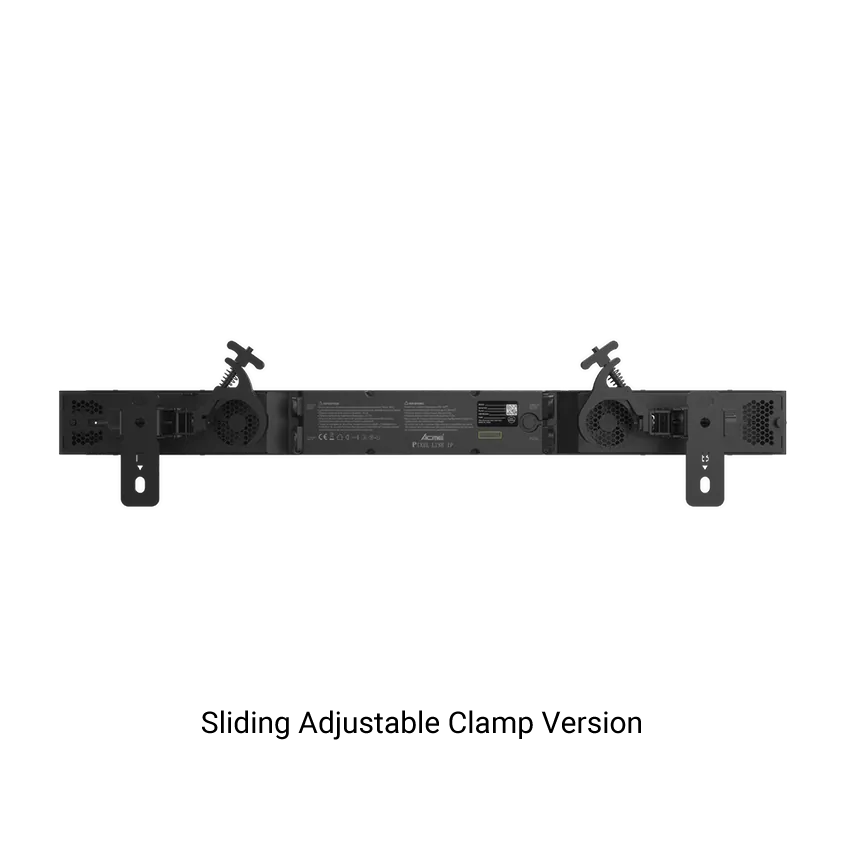

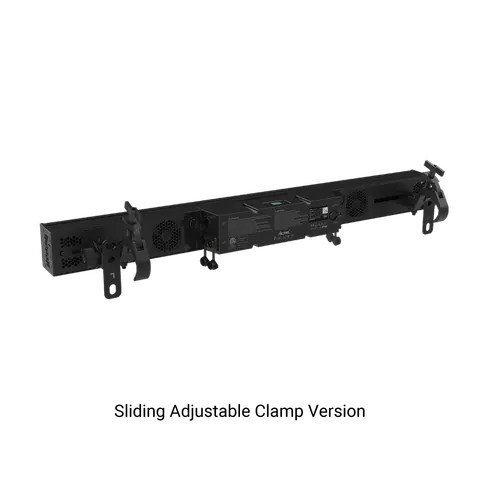

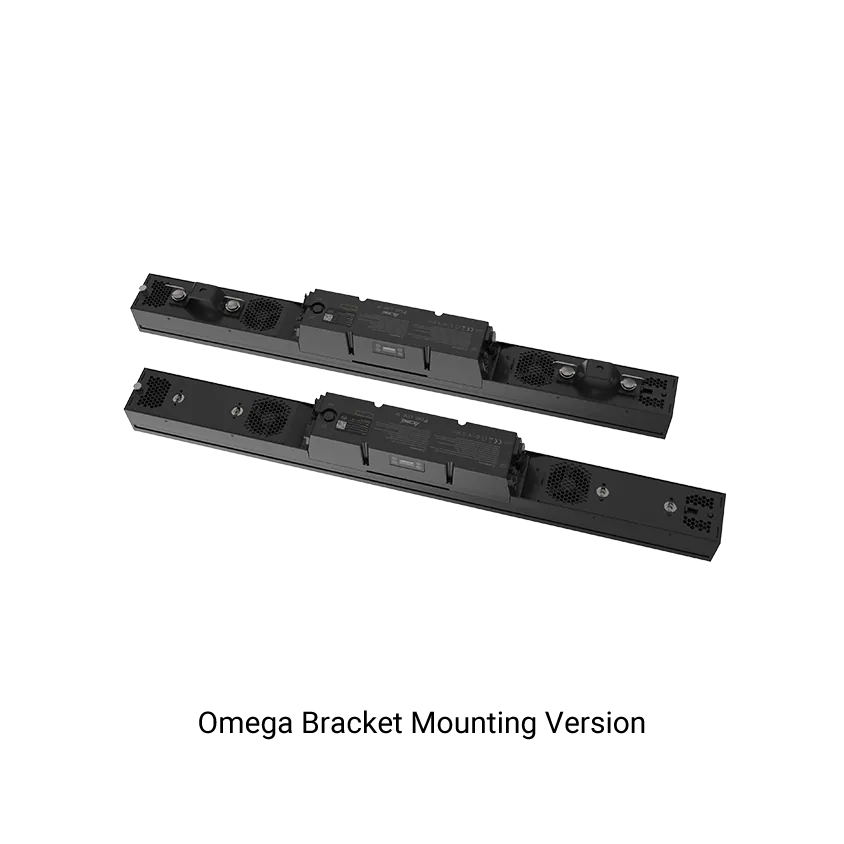

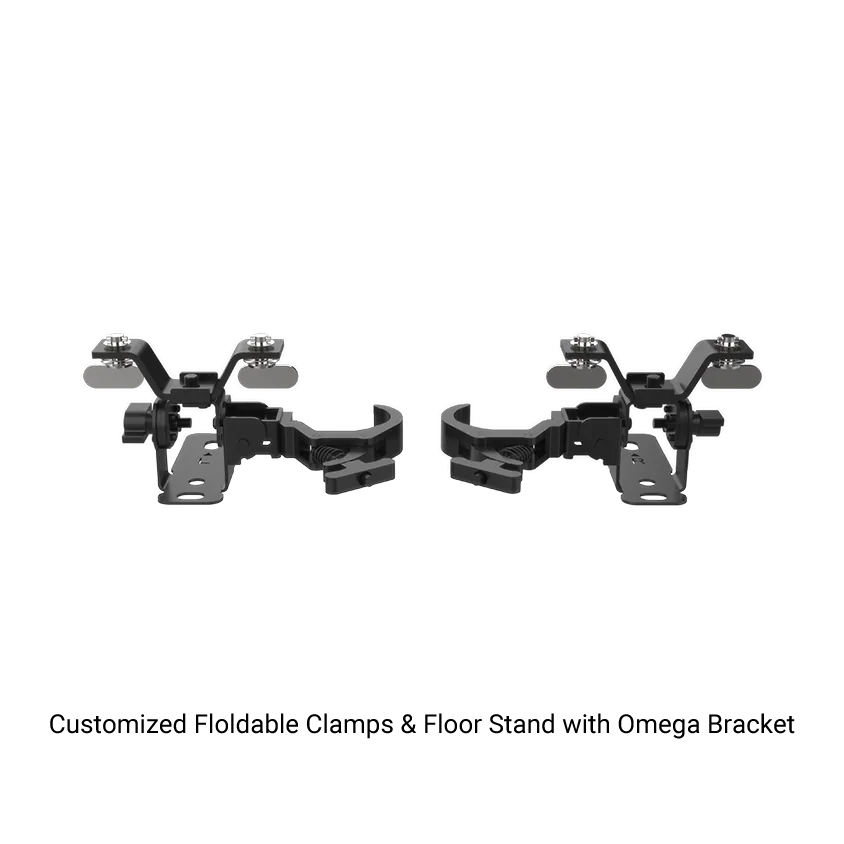

Version 2: STROBE 3 IPS (Sliding Adjustable Clamp)
Note: Different vesions cannot be connected together

03Light Source5

Light Source: 672 x 0.5W RGB LEDs (can be divided into 32 controllable sections); 112 x 3W CW LEDs (can be divided into 16 controllable sections)
Color Temperature Output of Fixture: 7,000K-7,500K
Light Source Rated Life: 30,000 hours*; *Source manufacturer specification

04Photometric Data1

Total Lumen Output of Fixture: 21,900 lumens

05Optical System8

Beam Angle
RGB: 101°
CW: 108°
Field Angle
RGB: 149°
CW: 152°
DMX Controllable Smart Glass technology
Patent No.: CN216010577U; US11698183B1; DE202023101966U1; FR3134870B3

06Control6

4 touch button control panel
Display: OLED display
Protocols: DMX512,RDM,Art-Net,sACN
DMX Protocol Modes: 14
Control Channels: 7/15/17/21/33/39/65/68/70/70N/112/117/119/125
Firmware Upgrade: Upgrade via DMX link

Show the full specificationHide the rest of the specification9 more groups · 53 values

07Other Effects3

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Outstanding color effects

08Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 420W
Power In/Out: Waterproof power connector in/out (On-request customized direct cord version for Power/Signal In&Out)
Data In/Out: 3-pin or 5-pin waterproof XLR,RJ45 connector

09Physical Information8

Fixture Dimension
Omega Bracket Mounting Version
Width: 1,000 mm (39.4")
Depth: 90 mm (3.5")
Height: 124 mm (4.9")
Weight: 7.3 kg (16.1 lbs)

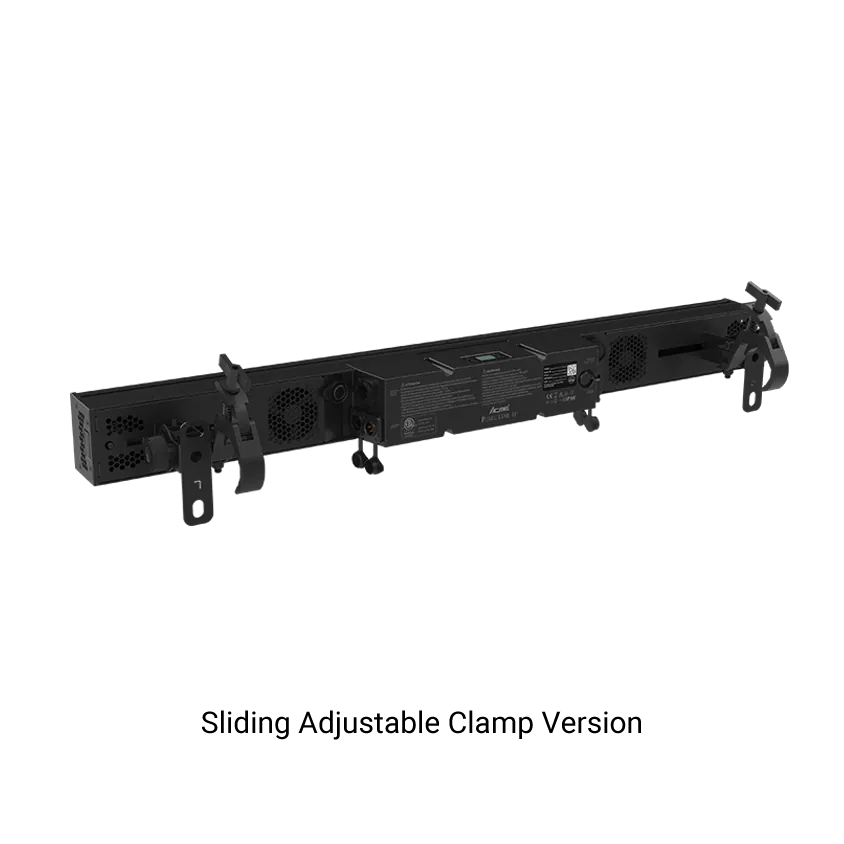

Sliding Adjustable Clamp Version
Width: 1,000 mm (39.4")
Depth: 192 mm (7.6")
Height: 237 mm (9.3")
Weight: 8.3 kg (18.3 lbs)

10Packing Information16

Flight Case Dimensions 1
Width: 1,196 mm (47.1")
Depth: 580 mm (22.8")
Height: 750 mm (29.5")
Weight
Standard: G.W.: 126.5 kg (278.9 lbs) (eight-pack loader case)
Flight Case Dimensions 2
Width: 1,209 mm (47.6")
Depth: 565 mm (22.2")
Height: 655 mm (25.8")
Weight
Standard: G.W.: 115 kg (253.5 lbs) (eight-pack loader case)
Flight Case Dimensions 3
Width: 1,220 mm (48.0")
Depth: 610 mm (24.0")
Height: 830 mm (32.7")
Weight
North American Standard: G.W.: 138.2 kg (304.7 lbs) (eight-pack loader case)
Carton Dimensions
Width: 1,085 mm (42.7")
Depth: 195 mm (7.7")
Height: 320 mm (12.6")
Weight
G.W.: 10.5 kg (23.0 lbs) (one-pack loader carton)

11Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 65°C
Protection Rating: IP66

12Approvals3

CE compliant

cETLus compliant

IP Class Test Verification

13Installation4

Horizontal or vertical mounting

Universal working position

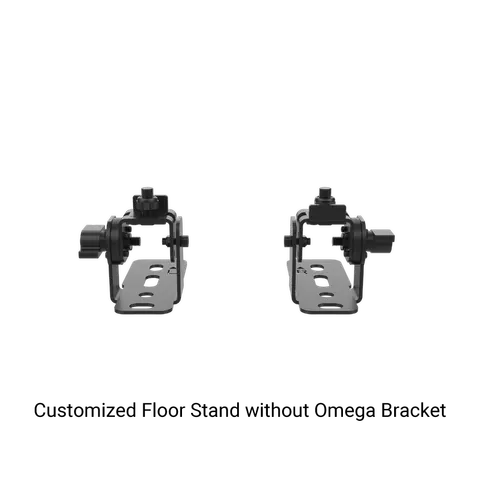

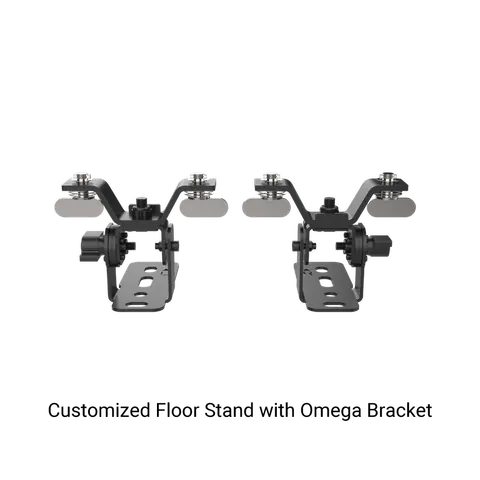

2 omega brackets

Safety cable attachment point

14Included Items3

Digital user manual

Power cable

2 omega brackets (3002003002)

15Optional Accessories (With Order Code)8

Flight Case 1
Standard: Omega Bracket Mounting Version: Eight-pack loader case (63582731)
Flight Case 2
Standard: Sliding Adjustable Clamp Version: Eight-pack loader case (63582662)
Flight Case 3
North American Standard: Omega Bracket Mounting Version: Eight-pack loader case (63582905)
Safety Cable: SW-02 (2060000200-B)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473); Customized Foldable Clamps & Floor Stand with Omega Bracket (63583890); Customized Floor Stand with Omega Bracket (63583863); Customized Floor Stand without Omega Bracket (63583845)

03DescriptionManufacturer's description

What it is.

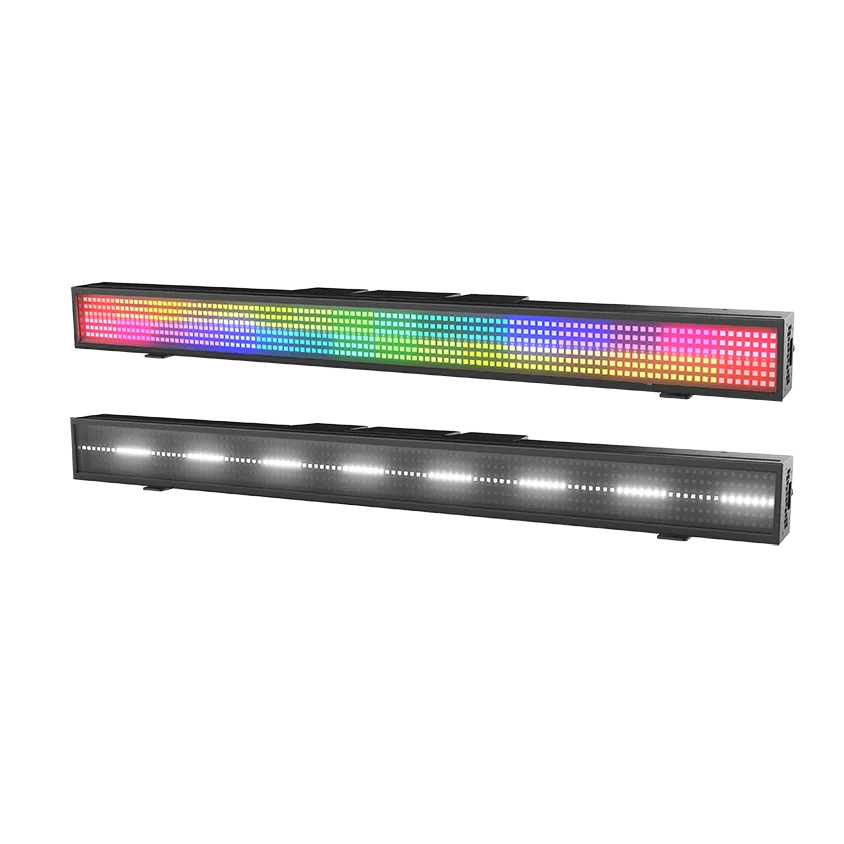

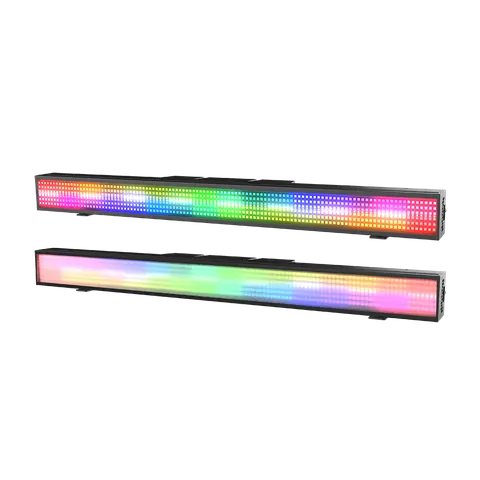

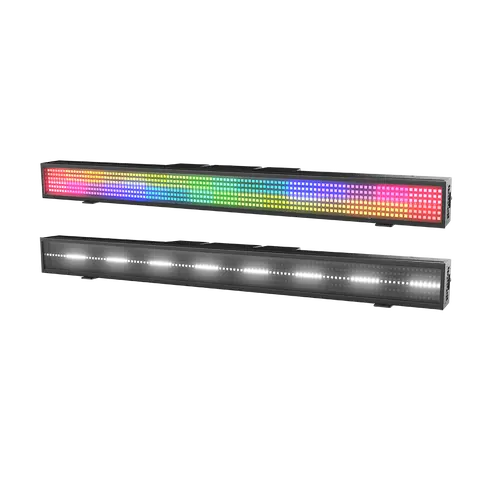

The PIXEL LINE IP is powered with 672 RGB LEDs and 112 cool white LEDs with the RGBW LEDs divided into 32 sections and the white LEDs into 16 sections. The unit is equipped with ACME’s patented Smart Glass Technology for unprecedented, frosted looks. The white LEDs deliver bright strobe effects and are integrated in such a way to complement the color LED sections.

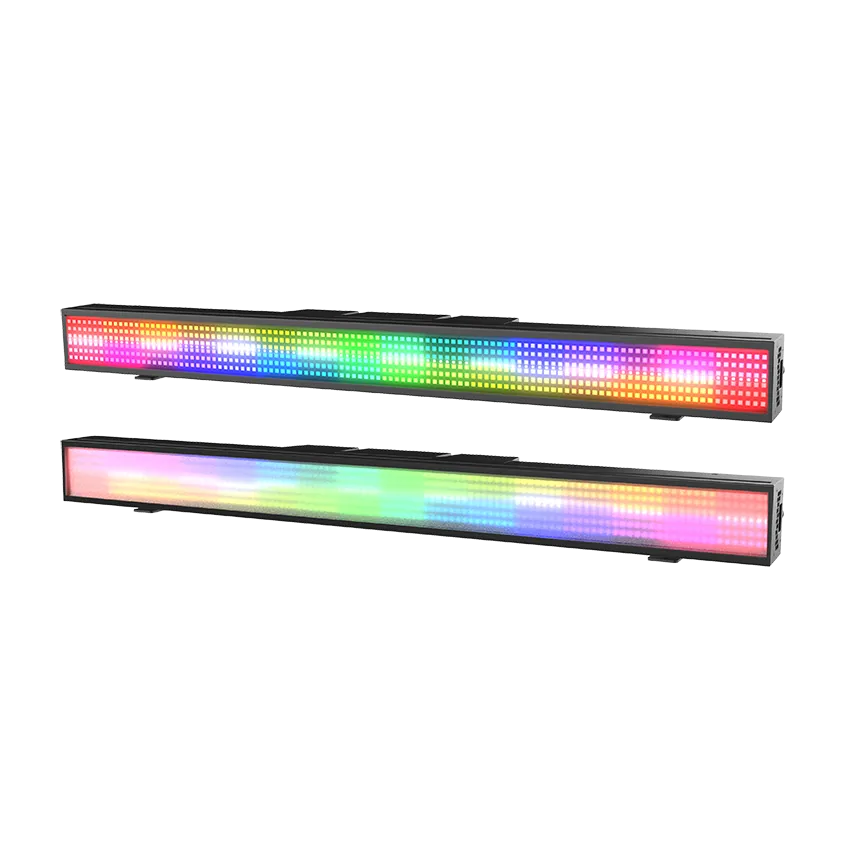

The fixture offers ten DMX control modes from simple operation to intense, eye-catching individual pixel control effects. The PIXEL LINE IP also offers preprogrammed effects macros and colors for time-saving programming. Incorporating ACME’s Smart Glass Technology allows the unit to switch from its normal strip light mode to soft light mode without adding an external frost filter, making the unit more flexible during your production.

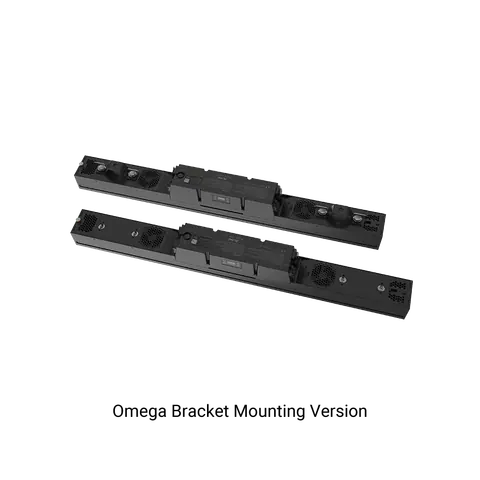

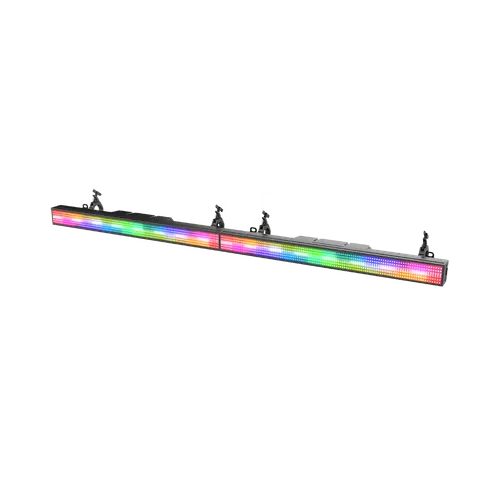

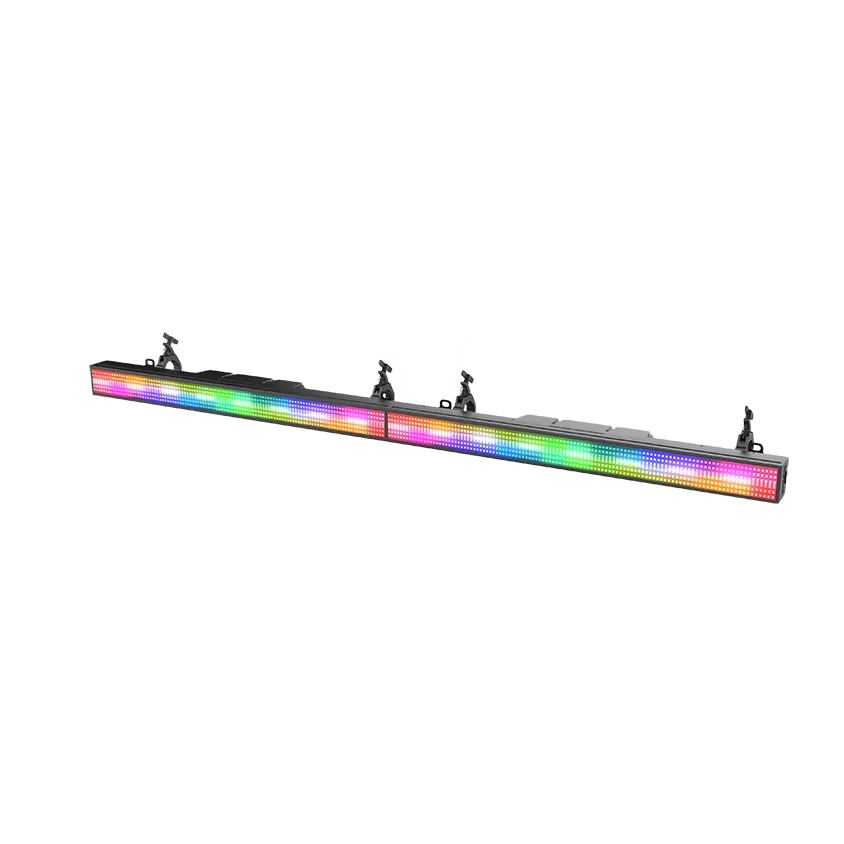

The PIXEL LINE IP can be mounted in any orientation from the floor to hanging in truss and features a tool-less connection system for quick side-by-side joining. The PIXEL LINE IP is a powerful, all-weather fixture that redefines what a strip light can be.
