Sheet 05.667

ACME · Wash

OXYGEN

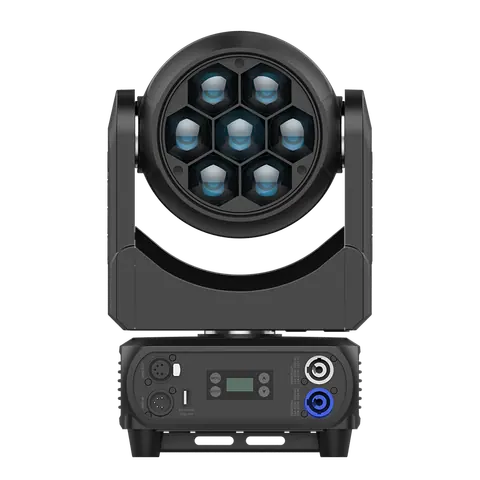

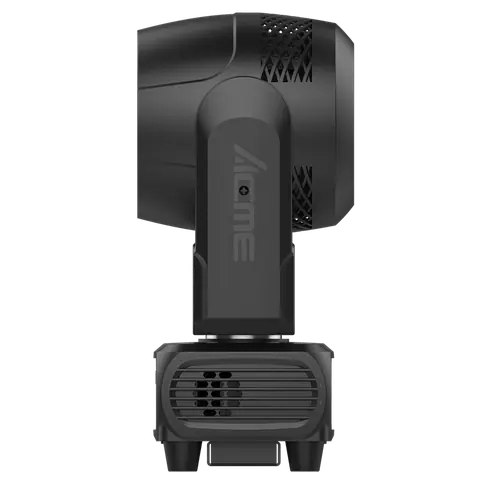

ModelCM 400Z

ACME OXYGEN LED moving head creates uniform colors in wash or beam mode and amazing effects.7pcs OSRAM 40-Watt LED RGBW engine produces up to 4600 lumens and its small size makes this fixture perfect for a wide variety of applications likes permanent installations,theaters to clubs and much more.

Light source: OSRAM 7x40W RGBW LED
Power consumption: 335W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP20
Beam angle / zoom: 4.5°-36.5°
DMX channels: 17/37
Protocols: DMX512,RDM
Net weight: 6.3 kg (13.9 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 16 groups · 68 values

What this product is, in numbers.

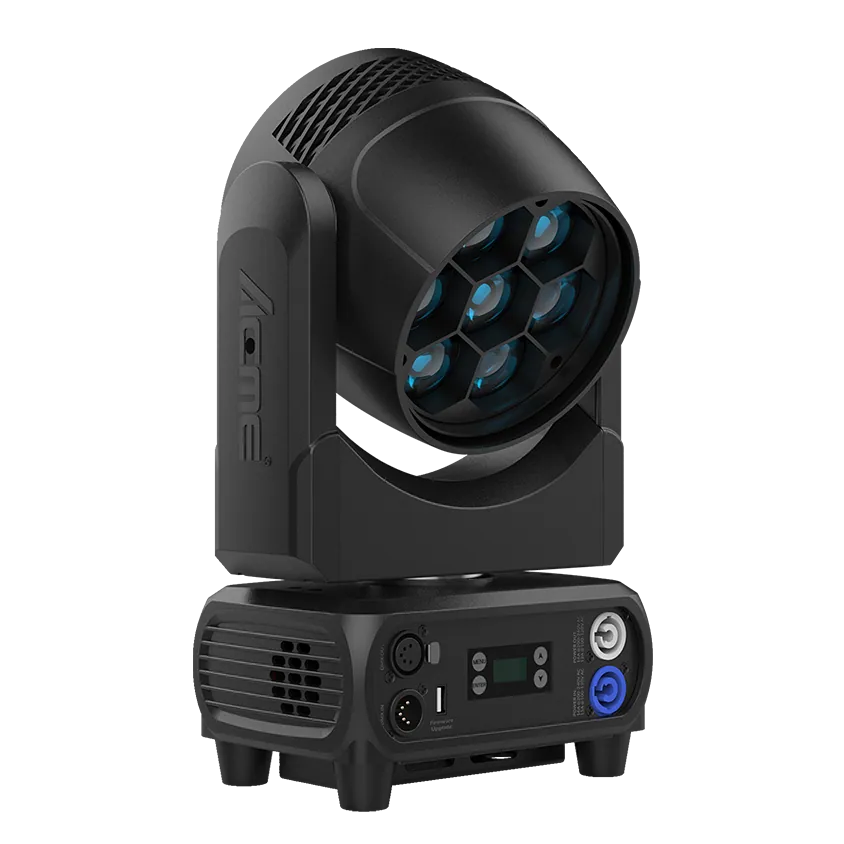

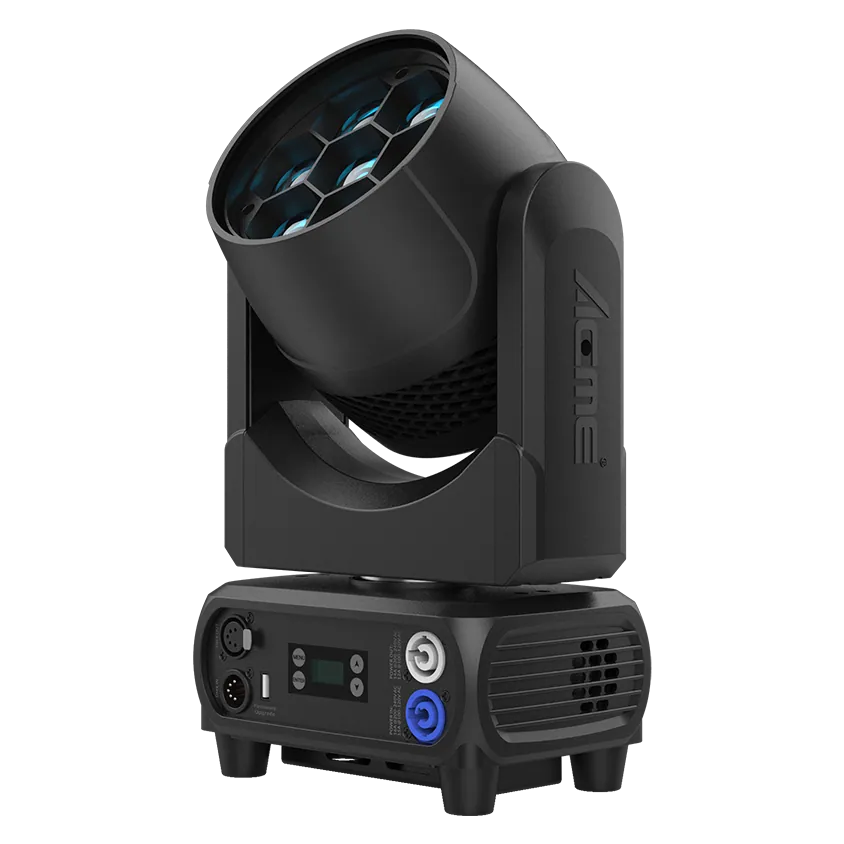

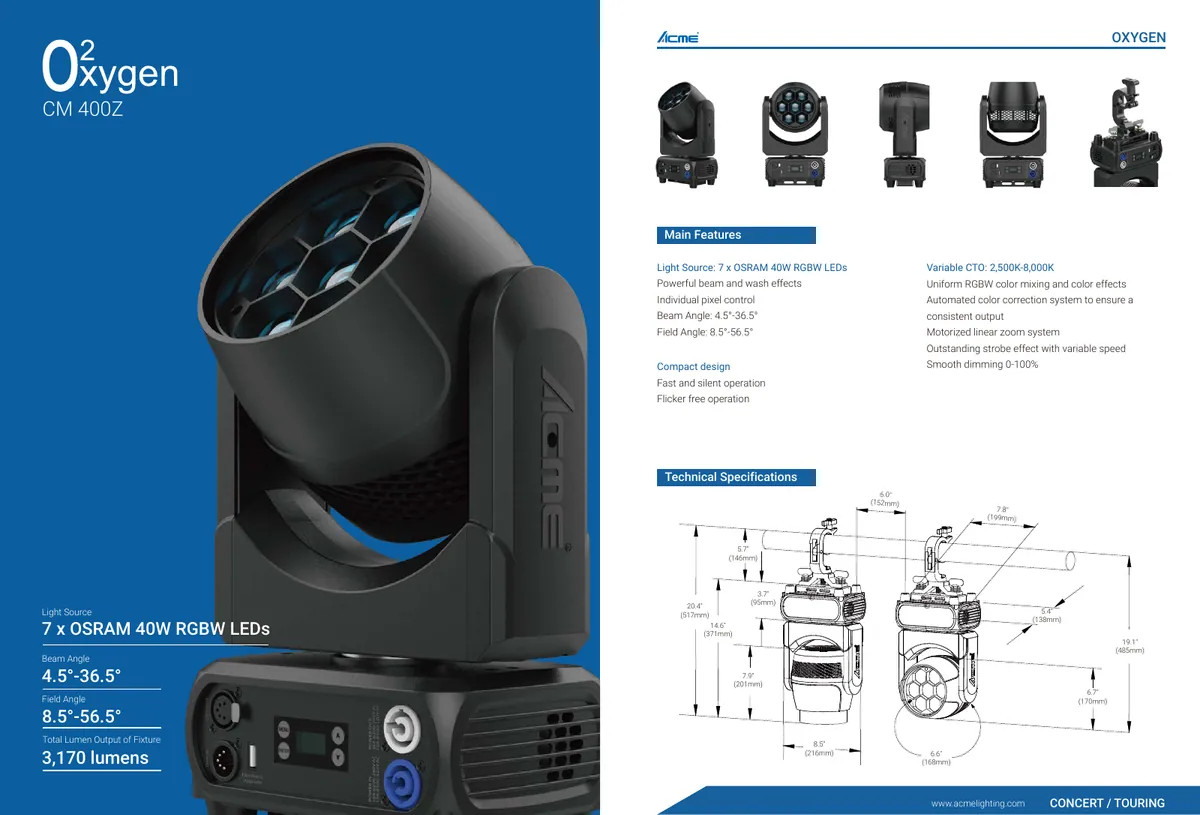

PDFDatasheetEN · 2 pages · 497 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: OXYGEN
Model Code: CM 400Z

02Light Source3

Light Source: OSRAM 7x40W RGBW LED
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data1

Total Lumen Output of Fixture: 4,600 lumens

04Optical System2

Beam Angle: 4.5°-36.5°
Field Angle: 8.5°-56.5°

05Control8

4 touch button control panel
Display: OLED display
Operational Modes: DMX Control,Show Mode
Protocols: DMX512,RDM
DMX Protocol Modes: 2
Control Channels: 17/37
Firmware Upgrade: Upgrade via DMX link or USB stick; Power supply with electronic auto-ranging

06Pan & Tilt4

Pan Movement: 540°
Tilt Movement: 230°; Automatic Pan/Tilt position correction
Resolution: 16 bit

Show the full specificationHide the rest of the specification10 more groups · 48 values

07Colors1

Linear CTO Color Correction: 2,500K-8,000K

08Other Effects6

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Excellent RGBW color mixing

Powerful beam and wash effects

Individual pixel control

Motorized linear zoom system

09Electrical and Connectors5

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 335W

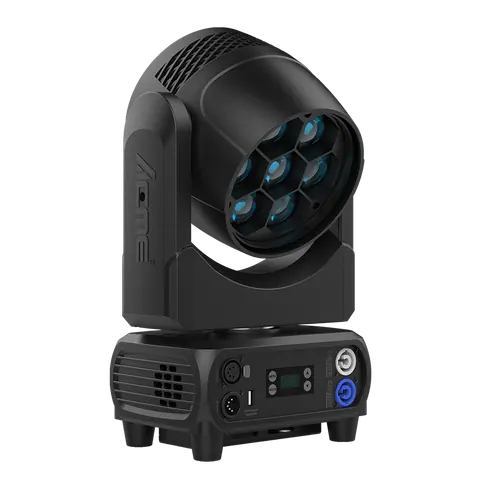

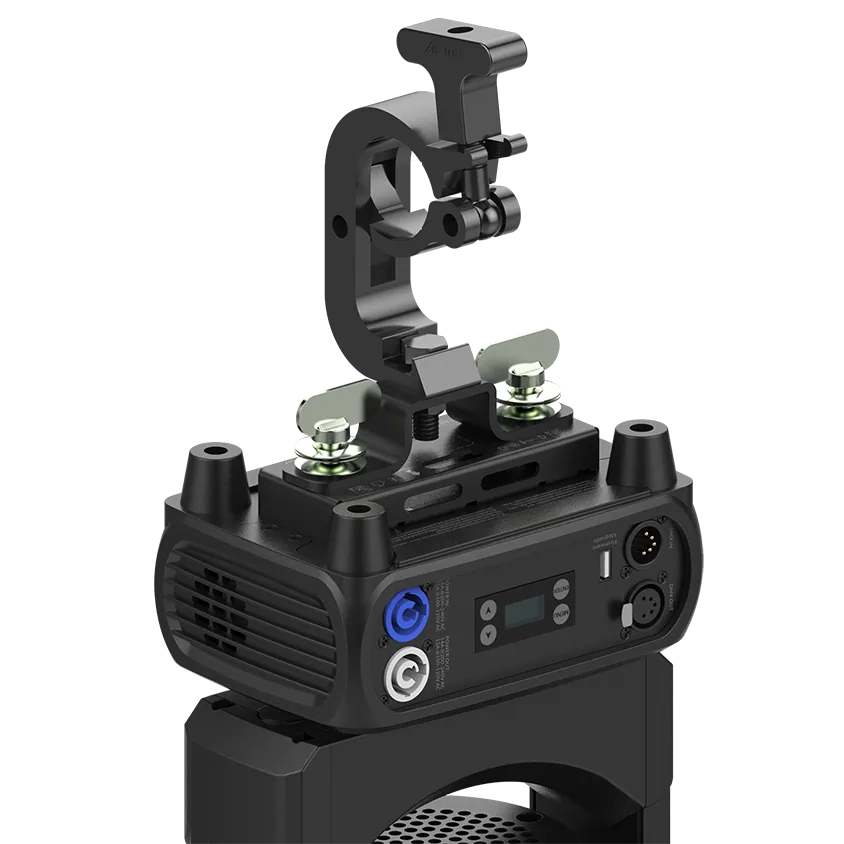

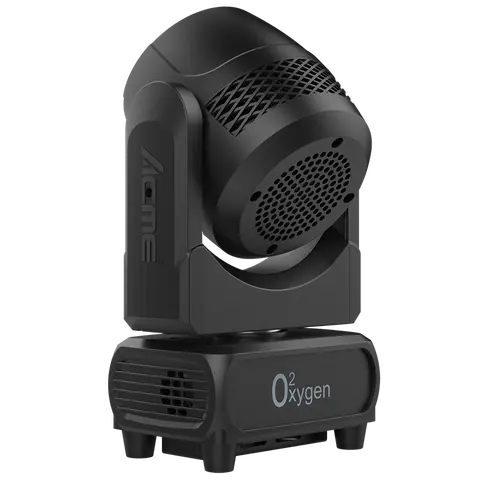

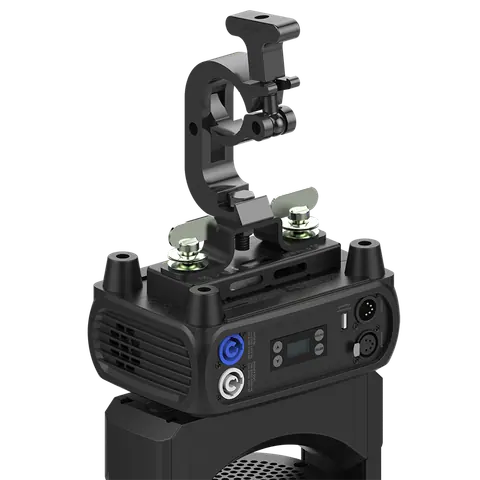

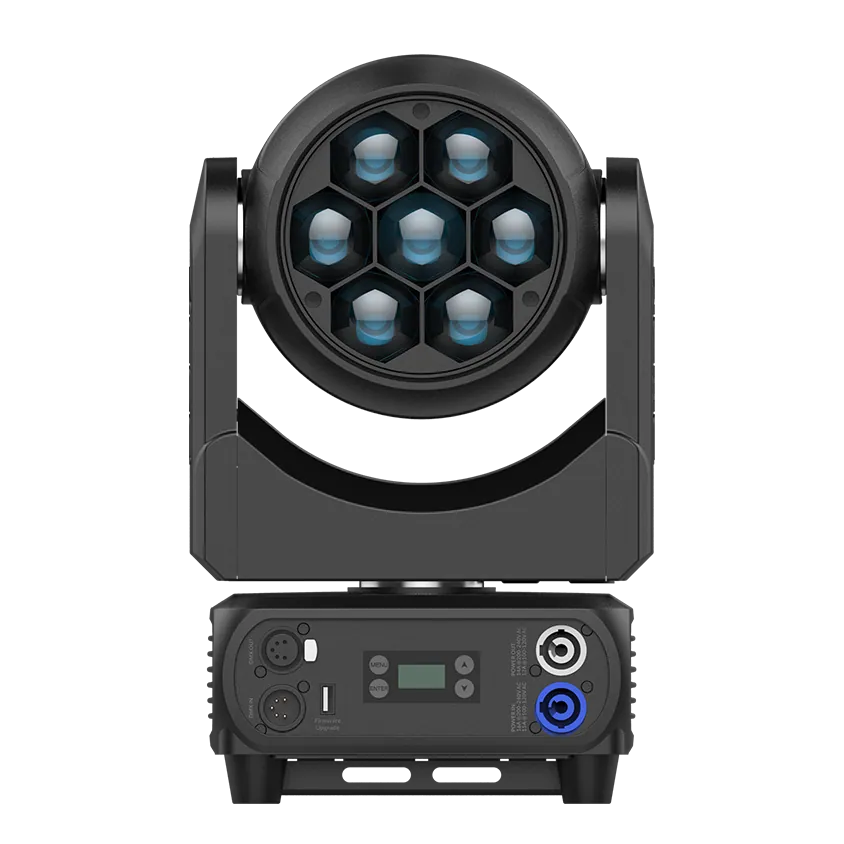

Power In/Out: Power connector in/out
Data In/Out: 3-pin or 5-pin XLR; Power supply with electronic auto-ranging

10Physical Information4

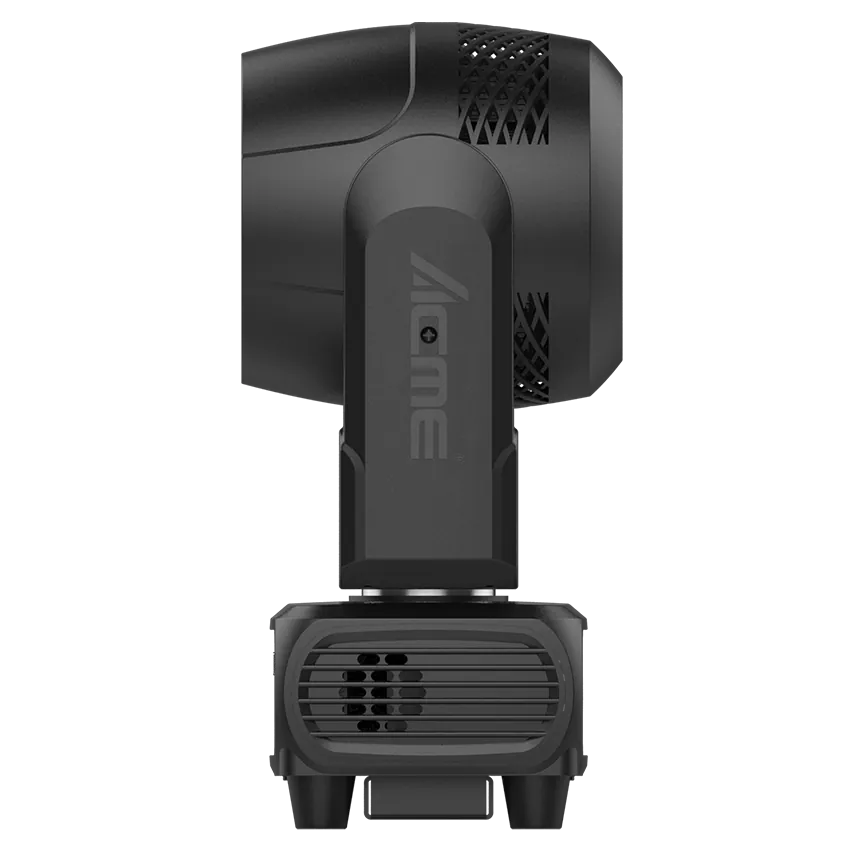

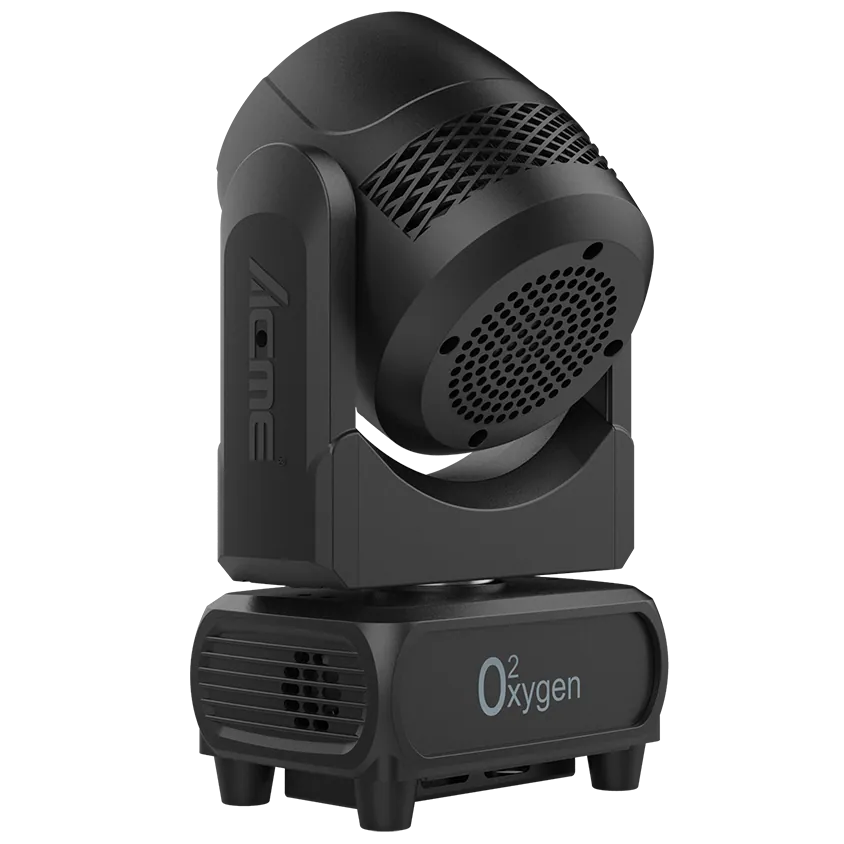

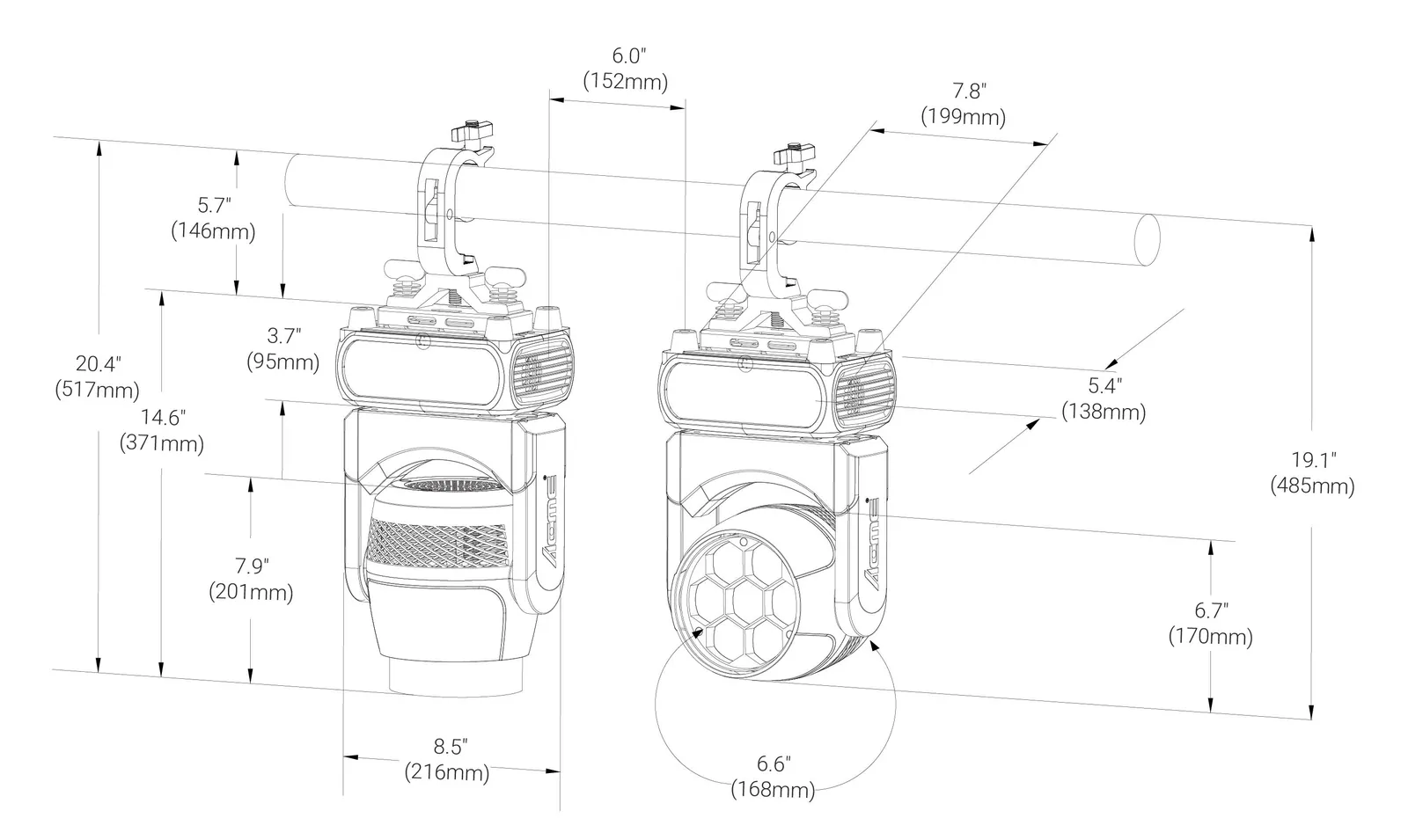

Fixture Dimensions
Width: 170 mm (6.7")
Depth: 216 mm (8.5")
Height: 345 mm (13.6")
Weight: 6.3 kg (13.9 lbs)

11Packing Information12

Flight Case Dimensions 1
Width: 1,105 mm (43.5")
Depth: 530 mm (20.9")
Height: 600 mm (23.6")
Weight
Standard: G.W.: 102 kg (224.9 lbs) (eight-pack loader case)
Flight Case Dimensions 2
Width: 1,220 mm (48.0")
Depth: 610 mm (24.0")
Height: 610 mm (24.0")
Weight
North American Standard: G.W.: 116 kg (255.7 lbs) (eight-pack loader case)
Carton Dimensions
Width: 315 mm (12.4")
Depth: 255 mm (10.0")
Height: 425 mm (16.7")
Weight
G.W.: 7.8 kg (17.2 lbs) (one-pack loader carton)

12Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: 0°C
Maximum Surface Temperature: 65°C
Protection Rating: IP20

13Approvals3

CE compliant

UKCA compliant

cETLus compliant

14Installation4

Horizontal or vertical mounting

Universal working position

1 clamp for 50 mm truss

Safety cable attachment point

15Included Items3

Digital user manual

Power cable

1 omega bracket (3002000390)

16Optional Accessories (With Order Code)6

Flight Case 1
Standard: Eight-pack loader case (63583585)
Flight Case 2
North American Standard: Eight-pack loader case (63583202)
Clamp: C-250B (2060001632-B)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin or 5-pin signal cable
Raincover: 3033001789

02DescriptionManufacturer's description

What it is.

OXYGEN has a motorized linear zoom range from a tight 4.5° to a wide 36.5° and produces vivid colors throughout the zoom range.OXYGEN offers two DMX modes of 17 and 37 channels for more control and creativity.

Each of the seven LEDs can be controlled individually and the unit offers a wide range of preprogrammed colors and effect/LED patterns macros to realize quick and easy control,which saves programming time on beams or soft washes.

ACME OXYGEN moving head fixture is small in size but big in performance and is suitable for large productions, small venues, and more.
