Sheet 05.668

ACME · Wash

PASODOBLE

ModelPAR 12

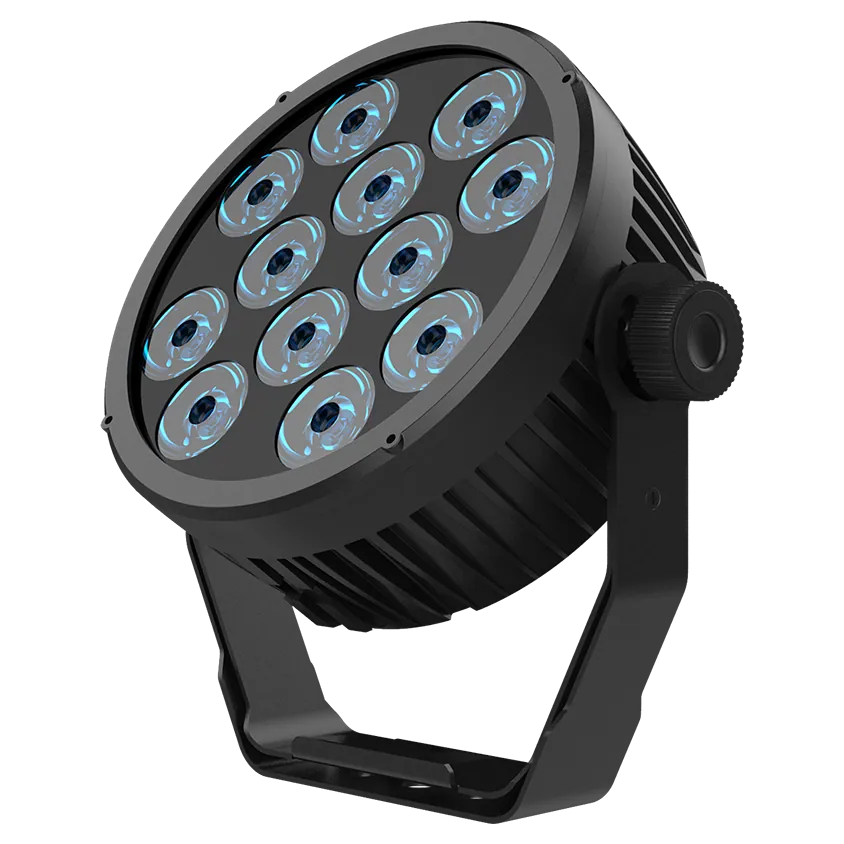

The ACME PASODOBLE features 12x8W RGBW LEDs that combine powerful output, shiny beam and colorful wash into its solid body.

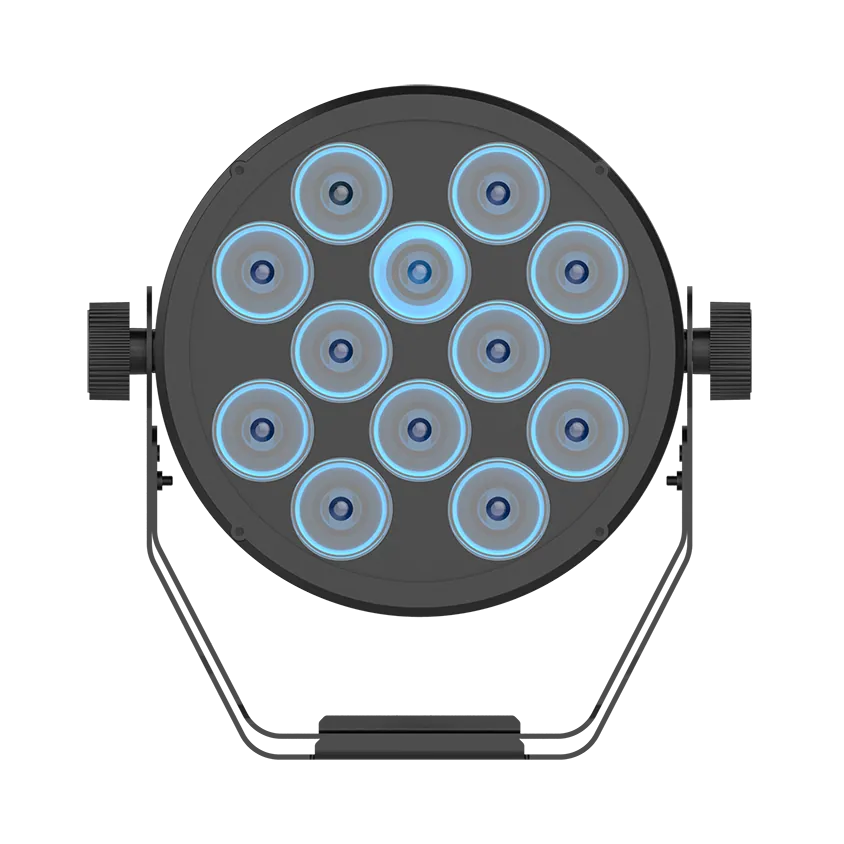

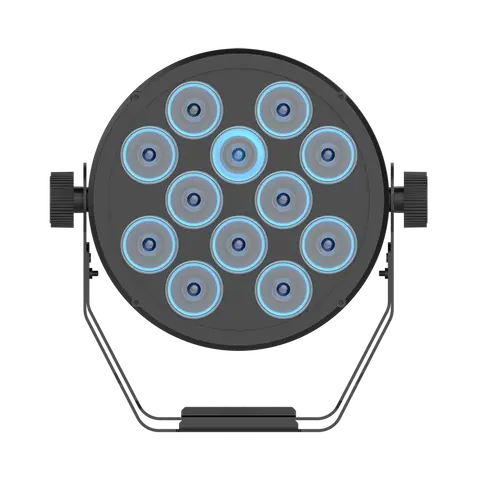

Light source: 12 x 8W RGBW LED module
Power consumption: 85W
Power supply: 180-240Vac; 50/60Hz
Ingress protection: IP20
Beam angle / zoom: 16°
DMX channels: 4/5/8/10
Protocols: DMX512,RDM
Net weight: 3 kg (6.6 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 13 groups · 41 values

What this product is, in numbers.

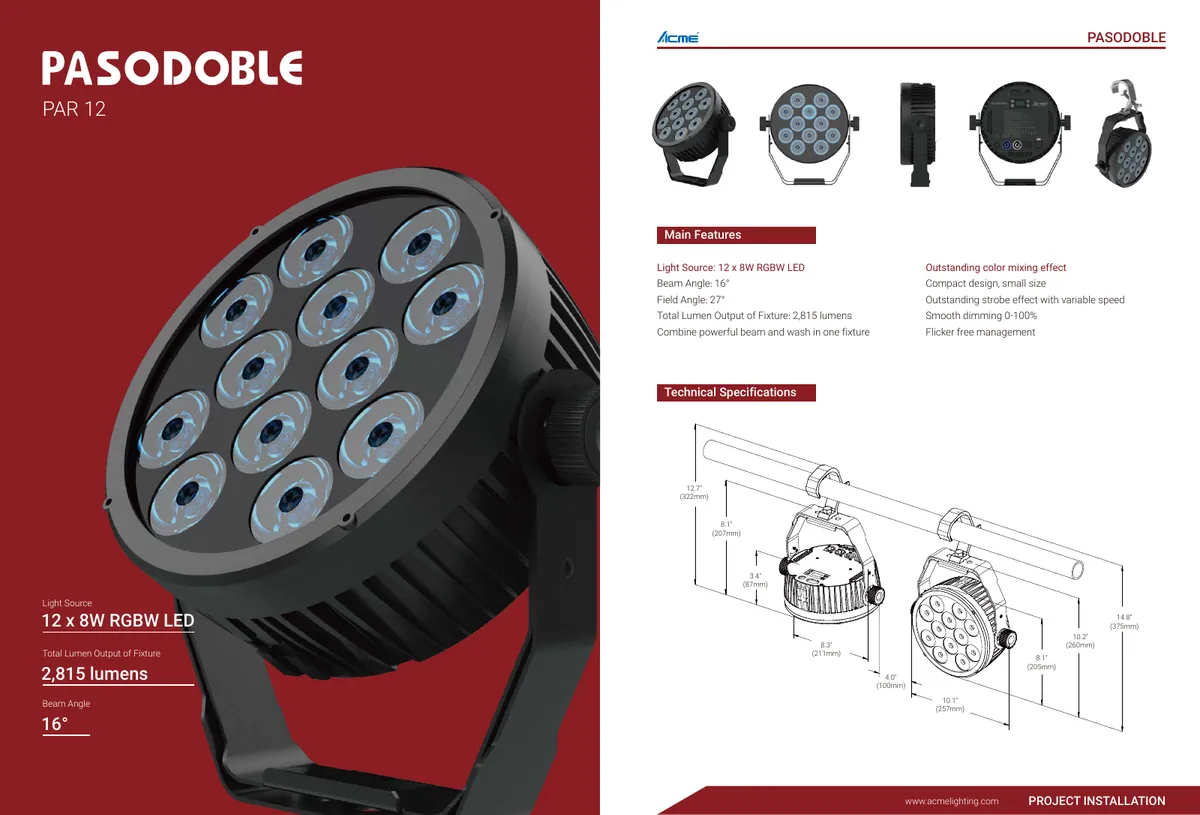

PDFDatasheetEN · 2 pages · 563 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: PASODOBLE
Model Code: PAR 12

02Light Source3

Light Source: 12 x 8W RGBW LED module
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data1

Total Lumen Output of Fixture: 2,130 lumens

04Optical System2

Beam Angle: 16°
Field Angle: 27°

05Control6

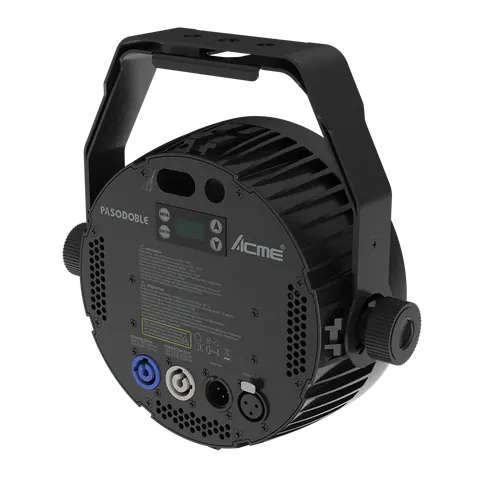

4 touch button control panel
Display: OLED display
Protocols: DMX512,RDM
DMX Protocol Modes: 4
Control Channels: 4/5/8/10
Firmware Upgrade: Upgrade via DMX link

06Other Effects4

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Excellent RGBW color mixing

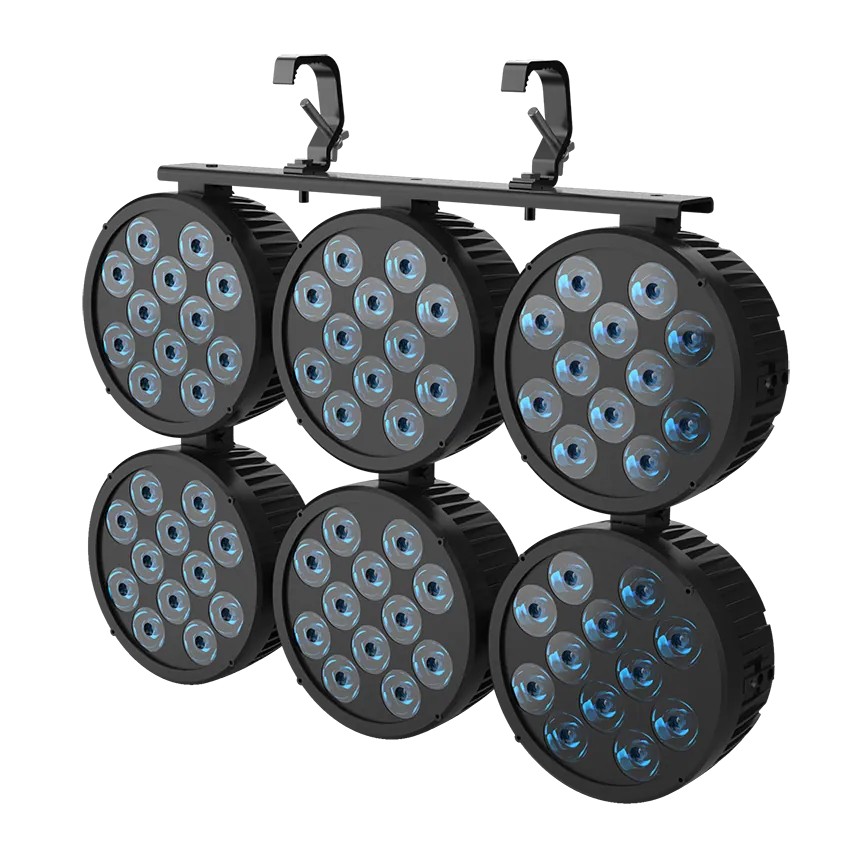

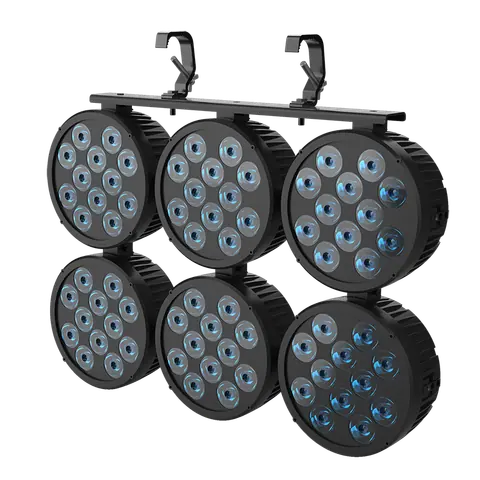

Multiple units can be split-jointed horizontally with buckle design

Show the full specificationHide the rest of the specification7 more groups · 23 values

07Electrical and Connectors4

Input Voltage Range: 180-240Vac; 50/60Hz
Power Consumption: 85W

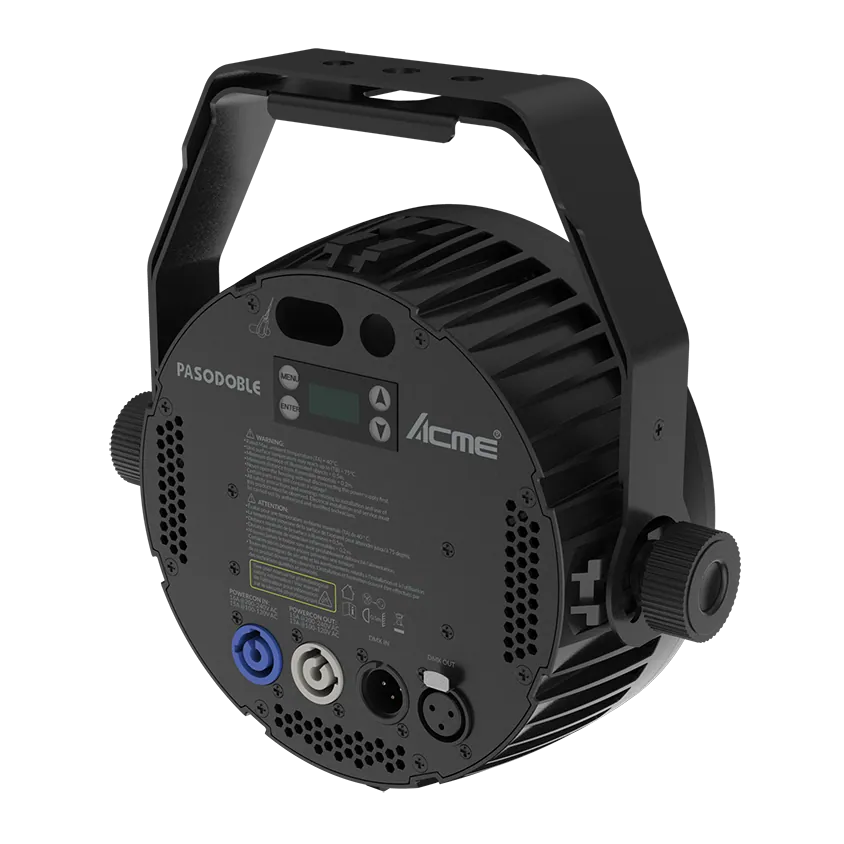

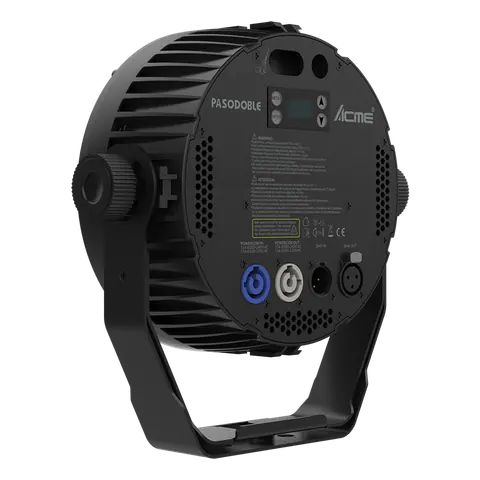

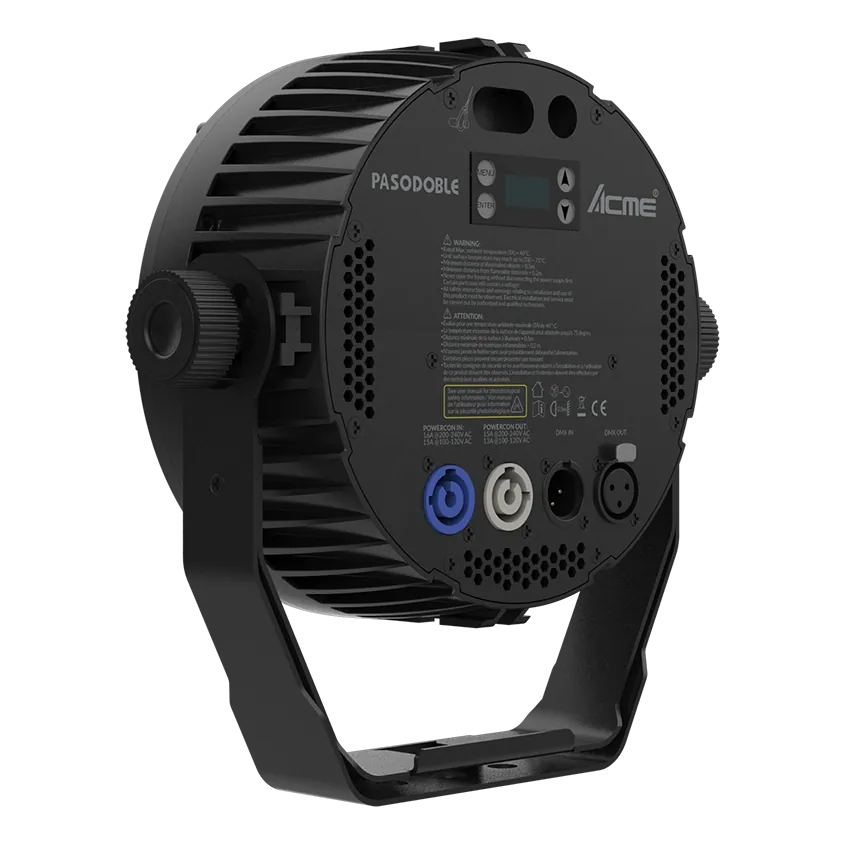

Power In/Out: Power connector in/out
Data In/Out: 3-pin or 5-pin XLR

08Physical Information4

Fixture Dimensions
Width: 257 mm (10.11")
Depth: 88 mm (3.5")
Height: 239 mm (9.4")
Weight: 3 kg (6.6 lbs)

09Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: 0°C
Maximum Surface Temperature: 65°C
Protection Rating: IP20

10Approvals1

CE compliant

11Installation4

Horizontal or vertical mounting

Universal working position

The feet support with locking points

Safety cable attachment point

12Included Items2

Digital user manual

Power cable

13Optional Accessories (With Order Code)4

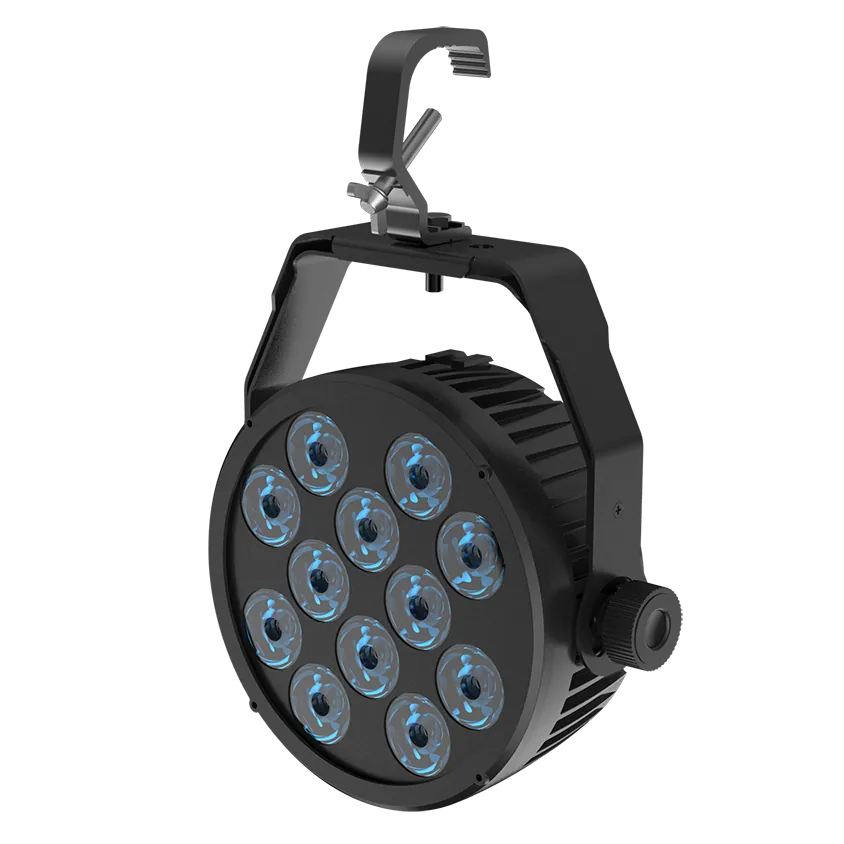

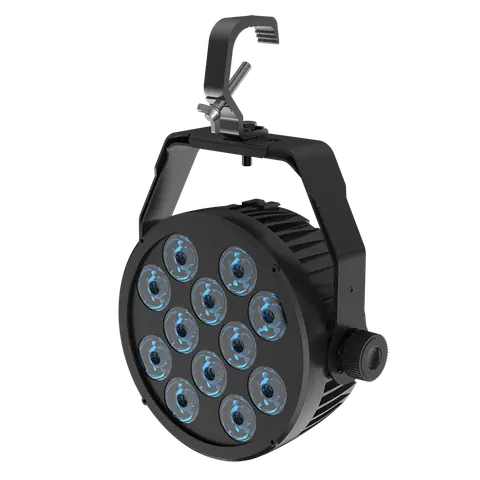

Clamp: C-100A (2060001635)
Safety Cable: SW-02 (2060000200-B)
Signal Cable: 3-pin or 5-pin signal cable

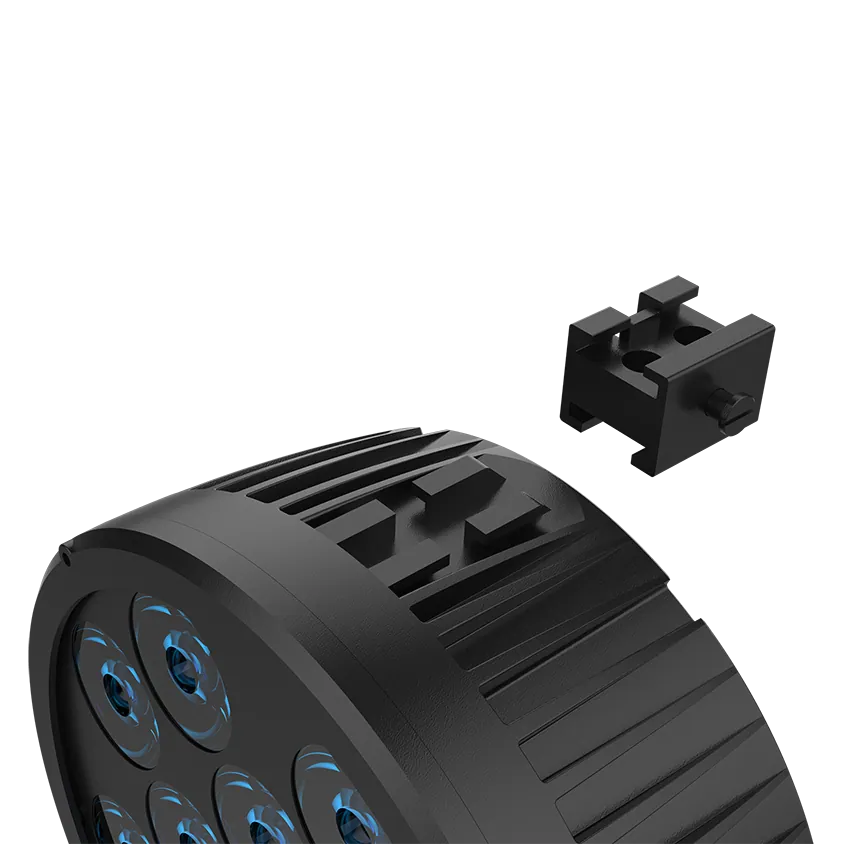

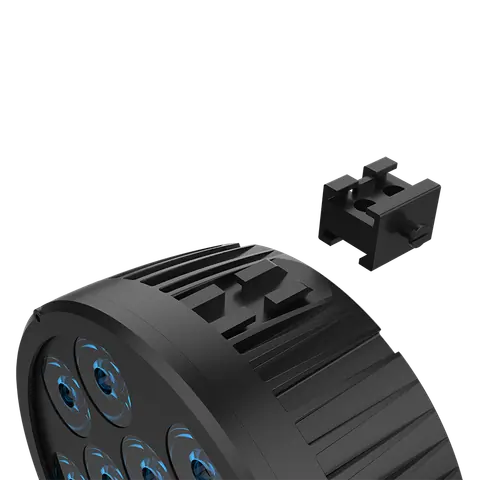

Junction Buckle: 63582412

02DescriptionManufacturer's description

What it is.

The ACME PASODOBLE features 12x8W RGBW LEDs that combine powerful output, shiny beam and colorful wash into its solid body. In order to meet the professionals requirement, we designed PASODOBLE as a versatile soldier with 0~100% smooth dimming with 4 variable dimming curves, an outstanding strobe effect with variable speed, variable preset macro effects and smooth color mixing & changing, to create psychedelic effect Ideal for bars, ball rooms, night clubs, and other entertainment applications.

03Documents6 files · 8.8 MB
