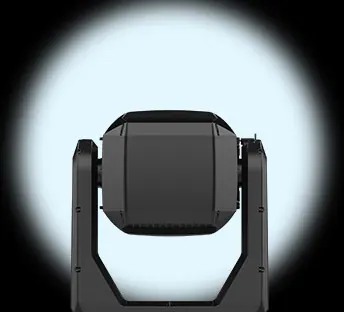

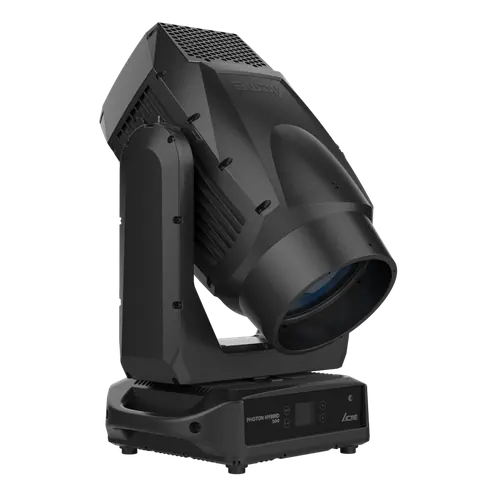

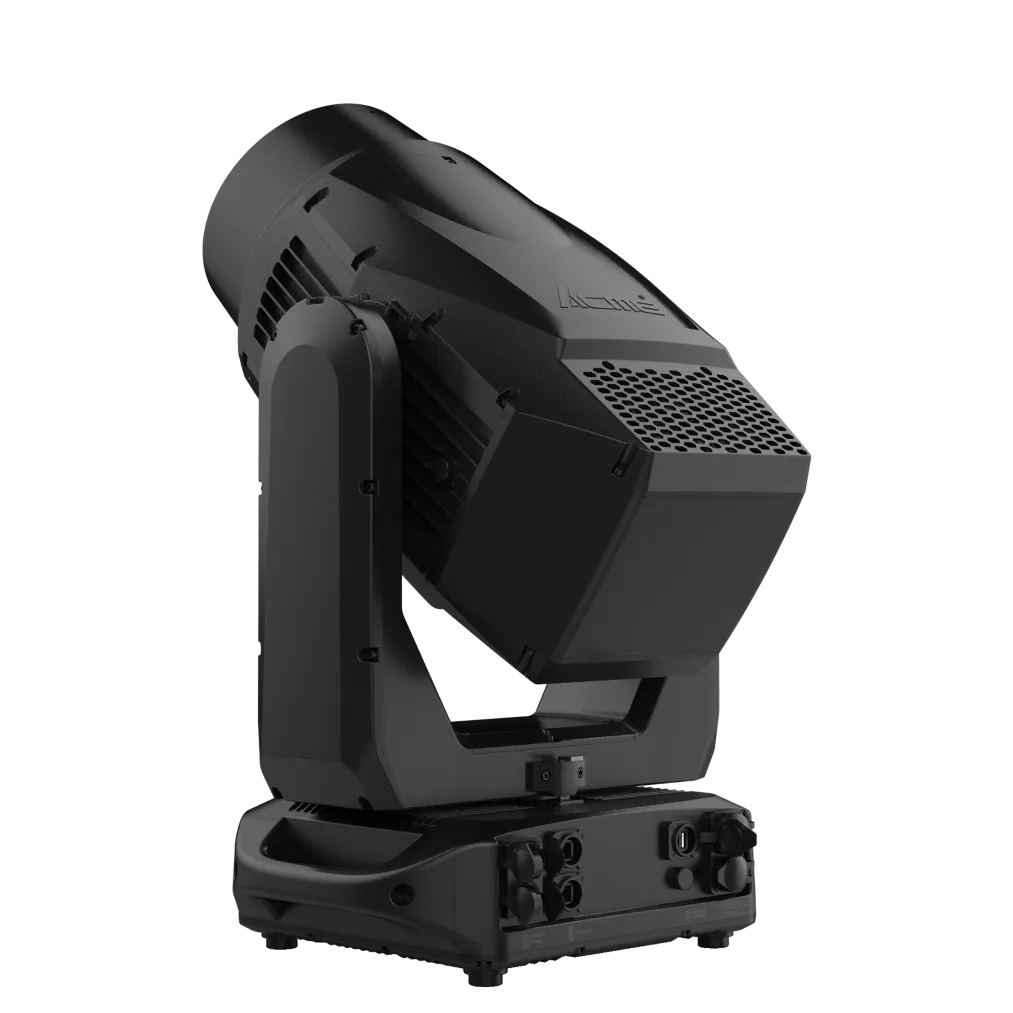

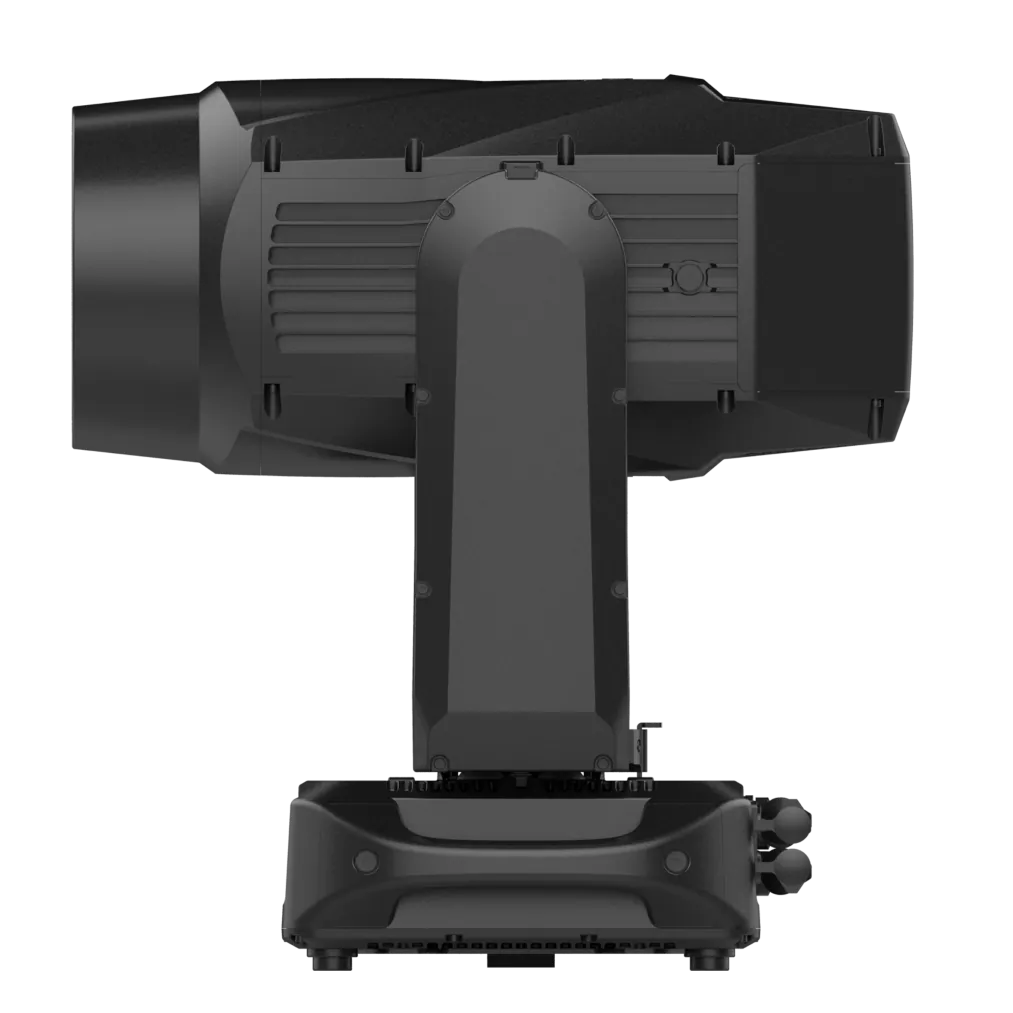

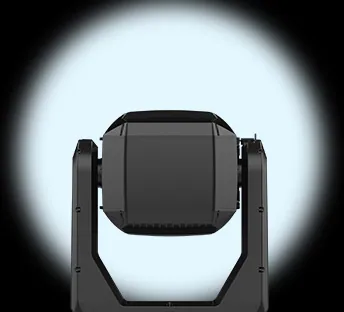

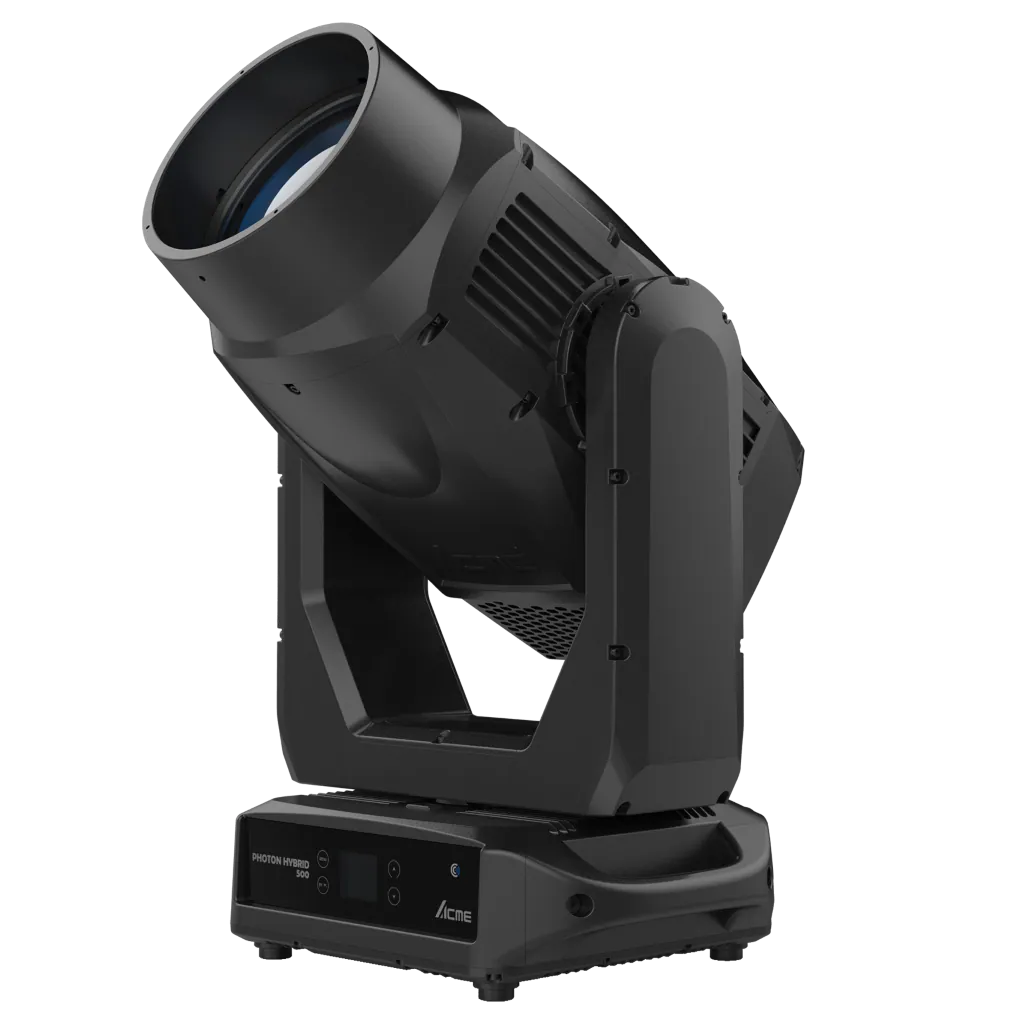

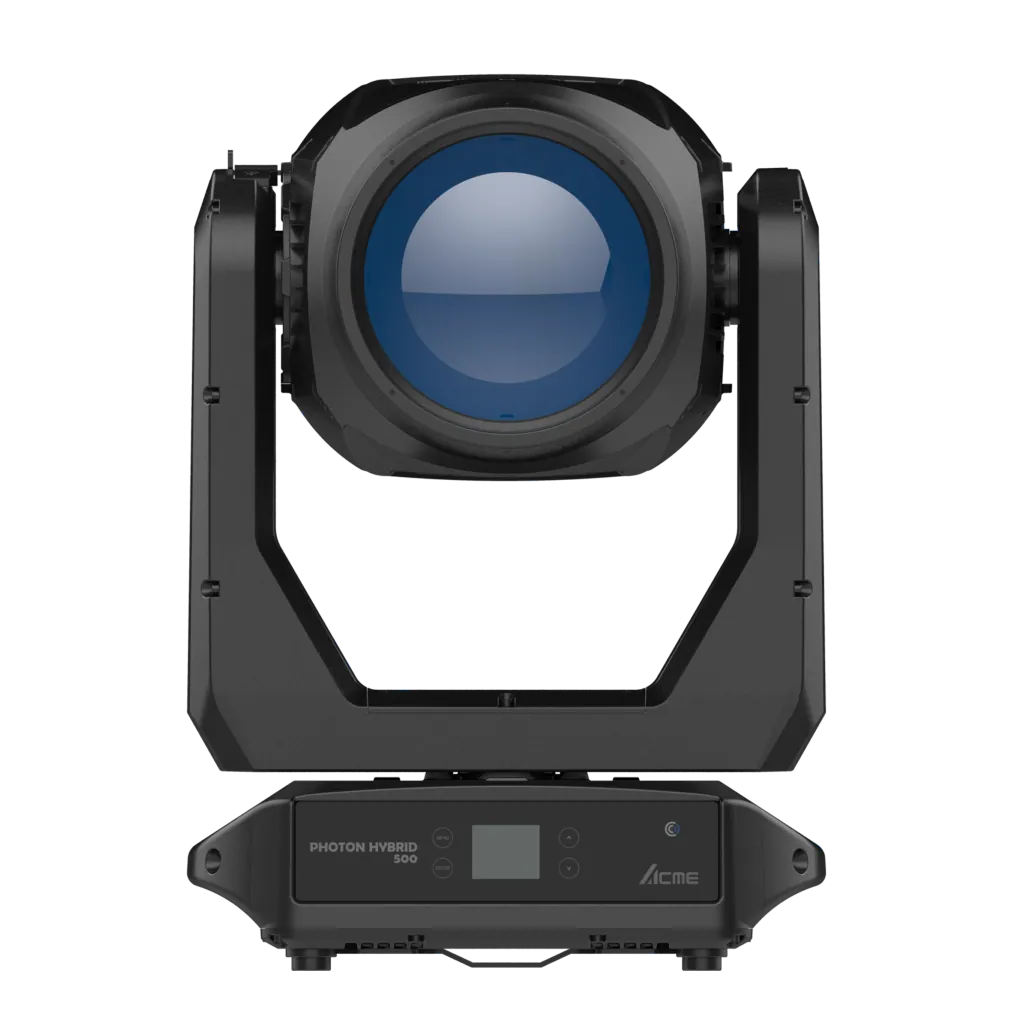

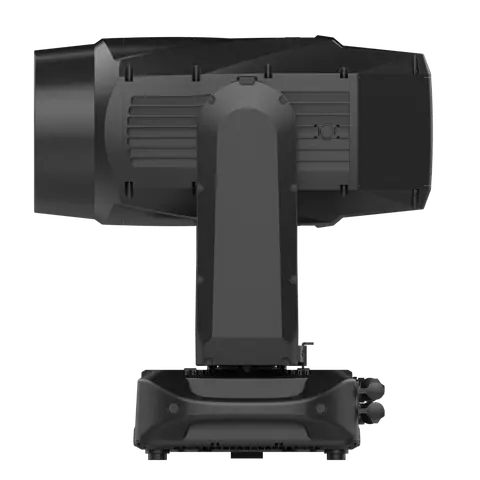

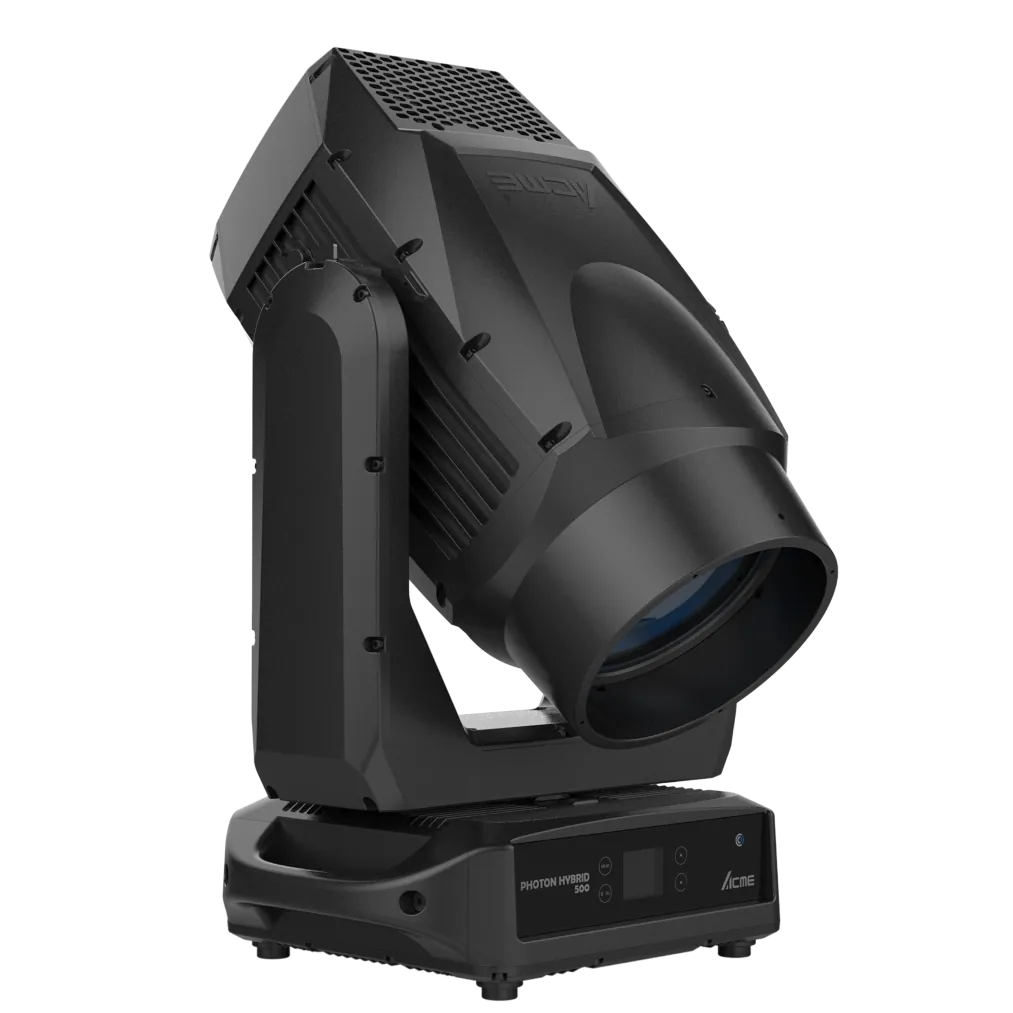

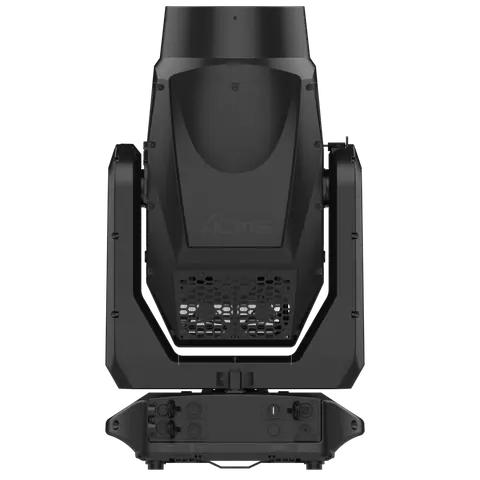

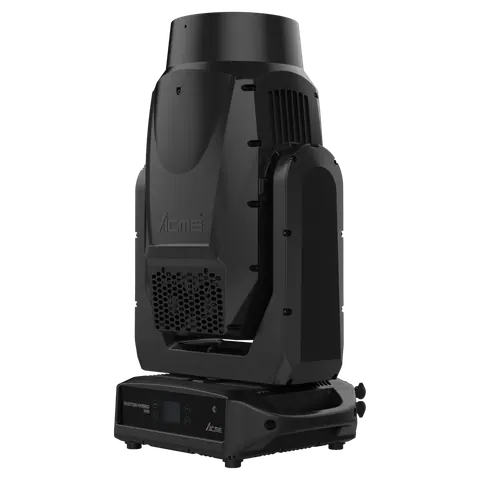

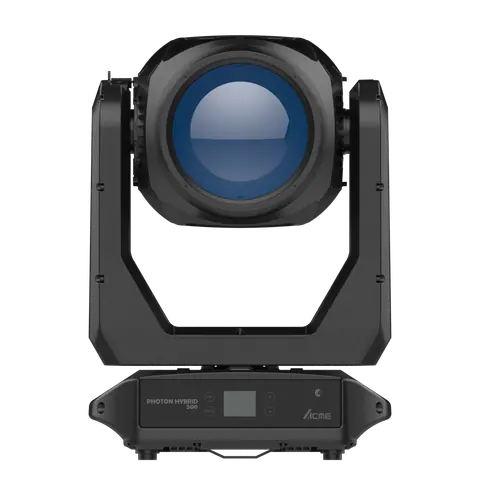

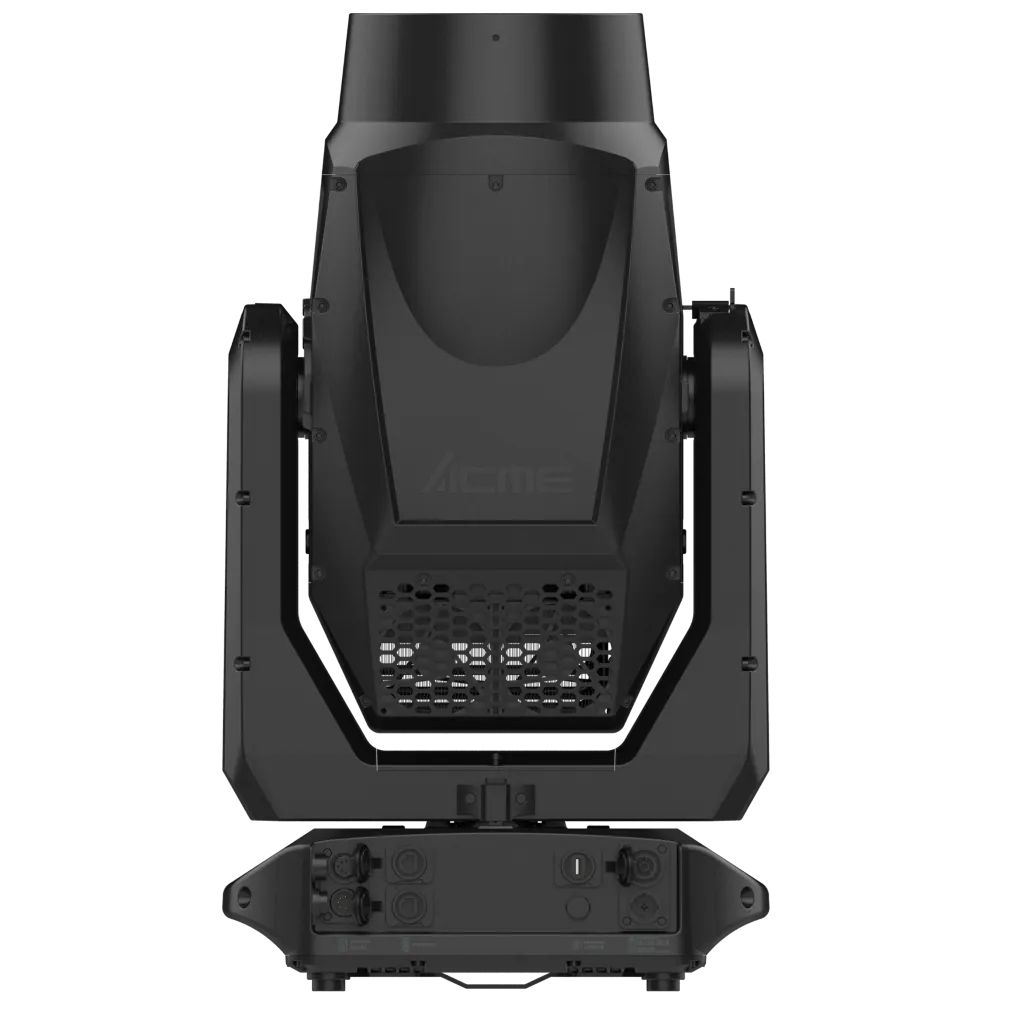

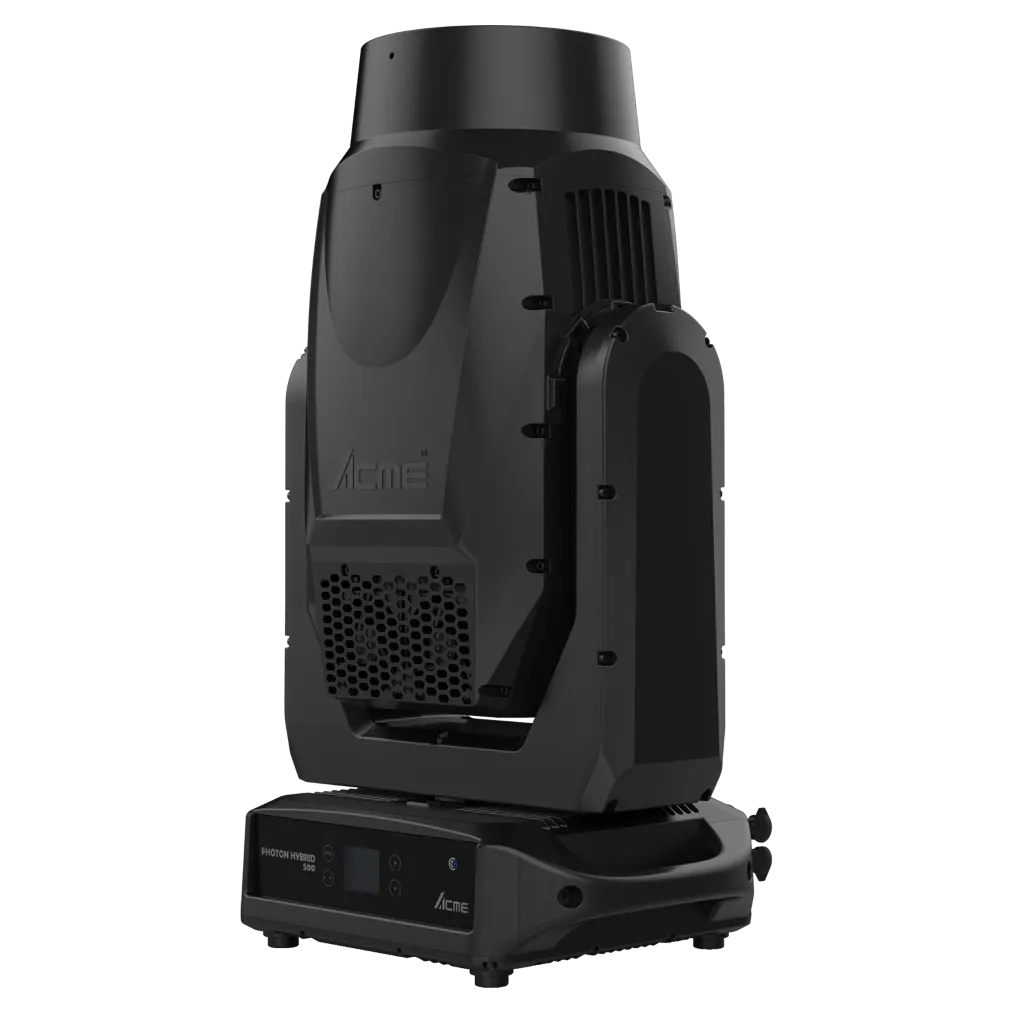

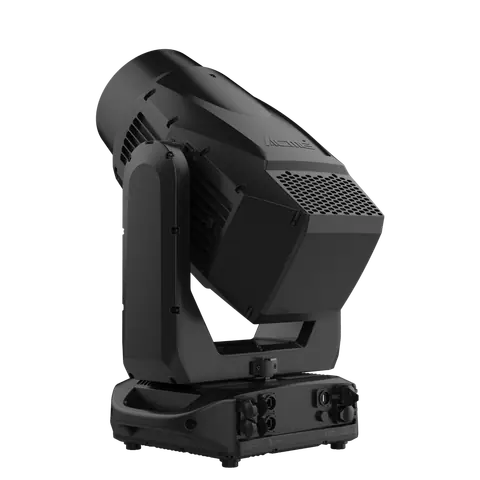

PHOTON HYBRID 500

ModelXL 500 BSW IP

The PHOTON HYBRID 500 is ACME’s first moving laser hybrid fixture, marking a new era in moving head. Designed for long-throw performance, ultra-clear gobo projection, and minimal maintenance, the IP66 fixture delivers versatility beyond expectations.

Light source: 350W white laser source
Power consumption: 660W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66
DMX channels: 28/31
Protocols: DMX512,RDM,Art-Net,sACN,NFC
Net weight: 32.5 kg (71.7 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 3:05

ACME PHOTON HYBRID 5003:05

02SpecificationManufacturer's data · 21 groups · 75 values

What this product is, in numbers.

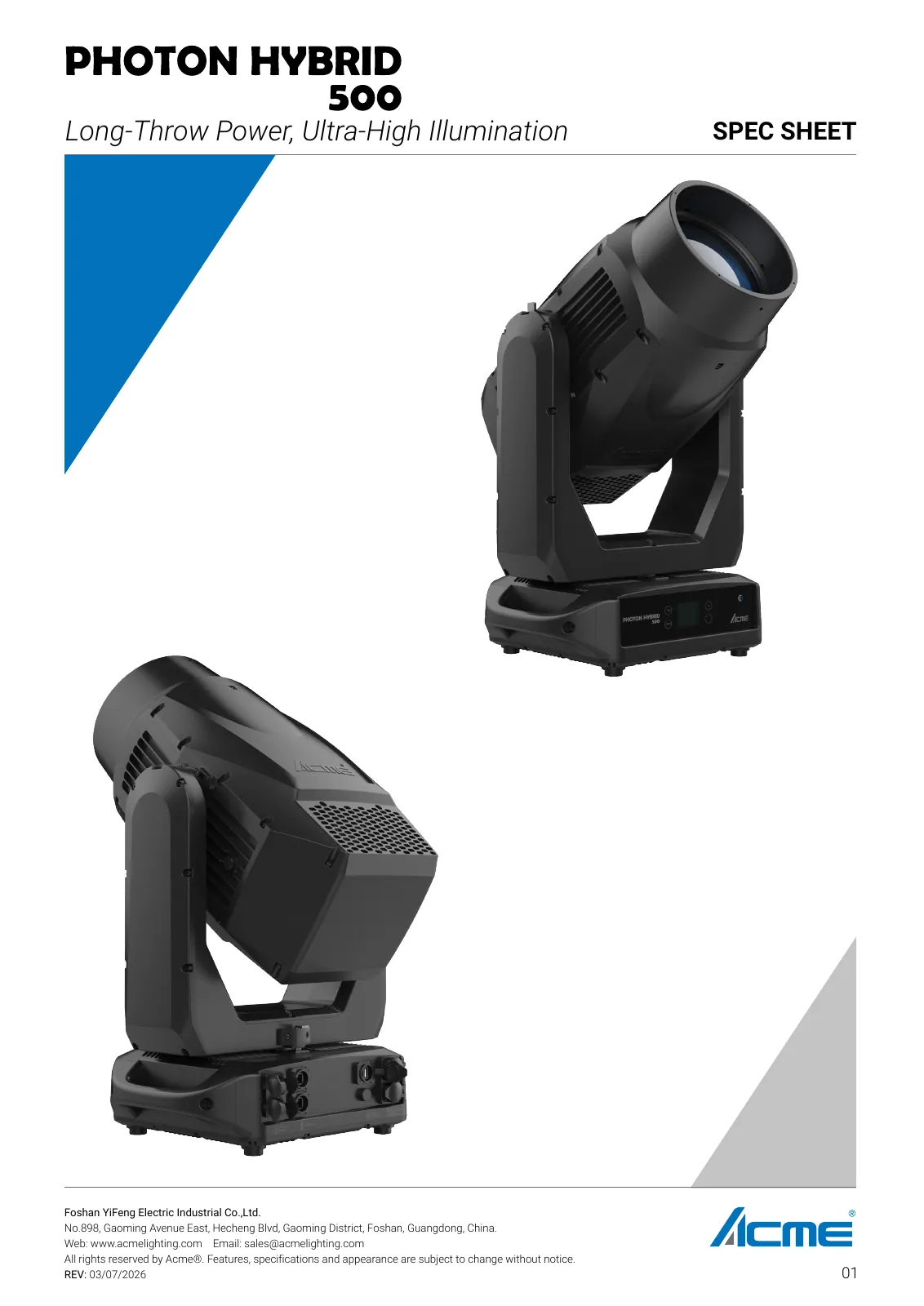

PDFDatasheetEN · 14 pages · 4.7 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: PHOTON HYBRID 500
Model Code: XL 500 BSW IP

02Light Source3

Light Source: 350W white laser source
Light Source Rated Life: 12,000 hours*; *Source manufacturer specification

03Photometric Data8

Total Lumen Output of Fixture
Auto Mode: 16,900 lumens
Quiet Mode: 11,400 lumens
Super Quiet Mode: 8,260 lumens
CCT: 8,000K (+/- 200K)
Color Rendering: 69
TM-30 Rf (IES TM-30-15 Fidelity Index): 66
TM-30 Rg (IES TM-30-15 Fidelity Index): 89
TLCI: 39

04Optical System4

Zoom Range
Beam Mode: 0.9°-22°
Spot Mode: 3.5°-29°
Wash Mode: 4.5°-40°
Diameter of Frontal Lens: 180 mm

05Control6

4 touch button control panel
Display: LCD display
Protocols: DMX512,RDM,Art-Net,sACN,NFC
DMX Protocol Modes: 2
Control Channels: 28/31
Firmware Upgrade: Upgrade via DMX link or USB stick

06Pan & Tilt5

Pan Movement: 540°
Tilt Movement: 270°; Automatic Pan/Tilt position correction
Resolution: 16 bit; Pan/Tilt lock

Show the full specificationHide the rest of the specification15 more groups · 47 values

07Colors3

Linear CMY color mixing
Linear CTO Color Correction: 3,200K-8,000K
1 Color Wheel: 16 colors + CRI, plus open

08Static Gobos2

1 Static Gobo Wheel: 21 gobos, plus open
Gobo: Ø86 mm

09Rotating Gobos1

1 Rotating Gobo Wheel: 11 gobos, plus open

10Prism1

4 Prisms: 1 x 4-facet circular prism, 1 x 8-facet circular prism, 1 x 4-facet linear prism, 1 x 6-facet linear prism, enabling dual-prism overlay effects

11Frost Filter1

1 frost filter

12Other Effects3

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Motorized focus system

13Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 660W
Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR,waterproof RJ45 connector

14Physical Information5

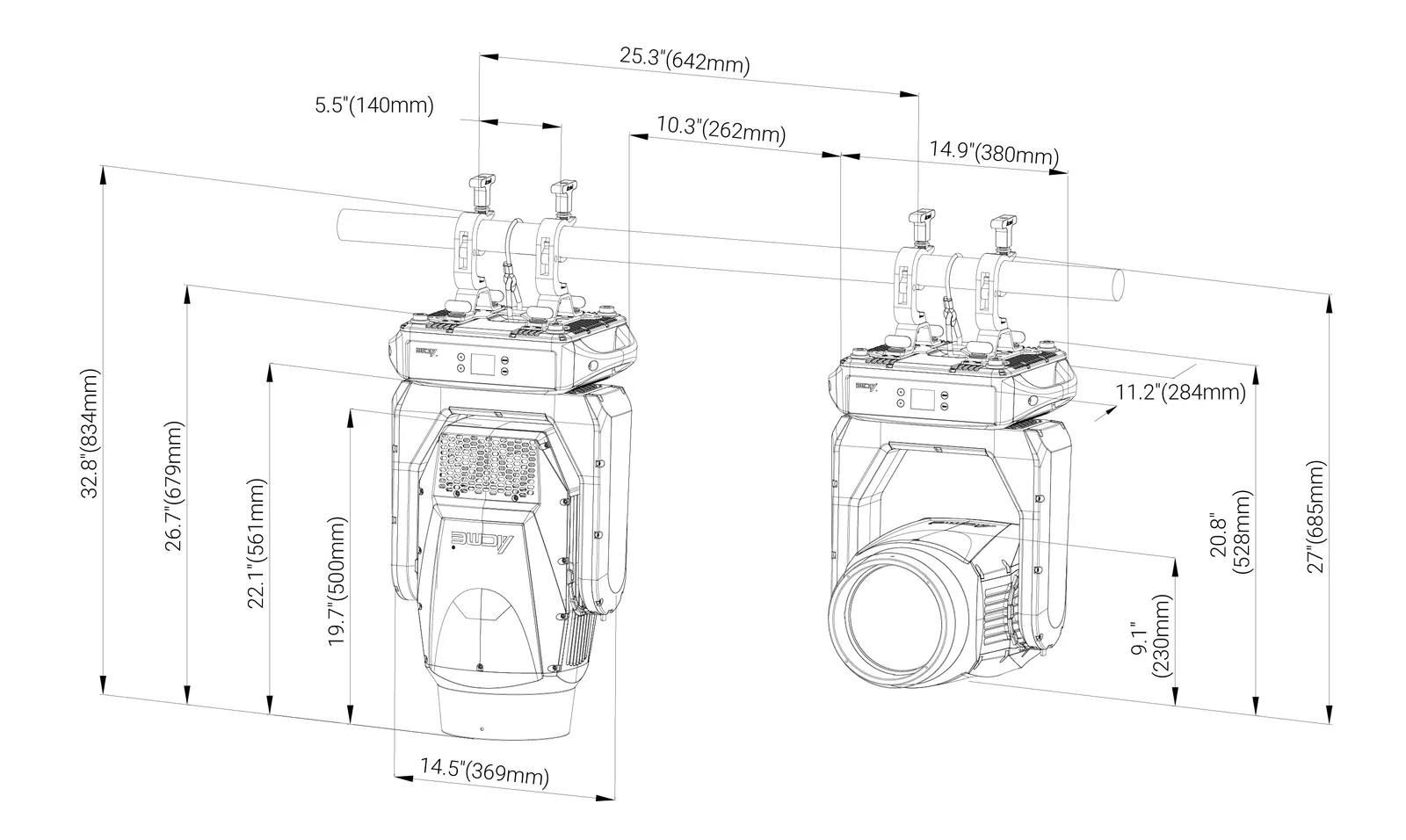

Fixture Dimensions
Weight: 32.5 kg (71.7 lbs)
Length (Head): 500 mm (19.7")
Length (Base): 380 mm (15")
Width (Across Yoke): 371 mm (14.6")
Height (Head Up): 679 mm (26.8")

15Packing Information8

Flight Case Dimensions
Width: 1,170 mm (46.1")
Depth: 610 mm (24")
Height: 795 mm (31.3")
Weight
Standard: G.W.: 122.5 kg (270.1 lbs) (two-pack loader case)
Carton Dimensions
Width: 640 mm (25.2")
Depth: 490 mm (19.3")
Height: 715 mm (28.2")
Weight
G.W.: 40 kg (88.2 lbs) (one-pack loader carton)

16Work Environment4

Maximum Ambient Temperature: 45°C
Minimum Operating Temperature: -20°C
Maximum Surface Temperature: 70°C
Protection Rating: IP66

17Approvals2

CE compliant

UKCA compliant

18Acoustic Data3

Noise Level
Auto Mode: 51 dB(A) @ 1 m
Quiet Mode: 46 dB(A) @ 1 m
Super Quiet Mode: 41 dB(A) @ 1 m

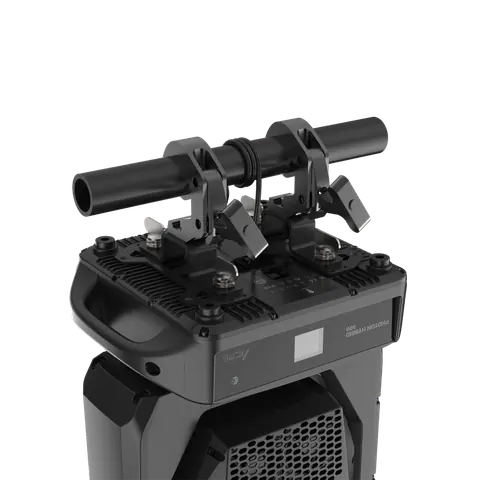

19Installation3

Universal working position

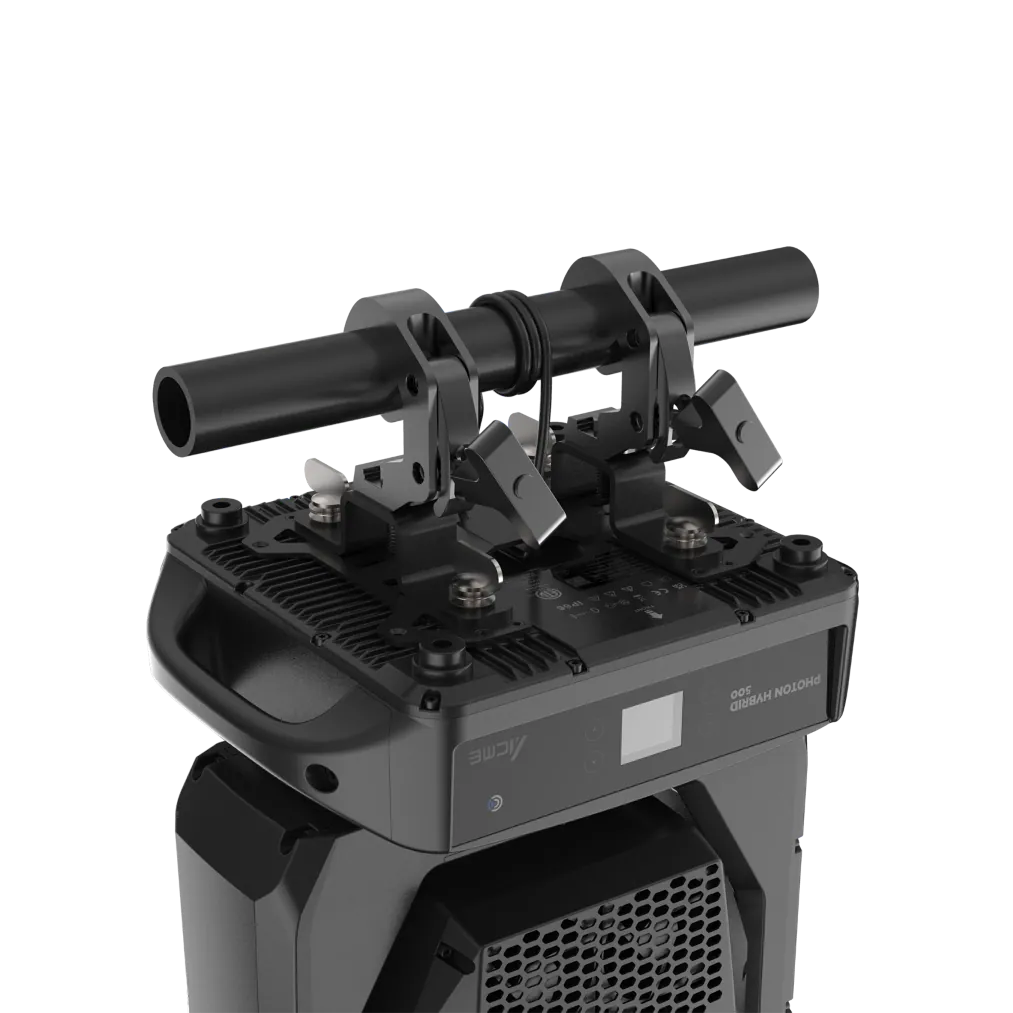

2 omega brackets

Safety cable attachment point

20Included Items3

QR code on fixture to receive digital user manual

Power cable

2 omega brackets (3002003002)

21Optional Accessories (With Order Code)4

Flight Case
Standard: Two-pack loader case (63584351)
Clamp: C-250B (2060001632-B)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)

03DescriptionManufacturer's description

What it is.

Featuring an iconic moving-head form, the PHOTON HYBRID 500 is equipped with a unique 350W white laser source and a large 180 mm frontal lens, delivering remarkable beam quality and high-impact visuals for large-format outdoor stages. Its high illuminance produces punchy beams that command attention, even under bright outdoor light. The fixture projects ultra-intense 0.9° beams visible even from a long distance. With three switchable zoom modes, it transitions seamlessly from sharp, focused beams to wide, even washes, meeting the demands of diverse lighting designs.

To unlock limitless color possibilities, the fixture features a variable CTO for instant color temperature adjustments, a color mixing system for smooth transitions, and a rotating color wheel with 16 vibrant colors. Packed with creative potential, the fixture comes with a 21-static-gobo wheel and an 11-rotating-gobo wheel, producing crisp, well-defined gobo projections. Four prisms can be overlaid in pairs for enhanced layered visual effects, while a frost filter softens beam edges for uniform washes.

Built for outdoor reliability, the IP66-rated fixture ensures stable, high-performance output in any environment. Its Sun Protection Mode can automatically adjust the head to a safe direction after power-off, protecting internal optics from direct sunlight. With intelligent laser safety zone control, the fixture automatically shuts off when the beam exceeds defined safety zones, preventing direct exposure to the audience and ensuring safe operation.

With intense brightness, versatile effects, and striking visuals, the PHOTON HYBRID 500 delivers exceptional beam quality and creative flexibility for large-scale performances and landscape applications.
