ACME · Hybrid fixtures

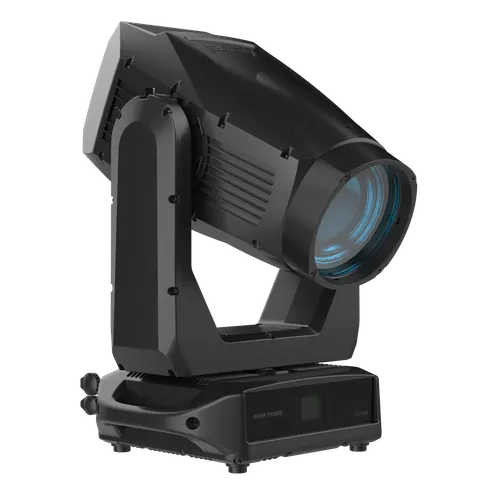

MANA HYBRID

ModelXA 600 BSW IP

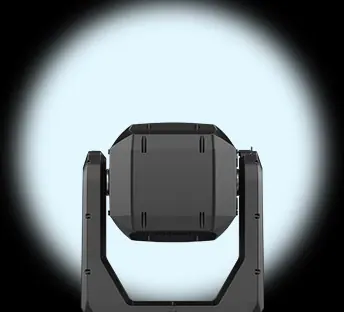

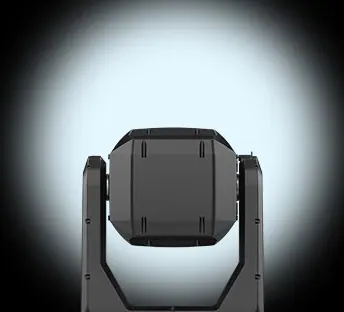

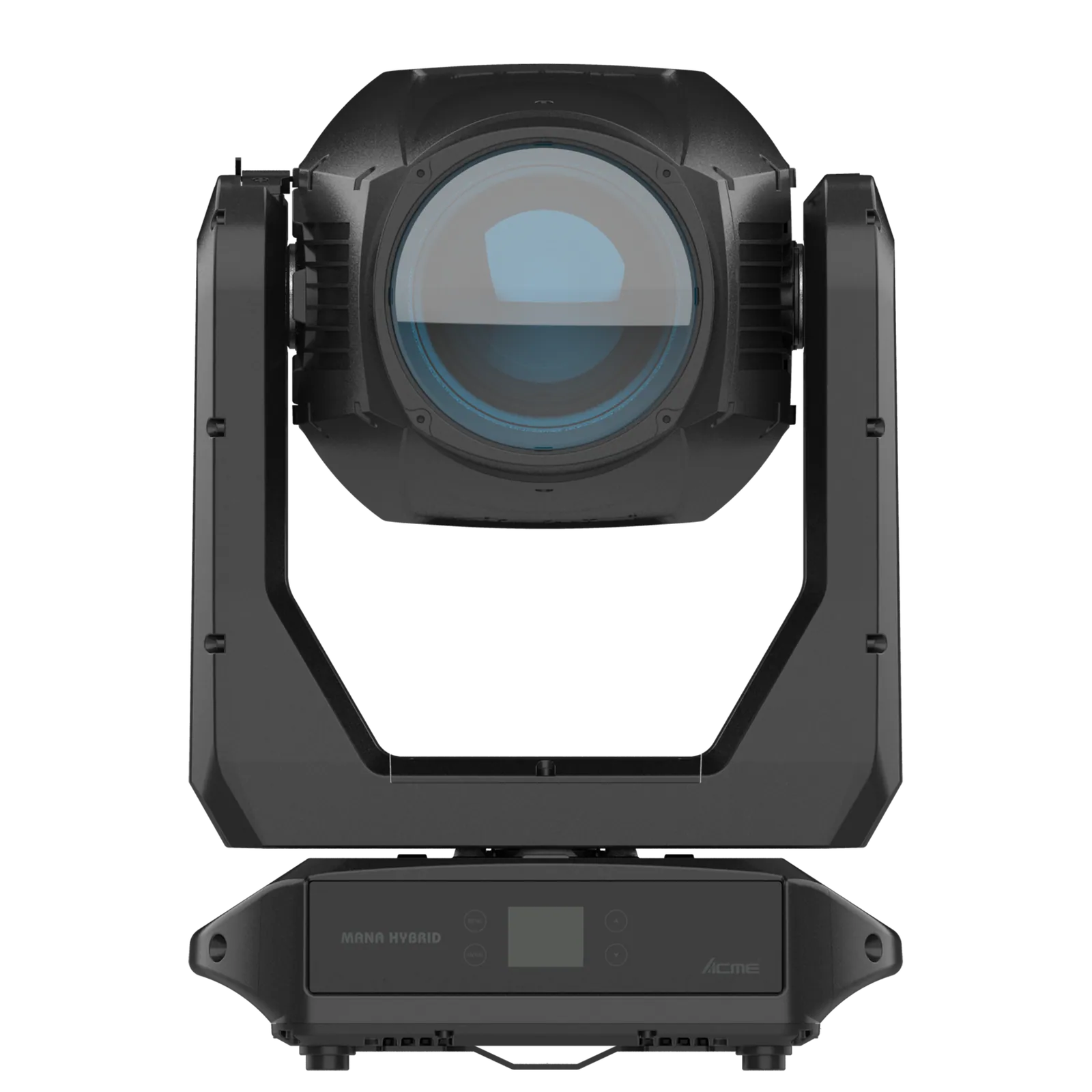

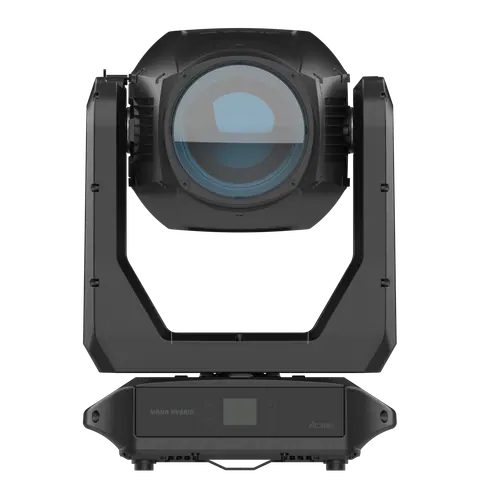

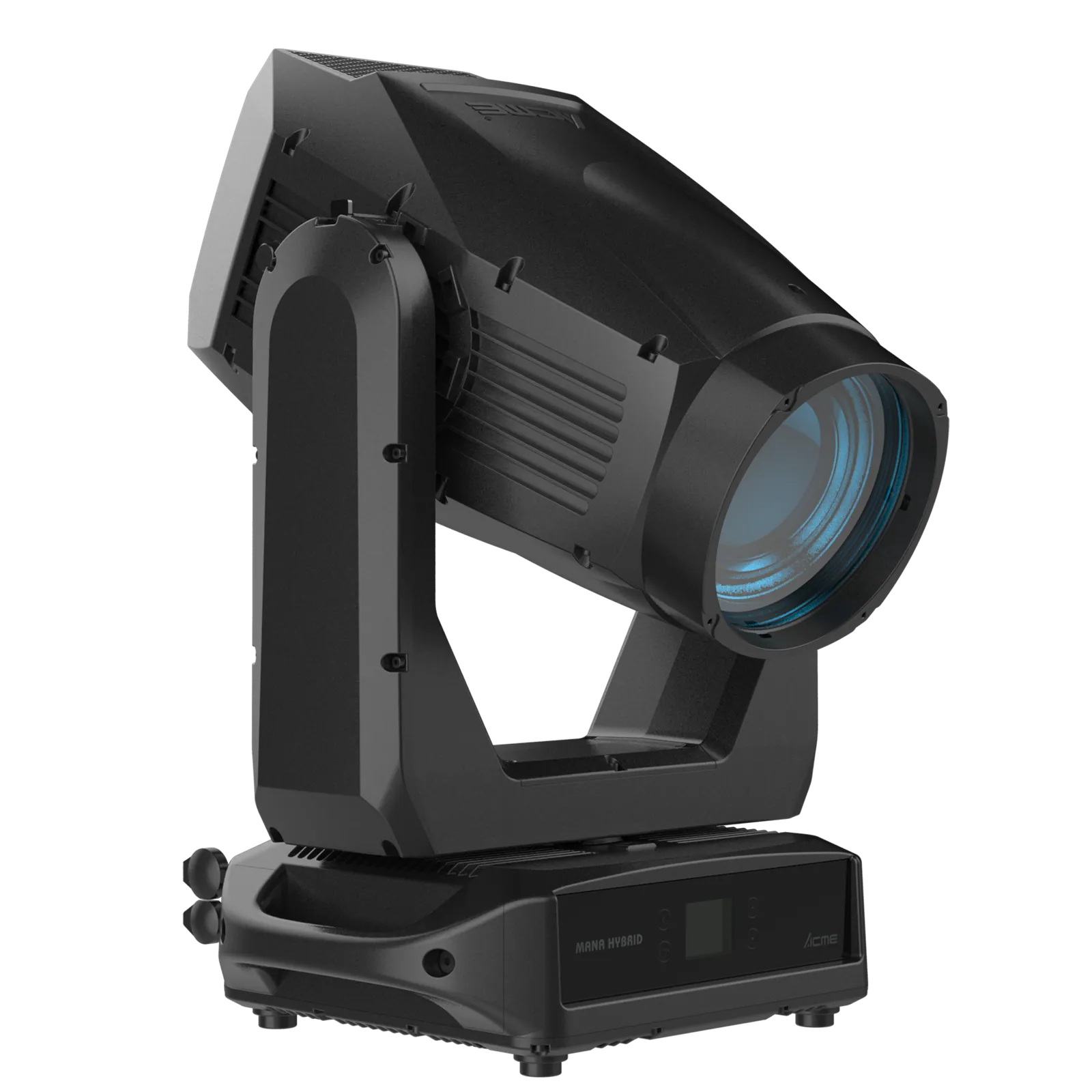

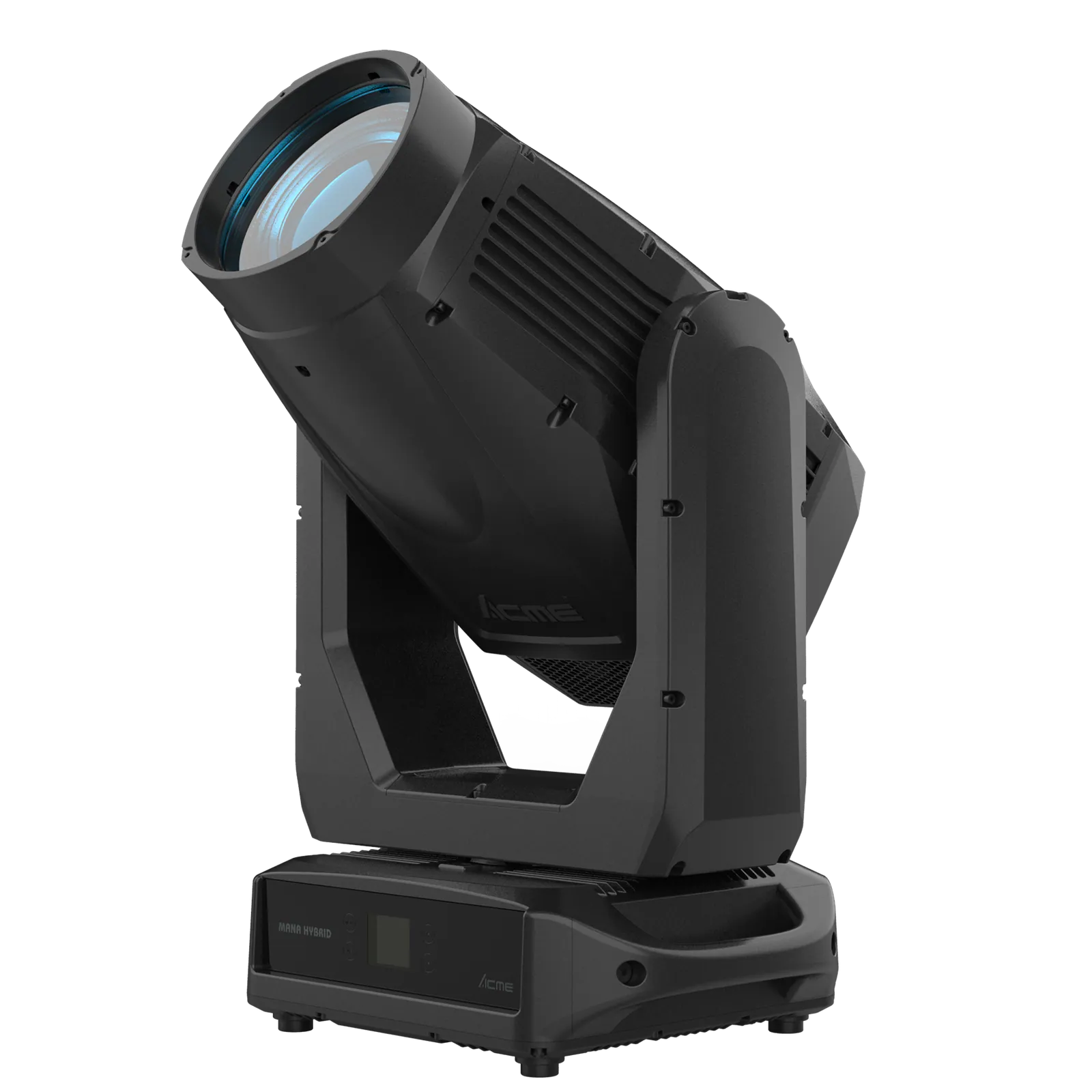

MANA HYBRID is a moving hybrid fixture, it’s the source of inspiration to illuminate your innovation. Featured 600W LEDs and a 170 mm lens, it creates brilliant and vibrant light.

Light source: 600W LED Engine
Power consumption: 910W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66
Beam angle / zoom: 2°-45°
DMX channels: 24/30
Protocols: DMX512,RDM,Art-Net,sACN
Colour temperature: 7,000K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 21 groups · 69 values

What this product is, in numbers.

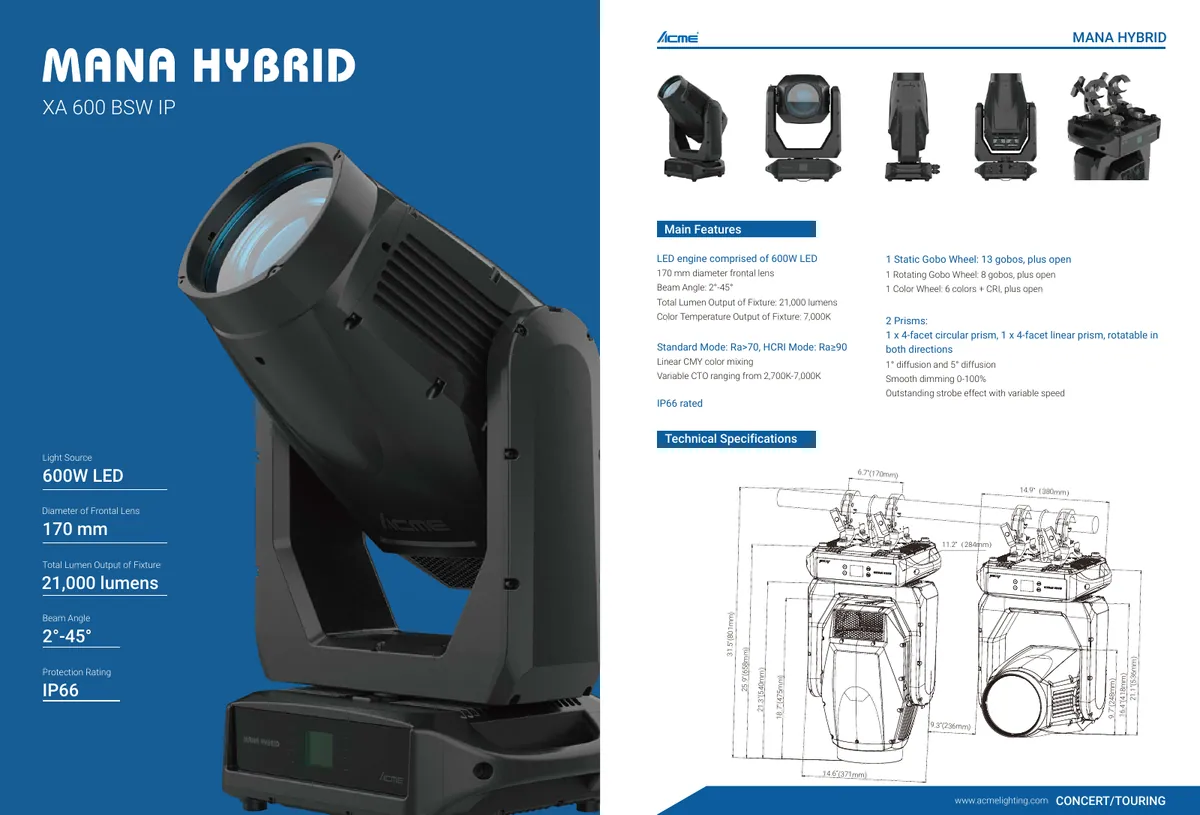

PDFDatasheetEN · 2 pages · 994 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: MANA HYBRID
Model Code: XA 600 BSW IP

02Light Source4

Light Source: 600W LED Engine
Color Temperature Output of Fixture: 7,000K
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data3

Total Lumen Output of Fixture: 21,000 lumens
Standard Mode: Ra>70
HCRI Mode: Ra≥90

04Optical System2

Zoom Range: 2°-45°
Diameter of Frontal Lens: 170 mm

05Control6

4 touch button control panel
Display: LCD display
Protocols: DMX512,RDM,Art-Net,sACN
DMX Protocol Modes: 4
Control Channels: 24/30
Firmware Upgrade: Upgrade via DMX link or USB disk

06Pan & Tilt4

Pan Movement: 540°
Tilt Movement: 260°; Automatic Pan/Tilt position correction
Resolution: 16 bit

Show the full specificationHide the rest of the specification15 more groups · 48 values

07Colors3

Linear CMY color mixing
Linear CTO Color Correction: 2,700K-7,000K
1 Color Wheel: 6 colors + CRI, plus open

08Static Gobos2

1 Static Gobo Wheel: 13 gobos, plus open
Gobo: Ø17 mm, lmage: Ø13 mm

09Rotating Gobos3

1 Rotating Gobo Wheel: 8 gobos, plus open
Gobo Slot 1-7: Ø20 mm, lmage: Ø12 mm
Gobo Slot 8: Ø20 mm

10Animation Wheel1

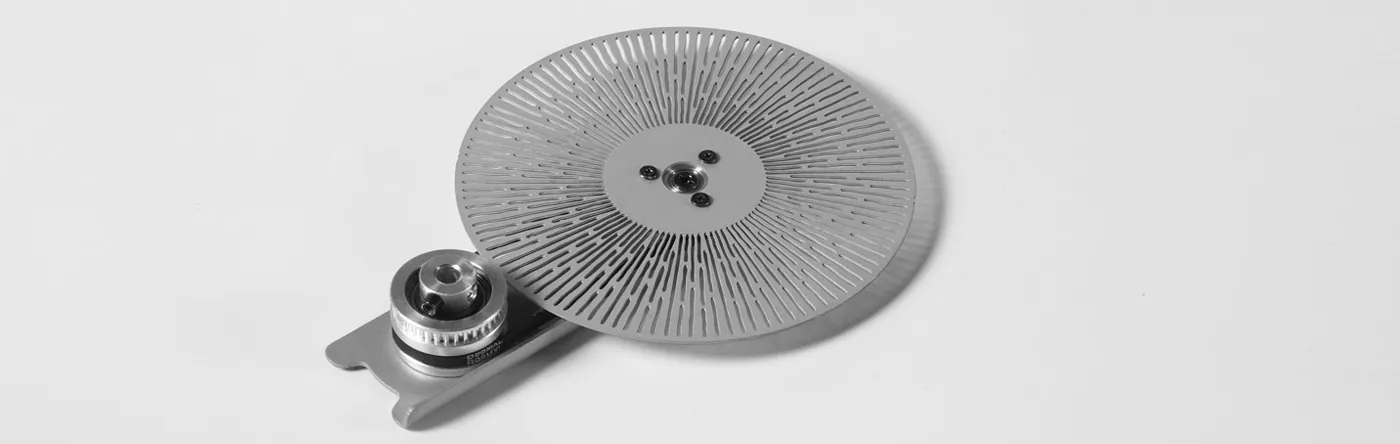

A graphic animation wheel with continuous rotation in both directions, used alone or in combination with gobos to create the splendid water wave effect, and can be changed into other wheels

11Prism1

2 Combinable Rotating and Indexable Prisms: 1 x 4-facet circular prism, 1 x 4-facet linear prism, rotatable in both directions

12Frost Filter1

1° diffusion and 5° diffusion

13Other Effects2

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

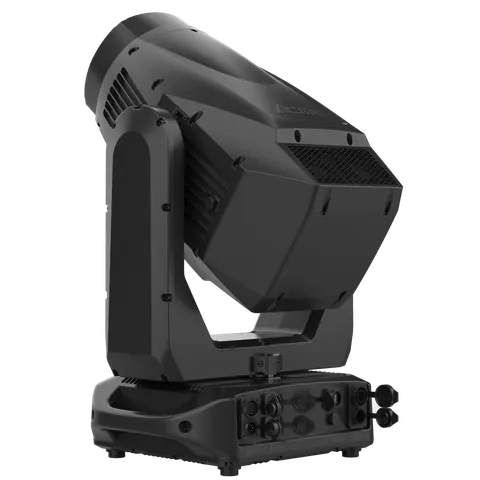

14Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 910W
Power In/Out: Waterproof power connector in/out

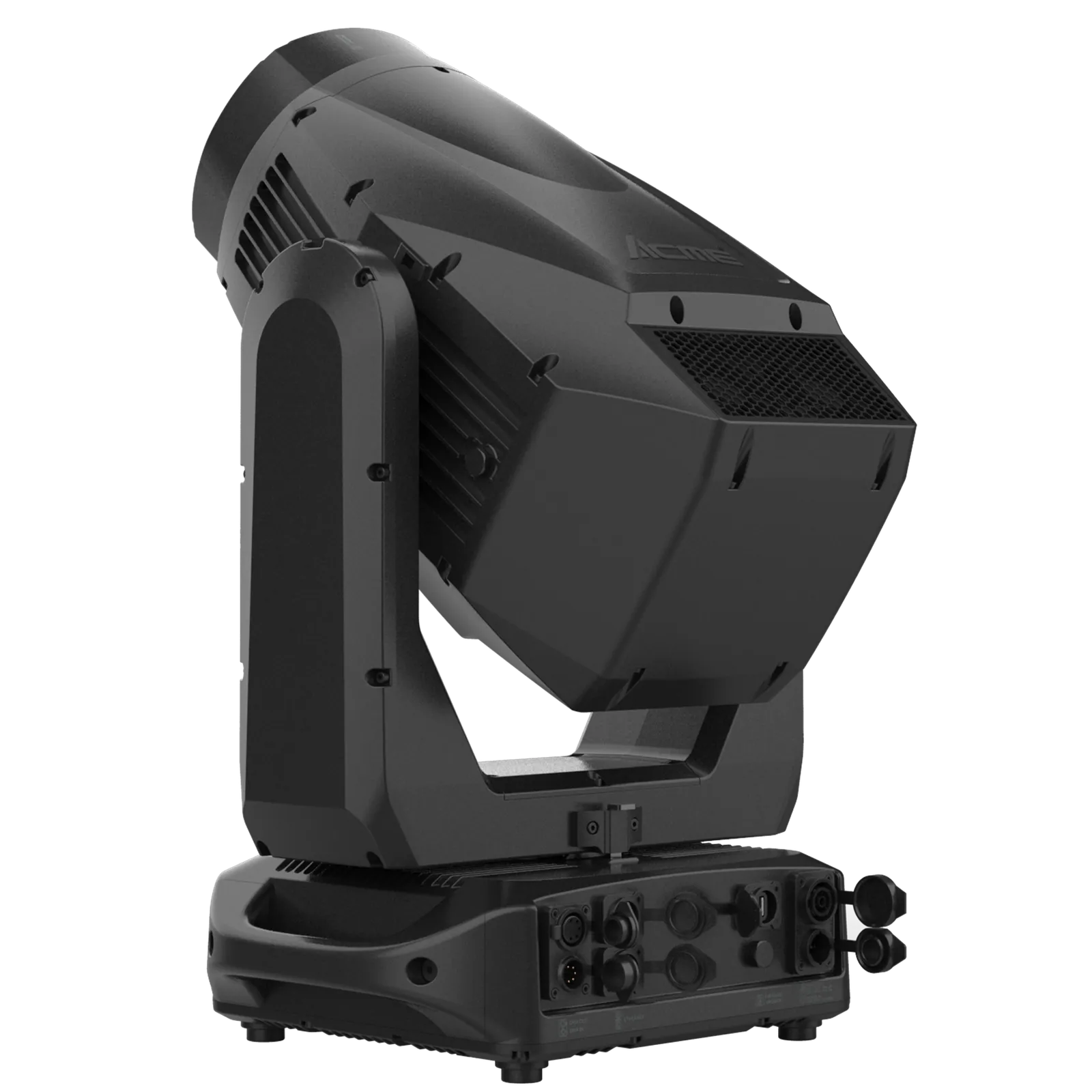

Data In/Out: 3-pin or 5-pin waterproof XLR,RJ45 connector

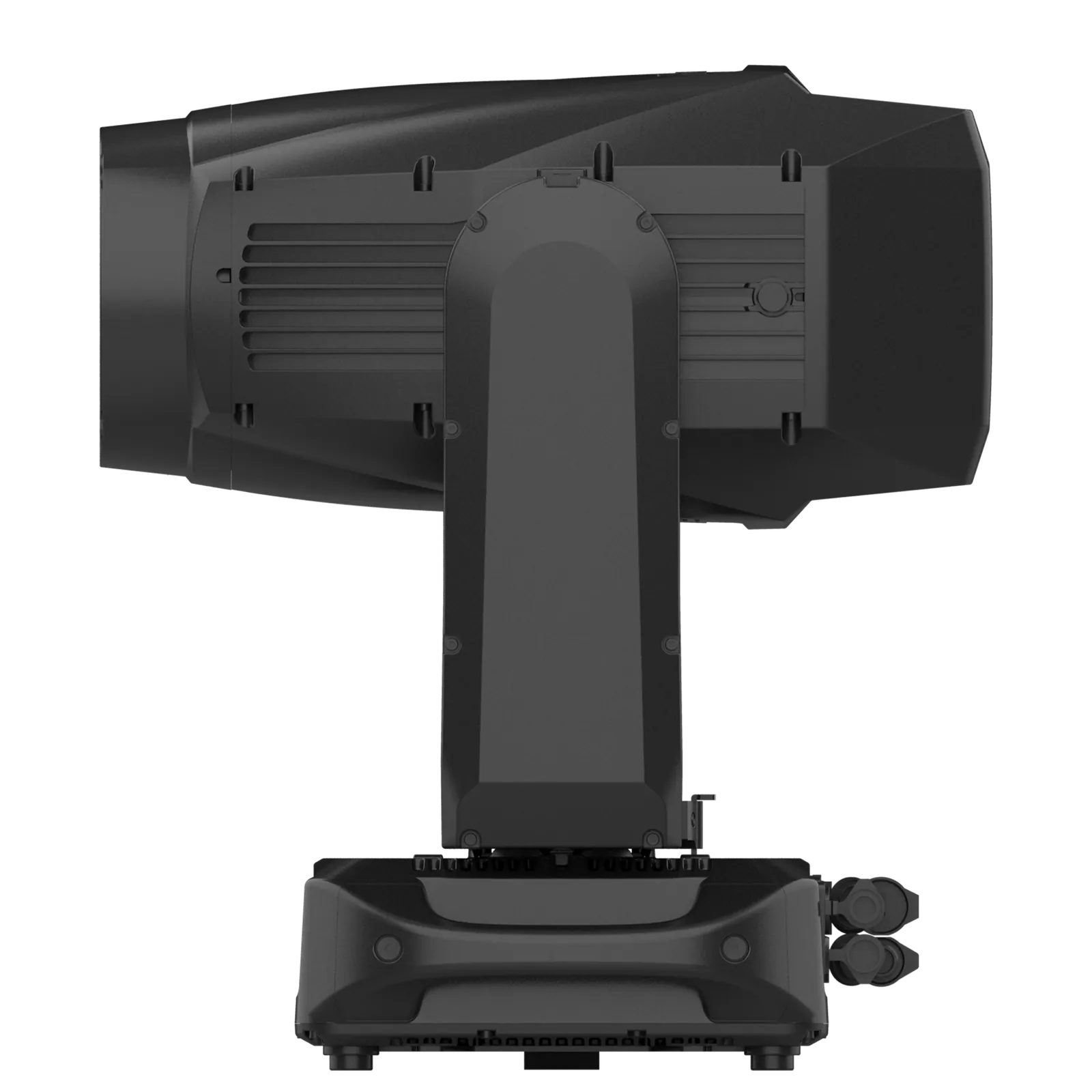

15Physical Information4

Fixture Dimensions
Width: 380 mm (15.0")
Depth: 284 mm (11.2")
Height: 658 mm (25.9")
Weight: 30.5 kg (67.3 lbs)

16Packing Information8

Flight Case Dimensions
Width: 1,220 mm (48.0")
Depth: 610 mm (24.0")
Height: 805 mm (31.7")
Weight
Standard: G.W.: 125 kg (275.6 lbs) (two-pack loader case)
Carton Dimensions
Width: 610 mm (24.0")
Depth: 490 mm (19.3")
Height: 675 mm (26.6")
Weight
G.W.: 37.5 kg (82.7 lbs) (One-pack loader carton)

17Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 75°C
Protection Rating: IP66

18Approvals3

CE compliant

UKCA compliant

cETLus compliant

19Installation4

Horizontal or vertical mounting

Universal working position

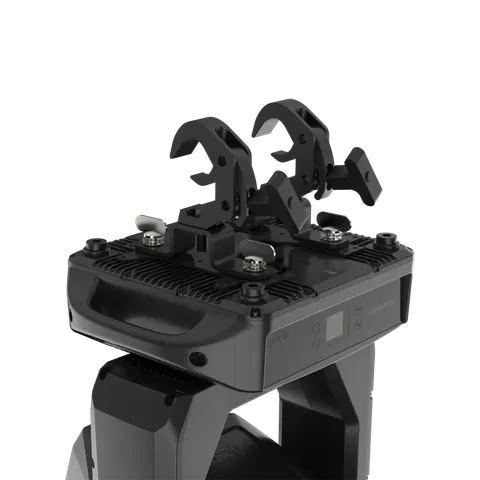

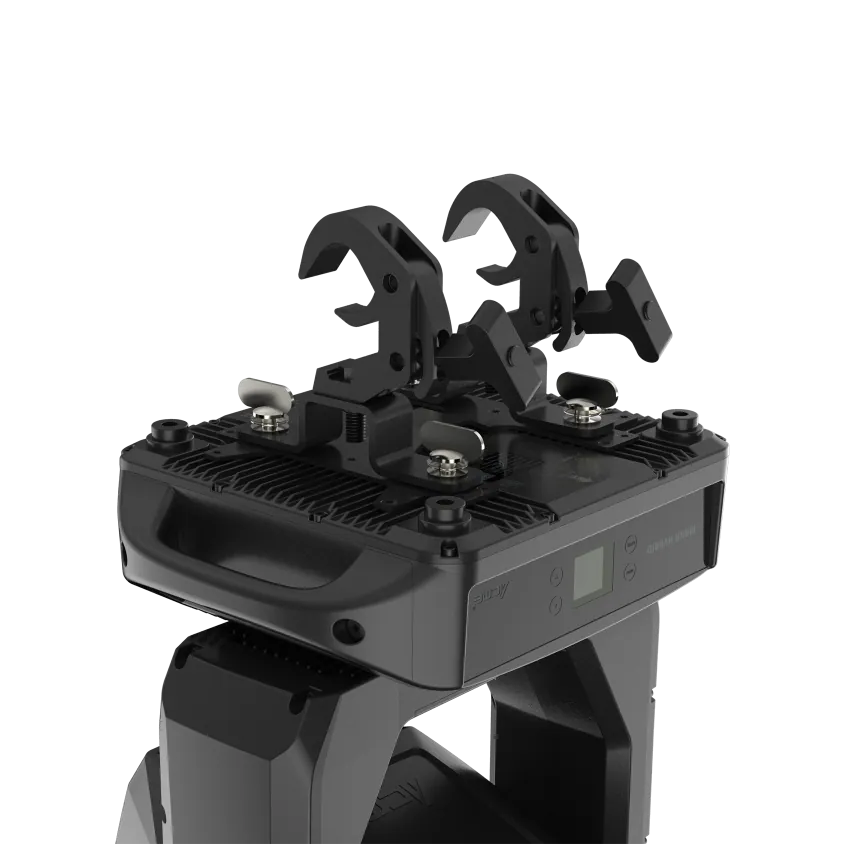

2 omega brackets

Safety cable attachment point

20Included Items3

Digital user manual

Power cable

2 omega brackets (3002003003)

21Optional Accessories (With Order Code)5

Flight Case
Standard: Two-pack loader case (63583466)
North American Standard: Two-pack loader case (63583211)
Clamp: C-250B (2060001632-B),C-150B (2060001625-C)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)
