Sheet 05.716

ACME · Hybrid fixtures

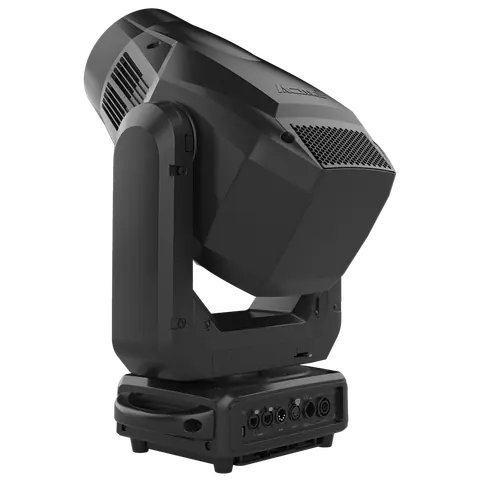

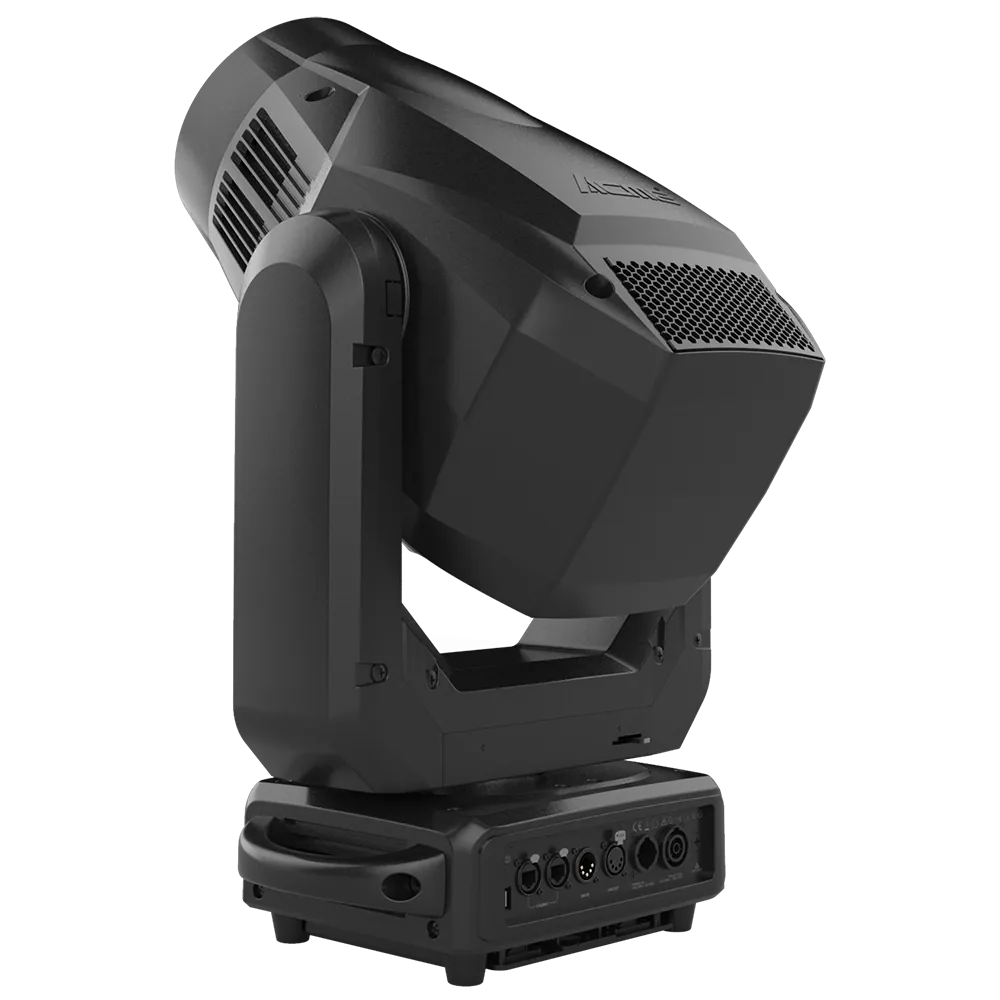

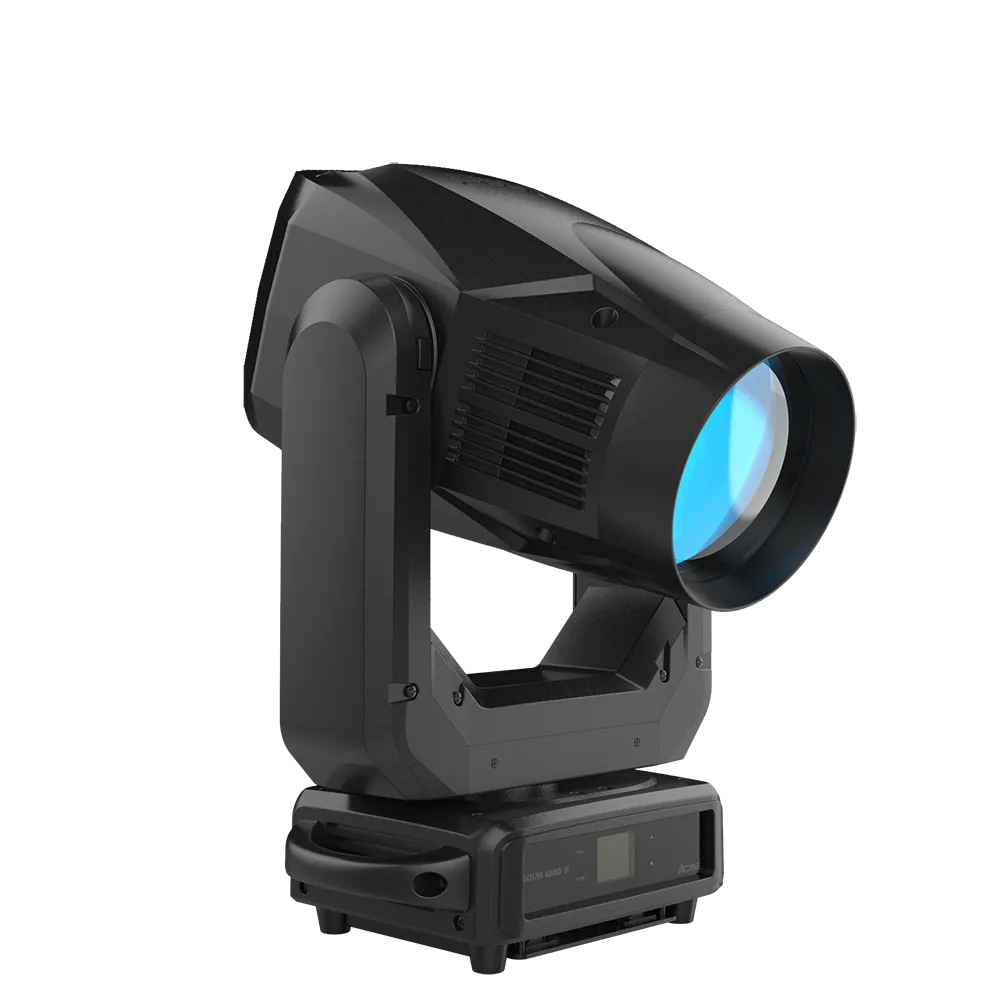

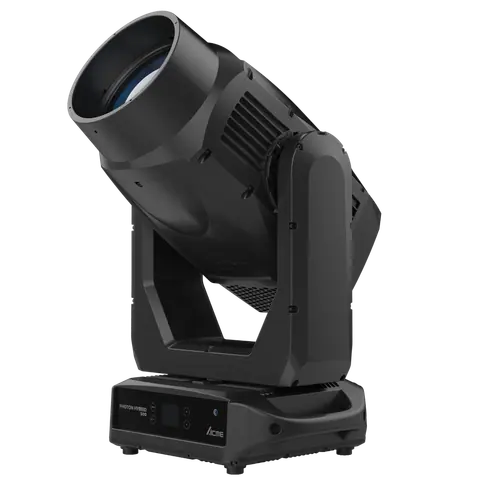

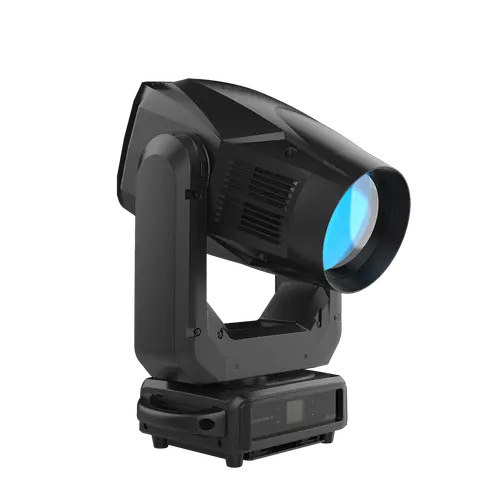

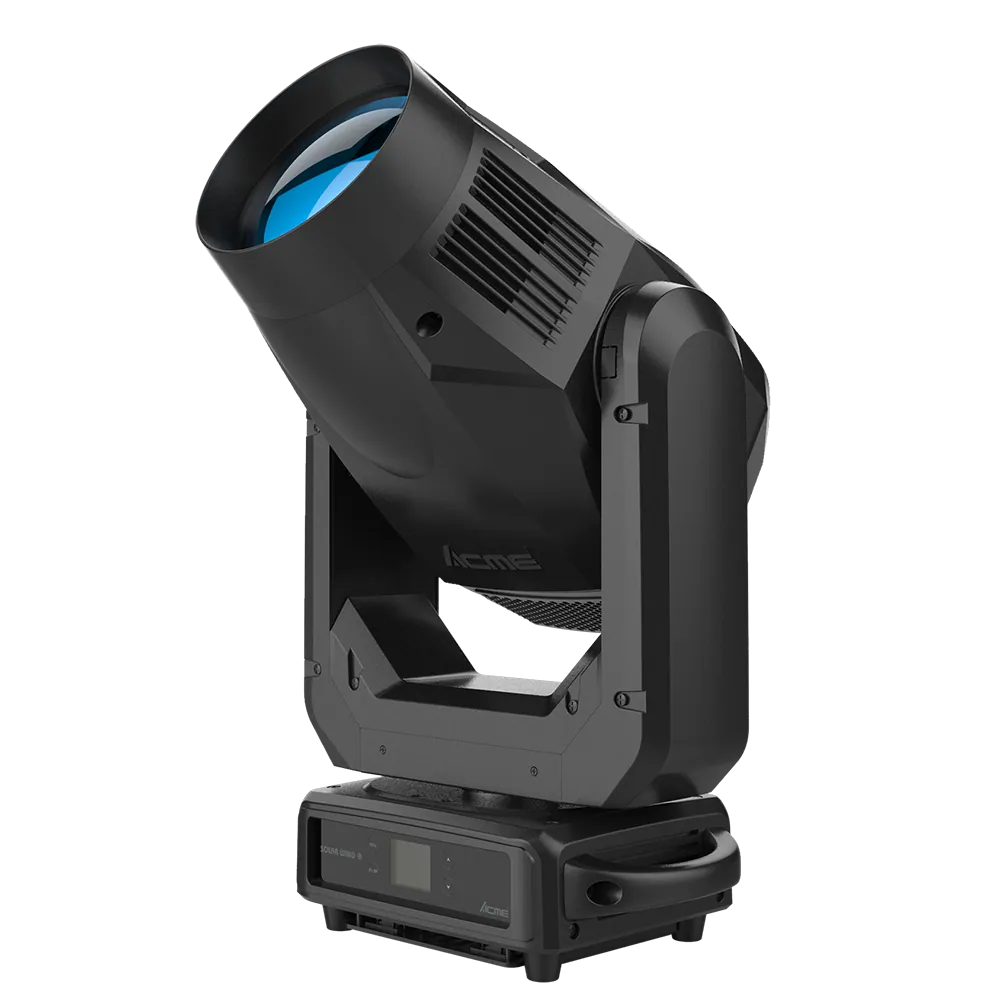

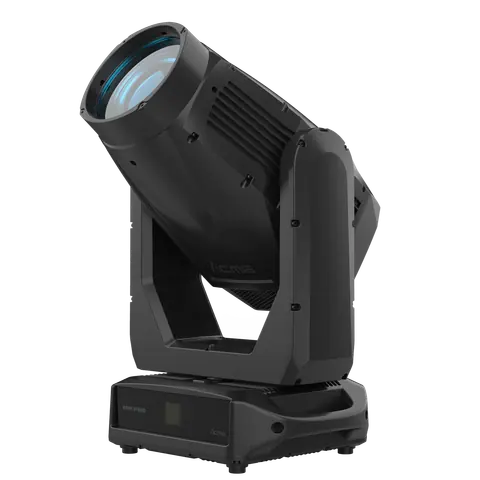

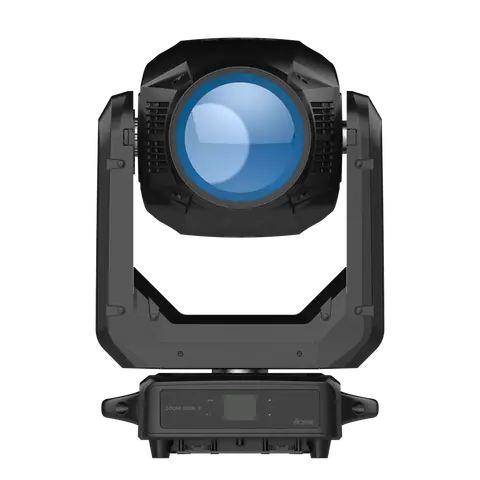

SOLAR WIND

ModelXA 500 BSW

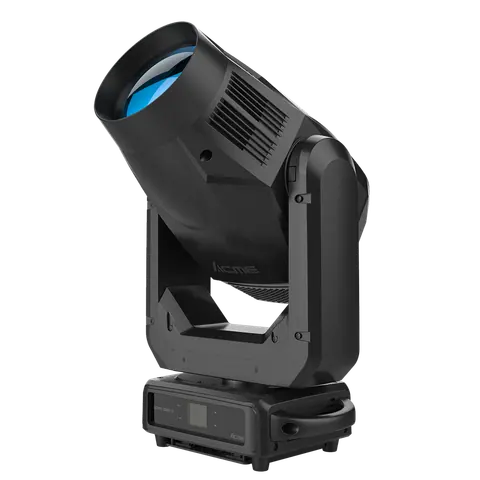

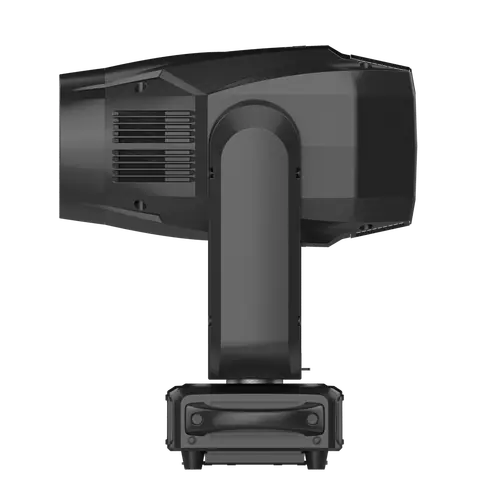

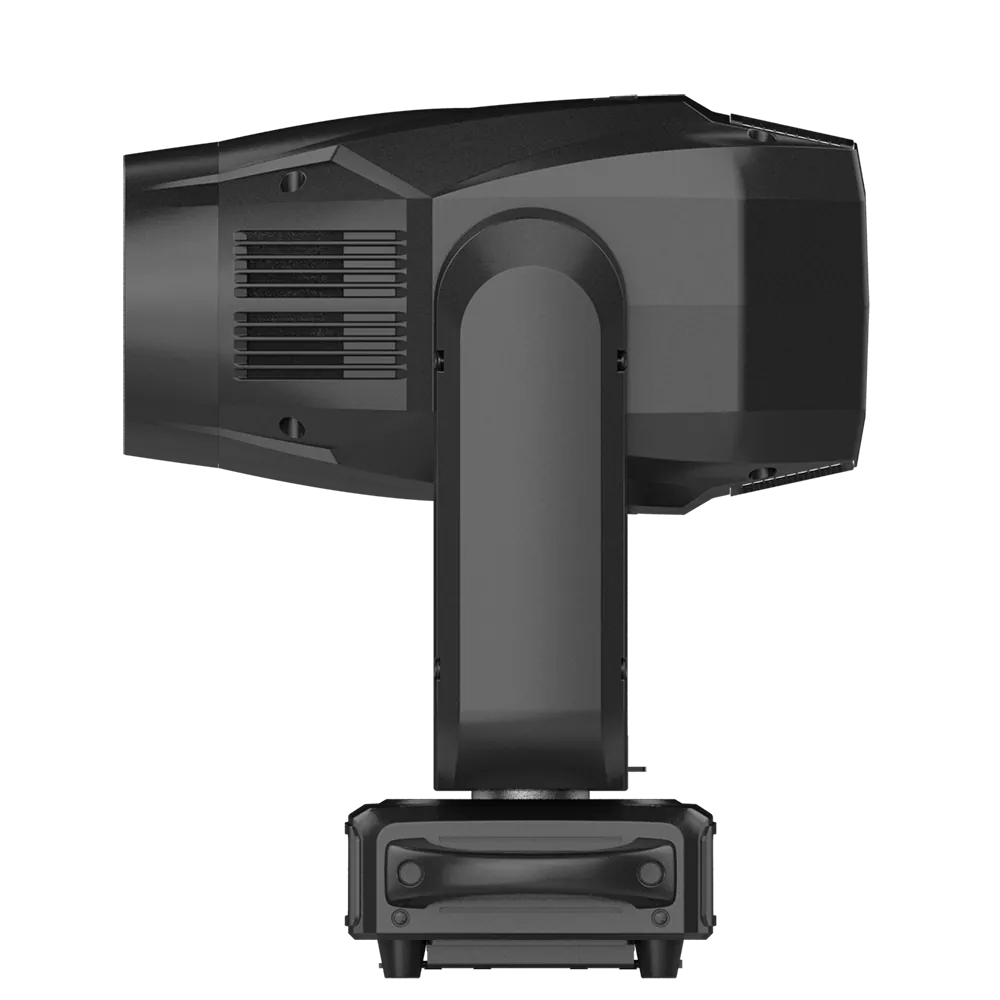

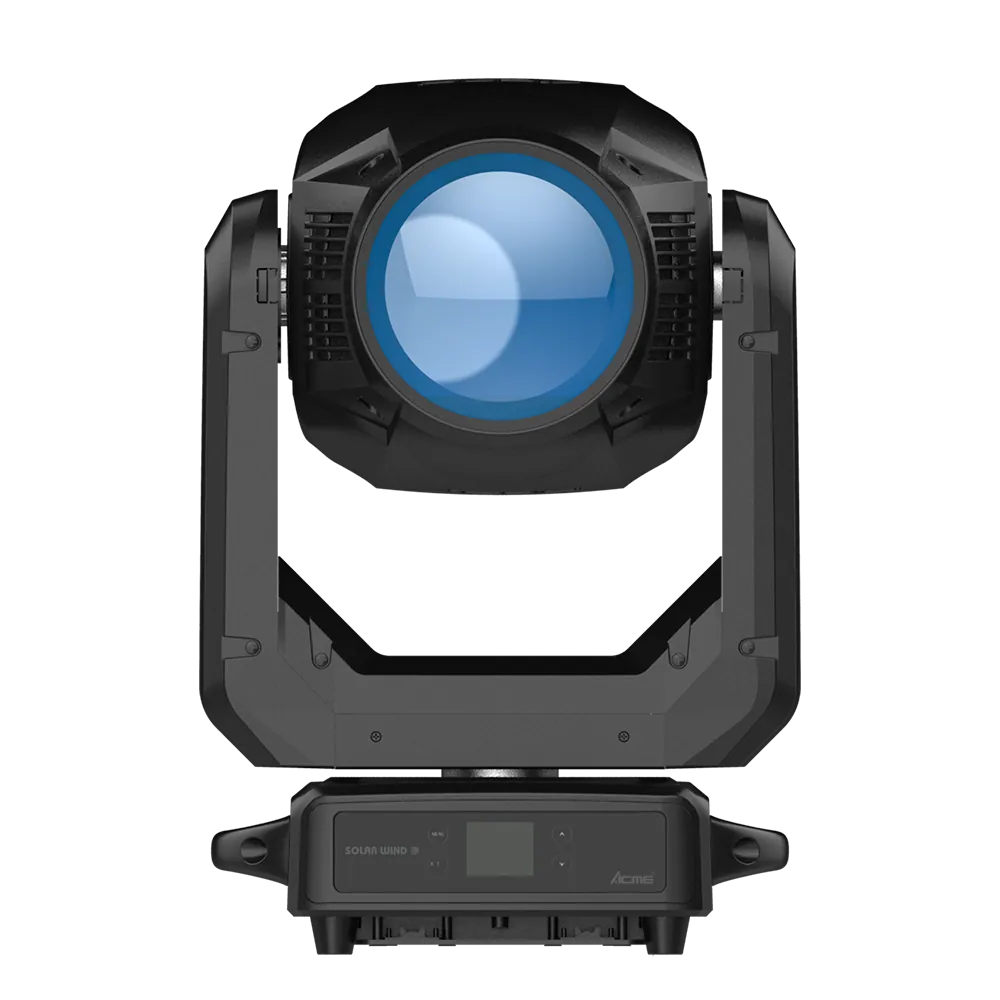

The ACME SOLAR WIND luminaire is a feature-packed, hybrid fixture (beam / spot / wash) powered by a 500-Watt white LED engine that offers over 16,000 lumens in standard mode (>70 CRI) and 11,500 lumens in high CRI mode (>90 CRI).

Light source: 500W LED engine
Power consumption: 665W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP20
Beam angle / zoom: 3°-50°
DMX channels: 30/24
Protocols: DMX512,RDM,Art-Net,sACN
Colour temperature: 7,000K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 3:21

ACME SOLAR WIND3:21

02SpecificationManufacturer's data · 21 groups · 80 values

What this product is, in numbers.

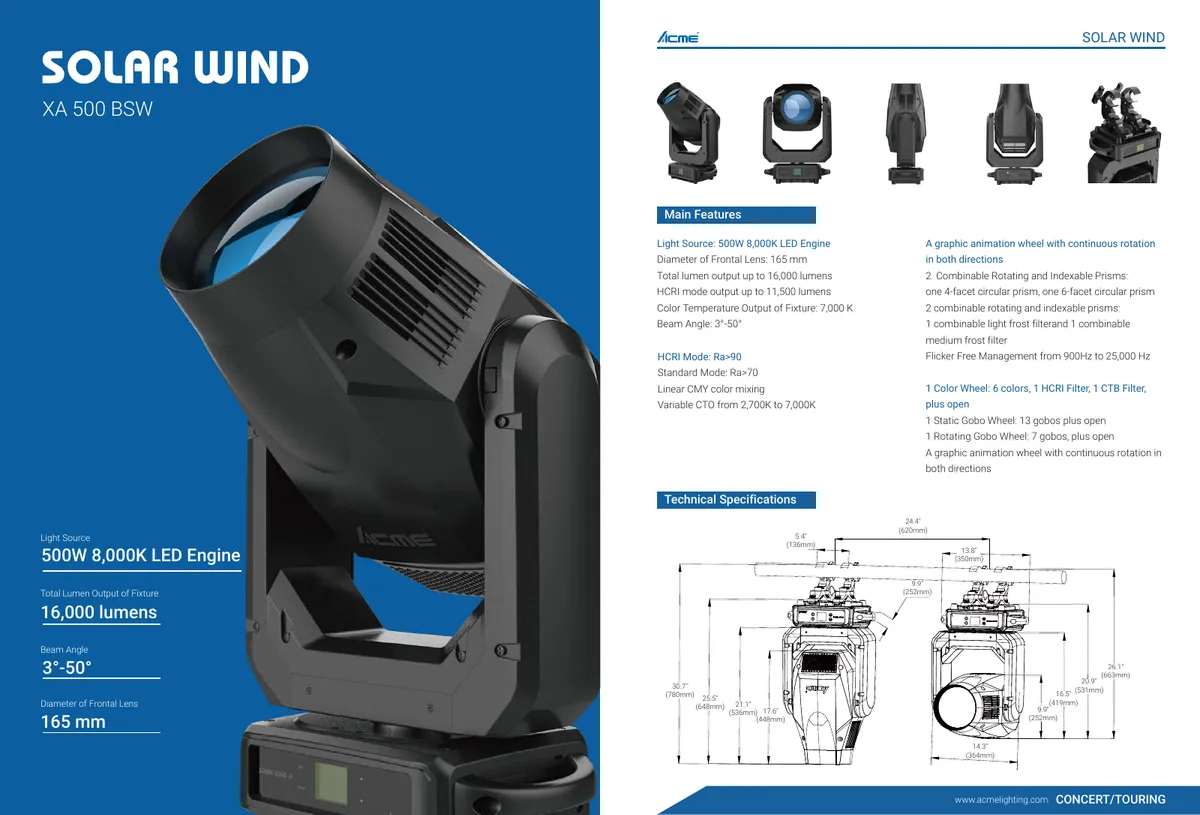

PDFDatasheetEN · 2 pages · 812 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: SOLAR WIND
Model Code: XA 500 BSW

02Light Source4

Light Source: 500W LED engine
Color Temperature Output of Fixture: 7,000K
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data4

Total Lumen Output of Fixture
Ra>70: 16,000 lumens
Ra>90: 11,500 lumens
Standard Mode: Ra>70
HCRI Mode: Ra>90

04Optical System2

Zoom Range: 3°-50°
Diameter of Frontal Lens: 165 mm

05Control6

4 touch button control panel
Display: LCD display
Protocols: DMX512,RDM,Art-Net,sACN
DMX Protocol Modes: 2
Control Channels: 30/24
Firmware Upgrade: Upgrade via DMX link or USB stick

06Pan & Tilt5

Pan Movement: 540°
Tilt Movement: 260°; Automatic Pan/Tilt position correction
Resolution: 16 bit; Pan/Tilt lock

Show the full specificationHide the rest of the specification15 more groups · 57 values

07Colors3

Linear CMY color mixing
Linear CTO Color Correction: 2,700K-7,000K
1 Color Wheel: 7 colors + CRI,, plus open

08Static Gobos1

1 Static Gobo Wheel: 13 gobos, plus open

09Rotating Gobos3

1 Rotating Gobo Wheel: 7 gobos, plus open
Gobo Slot 1-6: Ø22.5 mm, lmage: Ø11 mm
Gobo Slot 7: Ø22.5 mm

10Animation Wheel1

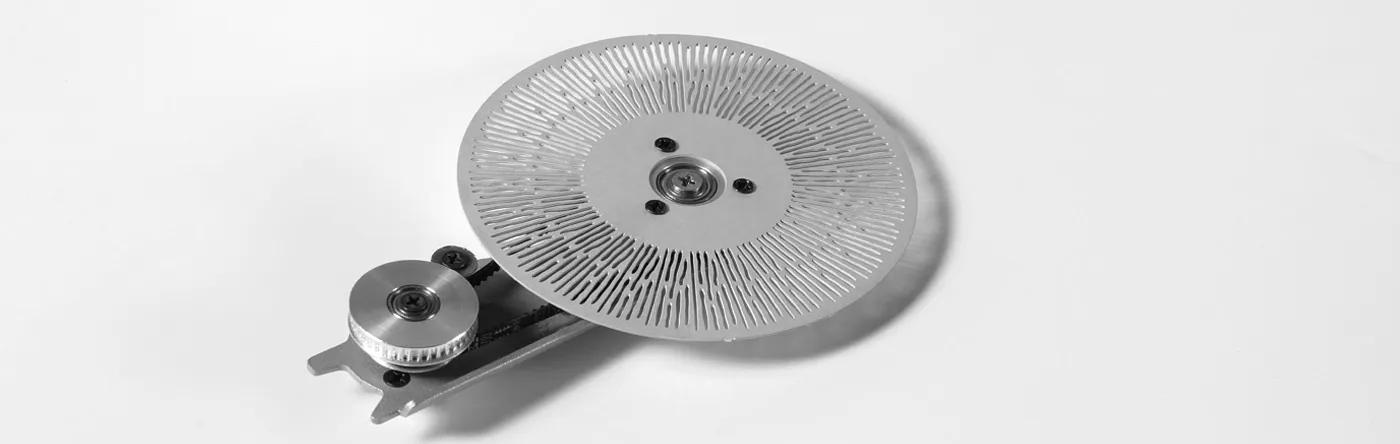

A graphic animation wheel with continuous rotation in both directions, used alone or in combination with gobos to create the splendid water wave effect, and can be changed into other wheels

11Prism1

2 Combinable Rotating and Indexable Prisms: 1 x 4-facet circular prism, 1 x 6-facet circular prism, rotatable in both directions

12Frost Filter1

1 combinable light frost filter and 1 combinable medium frost filter

13Other Effects3

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Motorized zoom and focus

14Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 665W
Power In/Out: Power connector in/out
Data In/Out: 3-pin or 5-pin XLR,RJ45 connector,USB connector

15Physical Information4

Fixture Dimensions
Width: 364 mm (14.3")
Depth: 252 mm (9.9")
Height: 648 mm (25.5")
Weight: 25.5 kg (56.2 lbs)

16Packing Information16

Flight Case Dimensions 1
Width: 870 mm (34.3")
Depth: 580 mm (22.8")
Height: 905 mm (35.6")
Weight
Standard: G.W.: 108.5 kg (239.2 lbs) (two-pack loader case)
Flight Case Dimensions 2
Width: 890 mm (35.0")
Depth: 780 mm (30.7")
Height: 575 mm (22.6")
Weight
Standard: G.W.: 98.5 kg (217.2 lbs) (two-pack loader case)
Flight Case Dimensions 3
Width: 1,220 mm (48.0")
Depth: 610 mm (24.0")
Height: 905 mm (35.6")
Weight
North American Standard: G.W.: 138.7 kg (305.8 lbs) (two-pack loader case)
Carton Dimensions
Width: 550 mm (21.7")
Depth: 480 mm (18.9")
Height: 655 mm (25.8")
Weight
G.W.: 31 kg (68.3 lbs) (One-pack loader carton)

17Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: 0°C
Maximum Surface Temperature: 65°C
Protection Rating: IP20

18Approvals3

CE compliant

UKCA compliant

cETLus compliant

19Installation4

Horizontal or vertical mounting

Universal working position

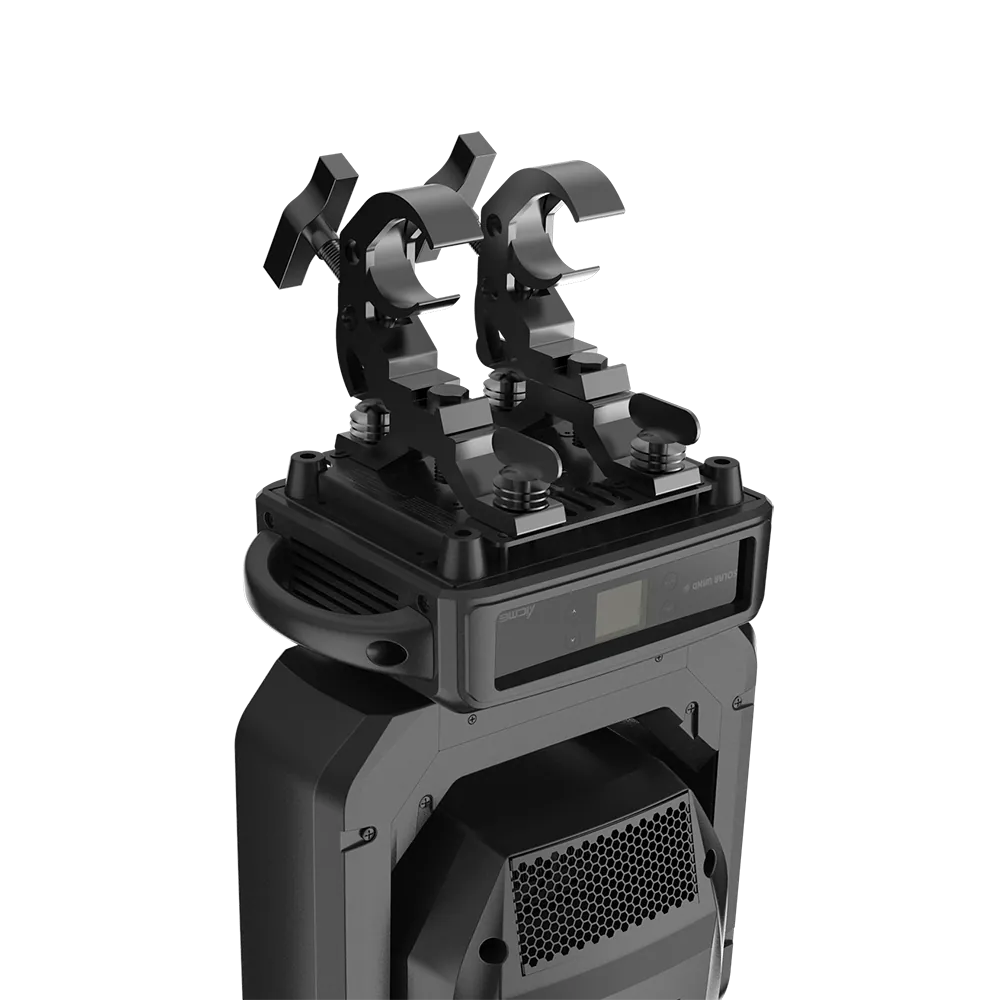

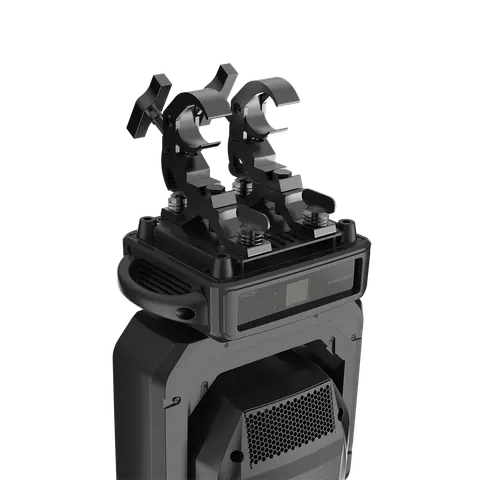

2 omega brackets

Safety cable attachment point

20Included Items3

Digital user manual

Power cable

2 omega brackets (3002000288-B)

21Optional Accessories (With Order Code)6

Flight Case 1
Standard: Two-pack loader case (63582988)
Flight Case 2
Standard: Two-pack loader case (63583582)
Flight Case 3
North American Standard: Two-pack loader case (63583197)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin or 5-pin signal cable
Raincover: 3033001749
