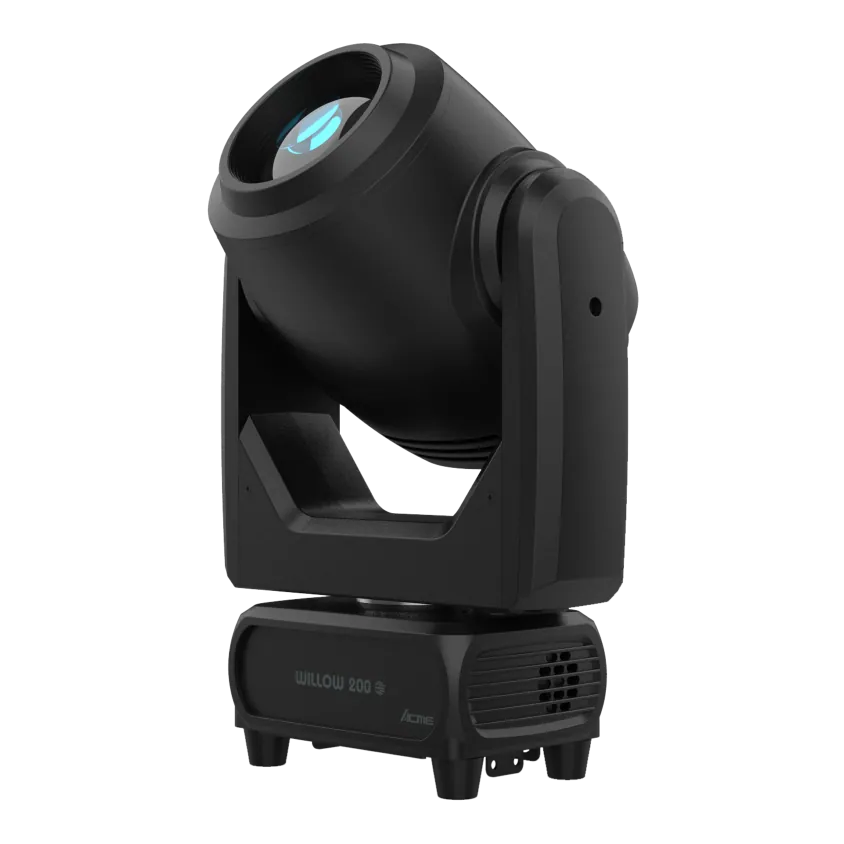

WILLOW 200
ModelBSW 200
The ACME WILLOW 200 hybrid fixture expands the possibilities of powerful, compact and energy-efficient quality, bringing an even more attractive choice.
- Light source
- 150W LED engine
- Power consumption
- 220W
- Power supply
- 100-240Vac; 50/60Hz
- Ingress protection
- IP20
- DMX channels
- 17
- Protocols
- DMX512,RDM
- Colour temperature
- 11,250K
- Net weight
- 9 kg (19.8 lbs)
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Model2
- Model Name
- WILLOW 200
- Model Code
- BSW 200
02Light Source4
- Light Source
- 150W LED engine
- Color Temperature Output of Fixture
- 11,250K
- Light Source Rated Life
- 20,000 hours*
- *Source manufacturer specification
03Photometric Data2
- Total Lumen Output of Fixture
- 8,000 lumens
- Standard Mode
- Ra>70
04Optical System3

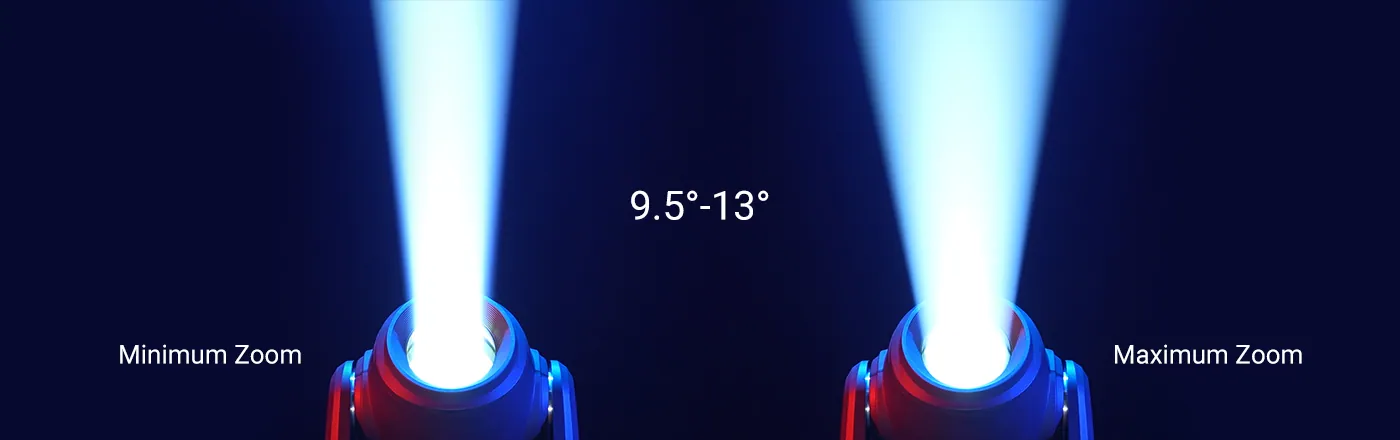

- Beam Angle
- Beam Mode
- 9.5°/13°
- Wash Mode
- 17°
- Diameter of Frontal Lens
- 100 mm
05Control7
- 4 touch button control panel
- Display
- LCD display
- Operational Modes
- DMX Control,Show Mode,Sound Active
- Protocols
- DMX512,RDM
- DMX Protocol Modes
- 1
- Control Channels
- 17
- Firmware Upgrade
- Upgrade via DMX link
06Pan & Tilt4
- Pan Movement
- 540°
- Tilt Movement
- 270°
- Automatic Pan/Tilt position correction
- Resolution
- 16 bit
Show the full specificationHide the rest of the specification13 more groups · 38 values
07Colors1
- 1 Color Wheel
- 8 colors, plus open
08Rotating Gobos2
- 1 Rotating Gobo Wheel
- 6 gobos, plus open
- Gobo
- Ø21.3 mm, lmage: Ø16 mm
09Prism1
- 1 Rotating and Indexable Prism
- 1 x 3-facet circular prism, rotatable in both directions
10Frost Filter1
- 1 frost filter
11Other Effects6
- Outstanding strobe effect with variable speed
- Smooth dimming 0-100% (4 user selectable dimming curves)
- Intelligent sound control, lighting effect changes with the music rhythm
- Multiple built-in show modes
- 1 zoom lens
- Motorized linear focus
12Electrical and Connectors5
- Input Voltage Range
- 100-240Vac; 50/60Hz
- Power Consumption
- 220W
- Power In/Out
- Power connector in/out
- Data In/Out
- 3-pin or 5-pin XLR
- Power supply with electronic auto-ranging
13Physical Information4
- Fixture Dimensions
- Width
- 286 mm (11.3")
- Depth
- 166 mm (6.6")
- Height
- 424 mm (16.7")
- Weight
- 9 kg (19.8 lbs)
14Packing Information4
- Carton Dimensions
- Width
- 380 mm (15.0")
- Depth
- 345 mm (13.6")
- Height
- 490 mm (19.3")
- Weight
- G.W.
- 11.2 kg (24.7 lbs) (one-pack loader carton)
15Work Environment4
- Maximum Ambient Temperature
- 40°C
- Minimum Operating Temperature
- 0°C
- Maximum Surface Temperature
- 60°C
- Protection Rating
- IP20
16Approvals2
- CE compliant
- UKCA compliant

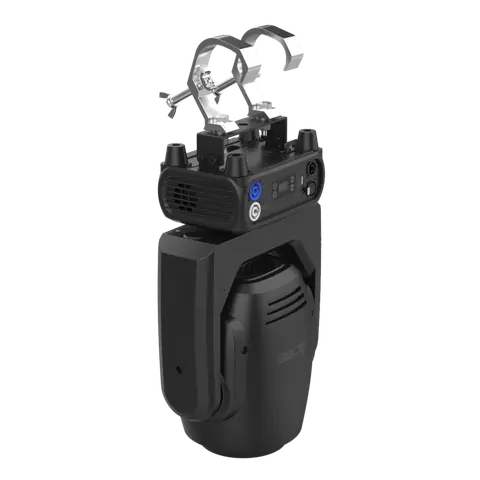

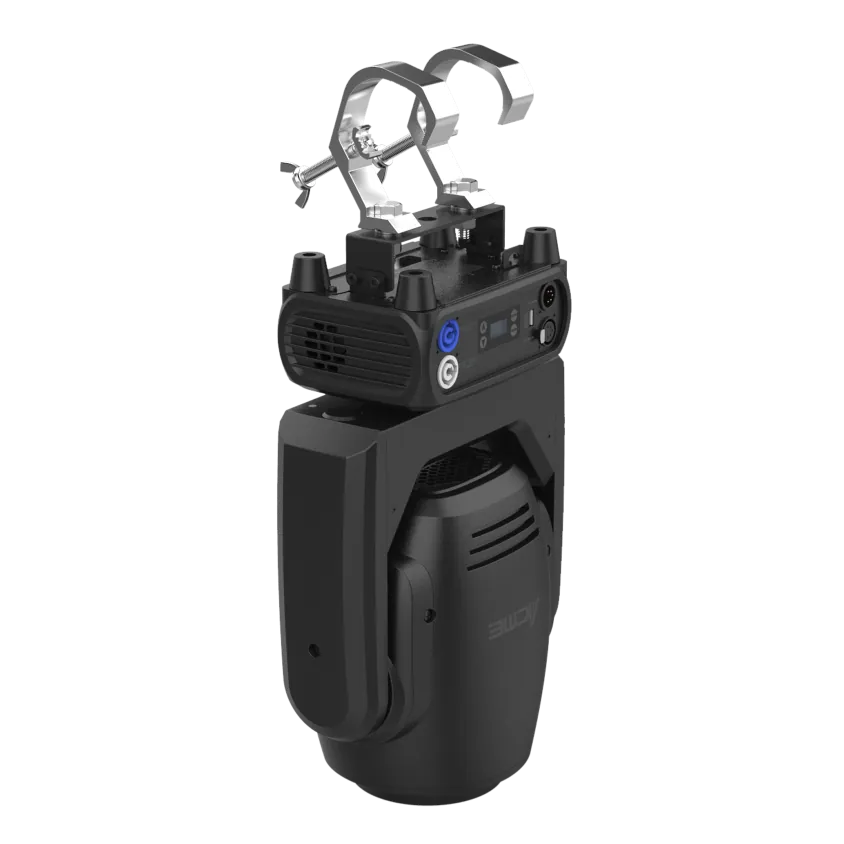

17Installation3
- Horizontal or vertical mounting
- Universal working position
- Safety cable attachment point
18Included Items2
- Digital user manual
- Power cable
19Optional Accessories (With Order Code)3
- Clamp
- C-100A (2060001635)
- Safety Cable
- SW-02 (2060000200-B)
- Signal Cable
- 3-pin or 5-pin signal cable
What it is.
The ACME WILLOW 200 hybrid fixture expands the possibilities of powerful, compact and energy-efficient quality, bringing an even more attractive choice. Combining Beam, Wash and Spot in one, this fixture is equipped with a 150W LED engine, delivering versatile lighting performance.
With a color temperature of 11,250K and an impressive output of 8,000 lumens, the WILLOW 200 can creates a striking visual impact for any performances. Featuring a rotating gobo wheel and a color wheel, this fixture can flexibly create vibrant gobos effect and easily deliver a radiant visual experience to your stage, enhancing the overall performance quality.
Weighing only 9 kgs, the WILLOW 200 is a cost-saving choice for various entertainment applications such as bars, weddings, and party rooms.
