Sheet 05.718

ACME · Hybrid fixtures

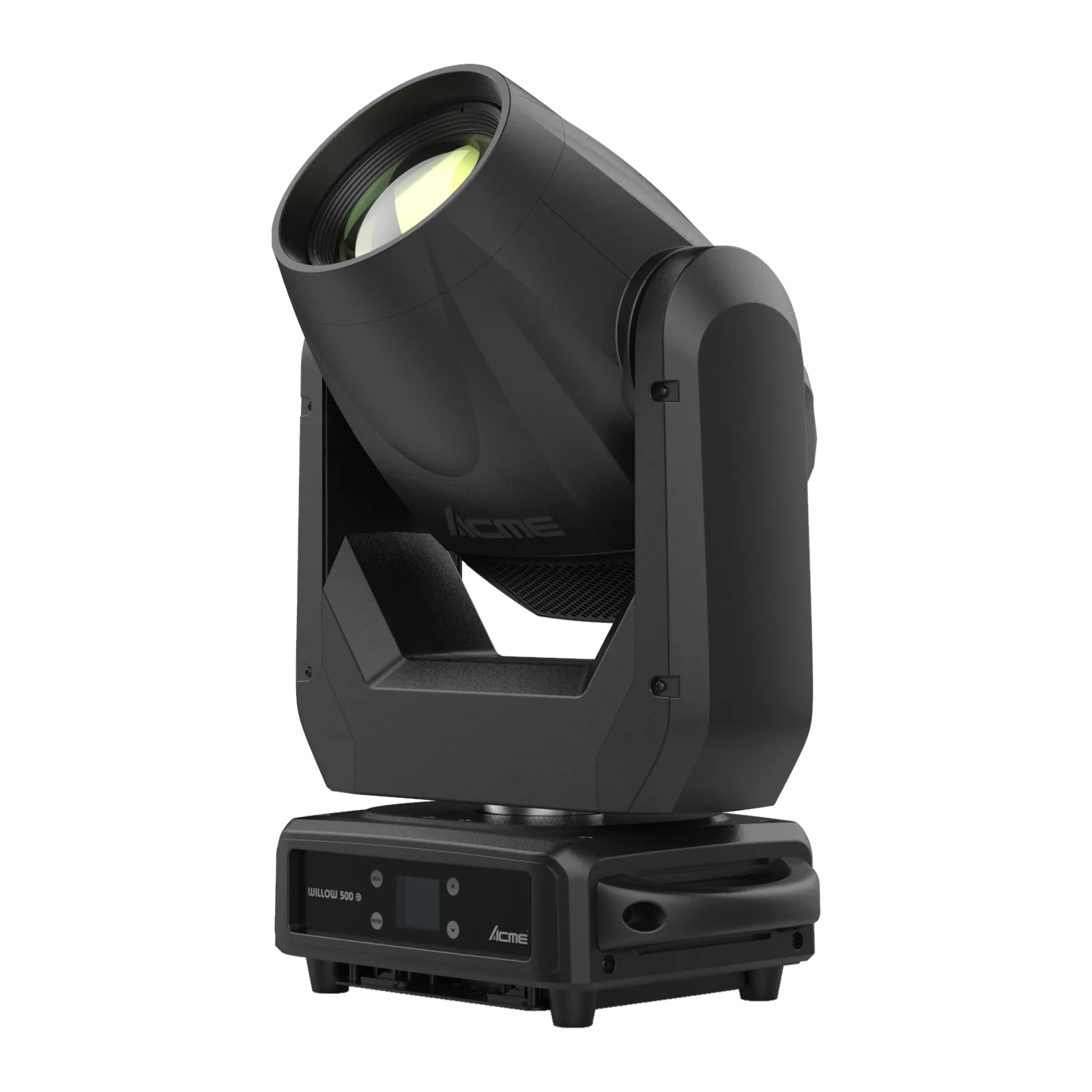

WILLOW 500

ModelBSW 500

Light source: 400W LED engine
Power consumption: 460W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP20
Beam angle / zoom: 1°/3°/6.5°/10°
DMX channels: 18
Protocols: DMX512,RDM
Net weight: 17.5 kg (38.6 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:28

ACME WILLOW 5001:28

02SpecificationManufacturer's data · 20 groups · 62 values

What this product is, in numbers.

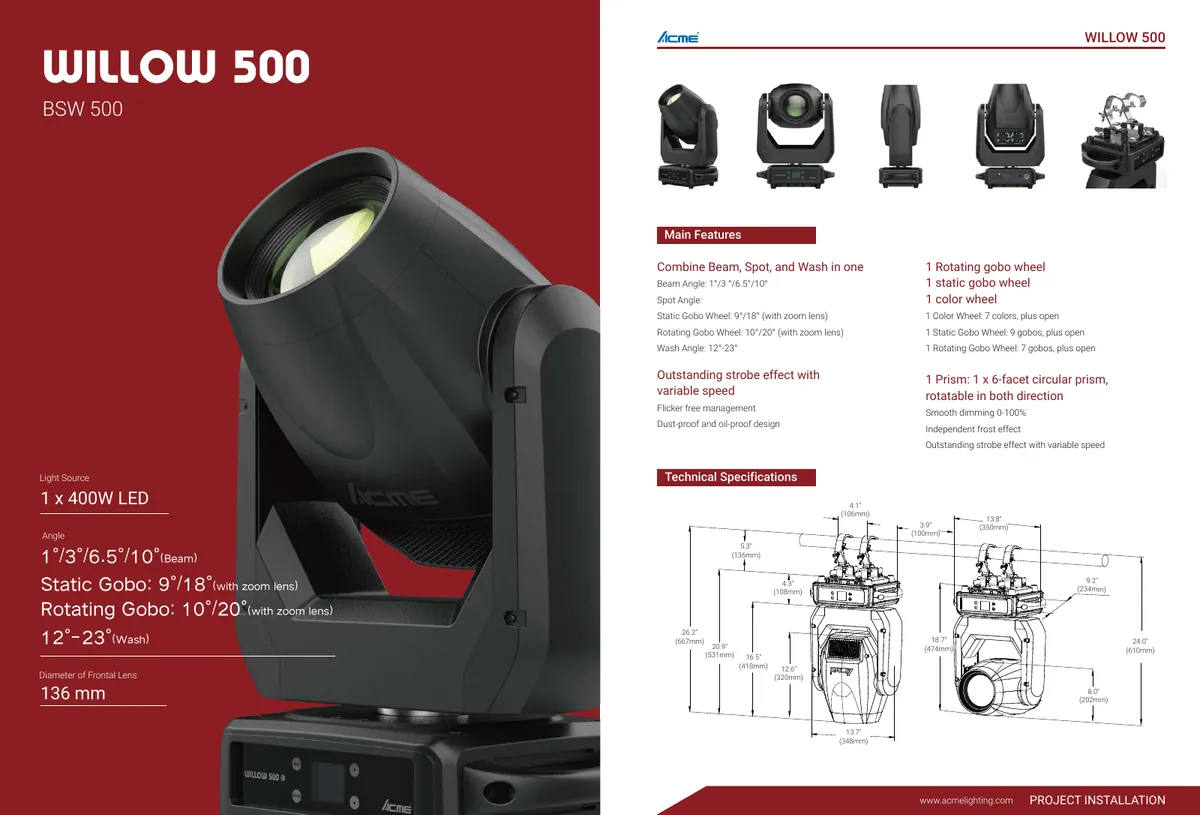

PDFDatasheetEN · 2 pages · 789 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: WILLOW 500
Model Code: BSW 500

02Light Source3

Light Source: 400W LED engine
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data1

Total Lumen Output of Fixture: 10,100 lumens

04Optical System4

Beam Angle: 1°/3°/6.5°/10°
Spot Angle
Static Gobo: 9°/18°(with zoom lens)°
Rotating Gobo: 10°/20°(with zoom lens)°
Diameter of Frontal Lens: 136 mm

05Control7

4 touch button control panel
Display: LCD display
Protocols: DMX512,RDM
DMX Protocol Modes: 1
Control Channels: 18
Firmware Upgrade: Upgrade via DMX link; Power supply with electronic auto-ranging

06Pan & Tilt4

Pan Movement: 540°
Tilt Movement: 270°; Automatic Pan/Tilt position correction
Resolution: 16 bit

Show the full specificationHide the rest of the specification14 more groups · 41 values

07Colors1

1 Color Wheel: 7 colors, plus open

08Static Gobos2

1 Static Gobo Wheel: 9 gobos, plus open
Gobo: Ø134 mm, lmage: Ø/ mm

09Rotating Gobos3

1 Rotating Gobo Wheel: 7 gobos, plus open
Gobo Slot 1-7: Ø26.8 mm, lmage: Ø16.8 mm
Gobo Slot 5: Ø26.8 mm

10Prism1

1 Rotating and Indexable Prism: 1 x 6-facet circular prism, rotatable in both directions

11Frost Filter1

1 frost filter

12Other Effects5

Outstanding strobe effect with variable speed; Smooth dimming 0-100% (4 user selectable dimming curves); Motorized focus system
Included three features: beam, spot, and wash; Rainbow effect in both directions

13Electrical and Connectors5

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 460W

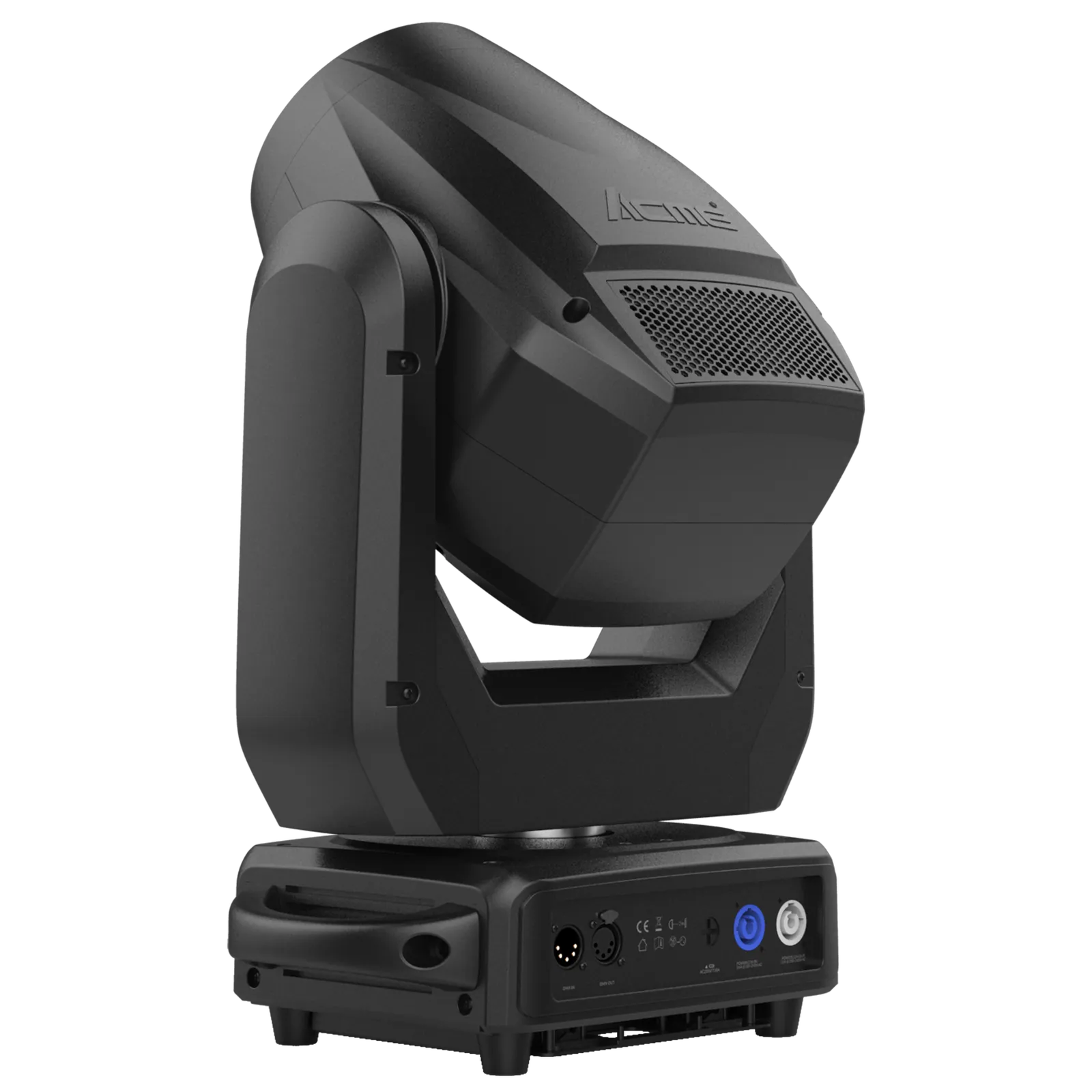

Power In/Out: Power connector in/out
Data In/Out: 3-pin or 5-pin XLR; Adaptive power supply

14Physical Information4

Fixture Dimensions
Width: 350 mm (13.8")
Depth: 234 mm (9.2")
Height: 531 mm (20.9")
Weight: 17.5 kg (38.6 lbs)

15Packing Information4

Carton Dimensions
Width: 590 mm (23.2")
Depth: 420 mm (16.5")
Height: 460 mm (18.1")
Weight
G.W.: 22 kg (48.5 lbs) (One-pack loader carton)

16Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: 0°C
Maximum Surface Temperature: 65°C
Protection Rating: IP20

17Approvals1

CE compliant

18Installation4

Horizontal or vertical mounting

Universal working position

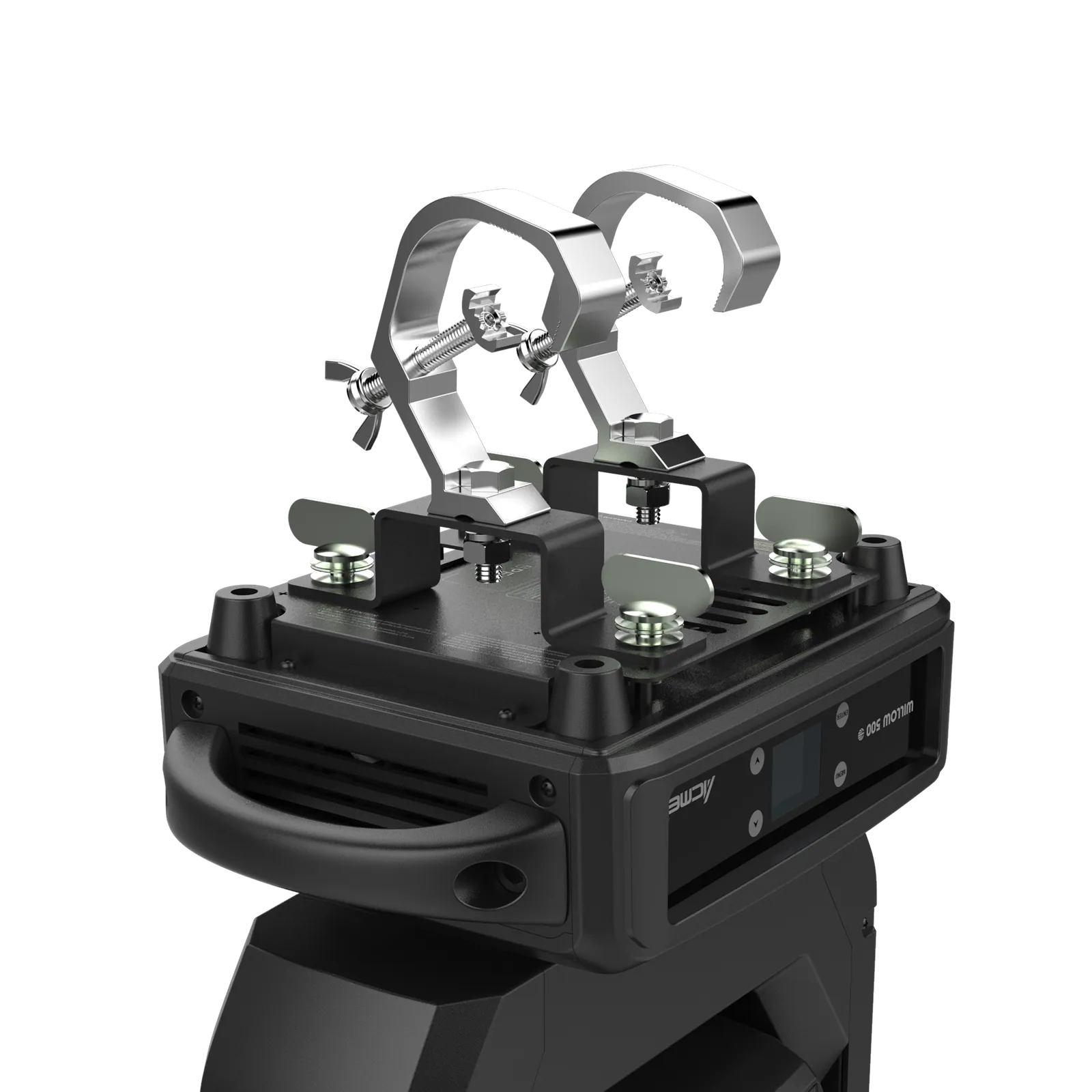

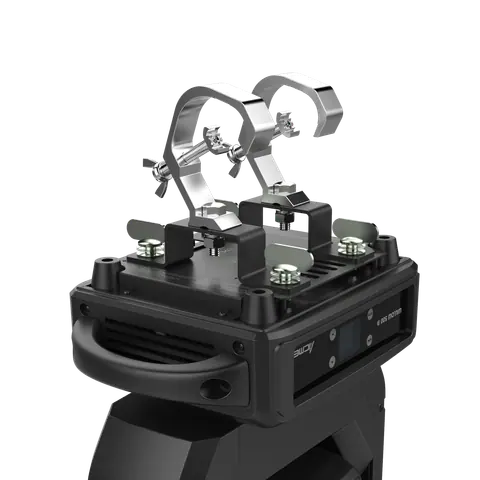

2 omega brackets

Safety cable attachment point

19Included Items3

Digital user manual

Power cable

2 omega brackets

20Optional Accessories (With Order Code)3

Clamp: C-100A (2060001635)
Safety Cable: SW-02 (2060000200-B)
Raincover: 3033001749

03DescriptionManufacturer's description

What it is.

With the upgrading and progress of technology, we have ACME New WILLOW 500 on the basis of ACME ENERGY HYBRID.. This BEAM+SPOT+WASH 3-in-1 hybrid fixture, weighs only 17.5kg, while delivers 29,500lx@5m at a tight 10° angle. With a 400W LED engine, 4 alternative beam options, 9 fixed gobos, 7 rotating gobos, 7 popular colors, independent frost, and a bi-directional rotating 6-facet prism, Willow 500 is now loading to supercharge your imagination!

04Documents7 files · 15 MB
