Sheet 05.778

ACME · Effects and lasers

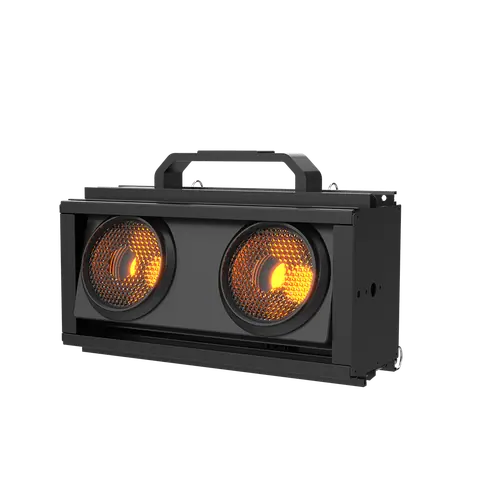

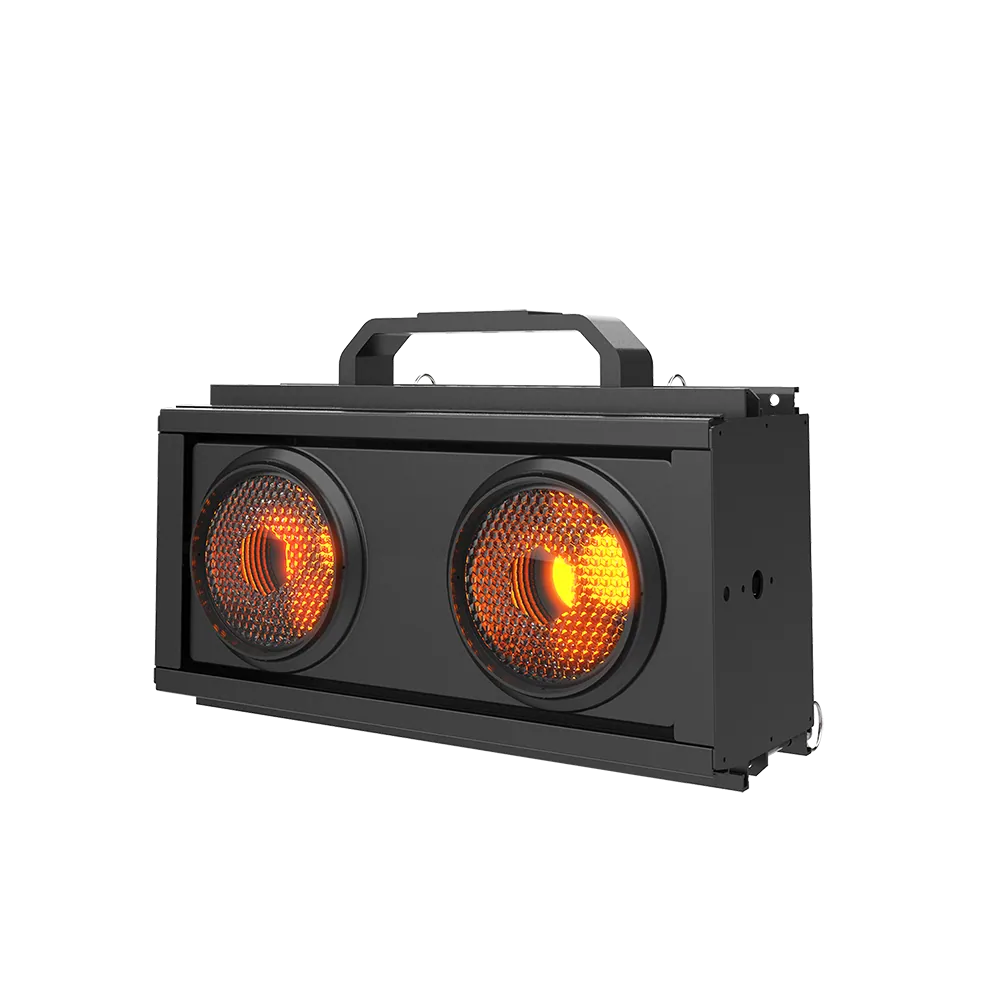

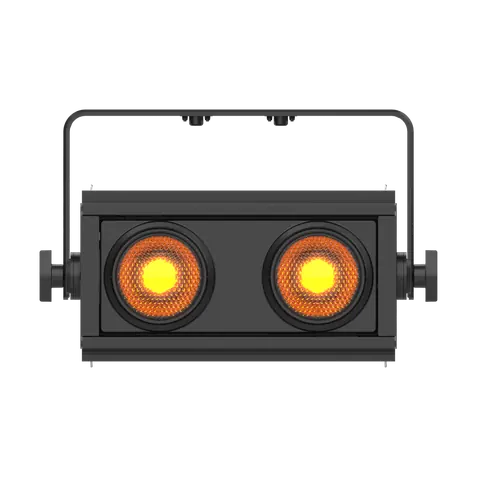

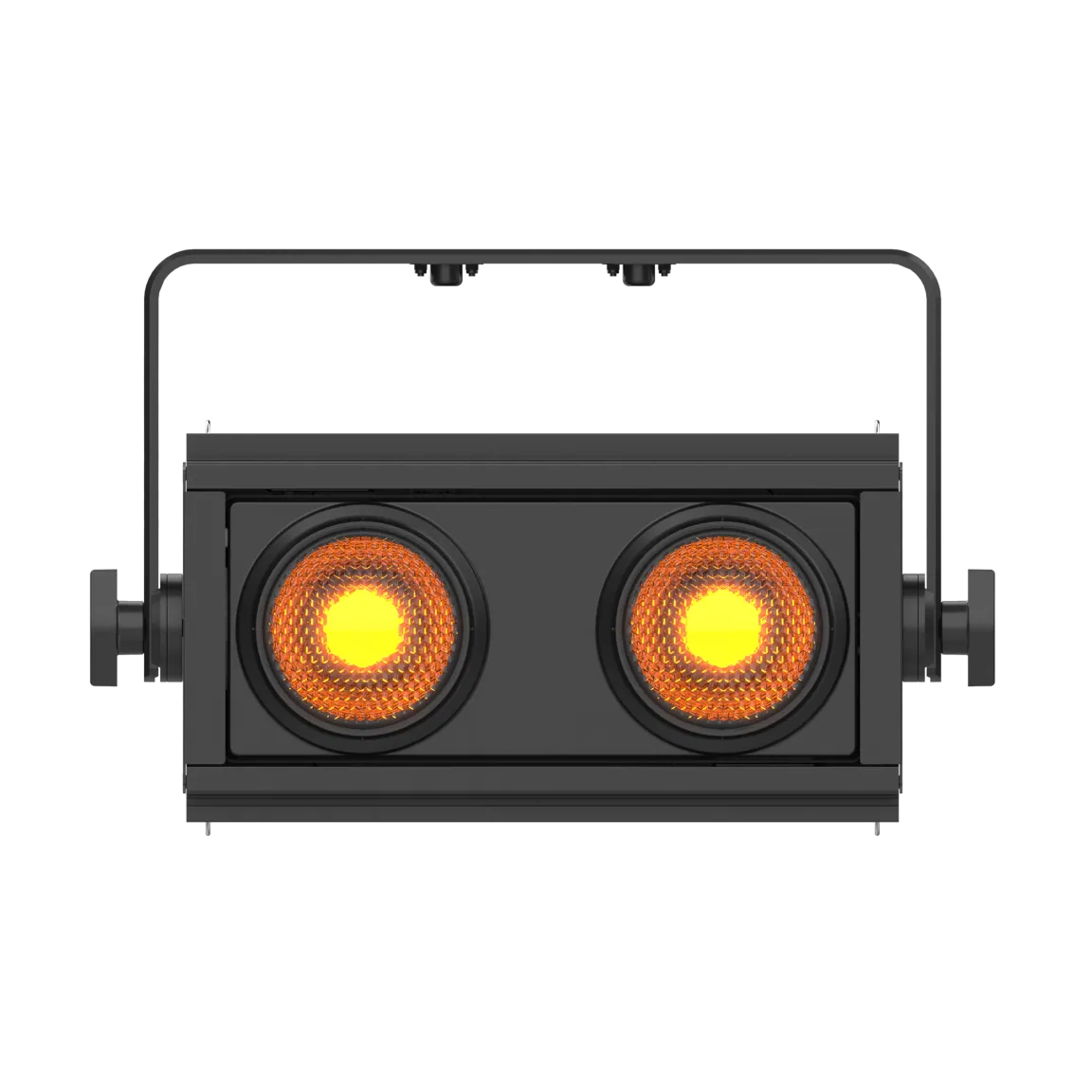

ULTRA BLINDER IP

ModelBL 200 IP

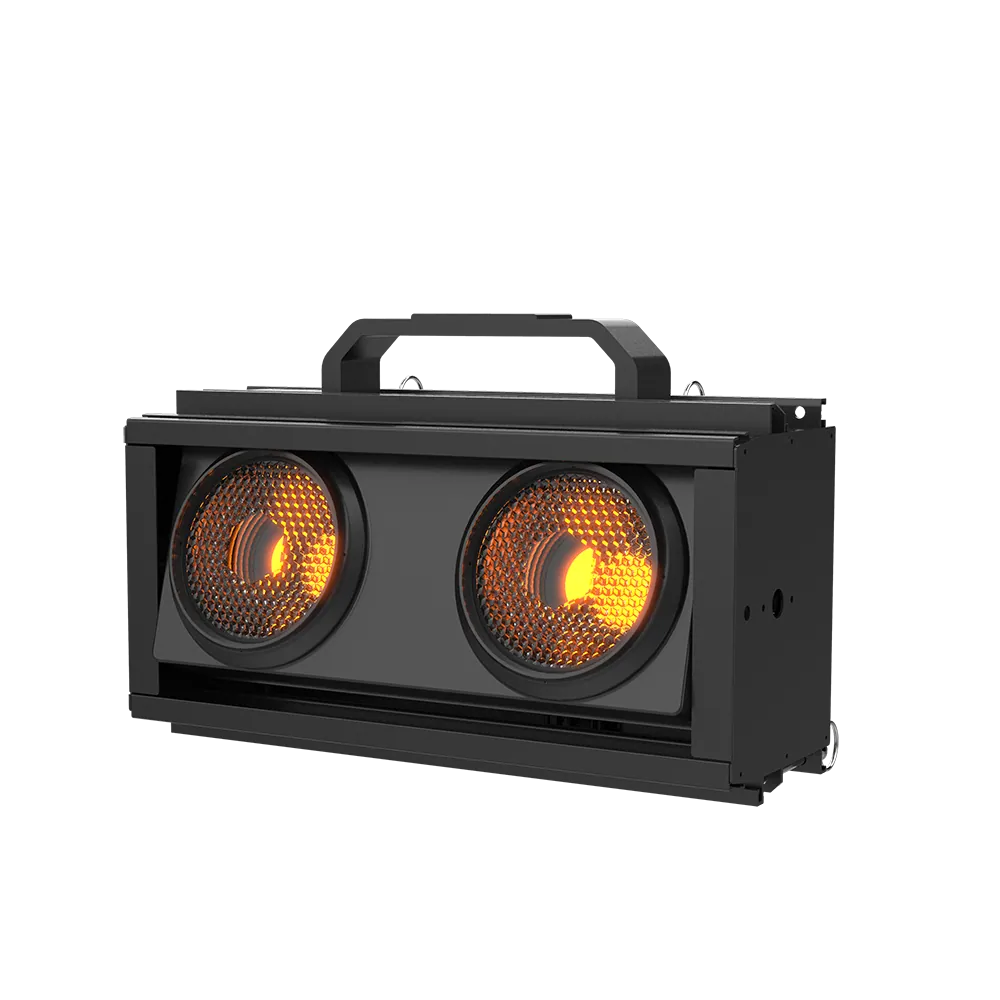

The ACME ULTRA BLINDER IP multi-effect light is renowned for its variable strobe with super-bright performance, which is brighter than the traditional audience blinder.

Light source: 2 x 260W RGBA+WW LEDs
Power consumption: 235W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66
Beam angle / zoom: 49°
DMX channels: 1/2/4/6/6/7/9/10/11/14/16
Protocols: DMX512,RDM
Net weight: 8.2 kg (18.1 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:47

ACME ULTRA BLINDER IP2:47

02SpecificationManufacturer's data · 15 groups · 67 values

What this product is, in numbers.

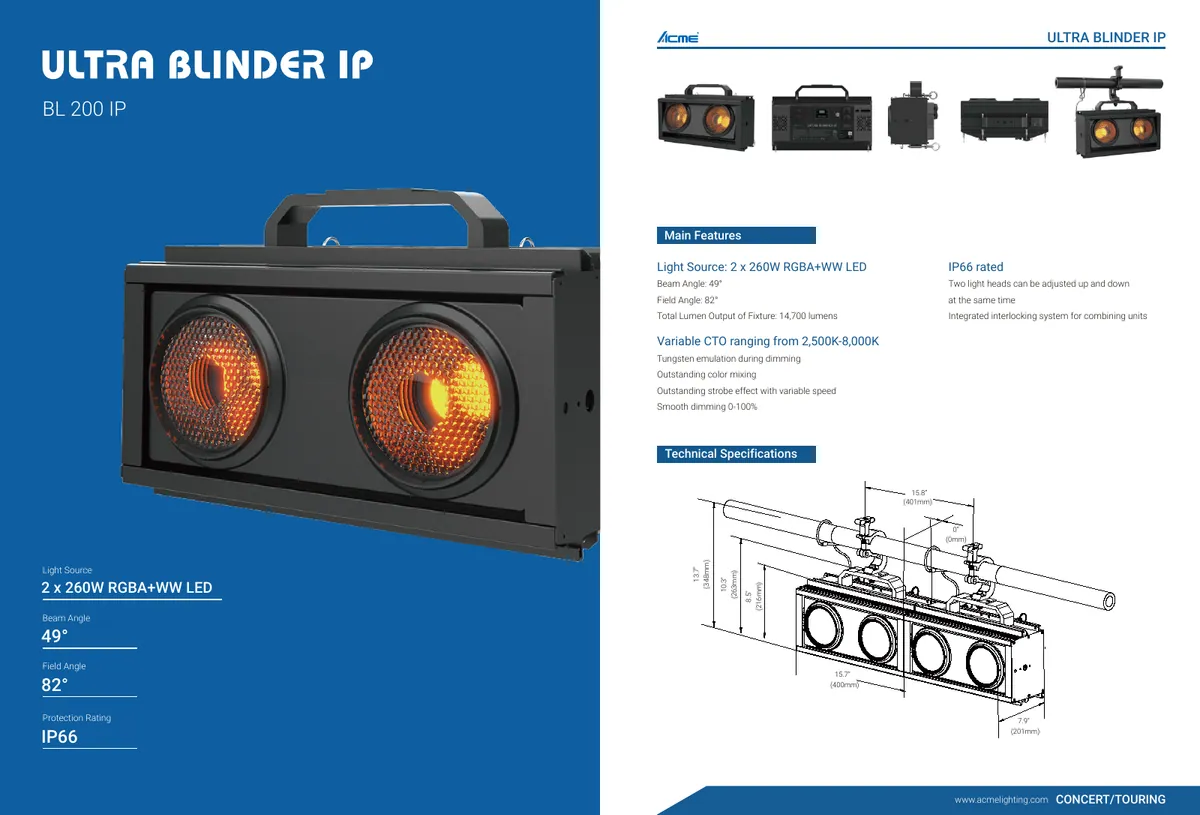

PDFDatasheetEN · 2 pages · 1.7 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: ULTRA BLINDER IP
Model Code: BL 200 IP

02Light Source3

Light Source: 2 x 260W RGBA+WW LEDs
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data1

Total Lumen Output of Fixture: 14,700 lumens

04Optical System2

Beam Angle: 49°
Field Angle: 82°

05Control6

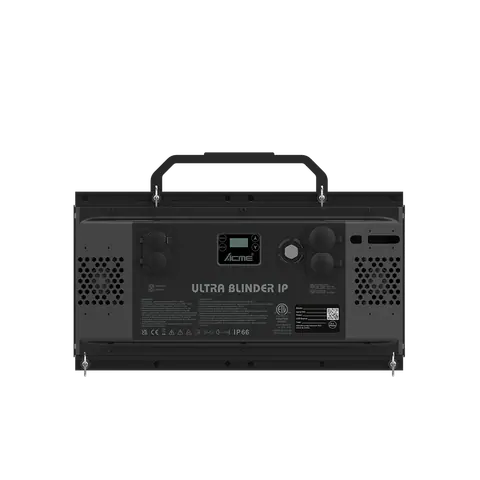

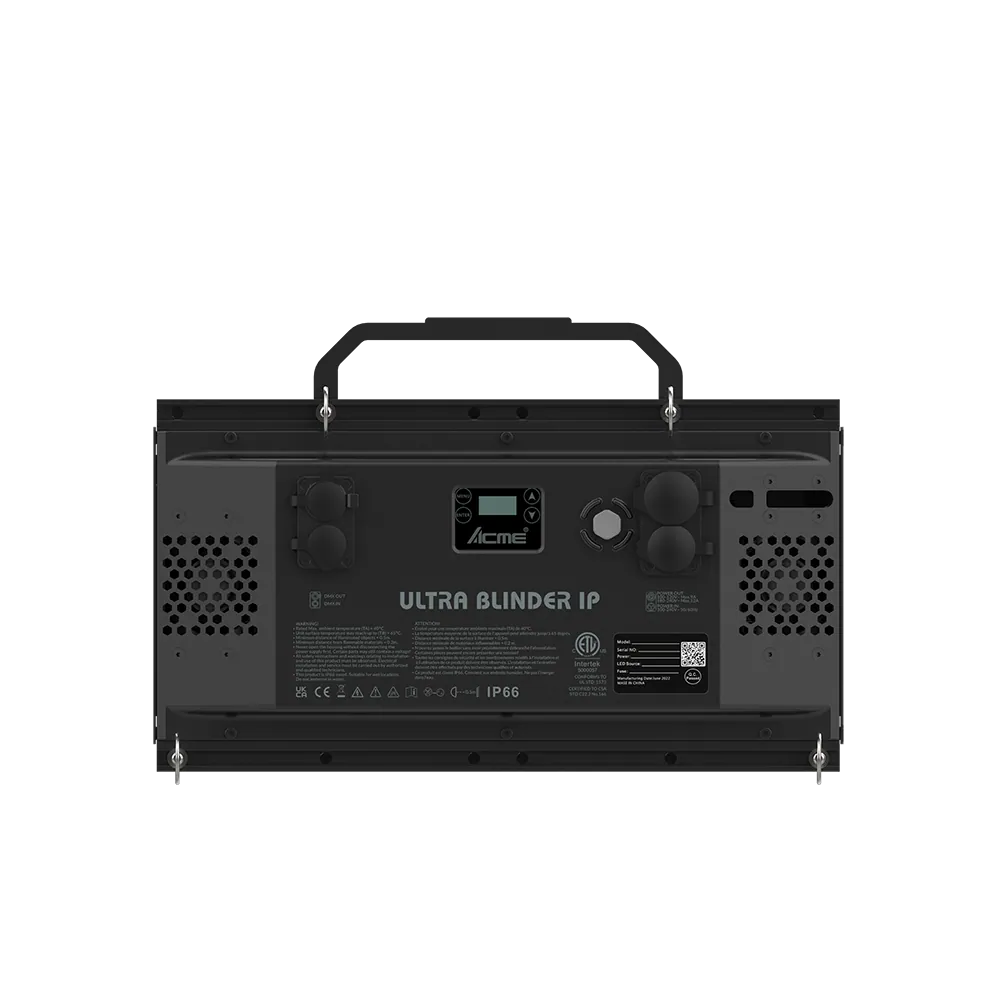

4 touch button control panel
Display: LCD display
Protocols: DMX512,RDM
DMX Protocol Modes: 11
Control Channels: 1/2/4/6/6/7/9/10/11/14/16
Firmware Upgrade: Upgrade via DMX link

06Colors1

Linear CTO Color Correction: 2,500K-8,000K

Show the full specificationHide the rest of the specification9 more groups · 52 values

07Other Effects5

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Tungsten emulation during dimming

Outstanding color mixing

Two light heads can be adjusted up and down at the same time

08Electrical and Connectors6

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 235W
Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR
Maximum Quantity of Connections
230V, 50Hz: 12 units
120V, 60Hz: 6 units

09Physical Information4

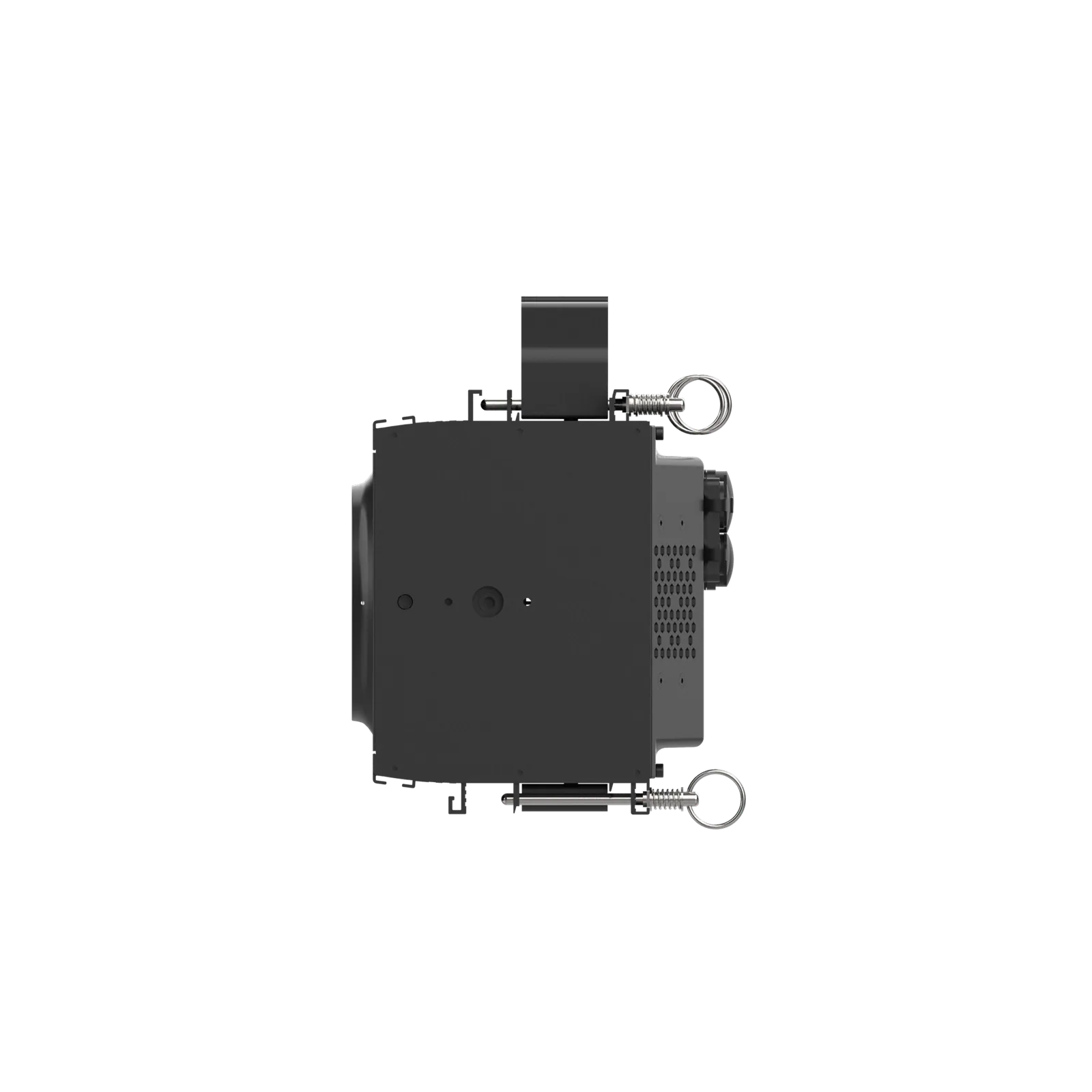

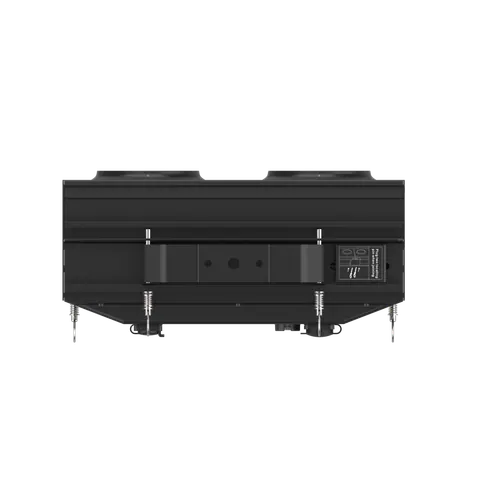

Fixture Dimensions
Width: 400 mm (15.7")
Depth: 201 mm (7.9")
Height: 263 mm (10.4")
Weight: 8.2 kg (18.1 lbs)

10Packing Information9

Flight Case Dimensions
Width: 1,220 mm (48.0")
Depth: 610 mm (24.0")
Height: 690 mm (27.2")
Weight
Standard: G.W.: 127.0 kg (280.0 lbs) (eight-pack loader case)
North American Standard: G.W.: 134.1 kg (295.6 lbs) (eight-pack loader case)
Carton Dimensions
Width: 565 mm (22.2")
Depth: 315 mm (12.4")
Height: 290 mm (11.4")
Weight
G.W.: 11.5 kg (25.4 lbs) (one-pack loader carton)

11Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 65°C
Protection Rating: IP66

12Approvals3

CE compliant

UKCA compliant

cETLus compliant

13Installation9

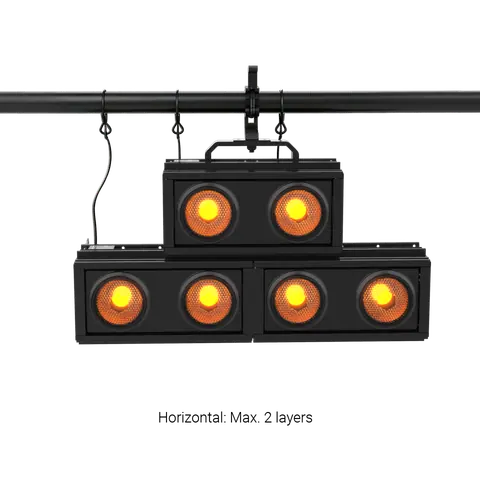

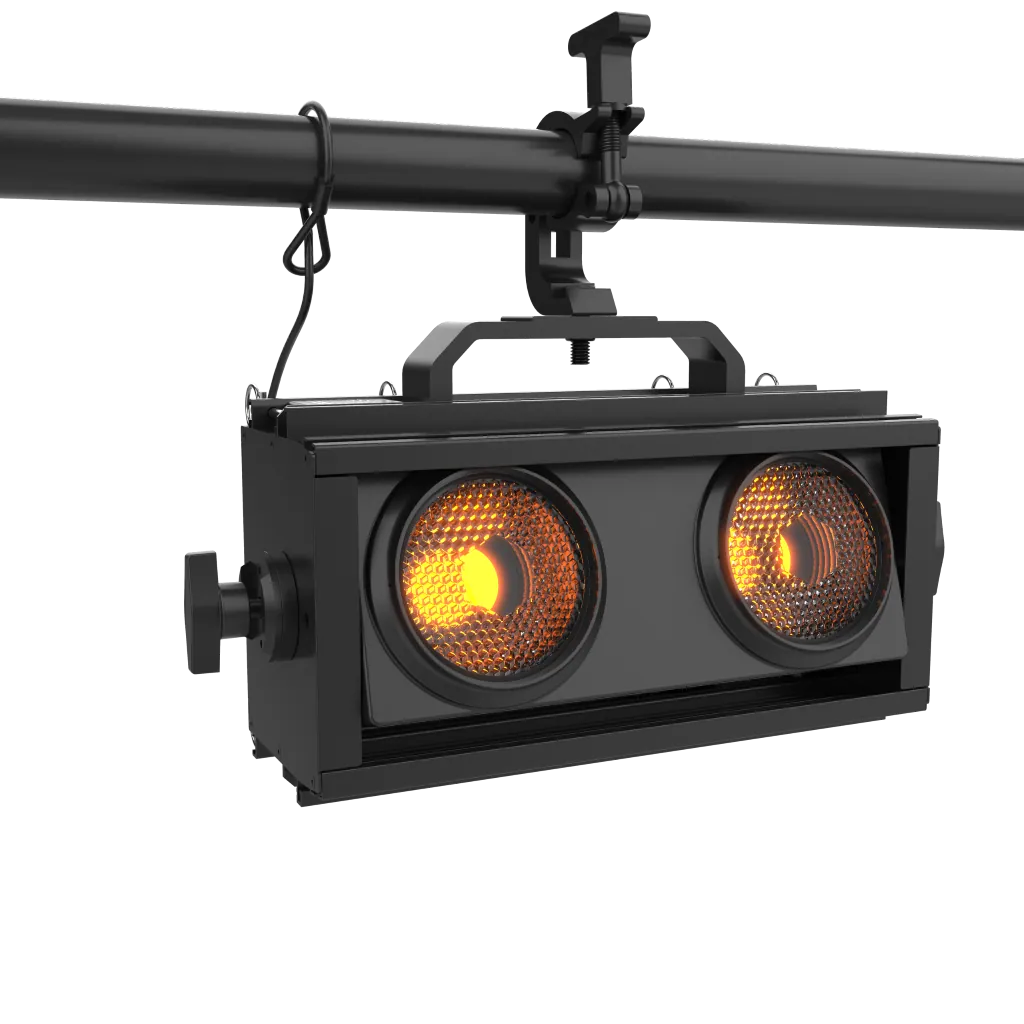

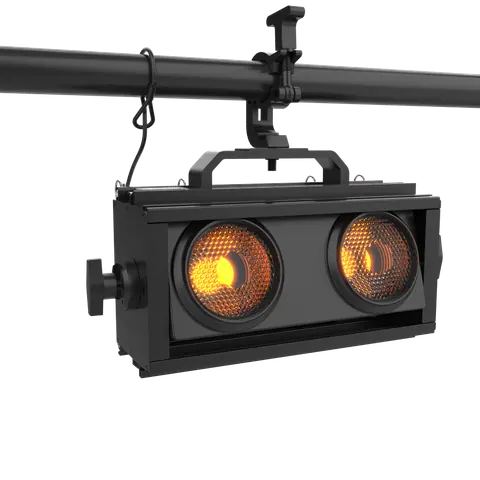

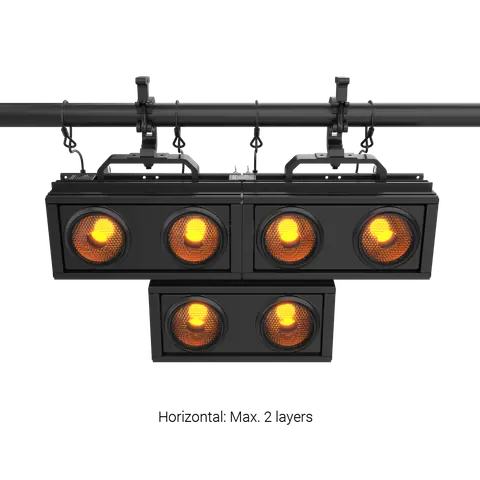

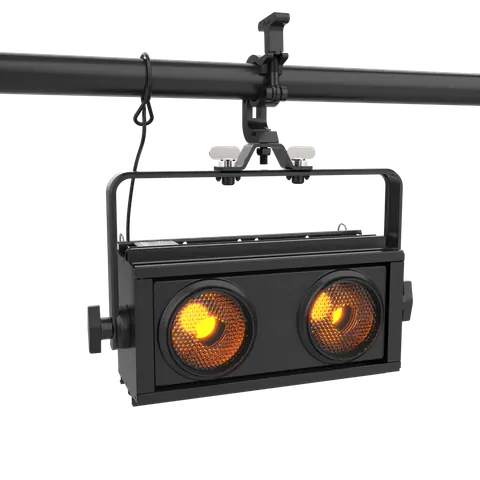

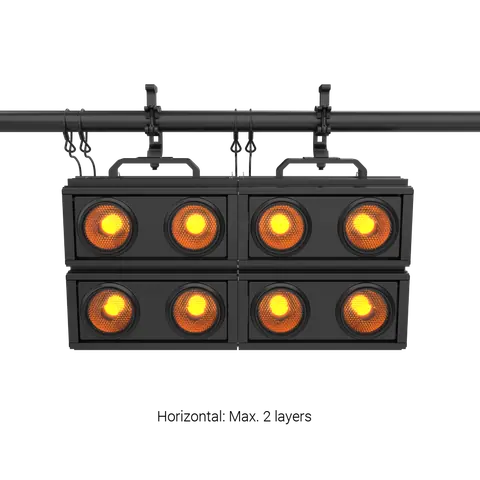

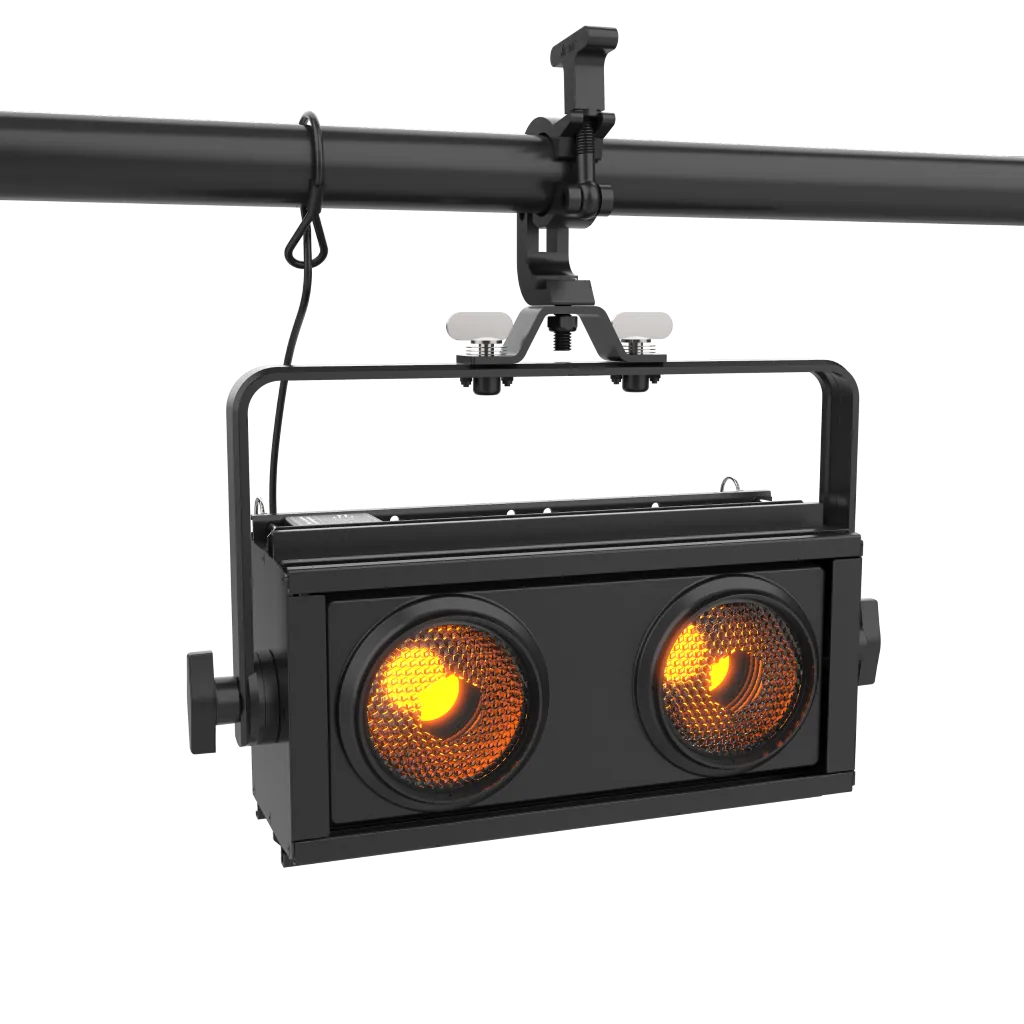

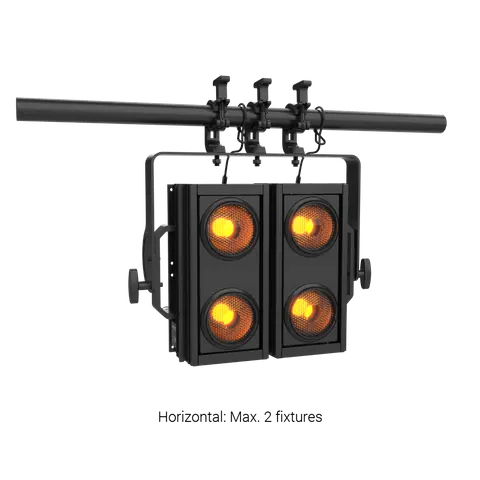

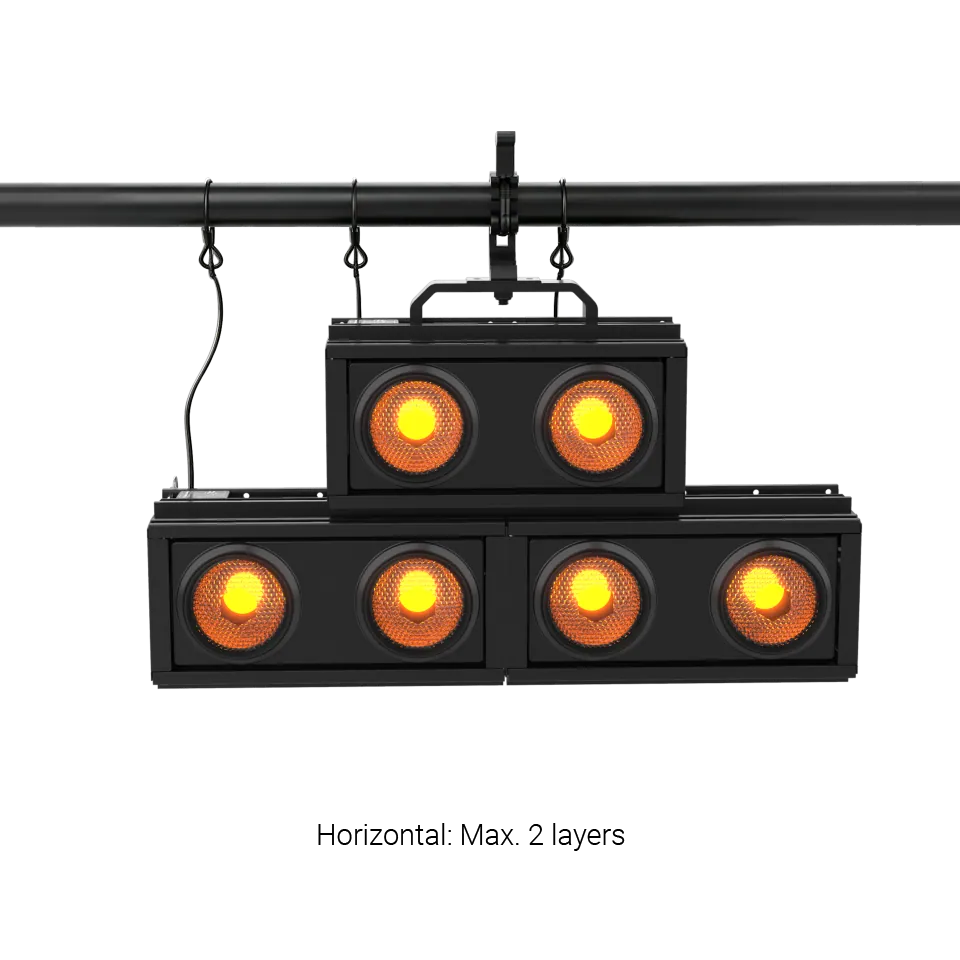

Horizontal or vertical mounting; Universal working position; 1 clamp for 50 mm truss; 1 omega bracket; Using one or two small hanging brackets (supplied) with clamp (by others), a maximum of 2 layers (3 fixtures) may be connected; Utilizing one large double vertical hanging bracket assembly (sold separately), a maximum of 2 fixtures may be connected

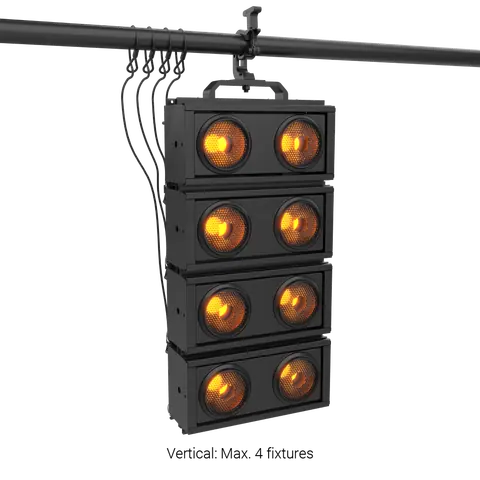

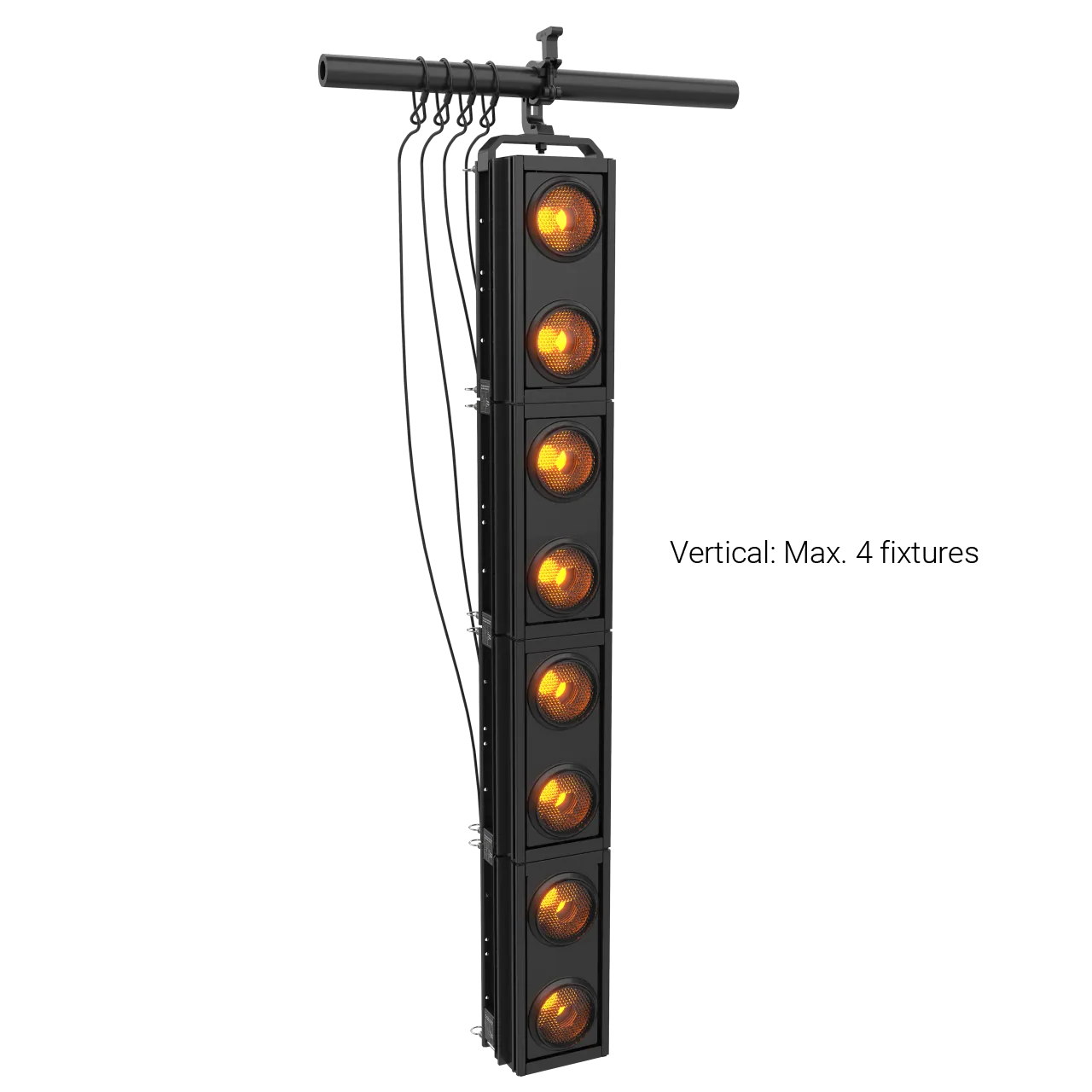

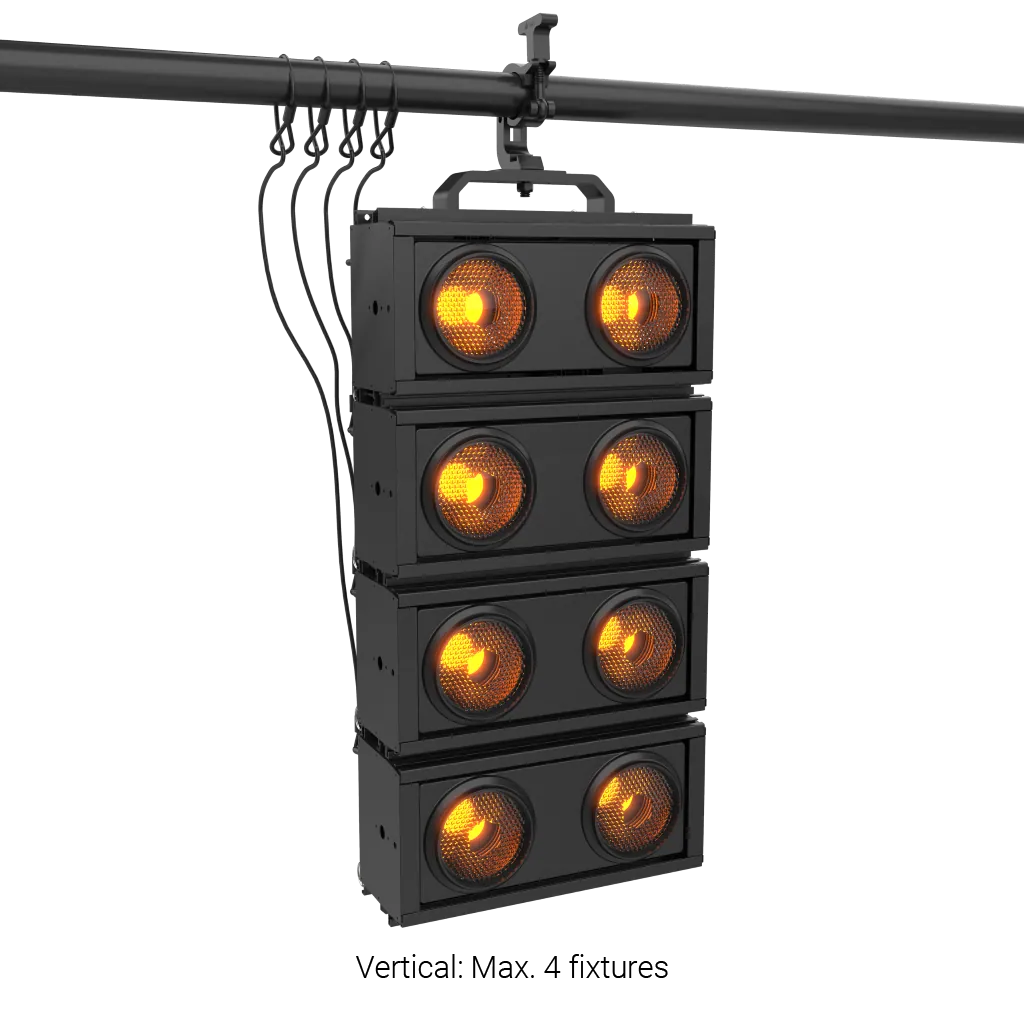

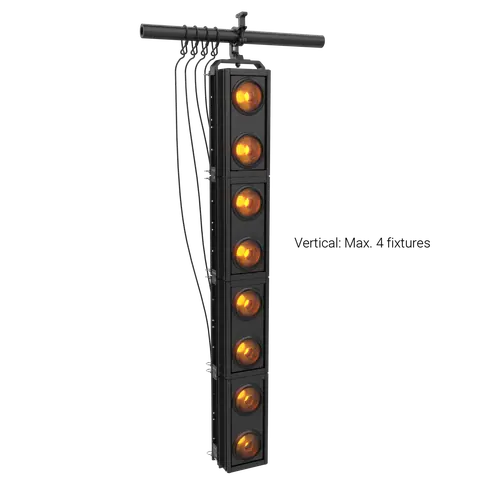

Vertical: Using one small hanging bracket (supplied) with clamp (by others), a maximum of 4 fixtures may be connected; Integrated interlocking system for combining units; Safety cable attachment point

14Included Items3

Digital user manual

Power cable

Small hanging bracket (50137301701100)

15Optional Accessories (With Order Code)9

Flight Case
Standard: Eight-pack loader case (63583607)
North American Standard: Eight-pack loader case (63583608)
Clamp: C-250B (2060001632-B)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)
Large Hanging Bracket without Omega Bracket: 63582342
Large Hanging Bracket with Omega Bracket: 63583658
Large Double Vertical Hanging Bracket Assembly: 63580738
Omega Bracket: 3002003002

03DescriptionManufacturer's description

What it is.

Featuring 2 pcs 260-Watt RGBA+WW LEDs, the fixture delivers an impressive 6,800 lumens output and exceptional color mixing effects. The ULTRA BLINDER IP boasts a 49° beam angle, an 82° field angle, and an adjustable light head, providing extensive lighting coverage. Equipped with an integrated interlocking system, it allows for accessory-free horizontal and vertical connections, and can be easily integrated with other BL 200 series fixtures.

With its outstanding cooling system and IP66, this fixture is the perfect choice for large and medium-sized concerts, variety shows, and other professional stage or entertainment applications requiring a striking visual impact.
