Sheet 05.779

ACME · Effects and lasers

ULTRA PAR IP

ModelBL 100 IP

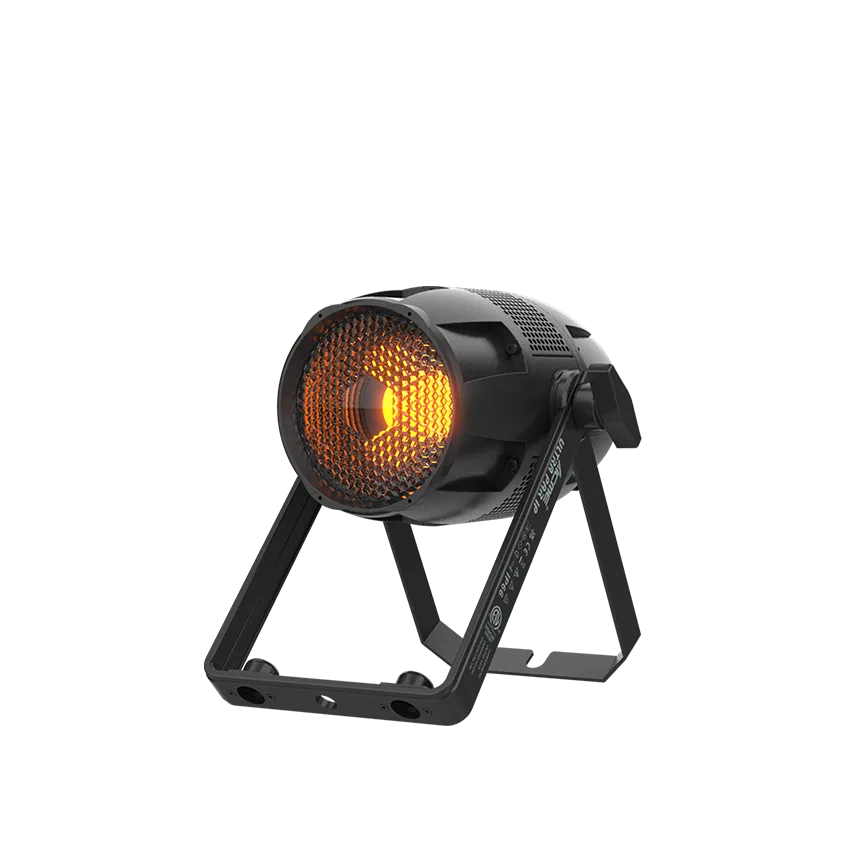

The ACME ULTRA PAR IP redefines brightness in stage lighting. Featuring a 260-Watt RGBA+WW LED light source, the fixture delivers an impressive 7,600 lumens of output, surpassing traditional audience lights.

Light source: 260W RGBA+WW LED
Power consumption: 120W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66
Beam angle / zoom: 50°
DMX channels: 1/2/4/4/6/7/9/11
Protocols: DMX512,RDM
Colour temperature: 2,600K-2,750K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 14 groups · 62 values

What this product is, in numbers.

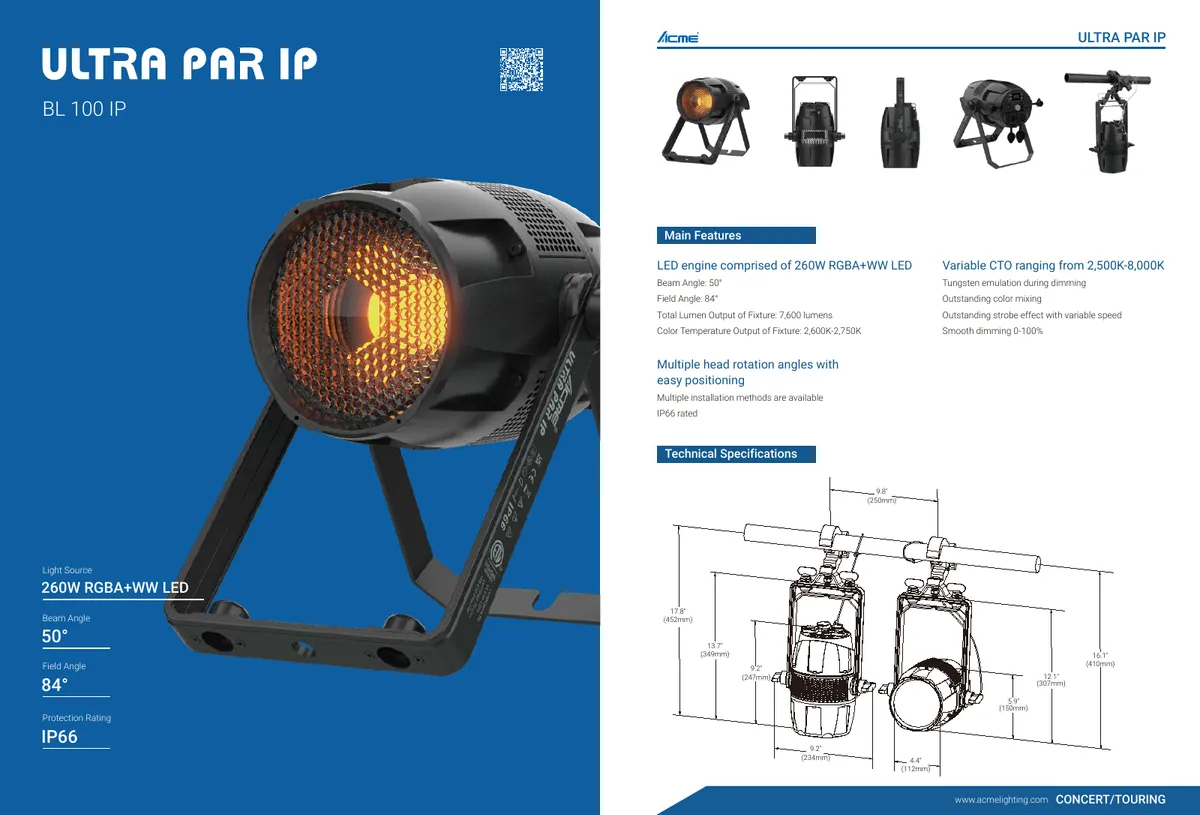

PDFDatasheetEN · 2 pages · 576 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: ULTRA PAR IP
Model Code: BL 100 IP

02Light Source4

Light Source: 260W RGBA+WW LED
Color Temperature Output of Fixture: 2,600K-2,750K
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data1

Total Lumen Output of Fixture: 7,600 lumens

04Optical System2

Beam Angle: 50°
Field Angle: 84°

05Control6

4 touch button control panel
Display: LCD display
Protocols: DMX512,RDM
DMX Protocol Modes: 8
Control Channels: 1/2/4/4/6/7/9/11
Firmware Upgrade: Upgrade via DMX link

06Other Effects5

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Tungsten emulation during dimming

Outstanding color mixing

Multiple head rotation angles with easy positioning

Show the full specificationHide the rest of the specification8 more groups · 42 values

07Electrical and Connectors7

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 120W

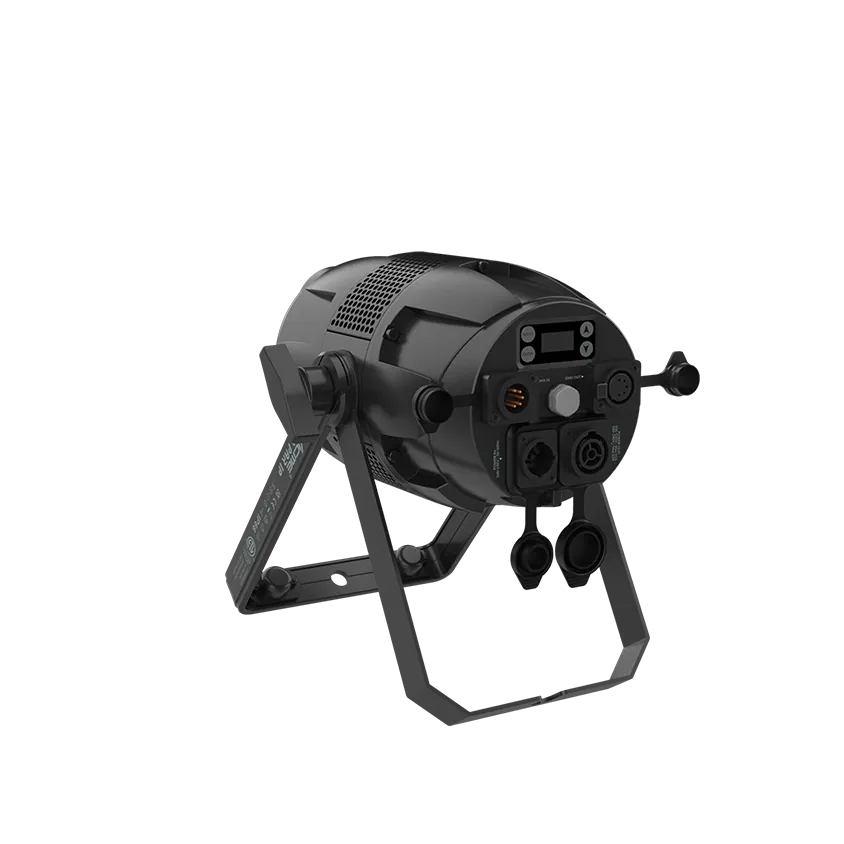

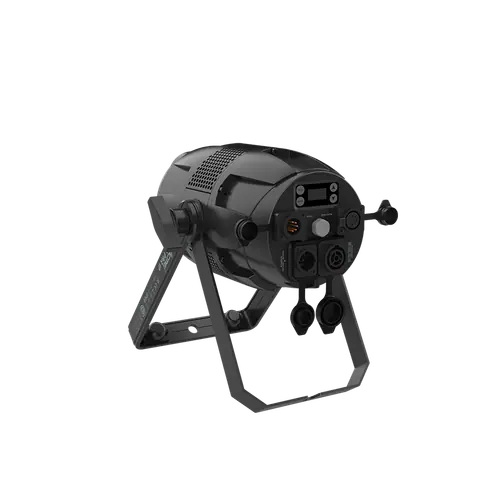

Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR
Maximum Quantity of Connections
230V, 50Hz: 24 units
120V, 60Hz: 13 units; Power supply with electronic auto-ranging

08Physical Information4

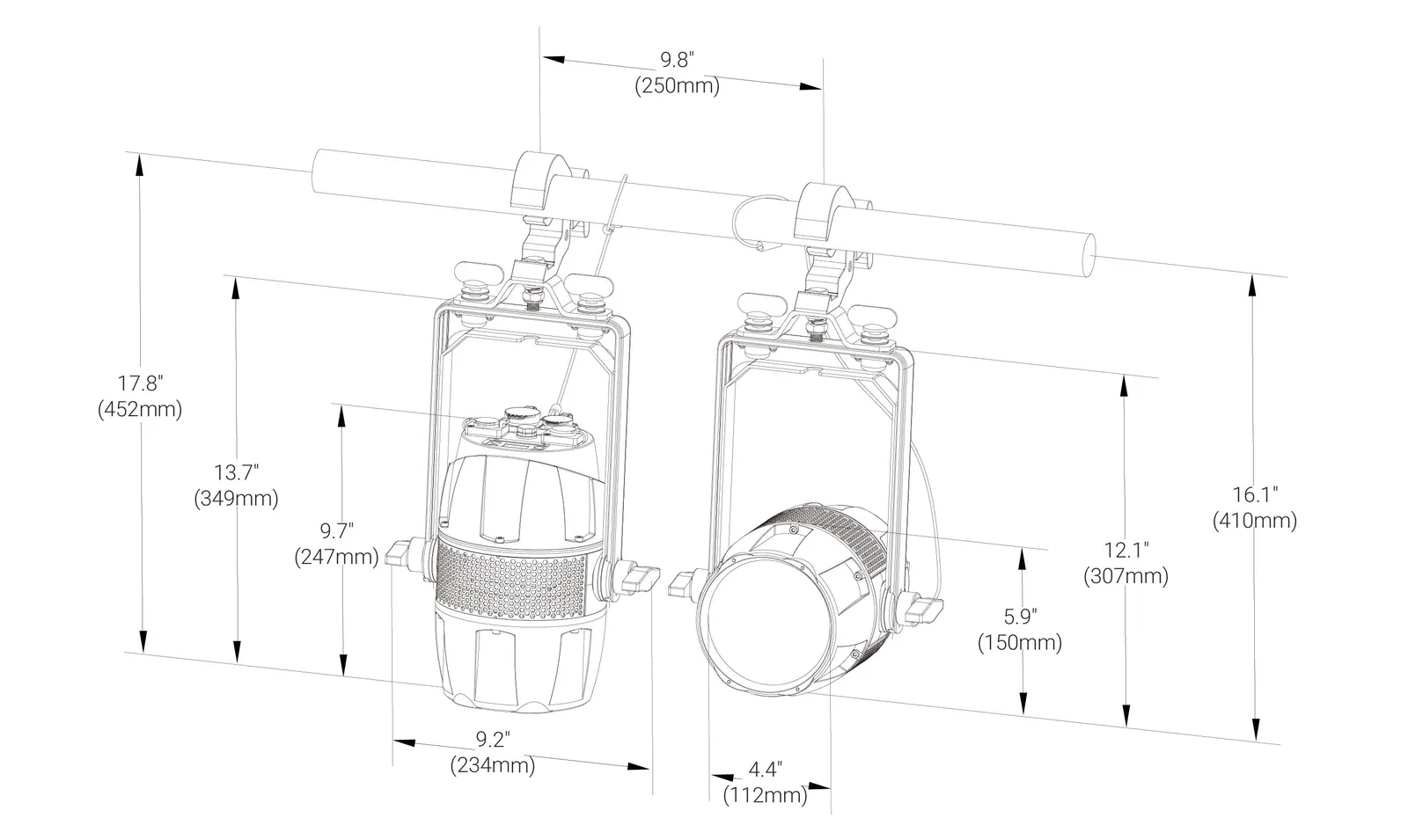

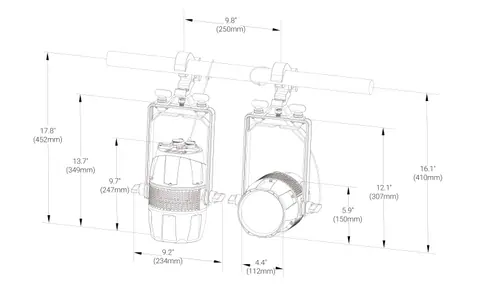

Fixture Dimensions
Width: 234 mm (9.2")
Depth: 251 mm (9.9")
Height: 307 mm (12.1")
Weight: 3.5 kg (7.7 lbs)

09Packing Information9

Flight Case Dimensions
Width: 1,220 mm (48.0")
Depth: 610 mm (24.0")
Height: 595 mm (23.4")
Weight
Standard: G.W.: 92.5 kg (203.9 lbs) (Ten-pack loader case)
North American Standard: G.W.: 98.8 kg (217.8 lbs) (Ten-pack loader case)
Carton Dimensions
Width: 410 mm (16.1")
Depth: 220 mm (8.7")
Height: 325 mm (12.8")
Weight
G.W.: 4.8 kg (10.6 lbs) (One-pack loader carton)

10Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 65°C
Protection Rating: IP66

11Approvals3

CE compliant

UKCA compliant

cETLus compliant

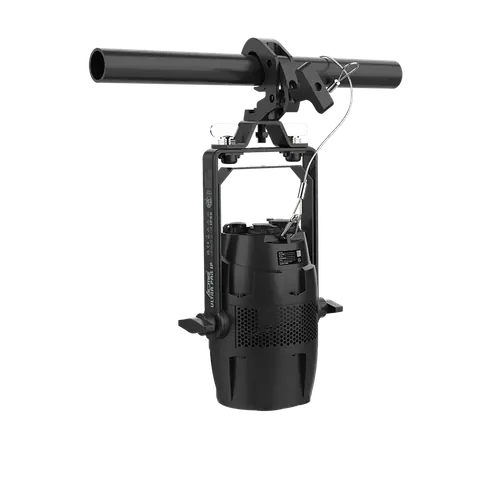

12Installation6

Horizontal or vertical mounting

Universal working position

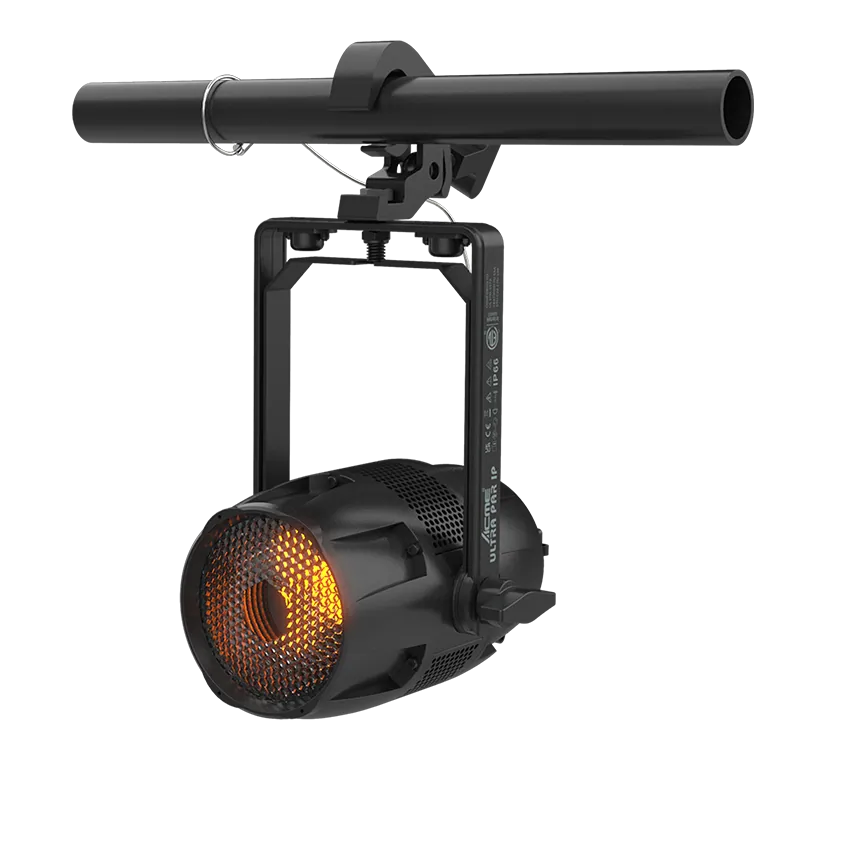

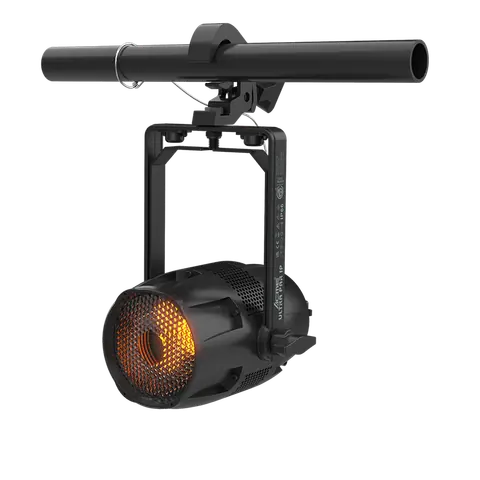

1 clamp for 50 mm truss

1 omega bracket

Double mounting bracket

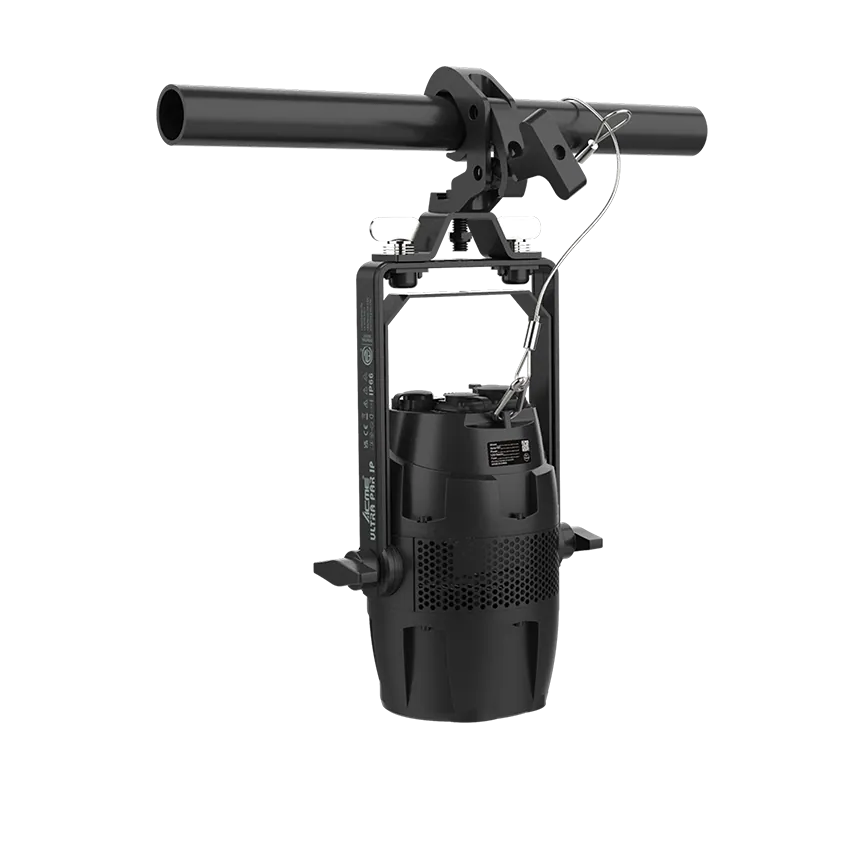

Safety cable attachment point

13Included Items3

Digital user manual

Power cable

1 omega bracket (3002003002)

14Optional Accessories (With Order Code)6

Flight Case
Standard: Ten-pack loader case (63583605)
North American Standard: Ten-pack loader case (63583606)
Clamp: C-150B (2060001625-C)
Safety Cable: SW-02 (2060000200-B)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)

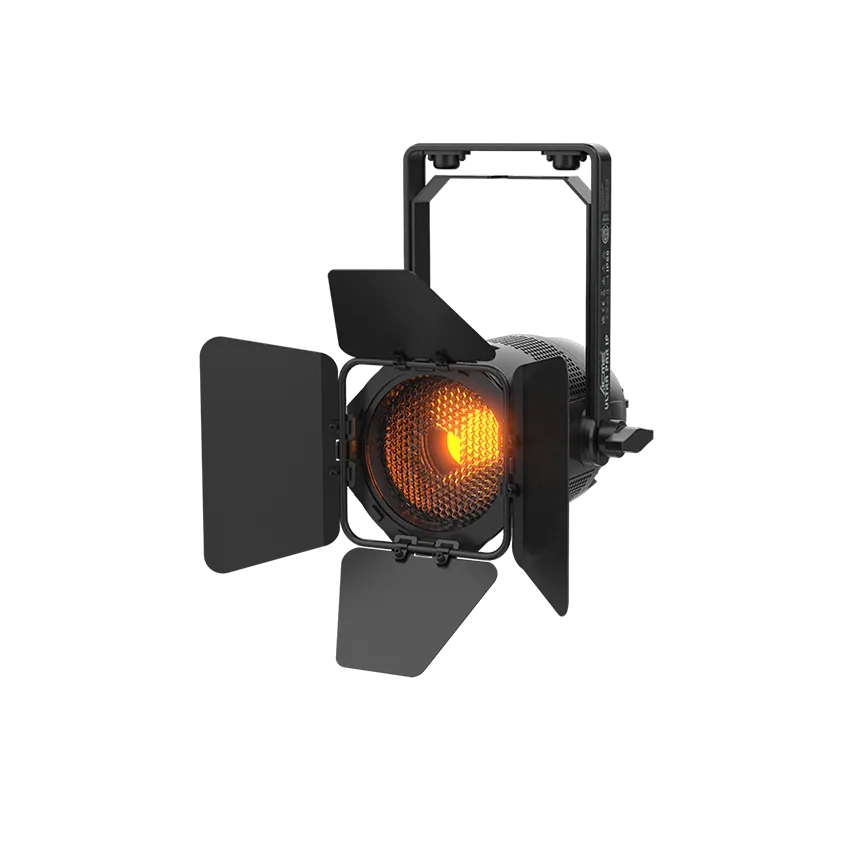

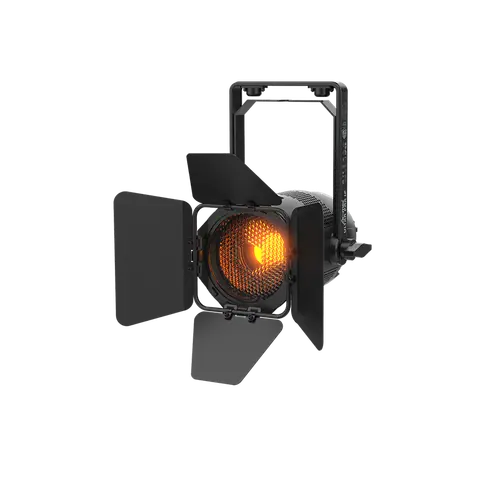

Barndoor: 63581327

02DescriptionManufacturer's description

What it is.

Designed with a 50° beam angle and an 84° field angle, the ULTRA PAR IP ensures broad coverage, enhanced by its adjustable head for precise positioning. The fixture offers 4 smooth dimming curves, a tungsten lighting effect and strobe effect with variable speed for all your lighting production needs.

Compact, portable, and multiple installation options, the ULTRA PAR IP is designed for easy integration. With its exceptional heat dissipation and IP66, it’s suitable for indoor and outdoor use, such as conference centers, exhibition halls, large and medium-scale concerts, TV productions and more.

03Documents13 files · 12 MB
