Sheet 05.719

ACME · Hybrid fixtures

ZEUS

ModelXP 500 BSW IP

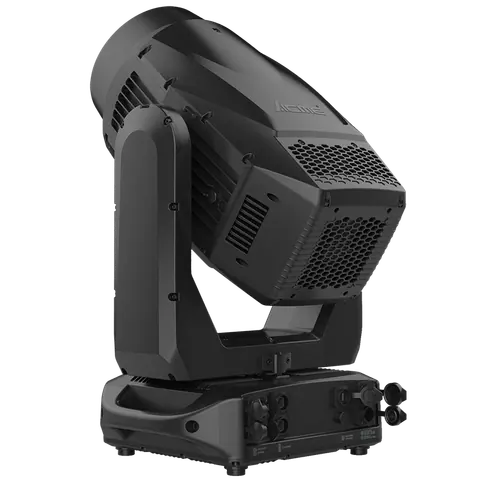

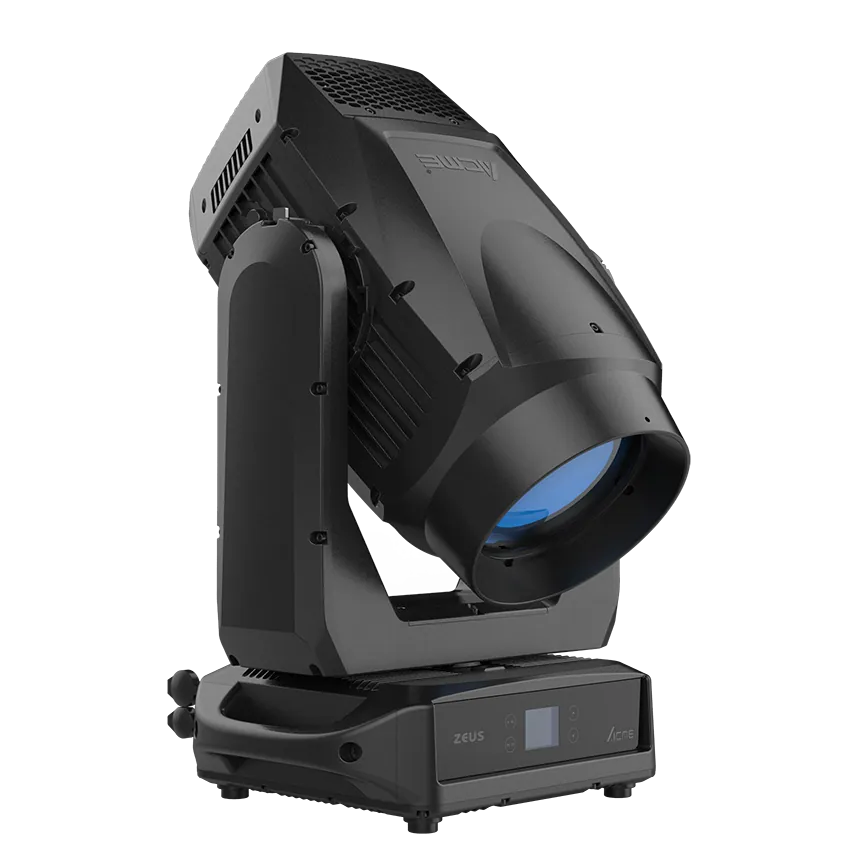

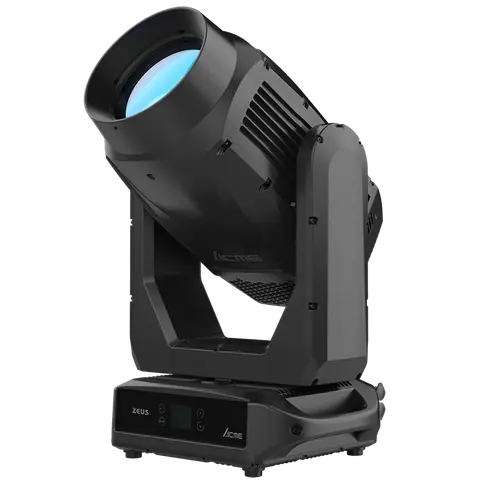

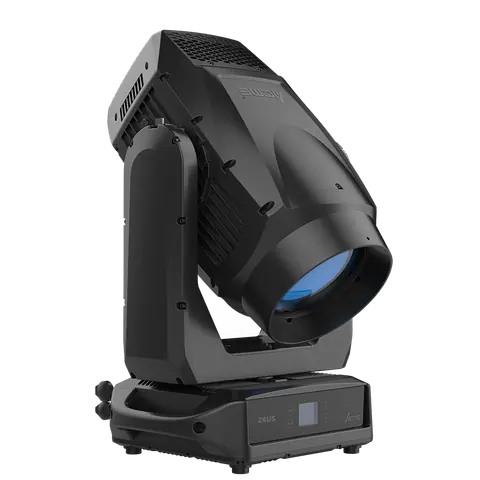

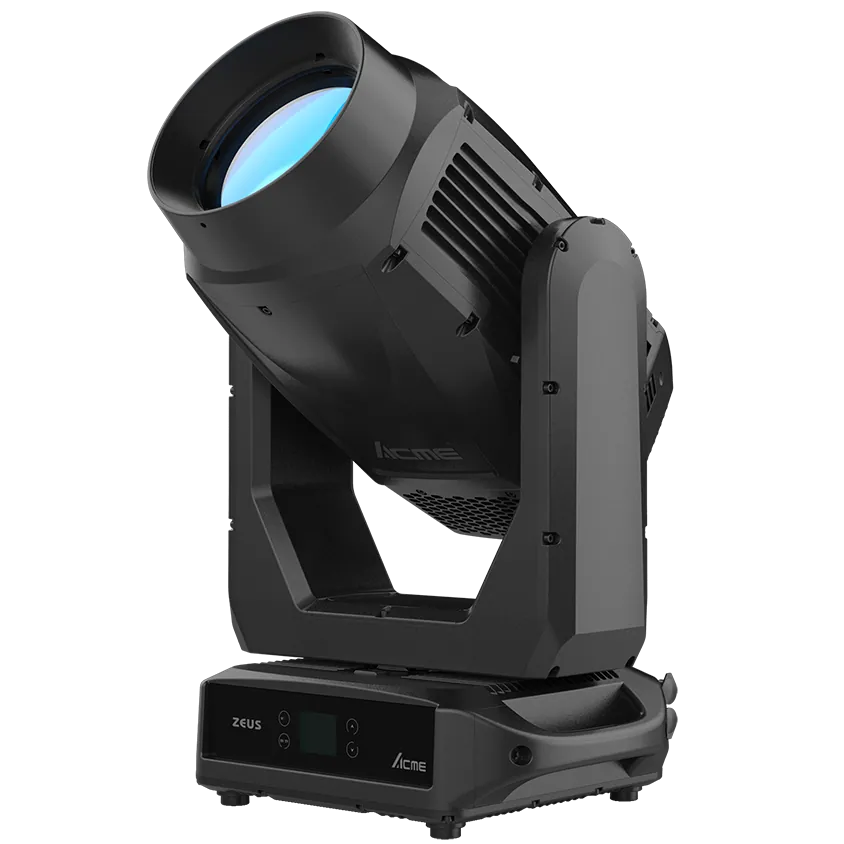

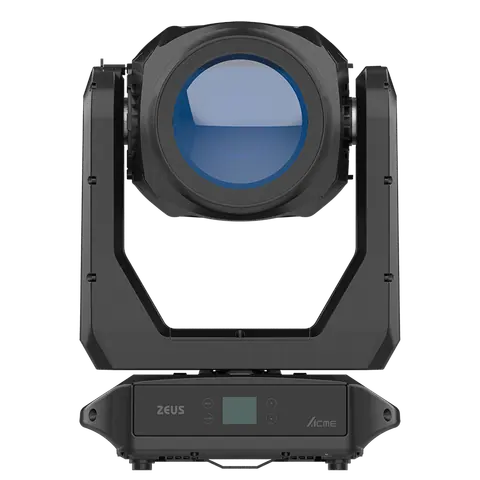

The ACME ZEUS is an IP66 hybrid light that delivers precise and dynamic beams in a compact design.

Light source: PHILIPS MSD Silver 420W/2 LL
Power consumption: 655W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66
DMX channels: 20/28
Protocols: DMX512,RDM,Art-Net,sACN
Colour temperature: 7,800K
Net weight: 30 kg (66.4 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:35

ACME ZEUS2:35

02SpecificationManufacturer's data · 19 groups · 67 values

What this product is, in numbers.

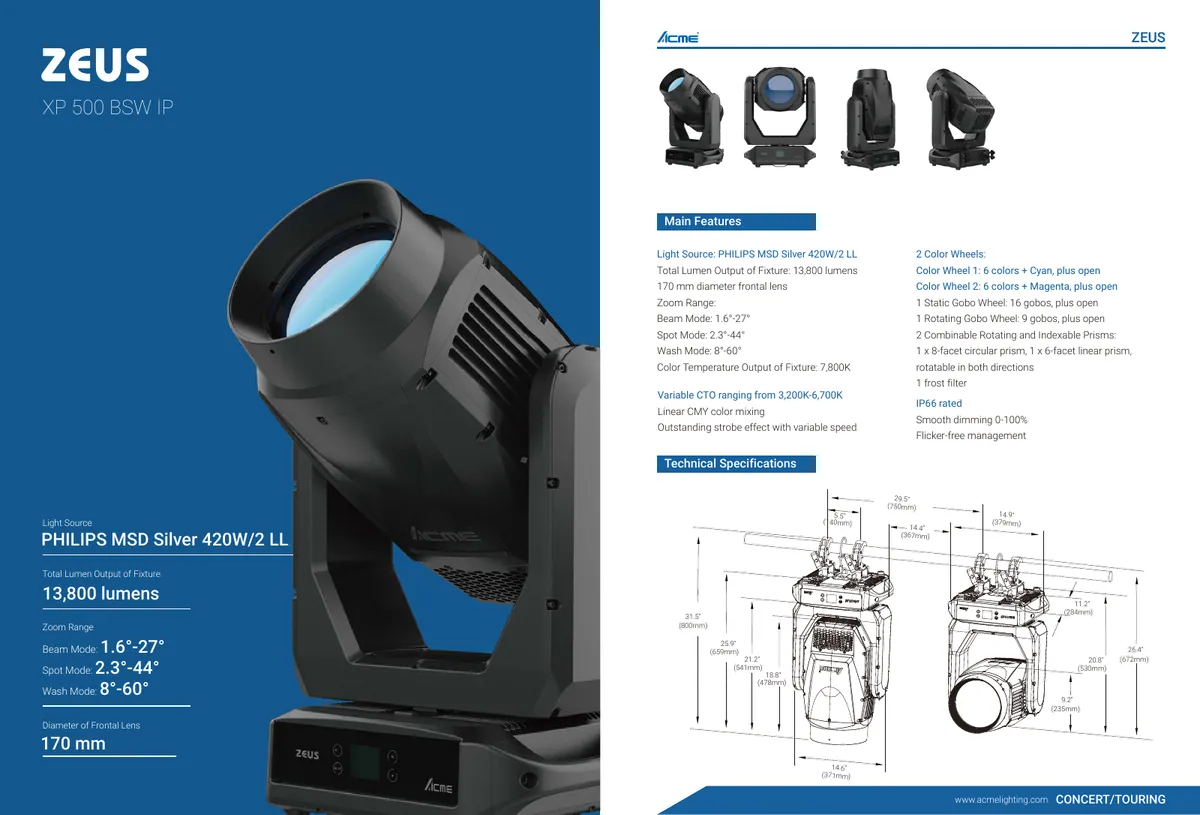

PDFDatasheetEN · 2 pages · 832 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: ZEUS
Model Code: XP 500 BSW IP

02Light Source4

Light Source: PHILIPS MSD Silver 420W/2 LL
Color Temperature Output of Fixture: 7,800K
Light Source Rated Life: 3,500 hours*; *Source manufacturer specification

03Photometric Data1

Total Lumen Output of Fixture: 13,800 lumens

04Optical System4

Zoom Range
Beam: 1.6°-27°
Spot: 2.3°-44°

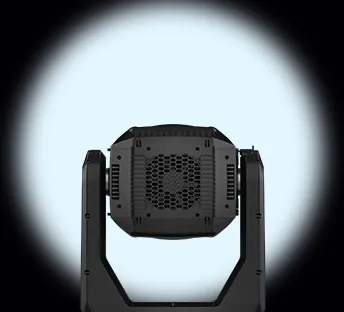

Wash: 8°-60°
Diameter of Frontal Lens: 170 mm

05Control6

4 touch button control panel
Display: LCD display
Protocols: DMX512,RDM,Art-Net,sACN
DMX Protocol Modes: 2
Control Channels: 20/28
Firmware Upgrade: Upgrade via DMX link or USB stick

06Pan & Tilt5

Pan Movement: 540°
Tilt Movement: 265°; Automatic Pan/Tilt position correction
Resolution: 16 bit; Pan/Tilt lock

Show the full specificationHide the rest of the specification13 more groups · 45 values

07Colors4

Linear CMY color mixing
Linear CTO Color Correction: 3,200K-6,700K
2 Color Wheels
Color Wheel 1: 6 colors, plus open
Color Wheel 2: 6 colors, plus open

08Static Gobos2

1 Static Gobo Wheel: 16 gobos, plus open
Gobo: Ø125 mm

09Rotating Gobos2

1 Rotating Gobo Wheel: 9 gobos, plus open
Gobo: Ø18 mm, lmage: Ø11 mm

10Prism1

2 Combinable Rotating and Indexable Prisms: 1 x 8-facet circular prism, 1 x 6-facet linear prism, rotatable in both directions

11Frost Filter1

1 frost filter

12Other Effects5

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Motorized focus system

Motorized zoom

Flicker-free management

13Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 655W

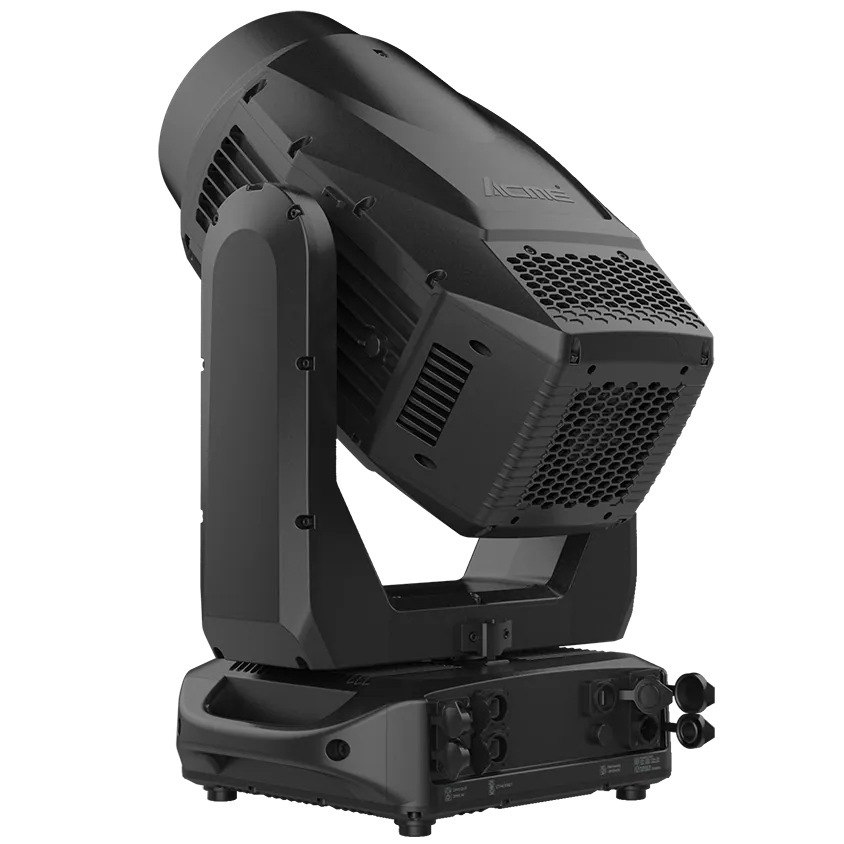

Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR,waterproof RJ45 connector

14Physical Information4

Fixture Dimensions
Width: 379 mm (14.9")
Depth: 284 mm (11.2")
Height: 659 mm (25.9")
Weight: 30 kg (66.4 lbs)

15Packing Information7

Flight Case Dimensions
Width: 1,170 mm (46.1")
Depth: 610 mm (24.0")
Height: 795 mm (31.3")
Carton Dimensions
Width: 610 mm (24.0")
Depth: 490 mm (19.3")
Height: 715 mm (28.2")
Weight
G.W.: 38 kg (83.8 lbs) (one-pack loader carton)

16Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 75°C
Protection Rating: IP66

17Installation4

Horizontal or vertical mounting

Universal working position

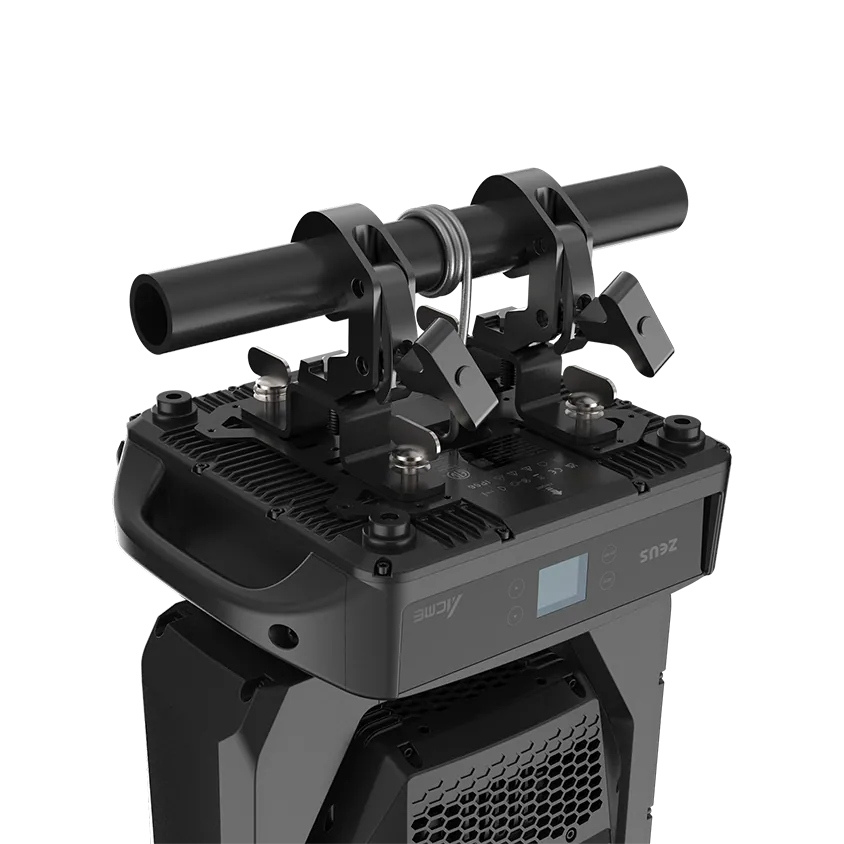

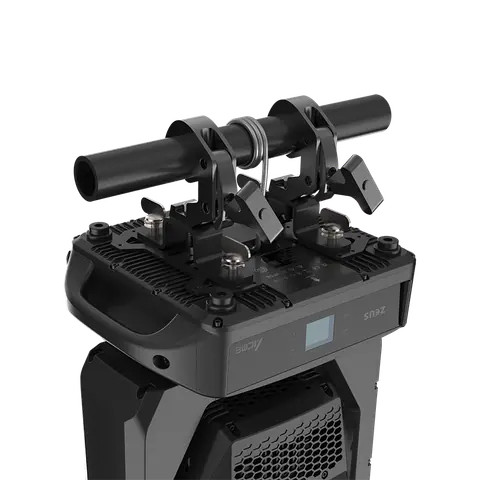

2 omega brackets

Safety cable attachment point

18Included Items3

Digital user manual

Power cable

2 omega brackets (3002003002)

19Optional Accessories (With Order Code)4

Flight Case
Standard: Two-pack loader case (63584148)
Clamp: C-250B (2060001632-B)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)

03DescriptionManufacturer's description

What it is.

The ACME ZEUS is an IP66 hybrid light that delivers precise and dynamic beams in a compact design. Powered by Philips MSD silver 420W long-life lamp with a lifespan of up to 3,500 hours, the ZEUS delivers an impressive 13,800 lumens at a crisp 7,800K color temperature output.

With an ultra-tight 1.6° beam angle, the fixture provides unparalleled precision. Its 170 mm frontal lens and three switchable zoom modes ensure brilliant and sharp beams. Featuring fast pan and tilt movements, a variable CTO and a CMY color mixing system, the Zeus lets you create rich, vibrant colors and dynamic effects with ease.

For endless creative possibilities, the ZEUS features two color wheels, each with six colors, one static gobo wheel with 16 gobos, one rotating gobo wheel with 9 gobos, two combinable rotating prisms, and one frost filter.

Weighing only 30kg, the fixture is suitable for any application. Versatile, lightweight, and compact — the ACME ZEUS exceeds expectations with its high quality and innovative design.
