AQUA 380 BWS

ModelPR-2366

AQUA 380 BWS is waterproof IP66 moving head which integrates three features(Beam, Wash, Spot) in a single unit, it adopted PR patented technology, combines advanced Philips longlife Platinum 300S Flex lamp with superb optical system, it is your best choice for outdoor activities.

Power consumption: 600W@100V
Power supply: 100V-240VAC,50/60Hz

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 14 groups · 37 values

What this product is, in numbers.

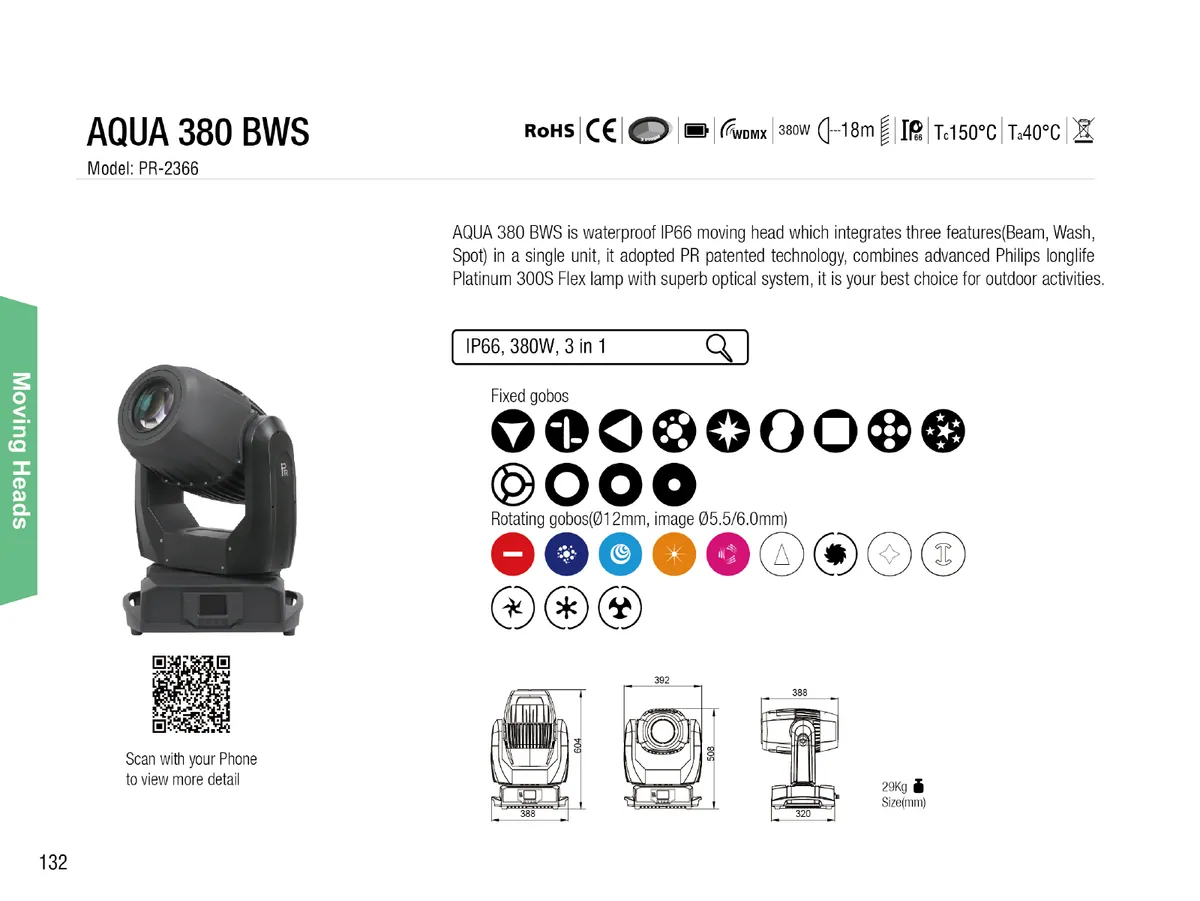

PDFDatasheetEN · 2 pages · 2.2 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01ELECTRICALPARAMETERS5

Input voltage: 100V-240VAC,50/60Hz
Input power: 600W@100V; 570W@ 220V
Maximumcurrent: 6.7A
Powerfactor: PF>0.9

02SPECIFICATIONSOFLIGHTSOURCE3

Philips MSD Platinum Flex 300S

ColorTemperature 7800K+/-300K

ManufacturersRatedLampLife 6000hrs(Reference the spec of MSD Platinum Flex 300S)、

03BEAMANGLE2

Beam/SpotMode: 2.5°-30°
WashMode: 7°-35°

04PRISM/EFFECTWHEEL2

3Prisms(standard 8facet prism+9facet prism+ linear prism)Bi-directionalrotation at variable speeds

(Optional 3-16 facet prismor gradient prism)

05FROST1

1 Deep frostfilter

06FOCUS1

0-100% linearly adjustable by DMX

Show the full specificationHide the rest of the specification8 more groups · 23 values

07ZOOM1

0-100% linearly adjustable by DMX

08STROBE1

Double shutter blades, 0.3~20 F.P.S

09HEADMOVEMENT1

Pan 540º,Tilt 270º with auto position correction

10CONTROL3

InternationalstandardDMX512 signal and 5 pin interfaces

23channelsin shortmode, 27channelsin standardmode,32channel in extendedmode

Adjustablemode

11OTHER FUNCTIONS4

AdjustablePan&Tiltspeed

Fixture and lamp hours’display

Modular construction for easymaintenance

DMX512 wirelessreceiverDMX512wirelesstransmitter(optional)

12HOUSING1

CastAluminum, high temperature resistant/anti-UVABS,IP66

13WEIGHT2

29K
【Version: 20220914】

14General10

CMYlinear colormixing systemwithmacros; 1ColorWheel; 12Dichroic colorfilters +Diffuser+ Open; Variable speed and bi-directionalrainbow effect; Linear color changing is available
1 Fixed gobo wheel: 11 static gobos+ open; Shaking and bi-directional wheelscrolling at variable speeds
1Rotating gobowheel: 12 gobos+ Open; Shaking and bi-directional wheelscrolling at variable speeds; Gobo changeable
