Sheet 05.721

PR Lighting · Hybrid fixtures

AQUA 480 BWS

ModelPR-2497

AQUA 480 BWS is PR new full featured IP65 moving light, which is designed to provide three features-Beam, Wash, Spot.

Light source: PR480L
Colour temperature: 6900K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:32

PR Lighting AQUA 480 BWS1:32

02SpecificationManufacturer's data · 16 groups · 35 values

What this product is, in numbers.

PDFDatasheetEN · 2 pages · 2.3 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Electric parameters4

Input voltages 100V~240V AC,50/60Hz; Input Power 650W @ 220V; Current at Maximum 8A
Power factor: PF〉0.9

02LAMP SPECIFICATIONS3

Lamp: PR480L
Color Temperature: 6900K
Manufacturers Rated Lamp Life: 1500hours

03INDEPENDENT CTO SYSTEM1

Linear CTO system

04PRISM1

4 pcs of prisms which can be overlapped (8 facet circular prism+ 4facet linear prism) (9 facet circular prism+ gradient prism) And other optional prisms

05EFFECT WHEEL1

1 graphic effect wheel, bi-directional rotation with variable speeds and can be overlapped with fixed gobo wheel and rotating gobo wheel

06FROST1

1pc independent frost filter

Show the full specificationHide the rest of the specification10 more groups · 24 values

07FOCUS1

1pc independent frost filter

08ZOOM1

DMX linear zoom

09DIMMER/STROBE1

0-100% Linearly adjustable/ Double shutter blades, 0.3~25 F.P.S

10HEAD MOVEMENT1

Pan 540º, Tilt 270º with auto position correction

11BEAM ANGLE3

Beam Mode: 0°-- 3°
Spot Mode: 3°-- 40°, Linear Adjustment
Wash Mode: 5°-- 50°, Linear Adjustment

12CONTROL3

DMX512, 5-pin interfaces(Optional 3-pin)

25channels in short mode, 31channels in standard mode , 35channels in extended mode

Self-test mode

13OTHER FUNCTIONS5

Adjustable Pan & Tilt speeds

Lamp’s and fixture’s hours displayed

Modular Structure for easy maintenance

DMX512 wireless receiever (Option)

Optional DMX512 Wireless Transmitter(Option)

14HOUSING1

High temperature ABS, IP66

15ET WEIGHT2

37.6 Kg
【Version: 20260319】

16General6

1 Color wheel: 12colors+ Open, rainbow effect with bi-directional and variable speeds, Stepping/linear color changing; CMY color mixing system with macros
1 Fixed gobo wheel: 17 gobos +Open; Bi-directionally rotatable, and shakable at variable speeds
1 Rotating gobo wheel: 7 Interchangeable Gobos +Open; Bi-directionally rotatable, and shakable at variable speeds

03DescriptionManufacturer's description

What it is.

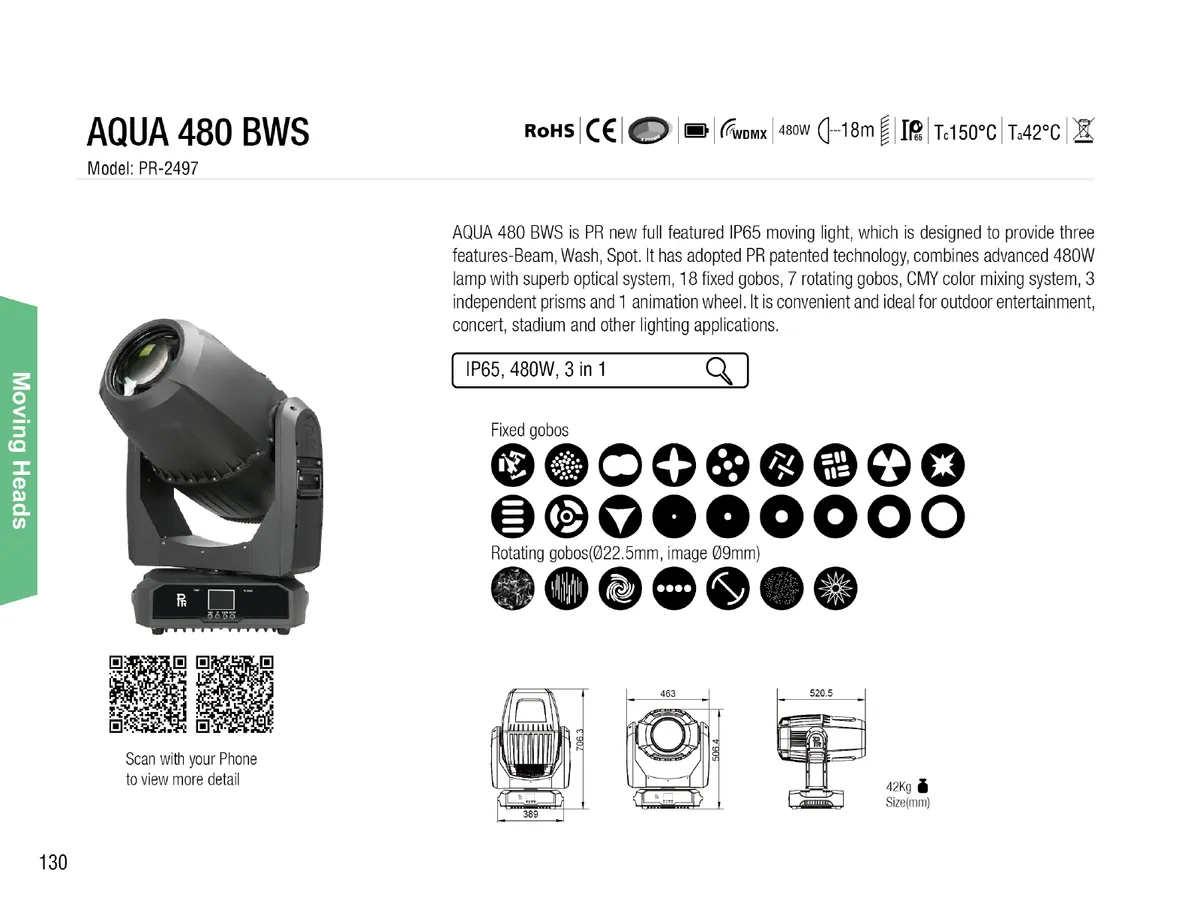

AQUA 480 BWS is PR new full featured IP65 moving light, which is designed to provide three features-Beam, Wash, Spot. It has adopted PR patented technology, combines advanced 480W lamp with superb optical system, 18 fixed gobos, 7 rotating gobos, CMY color mixing system, 3 independent prisms and 1 animation wheel. It is convenient and ideal for outdoor entertainment, concert, stadium and other lighting applications.

04Documents5 files · 11 MB
