Sheet 05.592
LIGHT SKY · Spot and profile
HS880(For South Korean Only)
Unleash maverick stage illumination with the Super Scope Plus beam spot moving head light. This 4-in-1 moving head spotlight adopts a high-efficiency optical lens, low-noise heat dissipation, multi-pattern selection, and more.
- Light source
- 880W white LED module
- Power supply
- AC 100-240V 50/60Hz
- Ingress protection
- IP20
- Protocols
- DMX 512,RDM ,ARTNET
- Colour temperature
- 6800K
- Net weight
- 37.5kg/pcs
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
HS880(For South Korean Only)Price on requestRequest a quotation
01SpecificationManufacturer's data · 10 groups · 48 values
What this product is, in numbers.

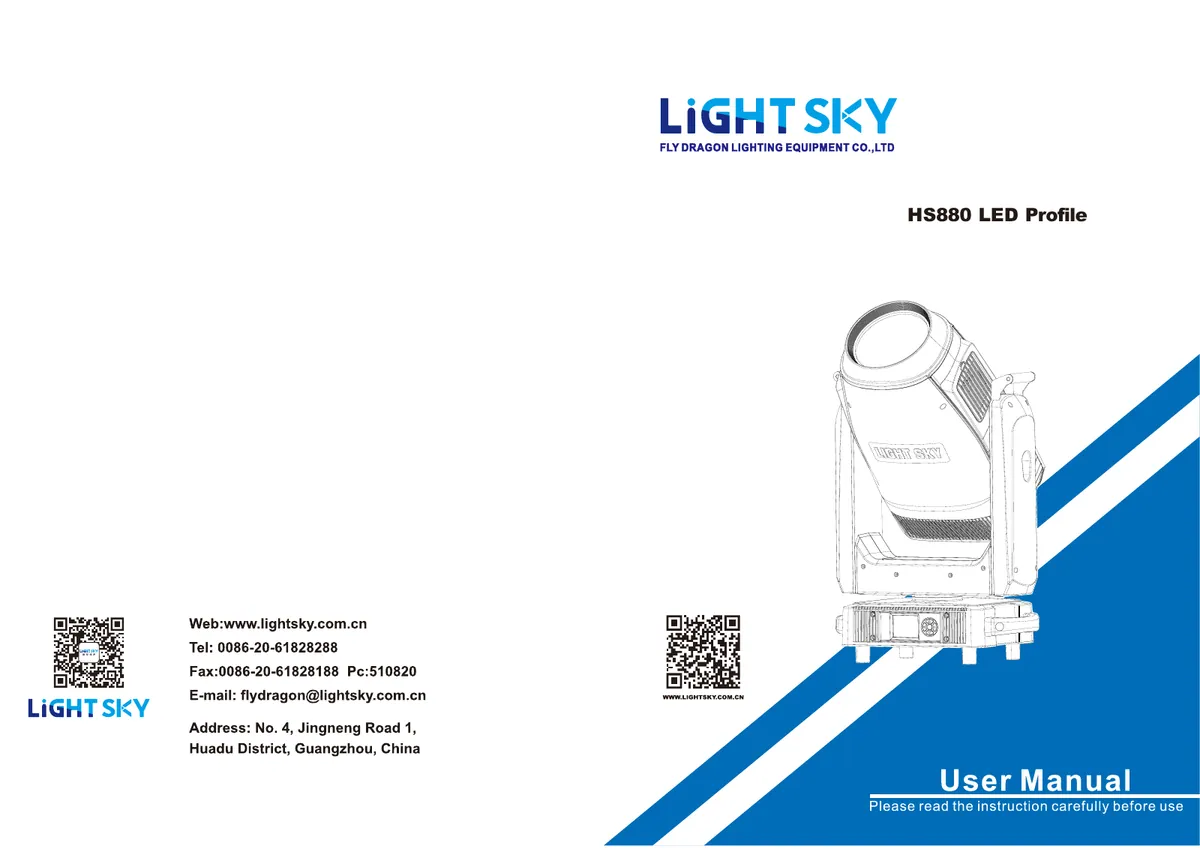

PDFUser manualEN · 42 pages · 4.7 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01OPTICAL8
- Light source
- 880W white LED module
- Light source average lifespan
- 20000H
- Color temperature
- 6800K
- Total lumen output
- 40800Lm

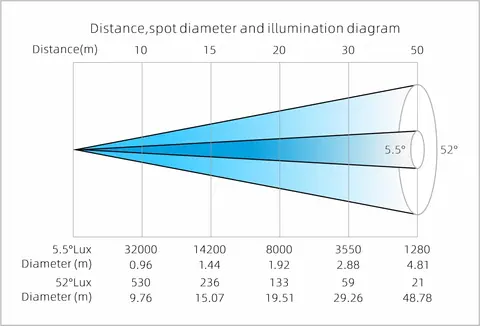

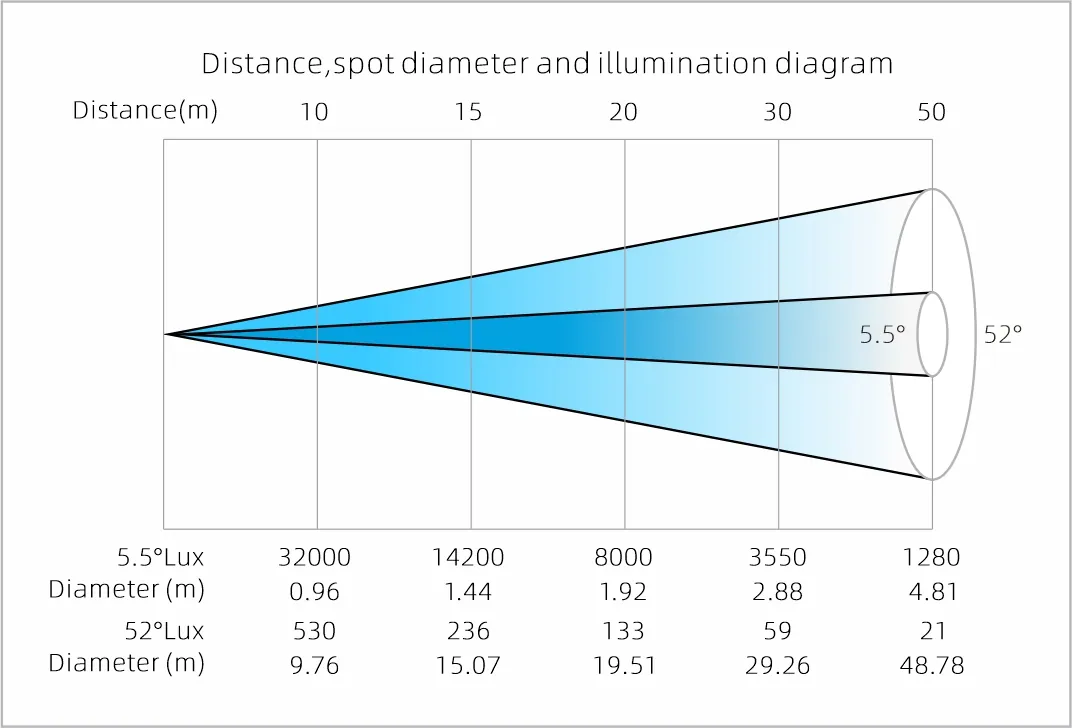

- Illuminance
- 32000lux@10M
- Color rendering index
- RA≥71
- Front lens diameter
- 180mm
- Zoom angle
- 5.5°- 52°

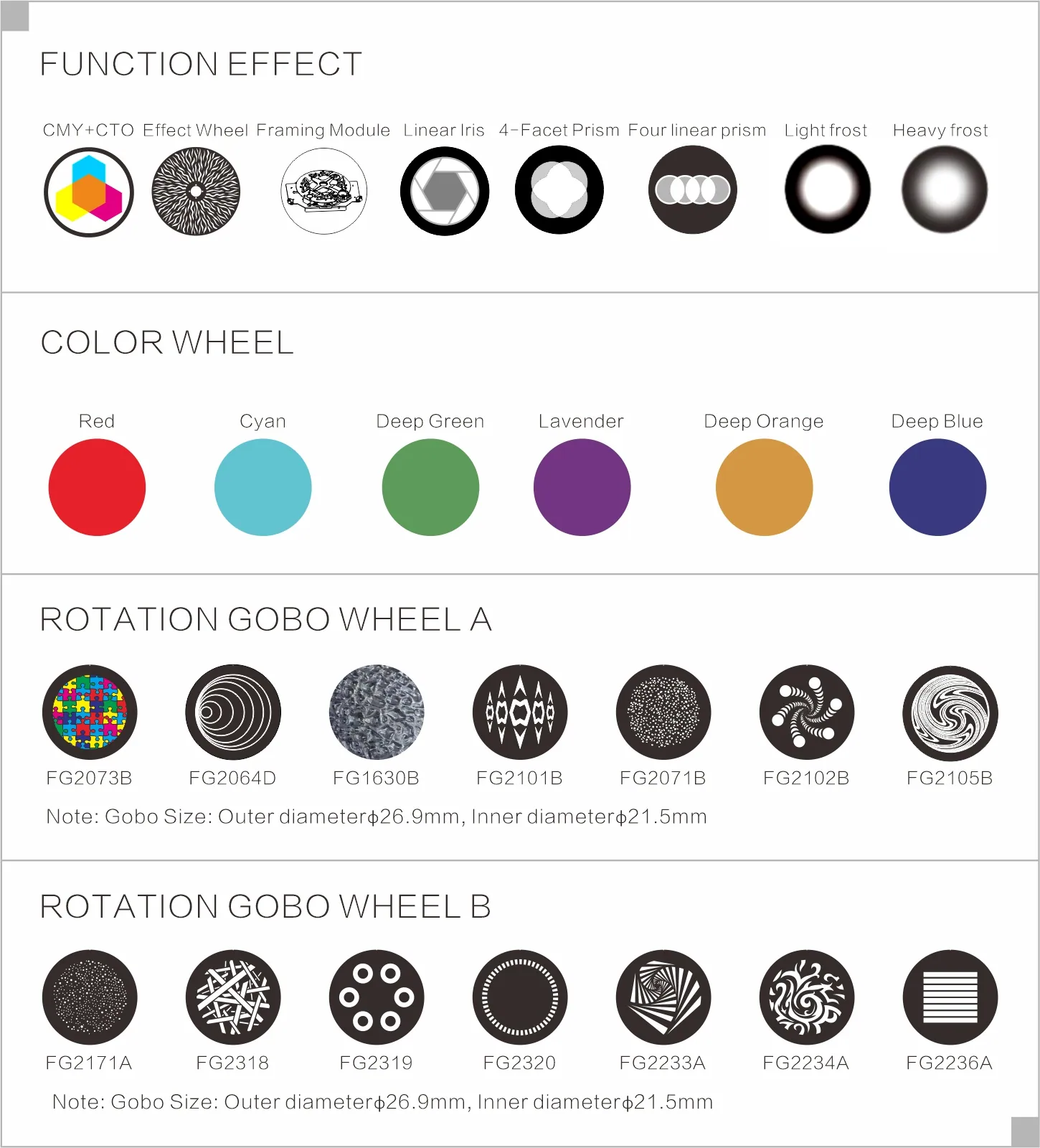

02COLOR3
- Color wheel
- 6 color + Blank
- C M Y
- Linear CMY colour mixing
- C T O
- Linear CTO from 2500K to 6800K
03GOBO3
- Framing system
- 4 blade ,each blade can be eight direction and +/- 55 degree rotation
- Animation wheel
- 1 dynamic animation wheel -flame effect
- Rotation gobo wheel
- 2 rotation gobo wheel ,each with 7 pcs interchangable gobo
04EFFECTS7
- Prism
- 4 facet prism + 4 linear prism + bidirection rotation
- Frost
- 2 frost system : light frost 1° and Heavy frost 20°
- Iris
- Motorized with variable pulse and random effects
- Strobe
- Electronic pulse strobe and random strobe
- Focus
- Motorized focus
- Dimmer
- 0 to 100% linear dimmer
- LED refresh frequency
- 1000Hz ~ 25KHz
05CONTROL7
- Control protocol
- DMX 512,RDM ,ARTNET
- Channel mode
- 43CH , 55CH
- DMX and RDM connectors
- Locking 3 pin or 5 pin XLR IN/OUT
- Power connector
- Seetronic
- Hanging system
- foldable light hook
- Interface
- RJ45 interface (optional)
- Display
- LCD liquid crystal display
Show the full specificationHide the rest of the specification5 more groups · 20 values
06SOFTWARE3
- Software
- Upgrade software via DMX signal or USB interface
- Noise level control
- High brightness mode,Standard mode,Silent mode
- Intelligent temperature control
- Intelligent temperature control to extend LED lifespan
07X/Y ANGLE OF MOTION3
- Pan / Tilt
- 540°/270°
- Reset function with automatic error correction
- Fixed lock
- Y-axis lock
08POWER2
- Voltage
- AC 100-240V 50/60Hz
- Power
- 1280W; PF 0.996
09SIZE & WEIGHT7
- Housing
- Engineering plastic PA66

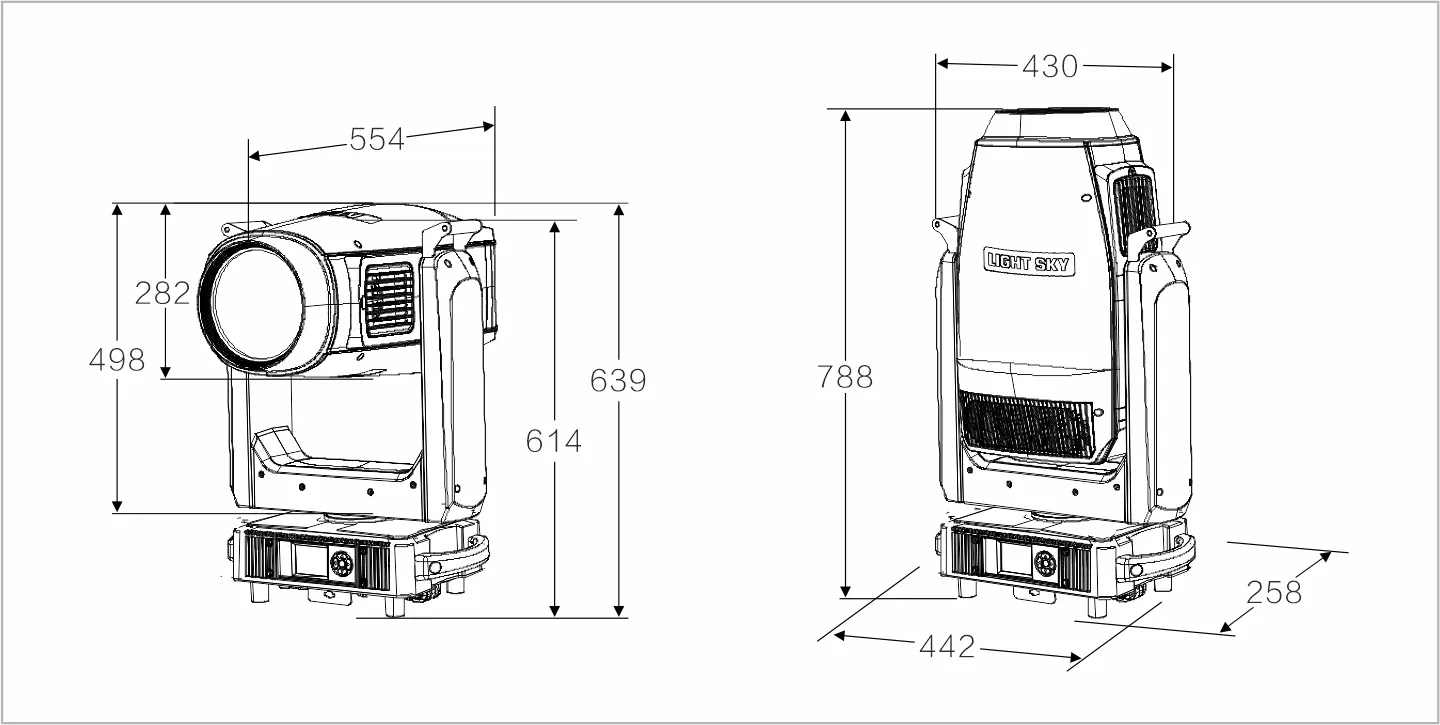

- Light Dimension
- 442 x 282 x 788mm
- N.W
- 37.5kg/pcs
- Carton dimension
- 520 x 370 x 870mm
- G.W with carton
- 42.6 kg
- Flycase dimension
- 660 x 520 x 840mm
- G.W with fly case
- 71.0kg (1 in 1)
10OTHERS5
- IP rating
- IP20
- Working environment
- -10°C ~ 40 °C
- Maximum temperature of light body surface
- 80 °C
- Maximum number of connections
- none
- Maximum current; 6.4A/220V;12.8A/110V
02DescriptionManufacturer's description
What it is.
Unleash maverick stage illumination with the Super Scope Plus beam spot moving head light. This 4-in-1 moving head spotlight adopts a high-efficiency optical lens, low-noise heat dissipation, multi-pattern selection, and more. This moving head spotlight ensures powerful and immersive stage illumination, making it perfect for theaters, TV stations, large concerts, gymnasiums, and other high-end performance events and sites. We provide comprehensive and professional after-sales service and technical support for our customers. If you are interested in the Super Scope Plus beam moving head light, feel free to contact us; we are happy to assist you.
FEATURES
Multi-Function: The Super Scope Plus series moving head spotlight is a moving headlight with a beam spot wash profile with a 4-in-1 function.
High-Precision Optical: The optical system on the Super Scope Plus adopts high-precision optical components with a 180-mm-diameter lens.
Long distance and powerful illumination: The Super Scope Plus beam spot moving headlight is capable of providing long-distance projection with high illumination.
Easy Transportation: The Gobo module consists of two rotating Gobo wheels.
Multi-pattern: The Super Scope Plus spot moving headlight has multiple pattern styles with high clarity and color consistency from the center to the edge of the pattern.
High flexibility: The cutting module can rotate ±55°, and the cutting image is clear without distortion;
Long-Range Beam: The Super Scope Plus moving head spotlight can output illuminance up to 40800 lm.
Suitable Space: Super Scope Plus is suitable for theaters, TV stations, large-scale concerts, gymnasiums, and other high-end performance sites
03Documents5 files · 10 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
