HS520(For South Korean Only)

Power supply: AC 100V ~ 240V 50/60Hz
Ingress protection: IP20
Beam angle / zoom: 3.8°- 50°
DMX channels: See channel table for details
Colour temperature: 7000 K
Net weight: 28.1kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 8 groups · 40 values

What this product is, in numbers.

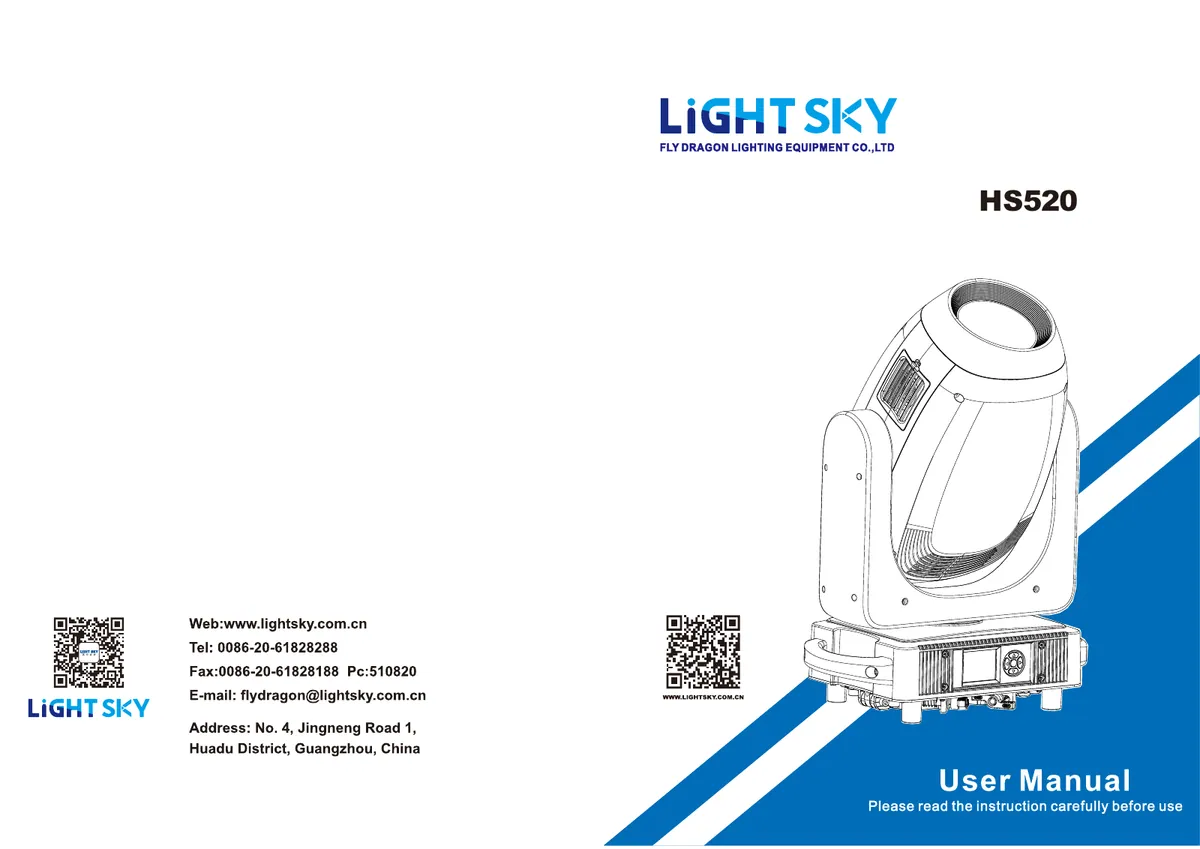

PDFUser manualEN · 29 pages · 5.3 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01OPTICAL9

LED: 520W white LED
Beam angle: 3.8°- 50°
Frontal lens: 146mm
Color temperature: 7000 K
Output: 20000 Lm
CRI: Ra>72 (High CRI filter up to 90)

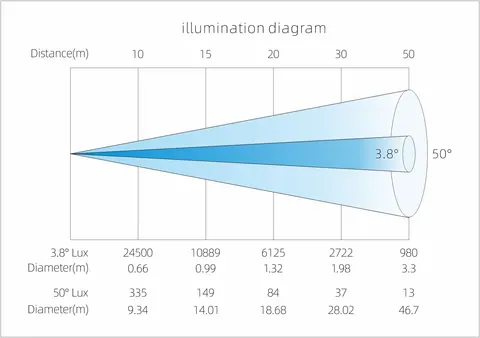

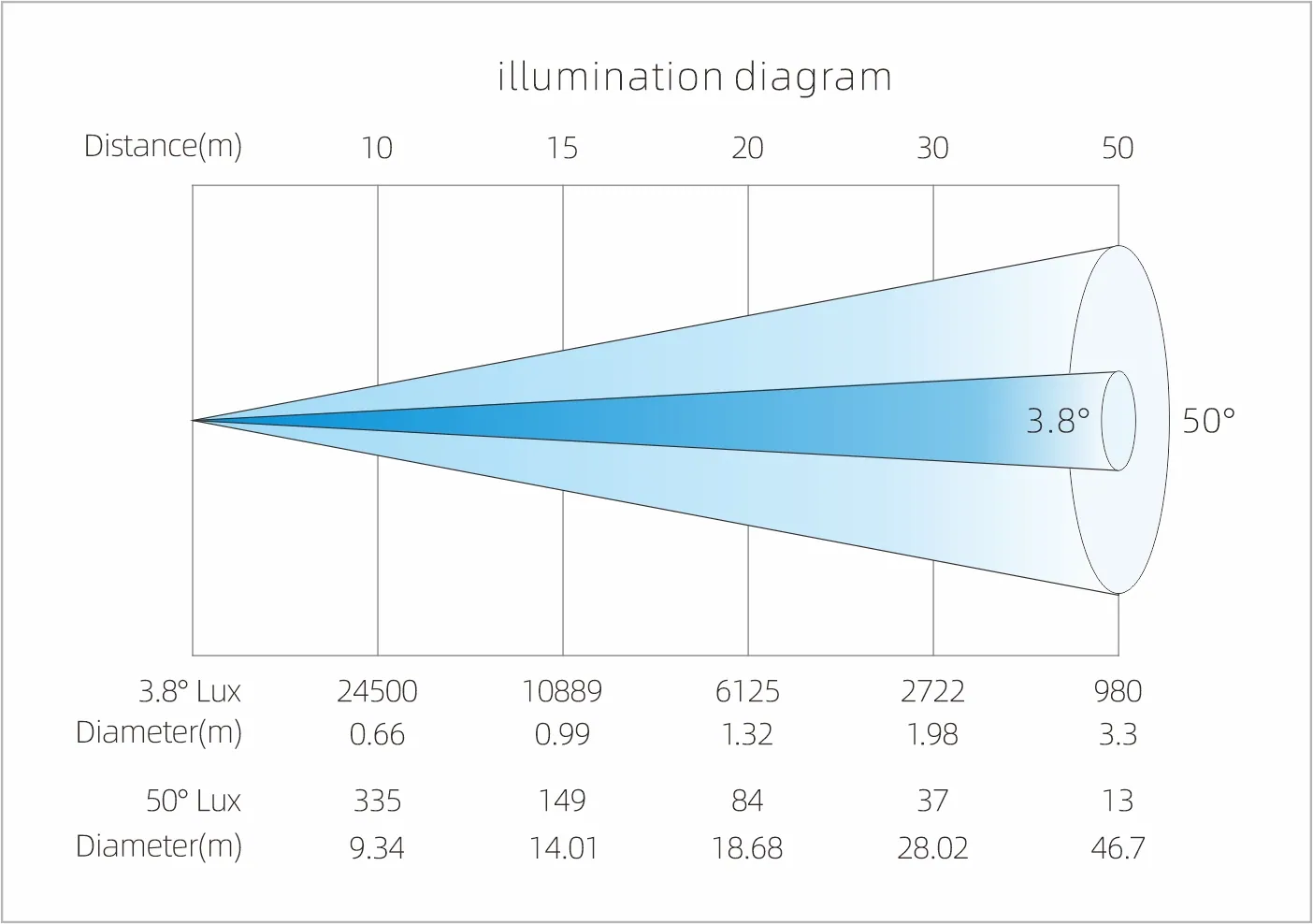

Illuminance: 24500 Lux@10m
Luminous flux: 20000 Lm
LED source life expectancy: 40000 hours

02EFFECT11

Strobe: 1 ~ 25 Hz
Dimming: 0%-100% linear dimming
Rotation GOBO wheel A: 7+ 1
Rotation GOBO wheel B: 7+ 1; CMY + CTO
Color wheel: 6 Color+1 CRI filter+ white
Prism: 4 prism + 4 linear prism
Frost: 2 frost effect, (1 light frost, 1 heavy frost)
Frame: 4 individually blades with ±60°rotation of the complete framing system.; With iris
Animation: Full 360° Bi-Directional Animation Wheel

03SOFTWARE2

Via USB & DMX signal to upgrade software

Intelligent temperature protection to ensure LED service life

04CONTROL & PROGRAM4

Channel: See channel table for details
Protocal: DMX512, RDM,ArtNet
Data connector: 3PIN or 5PIN DMX In/Out
Display: Full 180° Reversible LCD Menu Display

05PAN & TILT MOVEMENT4

Pan: 540° 16bit
Tilt: 270° 16bit; Reset function with automatic error correction
Fixed lock: Y-axis lock

Show the full specificationHide the rest of the specification3 more groups · 10 values

06POWER CONSUMPTION3

Voltage: AC 100V ~ 240V 50/60Hz
Max power: 960W
Power Factor: 0.99

07OTHER3

IP rating: IP20
Working environment: -10°C ~ 45°C
Maximum surface temperature of the lamp body: 80°C

08SIZE & WEIGHT4

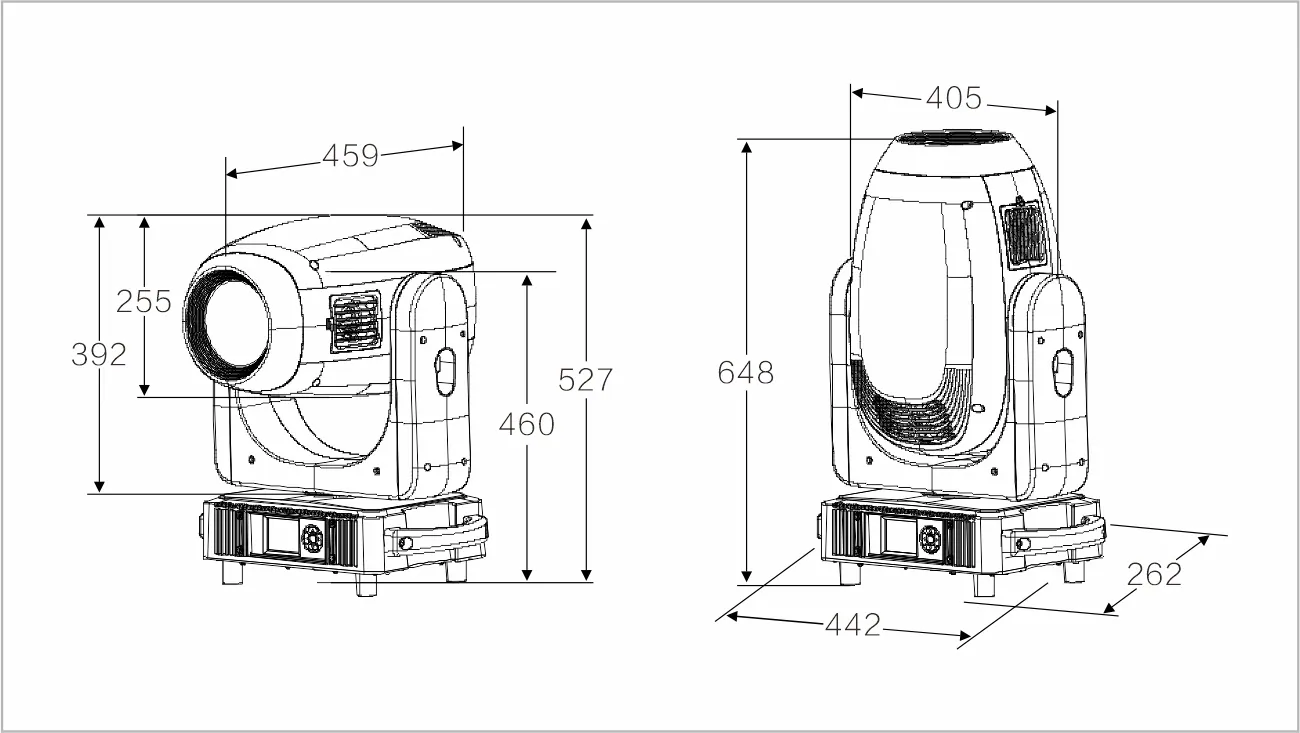

size: 442mm×262mm×656mm
N.W: 28.1kg
Carton packing (default): 490mm×365mm×755mm G.W:31.8kg
Flycase Size(2 sets): 730mm×575mm×850mm G.W:94.7 Kg

02DescriptionManufacturer's description

What it is.

HS520 is a moving head light with beam spot wash profile 4 in 1 function.The optical system adopts high-precision optical components.With lens diameter of 146 mm, the fixture can output light of long projection distance with high illumination. It can produce full beam and clear spot.The product is small in size, light in weight, accurate in pan & tilt positioning, and fast in response.It’s suitable for theaters, TV stations, large-scale concerts, gymnasiums and other high-end performance sites.
