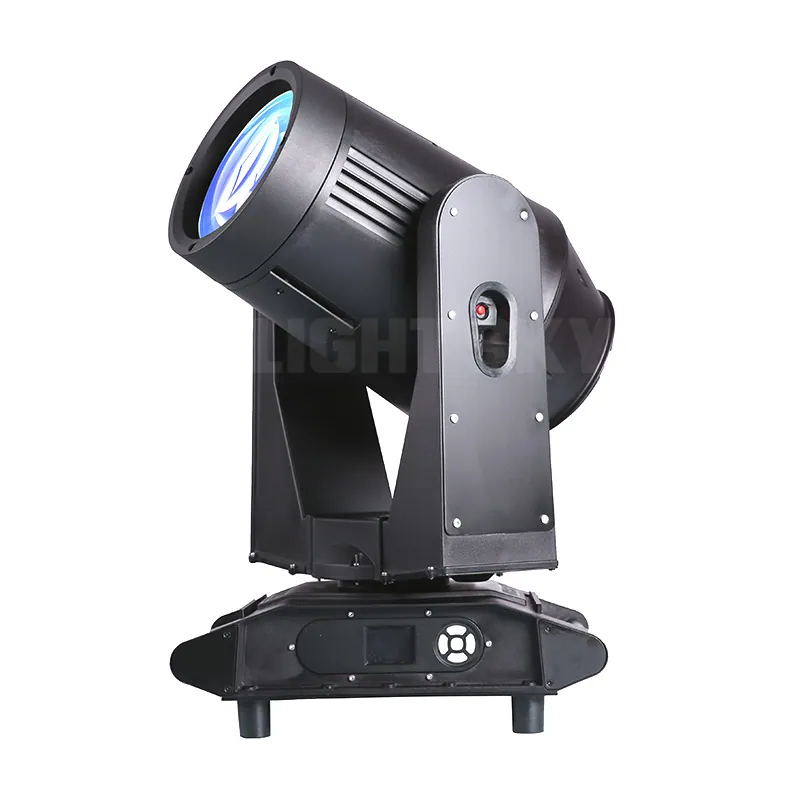

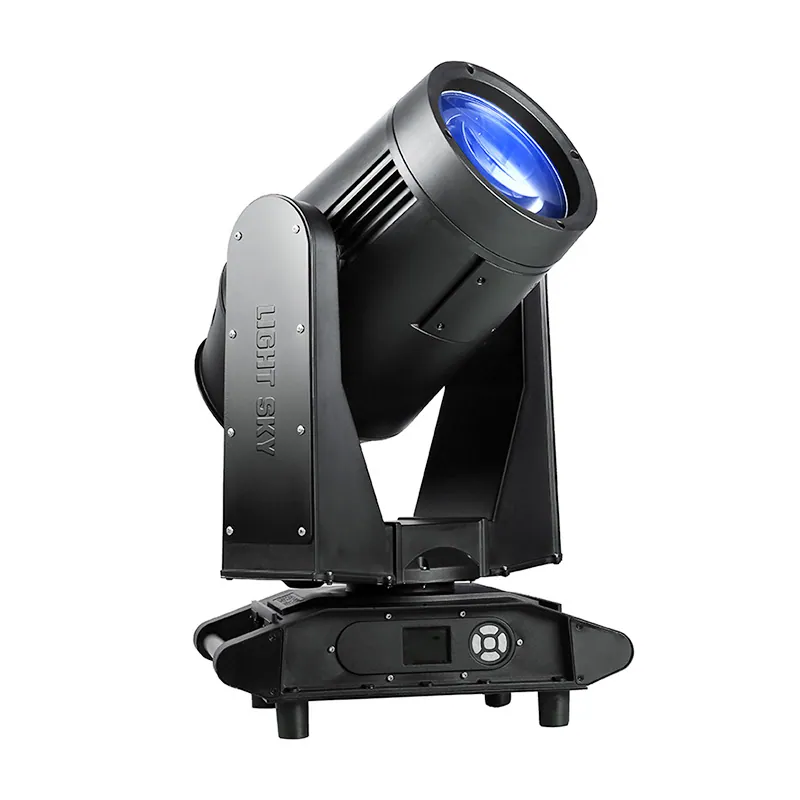

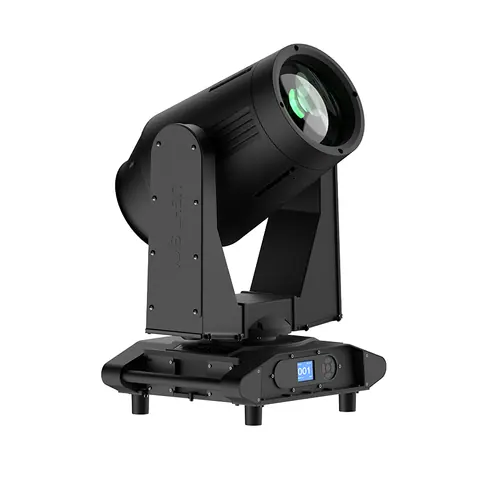

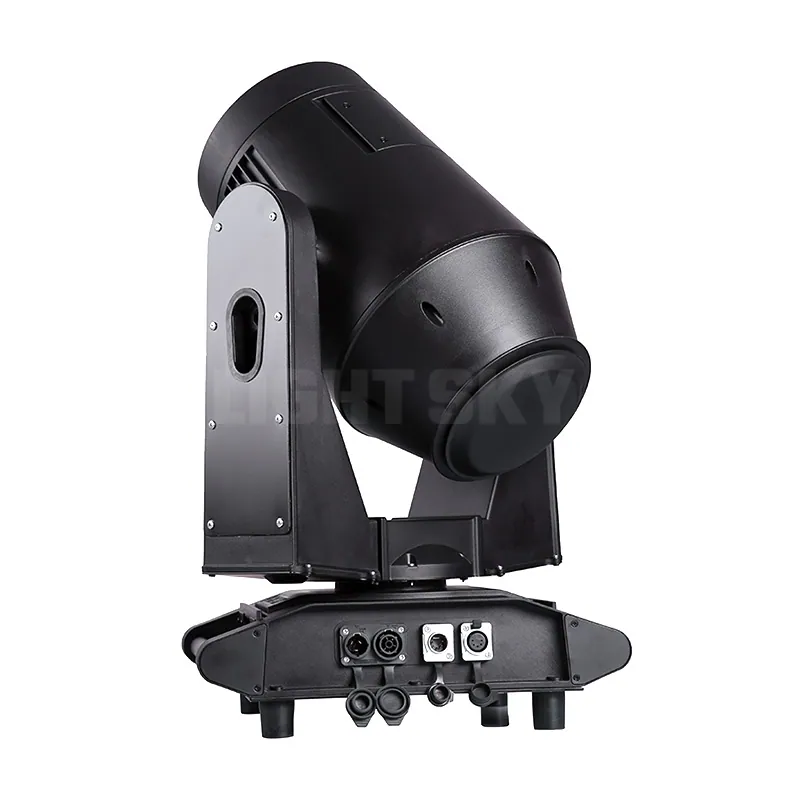

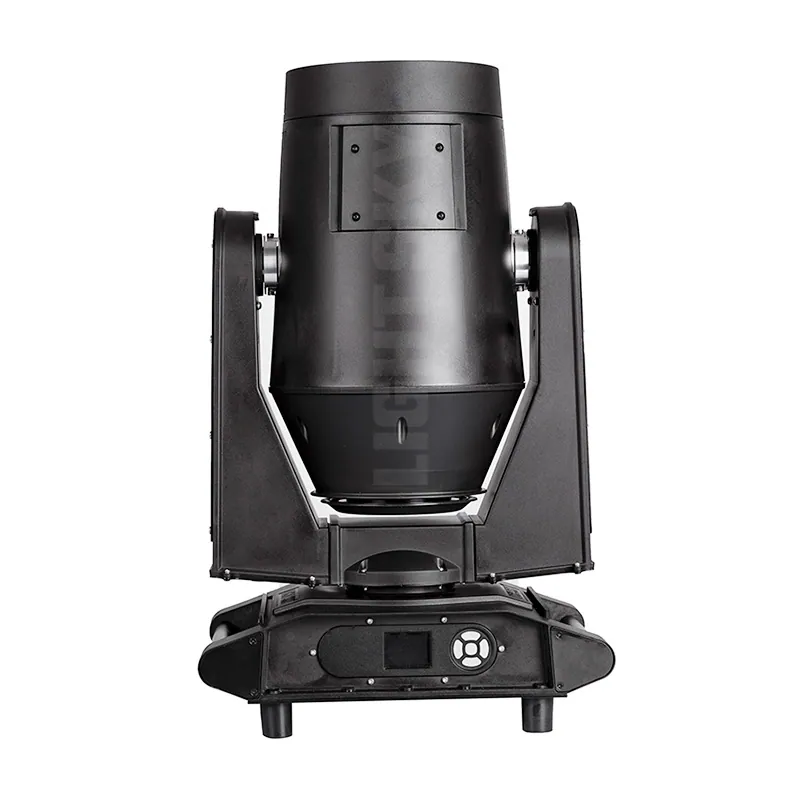

AQUABEAM400LL-E

Light source: 400W USHIO NSL 400L
Power supply: AC100-240V ~/50-60Hz
Beam angle / zoom: 2°
Net weight: 27.5Kg G.W : 31Kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:40

LIGHT SKY AQUABEAM400LL-E2:40

02SpecificationManufacturer's data · 4 groups · 34 values

What this product is, in numbers.

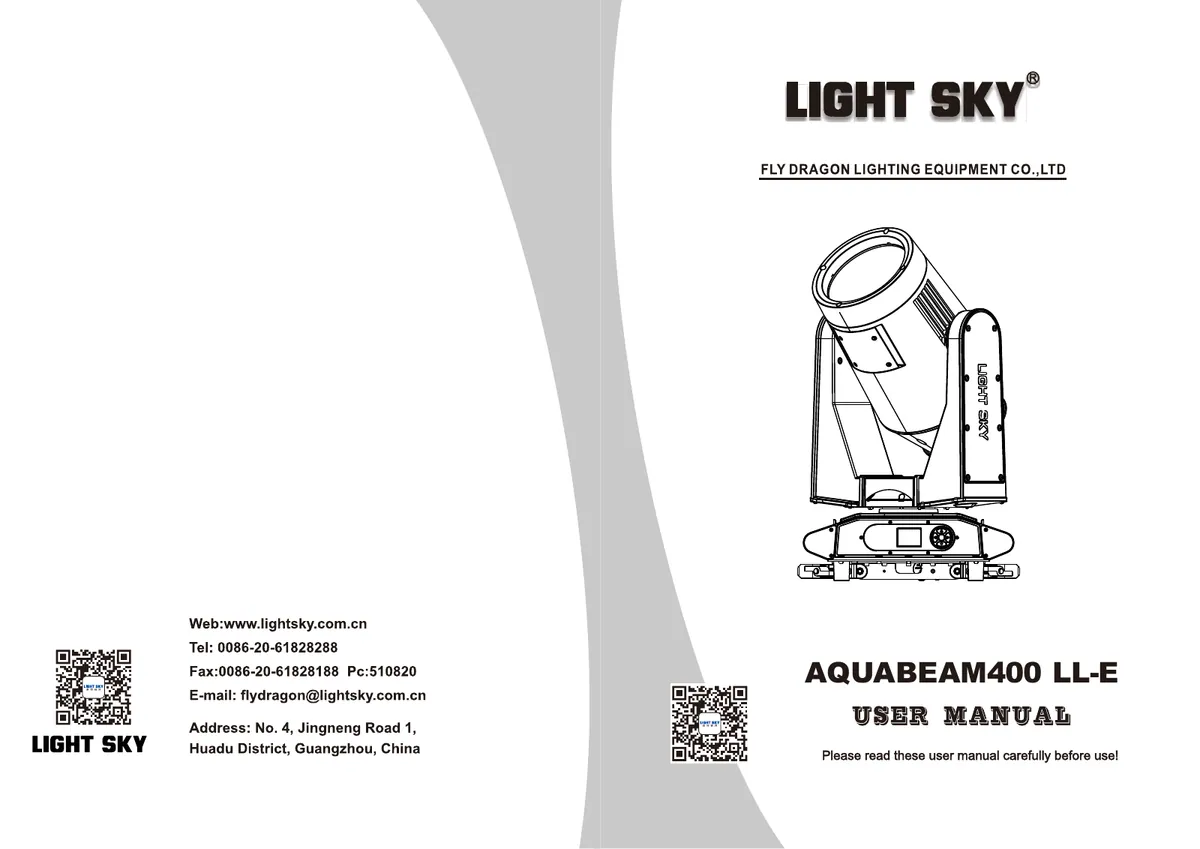

PDFUser manualEN · 20 pages · 5.6 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source / Power System6

Voltage: AC100-240V ~/50-60Hz
Power: 530W, PF0.98;
Lamp: 400W USHIO NSL 400L
Lamp Temperature: 7300K
Lamp life Span: 2000 hours / normal 6000 hours/eco
E-ballast: 400W Ushio E-ballast

02Color / GOBO / Effects9

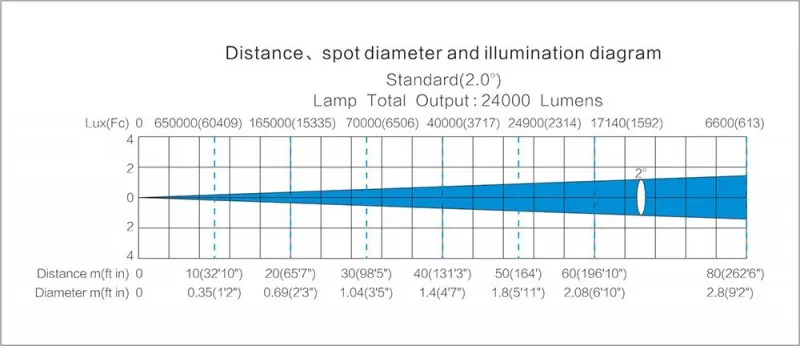

Beam Angle: 2°
Frost: Adjustable independent frost effect

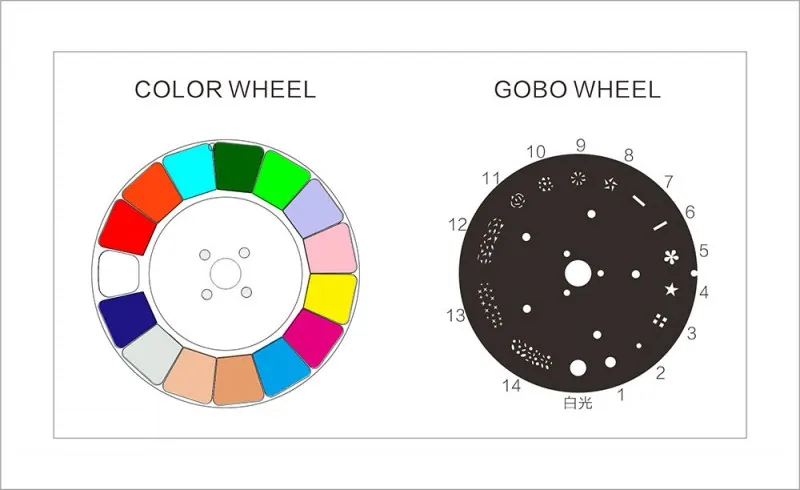

Color: 14 color + blank , inner build in with 2500K , 3200K CTO ,
Fixed gobo wheel: 11 gobo + blank + 3 animation gobo
Prism: 8 facet prism +16 facet prism + prism combination (standard) 3 facet prism + 8 facet prism (optional)
Focus: linear electronic focus
Lens: φ168 optical lens , high precision optical lens structure
Strobe: 1-9Hz synchronization, pulse, random stroboscopic.
Dimmer: 0 – 100% super smooth dimmer

03Control System12

Pan/Tilt: 540°/270°
Pan/Tilt Fine: 2.11°/1.05°
Pan/Tilt Speed: 2.9 S/1.2 S
Control: DMX512 RDM
Standard: 14 CH
Software upgrade: upgrade via DMX connector; Other functions
Display board: 2.0 inch color LCD12864, English/Chinese two version language ;Display board can record device’s using time , show device’s temperature, channel data and software version .
Display: Display board has record function, which can record lamp using time ,fan’s speed 100W power would lower automatically under full shutter condition
Magnetic encoder: non-touch magnetic rotation encoder , 100% correct position memory
RDM: signal two-way transmission
Clamps: Flexible clamps design , convenient for use

04Appearance Parameters7

IP rate: IP54
Outlooking: Independent shape design engineering plastic , Anti-UV, anti-aging, hot temperature resistant

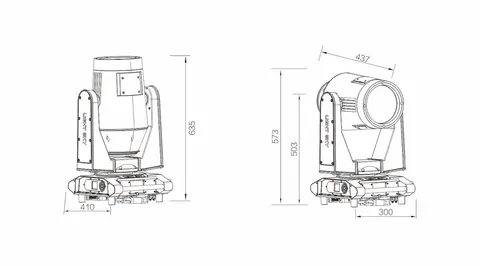

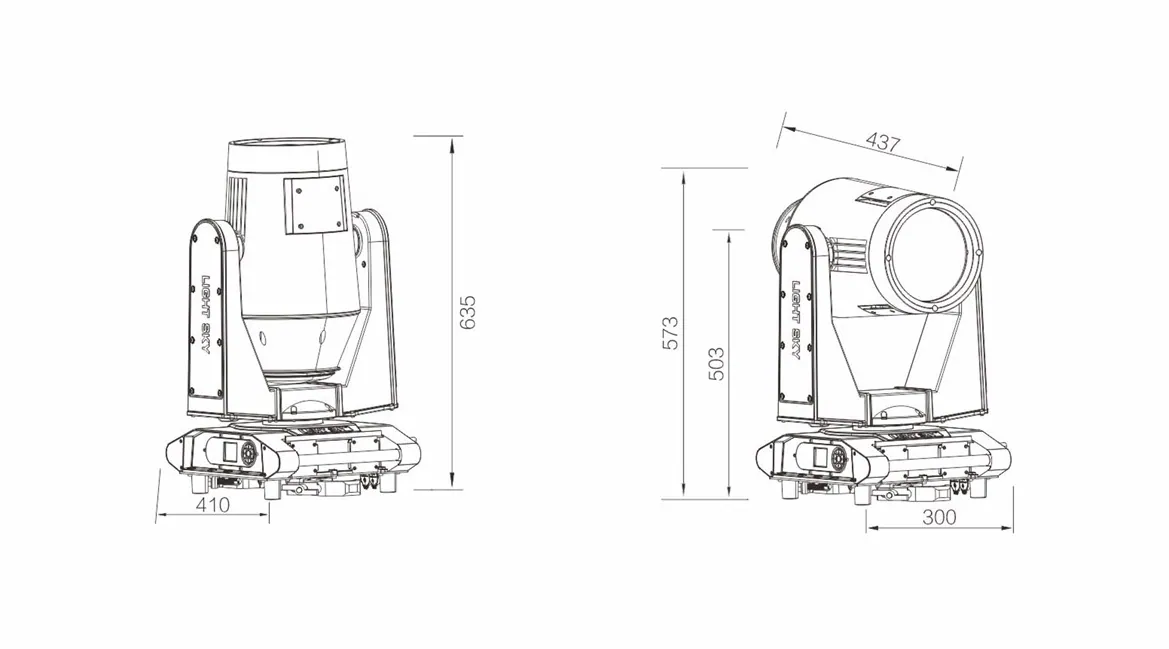

Light Size: 410×300×635mm
Carton Size: 450×430×750mm
N.W: 27.5Kg G.W : 31Kg

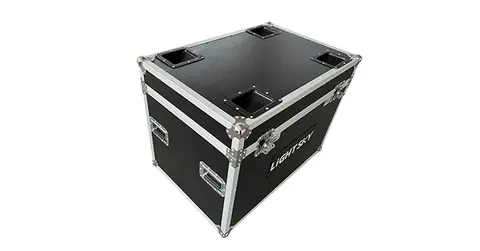

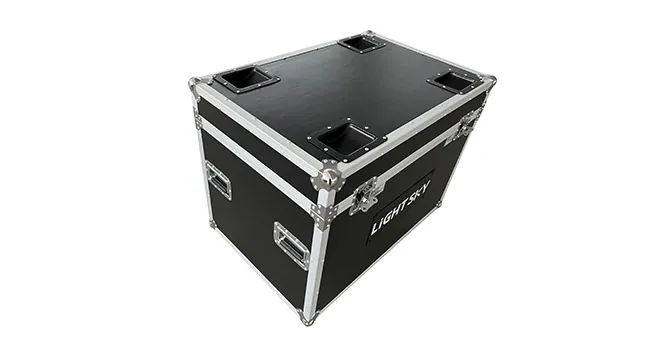

2 in 1 fly case Size: 940×635×845mm
N.W: 55kg G.W : 105Kg

03DescriptionManufacturer's description

What it is.

Unveil brilliance with LiGHT SKY’s AQUABEAM400LL-E series outdoor sky beam light, with powerful features such as housing a Ushio 400W lamp, φ168 lens, and dual prisms for extraordinary brightness—equivalent to 4000W sky search. Engineered outdoors with an IP54 rating, the PA66 cover ensures UV resistance and more. This outdoor beam light is perfect for outdoor illumination. Elevate your space lighting with this waterproof light fixture; get a quote or contact us right now!

FEATURES

Long-Lasting & Energy-Efficient: AQUABEAM400LL-E series outdoor beam light Adopts Ushio 400W Long-Life Lamp, which is energy-saving

Sharp & Bright Illumination: AQUABEAM400LL-E series outdoor sky beam light features a φ168 optical lens that produces sharp, high-brightness illumination that is equivalent to a 4000W sky search.

Spectacular Visual Effects: This lightsky outdoor beam provides IP54-level waterproofing, making it the perfect waterproof light fixture for outdoor environments.

IP54 Waterpoof: This light-sky outdoor beam provides IP54-level waterproofing, making it the perfect waterproof light fixture for outdoor environments.

Durable: Our outdoor beam light features an outdoor PA-engineered plastic cover, providing the abilities of anti-UV, anti-aging, and high-temperature resistance.
