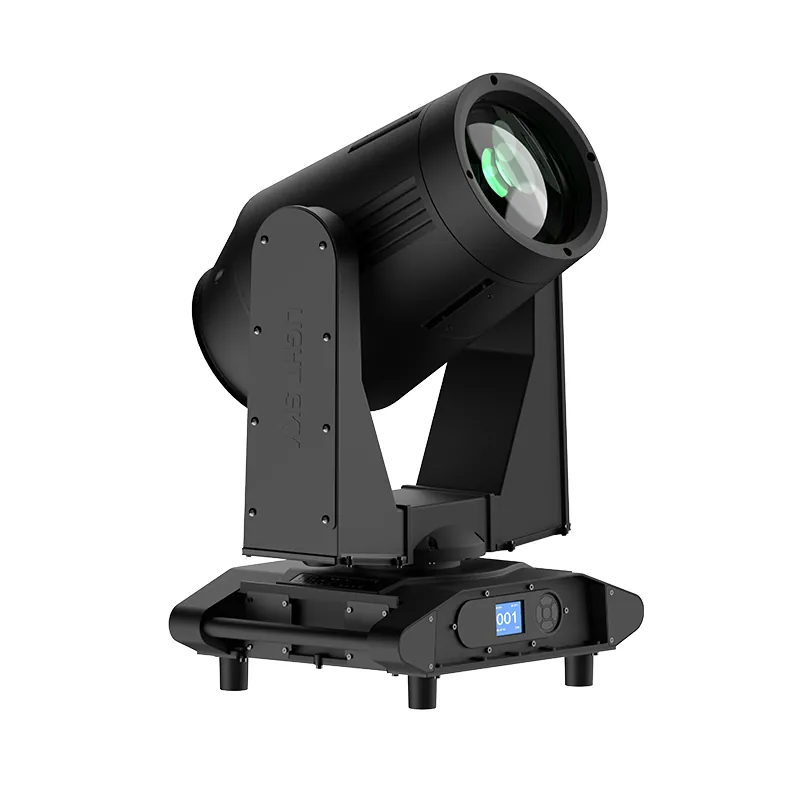

AQUABEAM400LL

The AQUABEAM 400LL is a great outdoor sky beam light for outdoor use.

Light source: 400W USHIO NSL 400L
Power supply: AC100-240V 50/60Hz
Beam angle / zoom: 2°
Protocols: DMX512 RDM
Net weight: 27.5Kg/pcs

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:40

LIGHT SKY AQUABEAM400LL2:40

02SpecificationManufacturer's data · 5 groups · 40 values

What this product is, in numbers.

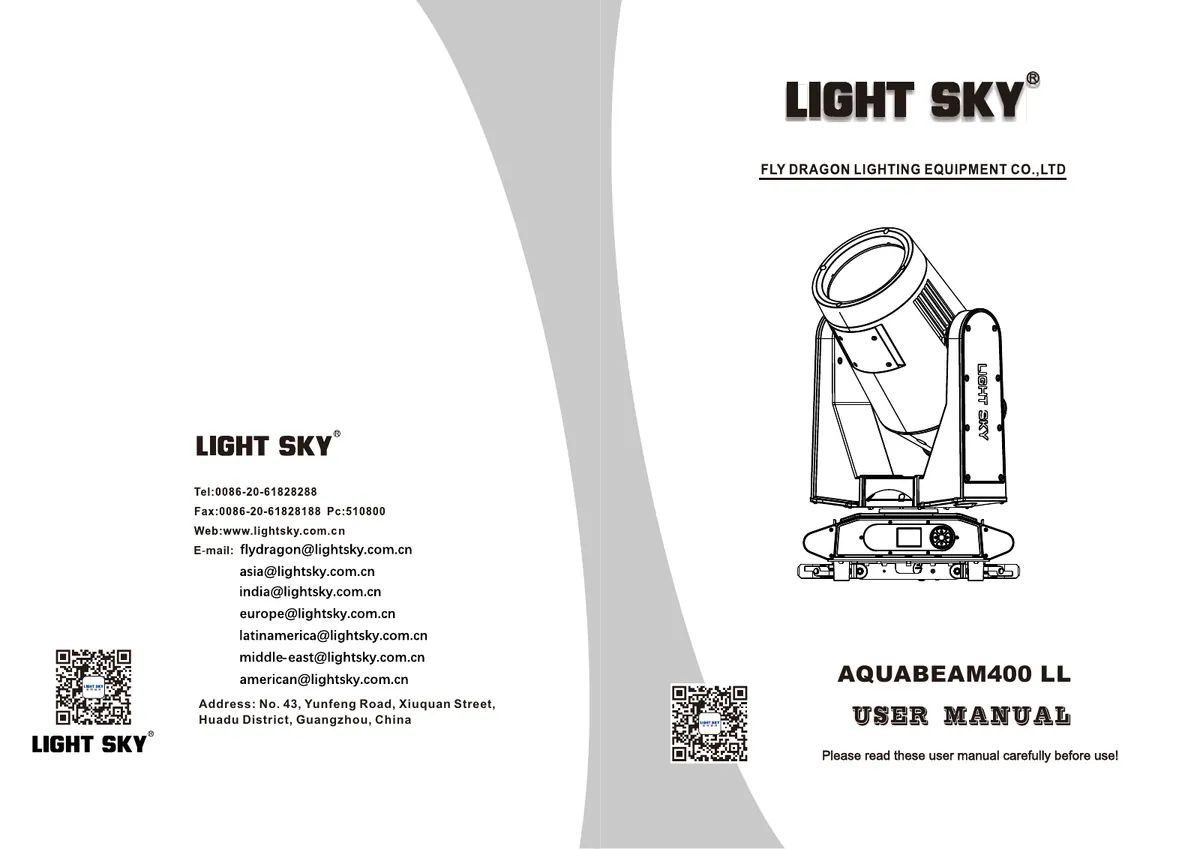

PDFUser manualEN · 22 pages · 4.6 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source / Power System7

Voltage: AC100-240V 50/60Hz
Power: 550W, PF0.98;
Light source: 400W USHIO NSL 400L
Light source average life span: 2000 hours / normal 6000 hours/eco
Lamp Temperature: 7300K
Illuminance: 650000lux@10m
E-ballast: 400W Ushio E-ballast

02Color / GOBO / Effects10

Beam Angle: 2°
Frost: Adjustable independent frost effect

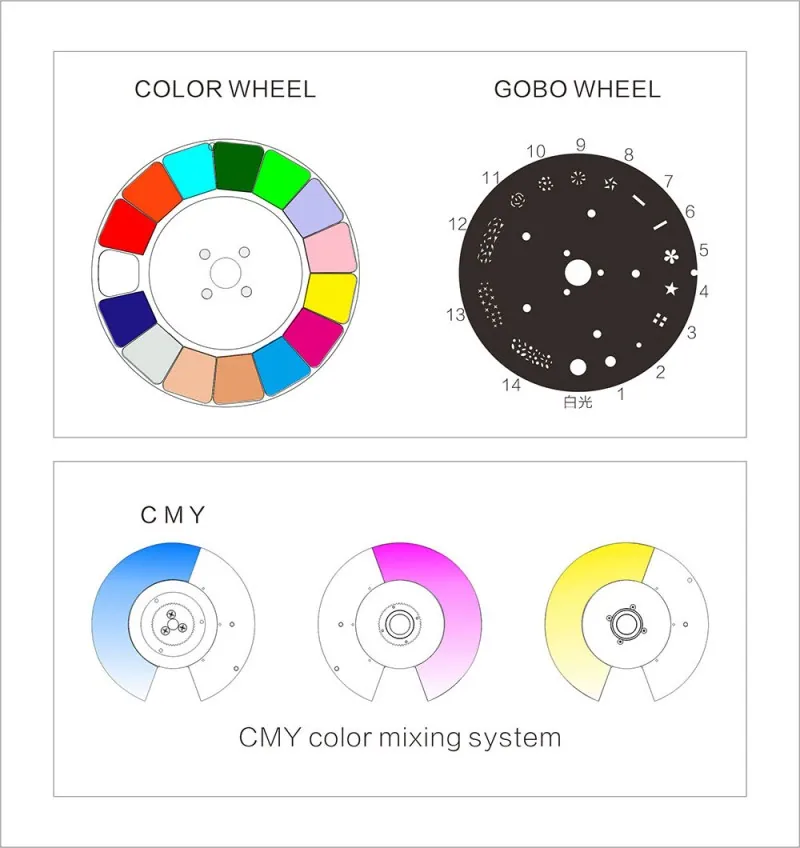

Color: 14 color + blank , inner build in with 2500K , 3200K CTO ,
CMY system: Independent CMY color mixing .
Static gobo wheel: 11 gobo + blank + 3 animation gobo
Prism: 8 facet prism +16 facet prism + prism combination (standard) 3 facet prism + 8 facet prism (optional)
Focus: linear electronic focus
Front lens diameter: 168mm
Strobe: Electronic pulse strobe and random strobe
Dimmer: 0 to 100% linear dimmer

03Control System8

DMX and RDM connectors: Locking 3 pin or 5 pin XLR IN/OUT
Power connector: Seetronic one in one out
Pan/Tilt: 540°/270°
Pan/Tilt Fine: 2.11°/1.05°
Pan/Tilt Speed: 2.9 S/1.2 S
Control protocol: DMX512 RDM
Channel mode: 17 CH
Software upgrade: upgrade via DMX connector

04Other functions5

Display board: 2.0 inch color LCD12864, English/Chinese two version language ;Display board can record device’s using time , show device’s temperature, channel data and software version .
Display: Display board has record function, which can record lamp using time ,fan’s speed 100W power would lower automatically under full shutter condition
Magnetic encoder: non-touch magnetic rotation encoder , 100% correct position memory
RDM: signal two-way transmission
Clamps: Flexible clamps design , convenient for use

05Appearance Parameters10

IP rate: IP54
Hanging system: foldable light hook
Housing: Independent shape design engineering plastic ,; Anti-UV, anti-aging, hot temperature resistant
Light Dimension: 410×300×635mm
N.W: 27.5Kg/pcs
Carton dimension: 450×430×750mm
G.W with carton: 31Kg
Flycase dimension: 940×635×845mm
G.W with fly case: 105Kg(2 in 1)

03DescriptionManufacturer's description

What it is.

The AQUABEAM 400LL is a great outdoor sky beam light for outdoor use. Light sky has been providing intelligent lighting solutions for the entertainment and construction industries; if you are interested in outdoor beam lights, here you will find all the information about outdoor sky beam lights.

FEATURES

Adopts Ushio 400W long life lamp, energy-saving
φ168 optical lens, Sharp, high brightness, which is equal to 4000W sky search
CMY color mixing.
Two prism, prism combination
IP54 rated for outdoor environment
Outdoor PA66 engineering plastic cover, Anti-UV, Anti-aging, high-temperature resistance
