Sheet 05.653

PR Lighting · Beam

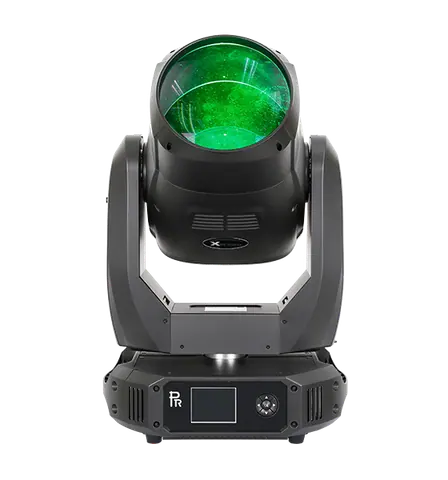

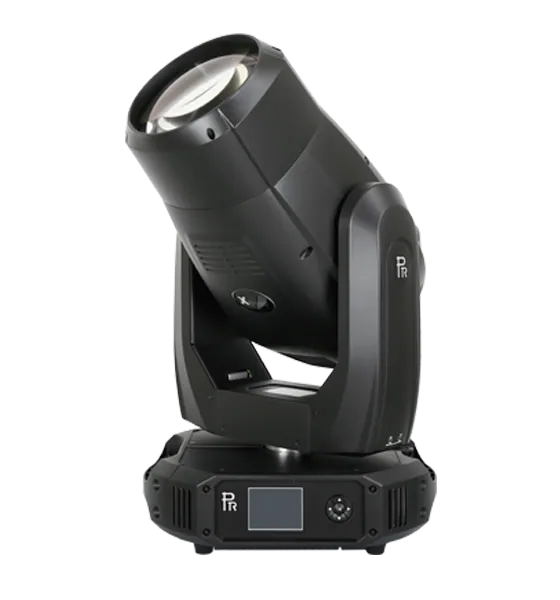

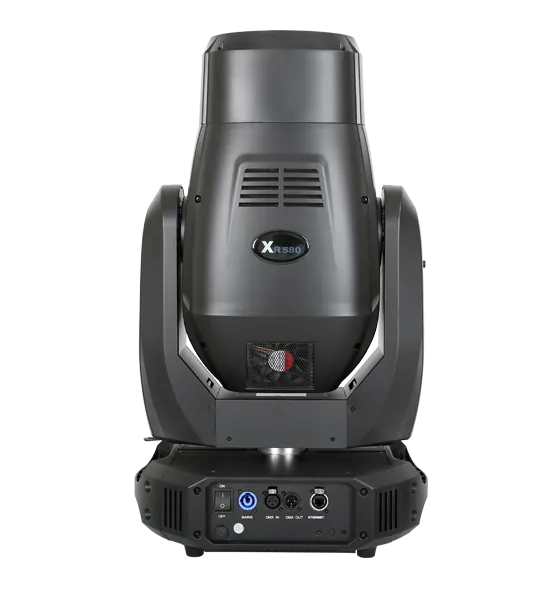

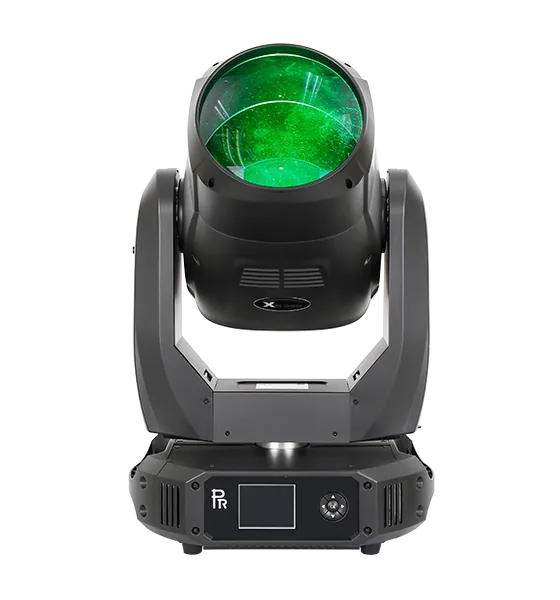

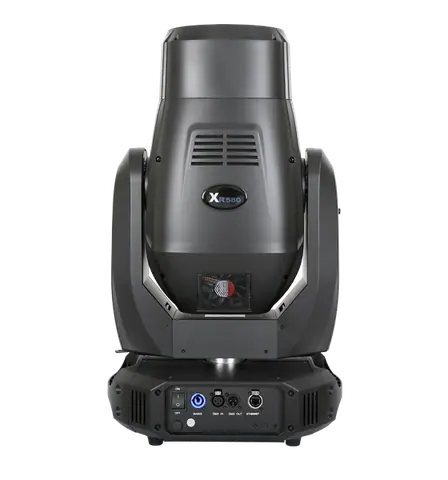

XR 580 Beam

ModelPR-2554

Built for larger lighting applications, the XR 580 Beam offers a very high-intensity output that can really challenge a searchlight.

Light source: PHILIPS MSD Platinum 25R 550W, (7,800±300K, 1,500 hrs)
Net weight: 25Kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 0:54

PR Lighting XR 580 Beam0:54

02SpecificationManufacturer's data · 21 groups · 40 values

What this product is, in numbers.

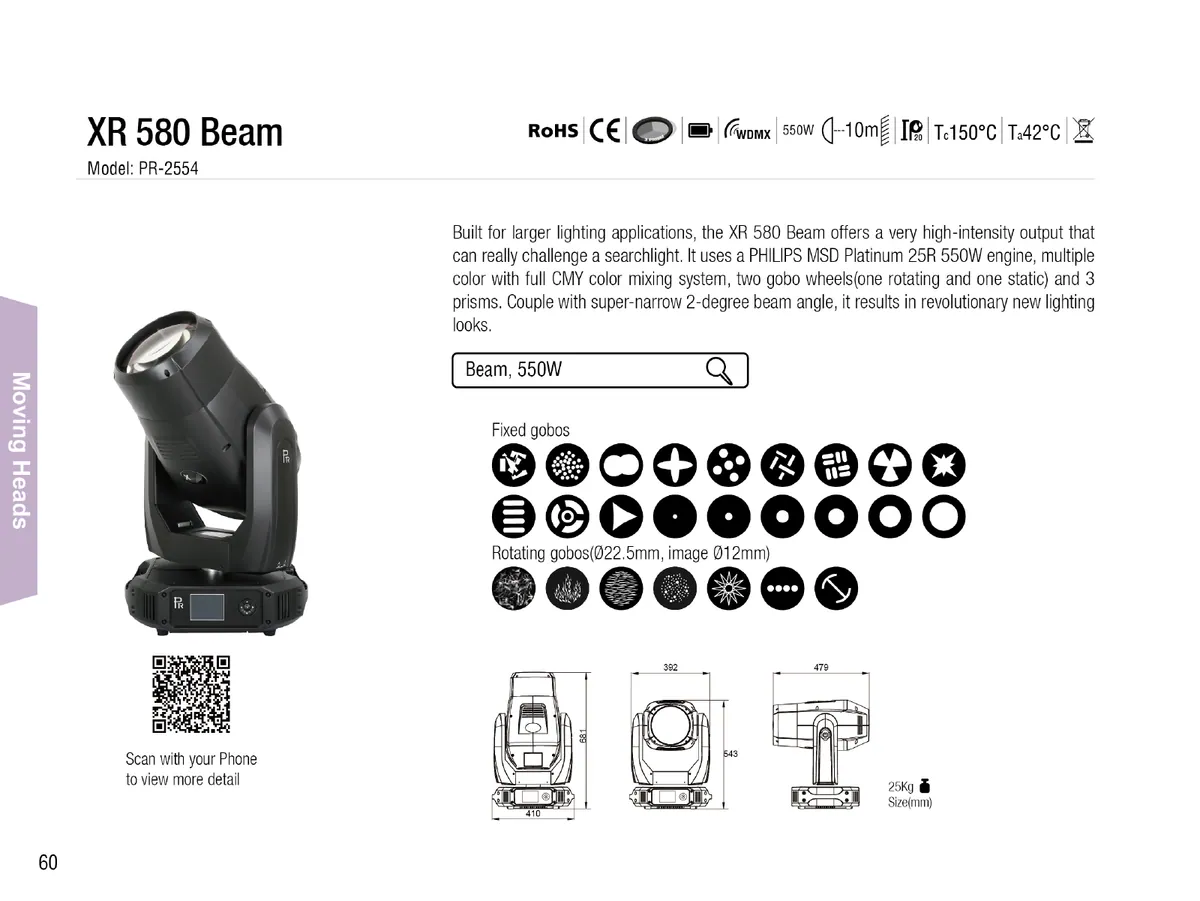

PDFDatasheetEN · 2 pages · 2.1 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Input Voltages1

100-240V AC, 50/60Hz

02Power Consumption1

800W@220V

03Light Source2

PHILIPS MSD Platinum 25R 550W, (7,800±300K, 1,500 hrs)
Optional: OSRAM SIRIUS HRI 550W XL, (7500±300K, 1,500 hrs)

04Strobe1

Double shutter blades, 0.3~25 F.P.S

05Dimmer1

0-100% linear adjustment

06CTO1

Independent 0-100% linear CTO

Show the full specificationHide the rest of the specification15 more groups · 33 values

07Prism2

Three prisms(standard: 8-facet+16-facet+4-facet prism)
bi-directional rotation with variable speeds, optional: 3-facet, gradient prisms

08Frost1

One frost filter

09Focus1

DMX linear focus

10Head Movement1

Pan 540°, tilt 270° with auto position correction

11Light Angle1

2°

12Control3

International DMX512, 5 pins(optional 3 pins) interface

Short mode 22 channels, standard mode 26 channels, extended mode 30 channels

Self-test mode

13Other Functions6

Adjustable pan & tilt speed

LCD display screen

Fixture and lamp hours display

Modular structure for easy maintenance

DMX512 wireless receiver

DMX512 wireless transmitter(optional)

14Physical2

Housing: high temperature engineering plastic, IP20
Ambient temperature: maximum 42°C

15Weight1

Net weight: 25Kg

16Packaging2

Standard: carton 770x730x654(mm)
Optional: flight case 602x549x760(mm)

17Accessories4

G clamp, 2 pcs; 5 pins XLR connector, 1 set; Safety cord, 1 pc
Optional: Ω clamp, 2 pcs

18CMY2

CMY linear mixing system with macros

CMY linear color mixing with macros

19Color Wheel3

1 Color wheel: 12 dichroic color filters plus open; Rainbow effect with bi-directional and variable speeds; Stepping/linear color changing

20Fixed Gobo2

1 Fixed gobo wheel: 18 gobos plus open; Bi-directionally rotatable, and shakable effect at variable speeds

21Rotating Gobo2

1 Rotating gobo wheel: 7 interchangeable gobos plus open; Bi-directionally rotatable, and shakable at variable speeds

03DescriptionManufacturer's description

What it is.

Built for larger lighting applications, the XR 580 Beam offers a very high-intensity output that can really challenge a searchlight. It uses a PHILIPS MSD Platinum 25R 550W engine, multiple color with full CMY color mixing system, two gobo wheels(one rotating and one static) and 3 prisms. Couple with super-narrow 2-degree beam angle, it results in revolutionary new lighting looks.

04Documents3 files · 5.3 MB
