F230II

Light source: 230W(OSRAM SIRIUS HRI 230W)
Power supply: AC100~240V 50/60Hz
Beam angle / zoom: 2.5°
Protocols: DMX512、RDM
Colour temperature: 8000K
Net weight: 17.5Kg/pcs

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:03

LIGHT SKY F230II2:03

02SpecificationManufacturer's data · 5 groups · 30 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source / Power System6

Voltage: AC100~240V 50/60Hz
Power: 345W
Color Temperature: 8000K
Light source: 230W(OSRAM SIRIUS HRI 230W)
Light source average life span: 2000H

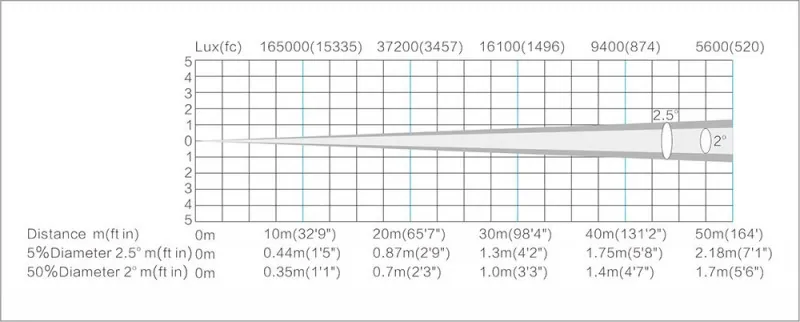

Illuminance: 165000lux@10m

02Color / GOBO / Effects5

Color: 1white color+14 color wheel
Static gobo wheel: 1blank gobo+11gobo+3animation range
Prism: 8 prism + 24 prism +prism combination
Beam angle: 2.5°
Stobe: 1-30 times/second

03Control System2

Control protocol: DMX512、RDM
Channel mode: 14CH/16CH/16PLUS

04Other functions9

IP set: Automatic chang battery,IP could be set without electricity.
Software upgrade: Insert USB upgrade software.
Features: Remote control lamp’s swith function display light and lamp’s using time.; automaticallay adjust cooling-fan’s speed,Drop power when strobe lens.
Safety Devices: 1、BIPOlar circuit breaker with thermal protection.; 2、Automatic break in power supply in case of overheating or failed operation of cooling system.
Cooling: Forced ventilation with axial fans
The vertical direction: The vertical direction of the use of hidden locking device,; convenient transportation and maintenance.

05Appearance Parameters8

Housing: Heat-proof plastic+module pressing alloy materials.
Hanging system: foldable light hook

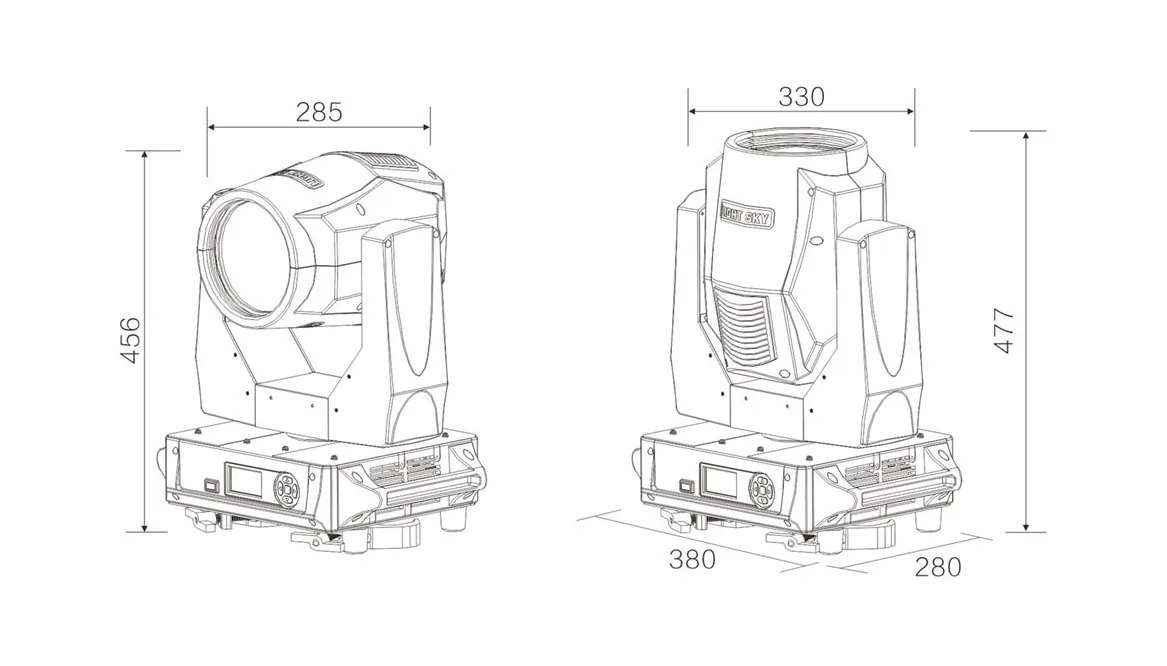

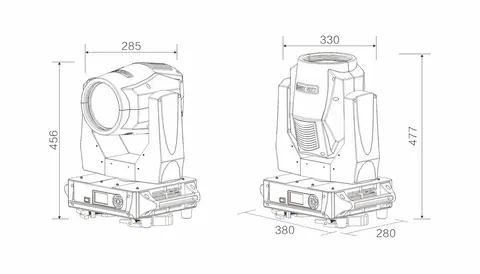

Light Dimension: 380 x 280 x 477mm
N.W: 17.5Kg/pcs
Carton dimension: 400x350x570mm
G.W with carton: 19.9Kg
Flycase dimension: 885x490x740mm
G.W with fly case: 69Kg (2 in 1)

03DescriptionManufacturer's description

What it is.

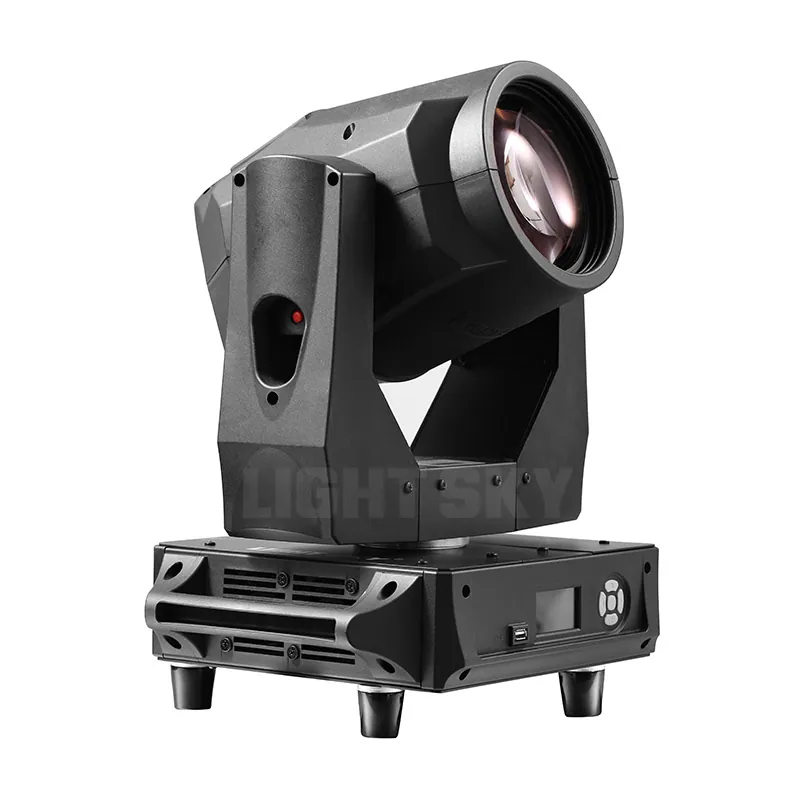

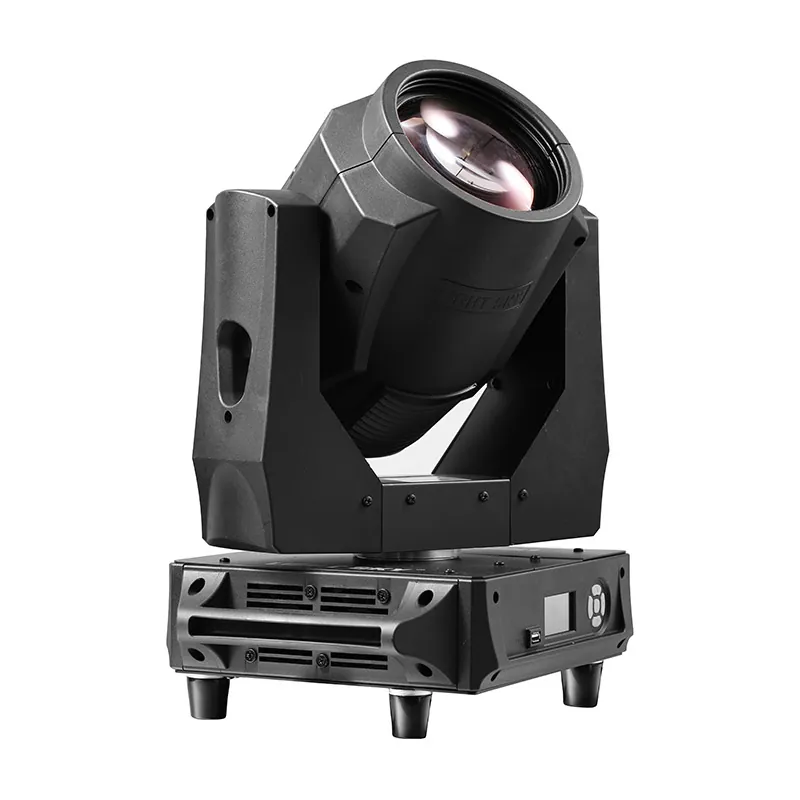

LiGHT SKY F230II is a high-quality beam moving head with an inner lens diameter of φ145mm and an Osram Sirius (230W) lamp to make its light spot more uniform and brilliant. Light Sky provides you with various exciting visual effects at an affordable price. If you are interested in DJ beam lights? Please get in touch with us, and our team of experts will get back to you as soon as possible.

FEATURES

Lamp:230W (OSRAM SIRIUS HRI 230W). The light spot is uniform, and the light effect is gorgeous.
With 8 prism + 24 prism+prism combination.
LCD backlit screen design can display under the sunshine.
Unique USB software upgrading system.
Tilt’s locked & unlock convenient function one-button.
Tiny fixture, clamp system equipped & easy installment.
Heat-proof plastic, Anti-UV, Anti-Radiation, Anti- high pressure, Anti-aging.

04Documents8 files · 5.3 MB
