Budg Beam 300

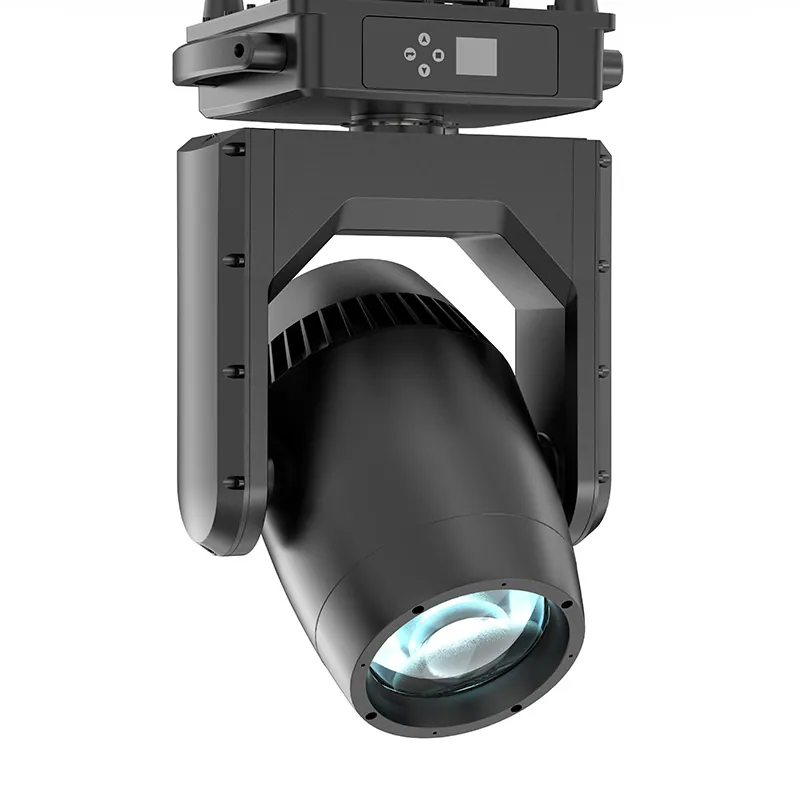

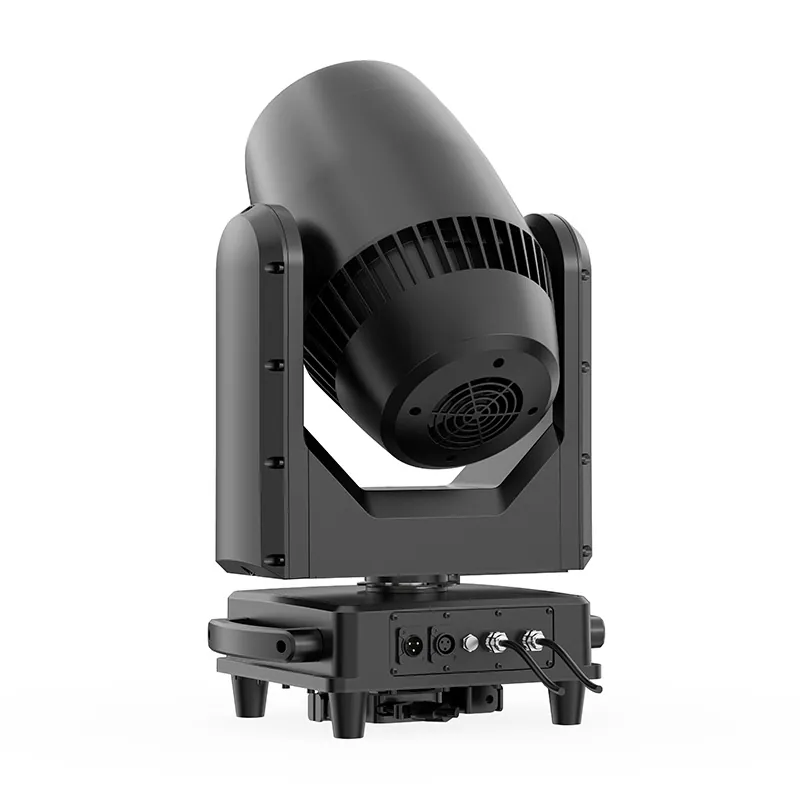

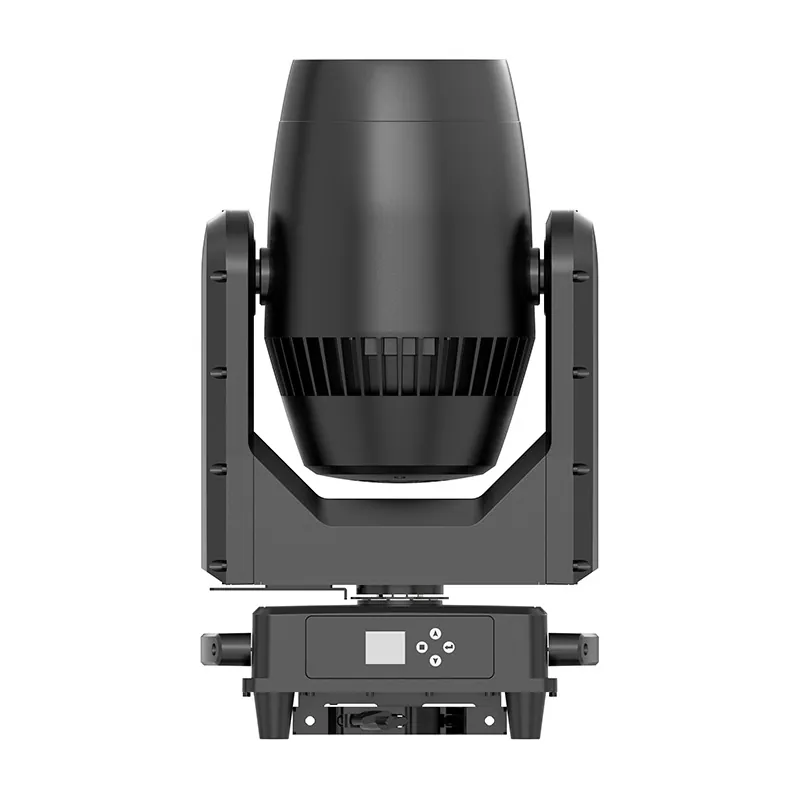

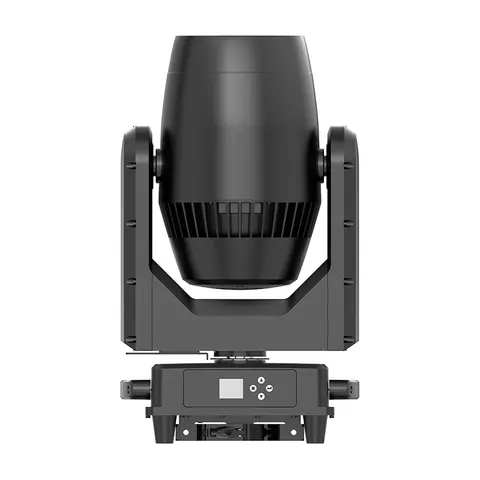

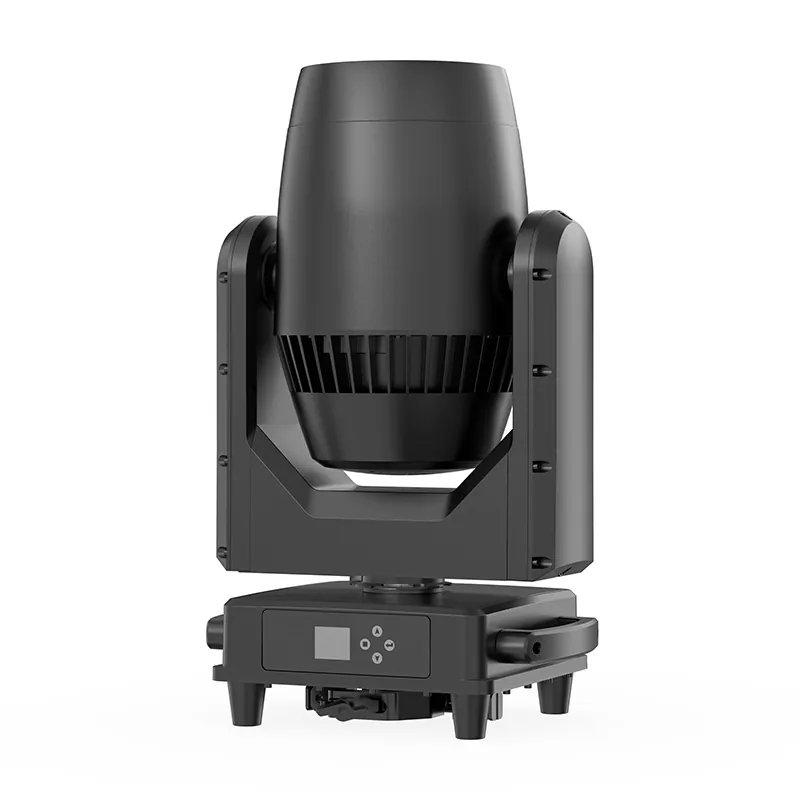

The Budg Beam 300 is a pure beam waterproof moving head light.

Light source: USHIO NSL 301
Power supply: AC 100-240V 50/60Hz
Beam angle / zoom: 2.18°(φ6mm white circle)
DMX channels: 16CH(see channel chart for details)
Protocols: DMX512, RDM
Colour temperature: 7323K
Net weight: 23.3 kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 9 groups · 34 values

What this product is, in numbers.

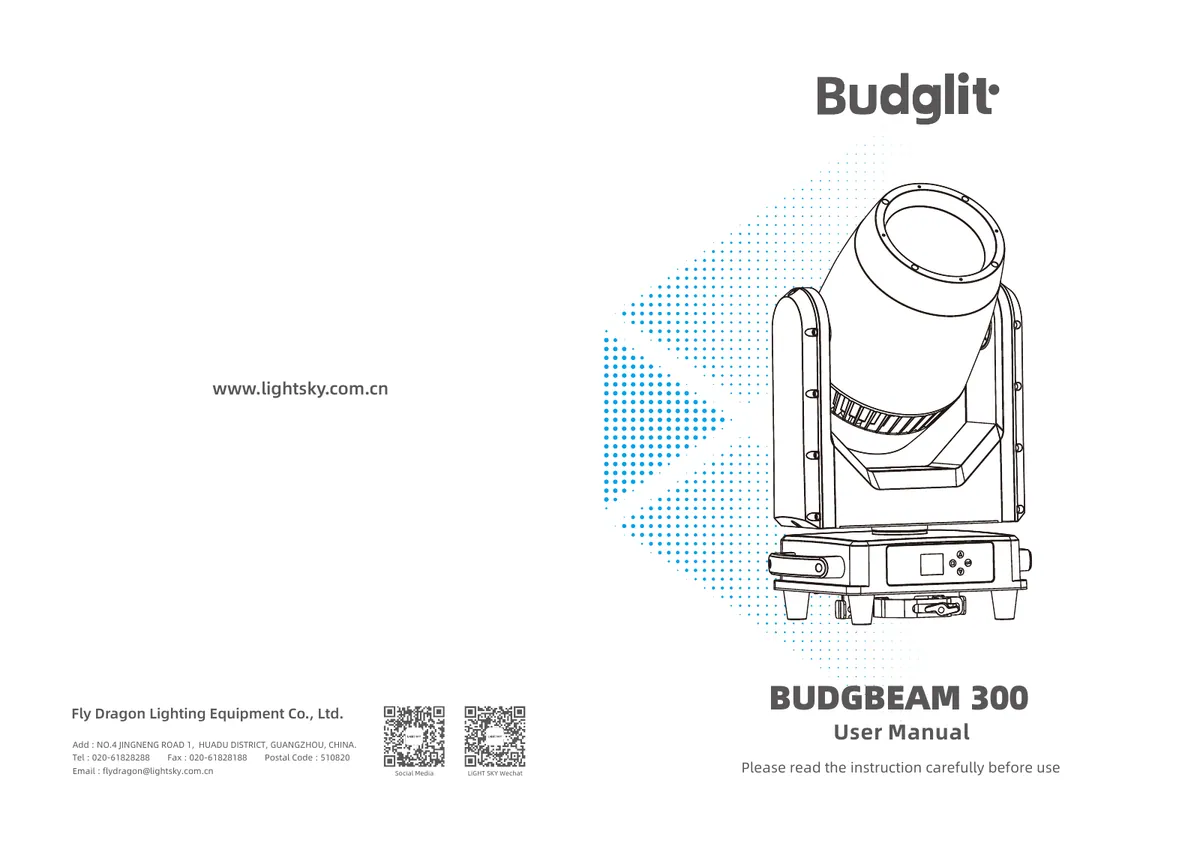

PDFUser manualEN · 22 pages · 3.1 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01OPTICAL7

Light source: USHIO NSL 301
Beam angle: 2.18°(φ6mm white circle)
Optical lens: φ152mm (High-transmission AR coating)
Color Temperature: 7323K
Color Rendering Index (CRI): Ra≥77

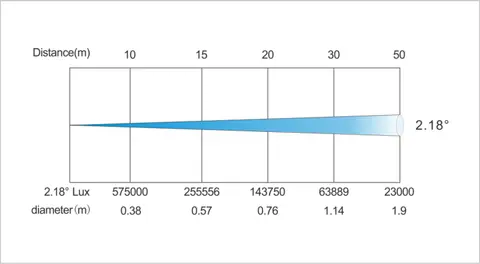

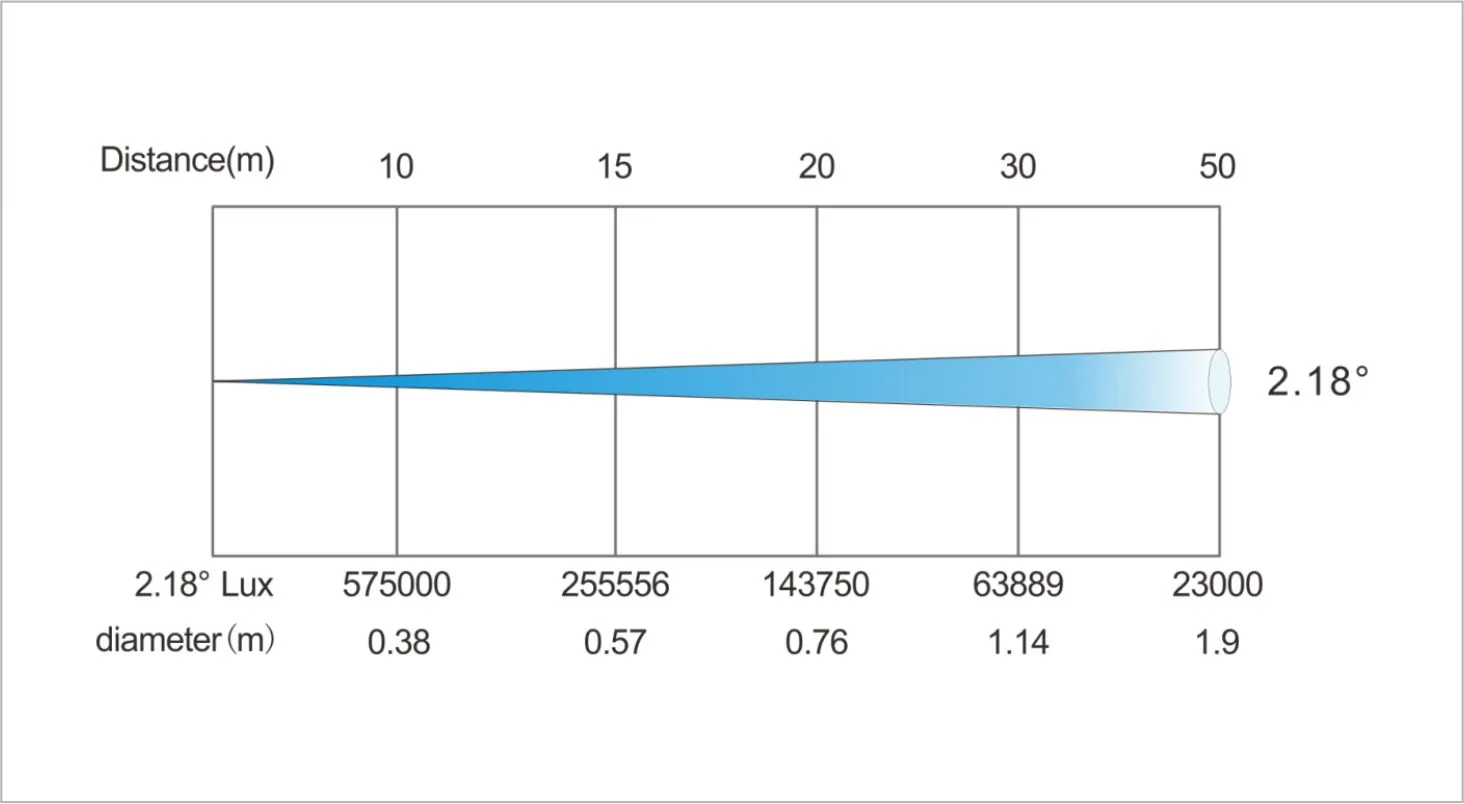

Illuminance: 57,5000 Lux@10m
Light Source life expectancy: 2,000 hours

02COLOR1

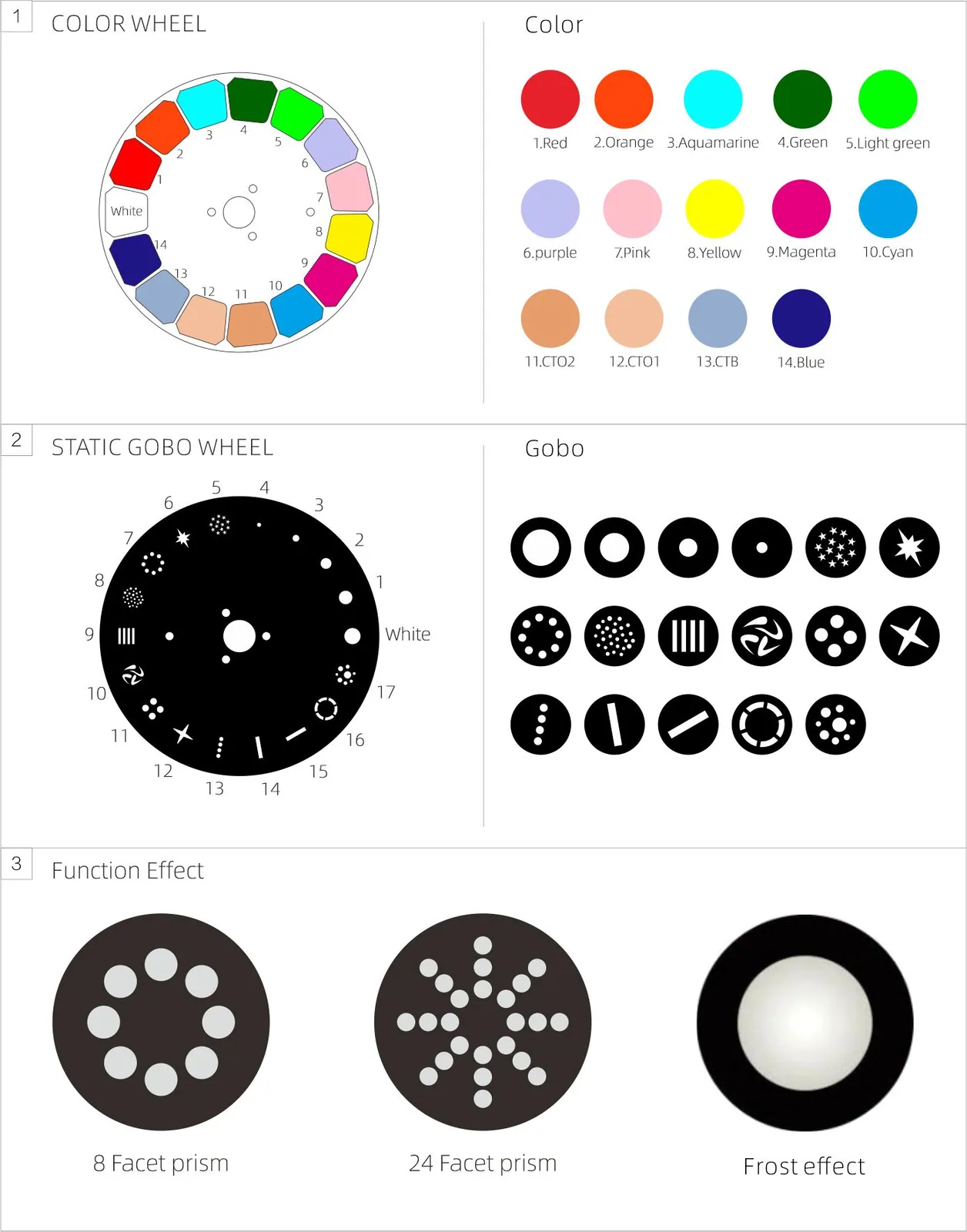

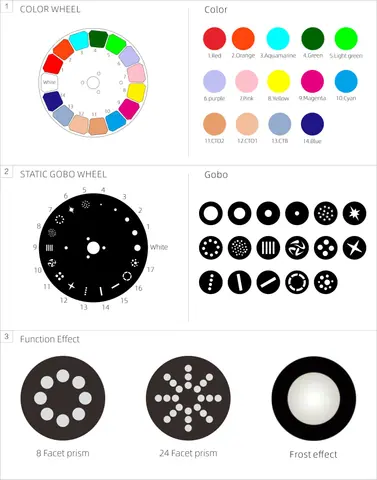

Color Wheel: 14 Colors filters + white light, Bi-directional rainbow effect, dual-color stepping gradient (linear movement), and bidirectional color wheel rotation.

03GOBO1

Static gobo wheel: 17 fixed gobo +1 Blank ,supporting flowing water effect and jitter effect.

04EFFECTS5

8-facet prism + 24-facet prism: Bidirectional independent rotation, individual switching, and multiple combination.
Frost: Independent Frost Effect
Focus: Motorized focus
Strobe: Adjustable pulse strobe (0.5-12Hz) and random strobe
Dimmer: 0 to 100% linear dimmer

05CONTROL5

Control channels: 16CH(see channel chart for details)
Protocols: DMX512, RDM
Data connection: Three-core or five-core signal input/output
Display: 1.7-inch screen with touch-sensitive buttons; Upgrade software via DMX signal

06PAN/TILT MOVMENT4

Pan axis: 540°, 8-bit/16-bit precision scan
Tilt axis: 270°, 8-bit/16-bit precision scan; Reset function with automatic error correction

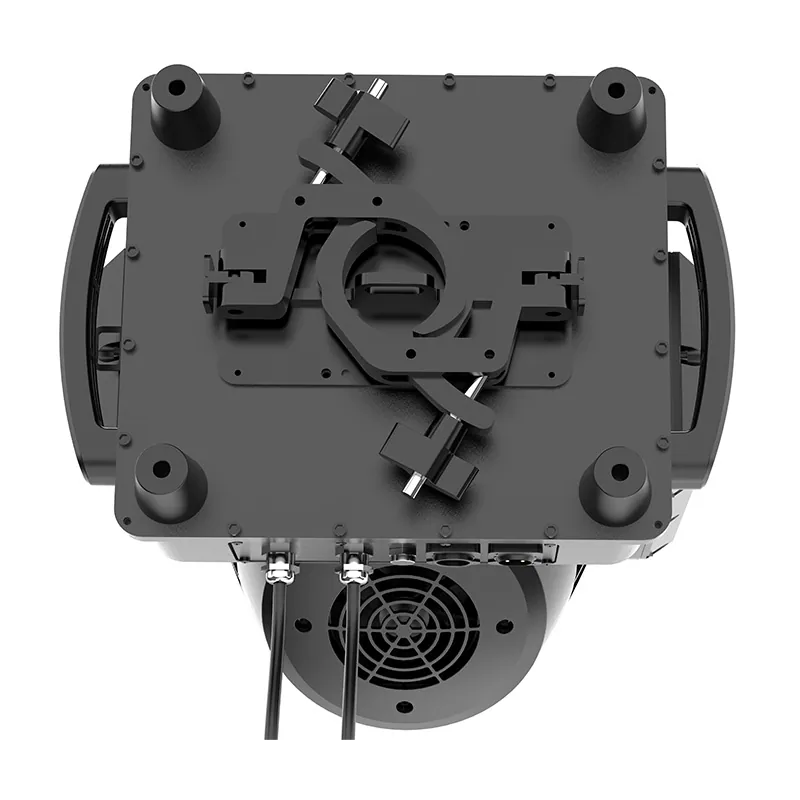

Fixed Lock: Pan axis lock

07POWER4

Input voltage: AC 100-240V 50/60Hz
Max power: 450W
Power factor: 0.95
Max. current: 2.1A/220V, 4.2A/110V

08SIZE & WEIGHT4

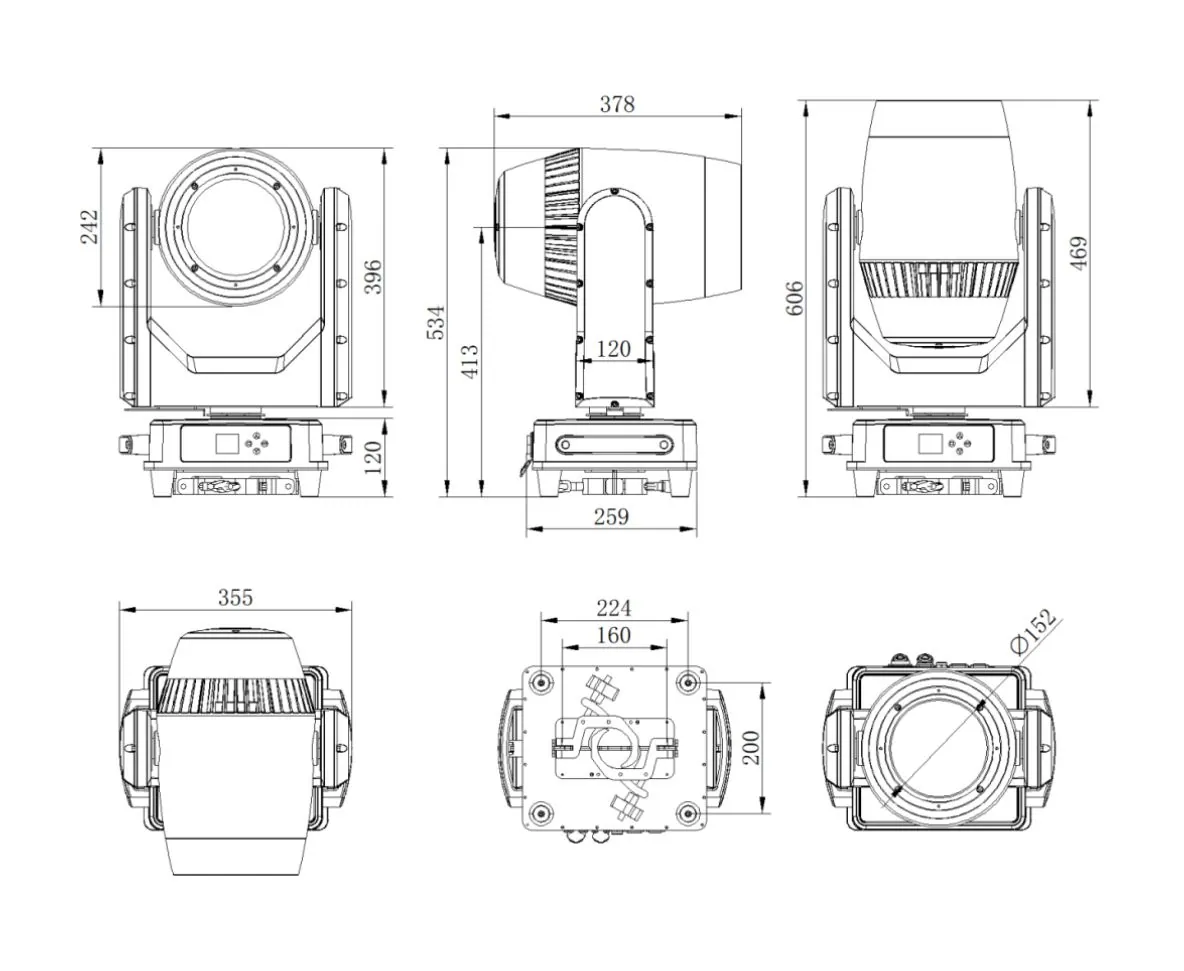

Product size: 355×259×606mm
Net weight: 23.3 kg
Carton packaging (default): 430×320×735mm
Gross weight: 26.8kg

09OTHERS3

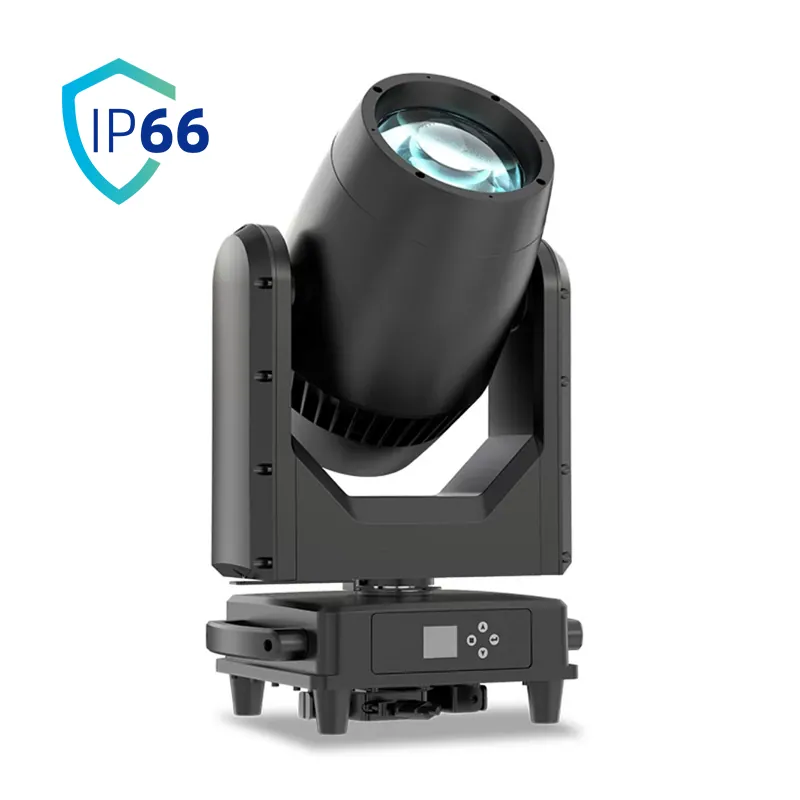

Protection level: IP66
Operating environment: -20°C~40°C
Max surface temperature: ≤80°C

02DescriptionManufacturer's description

What it is.

The Budg Beam 300 is a pure beam waterproof moving head light. Its optical system adopts high-precision optical components, featuring a φ152mm lens for long projection distance, high illuminance, dense beams, and sharp patterns.The lamp adopts with a USHIO NSL 301 lamp, which has an expected lifespan of 2000 hours The system is equipped with an 8-facet prism and a 24-facet prism, enabling multiple combination effects to create versatile prism beams with strong stereoscopic effects.The fixture achieves an illumination of 57,5000 lux @10m with Ra up to 77, vibrant colors, and excellent saturation.The fixture is compact and lightweight, with precise horizontal and vertical positioning and fast response. It is suitable for concerts, stage performances, weddings, corporate events, parties, auto shows, and other entertainment venues. With an IP66 protection rating, it can be used outdoors in rainy weather.

FEATURES

The Budg Beam 300 is a pure beam waterproof moving head light.
Beam angle: 2.18°(φ6mm white circle)
Optical lens: φ152mm (High-transmission AR coating)
Light Source life expectancy: 2,000 hours
14 Colors filters + white light, Bi-directional rainbow effect
Static gobo wheel: 17 fixed gobo +1 Blank ,supporting flowing water effect and jitter effect.
8-facet prism + 24-facet prism
IP66 Rated
