Sheet 05.652
PR Lighting · Beam

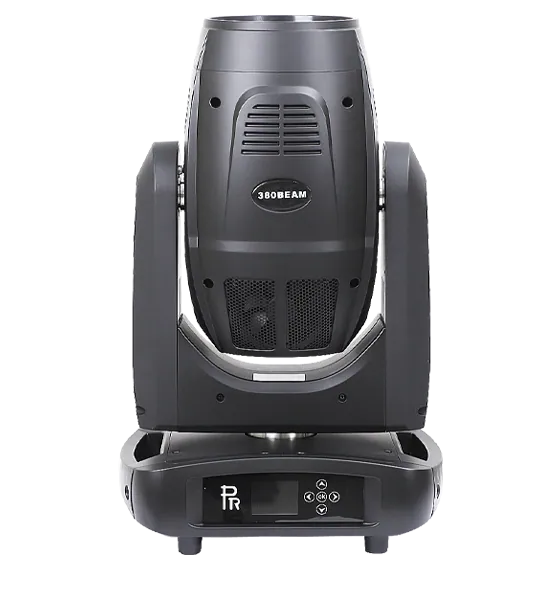

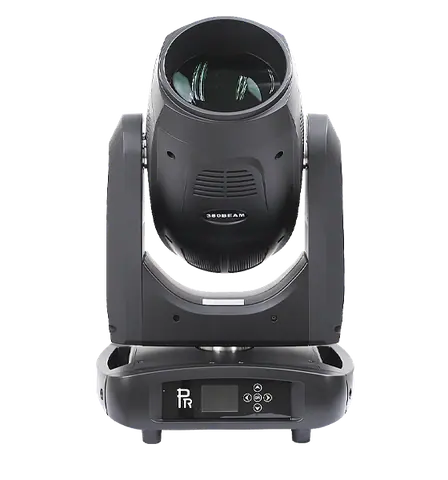

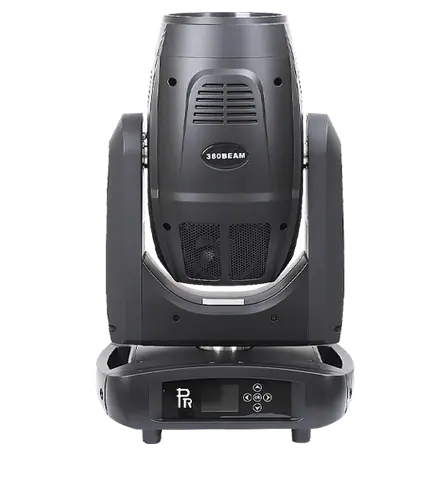

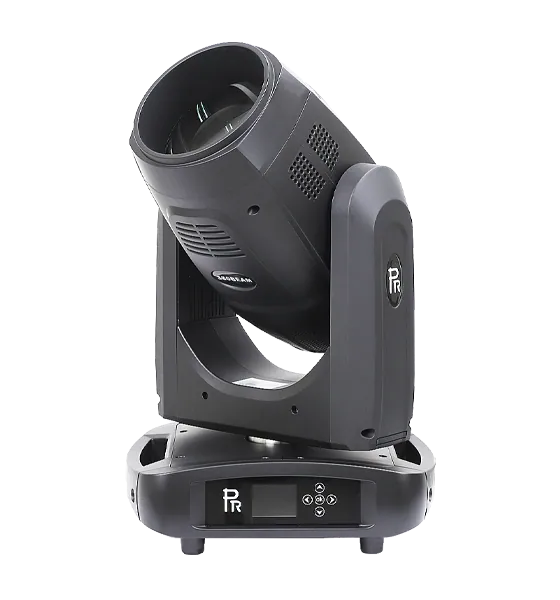

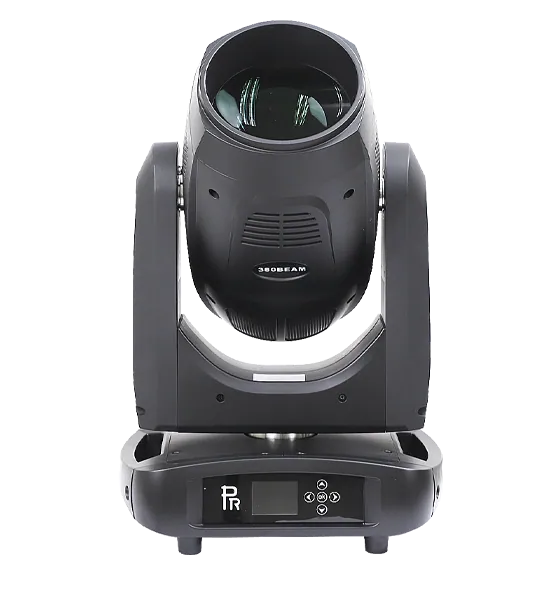

PR Lighting XR 380 Beam PR-2345A
ModelPR-2345A
- Light source
- MSD Platinum 300S Flex
- Power consumption
- 600W@230V
- Power supply
- 200V~240V AC,50/60Hz
- Colour temperature
- 7800K
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
XR 380 BeamPrice on requestRequest a quotation
01SpecificationManufacturer's data · 12 groups · 19 values
What this product is, in numbers.

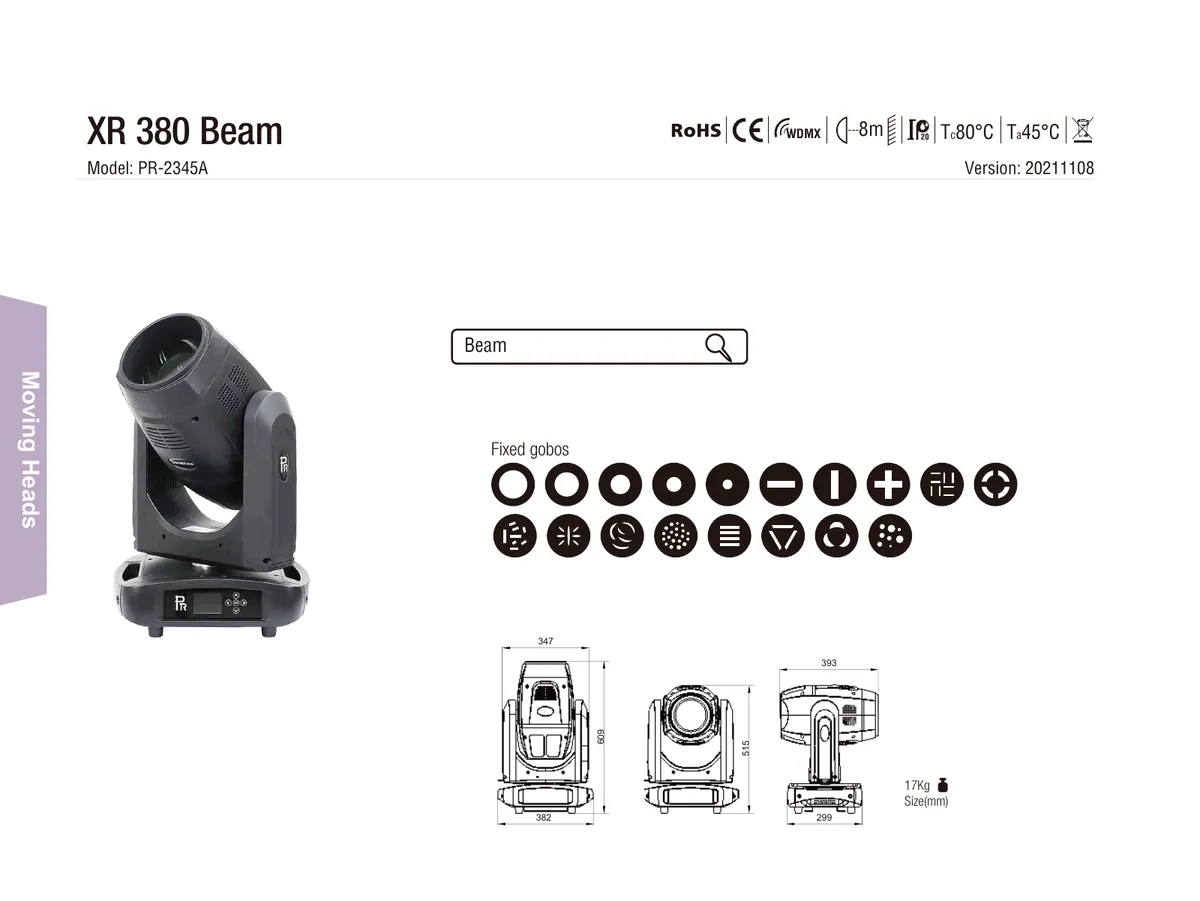

PDFDatasheetEN · 2 pages · 178 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01ELECTRIC PARAMETERS3
- Input voltage
- 200V~240V AC,50/60Hz
- Input power
- 600W@230V
- Power factor
- PF>0.90
02THE SPECIFICATIONS OF THE LIGHT SOURCE3
- Lamp
- MSD Platinum 300S Flex
- Color temperature
- 7800K
- rated life
- 6000hrs
03PRISM/FROST1
- 1 8-facet prism and 1 16-facet prism, bi-directional rotation from slow to fast , both can be overlapped
04FOCUS1
- DMX linear focus
05DIMMER /STROBE2
- Strobe at variable speeds(15 F.P.S at maximum)
- 0-100% linear dimmer
06HEAD MOVEMENT1
- Pan 540º, Tilt 270º with 16 bit control
07BEAM ANGLE1
- 0°~ 2°
08CONTROL2
- International standard DMX 512 protocol, 5-pin interface
- 14channels in short mode and 16channels in standard mode
09HOUSING1
- High temperature and anti-UV ABS and aluminum , IP20
10NET WEIGHT1
- 17Kg
11OPERATION TEMPERATURE1
- Ambient temperature at maximum
- 45°C
12General2
- 1color wheel
- 14colors+ Open
- 1 fixed gobo wheel
- 17gobos+open
Show the full specificationHide the rest of the specification0 more groups · 0 values
